TP-Link T1700X-16TS Manuel utilisateur

Business Networking Solution

Installation Guide

JetStream 12-Port 10GBase-T Smart Switch

with 4 10G SFP+ Slots

T1700X-16TS

About this Installation Guide

This Installation Guide describes the hardware characteristics, installation methods and the

points that should be attended to during the installation. This Installation Guide is structured as

follows:

Chapter 1 Introduction.

This chapter describes the external components of the switch.

Chapter 2 Installation.

This chapter illustrates how to install the switch.

Chapter 3 Lightning Protection.

This chapter illustrates how to prevent lightning damage.

Chapter 4 Connection.

This chapter illustrates how to do the physical connection of the switch.

Chapter 5 Configuration.

This chapter instructs you to configure the switch via Web Interface and CLI commands.

Appendix A Troubleshooting.

Appendix B Specifications.

Audience

This Installation Guide is for:

Network Engineer Network Administrator

Conventions

• The figures in Chapter 2 to Chapter 4 are for demonstration purposes only. Your switch may differ

in appearance from that depicted.

• This Guide uses the specific formats to highlight special messages. The following table lists the

notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may result in device damage.

Remind to take notice. The note contains the helpful information for a better use of the

product.

Related Document

The User Guide and CLI Reference Guide of the product are provided on the resource CD. To

obtain the latest product information, please visit the official website: http://www.tp-link.com

JetStream 12-Port 10GBase-T Smart Switch with 4 10G SFP+ Slots

II Contents

Contents

Chapter 1 Introduction ——————————— 01

1.1 Product Overview ...........................................................01

1.2 Appearance.......................................................................01

Chapter 2 Installation ——————————— 04

2.1 Package Contents ..........................................................04

2.2 Safety Precautions .........................................................04

2.3 Installation Tools..............................................................06

2.4 Product Installation ........................................................07

Chapter 3 Lightning Protection ——————— 09

3.1 Cabling Reasonably........................................................09

3.2 Connect to Ground.........................................................11

3.3 Equipotential Bonding...................................................12

3.4 Use Lightning Arrester..................................................13

Chapter 4 Connection ——————————— 15

4.1 Ethernet Port ....................................................................15

4.2 SFP+ Port ...........................................................................15

4.3 Verify Installation.............................................................15

4.4 Power On............................................................................16

4.5 Initialization........................................................................16

Chapter 5 Conguration —————————— 17

5.1 Congure the Switch via GUI......................................17

5.2 Congure the Switch Using CLI.................................18

Appendix A Troubleshooting ———————— 20

Appendix B Specications ————————— 21

JetStream 12-Port 10GBase-T Smart Switch with 4 10G SFP+ Slots

01Introduction

Chapter 1 Introduction

1.1 Product Overview

TP-Link 10-Gigabit Smart Switch provides wire-speed performance and abundant L2

and L2+ management features. It provides a variety of service features and multiple

powerful functions with high security. With the 10-Gigabit Smart Switch, you can create

high-speed connections to a server or network backbone, connect switches to each

other with high-speed links, link to high-speed servers, or provide 10G copper and fiber

connectivity.

You can use Category 5e (CAT 5e) or better Ethernet cable (CAT 6, CAT 6a, or CAT 7) to

make 10G connections. TP-Link recommends that you use CAT 6a or CAT 7 cables if

the cable distance is greater than 148 feet (45 meters).

The EIA-standardized framework and smart configuration capacity can provide flexible

solutions for a variable scale of networks. QoS and IGMP snooping/filtering optimize

voice and video application. Link aggregation increases aggregated bandwidth,

optimizing the transport of business critical data. SNMP, RMON, WEB and CLI Log-

in bring abundant management policies. TP-Link 10-Gigabit Smart Switch integrates

multiple functions with excellent performance, and is friendly to manage, which can

fully meet the need of the users demanding higher networking performance.

1.2 Appearance

■Front Panel

The front panel of T1700X-16TS is shown as the following figure.

Figure 1-1 Front Panel of T1700X-16TS

100M/1000M/10Gbps

RJ45 Port

1G/10Gbps SFP+ Port

LEDs Indication LEDs Reset

LEDs

LED Status Indication

PWR

On The switch is powered on

Off The switch is powered off or power supply is abnormal

Flashing Power supply is abnormal

JetStream 12-Port 10GBase-T Smart Switch with 4 10G SFP+ Slots

02 Introduction

LED Status Indication

SYS Flashing The switch is working normally

On/Off The switch is working abnormally

FAN

Green All the fans work properly

Yellow Not all the fans work properly

Off The switch is working abnormally

Link/Act

( Po r t 1-12)

Green On There is a 10Gbps device connected to the

corresponding port but no activity

Flashing Data is being transmitted or received

Yellow On There is a 100/1000Mbps device connected to the

corresponding port but no activity

Flashing Data is being transmitted or received

Off No device is connected to the corresponding port

Link/Act

(Port 13-16)

Green On There is a 10Gbps device connected to the

corresponding port but no activity

Flashing Data is being transmitted or received

Yellow On There is a 1000Mbps device connected to the

corresponding port but no activity

Flashing Data is being transmitted or received

Off No device is connected to the corresponding port

Reset

Press this button for 5 seconds or above to reset the software setting back to

factory default settings.

100M/1000M/10G RJ45 Port

Designed to connect to the device with a bandwidth of 100Mbps, 1000Mbps or

10Gbps. Each has two corresponding Link/Act LEDs , the left one is 10Gbps and the

right one is 100/1000Mbps.

SFP+ Port

Designed to install the SFP module. T1700X-16TS features 4 individual SFP+ ports

and supports 1G or 10G SFP module connection.

JetStream 12-Port 10GBase-T Smart Switch with 4 10G SFP+ Slots JetStream 12-Port 10GBase-T Smart Switch with 4 10G SFP+ Slots

03Introduction

■Rear Panel

The rear panel of T1700X-16TS is shown as the following figure.

Figure 1-2 Rear Panel of T1700X-16TS

Power SocketKensington Security Slot Grounding

Terminal

Kensington Security Slot

Secure the lock (not provided) into the security slot to prevent the device from being

stolen.

Grounding Terminal

The switch already comes with lightning protection mechanism. You can also ground

the switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.

For detailed information, please refer to Chapter 3 Lightning Protection.

Power Socket

Connect the female connector of the power cord here, and the male connector to

the AC (Alternating Current) power outlet. Please make sure the voltage of the power

supply meets the requirement of the input voltage.

Caution:

Please use the provided power cord.

JetStream 12-Port 10GBase-T Smart Switch with 4 10G SFP+ Slots

04 Installation

Chapter 2 Installation

2.1 Package Contents

Make sure that the package contains the following items. If any of the listed items is

damaged or missing, please contact your distributor.

One Resource CD

One Switch One Power Cord This Installation Guide

Two Mounting Brackets and the

Fittings

Installation Guide

BusinessNetworking Solution

2.2 Safety Precautions

To avoid any device damage and bodily injury caused by improper use, please observe

the following rules.

■Safety Precautions

■Keep the power off during the installation.

■Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good skin

contact and is well grounded.

■Use only the power cord provided with the switch.

■Make sure that the supply voltage matches the specifications indicated on the rear

panel of the switch.

■Ensure the vent hole is well ventilated and unblocked.

■Do not open or remove the cover of the switch.

■Before cleaning the device, cut off the power supply. Do not clean it by the waterish

cloth, and never use any other liquid cleaning method.

JetStream 12-Port 10GBase-T Smart Switch with 4 10G SFP+ Slots JetStream 12-Port 10GBase-T Smart Switch with 4 10G SFP+ Slots

05Installation

■Site Requirements

Temperature/Humidity

40℃

0℃

Please keep a proper temperature and humidity in the equipment room. Too high/low

humidity may lead to bad insulation, electricity leakage, mechanical property changes

and corrosions. Too high temperature may accelerate aging of the insulation materials

and can thus significantly shorten the service life of the device. For normal temperature

and humidity of the device, please check the following table.

Environment Temperature Humidity

Operating 0℃to 40℃10% to 90%RH Non-condensing

Storage -40℃to 70℃5% to 90%RH Non-condensing

Clearness

The dust accumulated on the switch can be absorbed by static electricity and result

in poor contact of metal contact points. Some measures have been taken for the

device to prevent static electricity, but too strong static electricity can cause deadly

damage to the electronic elements on the internal circuit board. To avoid the effect of

static electricity on the operation of the Switch, please attach much importance to the

following items:

■Dust the device regularly, and keep the indoor air clean.

■Keep the device well grounded and ensure static electricity has been transferred.

Electromagnetic Interference

Electronic elements including capacitance and inductance on the device can be

affected by external interferences, such as conducted emission by capacitance

coupling, inductance coupling, and impedance coupling. To decrease the interferences,

please make sure to take the following measures:

■Use the power supply that can effectively filter interference from the power grid.

■Keep the device far from high-frequency, strong-current devices, such as radio

transmitting station.

■Use electromagnetic shielding when necessary.

JetStream 12-Port 10GBase-T Smart Switch with 4 10G SFP+ Slots

06 Installation

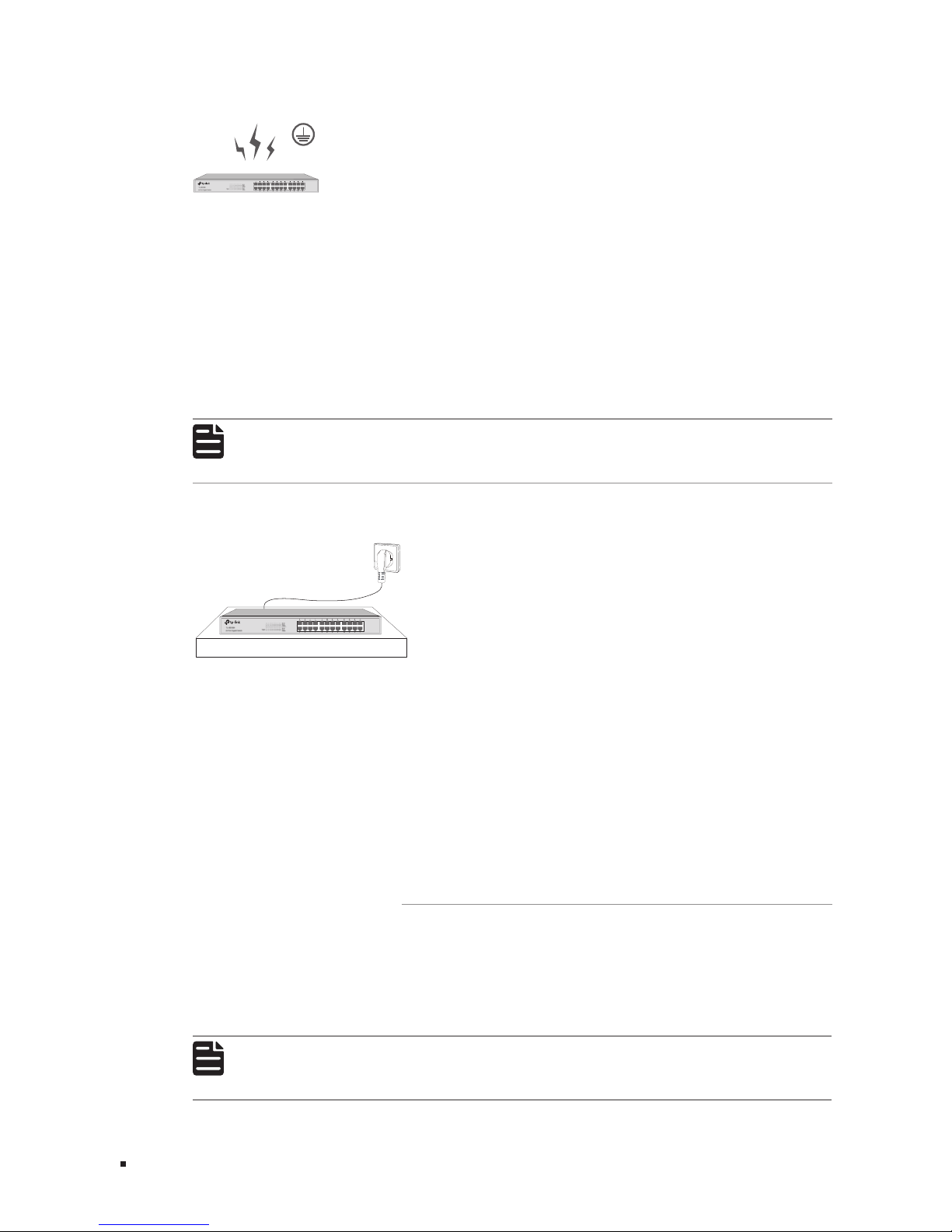

Lightening Protection

Extremely high voltage currents can be produced instantly when lightning occurs and

the air in the electric discharge path can be instantly heated up to 20,000℃. As this

instant current is strong enough to damage electronic devices, more effective lightning

protection measures should be taken.

■Ensure the rack and device are well earthed.

■Make sure the power socket has a good contact with the ground.

■Keep a reasonable cabling system and avoid induced lightning.

■Use the signal SPD (Surge Protective Device) when wiring outdoor.

Note:

For detailed lightning protection measures, please refer to Chapter 3 Lightning

Protection.

Installation Site

When installing the device on a rack or a flat workbench, please note the following

items:

■The rack or workbench is flat and stable, and sturdy enough to support the weight of

5.5kg at least.

■The rack or workbench has a good ventilation system. The equipment room is well

ventilated.

■The rack is well grounded. Keep the power socket less than 1.5 meters away from the

device.

2.3 Installation Tools

■Phillips screwdriver

■ESD-preventive wrist wrap

■Cables

Note:

These tools are not provided with our product. If needed, please self purchase

them.

Autres manuels pour T1700X-16TS

Table des matières

Autres manuels TP-Link Changer

TP-Link

TP-Link TL-SL2428 Manuel utilisateur

TP-Link

TP-Link T3700G-28TQ Manuel utilisateur

TP-Link

TP-Link UH720 Manuel utilisateur

TP-Link

TP-Link HS220 Manuel utilisateur

TP-Link

TP-Link JetStream TL-SG2008 Manuel utilisateur

TP-Link

TP-Link TL-SG105E Manuel utilisateur

TP-Link

TP-Link JetStream T2600G-28TS Manuel utilisateur

TP-Link

TP-Link TL-SF1008D - 10/100M FAST ETHERNET SWITCH Manuel utilisateur

TP-Link

TP-Link JetStream TL-SG5412F Manuel utilisateur

TP-Link

TP-Link JetStream TL-SL5428E Mode d’emploi

TP-Link

TP-Link JetStream TL-SG5412F Manuel utilisateur

TP-Link

TP-Link TL-SG1005D Manuel utilisateur

TP-Link

TP-Link JetStream L2 Lite TL-SG3210 Mode d’emploi

TP-Link

TP-Link Omada SG2218P Manuel utilisateur

TP-Link

TP-Link JetStream TL-SL3428 Mode d’emploi

TP-Link

TP-Link JetStream TL-SG2210P Manuel utilisateur

TP-Link

TP-Link TL-SL5428E Manuel utilisateur

TP-Link

TP-Link Tapo S500D Manuel utilisateur

TP-Link

TP-Link JetStream TL-SL3452 Manuel utilisateur

TP-Link

TP-Link TL-SG116E Manuel utilisateur

TP-Link

TP-Link JetStream T1500G-8T Manuel d'instructions d'installation

TP-Link

TP-Link TL-SG1008 Manuel utilisateur

TP-Link

TP-Link Omada RP108GE Manuel utilisateur

TP-Link

TP-Link TL-SG108PE Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
