TP-Link JetStream TL-SL3428 Manuel utilisateur

Installation Guide

L2 Managed Switch

TL-SL3428

Enterprise Networking Solution



Specifications are subject to change without notice. is a registered trademark of TP-LINK

TECHNOLOGIES CO., LTD. Other brands and product names are trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such

as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright

http://www.tp-link.com



This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference.1)

This device must accept any interference received, including interference that may cause undesired operation.2)

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.



This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the

user may be required to take adequate measures.

Related Document



The User Guide and CLI Reference Guide of the product are provided on the resource

CD.

To obtain the latest product information, please visit the official website:

http://www.tp-link.com



This Installation Guide describes the hardware characteristics, installation methods and

the points that should be attended to during installation.

This Installation Guide is structured as follows:

Chapter 1 Introduction. This chapter describes the external components of the

Switch.

Chapter 2 Installation. This chapter illustrates how to install the Switch.

Chapter 3 Lightning Protection. This chapter illustrates how to prevent lightning

damage.

Chapter 4 Connection. This chapter illustrates how to do the physical connection of

the Switch.

Chapter 5 Configuration. This chapter instructs you to configure the Switch via Web

Interface and CLI commands.

Appendix A Troubleshooting.

Appendix B Hardware Specifications.

Appendix C Technical Support.

III



This Installation Guide is for:

Network Engineer

Network Administrator



This guide uses the specific formats to highlight special messages. The following table

lists the notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may

result in device damage.

Remind to take notice. The note contains the helpful

information for a better use of the product.

Audience



Contents

Chapter 1 Introduction ———————————— 01

1.1 Product Overview.........................................01

1.2 Appearance .................................................01

Chapter 2 Installation ————————————— 04

2.1 Package Contents.........................................04

2.2 Safety Precautions........................................04

2.3 Installation Tools..........................................06

2.4 Product Installation ......................................06

Chapter 3 Lightning Protection ———————— 08

3.1 Cabling Reasonably ......................................08

3.2 Connect to Ground .......................................10

3.3 Equipotential Bonding...................................11

3.4 Use Lightning Arrester ..................................12

Chapter 4 Connection ————————————— 13

4.1 Ethernet Port ...............................................13

4.2 SFP Port ......................................................13

4.3 Console Port ................................................14

4.4 Verify Installation .........................................14

4.5 Power On ..................................................14

4.6 Initialization.................................................15

Chapter 5 Conguration———————————— 16

5.1 Congure the Switch via GUI ........................16

5.2 Congure the Switch Using CLI .....................17

Appendix A Troubleshooting—————————— 22

Appendix B Hardware Specications —————— 23

Appendix C Technical Support ————————— 24

L2 Managed Switch





TP-LINK JetStreamTM L2 Managed Switch, designed for workgroups and departments,

provides wire-speed performance and abundant layer 2 management features. It

provides a variety of service features and multiple powerful functions with high security.

The EIA-standardized framework and smart configuration capacity can provide flexible

solutions for a variable scale of networks. ACL, 802.1x and Dynamic ARP Inspection

provide robust security strategies. QoS and IGMP snooping/filtering optimize voice and

video application. Link aggregation (LACP) increases aggregated bandwidth, optimizing

the transport of business critical data. SNMP, RMON, WEB/CLI/Telnet Log-in bring

abundant management policies. TP-LINK JetStreamTM L2 Managed Switch integrates

multiple functions with excellent performance, and is friendly to manage, which can

fully meet the need of the users demanding higher networking performance.



Front Panel

■

The front panel of TL-SL3428 is shown as the following figure.

Front Panel of TL-SL3428Figure 1-1

LEDs

LED Status Indication

PWR

On The Switch is powered on

Off The Switch is powered off or power supply is abnormal

Flashing Power supply is abnormal

SYS Flashing The Switch works properly

On/Off The Switch works improperly

10/100Mbps

On A device is linked to the corresponding port, but no activity

Flashing Data is being transmitted or received

Green A 100Mbps device is connected to the corresponding port

Yellow A 10Mbps device is connected to the corresponding port

Off No device is connected to the corresponding port

Introduction

L2 Managed Switch

TL-SL3428

LEDs

Console Port

10/100/1000Mbps RJ45 Port

SFP Port

10/100Mbps RJ45 Port

L2 Managed Switch

LED Status Indication

1000Mbps

On A device is linked to the corresponding port, but no activity

Flashing Data is being transmitted or received

Green A 1000Mbps device is connected to the corresponding port

Yellow A 10/100Mbps device is connected to the corresponding port

Off No device is connected to the corresponding port

Note: The Switch features some “Combo”ports. A “Combo”port consists of a RJ45

port and a SFP port, and the two ports share the same LED.

Port Feature

Model 10/100Mbps RJ45

Port

10/100/1000Mbps

RJ45 Port Console Port SFP Port

TL-SL3428 24 4 1 2

10/100Mbps Port

Designed to connect to the device with a bandwidth of 10Mbps or 100Mbps. Each

has a corresponding 10/100Mbps LED.

10/100/1000Mbps Port

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbps. Each has a corresponding 1000Mbps LED.

SFP Port

Designed to install the SFP module. The Switch features some SFP transceiver

slots that are shared with the associated RJ45 ports. The associated two ports are

referred as a “Combo” port, which means they cannot be used simultaneously,

otherwise only SFP port works.

Console Port

Designed to connect with the serial port of a computer or terminal for monitoring

and configuring the Switch.

Note: When using the SFP port with a 100Mbps module or a gigabit module, you

need log on to the GUI (Graphical User Interface) of the Switch and configure its

corresponding Speed and Duplex mode on Switching→Port→Port Cong page. For

100Mbps module, please select 100MFD while select 1000MFD for gigabit module. By

default, the Speed and Duplex mode of SFP port is 1000MFD.

Rear Panel

■

The rear panel of TL-SL3428 is shown as the following figure.

Introduction

L2 Managed Switch

Grounding Terminal

Power Socket

Rear Panel of TL-SFigure 1-2 L3428

Grounding Terminal

The Switch already comes with lightning protection mechanism. You can also ground

the Switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.

For detailed information, please refer to Chapter 3 Lightning Protection.

Power Socket

Connect the female connector of the power cord here, and the male connector to

the AC power outlet. Please make sure the voltage of the power supply meets the

requirement of the input voltage (100-240V~ 50/60Hz).

Caution: Please use the provided power cord.

Introduction

L2 Managed Switch





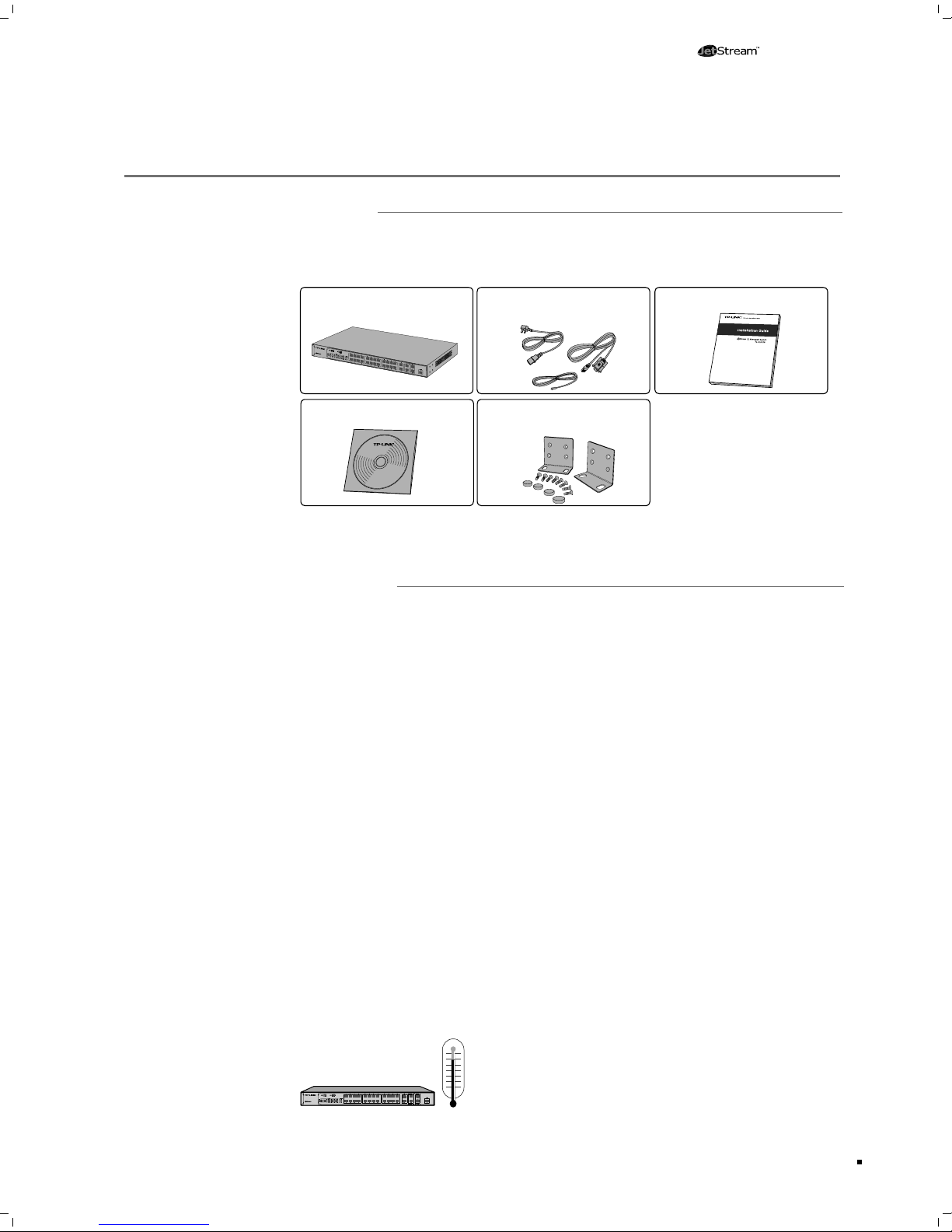

Make sure that the package contains the following items. If any of the listed items is

damaged or missing, please contact your distributor.

One Resource CD

One Switch One Power Cord, one Console

Cable and one Ground Cable

This Installation Guide

Two mounting brackets and

the ttings

L2Managed Swi tch

TL-SL3428



To avoid any device damage and bodily injury caused by improper use, please observe

the following rules.

Safety Precautions

■

Keep the power off during the installation.

■

Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good

■

skin contact and is well grounded.

Use only the power cord provided with the Switch.

■

Make sure that the supply voltage matches the specifications indicated on the rear

■

panel of the Switch.

Ensure the vent hole is well ventilated and unblocked.

■

Do not open or remove the cover of the Switch.

■

Before cleaning the device, cut off the power supply. Do not clean it by the waterish

■

cloth, and never use any other liquid cleaning method.

Site Requirements

■

To ensure normal operation and long service life of the device, please install it in an

environment that meets the requirements described in the following subsection.

Temperature/Humidity

ȭ

ȭ

L2Managed Switc h

TL-SL3428

Installation

L2 Managed Switch

Please keep a proper temperature and humidity in the equipment room. Too high/low

humidity may lead to bad insulation, electricity leakage, mechanical property changes

and corrosions. Too high temperature may accelerate aging of the insulation materials

and can thus significantly shorten the service life of the device. For normal temperature

and humidity of the device, please check the following table.

Environment Temperature Humidity

Operating 0℃~ 40℃10% ~ 90%RH Non-condensing

Storage -40℃~ 70℃5% ~ 90%RH Non-condensing

Clearness

L2 Managed Switch

TL-SL3428

The dust accumulated on the Switch can be absorbed by static electricity and result

in poor contact of metal contact points. Some measures have been taken for the

device to prevent static electricity, but too strong static electricity can cause deadly

damage to the electronic elements on the internal circuit board. To avoid the effect of

static electricity on the operation of the Switch, please attach much importance to the

following items:

Dust the device regularly, and keep the indoor air clean.

■

Keep the device well grounded and ensure static electricity has been transferred.

■

Electromagnetic Interference

L2 Managed Switch

TL-SL3428

Electronic elements including capacitance and inductance on the device can be affected

by external interferences, such as conducted emission by capacitance coupling,

inductance coupling, and impedance coupling. To decrease the interferences, please

make sure to take the following measures:

Use the power supply that can effectively filter interference from the power grid.

■

Keep the device far from high-frequency, strong-current devices, such as radio

■

transmitting station.

Use electromagnetic shielding when necessary.

■

Lightening Protection

L2 Managed Switch

TL-SL3428

Extremely high voltage currents can be produced instantly when lightning occurs and

the air in the electric discharge path can be instantly heated up to 20,000℃. As this

instant current is strong enough to damage electronic devices, more effective lightning

Installation

Autres manuels pour JetStream TL-SL3428

Table des matières

Autres manuels TP-Link Changer

TP-Link

TP-Link JetStream TL-SG2210P Manuel utilisateur

TP-Link

TP-Link JetStream TL-SG3424 Manuel utilisateur

TP-Link

TP-Link JetStream T2600G-28TS Manuel utilisateur

TP-Link

TP-Link Jetstream L2 TL-SG5412F Manuel utilisateur

TP-Link

TP-Link JetStream TL-SL5428E Mode d’emploi

TP-Link

TP-Link TL-SG2216 Mode d’emploi

TP-Link

TP-Link TL-SG1016D Manuel utilisateur

TP-Link

TP-Link TL-SL2210WEB Manuel utilisateur

TP-Link

TP-Link TL-SF1005D Manuel utilisateur

TP-Link

TP-Link TL-SG1008D - Switch Manuel utilisateur

TP-Link

TP-Link LiteWave LS105G Manuel utilisateur

TP-Link

TP-Link TL-SG105 Manuel utilisateur

TP-Link

TP-Link JetStream T1500G-10MPS Manuel utilisateur

TP-Link

TP-Link Tapo H100 Manuel utilisateur

TP-Link

TP-Link TL-SG108E Manuel utilisateur

TP-Link

TP-Link KS220M Manuel utilisateur

TP-Link

TP-Link TL-SG3109 Manuel utilisateur

TP-Link

TP-Link TL-SG1005P Manuel utilisateur

TP-Link

TP-Link JetStream TL-SG3424P Manuel utilisateur

TP-Link

TP-Link TL-SG1008 Manuel utilisateur

TP-Link

TP-Link TL-SL3226P Manuel utilisateur

TP-Link

TP-Link T1600-28TS Mode d’emploi

TP-Link

TP-Link TL-SX3206HPP Manuel utilisateur

TP-Link

TP-Link Omada DS1016G Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
