TP-Link Omada DS1016G Manuel utilisateur

Installation Guide

Unmanaged/Easy Smart Rackmountable Switches

Business Networking Solution

About this Installation Guide

This Installation Guide describes the hardware characteristics, installation methods and the

points that should be attended to during installation. This Installation Guide is structured as

follows:

Chapter 1 Introduction

This chapter describes the external components of the switch.

Chapter 2 Installation

This chapter illustrates how to install the switch.

Chapter 3 Connection

This chapter illustrates how to do the physical connection of the switch.

Appendix A Troubleshooting

Appendix B Hardware Specifications

Audience

This Installation Guide is for:

Network Engineer Network Administrator

Conventions

• When using this guide, notice that features available in TP-Link | Omada series products may vary

by model and software version. Availability of TP-Link | Omada series products may also vary

by region or ISP. All images, steps, and descriptions in this guide are only examples and may not

reflect your actual experience. Some models featured in this guide may be unavailable in your

country or region. For local sales information, visit https://www.tp-link.com.

• The speed of the ports in Extend Mode will downgrade to 10 Mbps. The actual transmission

distance may vary due to power consumption of PoE-powered devices or the cable quality and

type.

• PoE budget calculations are based on laboratory testing. Actual PoE power budget is not

guaranteed and will vary as a result of client limitations and environmental factors.

• This guide uses the specific formats to highlight special messages. The following table lists the

notice icons that are used throughout this guide.

Remind to be careful. A caution indicates the potential which may result in device damage.

Remind to take notice. The note contains the helpful information for the better use of the

product.

Related Document

This Installation Guide is also available in PDF on our website. To obtain the latest

documentation and product information, visit the official website: https://www.tp-link.com.

Contents

Chapter 1 Introduction ––––––––––––––––––––––– 1

1.1 Product Overview............................................................. 1

1.2 Appearance ........................................................................ 1

Chapter 2 Installation –––––––––––––––––––––––– 6

2.1 Package Contents............................................................ 6

2.2 Safety Precautions........................................................... 6

2.3 Installation Tools ............................................................... 8

2.4 Product Installation.......................................................... 8

Chapter 3 Connection–––––––––––––––––––––––– 10

3.1 Ethernet Port...................................................................... 10

3.2 SFP Port ............................................................................... 10

3.3 Verify Installation .............................................................. 10

3.4 Power On ............................................................................. 11

3.5 Initialization ......................................................................... 11

3.6 Accessing the Switch ..................................................... 11

Appendix A Troubleshooting –––––––––––––––––– 13

Appendix B Specications –––––––––––––––––––– 14

Unmanaged/Easy Smart Rackmountable Switches

Introduction

Chapter 1 Introduction

1.1 Product Overview

The Unmanaged/Easy Smart Switch provides you with a low-cost, easy-to-use, high-performance,

seamless, and standard upgrade to improve your network to 100 Mbps or 1000 Mbps.

DS1018GMP is also a Power Sourcing Equipment (PSE*). The 10/100/1000 Mbps RJ45 ports 1–16 on

DS1018GMP support the Power over Ethernet (PoE*) function, which can automatically detect and

supply power to those powered devices (PDs*) complying with IEEE 802.3af and IEEE 802.3at.

Note:

■*PSE is a device (switch or hub for instance) that will provide power in a PoE setup.

■*PoE is a technology that describes a system to transmit electrical power, along with data, to

remote devices over standard twisted-pair cable in an Ethernet network.

■*PD is a device powered by a PSE and thus consumes energy. Examples include powering

IP telephones, wireless LAN access points, network cameras, network hubs, embedded

computers, and so on.

1.2 Appearance

■Front Panel

The front panel of DS1016G is shown as the following figure.

Figure 1-1 Front Panel of DS1016G

10/100/1000 Mbps

RJ45 Port

LEDs

The front panel of DS1016GE is shown as the following figure.

Figure 1-2 Front Panel of DS1016GE

10/100/1000 Mbps

RJ45 Port

LEDs Reset

Unmanaged/Easy Smart Rackmountable Switches

Introduction

The front panel of DS1024G is shown as the following figure.

Figure 1-3 Front Panel of DS1024G

10/100/1000 Mbps

RJ45 Port

LEDs

The front panel of DS1024GE is shown as the following figure.

Figure 1-4 Front Panel of DS1024GE

10/100/1000 Mbps

RJ45 Port

LEDs

The front panel of DS1018GMP is shown as the following figure.

Figure 1-5 Front Panel of DS1018GMP

10/100/1000 Mbps

RJ45 Port

LEDs SFP Port

Reset

Unmanaged/Easy Smart Rackmountable Switches

Introduction

LED Indication

Power

PWR

On: The switch is powered on.

Off: The switch is powered off or power supply is abnormal.

Flashing: Power supply is abnormal/Loop Prevention function is enabled.

Note: PWR for DS1018GMP; Power for other models.

1000Mbps

On: Running at 1000 Mbps.

Off: Running at 10/100 Mbps or no device is linked to the corresponding port.

Note: Except for DS1018GMP.

Link/Act

On: A device is linked to the corresponding port and running properly.

Flashing: Transmitting or receiving data.

Off: No device is linked to the corresponding port.

Note: Except for DS1018GMP.

Green On: Running at 1000 Mbps but no activity.

Green Flashing: Running at 1000 Mbps and transmitting or receiving data.

Yellow on: Running at 100/10 Mbps but no activity.

Yellow Flashing: Running at 100/10 Mbps and transmitting or receiving data.

Off: No device is linked to the corresponding port.

Note: Only for ports 1–18 of DS1018GMP. Ports 17F–18F of DS1018GMP only support

1000M SFP module connection, and they just have Green On/Green Flashing/Off LED

indications.

PoE Status

On: The port is connecting and supplying power to a PD.

Flashing: The PoE power circuit may be in short or the power current may be overloaded

or non-standard PD is connected or the amount of power of the port has exceeded the

power limit.

Off: No PD is connected to the corresponding port or no power is supplied according to

the power limits of the port.

Note: Only for DS1018GMP.

FAN

Green: The fan works properly.

Yellow: The fan doesn’t work properly.

Note: Only for DS1018GMP.

PoE Max

On: Total power supply is equal to or greater than 243 W.

Flashing: Total power supply is equal to or greater than 243 W and lasts for more than 2

minutes.

Off: Total power supply is less than 243 W.

Note: Only for DS1018GMP.

Note:

For models that support the LED On/Off feature, the LEDs function as shown above only

when the LED status is on.

Unmanaged/Easy Smart Rackmountable Switches

Introduction

Switch Explanation

Switch Indication

Priority

(For DS1018GMP)

Off: All the ports transmit data with the same priority.

On: The specific ports transmit data with a higher priority than other ports.

Isolation

(For DS1016G/

DS1024G/DS1018GMP)

Off: Ports can transmit data with each other.

On: Specific ports cannot transmit data with other downlink ports. They can transmit

data only with the uplink ports.

Extend

(For DS1018GMP)

Off: Ports run at 10/100/1000 Mbps and support PoE power supply up to 100 m away.

On: Ports run at 10 Mbps and support PoE power supply up to 250 m away.

Recovery

(For DS1018GMP)

Off: The PoE Auto Recovery function is disabled.

On: The switch will constantly detect the working status of a PoE powered device (PD).

When the switch finds that the PD works abnormally, the switch will reboot it.

Loop Prevention

(For DS1016G/

DS1024G)

Off: (default) The switch will not try to monitor or address loop-related issues.

On: The switch will monitor and address loop-related issues within the network

structure to prevent disruptions caused by redundant pathing.

Note:

The numbers in the brackets indicate the ports where the feature takes eect. For example,

when Extend(1-4) is toggled to On, the Extend mode will be enabled for ports 1-4.

Reset

Press this button for ve seconds or above to reset the switch back to factory default settings.

Note:

Only DS1016GE/DS1024GE has a Reset button.

10/100/1000Mbps RJ45 Port

Designed to connect to the device with a bandwidth of 10 Mbps, 100 Mbps or 1000 Mbps. For

DS1018GMP, port 1–16 can provide power for PDs.

SFP Port

Designed to install the SFP module. DS1018GMP has 2 SFP ports which support 1000 Mbps SFP

module connection. An SFP Port (port 17F/port 18F) and the associated 10/100/1000 Mbps RJ45

Port (port 17/port 18) are called a “Combo” port, which means they cannnot be used simultaneously.

■Rear Panel

The rear panel is shown as the following figure. Here we take DS1016G as an example.

Figure 1-6 Rear Panel

Grounding

Terminal

Kensington Security Slot

Power Socket

Unmanaged/Easy Smart Rackmountable Switches

Introduction

Kensington Security Slot

Secure the lock (not provided) into the security slot to prevent the device from being stolen.

Grounding Terminal

The switch already comes with lightning protection mechanism. You can also ground the switch through

the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed information, refer to the

Lightning Protection Guide from the Related Documents of our website:

https://www.tp-link.com/us/conguration-guides/lightning_protection_guide.

Power Socket

Plug the female connector of the power cord directly into the power socket and plug the male connector

into an AC outlet. Make sure that the voltage of the power supply meets the requirement of the input

voltage (100–240 V ~ 50/60 Hz).

Caution:

You should use the provided power cord.

Unmanaged/Easy Smart Rackmountable Switches

Installation

Chapter 2 Installation

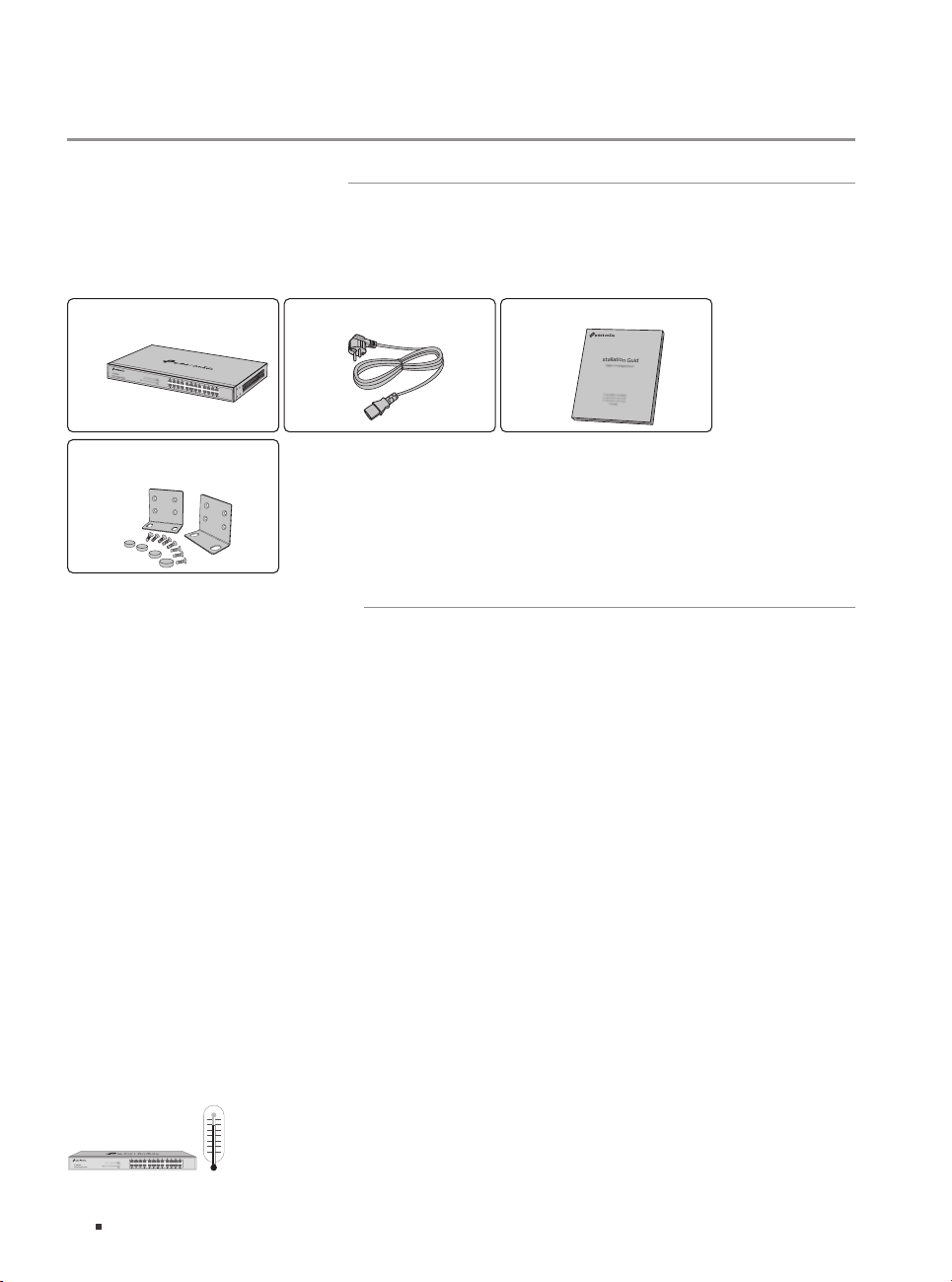

2.1 Package Contents

Make sure that the package contains the following items. If any of the listed items is damaged or

missing, contact your distributor. The figures are for demonstration only. The actual items may differ

in appearance and quantity from the depicted.

One Switch

Mounting brackets, screws and

rubber feet

One Power Cord This Installation Guide

Installation Guide

BusinessNetworking Solution

2.2 Safety Precautions

To avoid any device damage and bodily injury caused by improper use, you should observe the

following rules.

■Safety Precautions

■Keep the power off during the installation.

■Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good skin contact and is

well grounded.

■Use only the power cord provided with the switch.

■Make sure that the supply voltage matches the specifications indicated on the rear panel of the

switch.

■Ensure that the switch is installed in a well-ventilated environment and its ventilation hole is not

blocked.

■Do not open or remove the cover of the switch.

■Before cleaning the device, cut off the power supply. Do not clean it by the waterish cloth, and never

use any other liquid cleaning method.

■Place the device with its bottom surface downward.

■Site Requirements

Temperature/Humidity

40°C

0°C

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TP-Link Changer

TP-Link

TP-Link JetStream L2 Lite TL-SG3210 Manuel utilisateur

TP-Link

TP-Link UH400 Manuel utilisateur

TP-Link

TP-Link Tapo S500 Manuel utilisateur

TP-Link

TP-Link JetStream L2 Lite TL-SG3210 Mode d’emploi

TP-Link

TP-Link TL-SG3210 Mode d’emploi

TP-Link

TP-Link TL-SG1005D - 5 PORT GIGABIT DESKTOP SWITCH Manuel utilisateur

TP-Link

TP-Link TL-SL5428 Manuel utilisateur

TP-Link

TP-Link TL-SG1016DE Manuel utilisateur

TP-Link

TP-Link JetStream TL-SG3216 Manuel utilisateur

TP-Link

TP-Link TL-SF1008P Manuel utilisateur

TP-Link

TP-Link TL-SF1048 Manuel utilisateur

TP-Link

TP-Link TL-SG2424P Manuel utilisateur

TP-Link

TP-Link TL-SG105 Manuel utilisateur

TP-Link

TP-Link TL-SG2216 Manuel utilisateur

TP-Link

TP-Link JetStream T2600G-28TS Manuel utilisateur

TP-Link

TP-Link TL-SF1024M Manuel utilisateur

TP-Link

TP-Link TL-SG1008P Manuel utilisateur

TP-Link

TP-Link JetStream T1500G-10MPS Manuel utilisateur

TP-Link

TP-Link TL-SF1008D - 10/100M FAST ETHERNET SWITCH Manuel utilisateur

TP-Link

TP-Link TL-SG1008P Manuel utilisateur

TP-Link

TP-Link JetStream T2600G-28TS Manuel utilisateur

TP-Link

TP-Link TL-SG2424P Manuel utilisateur

TP-Link

TP-Link JetStream T1500-28PCT Manuel utilisateur

TP-Link

TP-Link TL-SX3008F Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
