TP-Link HS220 Manuel utilisateur

User Guide

Kasa Smart Wi-Fi Light Switch, Dimmer

Contents

About This Guide ···················································· 1

Introduction ······························································· 2

Appearance ······························································· 3

Set Up Your Smart Light Switch ····················· 4

Main Device Controls··········································· 6

Manage Device Settings ···································· 9

Reset Your Smart Light Switch······················13

Authentication ·······················································15

About This Guide

This guide provides a brief introduction to Kasa Smart Wi-Fi Light Switch, Dimmer and the Kasa Smart app, as well as regulatory information.

Features available in Kasa Smart may vary by model and software version. Kasa Smart availability may also vary by region or ISP. All images, steps, and

descriptions in this guide are only examples and may not reect your actual Kasa Smart experience.

Conventions

In this guide, the following convention is used:

Convention Description

Teal Key information appears in teal, including management page text such as menus, items, buttons and so on.

Underline Hyperlinks are in teal and underlined. You can click to redirect to a website.

More Info

• Specications can be found on the product page at https://www.tp-link.com.

• Our Technical Support contact information can be found at the Help center of the Kasa Smart app and the Contact Technical Support page

at https://www.tp-link.com/support.

Introduction

Control your home lighting from anywhere, anytime with the Kasa Smart app. Easily dim your lights from 1% to 100%.

• Smart Dimming - Adjust your home's brightness freely using the Kasa Smart app, built-in dimmer buttons, and voice commands via Alexa or Google

Assistant. With the Fade On/O feature, smoothly adjust lighting levels without sudden eye-irritating brightness or darkness.

• Brightness Control - Control the brightness of your lights to set the perfect ambiance for any activity.

• Voice Control - Use simple voice commands to control the lights with Alexa or Google Assistant.

• Remote Control - Control anything connected to your smart light switch, like lights, ceiling fans or other xtures, from anywhere using the Kasa

Smart app.

• Set Schedules - Set your dimmer to automatically turn on and o while you’re home or away.

• UL Certied - Housed with V-0 (UL94) ame-retardant material, the smart light switch is UL listed for safety use.

• Away Mode - Set your smart light switch to turn connected xtures on and o at random intervals to give the appearance you're home even while

you're away.

• Delayed Shuto - Set your lights to remain on for a predetermined period of time after they are turned o so that you have time to exit the room.

• Group & Scene - Group your smart switch with other smart devices to control them all at once. Set custom scenes to match any occasion like

waking up.

• No Hub Required - Connect to your existing Wi-Fi router.

Appearance

The dimmer switch is compatible with incandescent, LED, Halogen, and compact uorescent light bulbs. The following picture uses the white color

switch as an example. See the explanation below:

RESTART

RESET

Solid Amber: Starting up.

Blinking amber & green: Ready for setup; Resetting Wi-Fi.

Blinking Green: Connecting to Wi-Fi.

Solid Green: Lit up for about 30 seconds when successfully

connected to the Wi-Fi network, then turns o.

Blinking Amber: Resetting.

Solid Red: No Wi-Fi connection.

White: Lit up when the light is switched OFF to show the Smart

Switch location in the dark.

Press to reboot the Smart Switch.

Press & hold for about 5s: Reset Wi-Fi while keeping other settings

Press & hold for about 10s: Restore factory default settings.

Press to decrease/increase light brightness.

Light Indicators: Indicate light brightness.

Switch Button: Press to turn on/o the switch.

Set Up Your Smart Light Switch

Follow the steps below to set up your Smart Light Switch via Kasa Smart app.

1. Download and install Kasa app

Go to Google Play or the App Store or scan the QR code

below to download the Kasa Smart app on your Android or iOS

smartphone or tablet.

2. Log in or sign up with TP-Link ID

Open the app. Use your TP-Link ID to log in.

If you don’t have a TP-Link ID, tap Create Account and the Kasa

Smart app will guide you through the rest.

3. Add Device

Tap the + button in the Kasa Smart app,

• If your device is white, select Smart Switches > Smart Switch (Wi-Fi).

• If your device is almond, select Smart Switches > Smart Switch (BLE).

Then follow app instructions to complete setup.

Main Device Controls

After you successfully set up your Smart Light Switch, you will see the home page of the Kasa Smart app. Here you can view and manage all devices

that you've added to Kasa. Tap your smart switch to control and manage it.

Home Page

Turn on/o your device on the Home page.

Status Page

Turn on/o your device, change light brightness, or set schedules,

timer, Away Mode or check runtime on the Status page.

Set Schedules

Set schedules to automatically turn on/o the light at set times

according to your daily routine.

Set a Timer

Set the timer for your dimmer switch to automatically turn on/o

after the time ends.

Set Away Mode

Set Away Mode for your dimmer switch to turn on/o the light

automatically at random intervals while you are away to make the

appearance that someone is at home.

Check Runtime

Check runtime to keep track of how long your dimmer switch has

been working.

Autres manuels pour HS220

Table des matières

Autres manuels TP-Link Changer

TP-Link

TP-Link JetStream TL-SG2008 Manuel utilisateur

TP-Link

TP-Link TL-SL2428 Manuel utilisateur

TP-Link

TP-Link TL-SF1008P Manuel utilisateur

TP-Link

TP-Link JetStream T2600G-28TS Manuel utilisateur

TP-Link

TP-Link TL-SG1005P Manuel utilisateur

TP-Link

TP-Link TL-SF1008P Manuel d'instructions d'installation

TP-Link

TP-Link JetStream L2+ Manuel utilisateur

TP-Link

TP-Link TL-SF1008P Manuel utilisateur

TP-Link

TP-Link P1201-08 Manuel utilisateur

TP-Link

TP-Link LiteWave LS105G Manuel utilisateur

TP-Link

TP-Link TL-SF1005D Manuel utilisateur

TP-Link

TP-Link TL-SG2216 Manuel utilisateur

TP-Link

TP-Link JetStream L2 Manuel utilisateur

TP-Link

TP-Link TL-SG2452 Manuel utilisateur

TP-Link

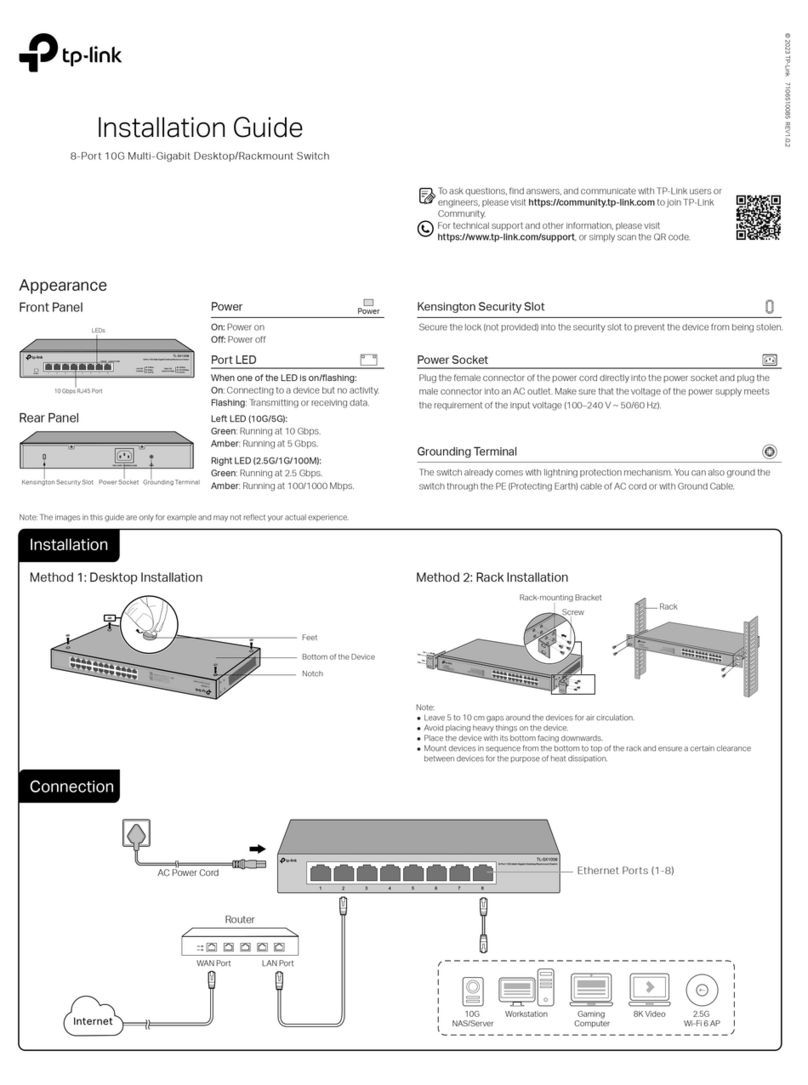

TP-Link TL-SX1008 Manuel utilisateur
