QUICK REFERENCE

GUIDE

RAV4

2010

Information Provided by:

2010

RAV4

!A word about safe vehicle operations

This Quick Reference Guide is a summary of basic vehicle

operations. It contains brief descriptions of fundamental

operations so you can locate and use the vehicle’s main

equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for the

Owner’s Manual located in the vehicle’s glove box. We strongly

encourage you to review the Owner’s Manual and supplementary

manuals so you will have a better understanding of the vehicle’s

capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,

Inc. wish you many years of satisfied driving in your new RAV4.

This Quick Reference Guide is not a full description of RAV4

operations. Every RAV4 owner should review the Owner’s

Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in

color throughout the Owner’s Manual. Each box contains safe

operating instructions to help you avoid injury or equipment

malfunction.

All information in this Quick Reference Guide is current at

the time of printing. Toyota reserves the right to make

changes at any time without notice.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Spare tire (if equipped) & tools

Tool location

Removing the spare tire

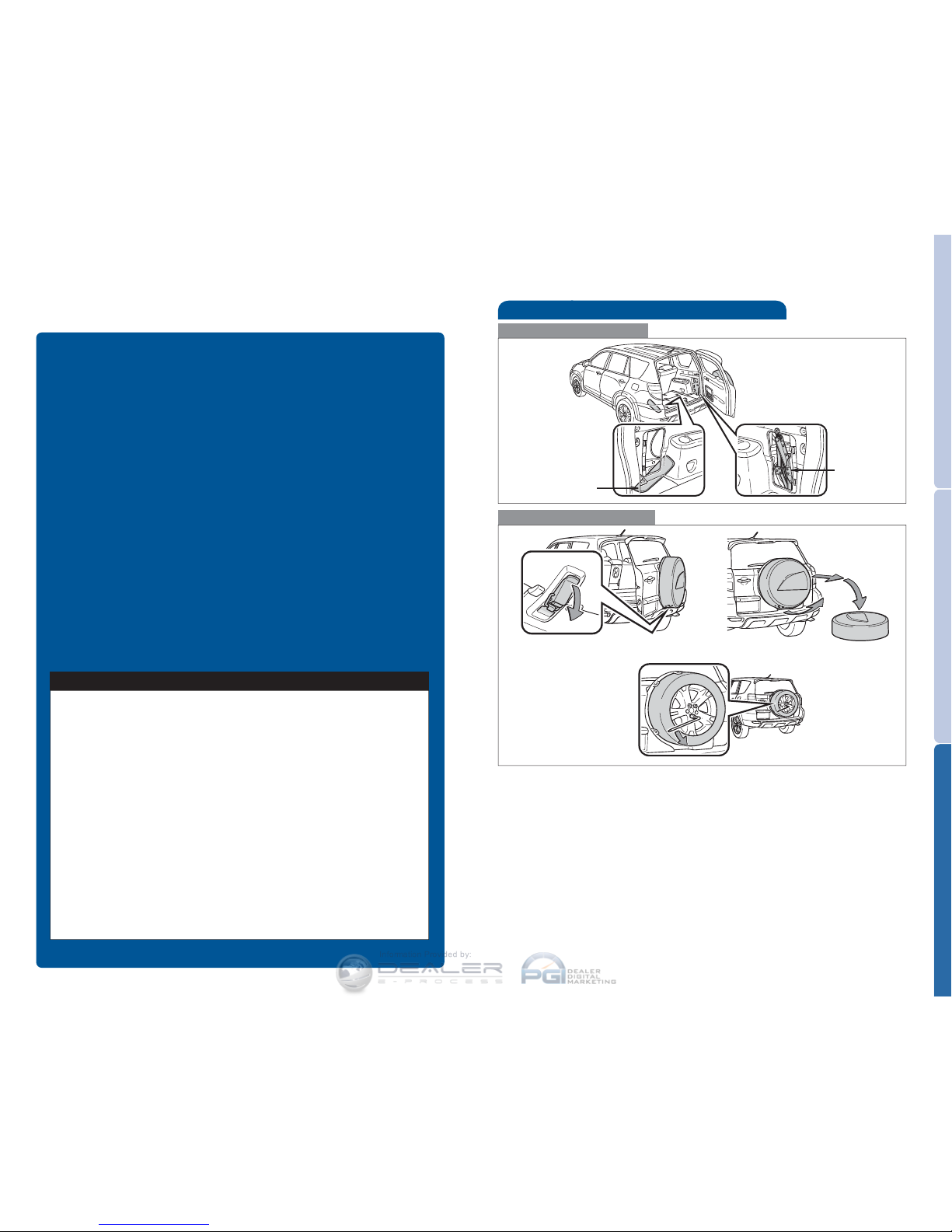

(1) To remove the spare tire cover,* open the back door. Unhook the latch

on the bottom of the cover. Close the back door. Remove the spare tire

cover by holding the bottom and lifting it up and away from the

vehicle.

(2) To remove the spare tire, turn the wheel nuts counterclockwise with

the wheel nut wrench and remove.

Refer to the Owner’s Manual for tire changing and jack positioning

procedures.

* If equipped

Luggage compartment

Inside left side box

Luggage compartment

Inside right side box

Jack

Tool bag

(1)

(2)

Information Provided by:

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Engine maintenance

Fuel tank door release and cap 8

Hood release 8

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

Keyless entry* 6

Smart Key system* 7

Active torque control 4WD (4WD models) 11

Air Conditioning/Heating 18-19

Audio 20-21

Automatic Transmission 10

Clock 19

Cruise control 23

Door locks

Downhill Assist Control system (DAC) 22

Hill-start Assist Control (HAC) 23

Light control-Instrument panel

Lights & turn signals 14

Moonroof 16

Parking brake 10

Power outlets-12V DC 22

Power outlets-120V AC 22

Seat adjustments-Front 12

Seat adjustments-Second row seats 12

Seat heaters

Seats-Head restraints 11

Seats-Folding down second row seats 13

Seats-Stowing third row seats 13

Telephone controls (Bluetooth®)17

Tilt and telescopic steering wheel 17

VSC OFF button 16

Windows 15

Windshield wipers & washers

Doors-Child safety locks 24

Seatbelts 24

Seatbelts-Shoulder belt anchor 24

Spare tire & tools 25

Tire Pressure Monitoring (warning) System 24

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND

EMERGENCY FEATURES

INDEX

*Visit your Toyota dealer for information on customizing this feature.

Information Provided by:

OVERVIEW

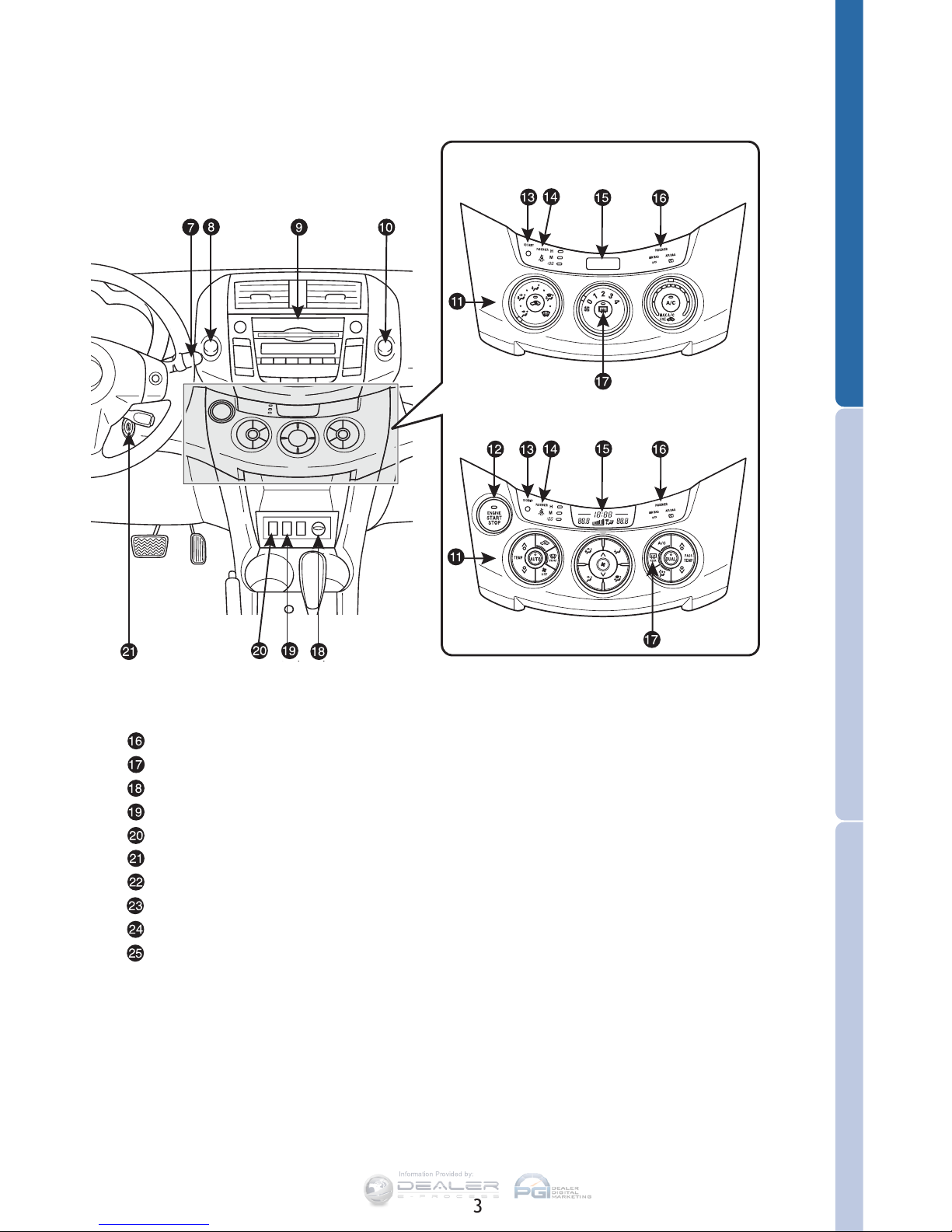

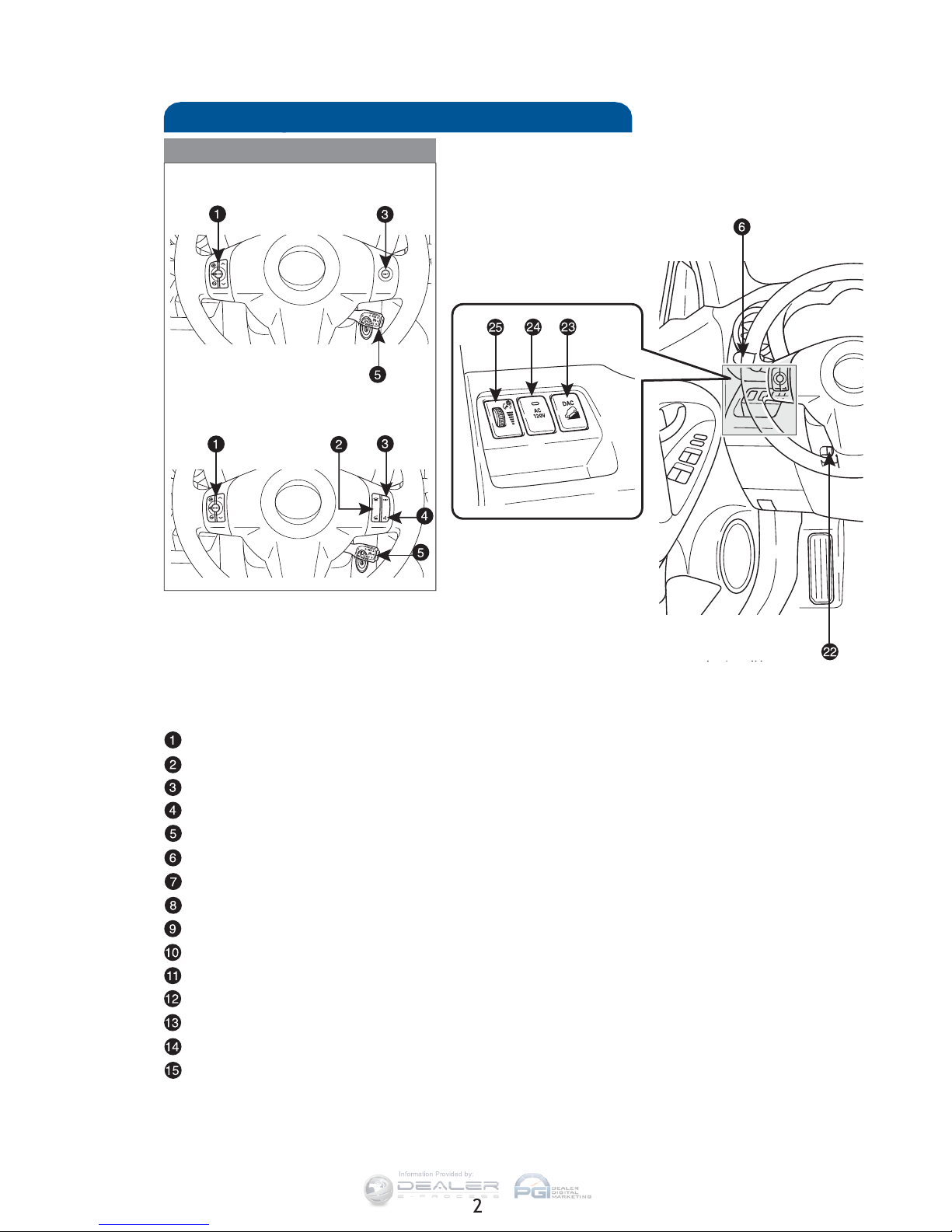

Instrument panel

Steering wheel controls

Steering wheel audio controls1

Telephone controls1

Multi-information display switch

Speech command button1

Cruise control

Headlight, turn signal and front fog light1control

Wiper and washer controls

Four-wheel drive lock switch (4WD models)

Audio system/Navigation system1,2

Emergency flasher switch

Air Conditioning controls

“ENGINE START STOP” button (Smart Key)1

Engine immobilizer indicator

Front passenger seatbelt reminder light

Clock and Air Conditioning display

Without telephone controls

With telephone controls

Information Provided by:

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

With manual

Air Conditioning system

With automatic

Air Conditioning system

Front passenger occupant classification indicator

Rear window and outside rearview mirror defogger switch1

12V DC Power outlet

Seat heater switch1

VSC OFF switch

Ignition switch (standard key)

Tilt and telescopic steering release

Downhill Assist Control switch1

120V AC Power outlet ON/OFF switch1

Instrument panel light control

1If equipped

2Vehicles with navigation system: for details, refer to the “Navigation

System Owner’s Manual.”

Information Provided by:

OVERVIEW

Open door warning

Tachometer

Service indicator and reminder

Speedometer

Engine coolant temperature

Fuel gauge

Odometer, two trip meters and trip information display

Odometer/trip meter switch and trip meter reset button

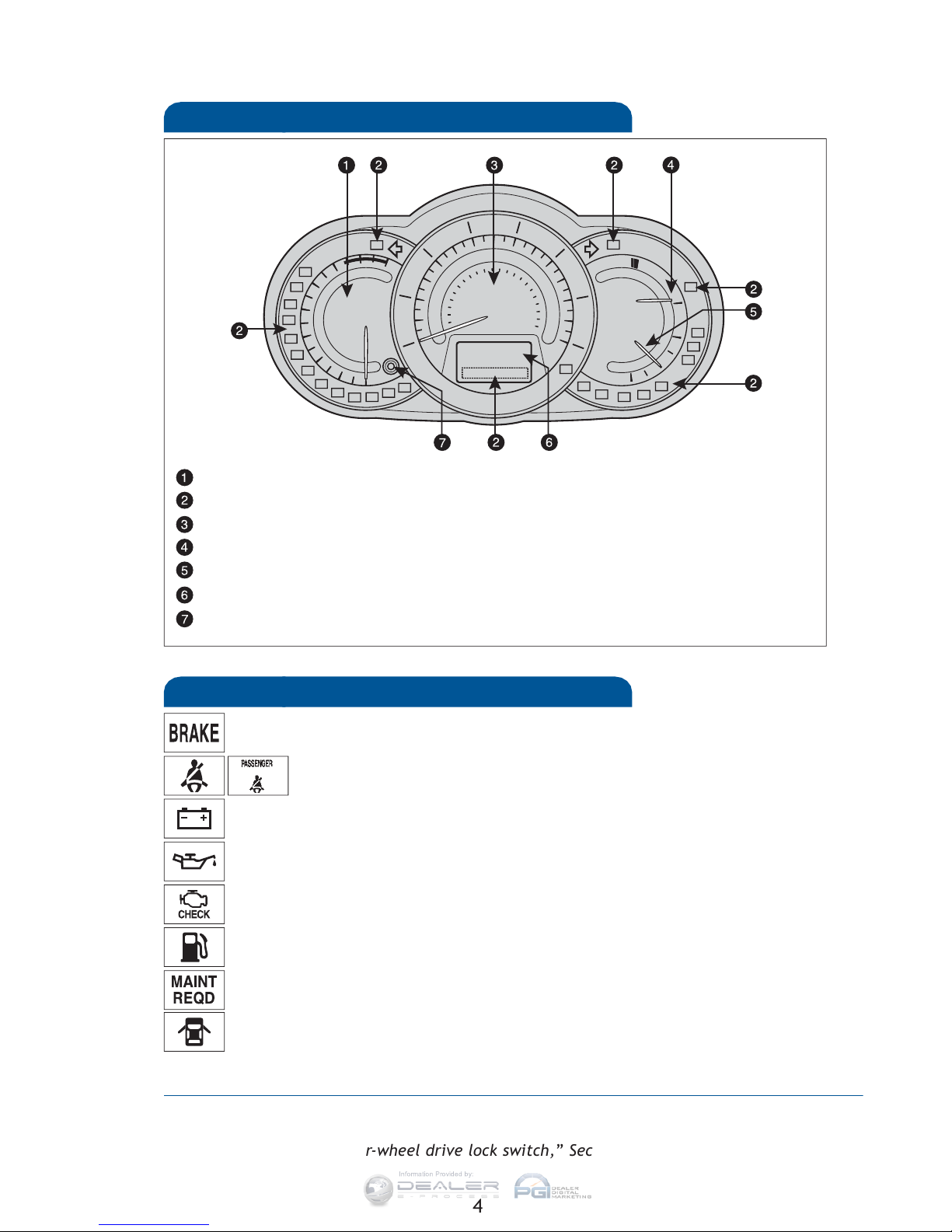

Instrument cluster

Charging system warning1

Low engine oil pressure warning1

Brake system warning1

Malfunction/Check Engine indicator1

Engine oil replacement reminder1

Indicator symbols

Driver/Front passenger seatbelt reminder

(alarm will sound if speed is over 12 mph)

Low fuel level warning

1If indicator does not turn off within a few seconds of starting engine, there may be a

malfunction. Have vehicle inspected by your Toyota dealer.

2For details, refer to “Four-wheel drive lock switch,” Section 2-4, 2010 Owner’s Manual.

Information Provided by:

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

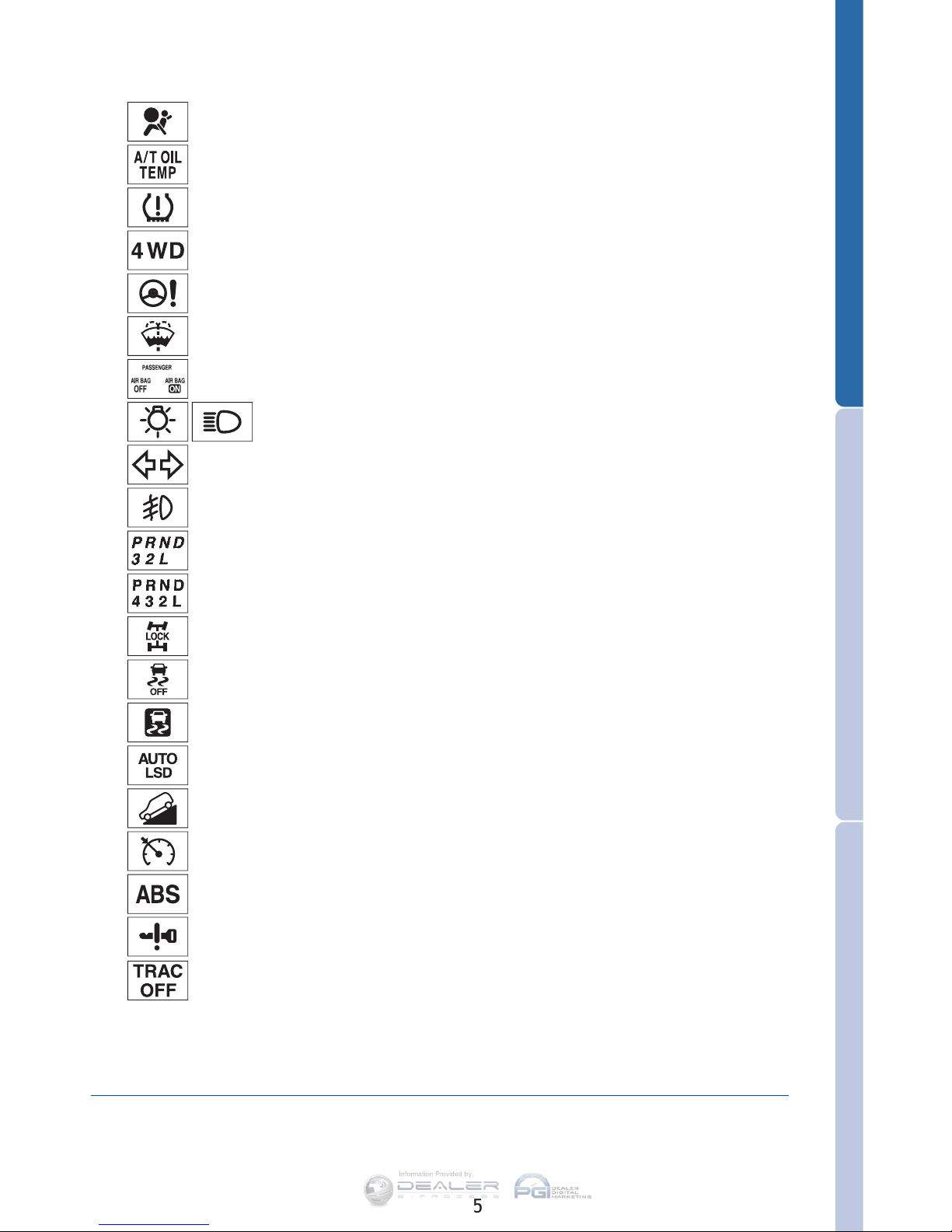

Automatic Transmission indicator (4-speed)

Turn signal indicator

Front fog light indicator

Low windshield washer fluid level warning

Airbag SRS warning1

Headlight low/high beam indicator

Automatic Transmission fluid temperature warning1

Low Tire Pressure Warning1

4WD warning1

Electric power steering system warning1

Four-wheel drive lock indicator1,2

Slip indicator/Hill-start Assist Control indicator/Downhill Assist

Control indicator1

Downhill Assist Control indicator1

AUTO Limited Slip Differential indicator1

Cruise control indicator3

Anti-lock Brake System warning1

Automatic Transmission indicator (5-speed)

3If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.

Vehicle Stability Control OFF indicator1

Smart Key system warning

Traction Control OFF indicator1

ront passenger occupant classification indicator

Information Provided by:

OVERVIEW

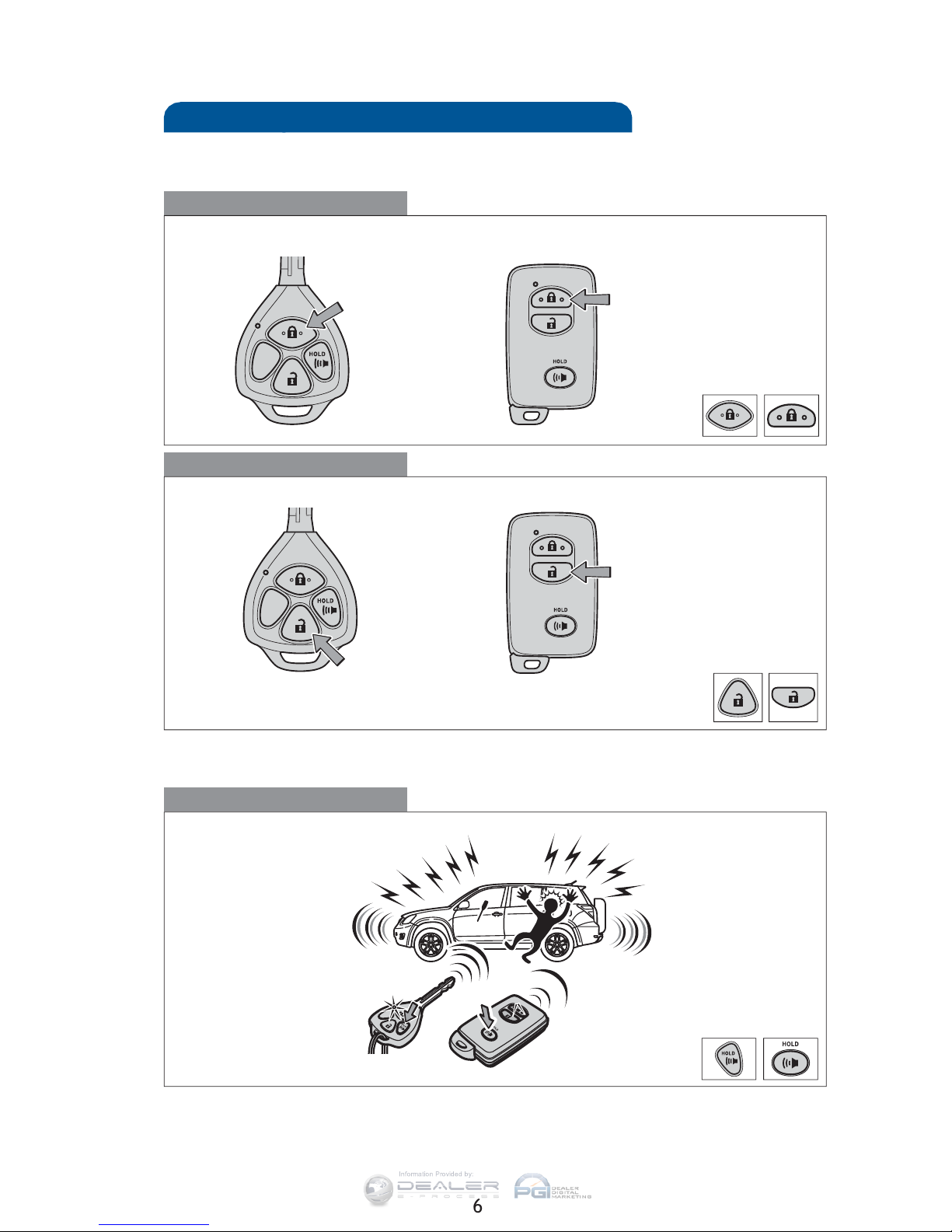

Keyless entry

Locking operation

Unlocking operation

Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for

more details.

Panic button

Push and hold

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will

relock for safety.

Push ONCE: Driver door

TWICE: All doors

Push

Without Smart Key system With Smart Key system

Information Provided by:

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

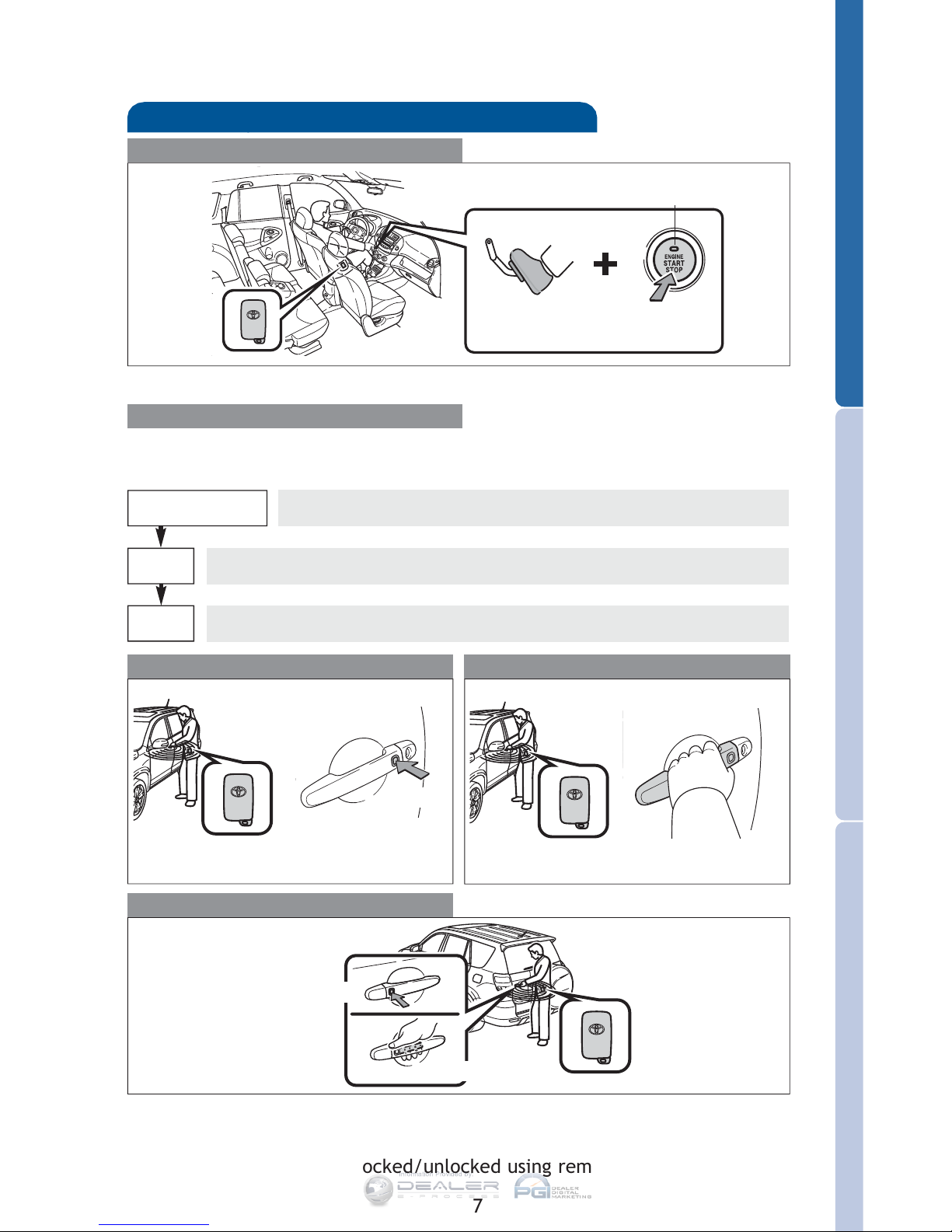

Smart Key system* (if equipped)

Start function

NOTE: Gear shift lever must be in Park and brake pedal depressed.

Push

Depress

brake pedal

Carrying

Green indicator ON

Without depressing the brake pedal, pressing the “ENGINE START STOP”

switch will change the operation mode in succession from:

* Driver door unlocking function can be programmed to unlock driver door

only, or all doors. Grasping passenger door handle will unlock all doors.

NOTE: Doors may also be locked/unlocked using remote.

Power (without starting engine)

Accessories such as the radio will operate.

Power ON; the engine not running.

All systems OFF.

ACCESSORY

OFF

Back door lock/unlock

Locking operation Unlocking operation

Carry remote to lock/unlock Carry remote to lock/unlock

Front door lock Front door unlock*

Push

Grasp

Push

Grasp

Carry remote

to lock/unlock

Information Provided by:

OVERVIEW

NOTE: Tighten until one click is heard. If the cap is not tightened enough,

Check Engine “ ” indicator may illuminate.

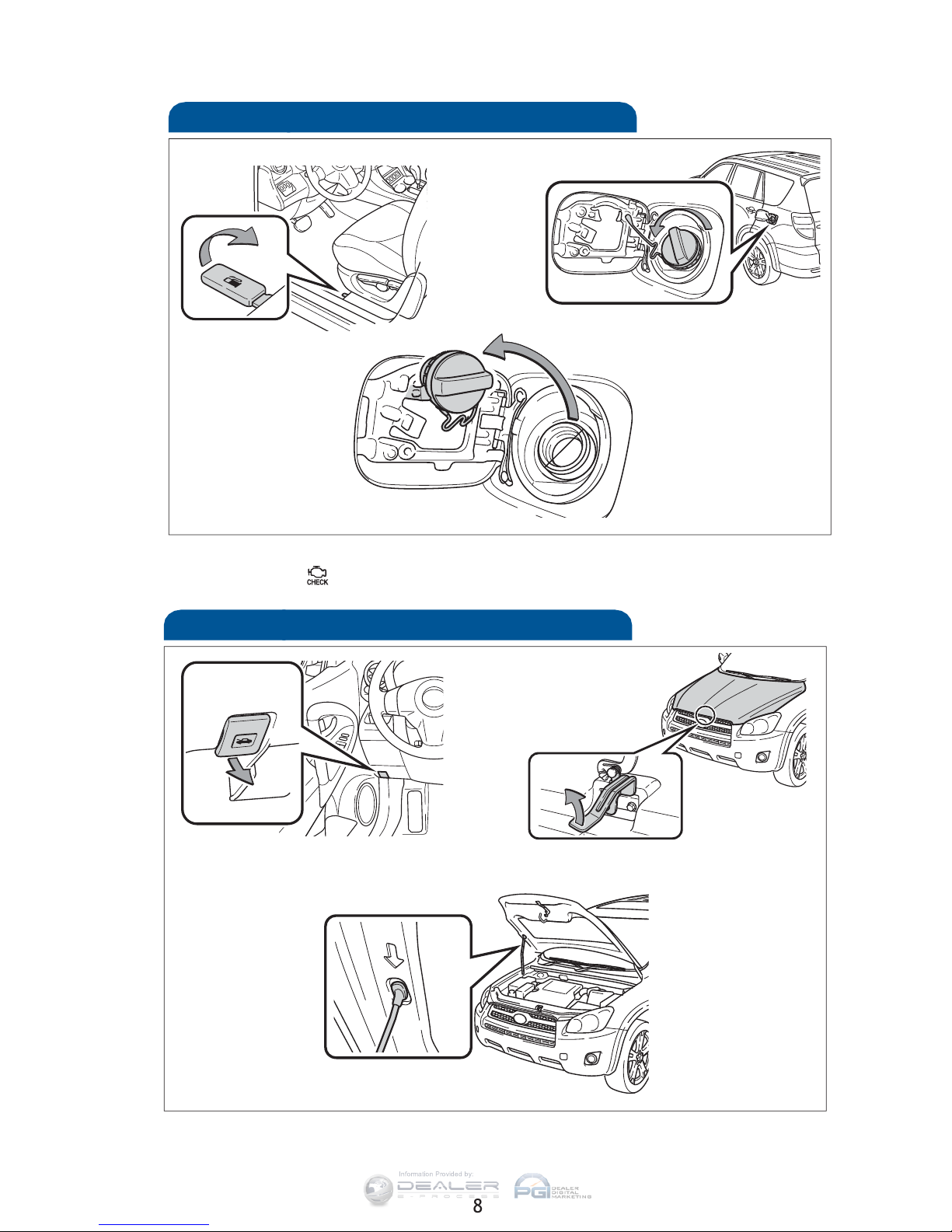

Fuel tank door release and cap

Pull up

Tu r n

Store

Driver seat

Hood release

Pull

Pull up latch

and raise hood

Engage support rod
