!Aword about safe vehicle operations

This Quick Reference Guide is a summary of basic vehicle

operations. It contains brief descriptions of fundamental

operations so you can locate and use the vehicle’s main

equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for the

Owner’s Manual located in the vehicle’s glove box. We strongly

encourage you to review the Owner’s Manual and supplementary

manuals so you will have a better understanding of the vehicle’s

capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,

Inc. wish you many years of satisfied driving in your new RAV4.

This Quick Reference Guide is not a full description of RAV4

operations. Every RAV4 owner should review the Owner’s

Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in

color throughout the Owner’sManual.Each box contains safe

operating instructions to help you avoid injury or equipment

malfunction.

All information in this Quick Reference Guide is current at

the time of printing. Toyota reserves the right to make

changes at any time without notice.

Spare tire (if equipped) & tools

Tool location

Removing the spare tire

(1) To remove the spare tire cover,* open the back door. Unhook the latch

on the bottom of the cover. Remove the cover and close the back door.

(2) To remove the spare tire, turn the wheel nuts counterclockwise with

the wheel nut wrench and remove.

Refer to the Owner’s Manual for tire changing and jack positioning

procedures.

*If equipped

Luggage compartment

Inside left side box

Luggage compartment

Inside right side box

Jack

Tool bag

(1)

(2)

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Engine maintenance 9

Fuel tank door release and cap 8

Hood release 8

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

Keyless entry* 6

Smart Key system* 7

Active torque control 4WD (4WD models) 11

Air Conditioning/Heating 18-19

Audio 20-21

Automatic Transmission 10

Clock 19

Cruise control 23

Door locks 16

Downhill Assist Control system (DAC) 22

Hill-start Assist Control (HAC) 23

Light control-Instrument panel 19

Lights & turn signals 14

Moonroof 16

Parking brake 10

Power outlets-12V DC 22

Power outlets-120V AC 22

Seat adjustments-Front 12

Seat adjustments-Second row seats 12

Seat heaters 18

Seats-Head restraints 11

Seats-Folding down second row seats 13

Seats-Stowing third row seats 13

Telephone controls (Bluetooth®)17

Tilt and telescopic steering wheel 17

VSC OFF button 16

Windows 15

Windshield wipers & washers 15

Doors-Child safety locks 24

Seat belts 24

Seat belts-Shoulder belt anchor 24

Spare tire & tools 25

Tire Pressure Monitoring (warning) System 24

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND

EMERGENCY FEATURES

INDEX

*Visit your Toyota dealer for information on customizing this feature.

2 3

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

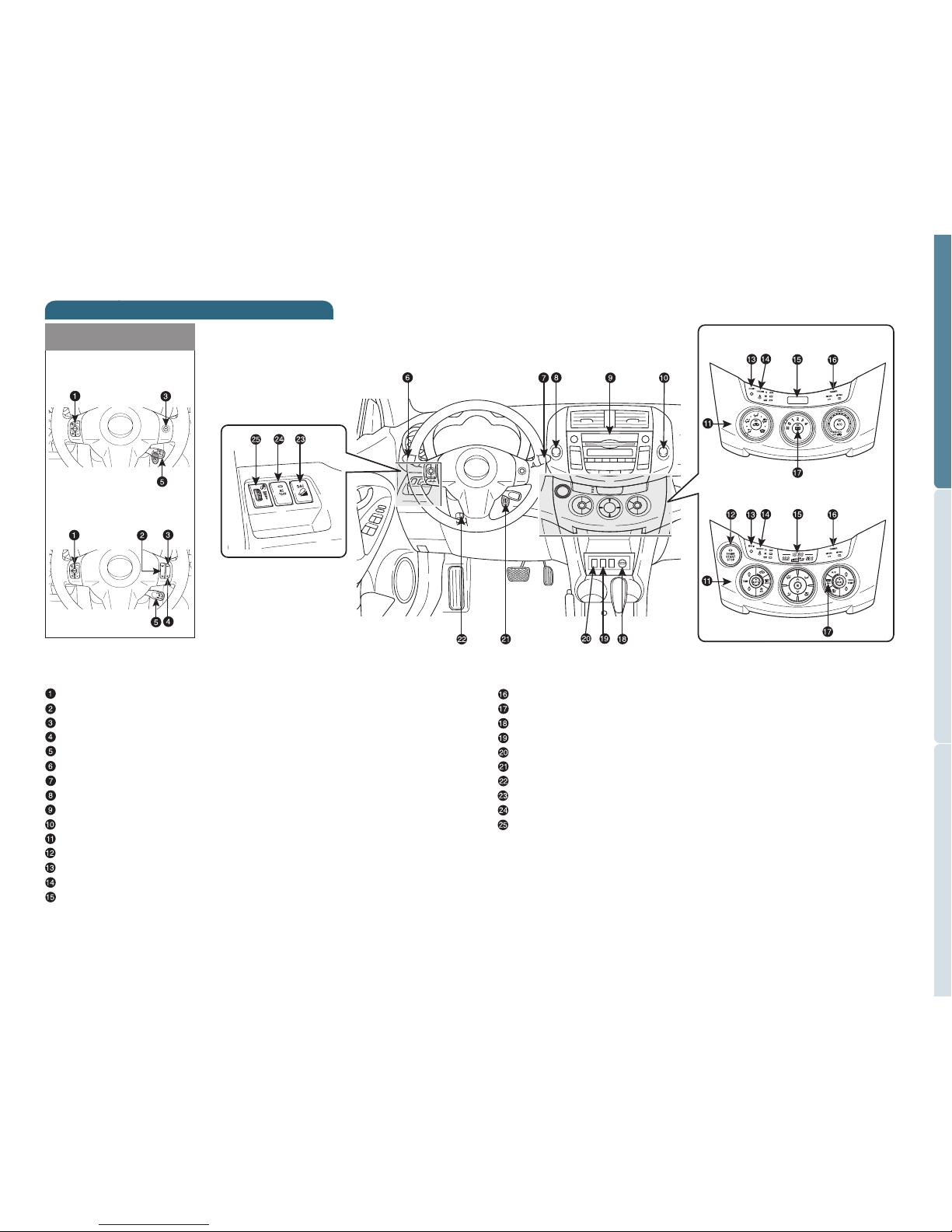

Instrument panel

With manual

Air Conditioning system

Steering wheel

controls

With automatic

Air Conditioning system

Front passenger occupant classification indicator

Rear window and outside rearview mirror defogger switch1

12V DC Power outlet

Seat heater switch1

VSC OFF switch

Engine switch (standard key)

Tilt and telescopic steering release

Downhill Assist Control switch1

120V AC Power outlet ON/OFF switch1

Instrument panel light control

1If equipped

2Vehicles with navigation system: for details, refer to the “Navigation

System Owner’s Manual.”

Steering wheel audio controls1

Telephone controls1

Multi-information display switch

Speech command button1

Cruise control

Headlight, turn signal and front fog light1control

Wiper and washer controls

Four-wheel drive lock switch (4WD models)

Audio system/Navigation system1,2

Emergency flasher switch

Air Conditioning controls

“ENGINE START STOP” button (Smart Key)1

Engine immobilizer indicator

Front passenger seat belt reminder light

Clock and Air Conditioning display

Without telephone

controls

With telephone controls

4 5

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

Open door warning

Tachometer

Service indicator and reminder

Speedometer

Engine coolant temperature

Fuel gauge

Odometer, two trip meters and trip information display

Trip meter reset knob

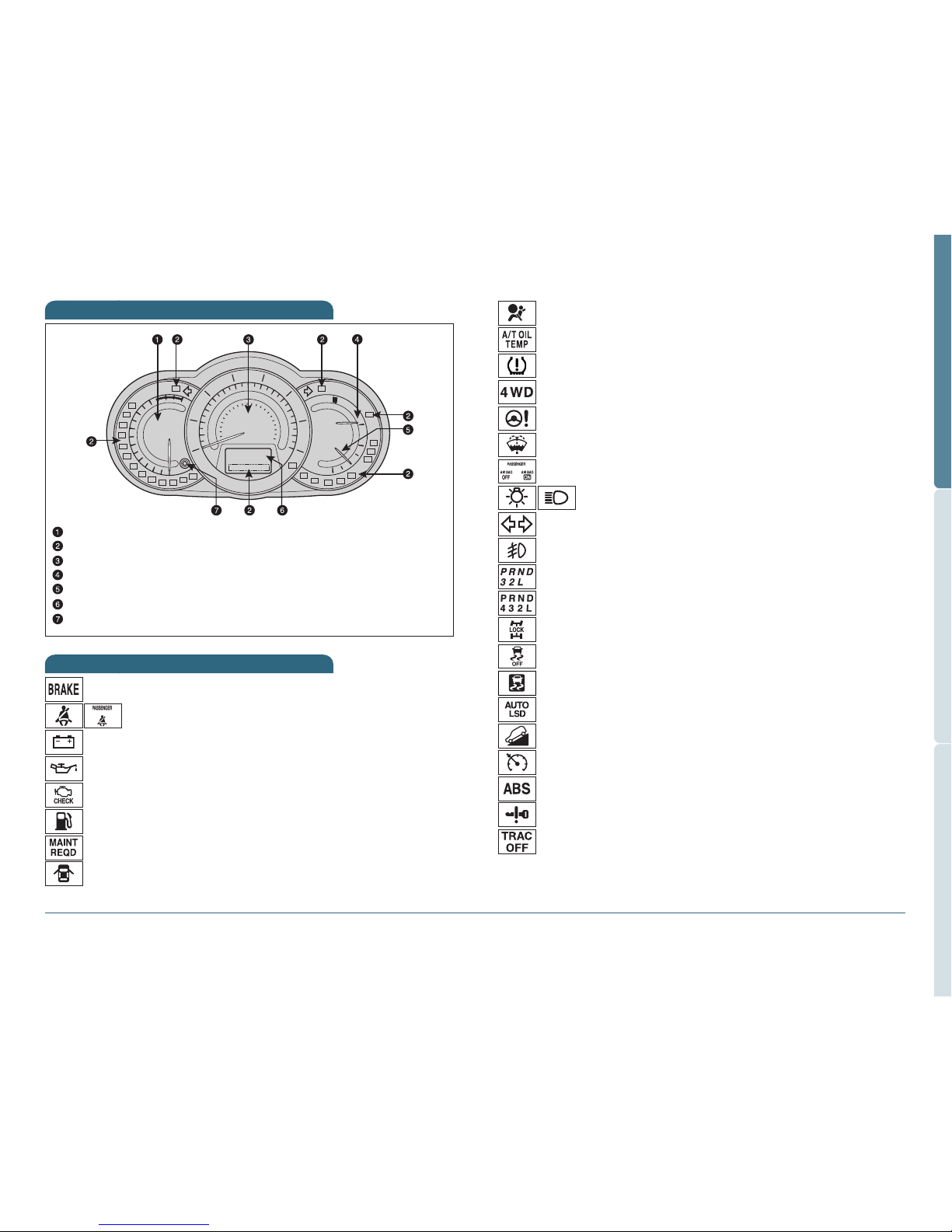

Instrument cluster

Charging system warning1

Low engine oil pressure warning1

Brake system warning1

Malfunction/Check Engine indicator1

Engine oil replacement reminder1

Indicator symbols

Driver/Front passenger seat belt reminder

(alarm will sound if speed is over 12 mph)

Low fuel level warning

Automatic Transmission indicator (4-speed)

Turn signal indicator

Front fog light indicator

Low windshield washer fluid level warning

Airbag SRS warning1

Headlight low/high beam indicator

Automatic Transmission fluid temperature warning1

Low Tire Pressure Warning1

4WD warning1

Electric power steering system warning1

Four-wheel drive lock indicator1,2

Slip indicator/Hill-start Assist Control indicator/Downhill Assist

Control indicator1

Downhill Assist Control indicator1

AUTO Limited Slip Differential indicator1

Cruise control indicator3

Anti-lock Brake System warning1

Automatic Transmission indicator (5-speed)

3If this light flashes, refer to “Cruise control,” Section 2-4, 2009 Owner’s Manual.

1If indicator does not turn off within a few seconds of starting engine, there may be a

malfunction. Have vehicle inspected by your Toyota dealer.

2For details, refer to “Four-wheel drive lock switch,” Section 2-4, 2009 Owner’s Manual.

Vehicle Stability Control OFF indicator1

Smart Key system warning

Traction Control OFF indicator1

ront passenger occupant classification indicator

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

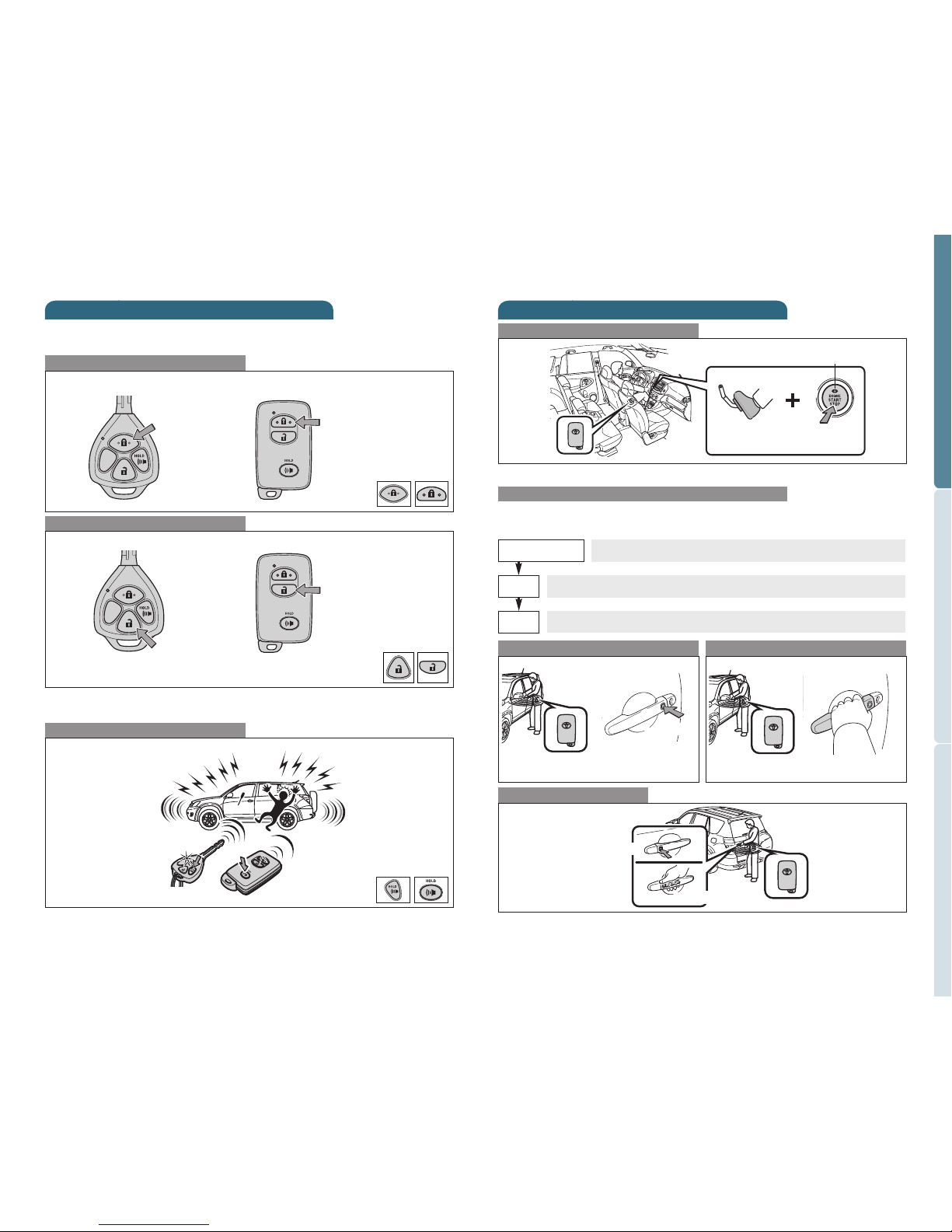

Keyless entry

Locking operation

Unlocking operation

Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for

more details.

Panic button

Push and hold

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will

relock for safety.

Push ONCE: Driver door

TWICE: All doors

Push

Smart Key system* (if equipped)

Start function

NOTE: Gear shift lever must be in Park and brake pedal depressed.

Push

Depress

brake pedal

Carrying

Green indicator ON

Without depressing the brake pedal, pressing the “ENGINE START STOP”

switch will change the operation mode in succession from:

* Driver door unlocking function can be programmed to unlock driver door

only, or all doors. Grasping passenger door handle will unlock all doors.

NOTE: Doors may also be locked/unlocked using remote.

Power (without starting engine)

Accessories such as the radio will operate.

Power ON; the engine not running.

All systems OFF.

ACCESSORY

OFF

Back door lock/unlock

Locking operation Unlocking operation

Carry remote to lock/unlock Carry remote to lock/unlock

Front door lock Front door unlock*

Push

Grasp

Push

Grasp

Without Smart Key system With Smart Key system

Carry remote

to lock/unlock

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Engine coolant reservoir

Engine oil filler cap

Engine oil level dipstick

Windshield and back window washer fluid tank

Note: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance.

Please refer to the “Owner’s Warranty Information Booklet,”

“Scheduled Maintenance Guide” or “Owner’sManual

Supplement.”

6cylinder (2GR-FE) engine

Engine maintenance

4cylinder (2AR-FE) engine

OVERVIEW

NOTE: Tighten until one click is heard. If the cap is not tightened enough,

Check Engine “ ” indicator may illuminate.

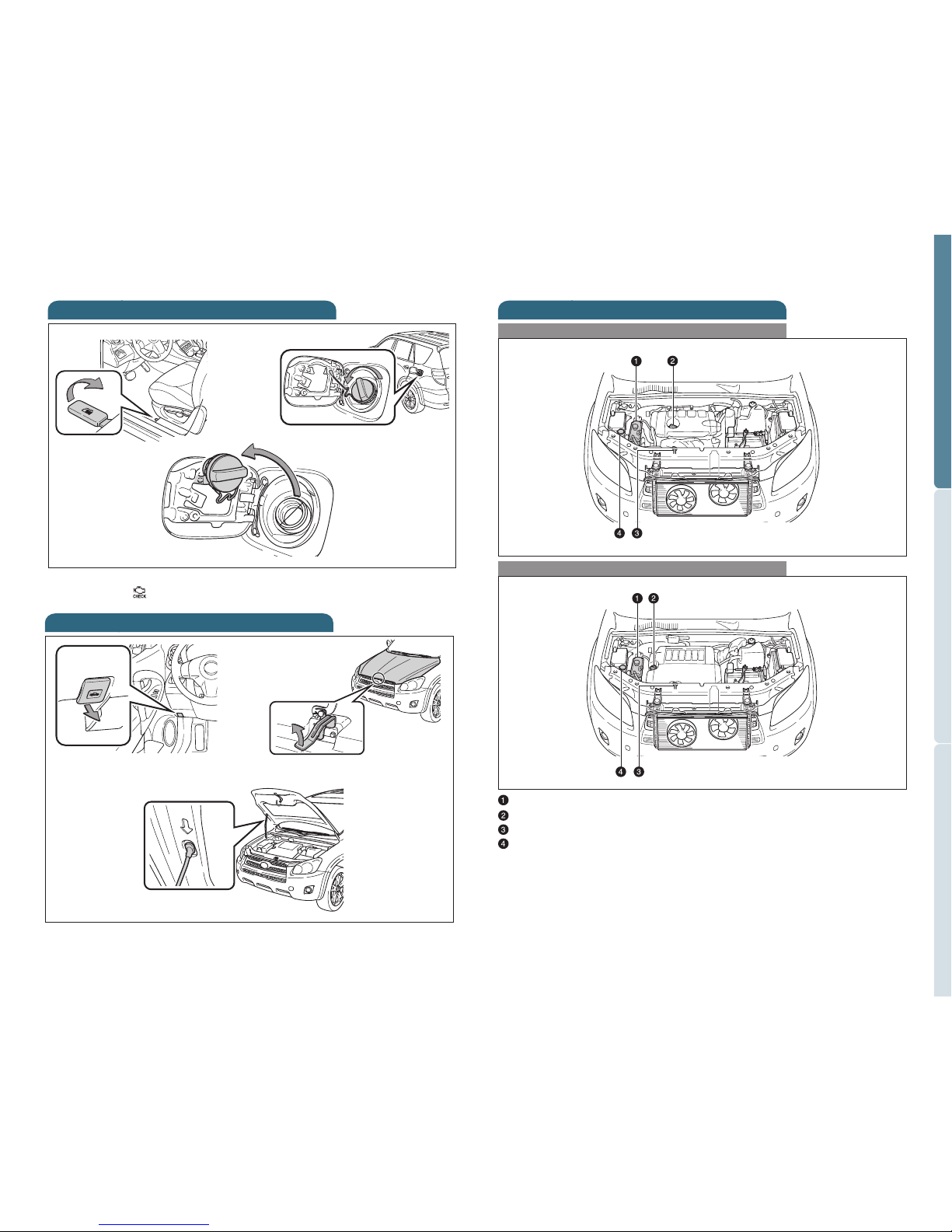

Fuel tank door release and cap

Pull up

Turn

Store

Driver seat

Hood release

Pull

Pull up latch

and raise hood

Engage support rod

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Auto lock functions

Four-wheel drive lock switch

Push the switch to ensure that the engine torque is applied to the four

wheels.

NOTE: Should ONLY be used when wheel spinning occurs on loose or

unpaved surfaces.

Refer to the Owner’s Manual for more details.

Active torque control 4WD

(4WD models)

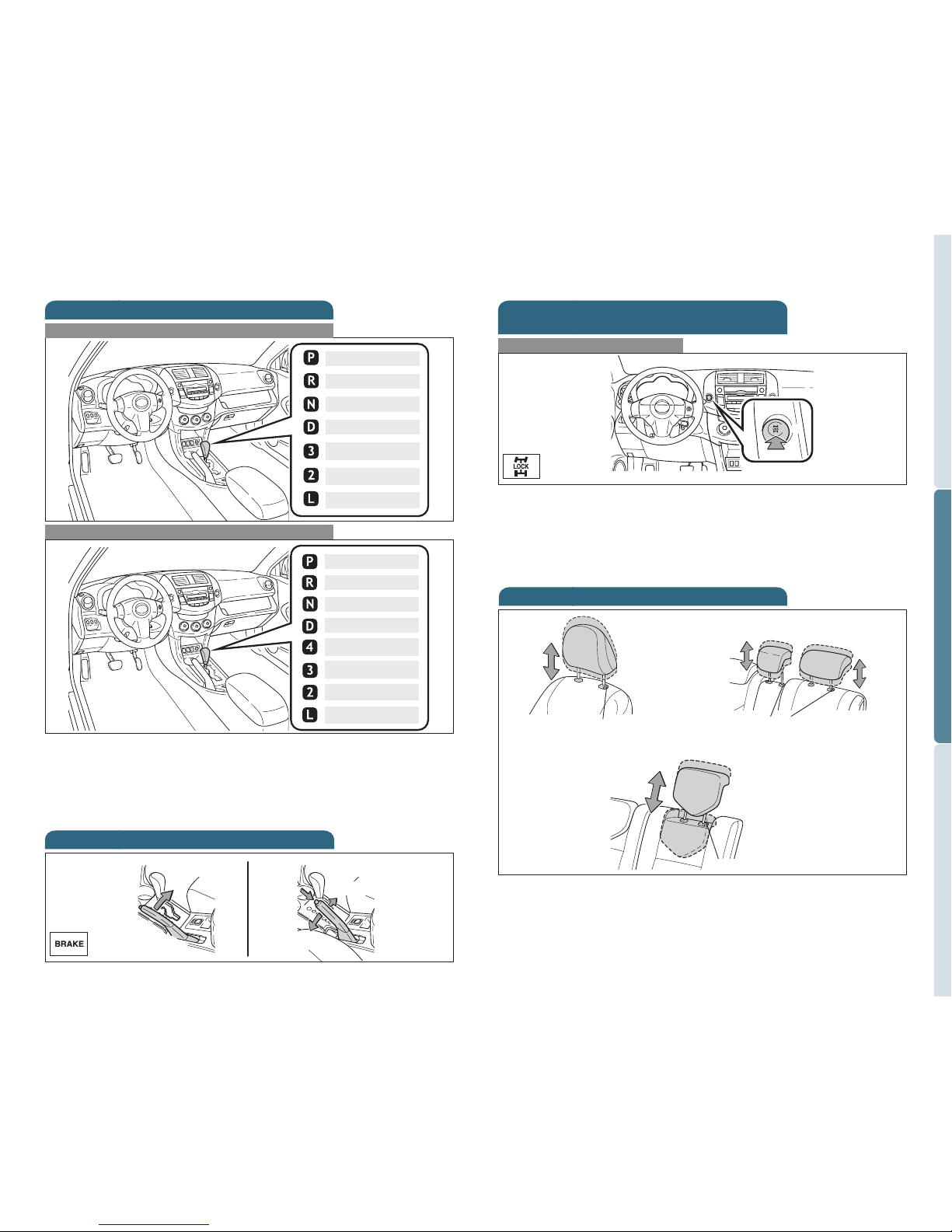

Automatic Transmission

*The “ENGINE START STOP” switch/engine must be “ON” and the brake

pedal depressed to shift from Park.

Downshifting increases power going uphill, or provides engine braking

downhill. For best fuel economy during normal driving conditions, always

drive with the shift lever in the “D” position.

Park*

Reverse

Neutral

Drive

Third gear

Second gear

First gear

4-speed models

5-speed models

Park*

Reverse

Neutral

Drive

Third gear

Second gear

First gear

Fourth gear

Parking brake

Pull (2) Push (1) Pull slightly

(3) Lower

Set Release

FEATURES/OPERATIONS

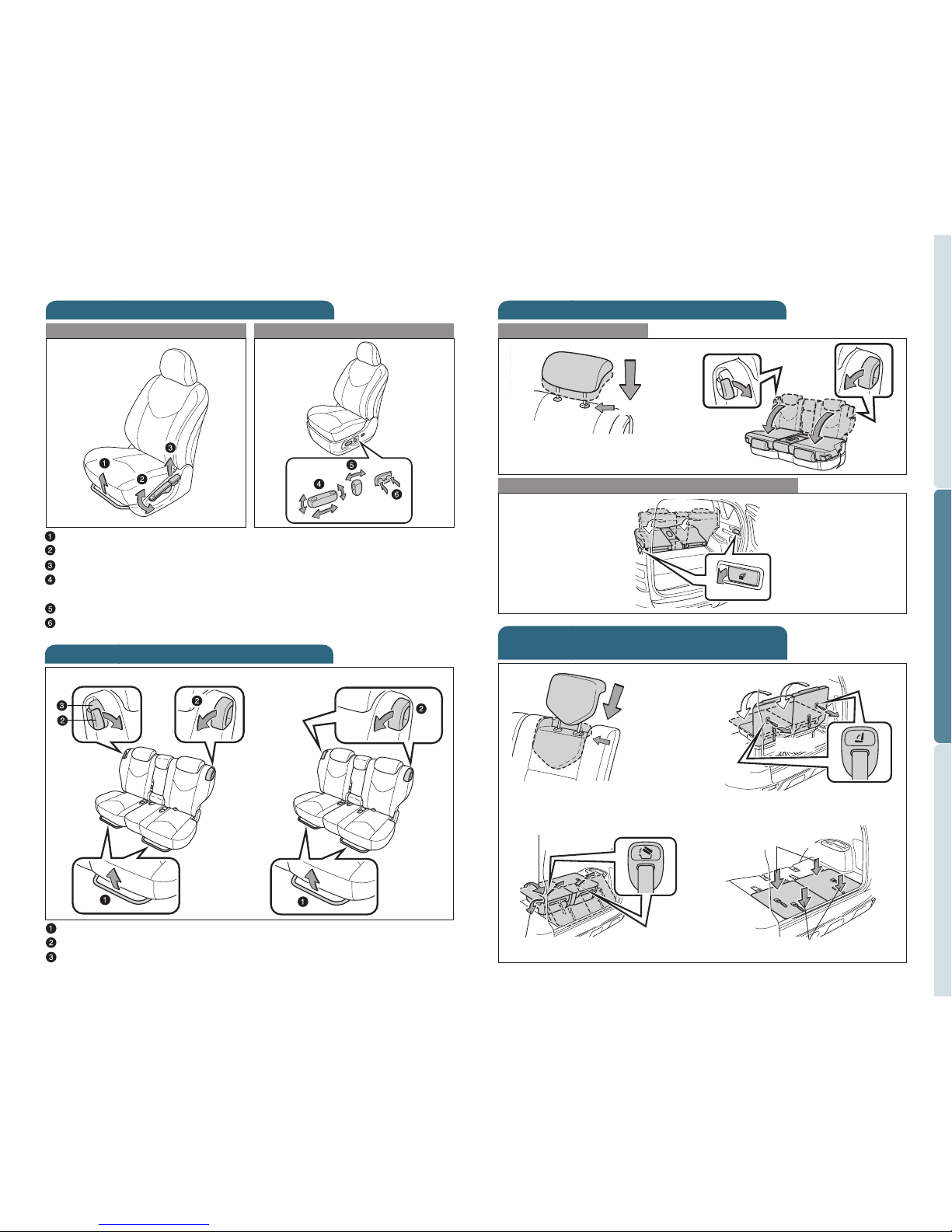

Seats-Head restraints

Front seats Second row seats

Third row seats

(if equipped)

Lock release button

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

(2) Lower (3) Pull down

From inside

From outside (vehicles without third row seats)

(1) Push

(2) Lower

(1) Push

(5) Pull up

(7) Push down

(8) Push to lock in

(4) Fold down

(3) Pull

(9) Push to lock in

(6) Lift up

Seats-Stowing third row seats

(if equipped)

Seats-Folding down second row seats

Seat adjustments-Second row seats

Seat position (forward/backward)

Seatback angle

Seatback lock release

Vehicles with third row seats Vehicles without third row seats

Seat position (forward/backward)

Height crank (driver side only)

Seatback angle

Driver seat: seat position, cushion angle and height

Passenger seat: seat position only

Seatback angle

Lumbar support

Seat adjustments-Front

Manual seat Power seat

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

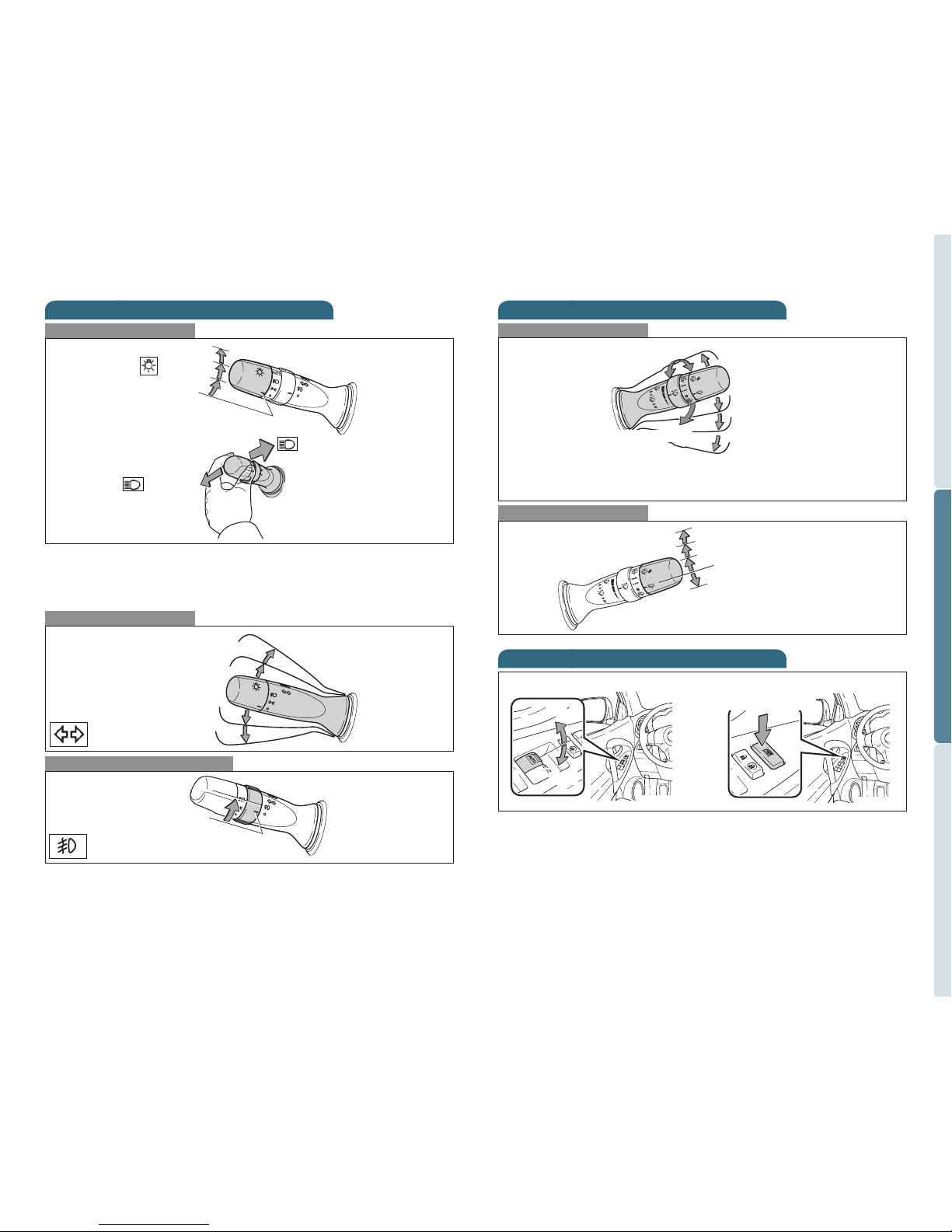

Lights & turn signals

Turn signals

Headlights

High beam flasher

Low beam

Front fog lights (if equipped)

Headlights

-Daytime Running Light system (DRL) (if equipped)

Automatically turns on the headlights at a reduced intensity.

-Automatic light cut off system Will automatically turn lights off after a

delay of 30 seconds.

Front fog lights come on only when the headlights are on low beam.

Parking lights

Right turn

Turn

Lane change

Left turn

High beam

Windows

Driver side

Automatic operation (driver side only) Push the switch completely down

or pull it completely up and release to fully open or close. To stop window

midway, lightly push the switch in the opposite direction.

Window lock switch Deactivates all passenger windows. Driver’s window

remains operable.

NOTE: If the battery is disconnected, the window needs to be

reinitialized. Refer to the Owner’s Manual for more details.

Down

Windows lock switch

Auto (if equipped)

Windshield wipers & washers

Rear

Front

Pull to wash and wipe

Adjust frequency*

Interval wipe

Slow

Fast

Wash and wipe

Wipe

Interval wipe

Wash and wipe

Single wipe

*Intermittent windshield wiper frequency adjustment

Rotate to increase/decrease wipe frequency.

Autres manuels pour RAV4 2009

Table des matières

Autres manuels Toyota Automobile

Toyota

Toyota Sienna 2002 Manuel utilisateur

Toyota

Toyota Corolla 2001 Manuel utilisateur

Toyota

Toyota 2010 Camry Hybrid Manuel utilisateur

Toyota

Toyota 2004 CELICA Manuel utilisateur

Toyota

Toyota 2009 Highlander Manuel utilisateur

Toyota

Toyota 4RunneR 2014 Manuel d'utilisation

Toyota

Toyota VELLFIRE 2010 Manuel utilisateur

Toyota

Toyota 2011 Camry Hybrid Manuel utilisateur

Toyota

Toyota 2003 Camry Manuel utilisateur

Toyota

Toyota 2001 CELICA Manuel utilisateur

Toyota

Toyota Celica 1997 Manuel utilisateur

Toyota

Toyota 2008 Camry Manuel utilisateur

Toyota

Toyota Corolla 2020 Manuel utilisateur

Toyota

Toyota 2009 Tacoma Manuel utilisateur

Toyota

Toyota RAV4 2004 Manuel utilisateur

Toyota

Toyota 2009 FJ Cruiser Manuel utilisateur

Toyota

Toyota SIENNA - 2011 Manuel utilisateur

Toyota

Toyota RAV4 (RHD) - MMC Manuel utilisateur

Toyota

Toyota 2015 Corolla Manuel utilisateur

Toyota

Toyota CAMRY 2023 Manuel utilisateur

Toyota

Toyota HILUX Guide de l'utilisateur

Toyota

Toyota Avalon 2019 Manuel utilisateur

Toyota

Toyota PriusV Manuel utilisateur

Toyota

Toyota 2011 4Runner TRAIL Manuel utilisateur

Manuels Automobile populaires d'autres marques

CITROËN

CITROËN DS4 DSign Manuel utilisateur

Lexus

Lexus 2015 CT 200h Manuel utilisateur

Cadillac

Cadillac CTS 2008 Manuel utilisateur

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuel utilisateur

Porsche

Porsche Boxster S Manuel utilisateur

GMC

GMC 2010 Savana 1500 Cargo Manuel utilisateur

KIAM

KIAM SPORTAGE 2014 Manuel de la liste des pièces

GMC

GMC 2013 Terrain Instructions de montage

GMC

GMC T-Series 1999 Manuel utilisateur

Mercury

Mercury 1998 Mystique Manuel utilisateur

Mercury

Mercury 2007 Mariner Manuel utilisateur

Mazda

Mazda 2007 Mazdaspeed 3 Mode d’emploi

Mazda

Mazda 2014 CX-5 Manuel utilisateur

GMC

GMC Chevrolet Express 2022 Manuel utilisateur

GMC

GMC 1997 Jimmy Manuel utilisateur

Chevrolet

Chevrolet 2012 Malibu Manuel utilisateur

Cadillac

Cadillac 2010 Escalade Manuel utilisateur

Skoda

Skoda FABIA RS - ANNEXE 118 Manuel utilisateur
