OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 5. . . . . . . . . . . . . . . . . . . . . . .

SECTION

–

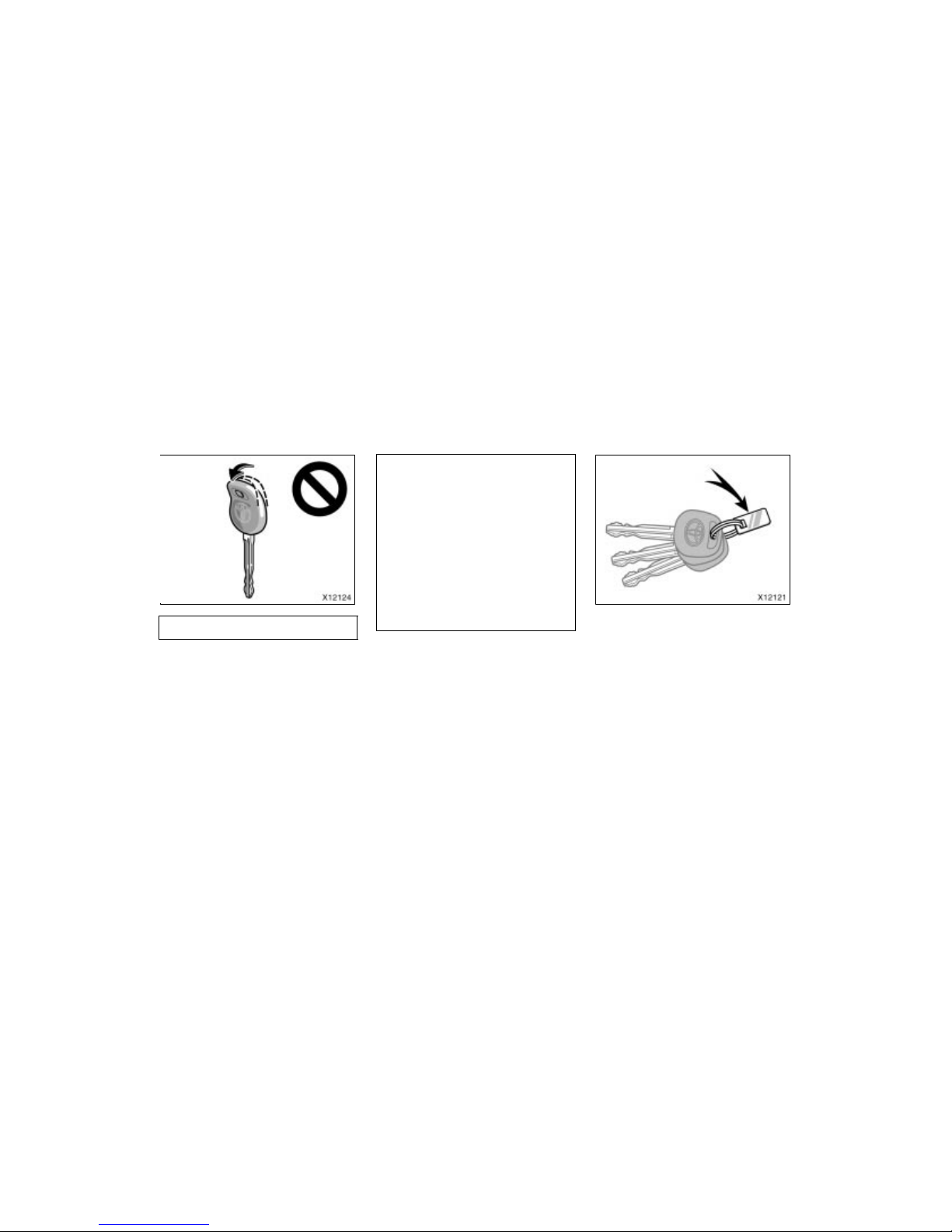

WWW.MANUALS.WS

’02 Rav4_U (L/O 0108)

22002 MY RAV4_U (OM42503U)

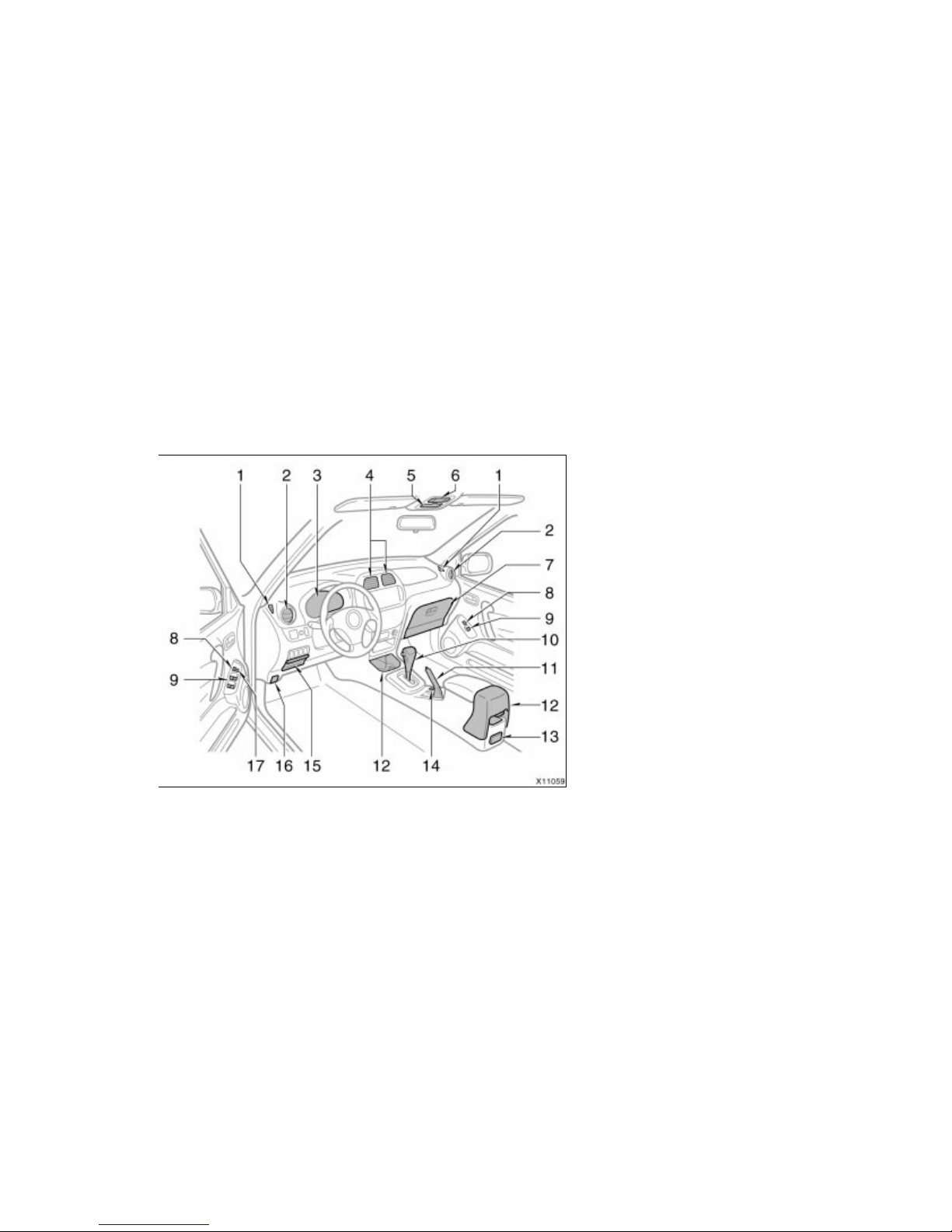

1. Side defroster outlets

2. Side vents

3. Instrument cluster

4. Center vents

5. Garage door opener box or auxiliary

box

6. Electric moon roof switch and personal

light

7. Glove box

8. Power door lock switches

(with power windows)

9. Power window switches

10. Automatic transmission selector lever

or manual transmission gear shift lever

11. Parking brake lever

12. Cup holders

13. Ashtray

14. Power outlet

15. Auxiliary box

16. Hood lock release lever

17. Window lock switch

Instrument panel overview

WWW.MANUALS.WS

’02 Rav4_U (L/O 0108)

2002 MY RAV4_U (OM42503U)

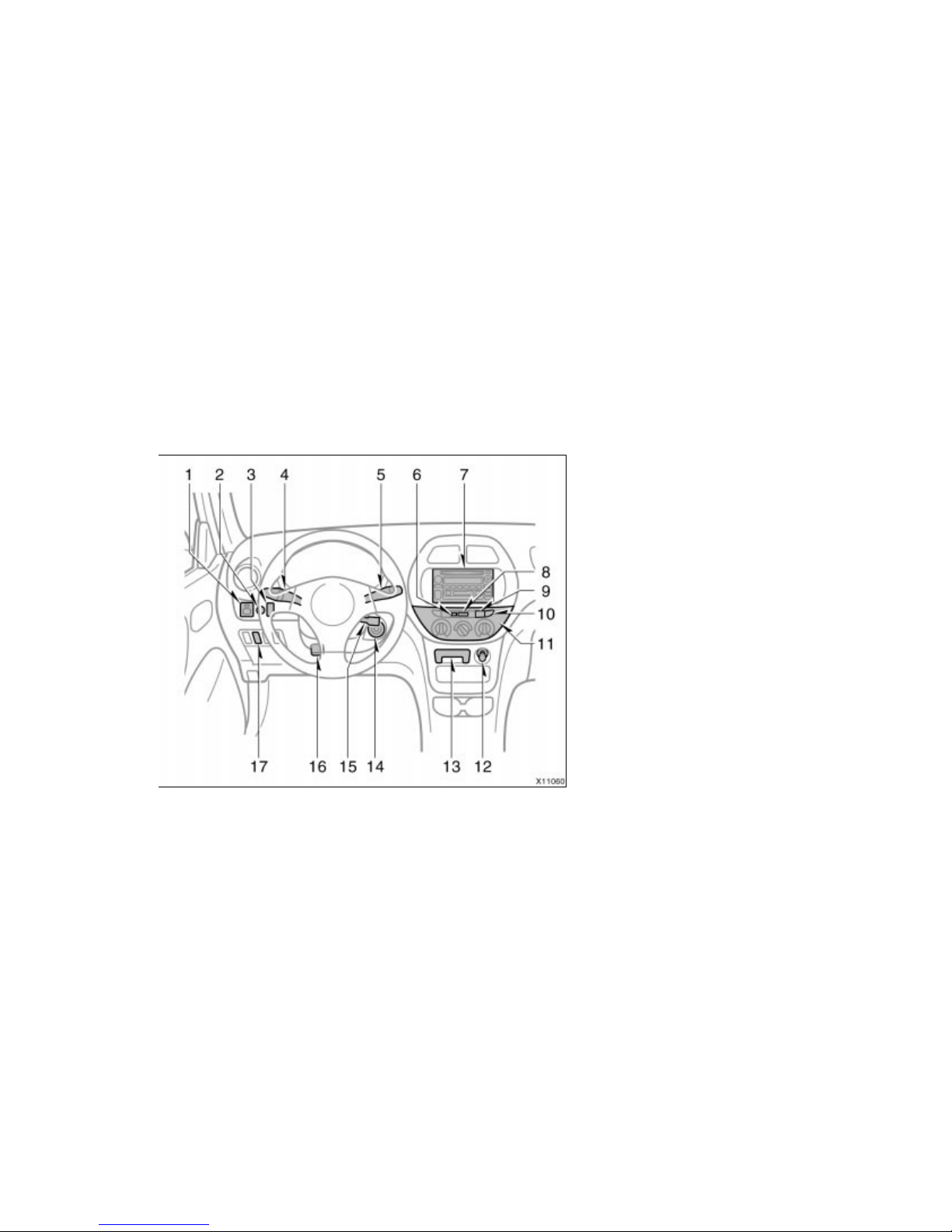

1. Power rear view mirror control switches

2. Instrument panel light control knob

3. Engine immobiliser system indicator

light

4. Headlight, turn signal and front fog

light switches

5. Wiper and washer switches

6. Front passenger’s seat belt reminder

light

7. Car audio

8. Clock display

9. Emergency flasher switch

10. Rear window and outside rear view

mirror defogger switch

11. Air conditioning controls

12. Cigarette lighter

13. Ashtray

14. Ignition switch

15. Cruise control switch

16. Tilt steering lock release lever

17. Power door lock switch

(without power windows)

WWW.MANUALS.WS

’02 Rav4_U (L/O 0108)

42002 MY RAV4_U (OM42503U)

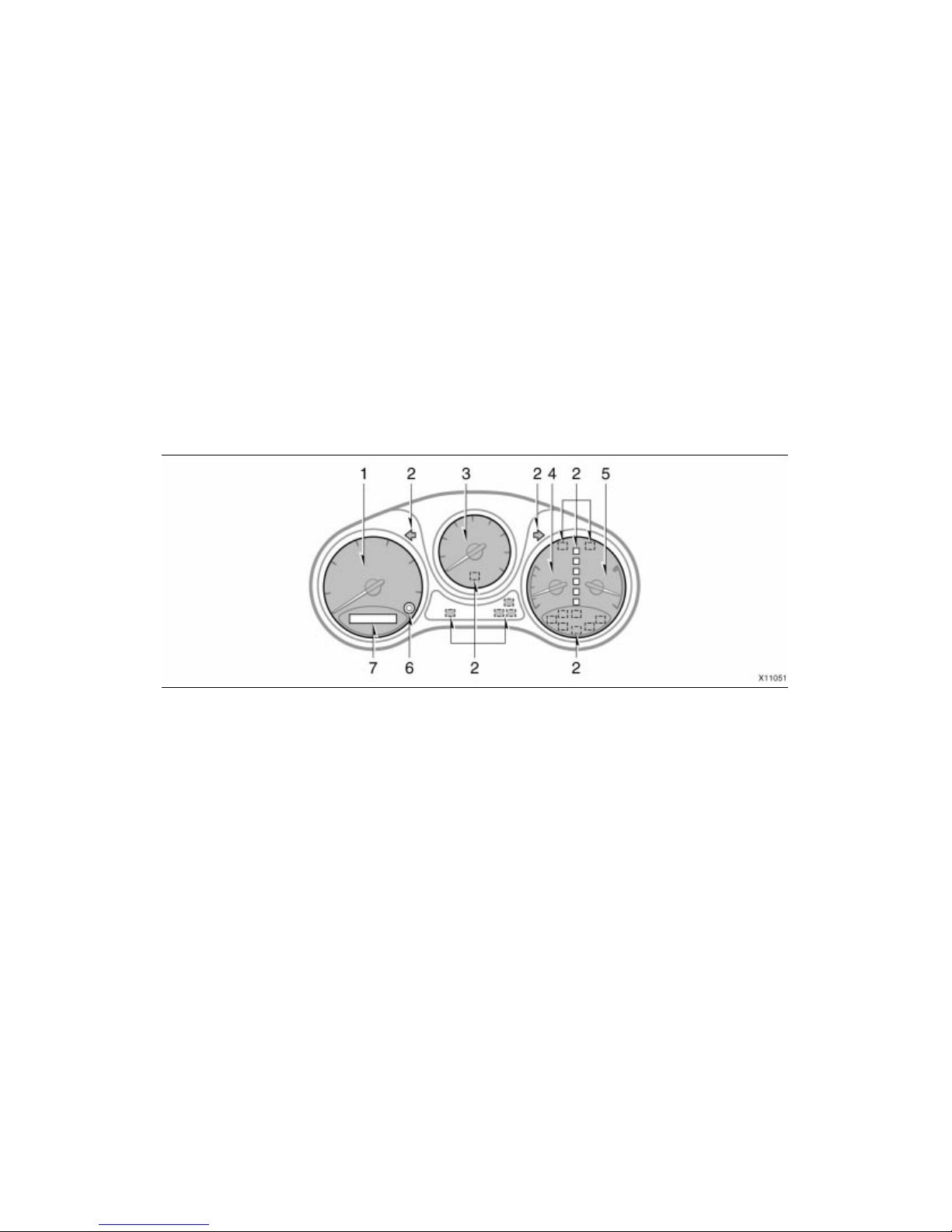

1. Speedometer

2. Service reminder indicators and

indicator lights

3. Tachometer

4. Fuel gauge

5. Engine coolant temperature gauge

6. Trip meter reset knob

7. Odometer and two trip meters

Instrument cluster overview

WWW.MANUALS.WS

’02 Rav4_U (L/O 0108)

2002 MY RAV4_U (OM42503U)

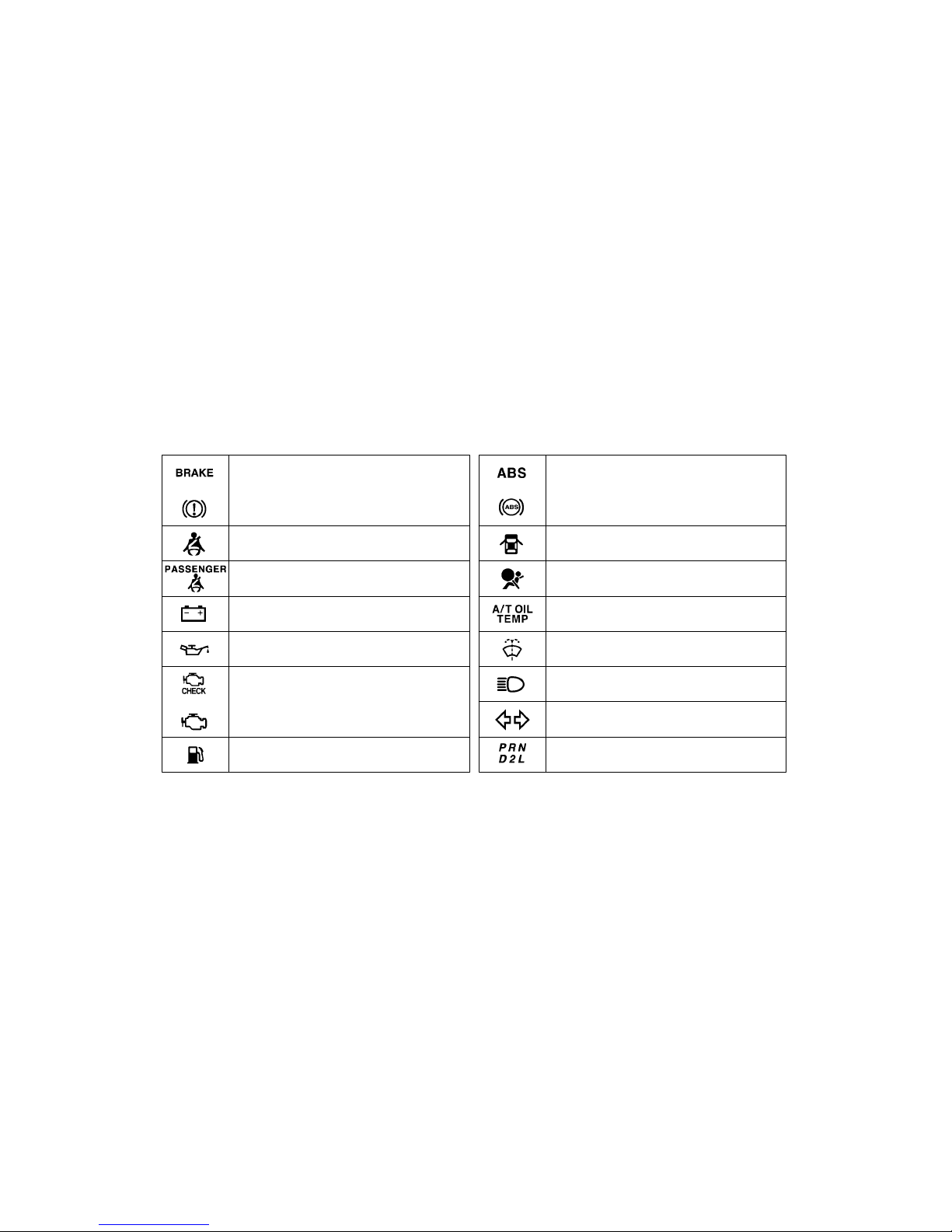

Brake system warning light∗1

Discharge warning light∗1

Low engine oil pressure warning light∗1

Malfunction indicator lamp∗1

Headlight high beam indicator light

SRS warning light∗1

Turn signal indicator lights

Driver’s seat belt reminder light∗1Open door warning light∗1

Low fuel level warning light∗1

Automatic transmission fluid temperature warning

light∗1

Anti–lock brake system warning light∗1

Low windshield washer fluid level warning light∗1

Front passenger’s seat belt reminder light∗1

Automatic transmission indicator lights

Indicator symbols on the instrument panel

WWW.MANUALS.WS

’02 Rav4_U (L/O 0108)

62002 MY RAV4_U (OM42503U)

∗1: For details, see “Service reminder indicators and warning

buzzers” on page 90 in Section 1–5.

∗2: If this light flashes, see “Cruise control” on page 105 in

Section 1–6.

Cruise control indicator light∗2

Overdrive–off indicator light

WWW.MANUALS.WS

’02 Rav4_U (L/O 0108)

2002 MY RAV4_U (OM42503U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Keys and Doors

Keys 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine immobiliser system 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Side doors 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power windows 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Back door 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hood 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel tank cap 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electric moon roof 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION

–

WWW.MANUALS.WS

’02 Rav4_U (L/O 0108)

82002 MY RAV4_U (OM42503U)

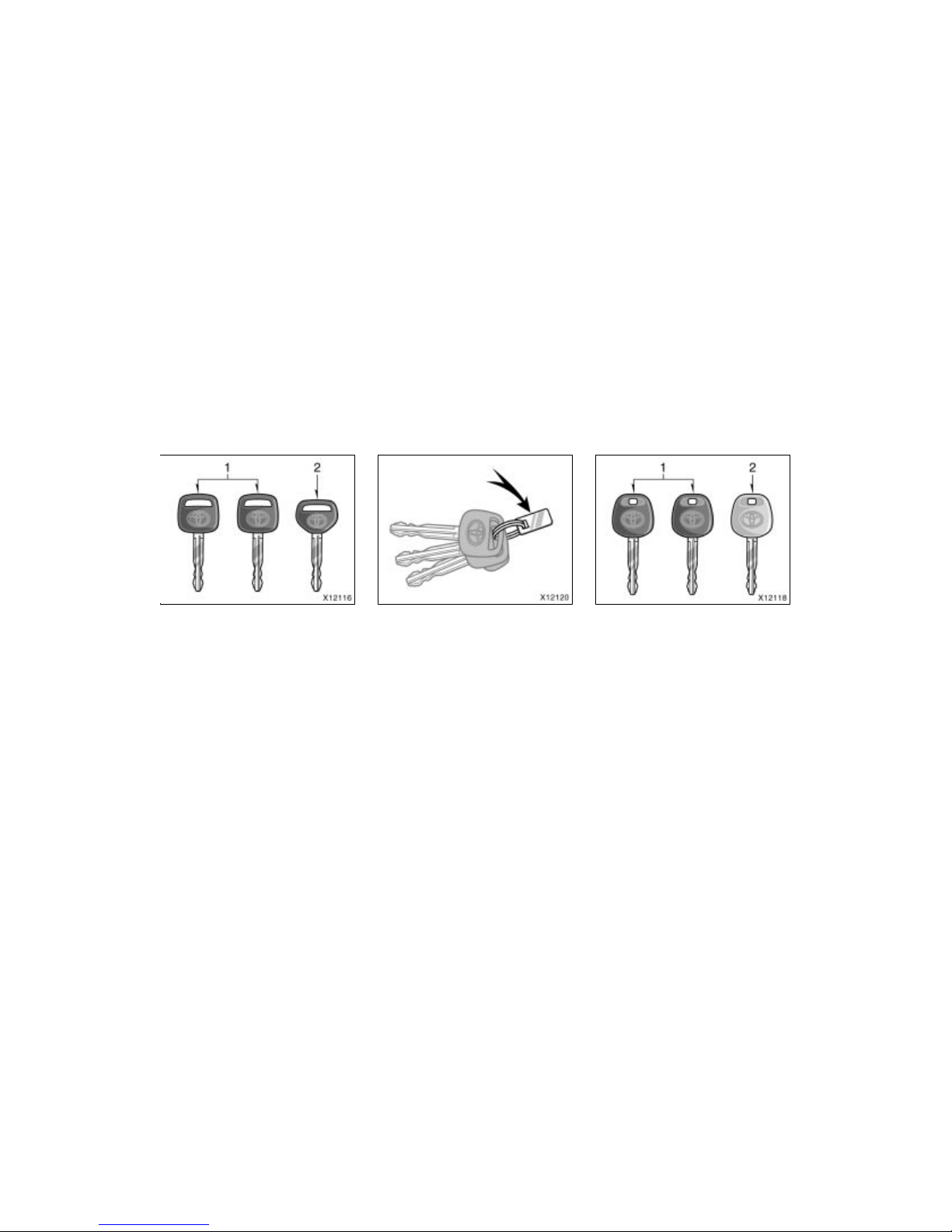

Your vehicle is supplied with two kinds

of keys.

1. Master key—This key works in every

lock.

2. Sub key—This key will not work in the

glove box.

To protect things locked in the glove box

when you have your vehicle parked, leave

the sub key with the attendant.

Since the side doors can be locked with-

out a key, you should always carry a

spare key in case you accidentally lock

your keys inside the vehicle.

KEY NUMBER PLATE

Your key number is shown on the plate.

Keep the plate in a safe place such as

your wallet, not in the vehicle.

If you should lose your keys or if you

need additional keys, duplicates can be

made by a Toyota dealer using the key

number.

We recommend you to write down the key

number and keep it in safe place.

Your vehicle is supplied with two kinds

of keys.

1. Master key (black)—This key works in

every lock. Your Toyota dealer will

need it to make you a new key with

built–in transponder chip.

2. Sub key (gray)—This key will not work

in the glove box.

Keys (without engine

immobiliser system) Keys (with engine immobiliser

system)

WWW.MANUALS.WS

’02 Rav4_U (L/O 0108)

2002 MY RAV4_U (OM42503U)

A transponder chip for engine immobiliser

system has been filled in the head of the

master and sub keys. These chips are

needed to enable the system to function

correctly, so be careful not to lose these

keys. If you make your own duplicate key,

you will not be able to cancel the system

or start the engine.

To protect things locked in the glove box

when you have your vehicle parked, leave

the sub key with the attendant.

Since the side doors can be locked with-

out a key, you should always carry a

spare key in case you accidentally lock

your keys inside the vehicle.

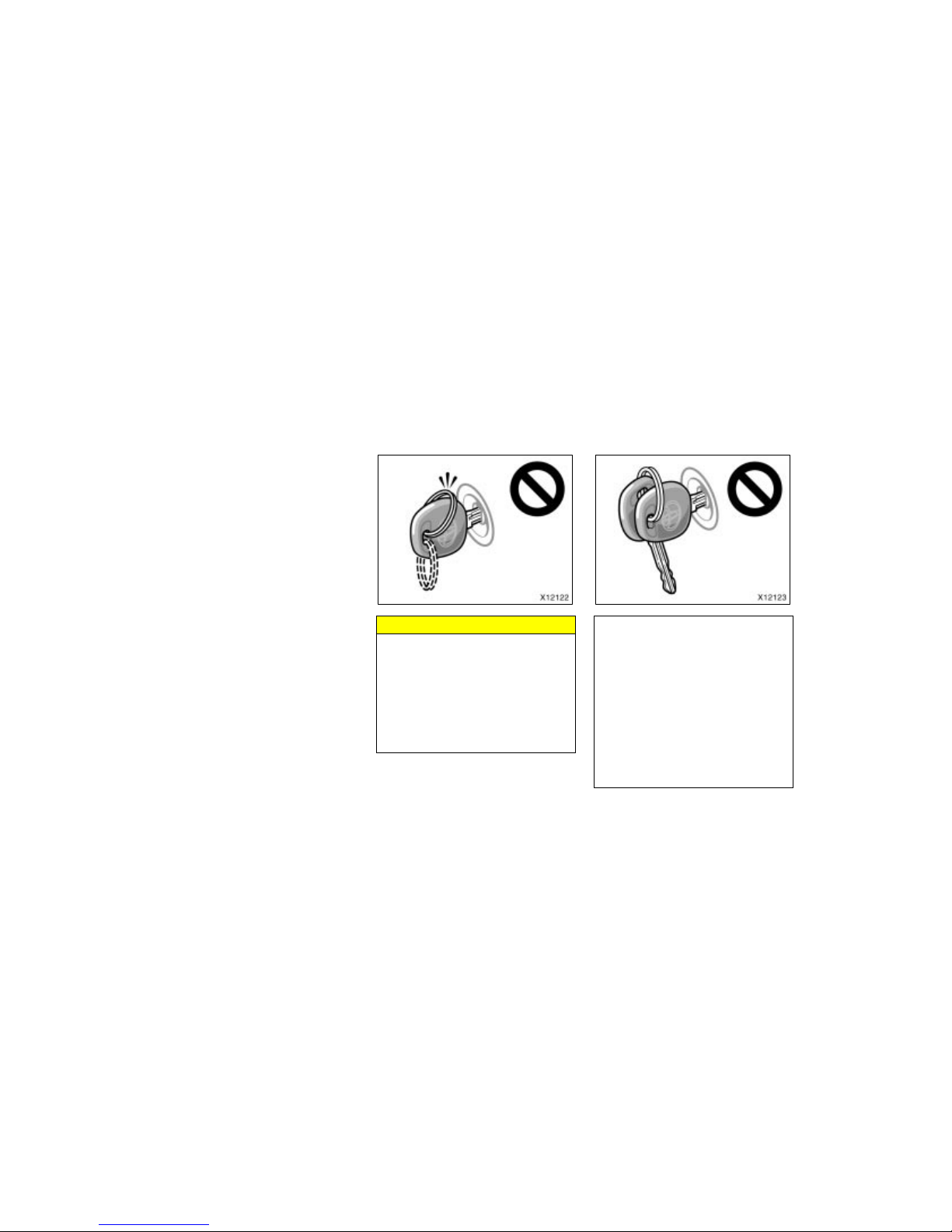

NOTICE

When using a key containing a trans-

ponder chip, observe the following

precautions:



When starting the engine, do not

use the key with a key ring resting

on the key grip and do not press

the key ring against the key grip.

Otherwise the engine may not start,

or may stop soon after it starts.



When starting the engine, do not

use the key with other transponder

keys around (including keys of oth-

er vehicles) and do not press other

key plates against the key grip.

Otherwise the engine may not start,

or may stop soon after it starts. If

this happens, remove the key once

and then insert it again after taking

off other transponder keys (includ-

ing keys of other vehicles) from the

ring or while gripping or covering

them with your hand to start the

engine.

WWW.MANUALS.WS

’02 Rav4_U (L/O 0108)

10 2002 MY RAV4_U (OM42503U)



Do not bend the key grip.



Do not cover the key grip with any

material that cuts off electromagnet-

ic waves.



Do not knock the key hard against

other objects.



Do not leave the key exposed to

high temperatures for a long period,

such as on the dashboard and hood

under the direct sunlight.



Do not put the key in water or

wash it in an ultrasonic washer.



Do not use the key with electromag-

netic materials.

KEY NUMBER PLATE

Your key number is shown on the plate.

Keep the plate in a safe place such as

your wallet, not in the vehicle.

If you should lose your keys or if you

need additional keys, duplicates can be

made by a Toyota dealer using the key

number.

We recommend you to write down the key

number and keep it in safe place.
