2009 Quick Reference Guide

2009

4Runner

!A word about safe vehicle operations

This Quick Reference Guide is a summary of basic vehicle

operations. It contains brief descriptions of fundamental

operations so you can locate and use the vehicle’s main

equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for

the Owner’s Manual located in the vehicle’s glove box. We

strongly encourage you to review the Owner’s Manual and

supplementary manuals so you will have a better understanding

of the vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales,

U.S.A., Inc. wish you many years of satisfied driving in your

new 4Runner.

This Quick Reference Guide is not a full description of

4Runner operations. Every 4Runner owner should review the

Owner’s Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in

color throughout the Owner’s Manual. Each box contains safe

operating instructions to help you avoid injury or equipment

malfunction.

All information in this Quick Reference Guide is current at

the time of printing. Toyota reserves the right to make

changes at any time without notice.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Spare tire & tools

Tool location

Removing the spare tire

(1) Assemble the jack handle.

(2) Insert the jack handle end through the opening in the bumper, and into

the lowering screw.

(3) Turn the jack handle counterclockwise.

Refer to the Owner’s Manual for tire changing and jack positioning

procedures.

Tool bag

Jack

(1)

(2)

(3)

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Engine maintenance

Fuel tank door release and cap 6

Hood release 7

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

Keyless entry16

Air Conditioning/Heating 17

Audio 18-19

Auto lock functions1,2

Automatic Transmission 8

Bottle holders 23

Clock 13

Cruise control 16

Cup holders 22

Door locks

Four-wheel drive 9

Garage door opener (HomeLink®

)

321

Light control-Instrument panel

Lights1& turn signals 14

Moonroof122

Parking brake 12

Power outlets-12V DC 23

Power outlets-115V AC 23

Rear seat entertainment system

Seat adjustments-Front 10

Seat adjustments-Rear 11

Seat heaters

Seats-Head restraints 12

Tilt and telescopic steering wheel 10

VSC OFF button 21

Windows115

Window-Rear hatch115

Windshield wipers & washers

Doors-Child safety locks 24

Seat belts 24

Seat belts-Shoulder belt anchor 24

Spare tire & tools 25

Tire Pressure Monitoring (warning) System 24

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND

EMERGENCY FEATURES

INDEX

1Visit your Toyota dealer for information on customizing this feature.

2 Programmable by customer. Refer to the Owner’s Manual for instructions and

more information.

3HomeLink®is a registered trademark of Johnson Controls, Inc.

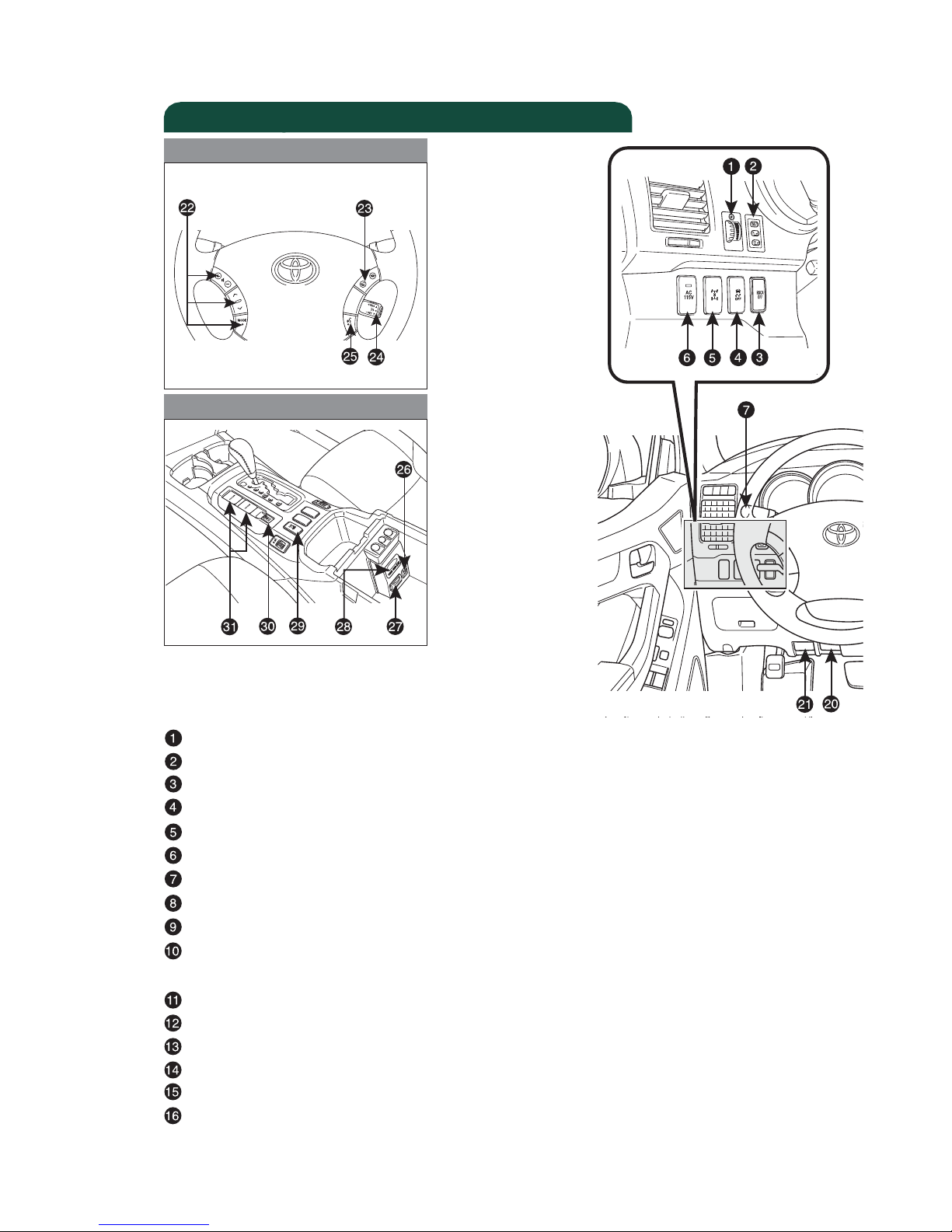

Instrument panel light control

Driving position memory switches1

“RSCA OFF” (Roll Sensing of Curtain shield Airbags “OFF”) switch1

VSC OFF switch1

Center differential lock switch1

115V AC Power outlet ON/OFF switch1

Headlight, turn signal and front fog light1 control

Wiper and washer controls

Engine switch

Four-wheel drive selector1 (full-time 4WD models) or two wheel/

four-wheel drive selector1 (part-time 4WD models)

Multi-information display

Audio system or navigation system2

Front passenger seat belt reminder light

Emergency flasher switch

Front passenger occupant classification indicator

Engine immobilizer/Theft deterrent system indicator1

OVERVIEW

Instrument panel

Steering wheel controls

Rear console box

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Back window and outside rearview mirror defogger1switch

Air Conditioning controls

Auxiliary boxes

Hood release

Fuel tank door opener

Steering wheel audio controls1,2

Telephone switches1,2

Cruise control

Navigation voice command button1,2

AUX adapter

115V AC Power outlet1

A/V input adapter1

Downhill Assist Control switch1

Power back window switch

12V DC Power outlet/Cigarette lighter

1 If equipped

2 For vehicles with a navigation system, refer to the “Navigation System

Owner’s Manual.”

OVERVIEW

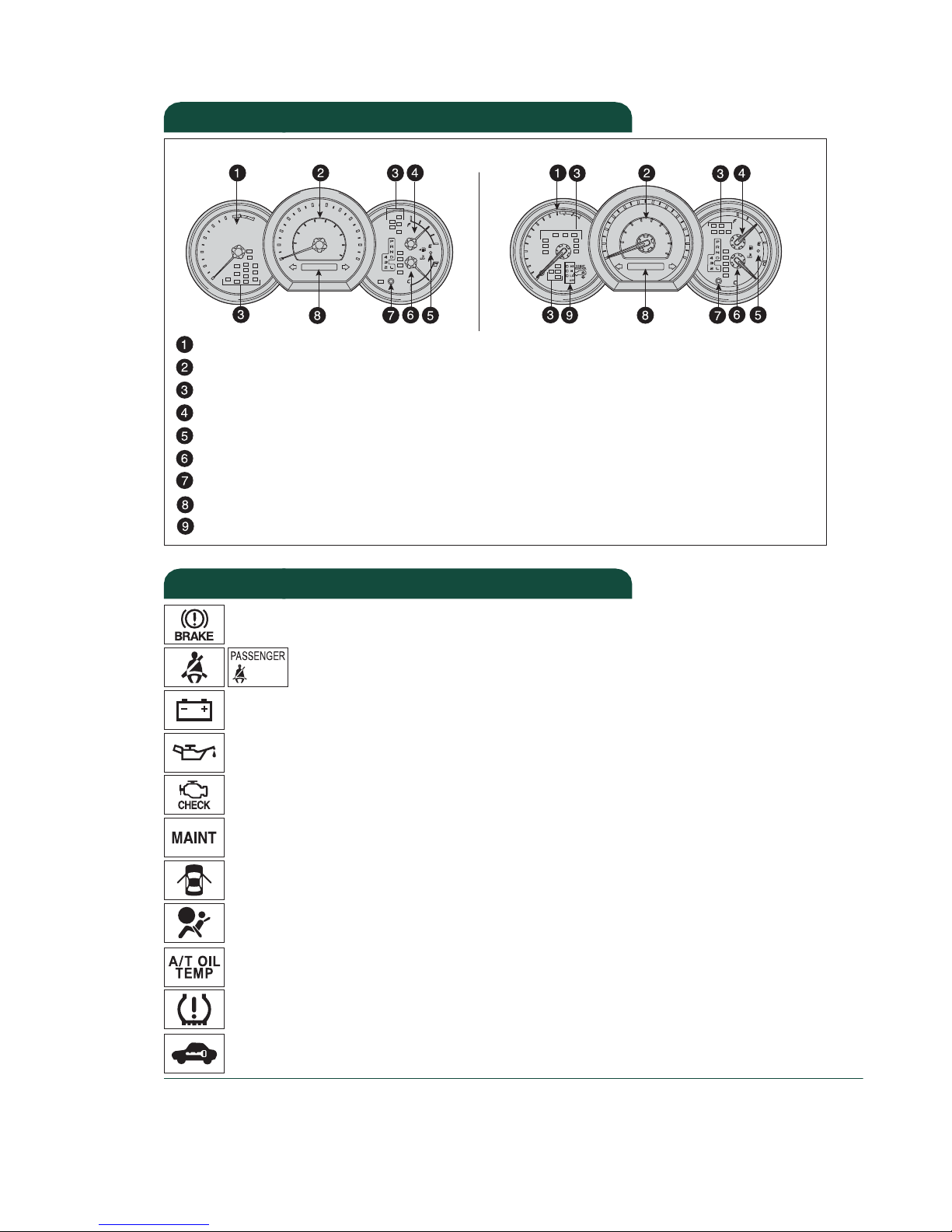

Automatic Transmission fluid temperature warning1

Low Tire Pressure Warning1

Open door warning1

Airbag SRS warning1

Tachometer

Speedometer

Service indicator and reminder

Fuel gauge

Low fuel level warning

Engine coolant temperature

Trip meter reset knob

Odometer and two trip meters

Height control indicator

Instrument cluster

Charging system warning1

Low engine oil pressure warning1

Brake system warning1

Malfunction/Check Engine indicator1

Engine oil replacement reminder1

Indicator symbols

Driver/Front passenger seat belt reminder1

Limited model only

Engine immobilizer/Theft deterrent system indicator

1For details, refer to “If a warning light turns on or warning buzzer sounds...” Section 5-2,

2009 Owner’s Manual.

2For details, see “SRS airbags” Section 1-7, 2009 Owner’s Manual.

3If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2009 Owner’s Manual.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

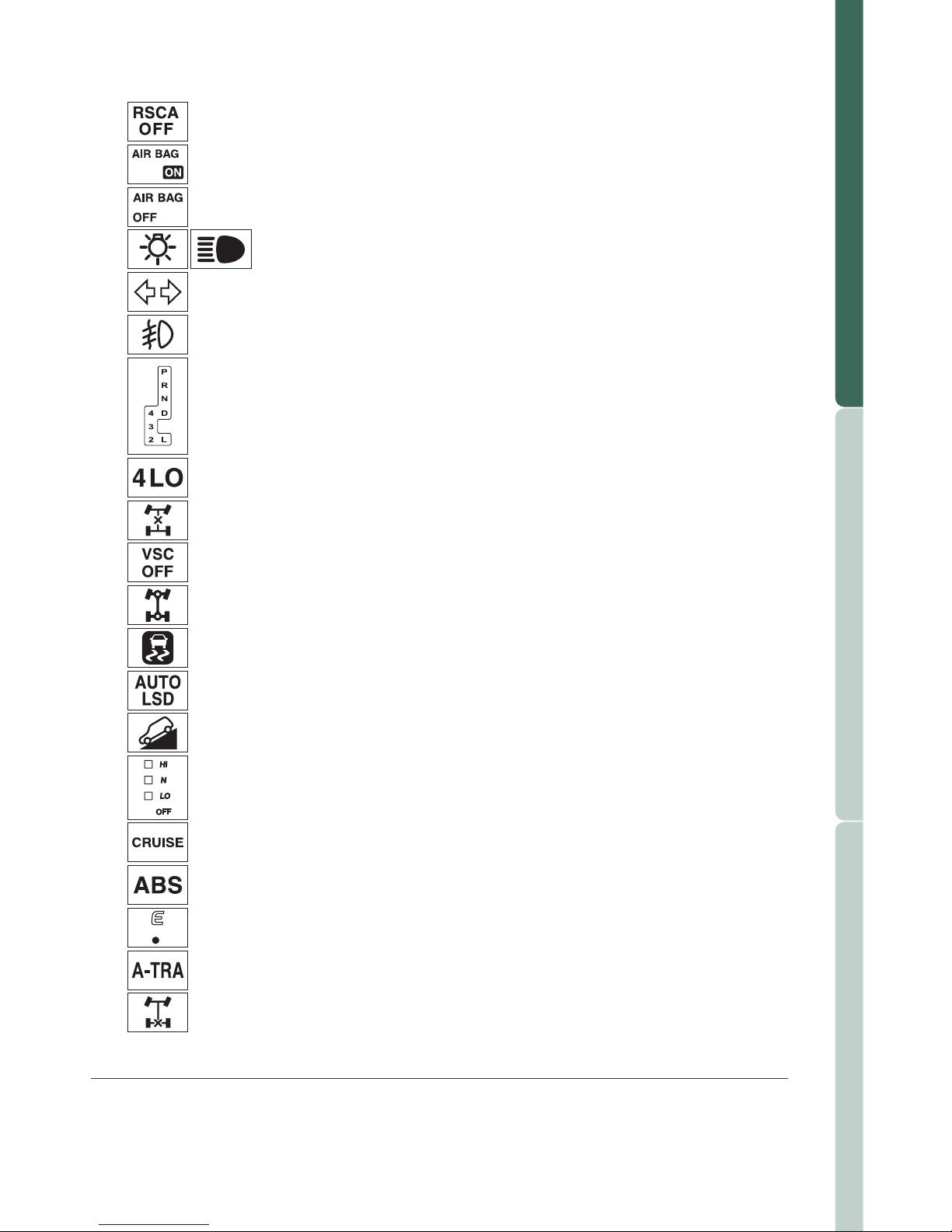

Automatic Transmission indicator

AIR BAG ON indicator

Turn signal indicator

Front fog light indicator

Four-wheel drive indicator3

Low speed four-wheel drive indicator3

Center differential lock indicator3

Slip indicator

Vehicle Stability Control “OFF” indicator1

Downhill Assist Control indicator

AUTO Limited Slip Differential indicator

Cruise control indicator5

Height control indicator4

Roll Sensing of Curtain shield Airbag OFF indicator2

Headlight high beam indicator

Anti-lock Brake System warning1

4If “OFF” indicator flashes, refer to “Electronically modulated air suspension” Section 2-4,

2009 Owner’s Manual.

5If this light flashes, refer to “Cruise control,” Section 2-4, 2009 Owner’s Manual.

AIR BAG OFF indicator

Low fuel level warning1

Rear differential lock indicator

Active traction control indicator

OVERVIEW

NOTE: Tighten until one click is heard. If the cap is not tightened enough,

Check Engine “ ” indicator may illuminate.

Fuel tank door release and cap

Pull up

Tu r n

Store

NOTE: After unlocking, if a door is

not opened within 30 seconds, all

doors will relock for safety.

Panic button

Keyless entry (if equipped)

Locking operation Unlocking operation

Back window operation

Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for

more details.

Push

Push and hold

Push ONCE: Driver door

TWICE: All doors

Push and hold

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

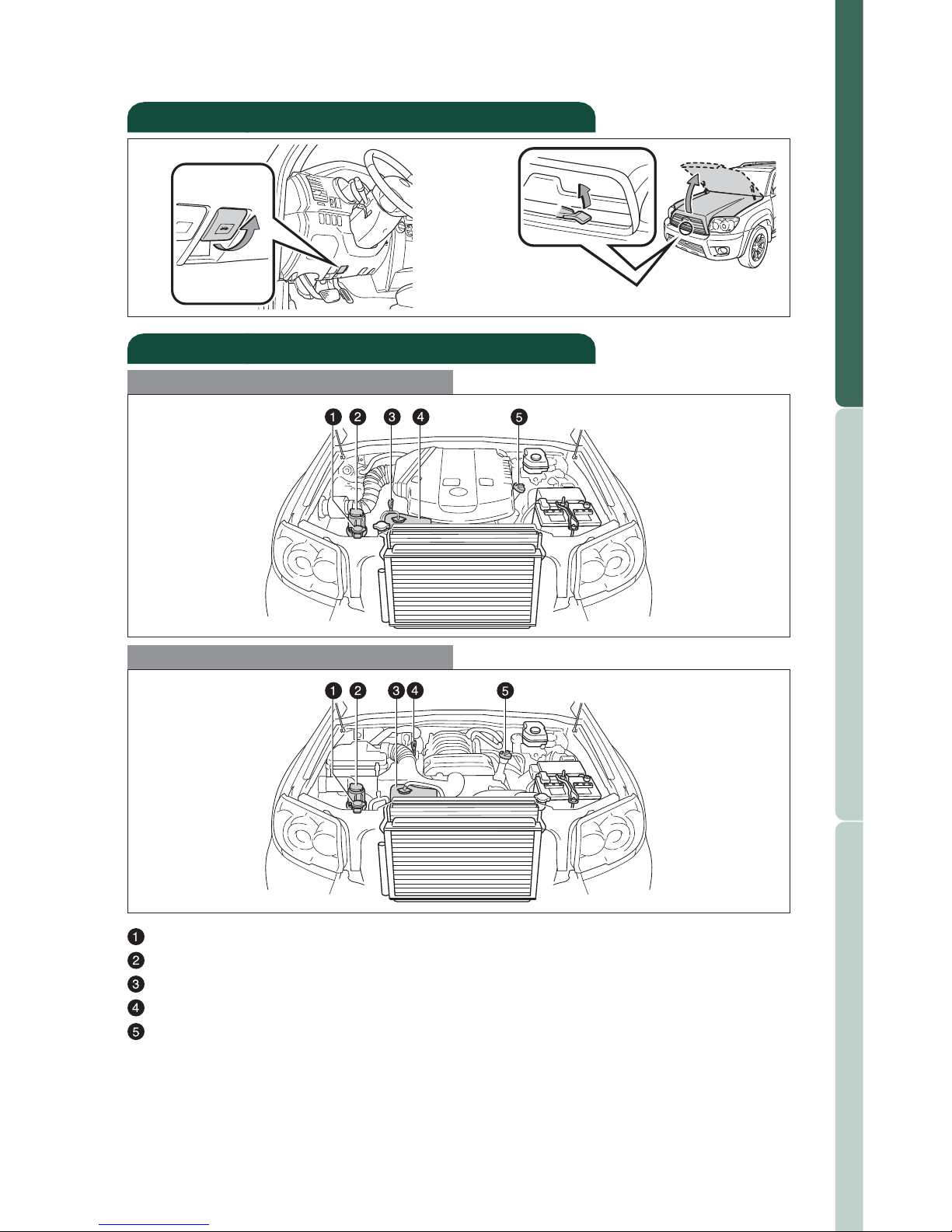

Windshield and back window washer fluid tank

Power steering fluid reservoir

Engine oil level dipstick

Engine coolant reservoir

Engine oil filler cap

Note: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance.

Please refer to the “Owner’s Warranty Information Booklet,”

“Scheduled Maintenance Guide” or “Owner’s Manual

Supplement.”

Engine maintenance

6 cylinder (1GR-FE) engine

8 cylinder (2UZ-FE) engine

Hood release

Pull Pull up latch and

raise hood

FEATURES/OPERATIONS

Auto lock functions

Automatic door locks can be programmed to operate in four different

modes, or turned OFF.

-Doors lock when shifting from Park.

-Doors lock when the vehicle speed goes above approximately 12 mph.

-Doors unlock when shifting into Park.

-Doors unlock when the engine switch is set from “ON” to “ACC” or

“LOCK” and driver’s door is opened.

Refer to the Owner’s Manual for more details.

Automatic Transmission

* The engine switch must be “ON” and the brake pedal depressed to shift

from Park.

Downshifting increases power going uphill, or provides engine braking

downhill. For best fuel economy during normal driving conditions, always

drive with the shift lever in the “D” position.

Park*

Reverse

Neutral

Drive

Third gear

Second gear

First gear

Fourth gear
