FEATURES ON NEW TOYOTA VEHICLE

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster and multi- information display overview 4. . . . . . . .

Indicator symbols on the instrument panel and multi- information

display 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION

–

WWW.MANUALS.WS

Instrument panel overview

1. Side vents 187. . . . . . . . . . . . . . . . . . . . . . .

2. Side defroster outlets

3. Instrument cluster 4. . . . . . . . . . . . . . . . . .

4. Center vents 187. . . . . . . . . . . . . . . . . . . . .

5. Glove boxes 191. . . . . . . . . . . . . . . . . . . . .

6. Power door lock switches 38. . . . . . . . .

7. Power window switches 40. . . . . . . . . . .

8. Auxiliary boxes 195. . . . . . . . . . . . . . . . . . .

9. Cup holders 196. . . . . . . . . . . . . . . . . . . . .

10. Tilt steering lock release lever 96. . . . .

11. Hood lock release lever 43. . . . . . . . . . .

12. Parking brake pedal 141. . . . . . . . . . . . . .

13. Power rear view mirror

control switch 97. . . . . . . . . . . . . . . . . . . . .

14. Window lock switch 41. . . . . . . . . . . . . . .

11p003d

WWW.MANUALS.WS

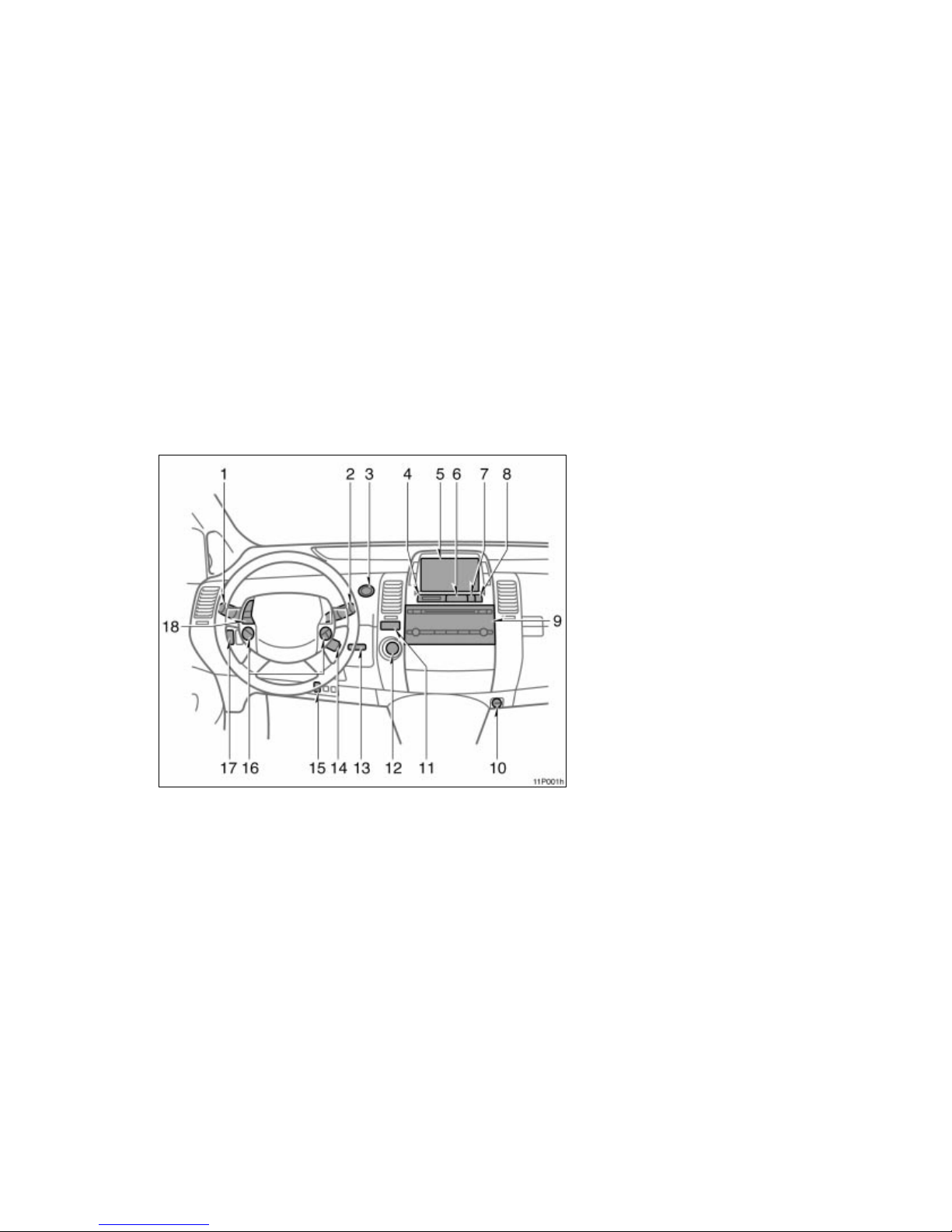

1. Headlight and turn signal

switches 102. . . . . . . . . . . . . . . . . . . . . . . . .

2. Wiper and washer switches 109. . . . . . .

3. “POWER” switch 130. . . . . . . . . . . . . . . . .

4. Clock 190. . . . . . . . . . . . . . . . . . . . . . . . . . . .

5. Multi-information display 146. . . . . . . . . .

6. Emergency flasher switch 106. . . . . . . . .

7. Trip meter reset button 115. . . . . . . . . . .

8. Km/h or MPH button 116. . . . . . . . . . . . .

9. Car audio 156. . . . . . . . . . . . . . . . . . . . . . . .

10. Power outlet 190. . . . . . . . . . . . . . . . . . . . .

11. “P” position switch 135. . . . . . . . . . . . . . .

12. Electronic shift lever

(R, N, D, B) 135. . . . . . . . . . . . . . . . . . . . .

13. Key slot 19. . . . . . . . . . . . . . . . . . . . . . . . . .

14. Cruise control switch 141. . . . . . . . . . . . .

15. Smart entry and start system

cancel switch 32. . . . . . . . . . . . . . . . . . . . .

16. Climate remote control

switches 186. . . . . . . . . . . . . . . . . . . . . . . . .

17. Instrument panel light control

dial 107. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18. Audio remote control switches 174. . . .

11p001h

WWW.MANUALS.WS

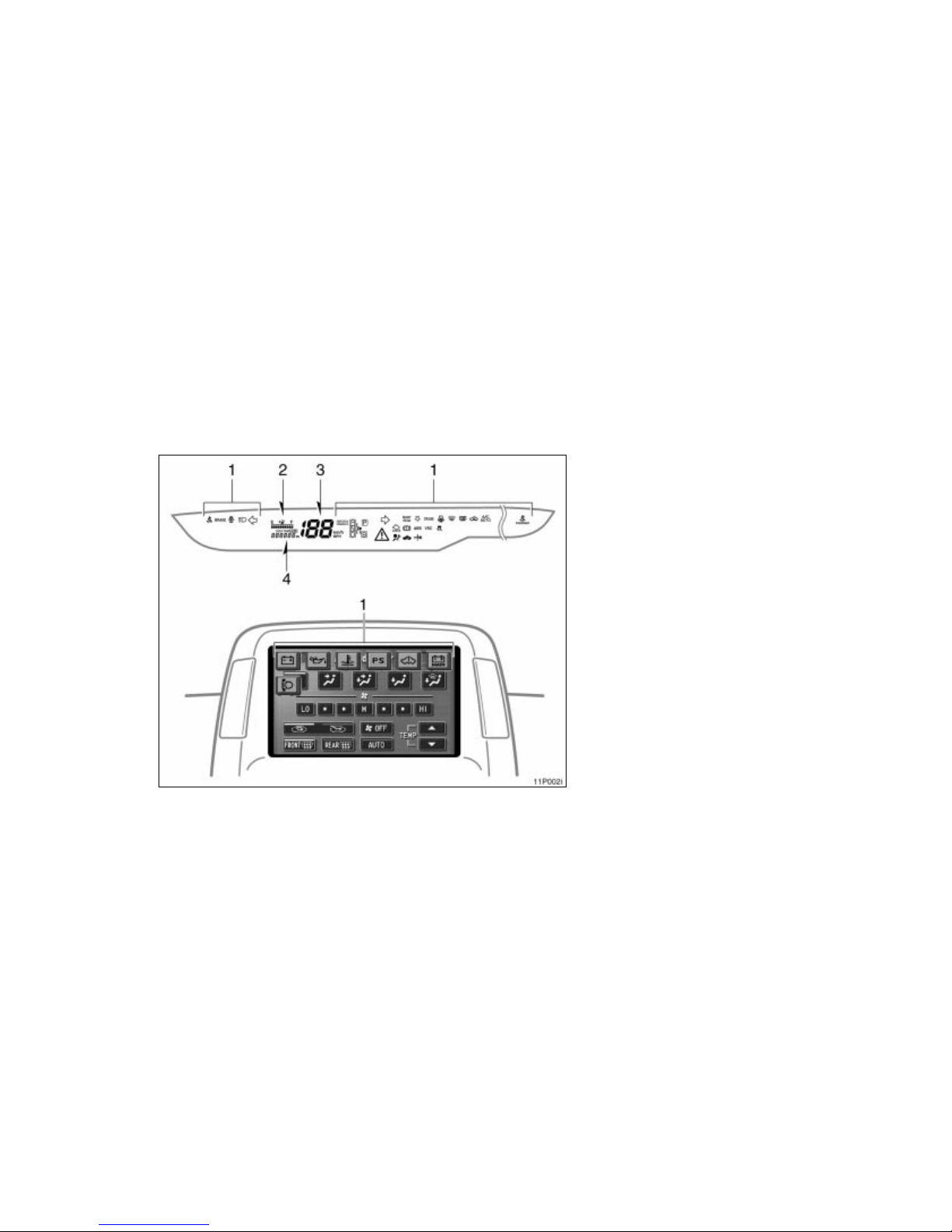

1. Service reminder indicators

and indicator lights 117, 124. . . . . . . . . .

2. Fuel gauge 114. . . . . . . . . . . . . . . . . . . . . .

3. Speedometer

4. Odometer and trip meter 115. . . . . . . . .

Instrument cluster and multi- information display overview

11p002i

WWW.MANUALS.WS

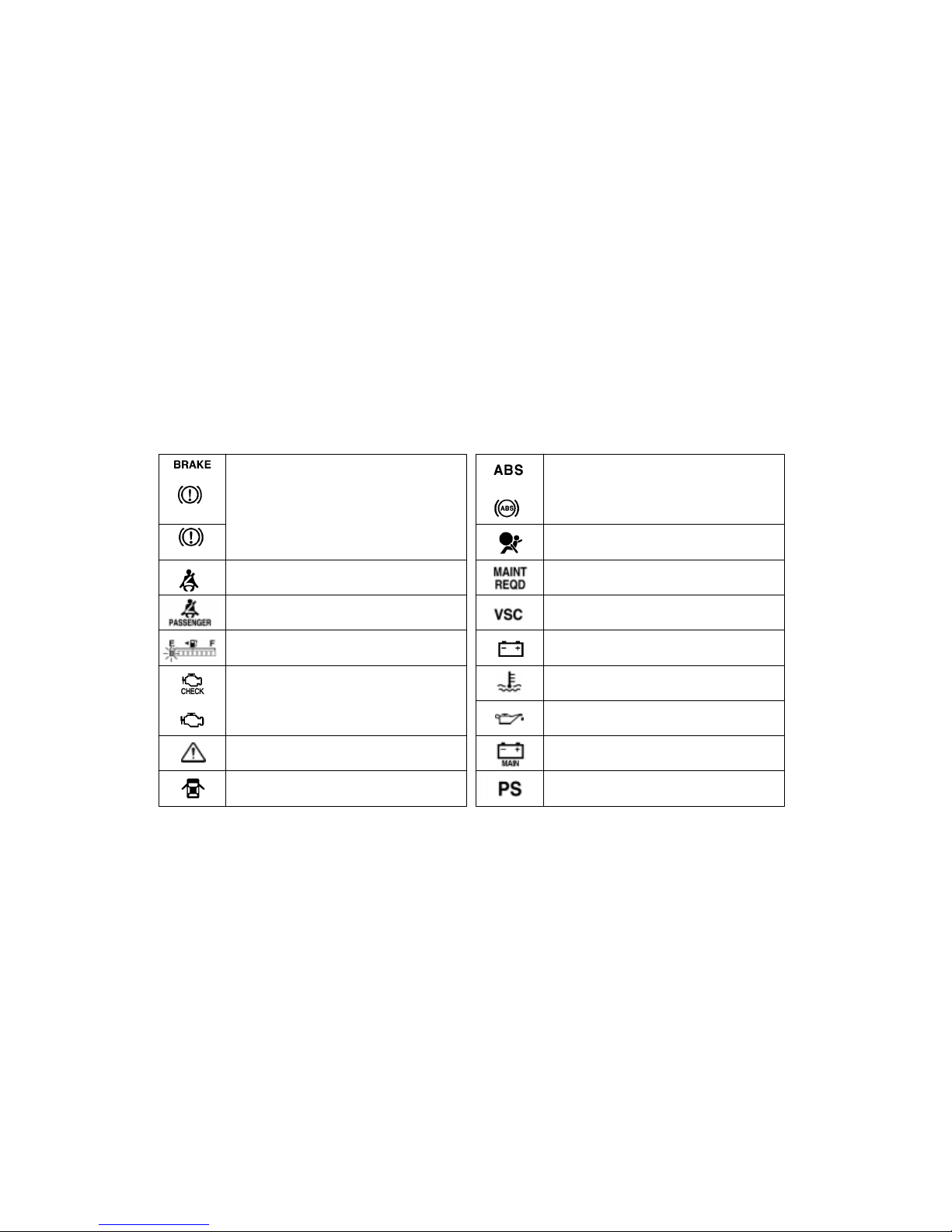

Indicator symbols on the instrument cluster and Multi- information display

and

Brake system warning lights∗1

Driver’s seat belt reminder light∗1

Front passenger’s seat belt reminder light∗1

Malfunction indicator lamp∗1

Low fuel level indicator light∗1

Open door warning light∗1

Master warning light∗1

Anti- lock brake system warning light∗1

SRS warning light∗1

Engine oil replacement reminder light∗1

(for vehicles sold in U.S.A.)

Vehicle stability control system warning light∗1

Discharge warning light∗2

High coolant temperature warning light∗2

Low engine oil pressure warning light∗2

Hybrid vehicle battery warning light∗2

Electric power steering system warning light∗2

(U.S.A)

(Canada)

WWW.MANUALS.WS

Hybrid vehicle immobilizer / Theft deterrent sys-

tem indicator light

Tail light indicator light

Shift position indicator light∗4

Driving ready light

Automatic air conditioner indicator light

Recirculate mode indicator light

Smart entry and start system warning light∗5

Windshield air flow indicator light

Slip indicator light

Rear window and outside rear view mirror defog-

gers indicator light

Low temperature indicator light

Headlight high beam indicator light

Headlight indicator light

Turn signal indicator lights

∗1: For details, see “Service reminder indicators and warning

buzzers— —Instrument cluster” on page 117.

∗2: For details, see “Service reminder indicators and warning

buzzers— —Multi- information display” on page 124.

∗3: If this light flashes, see “Cruise control” on page 141.

∗4: For details, see “Hybrid transaxle” on page 135.

∗5: For details, see “Smart entry and start system” on page 23.

Cruise control indicator light∗3

Hybrid system warning light∗2

Automatic head light leveling system

warning light∗2

WWW.MANUALS.WS

FEATURES ON NEW TOYOTA VEHICLE

Toyota hybrid system

Toyota hybrid systemm8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Toyota hybrid system operating condition 8. . . . . . . . . . . . . . . . . . . . . . .

Starting your vehicle 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

For efficient use of your vehicle 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Precautions for use 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION

–

WWW.MANUALS.WS

Toyota hybrid system combines a gaso-

line engine and electric motor power to

improve the fuel economy and minimize

the emissions as well as to provide

better power performance than the ordi-

nary gasoline- powered vehicles.

Depending on the driving condition, the

vehicle runs on the best combination of;

Gasoline engine power

Electric motor power generated by

the gasoline engine

Electric motor power of the hybrid

vehicle battery

Furthermore, the energy is efficiently used

in the following ways:

When stopping the vehicle, the gaso-

line engine is automatically stopped.

When applying the brakes or decelerat-

ing, electricity is converted from the

turning force of the wheels and stored

in the hybrid vehicle battery. (This is

called regenerative brake.)

Since the battery is charged by the

gasoline engine as needed, it does not

require charging from an outside

source like an electric vehicle.

If you do not use the vehicle for a

long time (2 weeks or more), the hy-

brid vehicle battery and auxiliary battery

will discharge and their condition is li-

able to decline. Therefore, in order to

make up for discharging, charge them

once in every 2 weeks for about 30

minutes by starting the hybrid system

with all electrical components turned off.

Basic operations are described below. Be-

sides, Toyota hybrid system performs vari-

ous controls depending on the operating

condition: The “Energy Monitor” screen

tells you which power is used currently.

Toyota hybrid system Toyota hybrid system

operating condition

WWW.MANUALS.WS

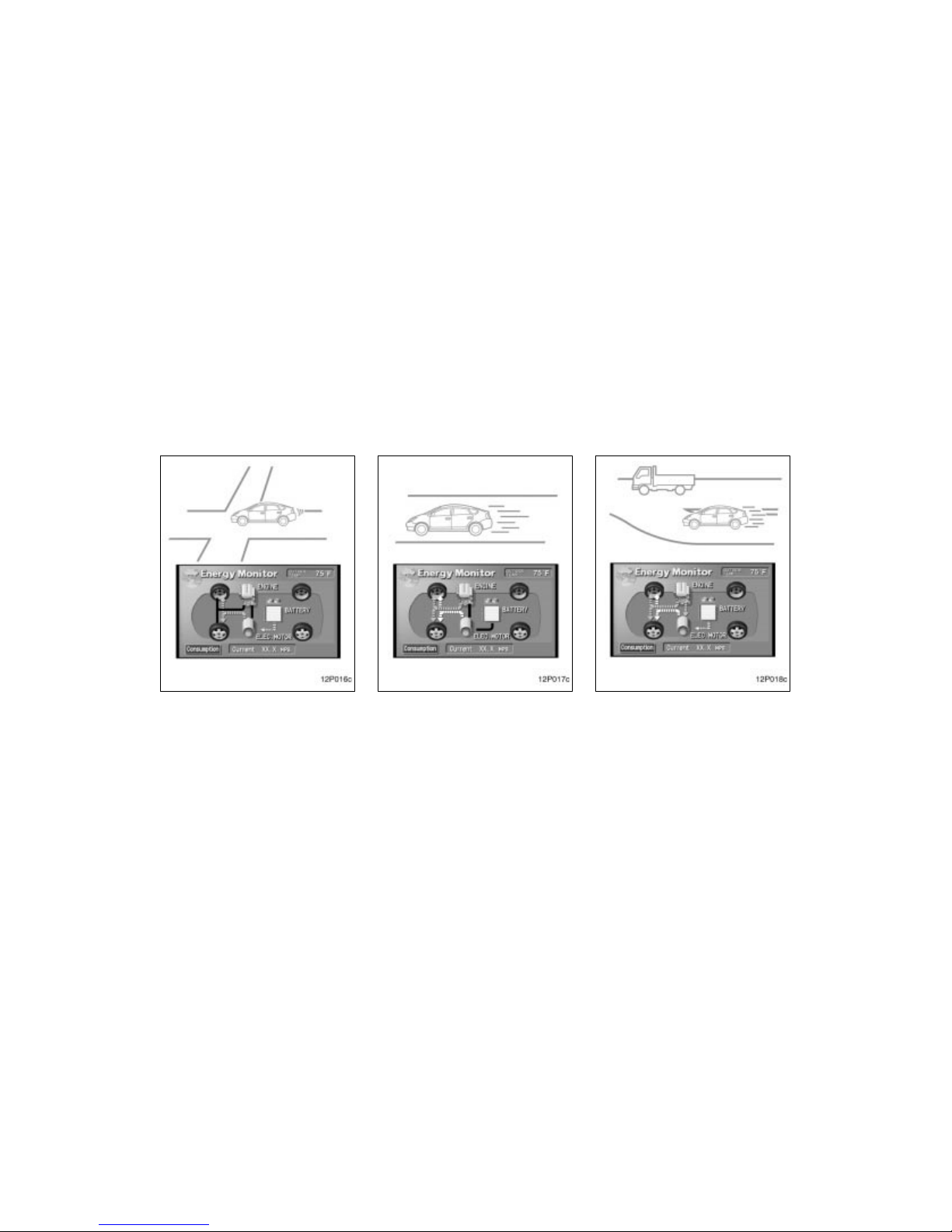

12p016c

Electric power

in use

When starting or backing up, etc., the

vehicle runs on electric power from hybrid

vehicle battery, because the gasoline en-

gine efficiency is low.

12p017c

Gasolinepower

in use

During normal driving, the vehicle runs

mainly on gasoline power. However, the

electric motor, using electric power gener-

ated by the gasoline engine, can supple-

ment the gasoline engine power.

The vehicle controls the optimum ratio of

the gasoline and electric power to help

use energy more efficiently.

12p018c

Electric and gasoline

power in use

When driving at full throttle, additional

electric power is applied from the hybrid

vehicle battery. Vehicle performance impro-

ves.

WWW.MANUALS.WS

12p019c

Storing electric power

When decreasing speed or applying the

brakes, the turning force of the wheels

makes the electric motor operate as a

generator and additional electricity is

stored in the hybrid vehicle battery (regen-

erative brake).

12p020c

Not in use

When stopping, the gasoline engine auto-

matically shuts off.

12p030b

Charging hybrid vehicle battery

When the hybrid vehicle battery power is

insufficient, the gasoline engine charges

the hybrid vehicle battery. The system al-

ways supplies electricity at a constant lev-

el.
