Toyota FJ GSJ10 Guide de démarrage rapide

2005 TOYOTA MOTOR CORPORATION

duced or copied, in whole or in part, without the

written permission of Toyota Motor Corporation.

First Printing: Dec. 22, 2005 01-051222-00

FOREWORD

To assist you in your service activities, this manual explains the main characteristics of the new FJ Cruiser

in particular providing a technical explanation of the construction and operation of new mechanism and new

technology used.

Applicable models: GSJ10, GSJ15 series

This manual is divided into 3 sections.

1. New Model Outline - Explanation of the product to give a general understanding of its features.

2. Technical Description -Technical explanation of the construction and operation of each new system and

component.

3. Appendix - Major technical specifications of the vehicle.

CAUTION, NOTICE, REFERENCE and NOTE are used in the following ways:

CAUTION A potentially hazardous situation which could result in injury if instructions are

ignored.

NOTICE Damage to the vehicle or components may occur if instructions are ignored.

REFERENCE Explains the theory behind mechanisms and techniques.

NOTE Notes or comments not included under the above 3 titles.

For detailed service specifications and repair procedures, refer to the following Repair Manuals:

Manual Name Pub. No.

•2007 FJ Cruiser Repair Manual

•2007 FJ Cruiser Electrical Wiring Diagram RM0240U

EM0240U

All information contained herein is the most up-to-date at the time of publication. We reserve the right to

make changes without prior notice.

NEW MODEL OUTLINE

EG-2

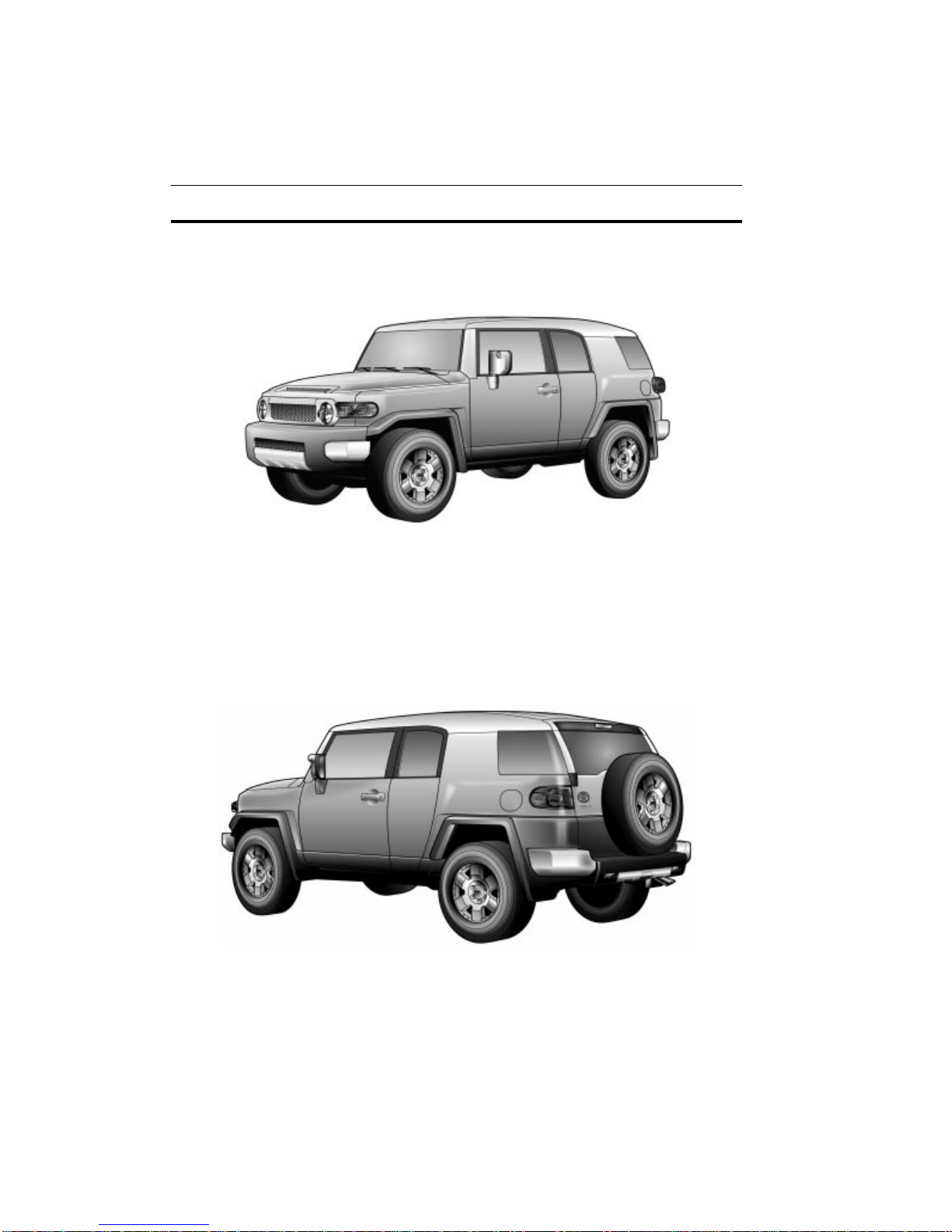

EXTERIOR APPEARANCE

0240MO01Z

0240MO02Z

NEW MODEL OUTLINE

MODEL CODE

GSJ15 L - G K F S K A

1 2 3 4 5 6 7 8

BASIC MODEL CODE

CODE ENGINE DRIVE TYPE

GSJ10

1GR FE

2WD

GSJ15 1GR-FE 4WD

STEERING WHEEL POSITION

L : Left-Hand Drive

MODEL NAME

G : FJ CRUISER

BODY TYPE

K : Access Door Wagon

GEAR SHIFT TYPE

5F : 6-Speed Manual, Floor

A : 5-Speed Automatic, Floor

GRADE

S : SR

ENGINE SPECIFICATION

K : DOHC and SFI

DESTINATION

A : U.S.A. and Canada

MODEL LINE-UP

BODY

DRIVE

TRANSMISSION

DESTINATION ENGINE BODY

TYPE

DRIVE

TYPE

6-Speed Manual 5-Speed Automatic

TYPE

RA61F A750E A750F

U.S.A.

1GR FE

Access

Door

2WD - GSJ10L-GKASKA -

U.S.A. and Canada 1GR-FE Door

Wagon 4WD GSJ15L-GKFSKA - GSJ15L-GKASKA

NEW MODEL OUTLINE

EG-4

EXTERIOR

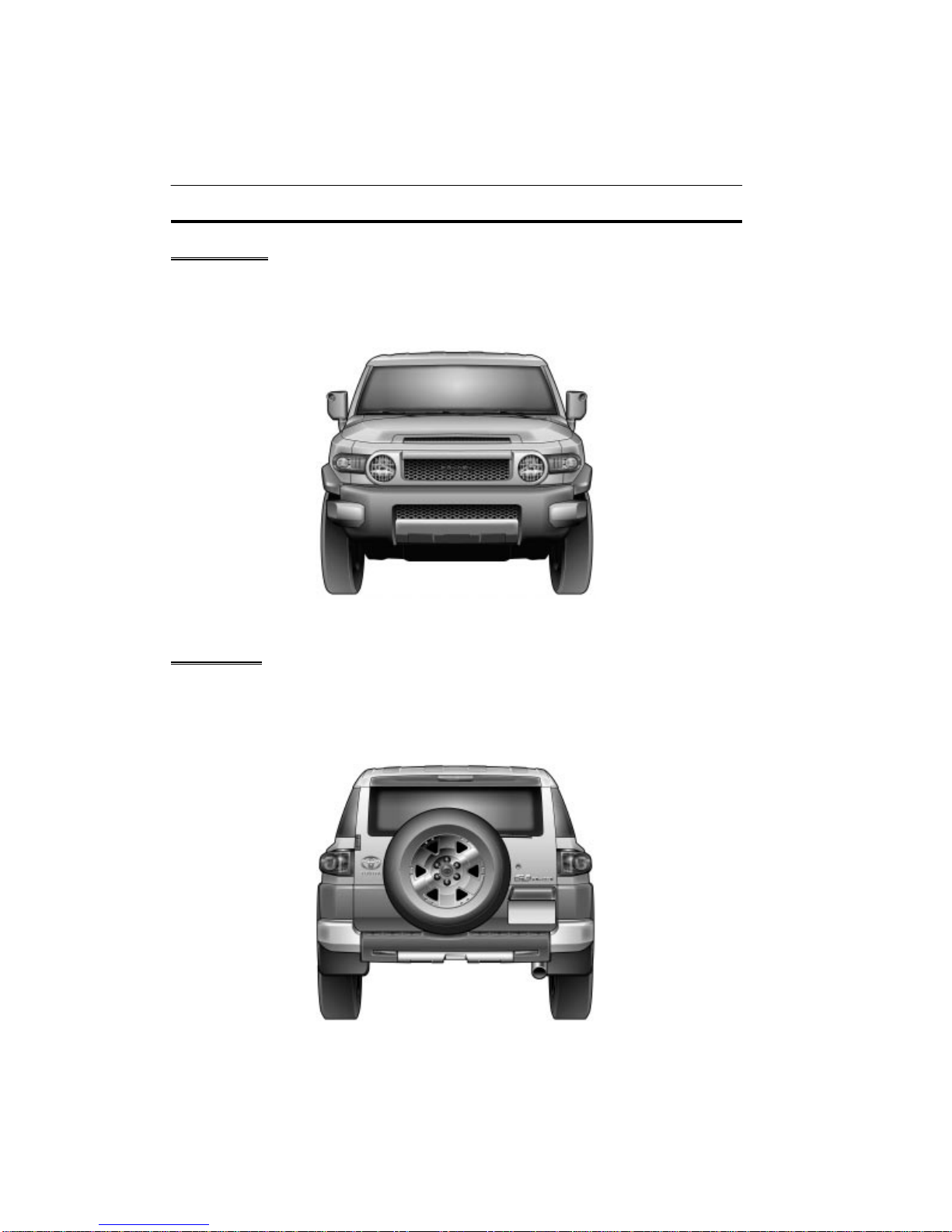

Front View

The headlights and radiator grille evoke an image of the original Land Cruiser FJ-40 series.

The high cabin and rounded design create a modern image.

0240MO03Z

Rear View

The quarter windows that extend partway around the rear of the vehicle and the placement

of the license plate evoke an image of the original Land Cruiser FJ-40 series.

The rear bumper creates a rugged image that suits an off road vehicle.

0240MO04Z

NEW MODEL OUTLINE

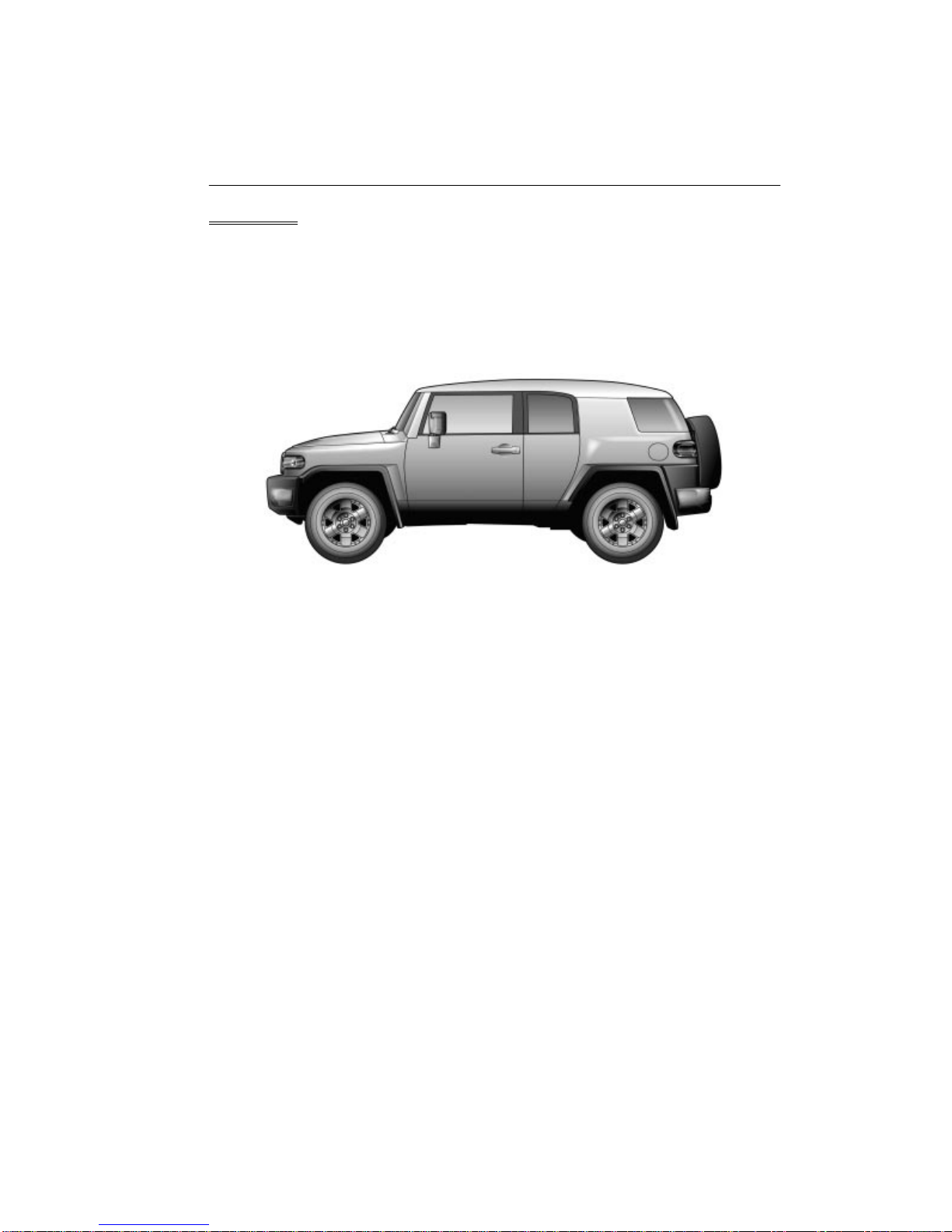

Side View

The quarter pillar and over fenders express a sense of individuality and create a dynamic

image.

The black rocker panel area creates a three-dimensional appearance.

The rear access doors create a stylish profile.

0240MO05Z

NEW MODEL OUTLINE

EG-6

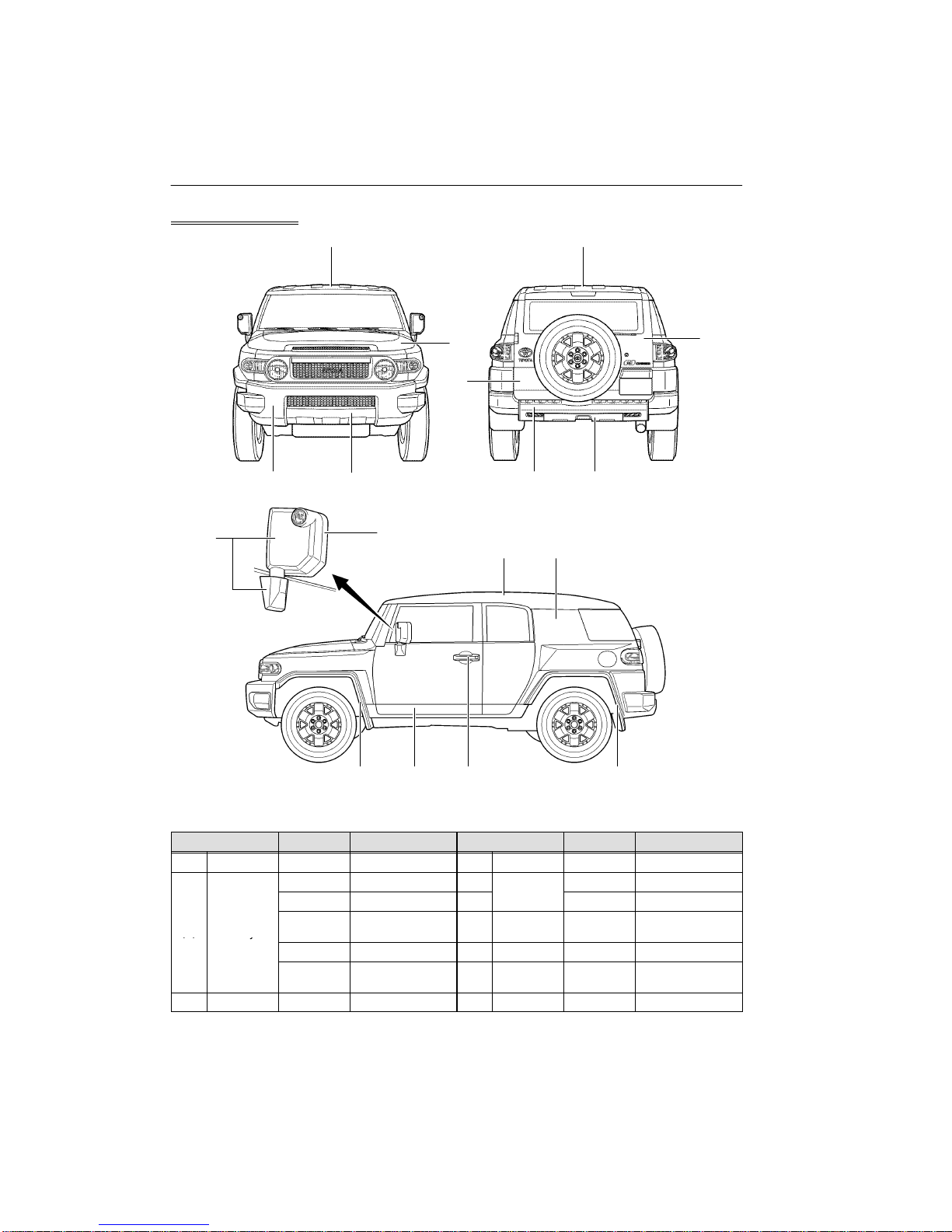

Exterior Color

0240MO06Z

(1)

0240MO07Z

(1)

(2) (2)

(8)

(3) (4) (3) (4)

(5) (6) (1) (2)

(7) (7)(9)(8)

Parts Color No. Color Name Parts Color No. Color Name

(1) Roof 058 White (4) Bumper 11CR07 Silver Metallic

1D4 Silver Metallic (5)

Mirror

11CR07 Silver Metallic

211 Black Mica (6)

rror 11BK10 Black

(2) Body 3P2 Bordeaux Mica (7) Over

Fender 11BK10 Black

()

5A3 Yellow (8) Moulding 11BK10 Black

8T6 Blue (9) Door

Handle 11CR07 Silver Metallic

(3) Bumper 11BK10 Black - - - -

NEW MODEL OUTLINE

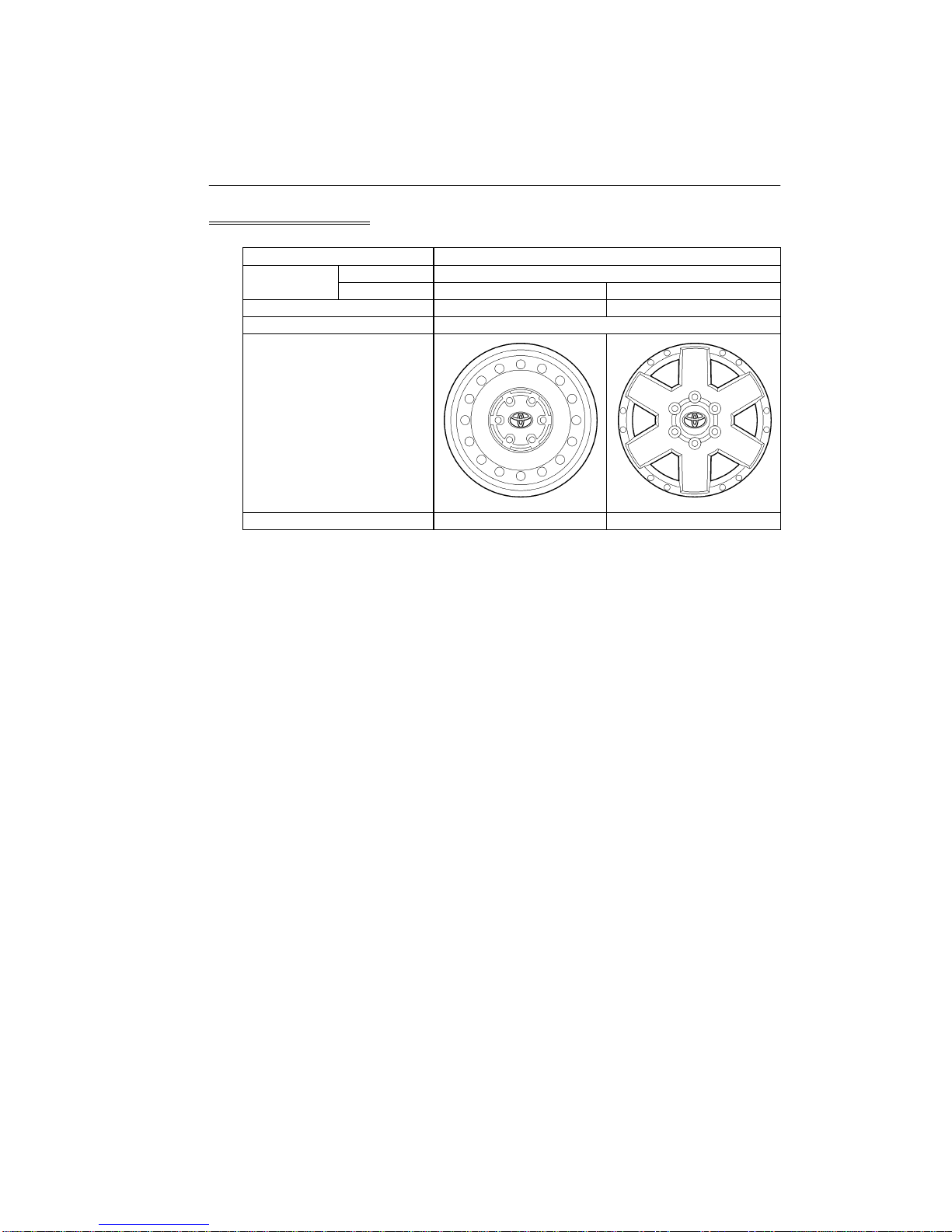

Tire & Disc Wheel

Tire Size P265/70R17

Disc Wheel

Size 17 ×7 1/2J

Material Steel Aluminum

P. C. D.* mm (in.) 139.7 (5.5) 139.7 (5.5)

Off Set mm (in.) 15 (0.6)

Wheel Design

0240MO08C 0240MO09C

Equipment Standard Option

*: P.C.D. (Pitch Circle Diameter)

NEW MODEL OUTLINE

EG-8

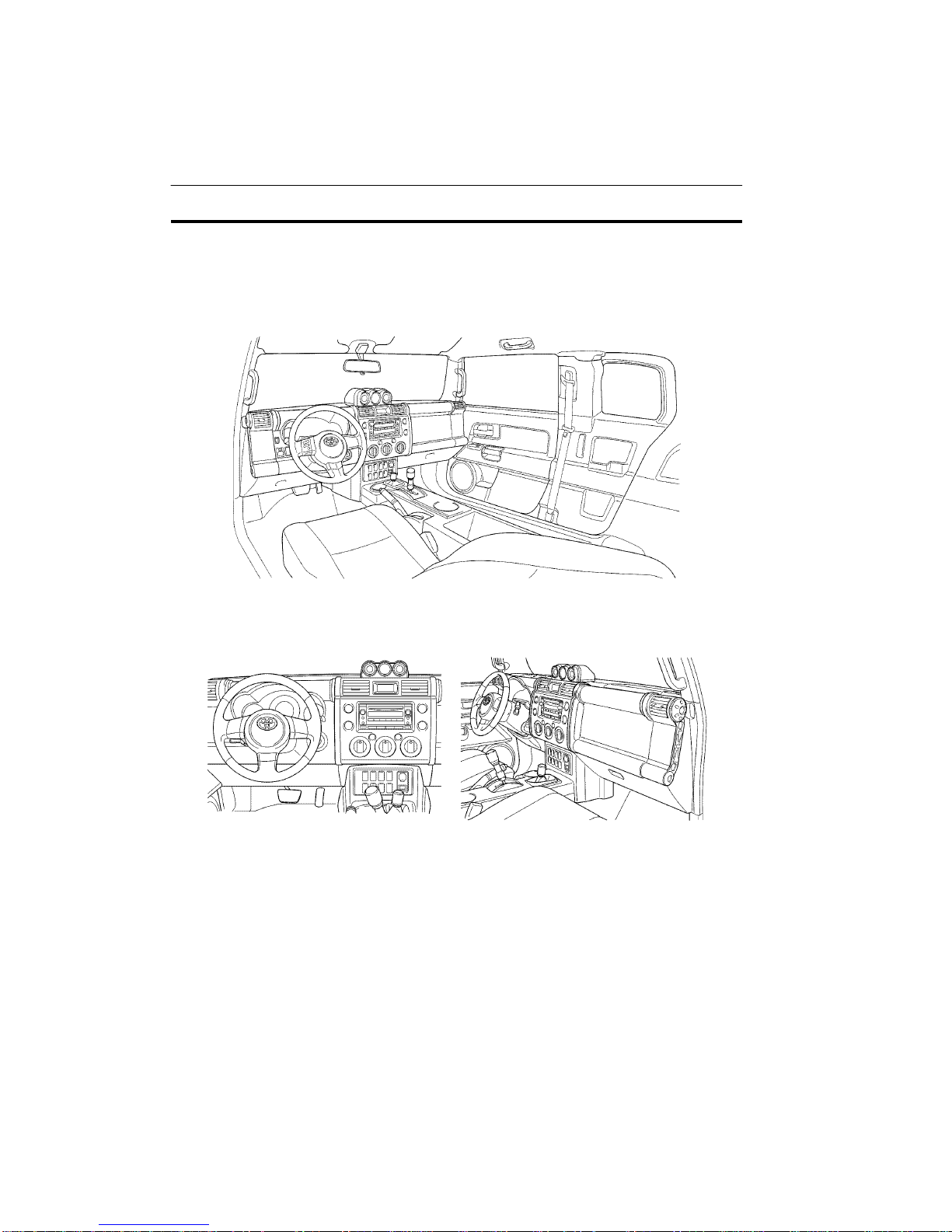

INTERIOR

The flexible cabin space and functional design give a modern rugged image to the interior.

The instrument panel has a distinct design that creates an image of two pipes.

The door trim panel has a straight arm rest and pipe-shaped door grip, providing both a

dynamic image and usability.

0240MO10Z

0240MO11Z

NEW MODEL OUTLINE

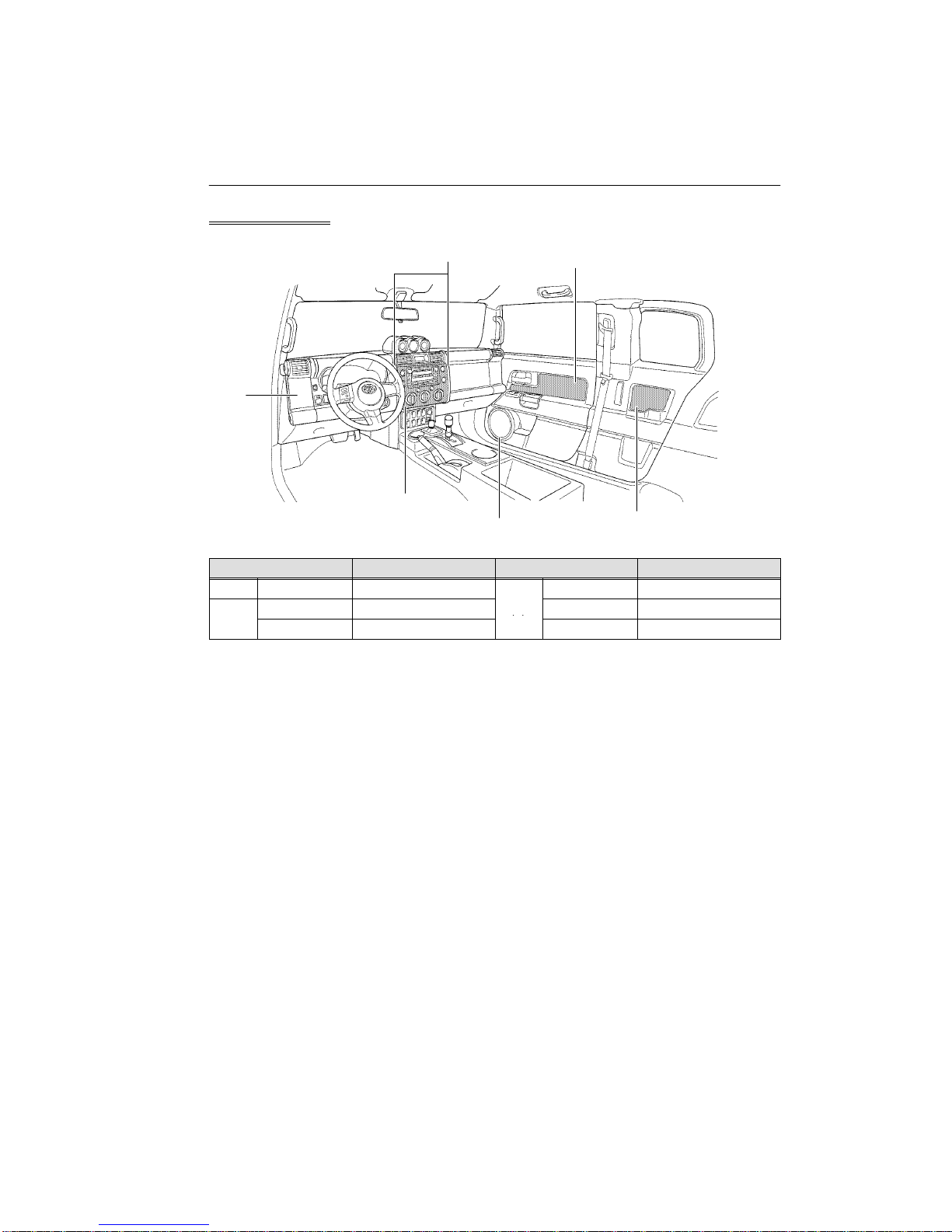

Interior Color

0240MO12Z

(1)

(2)

(1) (2)

Color No. Color Name Color No. Color Name

(1) 21SV31 Silver Metallic 3P2 Bordeaux Mica

(2)

1D4 Silver Metallic (2) 5A3 Yellow

(2) 211 Black Mica

()

8T6 Blue

NEW MODEL OUTLINE

EG-10

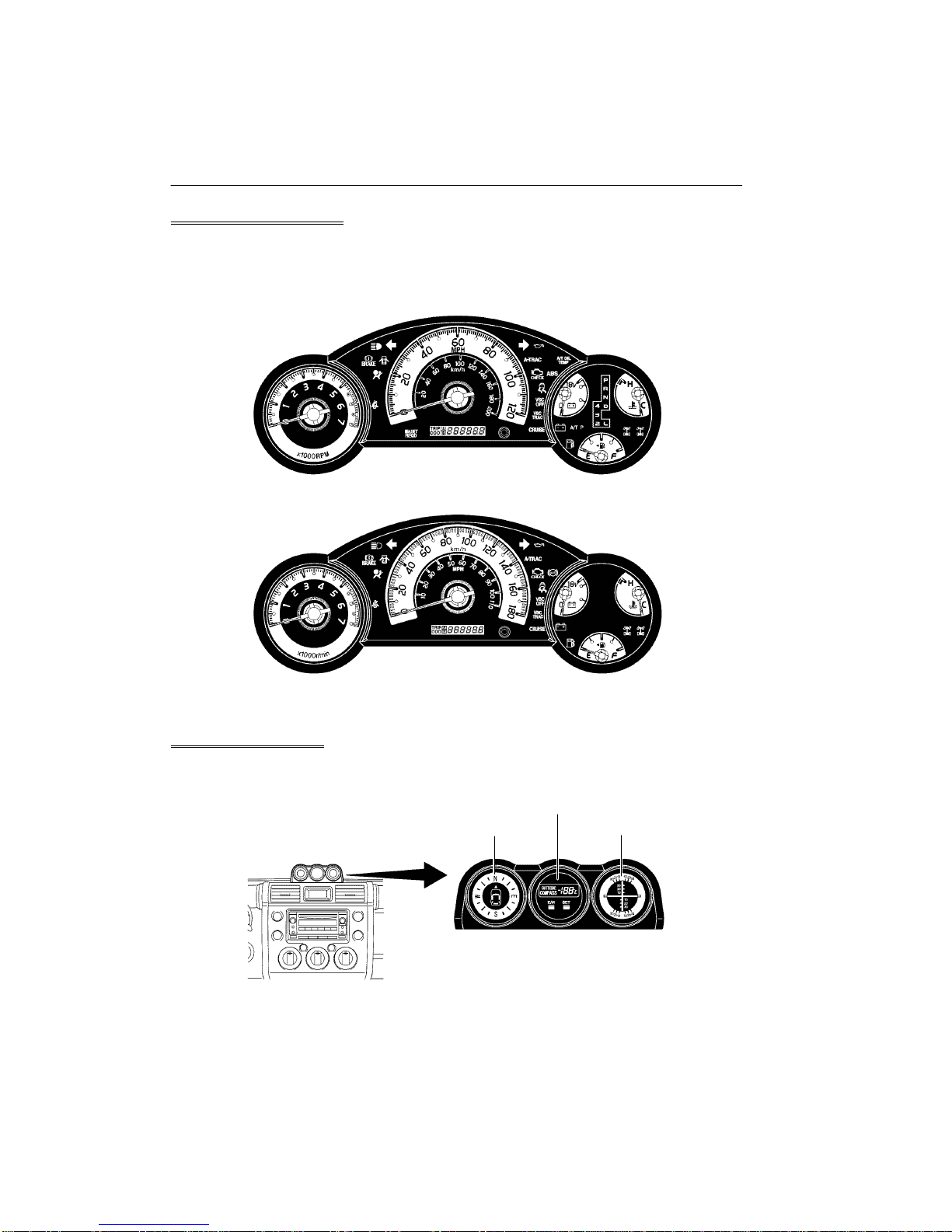

Combination Meter

The tachometer and the three (engine coolant, fuel, voltage) gauges are arranged to create

a sense of individuality.

0240MO13Z

4WD models with Automatic Transmission for U.S.A.

4WD models with Manual Transmission for Canada 0240MO14Z

Accessory Meter

The accessory meter with three additional gauges creates a rugged image.

0240MO15Z

Accessory Meter

Inclinometer

Outside Temperature Gauge

Compass Gauge
