2010 Toyota Prius Repair Manual

COMPONENTS

ILLUSTRATION

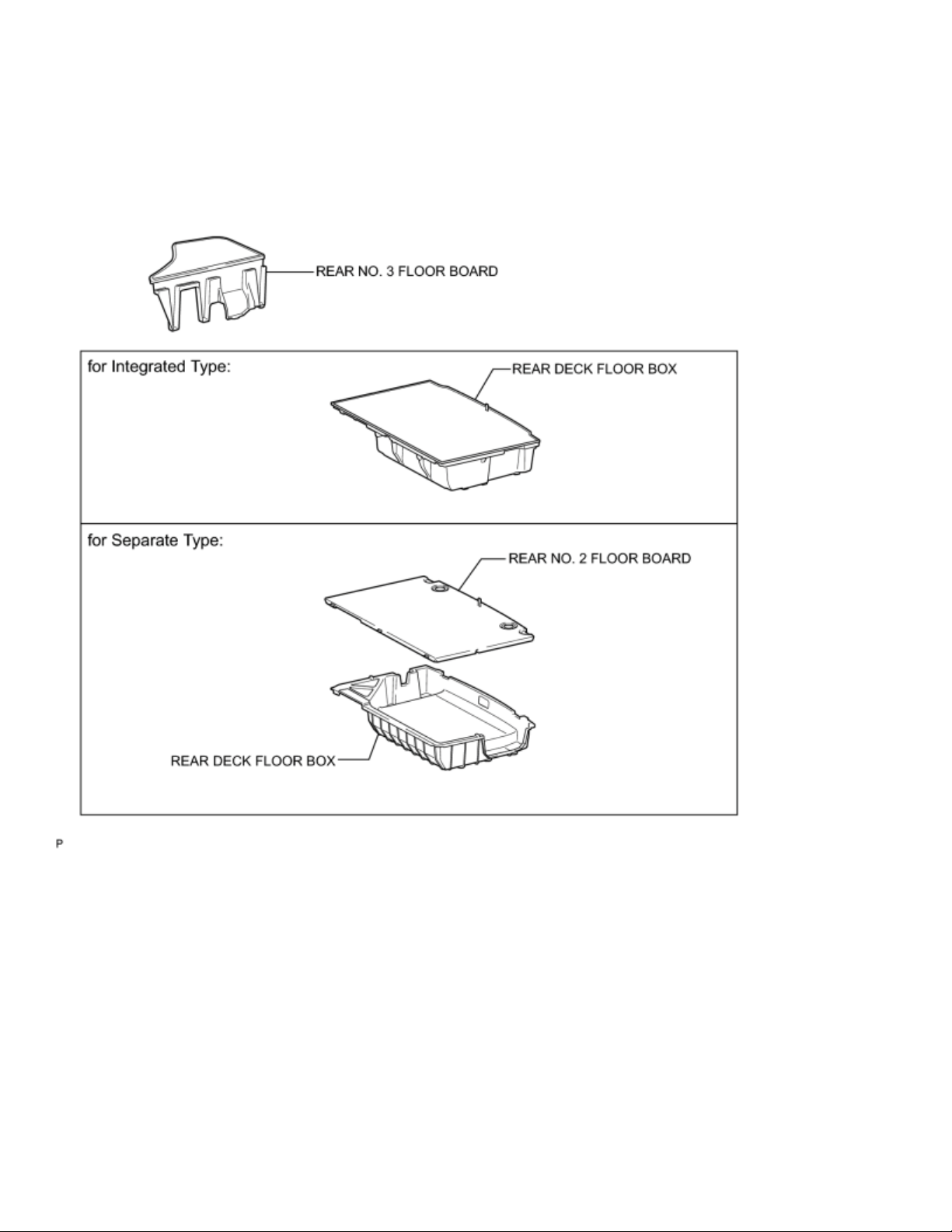

ILLUSTRATION

2010 Toyota Prius Repair Manual

2010 Toyota Prius Repair Manual

REMOVAL

1. REMOVE REAR NO. 2 FLOOR BOARD (for Separate Type)

2. REMOVE REAR DECK FLOOR BOX

3. REMOVE REAR NO. 3 FLOOR BOARD

4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected .

5. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

6. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY

(a) Disconnect each connector and remove the screw.

(b) Disengage the guide as shown in the illustration.

(c) Disengage the guide and remove the air conditioning amplifier

assembly as shown in the illustration.

2010 Toyota Prius Repair Manual

2010 Toyota Prius Repair Manual

INSTALLATION

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

(a) Engage the guide as shown in the illustration.

(b) Engage the guide and install the air conditioning amplifier assembly as

shown in the illustration.

(c) Install the screw and connect each connector.

2. INSTALL FRONT NO. 1 CONSOLE BOX INSERT

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

2010 Toyota Prius Repair Manual

When disconnecting the cable, some systems need to be initialized after the cable is reconnected .

4. INSTALL REAR NO. 3 FLOOR BOARD

5. INSTALL REAR DECK FLOOR BOX

6. INSTALL REAR NO. 2 FLOOR BOARD (for Separate Type)

2010 Toyota Prius Repair Manual

COMPONENTS

ILLUSTRATION

2010 Toyota Prius Repair Manual

REMOVAL

1. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

2. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

3. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH

4. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

(a) Disengage the 4 claws and remove the air conditioning control

assembly as shown in the illustration.

(b) Disconnect the connector.

NOTICE:

Since the connectors for the air conditioning control assembly and the integration control and panel sub-

assembly are the same shape, mark them so that they will not be reconnected incorrectly.

2010 Toyota Prius Repair Manual

INSTALLATION

1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

(a) Connect the connector.

NOTICE:

Since the connectors for the air conditioning control assembly and the integration control and panel sub-

assembly are the same shape, take care to connect each connector to the correct component.

(b) Engage the 4 claws to install the air conditioning control assembly.

2. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH

3. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

4. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY

2010 Toyota Prius Repair Manual

COMPONENTS

ILLUSTRATION

ILLUSTRATION
