OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Move the lever to “LOCK,” allowing the door to be

opened only from the outside.

Doors-Child safety locks

Rear door

Spare tire & tools

Tool location

Removing the spare tire

Loosen and remove the nut.

Remove the luggage storage box.

Loosen and remove the bolt.

Refer to the Owner’s Manual for jack positioning and

tire changing procedures.

Jack handle

Spare tire

Jack

Wheel nut

wrench

!Aword about safe vehicle operations

This Pocket Reference Guide is a summary of

basic vehicle operations. It contains brief

descriptions of fundamental operations so you

can locate and use the vehicle’smain

equipment quickly and easily.

The Pocket Reference Guide is not intended

as a substitute for the Owner’s Manual

located in the vehicle’s glove box. We

strongly encourage you to review the Owner’s

Manual and supplementary manuals so you

will have a better understanding of the

vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota

Motor Sales, U.S.A., Inc., wish you many

years of satisfied driving in your new Corolla

Matrix.

This Pocket Reference Guide is not a full

description of Corolla Matrix operations.

Every Corolla Matrix owner should review

the Owner’s Manual that accompanies this

vehicle.

Pay special attention to the boxed

“ ” information highlighted in

this reference guide and throughout the

Owner’s Manual.Each box contains safe

operating instructions to help you avoid

injury or equipment malfunction.

All information in this Pocket Reference

Guide is current at the time of printing.

Toyota reserves the right to make changes

at any time without notice.

2006

Corolla Matrix

06 Matrix Cover.qxd 7/29/05 5:05 PM Page 3

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

TABLE OF CONTENTS

Item Page no.

OVERVIEW

Engine maintenance 7

Fuel tank door release and cap 6

Hood release 6

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

Keyless entry 6

FEATURES/OPERATIONS

Air conditioning/Heating 14

Audio 13

Auto lock functions19

Automatic transmission 8

Clock 9

Cruise control 15

Cup holders 12

Door locks 12

Light control-Interior/Instrument panel 11

Lights & turn signals 10

Manual transmission 8

Moonroof 12

Parking brake 15

Power outlets 14

Seat adjustments-Front 9

Seat adjustments-Rear 9

Seats-Head restraints 8

Tilt steering wheel 15

Window-Glass hatch 11

Windows-Power 12

Wiper & washer lever-Front/Rear 11

SAFETY AND EMERGENCY FEATURES

Doors-Child safety locks 17

Seat belts 16

Seat belts-Shoulder belt anchor 16

Spare tire & tools 17

Tire Pressure Warning System 16

1Programmable by customer. Refer to the Owner’s

Manual for instructions and more information.

06 Matrix PRG.qxd 7/29/05 5:00 PM Page 1

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

12V DC Power outlet/Cigarette lighter1

Ignition

Cruise control1

Tilt steering lock release

“TRAC OFF” (Traction Control “OFF”)

Toyota security system1/Engine immobilizer

indicator light

Tire Pressure Warning reset1

Glass hatch opener switch1

1If equipped

OVERVIEW

Power rear view mirror control1

Instrument panel light control

Headlight, turn signal and front fog light1controls

Wiper and washer controls

Air conditioning1/Heater controls

Rear window defogger switch

Emergency flasher switch

Clock1

Front passenger’s seat belt reminder light/Front

passenger occupant classification indicator light1

Audio

115V AC Power outlet1/Auxiliary box

Instrument panel

06 Matrix PRG.qxd 7/29/05 5:01 PM Page 2

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Open door warning1

Airbag SRS warning1

Vehicle Stability Control/Traction Control

warning1

Low Tire Pressure Warning1

Engine oil replacement reminder1

Front passenger occupant classification

indicator

Headlight low beam indicator

Headlight high beam indicator

Turn signal indicator

Overdrive “OFF” indicator

Slip indicator/Traction control system “OFF”

indicator

Cruise control indicator2

Anti-lock Brake System warning1

Tachometer

Service indicator and reminder

Speedometer

Fuel gauge

Low fuel level warning

Engine coolant temperature

Trip meter reset knob

Odometer, two trip meters and outside

temperature

2If this light flashes, refer to “Cruise control,” Section 1-7, 2006

Owner’sManual.

OVERVIEW

Instrument cluster

Indicator symbols

Brake system warning1

Driver’s seat belt reminder1

Front passenger’s seat belt reminder1

Battery warning1

Low engine oil pressure warning1

Malfunction/Check Engine indicator1

When the Anti-lock Brake System (ABS) function is in

action, you may feel the brake pedal pulsating and

hear a noise. In this situation, to let the Anti-lock

Brake System work for you, just hold the brake pedal

down more firmly. Do not pump the brake as this will

result in reduced braking performance.

1For details, refer to “Service reminder indicators and warning

buzzers,” Section 1-6, 2006 Owner’sManual.

06 Matrix PRG.qxd 7/29/05 5:01 PM Page 4

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

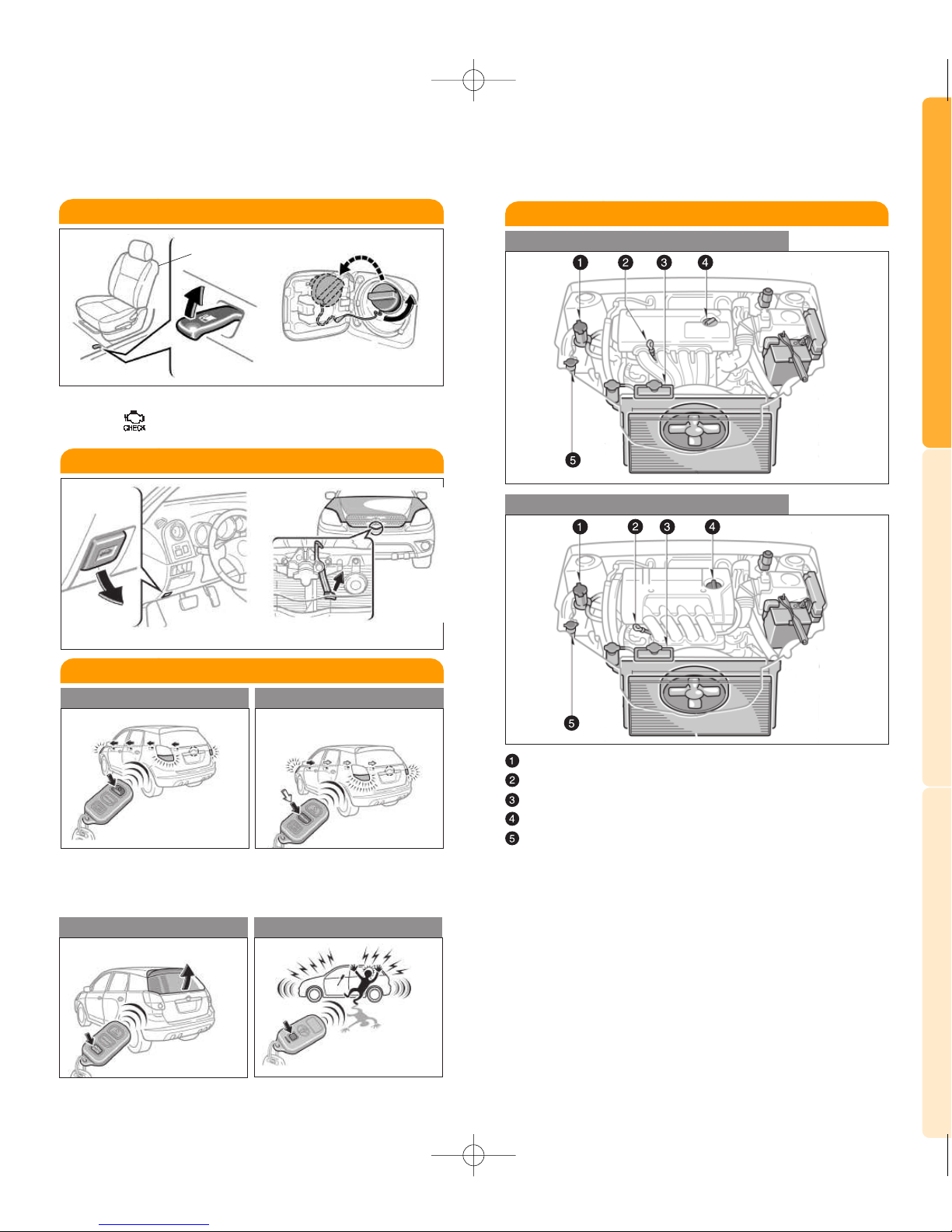

Fuel tank door release and cap

Turn

Store

Pull up

Driver seat

NOTE: If the cap is not tightened enough, Check

Engine “ ” indicator may illuminate.

Engine maintenance

Power steering fluid reservoir

Engine oil level dipstick

Engine coolant reservoir

Engine oil filler cap

Windshield and rear window washer fluid tank

Note: Regularly scheduled maintenance, including

oil changes, will help extend the life of

your vehicle and maintain performance.

Please refer to the “Owner’s Warranty

Information Booklet,” “Scheduled

Maintenance Guide” or “Owner’s Manual

Supplement.”

(1ZZ-FE engine)

XRS models only (2ZZ-GE engine)

Hood release

Pull

Pull up

Keyless entry (if equipped)

Locking operation Unlocking operation

Glass hatch opener

Alarm operation

Push Push ONCE: Driver door

TWICE: All doors

NOTE: After unlocking, if a door is not opened

within thirty (30) seconds, all doors will relock

for safety

Push and hold Push

06 Matrix PRG.qxd 7/29/05 5:01 PM Page 6

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Seats-Head restraints

Lock release button Lock release button

FEATURES/OPERATIONS

Automatic transmission (if equipped)

Park1

Reverse

Neutral

Drive

Second gear

First gear

Overdrive switch

To turn “ON” or “OFF” Depress the overdrive

switch to choose either three-speed (“OFF”) or four-

speed (“ON”) operation. During normal driving

conditions, always drive with overdrive “ON;” this

allows the transmission to shift automatically into

four-speed operation at higher speeds, improving

fuel economy. If the indicator light on the

instrument cluster is illuminated, overdrive is “OFF.”

For safety, the engine will not start unless the clutch

pedal is FULLY depressed. Refer to the Owner’s

Manual for more details.

Manual transmission (if equipped)

1The ignition must be ON, and the brake pedal

depressed.

Downshifting increases power going uphill, or

provides engine braking going downhill. For best fuel

economy during normal driving conditions, always

drive with the shift lever in the “D” position.

Front Rear

Auto lock functions (if equipped)

Automatic door locks can be programmed to operate

in 4 different modes.

-Doors lock when shifting from Park.

-Doors unlock when shifting into Park.

-Doors unlock when the ignition key is turned to the

“ACC” or “LOCK” position and driver’s door is

opened.

-Deactivate, auto lock function cancelled

Seat adjustments-Front

Position

Height crank (driver side only)

Seatback angle

Seat adjustments-Rear

(1) Unlock (2) Lower

(3) Fold

down

Clock (if equipped)

H-Hour set

M-Minutes set

06 Matrix PRG.qxd 7/29/05 5:01 PM Page 8

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

1110

Lights & turn signals

Headlights

Wiper & washer lever-Front/Rear

Front operation

Rear operation

Adjust interval Single wipe

Pull to wash and wipe

Interval wipe

Slow

Fast

Wash and wipe

Wipe

Interval wipe

Wash and wipe

High beams

Parking lights

Headlights

High beam flasher

Low beams

FEATURES/OPERATIONS

Turn signals

Right turn

Lane change

Left turn

Front fog lights turn on only when the headlights are

on low beam.

Front fog lights

Turn

Light control-Instrument panel

Brightness

control

Window-Glass hatch

Toopen with key Turn the key FULLYclockwise.

To open with opener switch* Push and hold the

switch when the vehicle is stopped.

*If equipped

Back door lock

position

Full intensity position

06 Matrix PRG.qxd 7/29/05 5:01 PM Page 10

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Moonroof (if equipped)

Sliding operation Tilting operation

Door locks

Windows-Power (if equipped)

Driver side Passenger window

lock switch

Window operation

Automatic down operation (Driver side only) Push

the switch completely down and release to fully open.

To stop window mid-way, lightly pull up on the switch.

Cup holders

Front Rear

Down

Open

Close Close

Tilt

Lock

Unlock

CD PLAYER

To scan tracks on a disc Push and hold “SCAN.” Push

again to hold selection.

CD Changer (Type 2 only)

-To load one disc Push “LOAD” and insert 1 disc.

-Toload multiple discs Push and hold “LOAD” until

you hear a beep. Insert one disc. Wait until the

green indicator illuminates to insert next disc.

“SCAN” Push and hold to scan preset stations. Push

again to hold selection.

Preset buttons Tune in the desired station and press

a preset button (1-6) until you hear a beep. Push

desired preset button (1-6) to select.

RDS (Radio Data System-FM only) (Type 2 only)

-Push TYPE “ ” or “ ” to view current program

genre. Push again within 6 seconds to select new

genre.

-Push “SEEK/TRACK” or “SCAN” to find same genre

program.

-Push “TEXT” to receive information transmitted

from radio stations.

Audio

RADIO

Type 2 other functions

Push to turn

ON/OFF

Seek

station/

CD track

select

Mode

Station

/CD

track

scan

Preset buttons - button functions in

other modes indicated above number

Load CD(s)

Eject CD

View

genre

with RDS

system

FEATURES/OPERATIONS

06 Matrix PRG.qxd 7/29/05 5:01 PM Page 12

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

Cruise control (if equipped)

1The set speed may also be cancelled by depressing

the brake pedal.

Turning system ON/OFF

Functions

System

ON/OFF

Resume/Increase speed

Set/Decrease speed

Cancel1

Power outlets

Shifter area (12V) Center console box (12V)

Designed for car accessories. Key must be in the

“ACC” or “ON” position to be used.

Shifter area (115V)

Key must be in the “ON” position.

Main switch

Note: Do not attempt to adjust while the vehicle

is in motion.

Tilt steering wheel

Lock release

lever

Air conditioning (if equipped)/Heating

Rear defogger

Air flow vent1

Fan speed

Temperature

Fresh or recirculate cabin air

Air Conditioning ON/OFF

1In “ ” or “ ” mode, use fresh air (“ ”

indicator light “OFF”) to reduce window fogging.

Angle

Parking brake

Pull

Set Release

(1) Pull slightly

(2) Push

(3) Lower

06 Matrix PRG.qxd 7/29/05 5:01 PM Page 14

Autres manuels pour Corolla guide

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Toyota Automobile

Toyota

Toyota AURIS HV Manuel utilisateur

Toyota

Toyota 2009 Highlander Hybrid Manuel utilisateur

Toyota

Toyota Tundra 2005 Manuel utilisateur

Toyota

Toyota Celica 2002 Manuel utilisateur

Toyota

Toyota Land Cruiser Prado Manuel utilisateur

Toyota

Toyota Prius 2007 Manuel utilisateur

Toyota

Toyota 2004 CELICA Manuel utilisateur

Toyota

Toyota Rav42005 Manuel utilisateur

Toyota

Toyota Land Cruiser 2006 Manuel utilisateur

Toyota

Toyota RAV4 HYBRID 2017 Manuel utilisateur

Toyota

Toyota CAMRY SOLARA 00452-PRG07-SOL Manuel utilisateur

Toyota

Toyota 2012 Prius c Manuel utilisateur

Toyota

Toyota Tacoma 2011 Manuel utilisateur

Toyota

Toyota VELLFIRE 2010 Manuel utilisateur

Toyota

Toyota Prius HSD Manuel utilisateur

Toyota

Toyota 2005 Yaris Manuel utilisateur

Toyota

Toyota 2007 FJ Cruiser Manuel utilisateur

Toyota

Toyota 4RUNNER2016 Manuel utilisateur

Toyota

Toyota YARIS SEDAN 2019 Manuel utilisateur

Toyota

Toyota 2009 Yaris Hatchback Manuel utilisateur

Toyota

Toyota 2013 Corolla Manuel utilisateur

Toyota

Toyota 2016 Prius Manuel utilisateur

Toyota

Toyota Prius 2007 Manuel utilisateur

Toyota

Toyota Land Cruiser 150 2014 Manuel utilisateur

Manuels Automobile populaires d'autres marques

CITROËN

CITROËN DS4 DSign Manuel utilisateur

Lexus

Lexus 2015 CT 200h Manuel utilisateur

Cadillac

Cadillac CTS 2008 Manuel utilisateur

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuel utilisateur

Porsche

Porsche Boxster S Manuel utilisateur

GMC

GMC 2010 Savana 1500 Cargo Manuel utilisateur

KIAM

KIAM SPORTAGE 2014 Manuel de la liste des pièces

GMC

GMC 2013 Terrain Instructions de montage

GMC

GMC T-Series 1999 Manuel utilisateur

Mercury

Mercury 1998 Mystique Manuel utilisateur

Mercury

Mercury 2007 Mariner Manuel utilisateur

Mazda

Mazda 2007 Mazdaspeed 3 Mode d’emploi

Mazda

Mazda 2014 CX-5 Manuel utilisateur

GMC

GMC Chevrolet Express 2022 Manuel utilisateur

GMC

GMC 1997 Jimmy Manuel utilisateur

Chevrolet

Chevrolet 2012 Malibu Manuel utilisateur

Cadillac

Cadillac 2010 Escalade Manuel utilisateur

Skoda

Skoda FABIA RS - ANNEXE 118 Manuel utilisateur
