This Quick Reference Guide is a summary of basic vehicle

operations. It contains brief descriptions of fundamental operations

so you can locate and use the vehicle’s main equipment quickly

and easily.

The Quick Reference Guide is not intended as a substitute for the

Owner’s Manual located in the vehicle’s glove box. We strongly

encourage you to review the Owner’s Manual and supplementary

manuals so you will have a better understanding of the vehicle’s

capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,

Inc. wish you many years of satisfied driving in your new 4Runner.

A word about safe vehicle operations

This Quick Reference Guide is not a full description of 4Runner

operations. Every 4Runner owner should review the Owner’s

Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in

color throughout the Owner’s Manual. Each box contains safe

operating instructions to help you avoid injury or equipment

malfunction.

All information in this Quick Reference Guide is current at the

time of printing. Toyota reserves the right to make changes at

any time without notice.

2013

4Runner

126892_20134Runner.indd 6243 8/6/12 10:40 PM

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

NOTES

126892_20134Runner.indd 29 8/6/12 10:42 PM

126892_12-TCS-05887_QRG_MY134Runner_1_0F_lm.indd 2 8/6/12 11:27 PM

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

2013

4Runner

INDEX

1Visit your Toyota dealer for information on customizing this feature.

2 Programmable by customer. Refer to the Owner’s Manual for instructions and more

information.

3HomeLink®is a registered trademark of Johnson Controls, Inc.

Engine maintenance

Fuel tank door and cap 6

Hood release 8

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

Keyless entry

Smart Key system17

Air Conditioning/Heating 18-19

Audio 20-21

Auto lock/unlock1,2

Automatic running boards 19

Automatic Transmission 9

Bluetooth®audio 23

Clock 14

Cruise control 17

Four-wheel drive 10

Garage door opener (HomeLink®)319

iPod®/USB/AUX port 21

Light control-Instrument panel

Lights1& turn signals 16

Moonroof114

Parking brake 9

Power outlets-12V DC 23

Power outlets-120V AC 22

Seat adjustments-Front 11

Seat adjustments-Second row seats 11

Seat heaters

Seats-Folding down second row seats 12

Seats-Head restraints 13

Seats-Returning third row seats 13

Seats-Stowing third row seats 13

Telephone controls (Bluetooth®) 22

Tilt and telescopic steering wheel 10

VSC OFF button 15

Windows114

Window-Back window115

Windshield wipers & washers

Door locks

Doors-Child safety locks 25

Floor mat installation 27

Seat belts 24

Seat belts-Shoulder belt anchor 24

Spare tire & tools 25

Star Safety System

26-27

Tire Pressure Monitoring (warning) System 24

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY

FEATURES

126892_20134Runner.indd 1 8/6/12 10:40 PM

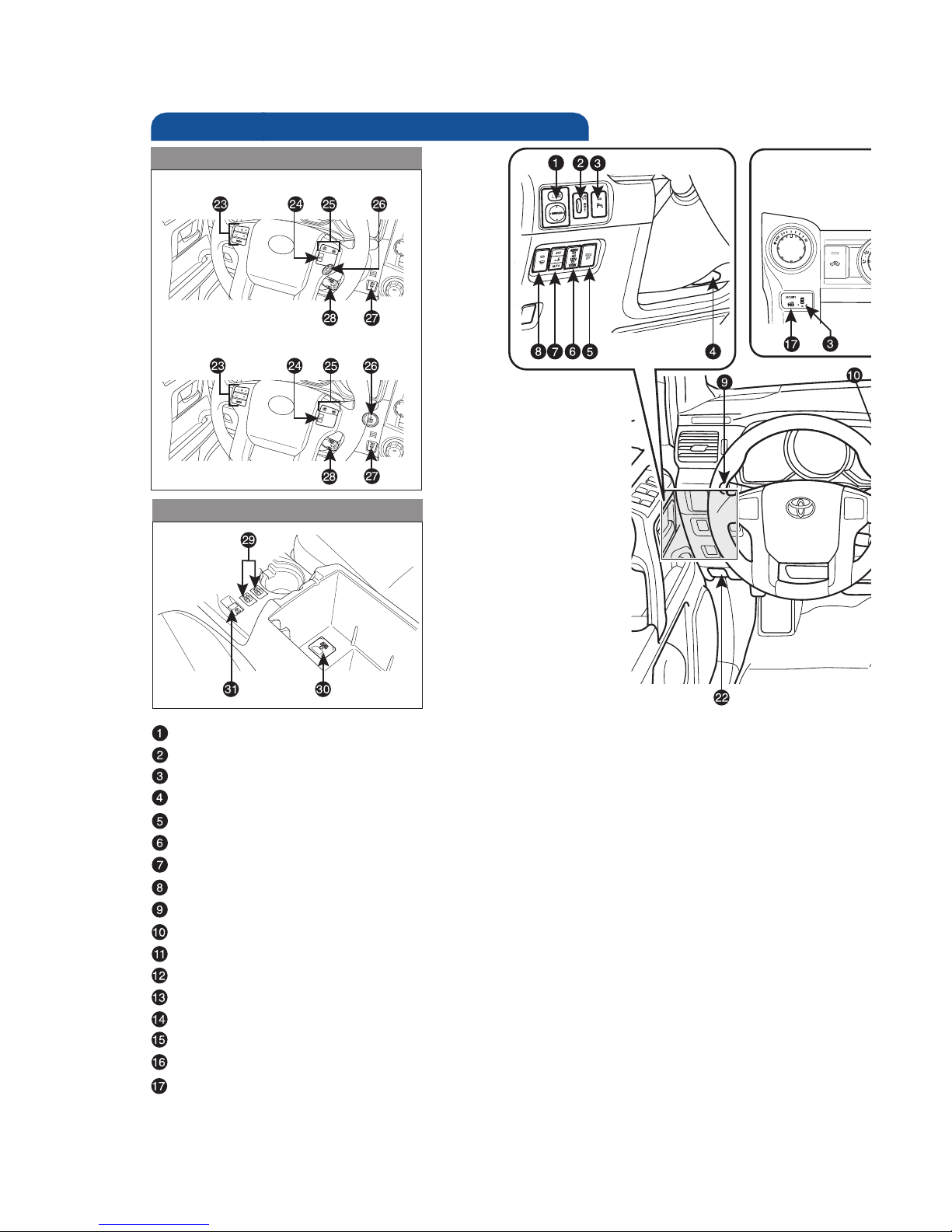

Power outside rearview mirror controls

Instrument panel light control

Intuitive parking assist switch and indicator1

Tilt and telescopic steering lock release

“RSCA OFF” (Roll Sensing of Curtain shield Airbags “OFF”) switch

120V AC power outlet ON/OFF switch1

Automatic running boards switch1

Windshield wiper de-icer switch1

Headlight, turn signal and front fog light controls

Wiper and washer controls

Accessory meter/Outside temperature display

Emergency flasher switch

Audio system1/Navigation system1,2/Display Audio system1,3

Back window and outside rearview mirror defogger switch

Front passenger seat belt reminder light

Front passenger occupant classification indicator

Engine immobilizer/Theft deterrent system indicator

OVERVIEW

Instrument panel

Steering wheel controls

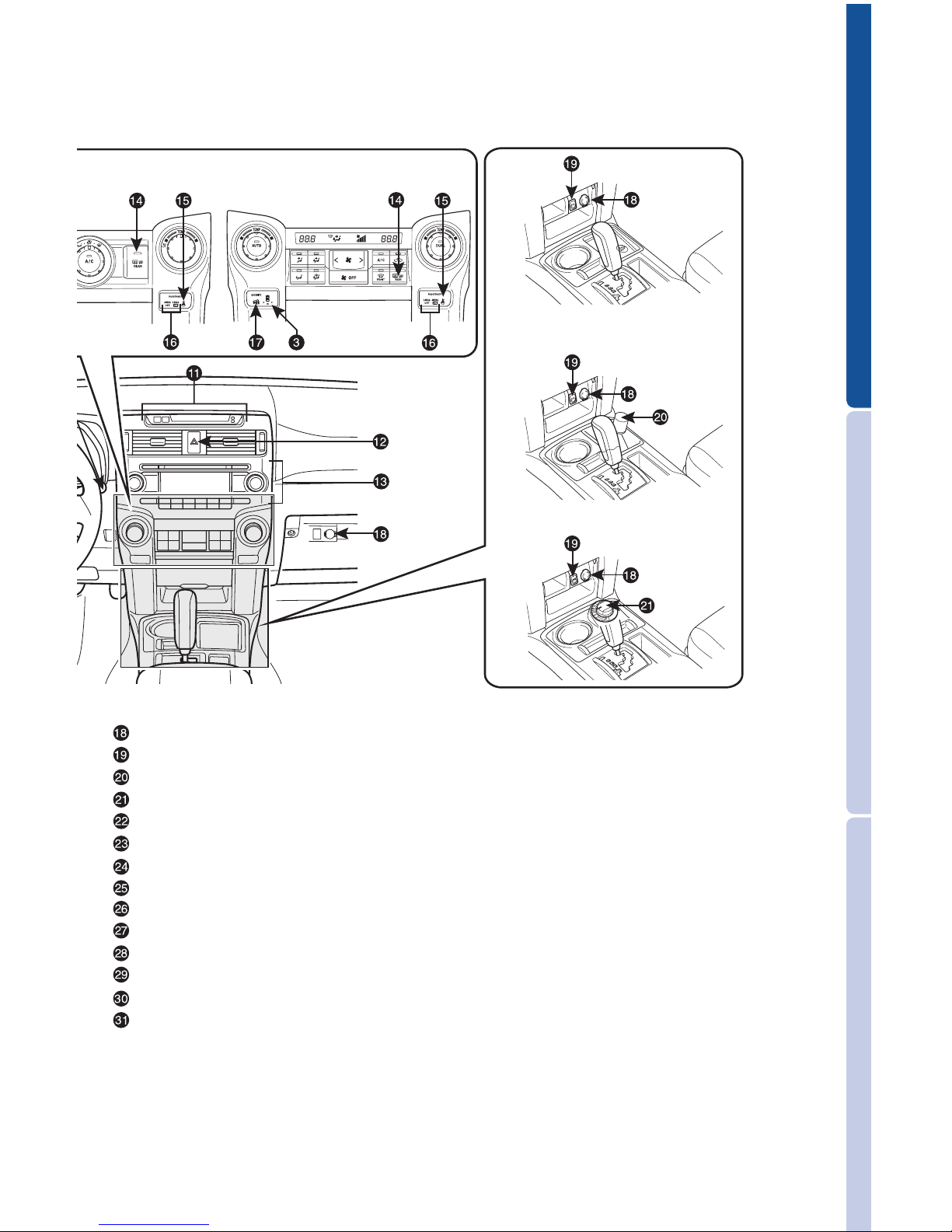

Center console box

12V DC power outlet

AUX/USB port1

Front-wheel drive control lever

Four-wheel drive selector1

Hood release

Steering wheel audio controls1,2,3

Voice command button1,2,3

Telephone switches1,2,3

Ignition switch (standard key)1/“ENGINE START STOP” button (Smart Key)1

Party mode switch

Cruise control

Seat heater switch1

120V AC power outlet1

Power back window switch

1 If equipped

2 For details, refer to the “Navigation System Owner’s Manual.”

3 For details, refer to the “Display Audio System Owner’s Manual.”

Without Smart Key system

With Smart Key system

Manual Air Conditioning

126892_20134Runner.indd 2 8/6/12 10:40 PM

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Power outside rearview mirror controls

Instrument panel light control

Intuitive parking assist switch and indicator1

Tilt and telescopic steering lock release

“RSCA OFF” (Roll Sensing of Curtain shield Airbags “OFF”) switch

120V AC power outlet ON/OFF switch1

Automatic running boards switch1

Windshield wiper de-icer switch1

Headlight, turn signal and front fog light controls

Wiper and washer controls

Accessory meter/Outside temperature display

Emergency flasher switch

Audio system1/Navigation system1,2/Display Audio system1,3

Back window and outside rearview mirror defogger switch

Front passenger seat belt reminder light

Front passenger occupant classification indicator

Engine immobilizer/Theft deterrent system indicator

OVERVIEW

12V DC power outlet

AUX/USB port1

Front-wheel drive control lever

Four-wheel drive selector1

Hood release

Steering wheel audio controls1,2,3

Voice command button1,2,3

Telephone switches1,2,3

Ignition switch (standard key)1/“ENGINE START STOP” button (Smart Key)1

Party mode switch

Cruise control

Seat heater switch1

120V AC power outlet1

Power back window switch

1 If equipped

2 For details, refer to the “Navigation System Owner’s Manual.”

3 For details, refer to the “Display Audio System Owner’s Manual.”

Manual Air Conditioning Automatic Air Conditioning 2WD

Part-time 4WD

Full-time 4WD

126892_20134Runner.indd 3 8/6/12 10:40 PM

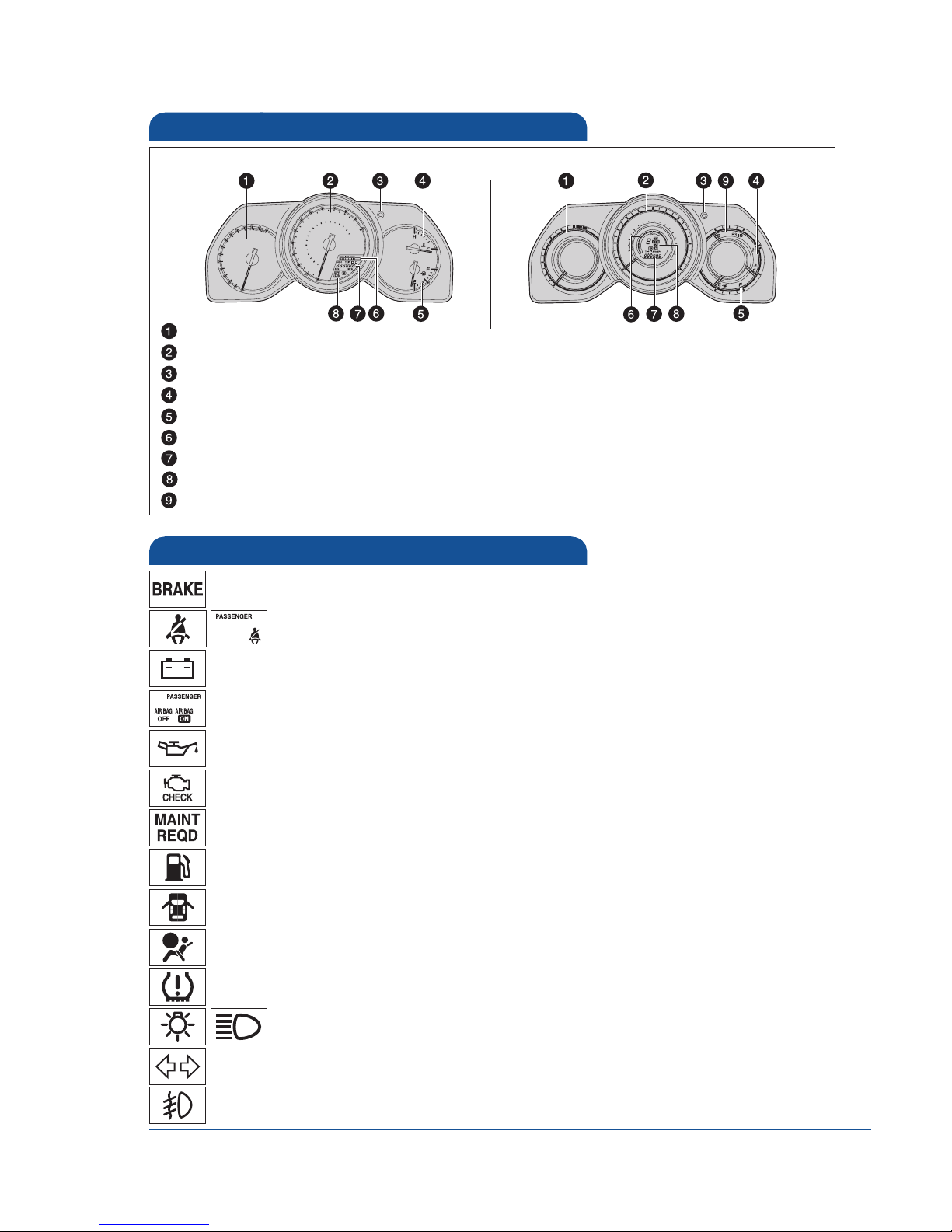

OVERVIEW

Low Tire Pressure Warning1

Open door warning

Airbag SRS warning1

Tachometer

Speedometer

Display change button

Engine coolant temperature

Fuel gauge

Eco driving indicator zone display

Odometer, trip meter and average fuel consumption display

Shift position and shift range indicators

Voltmeter

Instrument cluster

Charging system warning1

Low engine oil pressure warning1

Malfunction/Check Engine indicator1

Maintenance/Service required indicator1

Indicator symbols

Driver/Front passenger seat belt reminder

(alarm will sound if speed is over 12 mph)

Optitron type meters

AIR BAG ON and AIR BAG OFF indicator

Turn signal indicator

Front fog light indicator

Headlight low/high beam indicator

3If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2013 Owner’s Manual.

4If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.

1If indicator does not turn off within a few seconds of starting engine, there may be a

malfunction. Have vehicle inspected by your Toyota dealer.

2For details, see “SRS airbags” Section 1-7, 2013 Owner’s Manual.

Low fuel level warning

Brake system warning1

Non-Optitron type meters

126892_20134Runner.indd 4 8/6/12 10:40 PM

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

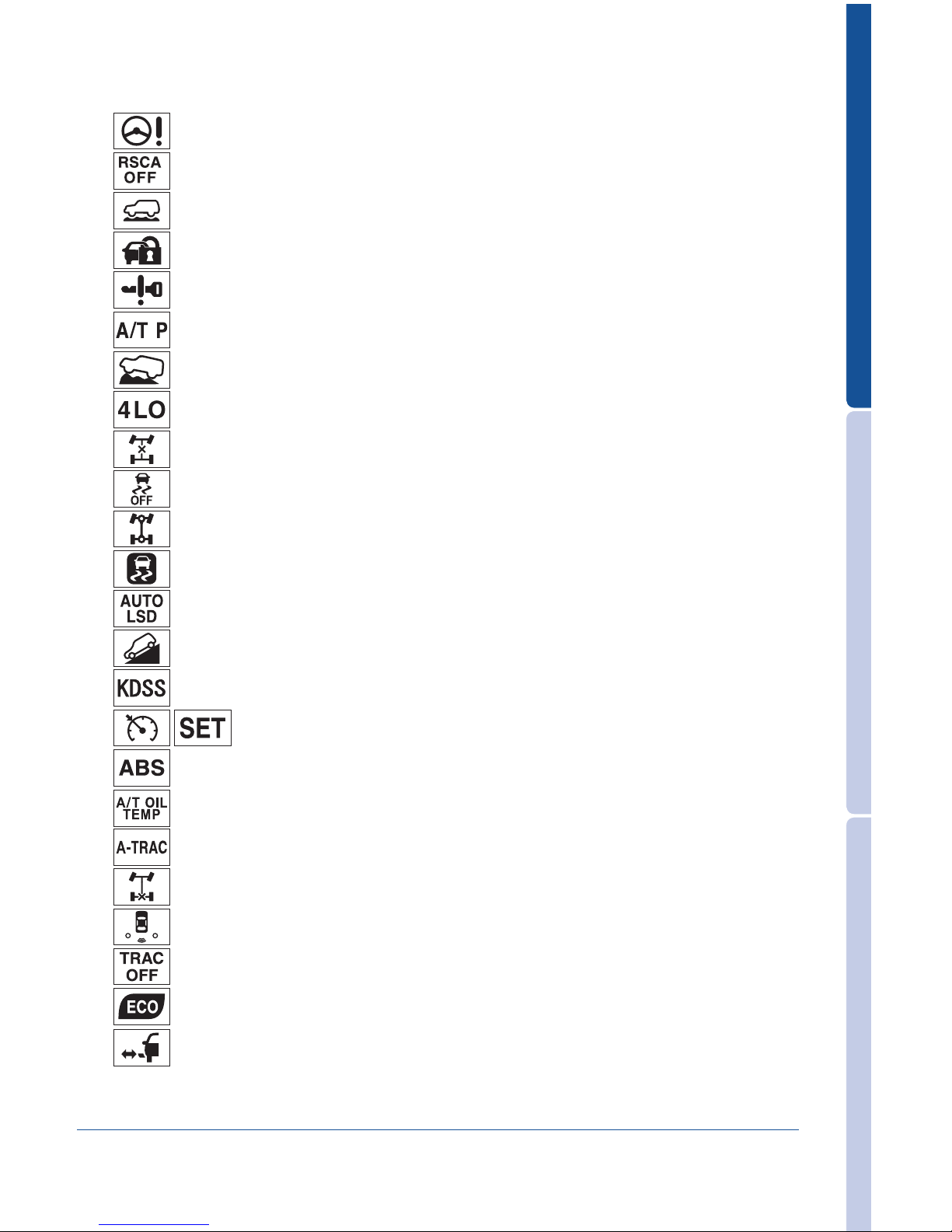

Automatic Transmission fluid temperature warning1

Crawl Control indicator1

Four-wheel drive indicator3

Low speed four-wheel drive indicator3

Center differential lock indicator3

Slip indicator1

Vehicle Stability Control OFF indicator1

Downhill Assist Control indicator1

AUTO Limited Slip Differential indicator1

Cruise control/Cruise control SET indicator4

Roll Sensing of Curtain shield Airbag OFF indicator1,2

Anti-lock Brake System warning1

3If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2013 Owner’s Manual.

4If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.

1If indicator does not turn off within a few seconds of starting engine, there may be a

malfunction. Have vehicle inspected by your Toyota dealer.

2For details, see “SRS airbags” Section 1-7, 2013 Owner’s Manual.

Multi-terrain select

Rear differential lock indicator

Active traction control indicator

Power steering system warning

Kinetic Dynamic Suspension System indicator1

Engine immobilizer/Theft deterrent system indicator

Unengaged Park warning light

Smart Key system warning

Intuitive parking assist indicator

Eco Driving Indicator Light1

Traction Control OFF indicator1

Automatic running boards indicator1

126892_20134Runner.indd 5 8/6/12 10:40 PM

OVERVIEW

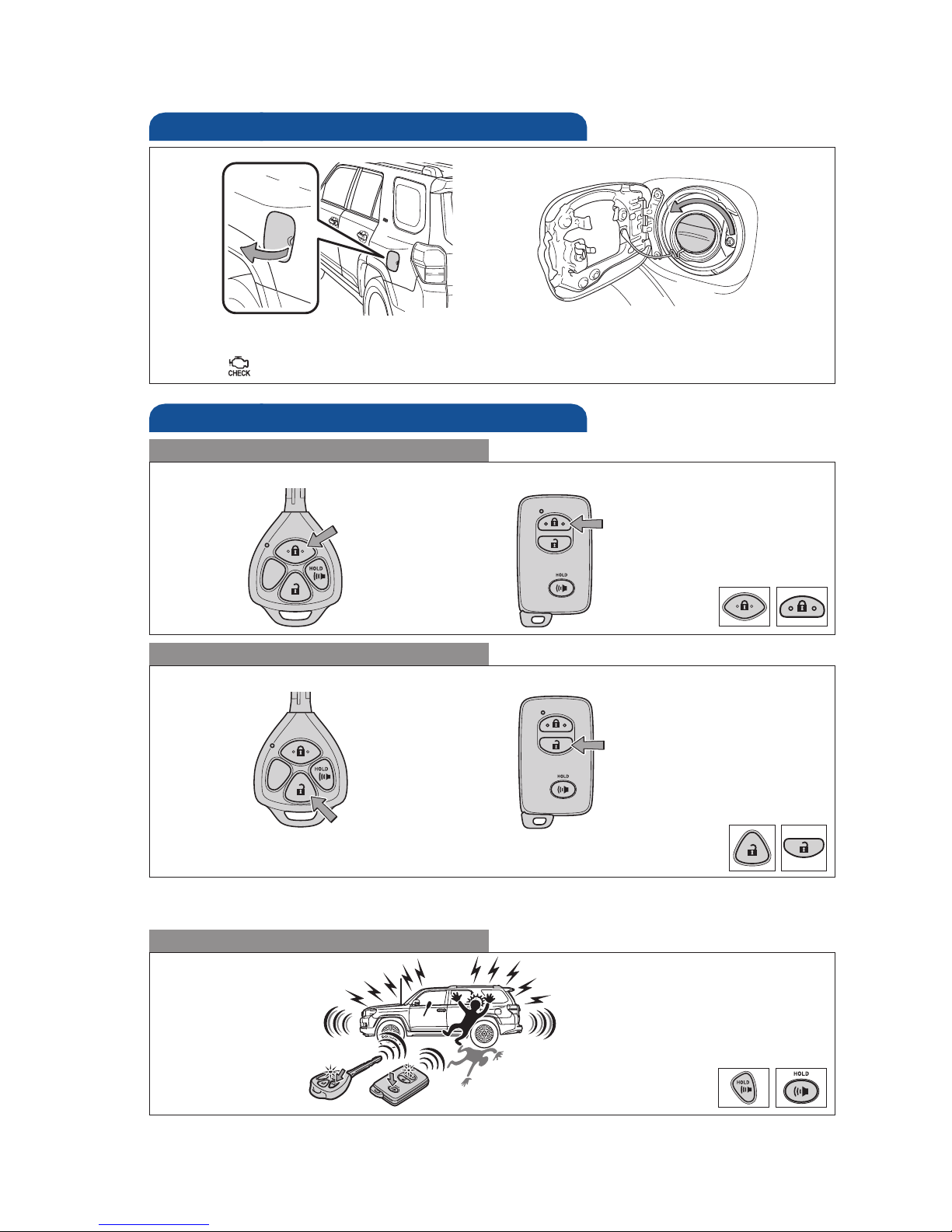

Fuel tank door and cap

Pull

Turn to open

NOTE: Tighten until one click is heard. If the cap is not properly sealed, Check

Engine “ ” indicator may illuminate.

Keyless entry

Locking

Unlocking

Panic button

Push and hold

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock

for safety.

Push ONCE: Driver door

TWICE: All doors

Push

Without Smart Key system With Smart Key system

Smart Key system (if equipped)

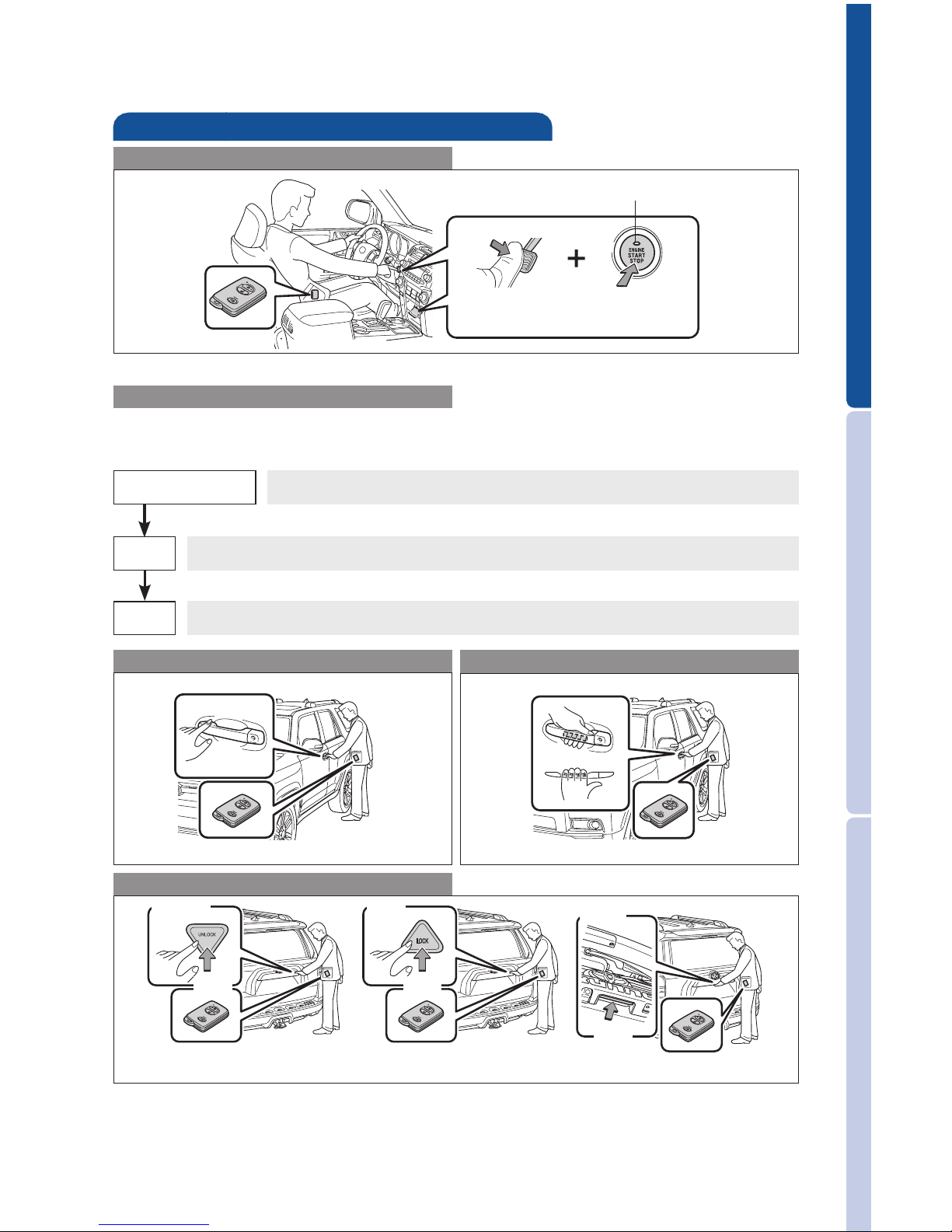

Start function

ACCESSORY

OFF

NOTE: Gear shift lever must be in Park and brake pedal depressed.

Without depressing the brake pedal, pressing the “ENGINE START STOP” switch

will change the operation mode in succession from:

NOTE: Doors may also be locked/unlocked using remote.

Power (without starting engine)

Locking

Carry remote to lock/unlock/open

Back door lock/unlock/open

Carry remote to lock

126892_20134Runner.indd 6 8/6/12 10:40 PM

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

NOTE: Tighten until one click is heard. If the cap is not properly sealed, Check

Engine “ ” indicator may illuminate.

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock

for safety.

Smart Key system (if equipped)

Start function

Accessories such as the radio will operate.

Power ON; the engine not running.

All systems OFF.

ACCESSORY

OFF

NOTE: Gear shift lever must be in Park and brake pedal depressed.

Push

Depress

brake pedal

Carrying

Green indicator ON

Without depressing the brake pedal, pressing the “ENGINE START STOP” switch

will change the operation mode in succession from:

NOTE: Doors may also be locked/unlocked using remote.

Power (without starting engine)

Push

Unlock

Push

Lock

Locking Unlocking

Carry remote to unlock

Front door lock Front door unlock

Grasp

Carry remote to lock/unlock/open

Back door lock/unlock/open

Carry remote to lock

Touch

Open

Push

126892_20134Runner.indd 7 8/6/12 10:41 PM

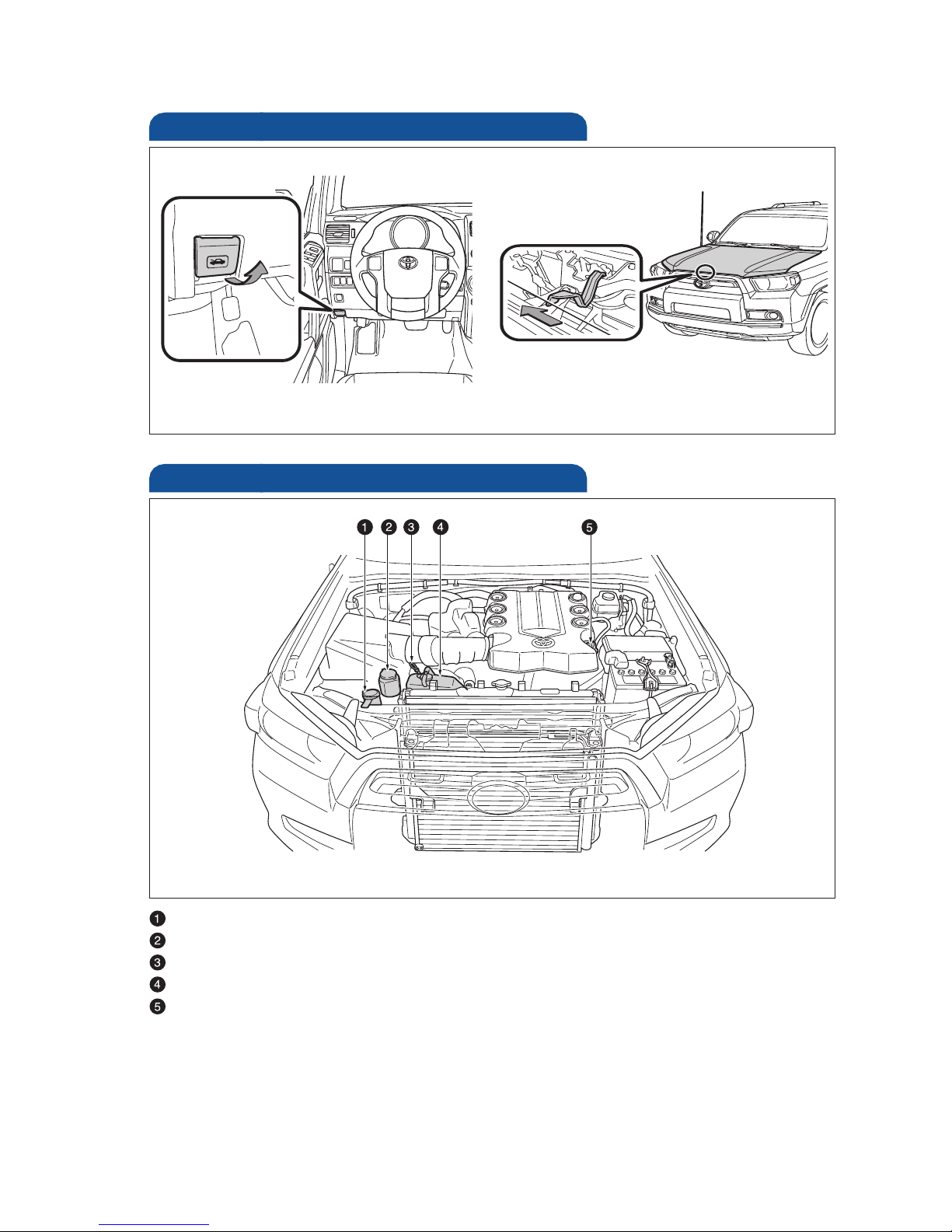

Windshield and back window washer fluid tank

Power steering fluid reservoir

Engine oil level dipstick

Engine coolant reservoir

Engine oil filler cap

NOTE: Regularly scheduled maintenance, including oil changes, will help

extend the life of your vehicle and maintain performance. Please refer

to the “Warranty & Maintenance Guide.”

Engine maintenance

Hood release

Pull

Push lever to the

left and raise hood

OVERVIEW FEATURES/OPERATIONS

Automatic Transmission

* The ignition/“ENGINE START STOP” switch must be “ON” and the brake pedal

depressed to shift from Park.

Shift the shift lever to “S” position from “D” position.

+: Upshift (push and release)

-: Downshift (pull and release)

Downshifting increases power going uphill, or provides engine braking downhill.

For best fuel economy during normal driving conditions, always drive with the shift

lever in the “D” position.

“S” (Sequential) mode

Auto lock/unlock

Automatic door locks can be programmed to operate in four different modes, or

turned OFF.

-Doors lock when shifting from Park.

-Doors lock when the vehicle speed is approximately 12 mph or higher.

-Doors unlock when shifting into Park.

-Doors unlock when the driver’s door is opened within 10 seconds after turning the

“ENGINE START STOP” switch or ignition switch OFF.

Refer to the Owner’s Manual for more details.

Parking brake

126892_20134Runner.indd 8 8/6/12 10:41 PM

Autres manuels pour 4RUNNER 2013

Table des matières

Autres manuels Toyota Automobile

Toyota

Toyota 4RUNNER BROCHURE 2011 Manuel utilisateur

Toyota

Toyota 2004 Sequoia Manuel utilisateur

Toyota

Toyota Sienna 2004 Manuel utilisateur

Toyota

Toyota CAMRY 2000 Manuel utilisateur

Toyota

Toyota AVALON 2005 Manuel utilisateur

Toyota

Toyota 2011 Camry Hybrid Manuel utilisateur

Toyota

Toyota TUNDRA BROCHURE 2011 Manuel utilisateur

Toyota

Toyota Land Cruiser 2016 Manuel utilisateur

Toyota

Toyota 2013 Corolla Manuel utilisateur

Toyota

Toyota RAV4 EV 2013 Manuel utilisateur

Toyota

Toyota Yaris 2016 Manuel utilisateur

Toyota

Toyota Camry Hybrid 2020 Manuel utilisateur

Toyota

Toyota Prius 2007 Manuel utilisateur

Toyota

Toyota Land Cruiser Prado Manuel utilisateur

Toyota

Toyota 2018 yaris Manuel technique

Toyota

Toyota 2016 Prius Manuel utilisateur

Toyota

Toyota Corolla 2004 Manuel utilisateur

Toyota

Toyota 2014 Sienna Guide d'installation

Toyota

Toyota Tundra guide Manuel utilisateur

Toyota

Toyota Prius+ Manuel utilisateur

Toyota

Toyota Solara 2002 Manuel utilisateur

Toyota

Toyota 4RUNNER 2010 Manuel utilisateur

Toyota

Toyota FJ cruiser Feuille d'instructions

Toyota

Toyota LAND CRUISER - BROCHURE 2011 Manuel utilisateur

Manuels Automobile populaires d'autres marques

CITROËN

CITROËN DS4 DSign Manuel utilisateur

Lexus

Lexus 2015 CT 200h Manuel utilisateur

Cadillac

Cadillac CTS 2008 Manuel utilisateur

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuel utilisateur

Porsche

Porsche Boxster S Manuel utilisateur

GMC

GMC 2010 Savana 1500 Cargo Manuel utilisateur

KIAM

KIAM SPORTAGE 2014 Manuel de la liste des pièces

GMC

GMC 2013 Terrain Instructions de montage

GMC

GMC T-Series 1999 Manuel utilisateur

Mercury

Mercury 1998 Mystique Manuel utilisateur

Mercury

Mercury 2007 Mariner Manuel utilisateur

Mazda

Mazda 2007 Mazdaspeed 3 Mode d’emploi

Mazda

Mazda 2014 CX-5 Manuel utilisateur

GMC

GMC Chevrolet Express 2022 Manuel utilisateur

GMC

GMC 1997 Jimmy Manuel utilisateur

Chevrolet

Chevrolet 2012 Malibu Manuel utilisateur

Cadillac

Cadillac 2010 Escalade Manuel utilisateur

Skoda

Skoda FABIA RS - ANNEXE 118 Manuel utilisateur
