2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 7. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1−1
’05 4Runner_U (L/O 0409)
2
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
1. Side vents
2. Side defroster outlets
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switch
7. Garage door opener
8. Auxiliary boxes
9. Glove box
10. Automatic transmission selector lever
11. Power door lock switches
12. Power window switches
13. Seat heater switches
14. “HEIGHT CONTROL OFF” switch
15. Rear vents
16. Trash holder
17. Height select switch
18. “DAC” switch
19. Front cup holders
20. Tilt steering lock release lever

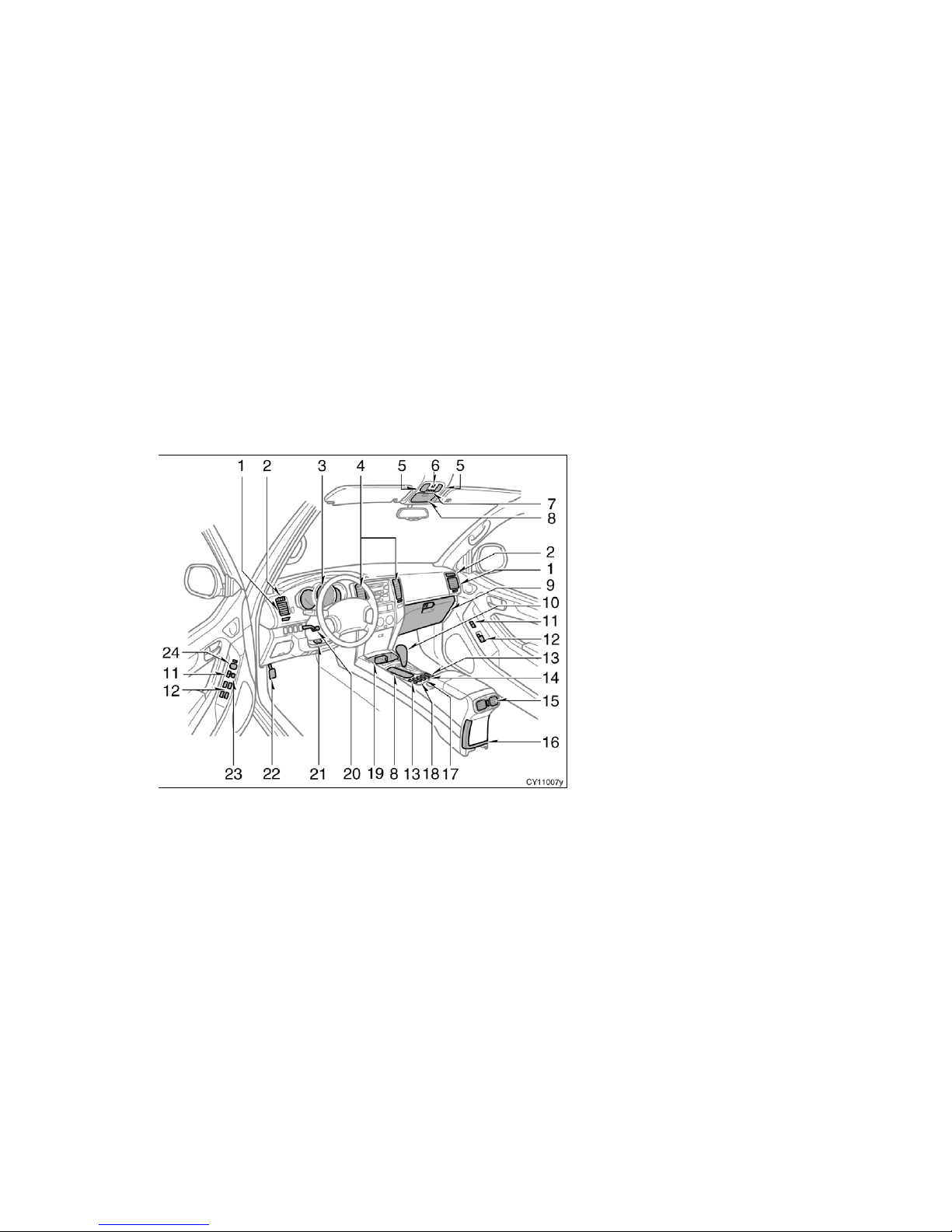

Instrument panel overview
’05 4Runner_U (L/O 0409)
3
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
21. Telescopic steering lock release lever
22. Parking brake pedal
23. Window lock switch
24. Power rear view mirror control switches

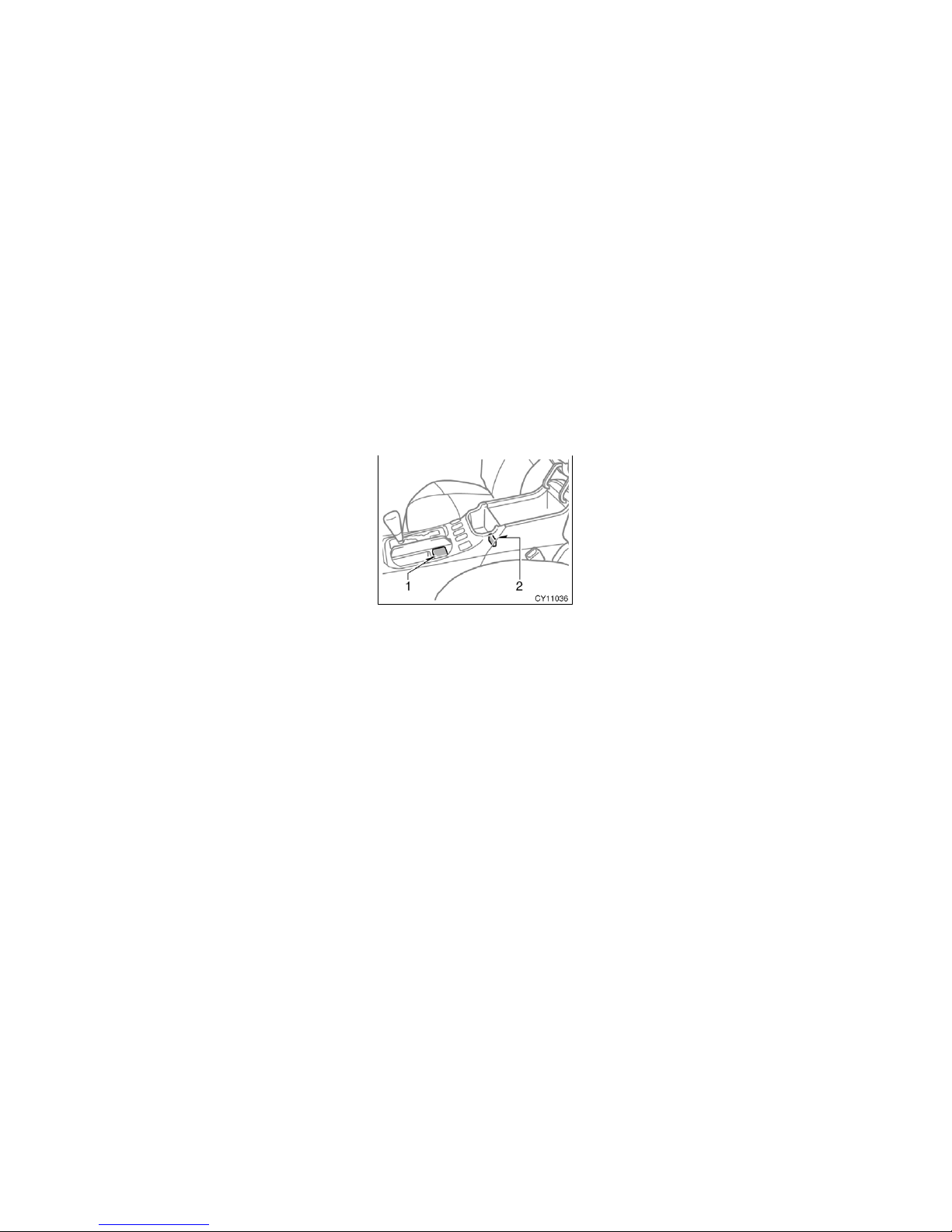

Rear console box
1. Power outlet (12 VDC)
2. Power outlet (115 VAC)
’05 4Runner_U (L/O 0409)
4
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
1. Instrument panel light control dial
2. Headlight, turn signal and front fog
light switches
3. Audio remote control switches
4. Wiper and washer switches
5. Power back window switch
6. Audio system/rear view monitor system
and navigation system including audio
system (For the navigation system, see
the separate “Navigation System
Owner’s Manual”.)
7. Front passenger’s seat belt reminder
light
8. Engine immobilizer/theft deterrent
system indicator light
9. Front passenger occupant classification
indicator light
10. Multi−information display
11. Emergency flasher switch
12. Air conditioning controls
13. Auxiliary box
14. Back window and rear view mirror
defogger switch
15. Four−wheel drive control switch knob
(full−time four−wheel drive models) or
multi−mode control switch knob
(multi−mode four−wheel drive models)
’05 4Runner_U (L/O 0409)
5
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
16. Ignition switch
17. Cruise control switch
18. Hood lock release lever
19. Fuel filler door opener
20. Roll sensing of curtain shield airbags
off switch
21. “AUTO LSD” switch
22. Center differential lock switch
23. Power outlet main switch
’05 4Runner_U (L/O 0409)
6
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
1. Trip meter reset button
2. Tachometer
3. Service reminder indicators and
indicator lights
4. Speedometer
5. Fuel gauge
6. Low fuel level warning light
7. Engine coolant temperature gauge
8. Odometer and two trip meters
9. Odometer/two trip meter changeover
button
Instrument cluster overview
’05 4Runner_U (L/O 0409)
7
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
or
Driver’s seat belt reminder light∗1
Low engine oil pressure warning light∗1
Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.)
Brake system warning light∗1
Malfunction indicator lamp∗1
Discharge warning light∗1
Anti−lock brake system warning light∗1
SRS warning light∗1
Open door warning light∗1
Front passenger’s seat belt reminder light∗1
DVehicle stability control system warning
light∗1
DTraction control system warning light∗1
(two−wheel drive models)
DActive traction control system warning light∗1
(four−wheel drive models)
D“AUTO LSD” system warning light∗1
(two−wheel drive models)
DDownhill assist control system warning
light∗1(four−wheel drive models)
DHill−start assist control system warning
light∗1
Automatic transmission fluid temperature
warning light∗1(four−wheel drive models)
Low tire pressure warning light∗1
Indicator symbols on the instrument panel
’05 4Runner_U (L/O 0409)
8
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
Center differential lock indicator light∗3
(four−wheel drive models)
Automatic transmission indicator lights
Slip indicator light
Turn signal indicator lights
Low speed four−wheel drive indicator light∗3
(four−wheel drive models)
Downhill assist control system indicator light
(four−wheel drive models)
Height control indicator lights
Headlight high beam indicator light
Engine immobilizer/theft deterrent system
indicator light
Roll sensing of curtain shield airbags off
indicator light∗2
Headlight low beam indicator light
Tail light indicator light “AUTO LSD” indicator light
(two−wheel drive models)
Low windshield washer fluid level warning
light∗1(for vehicles sold in Canada)
Front passenger occupant classification indicator
light
Vehicle stability control system off indicator light
(four−wheel drive models)
Four−wheel drive indicator light∗3
(multi−mode four−wheel drive models)
’05 4Runner_U (L/O 0409)
9
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 145 in Section 1−6.
∗2: For details, see “Roll sensing of curtain shield airbags off
switch” on page 94 in Section 1−3.
∗3: If this light flashes, see “Four−wheel drive system” on page
162 in Section 1−7.
∗4: If this light flashes, see “Rear height control air suspension”
on page 182 in Section 1−7.
∗5: If this light flashes, see “Cruise control” on page 193 in
Section 1−7.
Cruise control indicator light∗5
Height control “OFF” indicator light∗4
’05 4Runner_U (L/O 0409)
10
2005 4RUNNER from Sep. ’04 Prod. (OM35843U)
