Toshiba Carrier RBC-AX22CUL Manuel utilisateur

ADR

Signal receiving unit

Wireless remote controller

(WX-TA01UES)

REMOTE CONTROLLER FOR AIR CONDITIONER (SPLIT TYPE)

Installation Manual

Remote Controller

Model name :

Wireless remote controller kit

RBC-AX22CUL

Installation Manual 1

Remote controller for air conditioner (Split type)

Manuel D’installation 8

Télécommande pour climatiseur (Type split)

English

Français

Generic

model name

RBC-AX22CUL

Wireless remote controller

and signal receiving unit

WX-TA01UES

(Wireless remote controller model name)

Wireless remote controller kit Installation Manual

Thank you very much for purchasing TOSHIBA/Carrier Remote Controller for Air Conditioner.

Please read the owner's manual carefully before using your Remote Controller for Air Conditioner.

• Be sure to obtain the “Owner’s manual” and “Installation manual” from constructor (or dealer).

Request to constructor or dealer

Please clearly explain the contents of the Owner’s manual and hand over it.

ACCESSORY PARTS

No.

Accessory

Signal receiving unit

Remote controller

Remote controller holder

Battery

Q’ty

No.

Accessory

Owner’s Manual

Installation Manual

Truss tapping screw,

Ø0.16” × 0.63” (M4 ×16mm)

Q’ty

English-1

CONTENTS

ACCESSORY PARTS ........................................................................................... 1

INSTALLATION OF SIGNAL RECEIVING UNIT ................................................. 2

HOW TO PERFORM CABLING OF SIGNAL RECEIVING UNIT ........................ 4

REQUIREMENT .................................................................................................... 4

HOW TO SET THE ROOM TEMPERATURE SENSOR ........................................ 5

HOW TO SET THE ADDRESS SWITCH .............................................................. 5

SLIDE SWITCH .................................................................................................... 5

SELF-DIAGNOSIS TABLE AND MEASURES ..................................................... 5

HOW TO SET UP FOR THE HIGH CEILING ........................................................ 6

HOW TO HANDLE THE REMOTE CONTROLLER .............................................. 6

CAUTIONS FOR INSTALLATION OF THE REMOTE CONTROLLER ............... 6

EXPLANATION TO CUSTOMERS ....................................................................... 6

TEST RUN ............................................................................................................ 7

Wireless remote controller kit Installation Manual

Wire guard

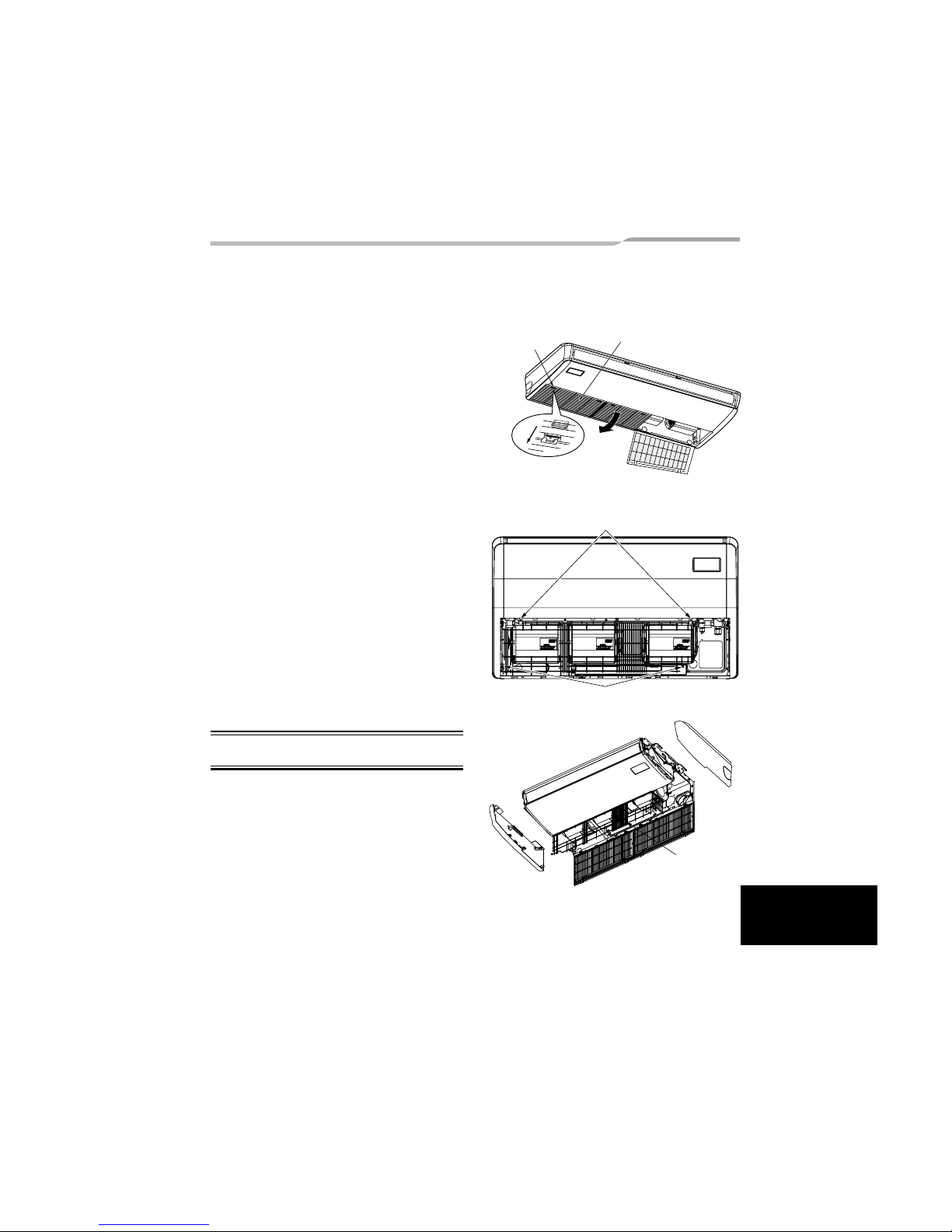

2INSTALLATION OF SIGNAL RECEIVING UNIT

1. Removal of suction grille

1) Slide the suction grille fixing knobs (2 positions)

toward the arrow direction, and then open the

suction grille. (Fig. A)

English-2

Suction grille

fixing knob

Slide

2) Remove the screws (2 pcs.) which are fixing

the wire guard. Using clamps mounted to the

wire guard, hang up the wire guard.

∗Do not remove the fixing screws of clamps of

the indoor unit.

Fig. B

Fig. A

NOTE

After installation of the signal receiving unit, be sure

to mount the wire guard as original. (Fig. C) Fig. C

Clamps

Screws

Wireless remote controller kit Installation Manual

Panel Side panel

Suction grille

Screw

Cord clamp

Signal receiving unit

Flat head screw driver

(Lap it with vinyl tape.)

Cover

Vinyl tape

Insert it into groove at

the side under circle

mark on the cover.

Cord clamp Cord clamp

High voltage wires

and earth line

Lead wire from the

signal receiving unit

Hole for signal receiving unit wires

3) Remove a screw, move the side panel toward you (direction of arrow), and then remove the side panel.

(Fig. D)

4) Lap the end of flat head screw driver with vinyl tape, and forcedly insert it into the groove at the side under

circle mark on the cover. (Be careful not to damage the panel.) (Fig. E)

5) Pass the lead wire through the panel, and install

the signal receiving unit to the panel hole.(Projection of the signal receiving unit is fixed by the panel hole.)

6) Fix the lead wire of the signal receiving unit to the cord clamp which fixes the cables of the louver motor.

(Fig. F)

7) Install the side panels, with screws as original.

8) Put the lead wire from the signal receiving unit along cables of the louver motor and others, and then fix it

with the cord clamp. (Fig. G)

∗It’s connected to a connection of Remote control wire through a hole for Remote control wire.(Fig. H)

9) After all connections have been made, install wire guard and suction grill before doing the “TEST RUN”.

Fig. D

Fig. F Fig. G

NOTE 1

Avoid to twist cables of the sensor with the

power cables, otherwise a malfunction is caused.

∗For cabling and TEST RUN, refer to “HOW TO

PERFORM CABLING OF SIGNAL RECEIVING

UNIT”of these sheets and “TEST RUN”of the

Installation manual attached to the indoor unit.

Fig. H

Fig. E

English-3

Wireless remote controller kit Installation Manual

3HOWTO PERFORM CABLING OF SIGNAL RECEIVING UNIT

Connection diagram

Connection

•Connect the cables out of the signal receiving unit

to the terminal block for remote controller cabling of

the indoor unit. (There is no polarity.)

CN001

2P White

Indoor unit Signal receiving unit

P.C. board

Terminal block for

remote controller

cabling White

Black

4REQUIREMENT

The control by two remote controllers is enabled by installing the wireless remote controller with the wired remote

controller for an indoor unit. (Max. 2 remote controllers of wireless or wired are installable.)

“2-remote controllers”controlling means that one or multiple units are operated by the multiple remote controllers.

NOTES

1. Upon confirmation of the terminal numbers of the indoor unit, connect the remote controller cables without

miscabling.(If applied AC 208/230 Volt, damage the unit.)

2. The multiple wireless remote controller kits cannot concurrently be used for an indoor unit.

3. When installing simultaneously the wireless remote controller with the wired remote controller, set one of them

as the sub remote controller.

•When setting the wired remote controller as the sub, exchange the address connector at the rear of P.C.

board of wired remote controller from main to sub remote controller.

•When setting the wireless remote controller as the sub, turn No.3 of DIP switch [S003] on P.C. board of

signal receiving unit from OFF to ON.

To operate an indoor unit by

2 remote controllers

∗The indoor unit is operated if

either wireless or wired remote

controller is set as main or

sub remote controller.

(Total cable length:Within 1312’4”(400m))

To operate a group control of multiple indoor units

by 2 remote controllers

∗Main and Sub remote controllers

are operable even if they are installed

to any indoor unit.

(Total cable length:Within 656’2”(200m))

English-4

Earth

Wireless

remote controller kit

(Main)

CN001

Wired

remote controller

(Sub)

21 (Sold

separately)

Terminal block for

remote controller cable

Remote controller cable

(Procured locally)

AWG20 (0.5mm²)

Indoor unit

Use UL wires

rated 300V

Signal receiving unit

Earth Earth Earth

(Sold

separately)

Terminal block for

remote controller

cable

Remote controller inter-unit

cable for group control

(Procured locally)

AWG20 (0.5mm²)

Use UL wires rated 300V

Wired

remote controller

(Sub)

Wireless

remote controller kit

(Main)

CN001 21

Indoor unit

No.1 Indoor unit

No.2 Indoor unit

No.3

Earth

Indoor unit

No.N

Signal

receiving unit

Wireless remote controller kit Installation Manual

HOW TO SET THE ROOM TEMPERATURE SENSOR

• The room temperature sensors are equipped in the indoor unit and the wireless remote controller.

One of two sensors works.

• The room temperature sensor is set to the indoor unit side at the shipment from the factory.

To select the sensor in the remote controller, push the SENSOR button (Right figure) inside of the remote

controller cover and check “ ” disappears from LCD.

SLIDE SWITCH

• Check the slide switch in the battery box of

the remote controller is set to [S] / [A] at

shipment from the factory.

Do not change the setting.

SELF-DIAGNOSIS TABLE AND

MEASURES

SKNAHC

Select of operation

mode set to A.

Select of louver

indication set to S.

AHC

SKN

HOW TO SET THE ADDRESS SWITCH

• When the multiple signal receiving units are installed in the same room, an address can be set to prevent cross

communication.

• When replacing the battery and pushing ACL button, the address of the remote controller becomes [ALL] and the

signal receiving unit is enabled to receive signal regardless of setting of address switch of the operation section.

• For selecting of the remote controller address, refer to Owner’s Manual.

• Change the address of the

signal receiving unit by removing

screws of P.C. board cover of the

signal receiving unit.

After then, fix the cover with

screws using a clamp.

NOTE

If the room temperature data from the remote controller is not transmitted to the

unit for 10 minutes or more, the sensor at indoor unit side is automatically selected

even if the sensor at the remote controller side is selected.

Fix the remote controller toward the unit as possible.

Display of

remote controller

address

Address switch

position of signal

receiving unit

∗Address switch of

signal receiving

unit can be set

any position.

Address Address Address Address

1 2 3

4 5 6

1 2 3

4 5 6

1 2 3

4 5 6

English-5

LEDs on the

signal receiving unit

: Off

: Blinking

(at intervals of 0.5 sec.)

Lamp indication

No indication even if

the remote controller

is operated.

Cause

Power supply is not

turned on.

Miscabling between

signal receiving unit and

indoor unit

Defective connection

between signal receiving

unit and indoor unit

Miscabling or defective

connection between

indoor and outdoor units

Protective device of

outdoor unit works.

Protective device of

indoor unit works.

Measures

Check cable

connection

and correct it.

Check

outdoor unit.

Check

indoor unit.

Blinks alternatively

Wireless remote controller kit Installation Manual

HOWTO SET UP FORTHE HIGH CEILING

•When the height of ceiling to be installed with a filter exceeds 11’6”

(3.5m), tap-up of DC fan is required.

Tap-up of DC fan can be set at No.2 (Tap 1) and No.4 (Tap 2) of DIP switch

[S003] on the

signal receiving unit

P.C.board.

The signal receiving unit P.C. board appears by removing screws at

the rear side of the signal receiving unit and the rear cover.

Setup for high ceiling

NOTE

Never set ON to DIP switch [S003] No.1 (TEST RUN).(A TEST RUN is carried out on the remote controller.)

(For the TEST RUN, refer to the Installation manual attached to the indoor unit.)

[S003] No.2 (Tap 1) and

[S003] No.4 (Tap 2) are used.

Standard (At shipment)

Type 1

[S003] No.2

(Tap 1)

OFF

[S003] No.4

(Tap 2)

OFF

Installable height

of ceiling

11’6”(3.5m)

13’1”(4.0m)

10 HOWTO HANDLETHE REMOTE CONTROLLER

•In case using remote controller mounting to the wall, etc.

Check a signal is received correctly by pushing button at the position to be fixed.

12 3 4

Mounting screw

Truss tapping

Ø0.16” × 0.63”

(M4 × 16mm)

•To take off remote controller,

pull it toward you.

Put on.

Push.

ACL button

Cover

11 CAUTIONS FOR INSTALLATION OFTHE REMOTE CONTROLLER

•To operate the remote controller by fixing it to the wall, etc. with a remote controller holder, turn on the

fluorescent lamp, operate the remote controller at the position to be fixed, check the air conditioner normally

operates, and then mount it.

•When the room temperature is sensed by the remote controller, mount the remote controller paying attention to

the following items.

•Place not exposed directly to cold or hot wind.

•Place not exposed directly to the sunlight.

•Other places where the remote controller is not influenced.

12 EXPLANATIONTO CUSTOMERS

•Hand over the “Owner’s Manual”and “Installation Manuals”to the customer after installation works.

•Explain usage and maintenance of the remote controller according to “Owner’s Manual”.

English-6

•Replacement of battery

1. Holding the both ends of the cover and

remove it by sliding downward.

2. Correctly insert 2 AAA alkali batteries

matching + and - polarities with

indications.

3. Push ACL button with something

tipped and attach the cover.

Wireless remote controller kit Installation Manual

13 TEST RUN

nBeforeTEST RUN

•Before turning on the power supply switch, carry out the following procedure.

1) Using 500V-megger, check 1MΩor more exists between the terminal block 1 to 3 and the earth.

If 1MΩor less is detected, do not run the unit. Do not apply to the remote controller circuit.

2) Check the valve of the outdoor unit being opened fully.

•To protect the compressor at activation time, leave power-ON for 12 hours or more be for operating.

nHow to execute aTEST RUN

Using the remote controller, operate the unit as usual.

For the procedure of the operation, refer to the attached Owner’s Manual.A forced TEST RUN can be

executed in the following procedure if the operation stops by thermo.-OFF. In order to prevent a serial

operation, the forced TEST RUN is released after 60 minutes have passed and returns to the usual operation.

CAUTION

When the remote controller is used for the first time, it accepts an operation approx. 5 minutes after the power

supply has been turned on. It is not a trouble, but is because the setup of the remote controller is being checked.

For the second power-ON time and after, approx.1 minute is required to start the operation by the remote controller.

ADR

Be sure to set the

air speed to [ ].

2 3, 4, 5,

2, 7

NOTE

Do not use the forcedTEST RUN for cases other than

the TEST RUN because it applies an excessive load

to the devices.

uIn case of wireless remote controller

Procedure

Operation contents

Turn on power of the set.

After installation, the operation is not accepted for 5 minutes when the power has been turned on at

the first time, and 1 minute when the power has been turned on at the second time and after.

Perform a test run after a specified time has passed.

Push [ ] button on the remote controller, change the operation mode to [ ] or [ ] by using [ ]

button, and then change the air speed to [ ] by [ ] button.

Cooling test run Heating test run

Set temperature to 64°F (18°C) by using [ ] button. Set temperature to 86°F (30°C) by using [ ] button.

Push [ ] button to set temperature to 66°F (19°C) Push [ ] button to set temperature to 84°F (29°C)

just after confirming the receiving sound “Pi”. just after confirming the receiving sound “Pi”.

Push [ ] button to set temperature to 64°F (18°C) Push [ ] button to set temperature to 86°F (30°C)

just after confirming the receiving sound “Pi”. just after confirming the receiving sound “Pi”.

Repeat the procedure 4→→

→→

→5→→

→→

→4→→

→→

→5.

After approx.10 seconds, all the display lamps [ ] (Green), [ ] (Green), and [ ] (Yellow) of the

wireless sensors flash, and the operation starts.

If the lamps do not flash, repeat the procedure 2and after.

When the TEST RUN has finished, push [ ] button to stop the operation.

English-7

85464369215000

(EH99677401)

Autres manuels pour Carrier RBC-AX22CUL

Table des matières

Autres manuels Toshiba Télécommande

Toshiba

Toshiba TCB-SC640U-E Manuel utilisateur

Toshiba

Toshiba V211UK Manuel utilisateur

Toshiba

Toshiba Lite-Vision plus RBC-AMS51E Manuel utilisateur

Toshiba

Toshiba RBC-AMT31-E Manuel utilisateur

Toshiba

Toshiba RBC-AMS54E-UL Manuel utilisateur

Toshiba

Toshiba RBC-ASCU11-E Manuel utilisateur

Toshiba

Toshiba RBC-AS21UL Manuel utilisateur

Toshiba

Toshiba Carrier RBC-AX22CUL Manuel utilisateur

Toshiba

Toshiba RBC-AX22CE Manuel utilisateur

Toshiba

Toshiba RBC-AMS55E-EN Manuel utilisateur

Toshiba

Toshiba RBC-AX32UM(W)-E Manuel utilisateur

Toshiba

Toshiba RBC-IR2-PE Manuel utilisateur

Toshiba

Toshiba RBC-CR1-PE Manuel utilisateur

Toshiba

Toshiba Carrier TCB-AX21UL Manuel utilisateur

Toshiba

Toshiba RBC-AX32UW-UL Manuel utilisateur

Toshiba

Toshiba RBC-AX31U-UL Manuel utilisateur

Toshiba

Toshiba RBC-AMS54E Manuel utilisateur

Toshiba

Toshiba TCB-SC643TLE Manuel utilisateur

Toshiba

Toshiba CT-8003 Manuel utilisateur

Toshiba

Toshiba RBC-AWSU52-UL Manuel utilisateur

Toshiba

Toshiba Carrier TCB-AX21UL Manuel utilisateur

Toshiba

Toshiba RBC-AMT31-E Manuel utilisateur

Toshiba

Toshiba RBC-AMS54E Manuel utilisateur

Toshiba

Toshiba RBC-SRC-PE Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
