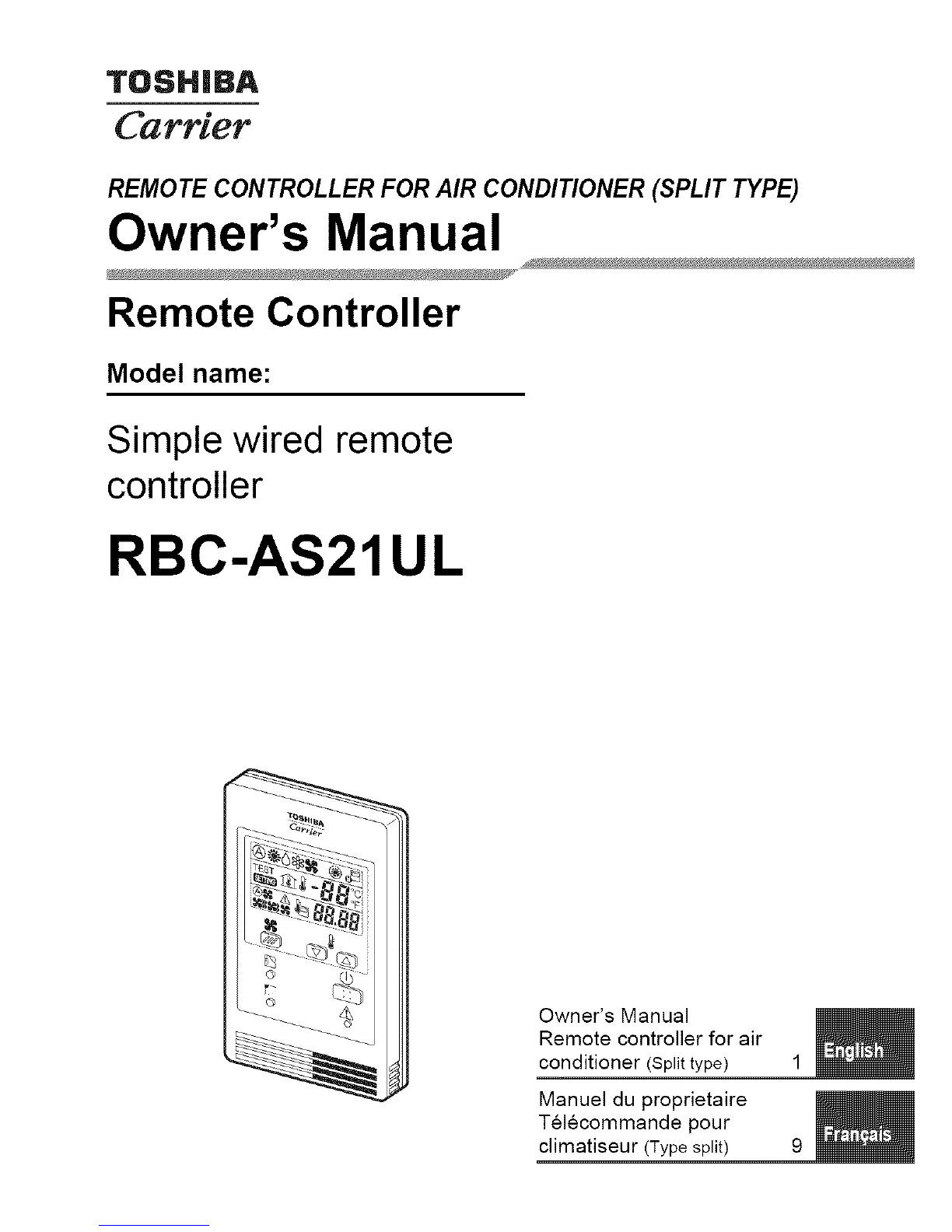

Toshiba RBC-AS21UL Manuel utilisateur

TOSHIBA

Carrier

REMOTE CONTROLLER FOR AIR CONDITIONER (SPLIT TYPE)

Owner's Manual

Remote Controller

Model name:

Simple wired remote

controller

RBC-AS21UL

Owner's Manual

Remote controller for air

conditioner (Split type)

Manuel du proprietaire

Telecommande pour

climatiseur (Type split)

Simple wired remote controller Owner's Manual

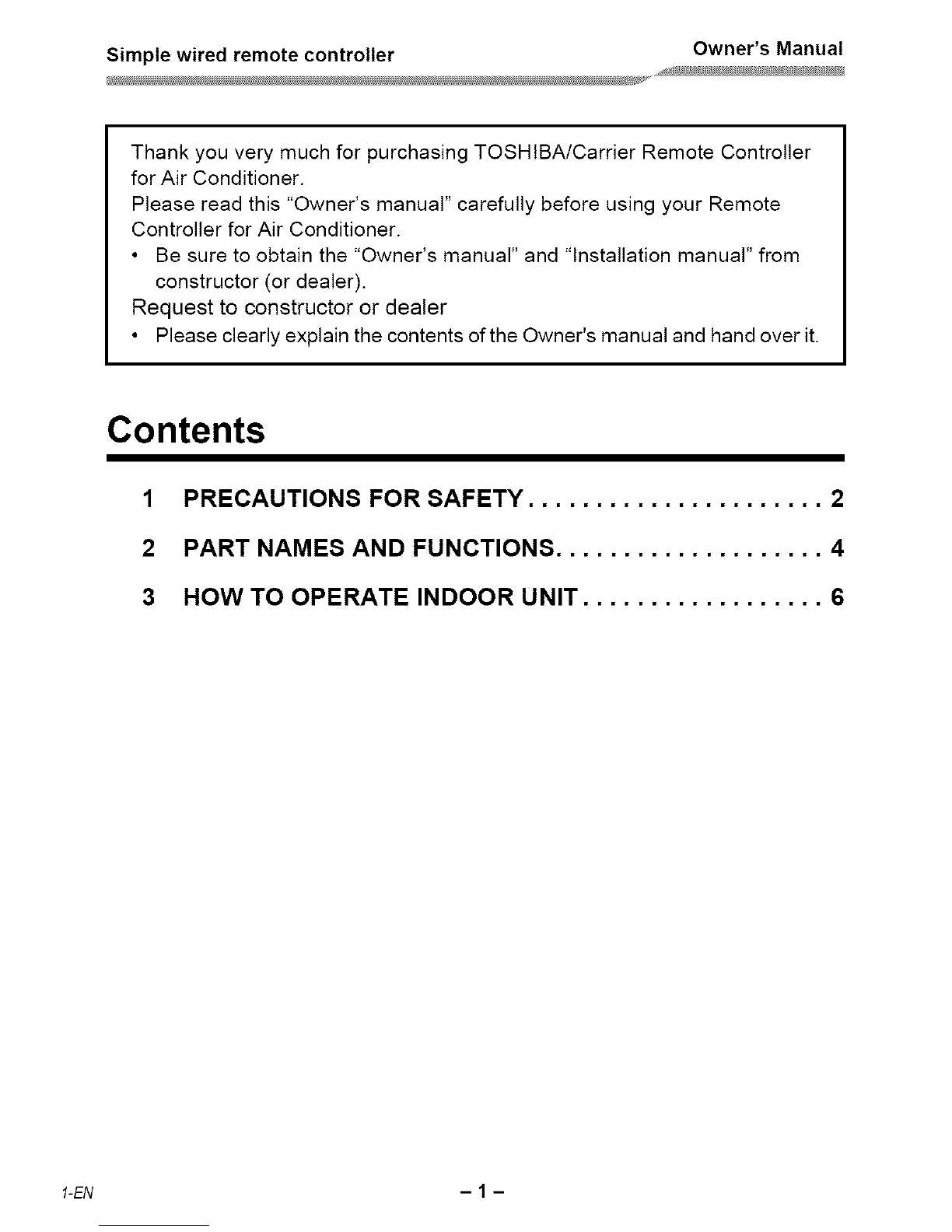

Thank you very much for purchasing TOSHIBA/Carrier Remote Controller

for Air Conditioner.

Please read this "Owner's manual" carefully before using your Remote

Controller for Air Conditioner.

• Be sure to obtain the "Owner's manual" and "Installation manual" from

constructor (or dealer).

Request to constructor or dealer

• Please clearly explain the contents of the Owner's manual and hand over it.

Contents

1 PRECAUTIONS FOR SAFETY ...................... 2

2 PART NAMES AND FUNCTIONS .................... 4

3 HOW TO OPERATE INDOOR UNIT .................. 6

1-EN -1-

Simple wired remote controller Owner's Manual

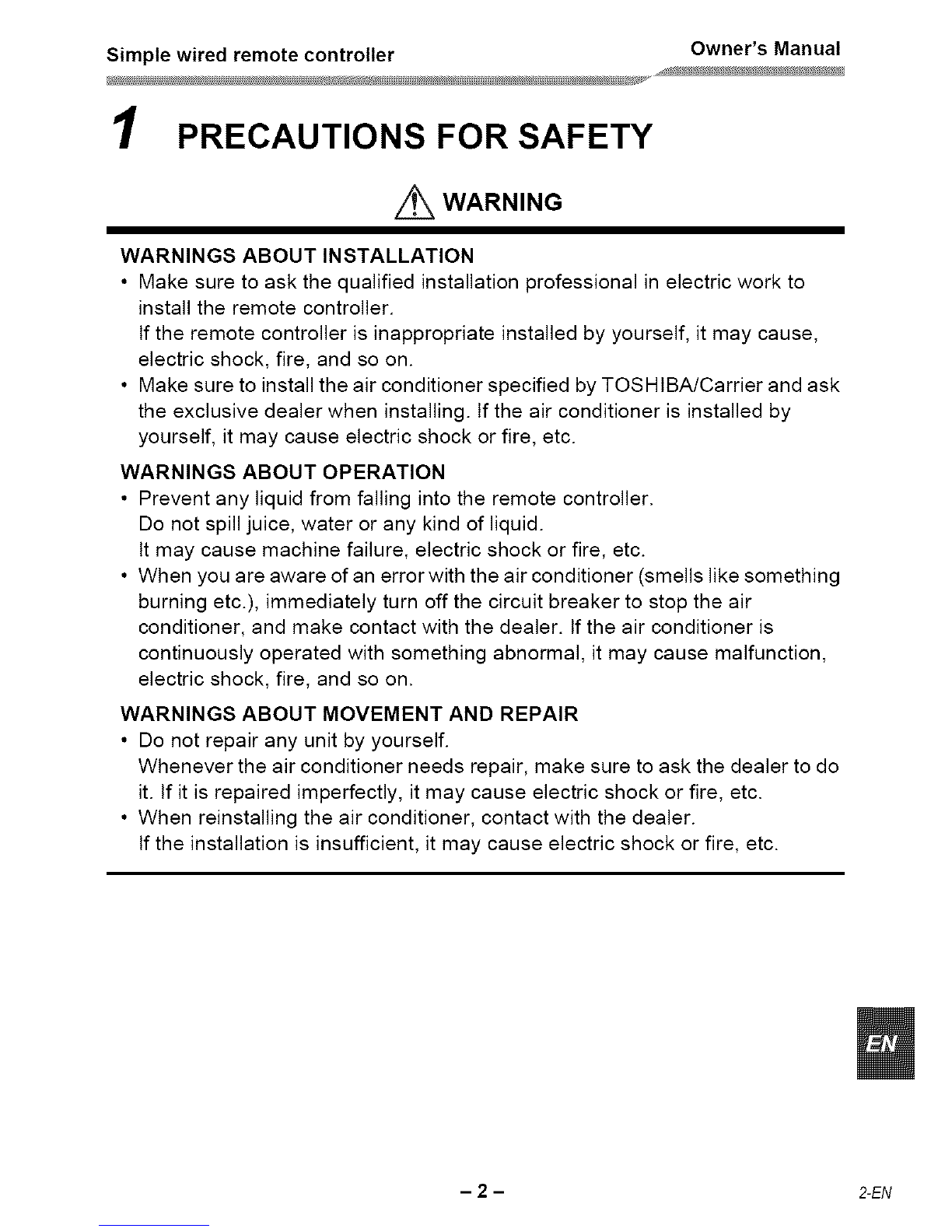

1PRECAUTIONS FOR SAFETY

z_ WARNING

WARNINGS ABOUT INSTALLATION

•Make sure to ask the qualified installation professional in electric work to

install the remote controller.

If the remote controller is inappropriate installed by yourself, it may cause,

electric shock, fire, and so on.

• Make sure to install the air conditioner specified by TOSHIBA/Carrier and ask

the exclusive dealer when installing, tf the air conditioner is installed by

yourself, it may cause electric shock or fire, etc.

WARNINGS ABOUT OPERATION

• Prevent any liquid from falling into the remote controller.

Do not spill juice, water or any kind of liquid.

It may cause machine failure, electric shock or fire, etc.

• When you are aware of an error with the air conditioner (smells like something

burning etc.), immediately turn off the circuit breaker to stop the air

conditioner, and make contact with the dealer, tf the air conditioner is

continuously operated with something abnormal, it may cause malfunction,

electric shock, fire, and so on.

WARNINGS ABOUT MOVEMENT AND REPAIR

• Do not repair any unit by yourself.

Whenever the air conditioner needs repair, make sure to ask the dealer to do

it. If it is repaired imperfectly, it may cause electric shock or fire, etc.

• When reinstalling the air conditioner, contact with the dealer.

If the installation is insufficient, it may cause electric shock or fire, etc.

-2- 2-EN

Simple wired remote controller Owner's Manual

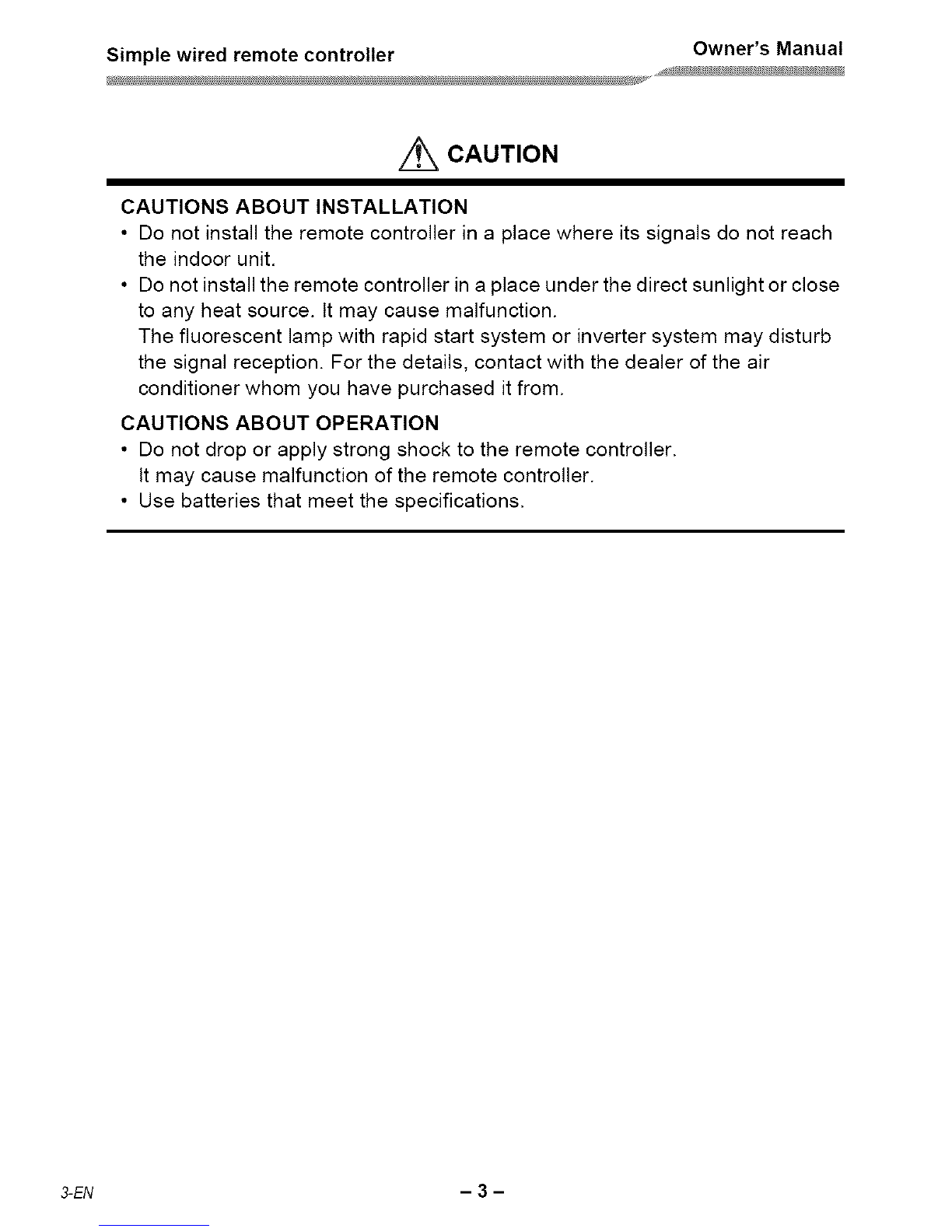

/_ CAUTION

CAUTIONS ABOUT INSTALLATION

•Do not install the remote controller in a place where its signals do not reach

the indoor unit.

• Do not install the remote controller in a place under the direct sunlight or close

to any heat source. It may cause malfunction.

The fluorescent lamp with rapid start system or inverter system may disturb

the signal reception. For the details, contact with the dealer of the air

conditioner whom you have purchased it from.

CAUTIONS ABOUT OPERATION

• Do not drop or apply strong shock to the remote controller.

It may cause malfunction of the remote controller.

• Use batteries that meet the specifications.

3-EN -3-

Simple wired remote controller Owner's Manual

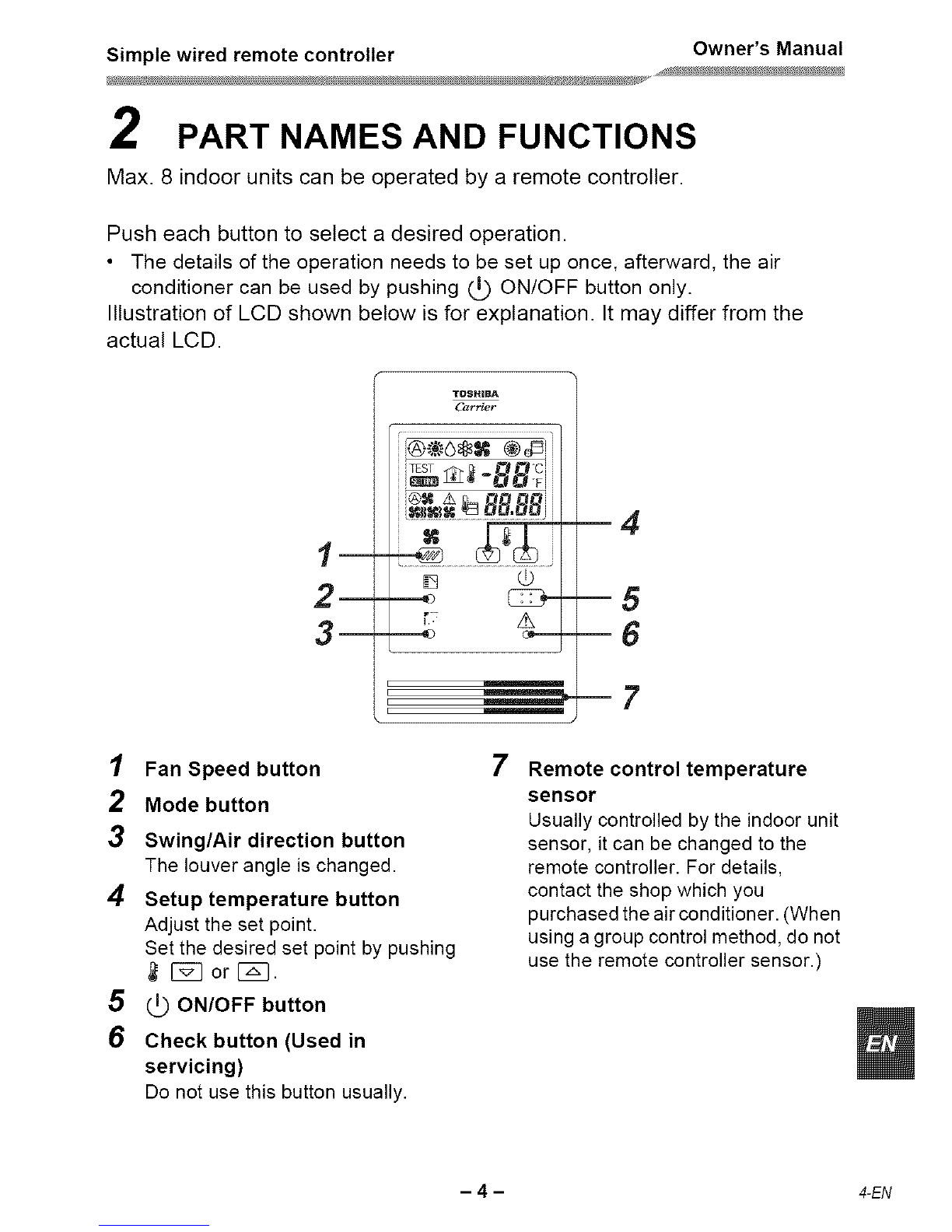

2PART NAMES AND FUNCTIONS

Max. 8 indoor units can be operated by a remote controller.

Push each button to select a desired operation.

•The details of the operation needs to be set up once, afterward, the air

conditioner can be used by pushing (I) ON/OFF button only.

Illustration of LCD shown below isfor explanation. It may differ from the

actual LCD.

t m

TOSNmBA

Car_er

TEST_ _Ip__I_cJ

_* -OCli Fj

@X 4_ _ EIEt O_II

[: AX

i m

Fan Speed button

Mode button

3Swing/Air direction button

The louver angle is changed.

4Setup temperature button

Adjust the set point.

Set the desired set point by pushing

I-_ or [Z].

5(._ ON/OFF button

6Check button (Used in

servicing)

Do not use this button usually.

Remote control temperature

sensor

Usually controlled by the indoor unit

sensor, it can be changed to the

remote controller. For details,

contact the shop which you

purchased the air conditioner. (When

using a group control method, do not

use the remote controller sensor.)

- 4 - 4-EN

Simple wired remote controller Owner's Manual

,t6

II..... tt

9----4"+TEs._TS___ t:_ t2

t4 t5

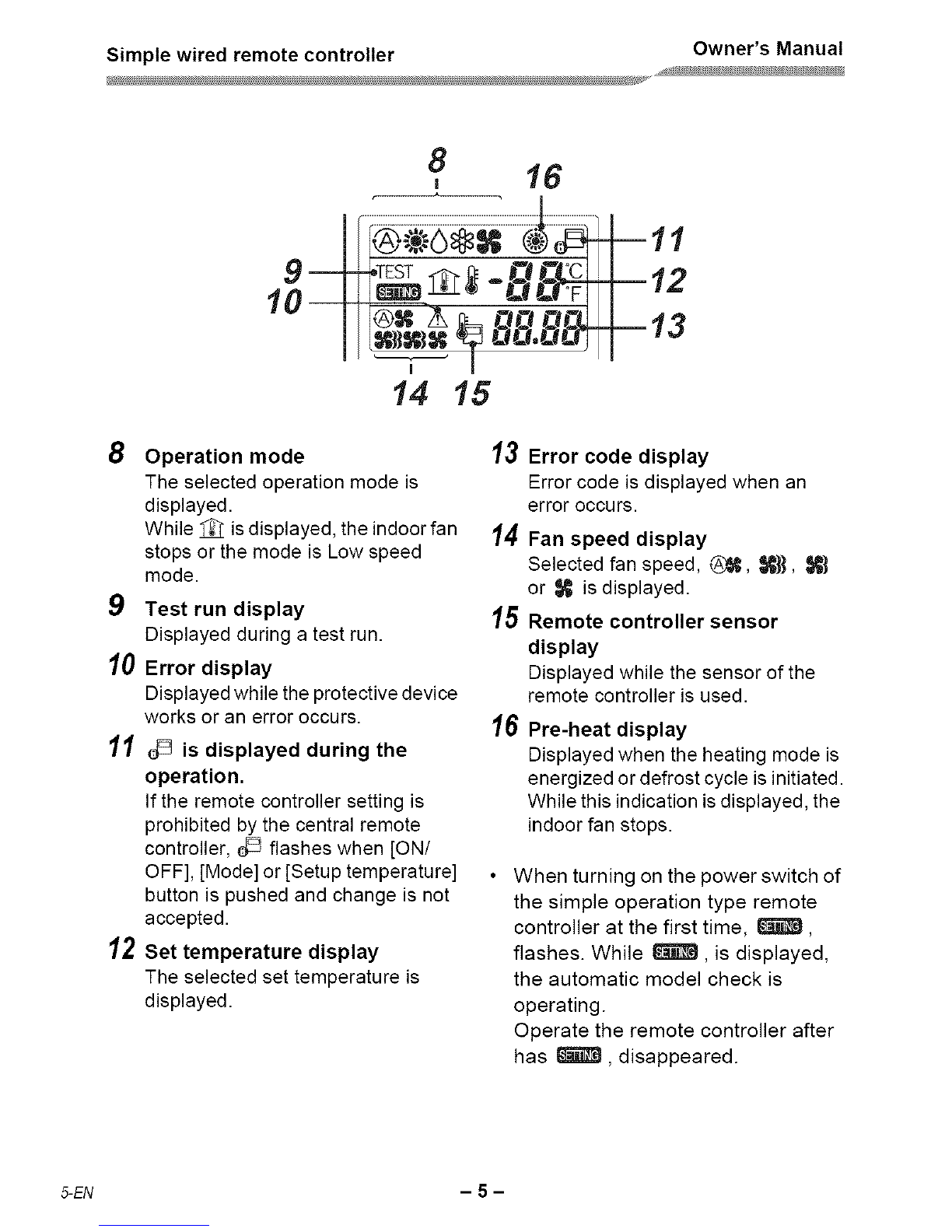

8Operation mode 13

The selected operation mode is

displayed.

While 2isdisplayed, the indoorfan

stops or the mode is Low speed

mode.

9Test run display 15

Displayed during a test run.

10 Error display

Displayed while the protective device

works or an error occurs. 16

11 _isdisplayed during the

operation.

If the remote controller setting is

prohibited by the central remote

controller, _ flashes when [ON/

OFF], [Mode] or [Setup temperature] o

button is pushed and change is not

accepted.

12 Set temperature display

The selected set temperature is

displayed.

Error code display

Error code is displayed when an

error occurs.

Fan speed display

Selected fan speed, ,,_, _l{, X{

or R is displayed.

Remote controller sensor

display

Displayed while the sensor of the

remote controller is used.

Pre-heat display

Displayed when the heating mode is

energized or defrost cycle is initiated.

While this indication is displayed, the

indoor fan stops.

When turning on the power switch of

the simple operation type remote

controller at the first time, _,

flashes. While _, is displayed,

the automatic model check is

operating.

Operate the remote controller after

has _, disappeared.

5-EN - 5 -

Simple wired remote controller Owner's Manual

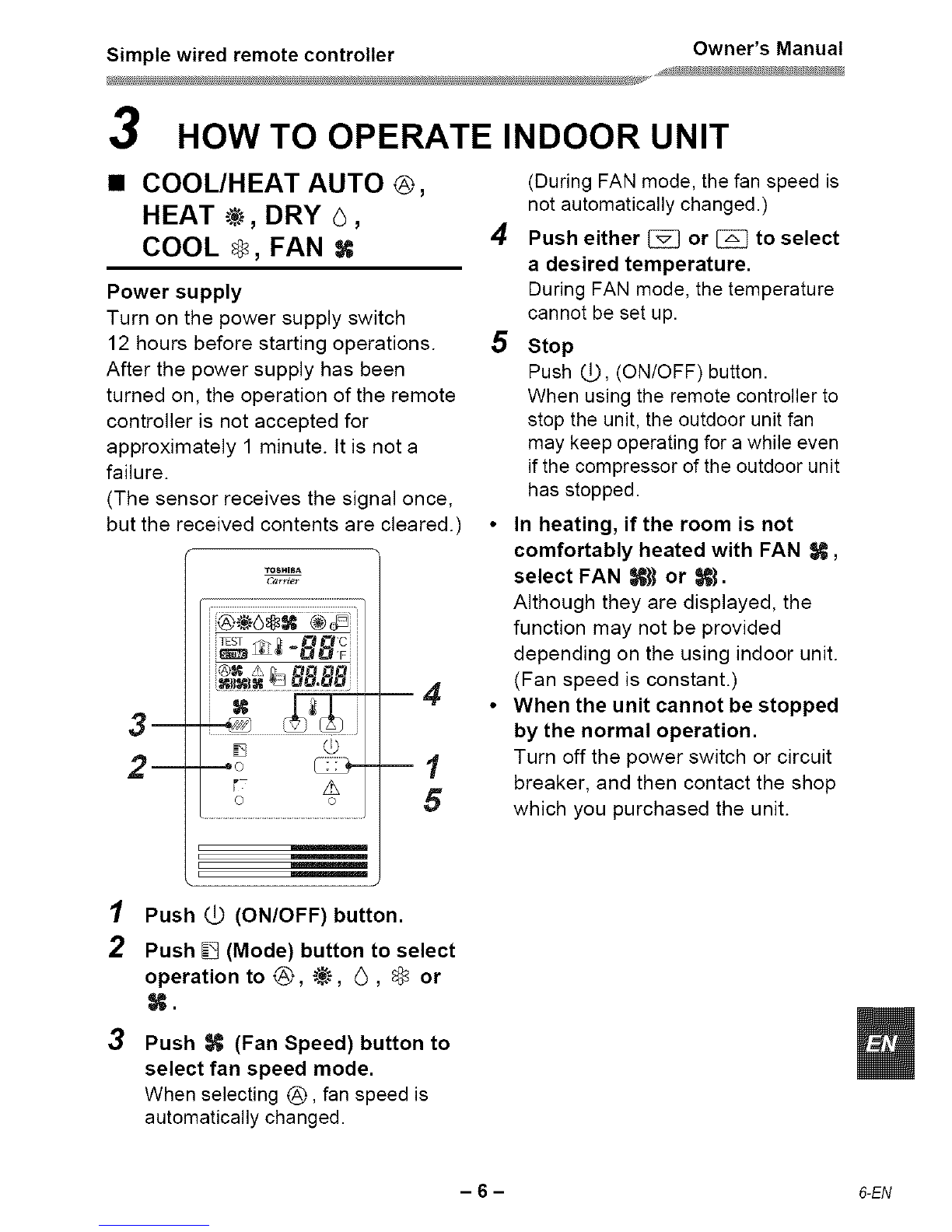

3HOW TO OPERATE INDOOR UNIT

•COOL/HEAT AUTO ®,

HEAT _,_, DRY 6,

COOL _, FAN R

Power supply

Turn on the power supply switch

12 hours before starting operations.

After the power supply has been

turned on, the operation of the remote

controller is not accepted for

approximately 1 minute. It is not a

failure.

(The sensor receives the signal once,

but the received contents are cleared.)

TOS.IBA

('_rrler

' TEST ._@ J_'C i

==-=o _-

0 o

, m

i m

--4

ml 5

1Push (!) (ON/OFF)button.

2Push [] (Mode) button to select

operation to ®, -;_,_,'"°0, @ or

3Push X (Fan Speed) button to

select fan speed mode.

When selecting ®, fan speed is

automatically changed.

(During FAN mode, the fan speed is

not automatically changed.)

4Push either [_ or [_ to select

a desired temperature.

During FAN mode, the temperature

cannot be set up.

5Stop

Push (_), (ON/OFF) button.

When using the remote controller to

stop the unit, the outdoor unit fan

may keep operating for a while even

if the compressor of the outdoor unit

has stopped.

• In heating, if the room is not

comfortably heated with FAN _,

select FAN X{{ or X_.

Although they are displayed, the

function may not be provided

depending on the using indoor unit.

(Fan speed is constant.)

• When the unit cannot be stopped

by the normal operation,

Turn off the power switch or circuit

breaker, and then contact the shop

which you purchased the unit.

- 6 - 6-EN

Simple wired remote controller Owner's Manual

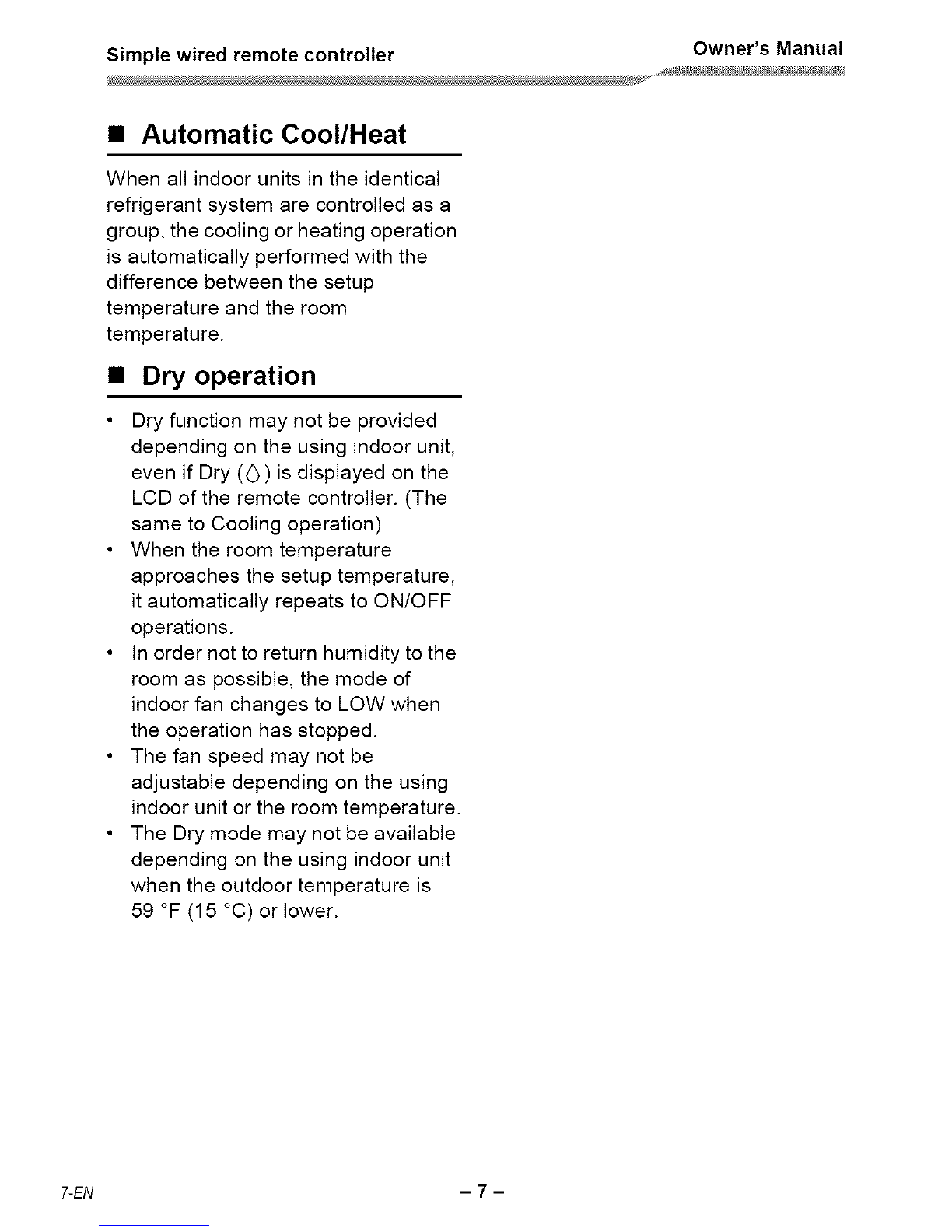

•Automatic Cool/Heat

When all indoor units in the identical

refrigerant system are controlled as a

group, the cooling or heating operation

is automatically performed with the

difference between the setup

temperature and the room

temperature.

•Dry operation

Dry function may not be provided

depending on the using indoor unit,

even if Dry (0) is displayed on the

LCD of the remote controller. (The

same to Cooling operation)

When the room temperature

approaches the setup temperature,

it automatically repeats to ON/OFF

operations.

In order not to return humidity to the

room as possible, the mode of

indoor fan changes to LOW when

the operation has stopped.

The fan speed may not be

adjustable depending on the using

indoor unit or the room temperature.

The Dry mode may not be available

depending on the using indoor unit

when the outdoor temperature is

59 °F (15 °C) or lower.

7-EN -7-

Simple wired remote controller Owner's Manual

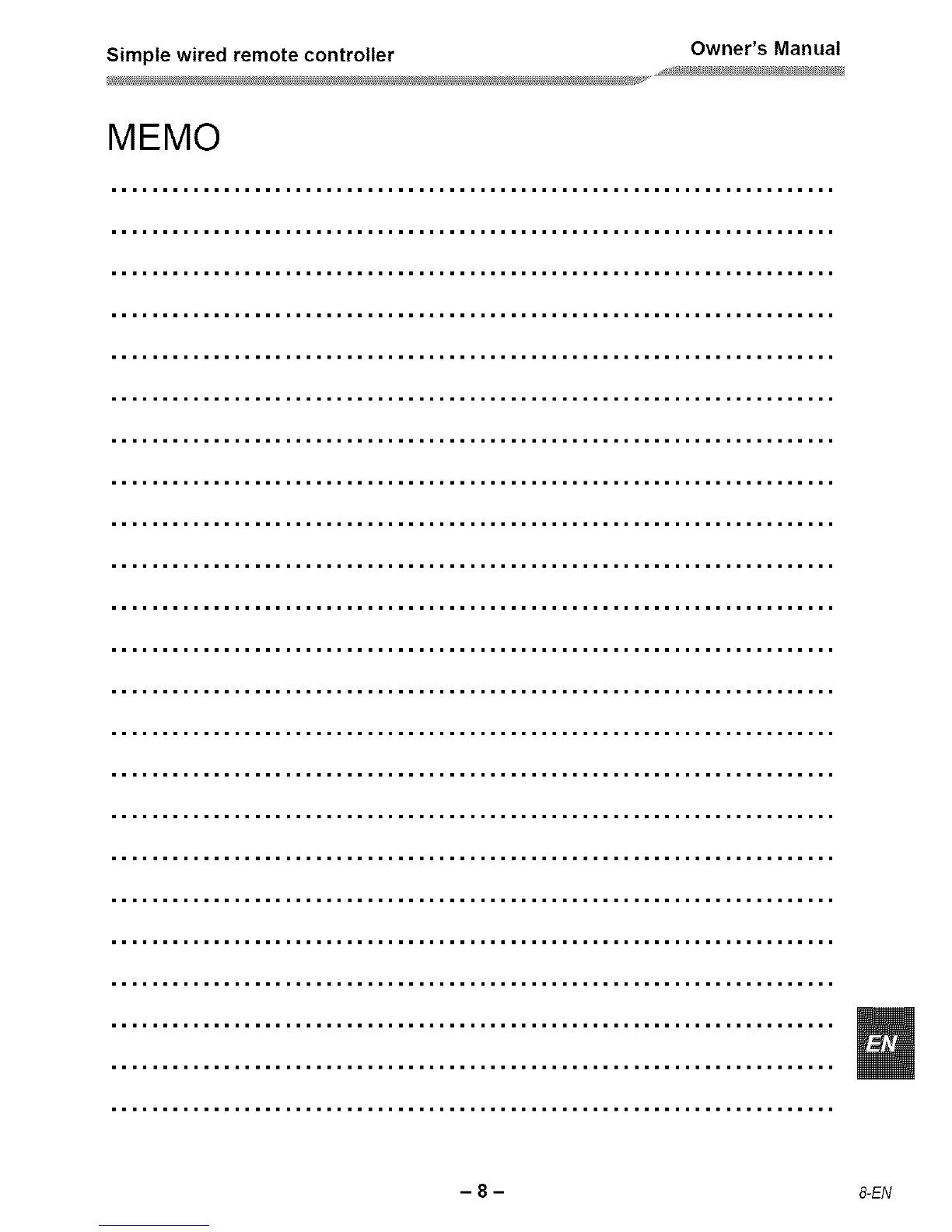

MEMO

- 8 - 8-EN

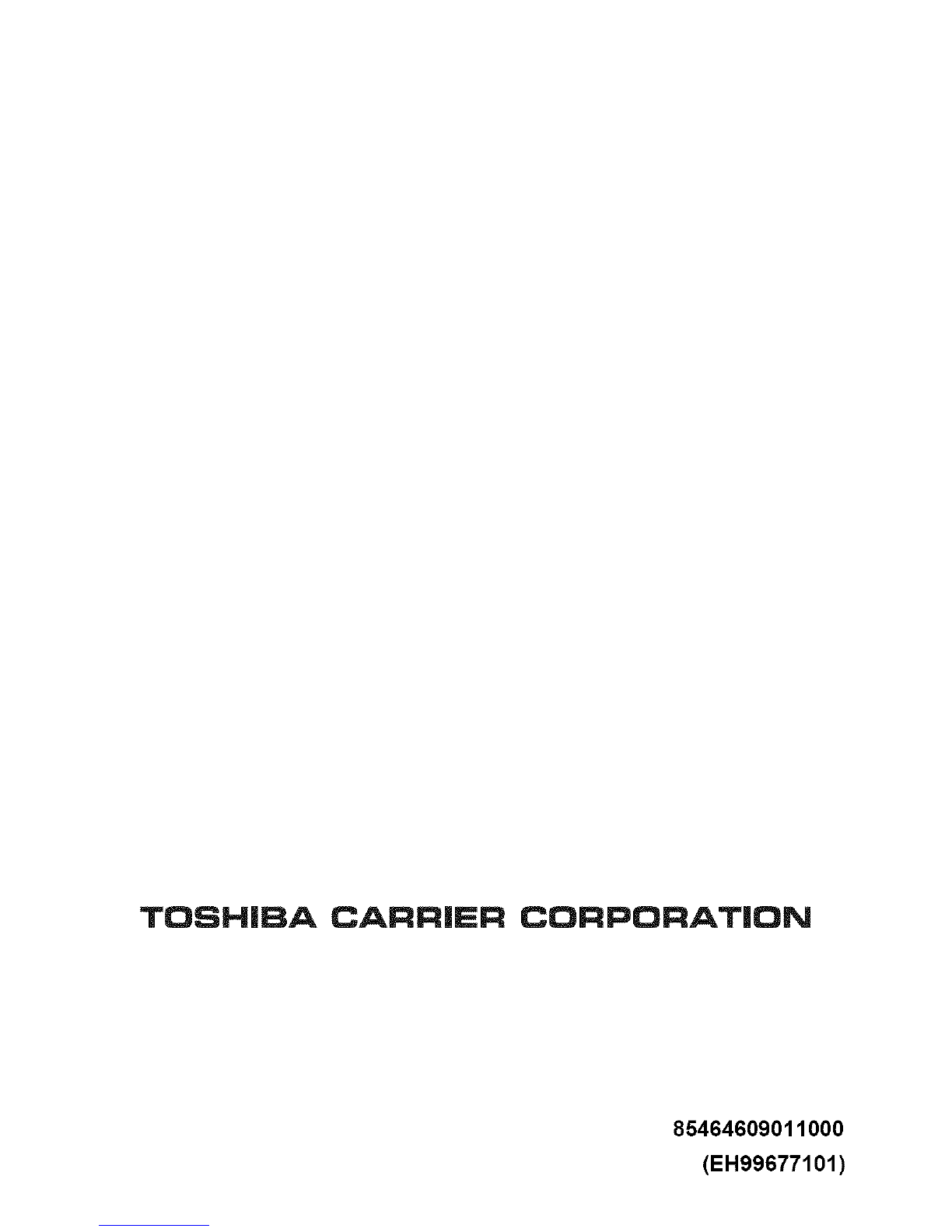

TOSHIBA CARR|ER CORPORAT|ON

85464609011000

(EH99677101)
