TMG TMG-MSC2020F Manuel utilisateur

ڼWWW.TMGINDUSTRIAL.COM P0/14 Toll Free:1-877-761-2819

ڼWWW.TMGINDUSTRIAL.COM P1/14 Toll Free:1-877-761-2819

Main specifications :

xAssembly size : W6 x L6 x H3.8 (m) / 19.7 x 19.7 x 12.5 (ft)

xWidth : 6m / 19.7 ft

xLength : 6m / 19.7 ft

xRidge Peak Height : 3.8 m / 12.5 ft

xShoulder height : 2.9 m / 9.5ft

Prior to assembly

Please read the instructions carefully before installation. It is very important to follow

your local safety regulations and industry standards during installation. Regulations may

include but are not limited to:

•

Safety helmets, protective eyewear, and clothing

•

Safety harnesses for all elevated workers

•

Proper ladder, cage, and safety operation

Check all components and parts before installation. All parts are marked with a part

number, please refer to the parts list to ensure you have all parts.

Choose a day with low or no wind to install, it is hard to assemble with heavy wind. Do

not make any alterations to the structure. Do not hang any weight on the frame during

installation, including parts. We are not responsible for any damages or injuries caused by

inappropriate installation, unauthorized modifications or extreme weather.

This building is not intended for human occupancy.

Check the parts list below to make sure all parts are received prior to assembly.

ڼWWW.TMGINDUSTRIAL.COM P2/14 Toll Free:1-877-761-2819

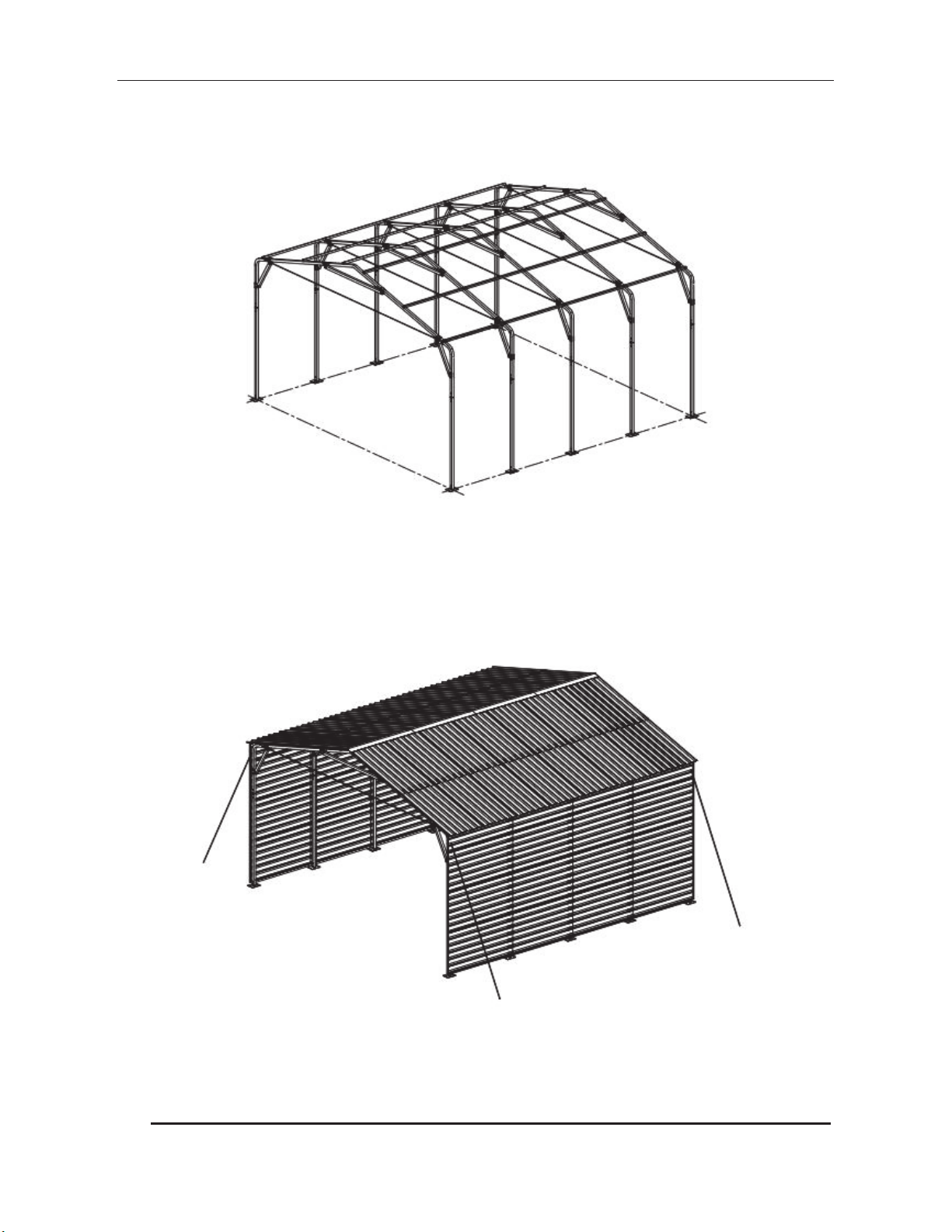

Frame structure diagram

ڼWWW.TMGINDUSTRIAL.COM P3/14 Toll Free:1-877-761-2819

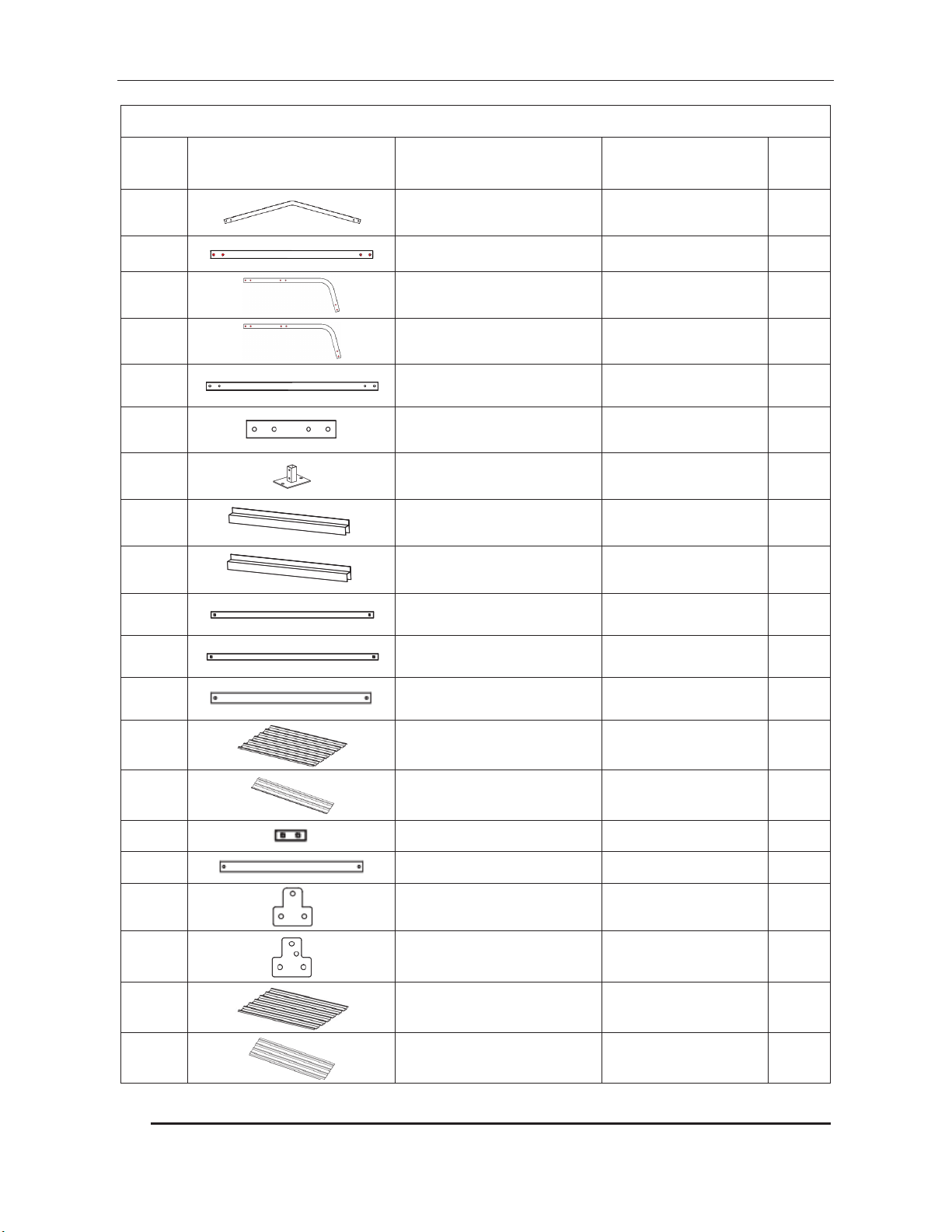

TMG-MSC2020F Part List

Parts

Code

Graphical Description Length

Qty

Peak arch tube

L1668mm

Middle rafter tube

L1880mm

Shoulder tube

L1188mm

Shoulder tube

L1188mm

Sidewall tube L1924mm

Short casing L198mm

Base plate

W150xL200mm

Side edge crossbar

(front and rear truss)

L1570mm

Side edge crossbar

(middle truss)

L1500mm

Top cross bar A

L1500mm

Top cross bar B

L1550mm

Ceiling cross bar

L1763mm

Metal sheet

W870xL1680mm

Metal sheet

365

xL1680mm

Short casing

L100mm

Reinforcing tube

L740mm

Reinforced tube

mounting plate

L100mm

Reinforced tube

mounting plate

L100mm

Metal sheet

W870xL1620mm

Metal sheet

580

xL1620mm

ڼWWW.TMGINDUSTRIAL.COM P4/14 Toll Free:1-877-761-2819

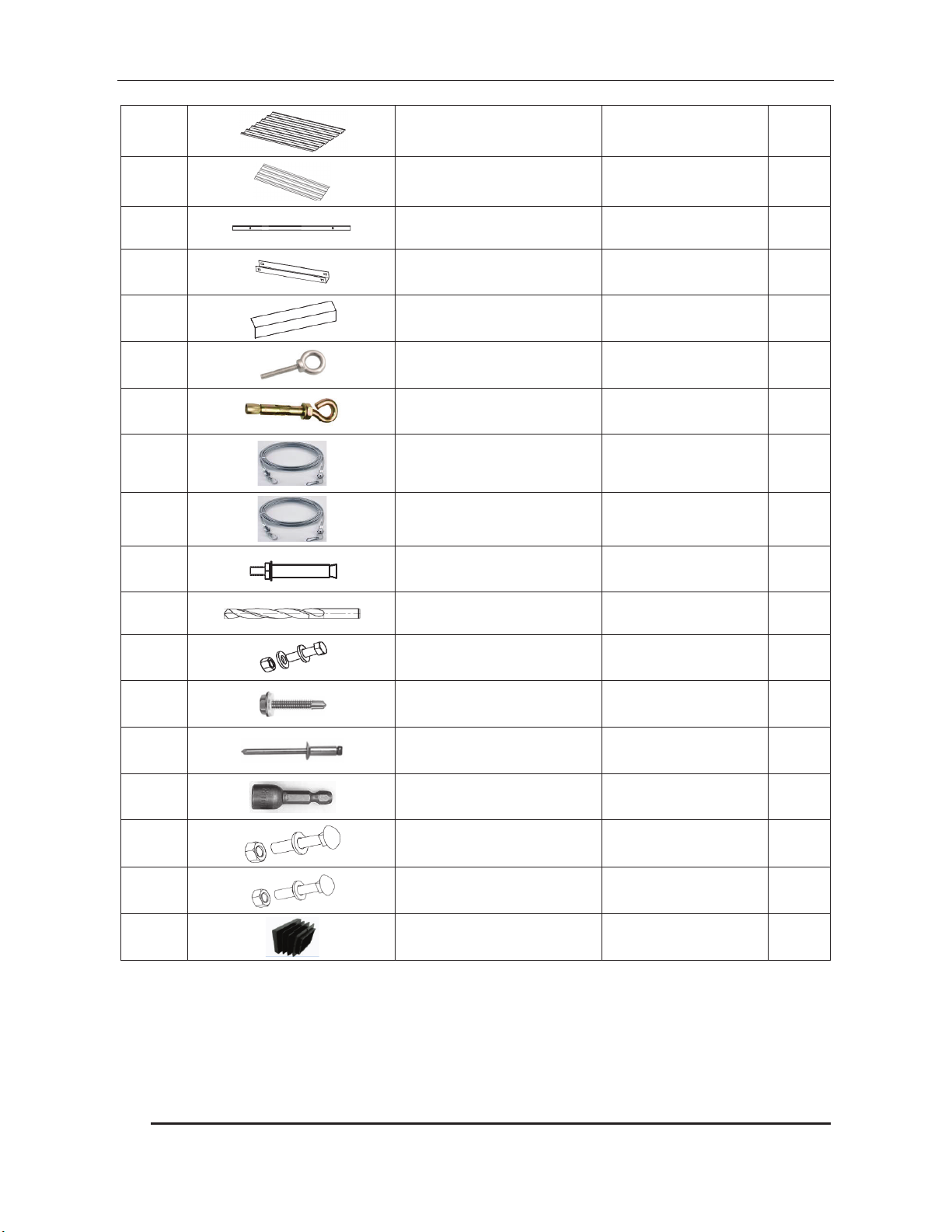

Metal sheet

W870xL1600mm

Metal sheet

580

xL1600mm

Edge protector

L1430mm

Edge buckle L200mm

Edge protector(top)

L1600mm

Eyebolt M10x90mm

Anchor hook φ16

x120mm

Steel cable 3.9m

14A

Steel cable 5m

Expansion bolt

16 x 150mm

Drill φ3.5mm

Hex bolt M10x70mm

190

Self tapping screw

#12x30mm

356

Blind rivet φ3x10mm

Sleeve φ8mm

Self locking bolt

and nuts

M10x10

0mm

21A

Self locking bolt

and nuts

M10x50mm

Square plug 35x35mm

ڼWWW.TMGINDUSTRIAL.COM P5/14 Toll Free:1-877-761-2819

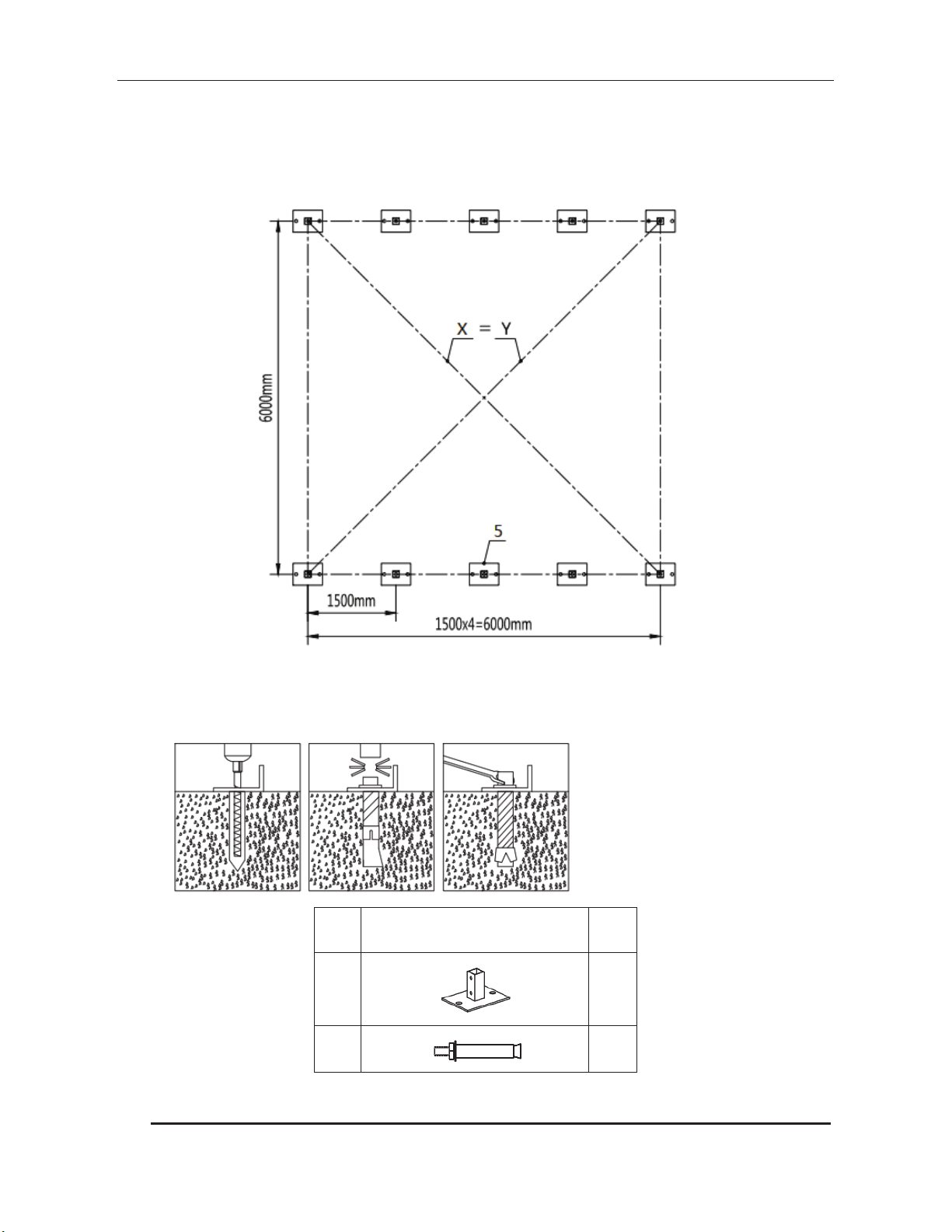

Step 1 : Baseplate positioning and installation.

xThe diagonal X and Y must be equal.

xInstallation diagram of expansion bolt.

No.

Part

Qty

ڼWWW.TMGINDUSTRIAL.COM P6/14 Toll Free:1-877-761-2819

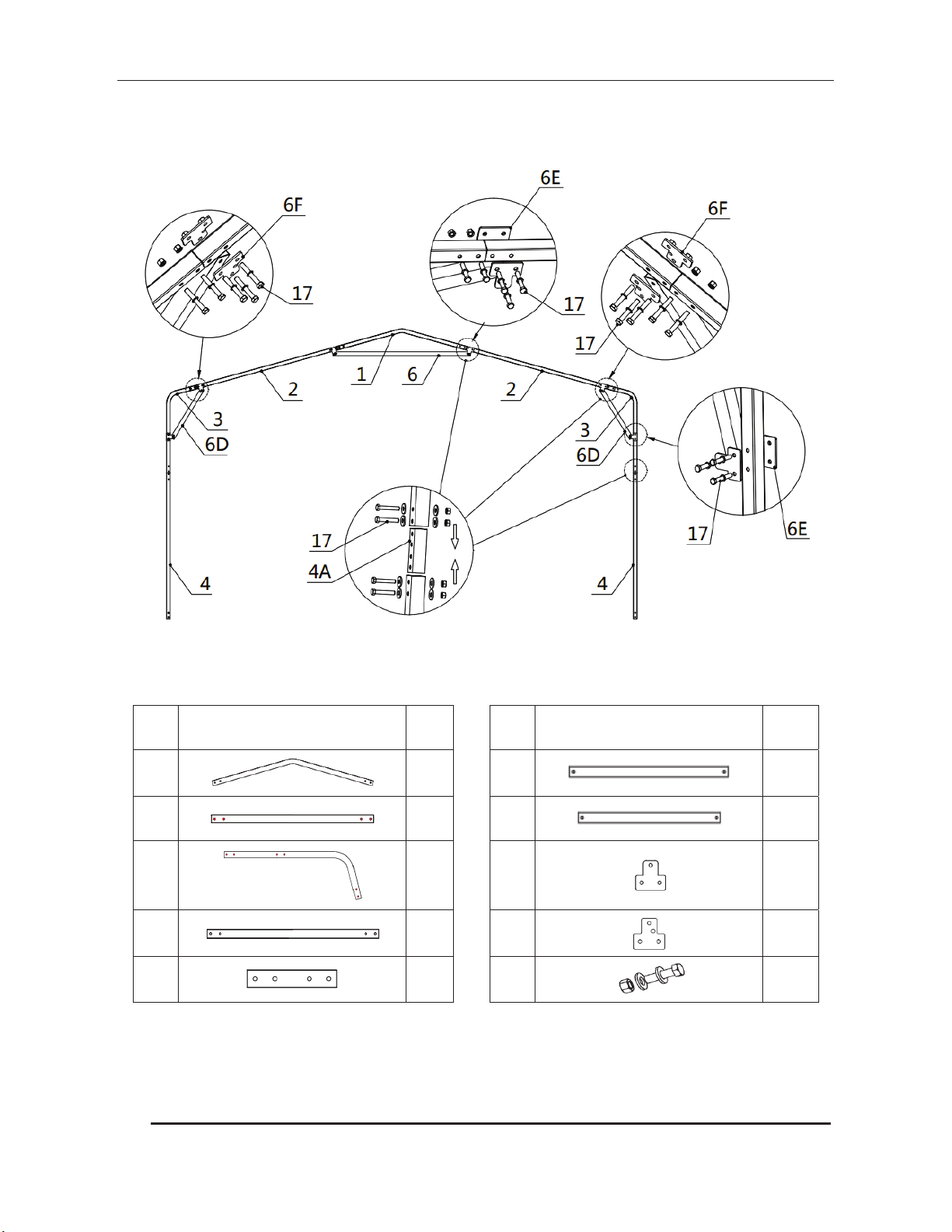

Step 2 : Install all trusses.

xInstall front and rear trusses.

No.

Part

Qty

No.

Part

Qty

1x2

2x2

8x2

2x2

4x2

6x2

34x2

ڼWWW.TMGINDUSTRIAL.COM P7/14 Toll Free:1-877-761-2819

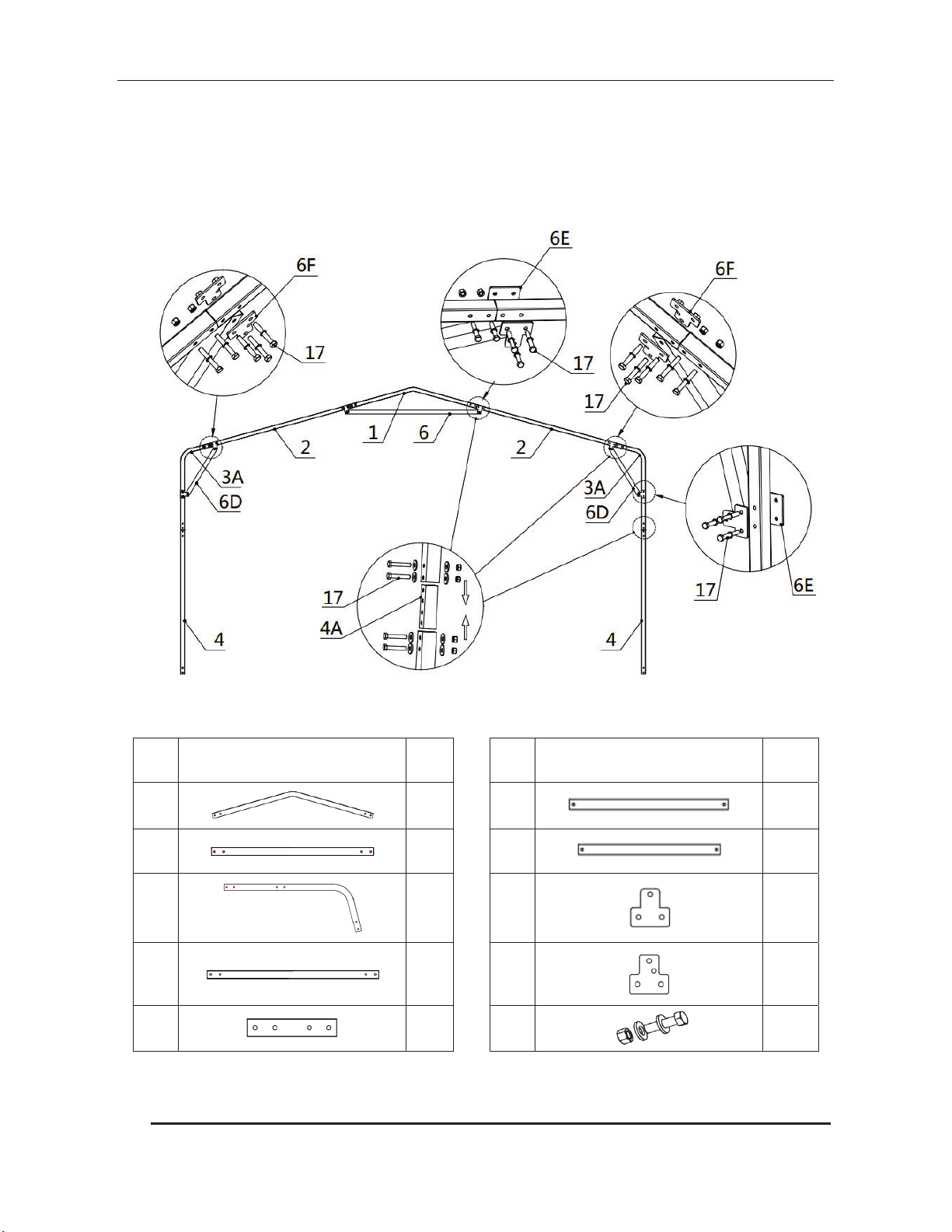

xInstall other trusses. (3 trusses)

No.

Part

Qty

No.

Part

Qty

1x3

2x3

8x3

2x3

4x3

6x3

34x3

ڼWWW.TMGINDUSTRIAL.COM P8/14 Toll Free:1-877-761-2819

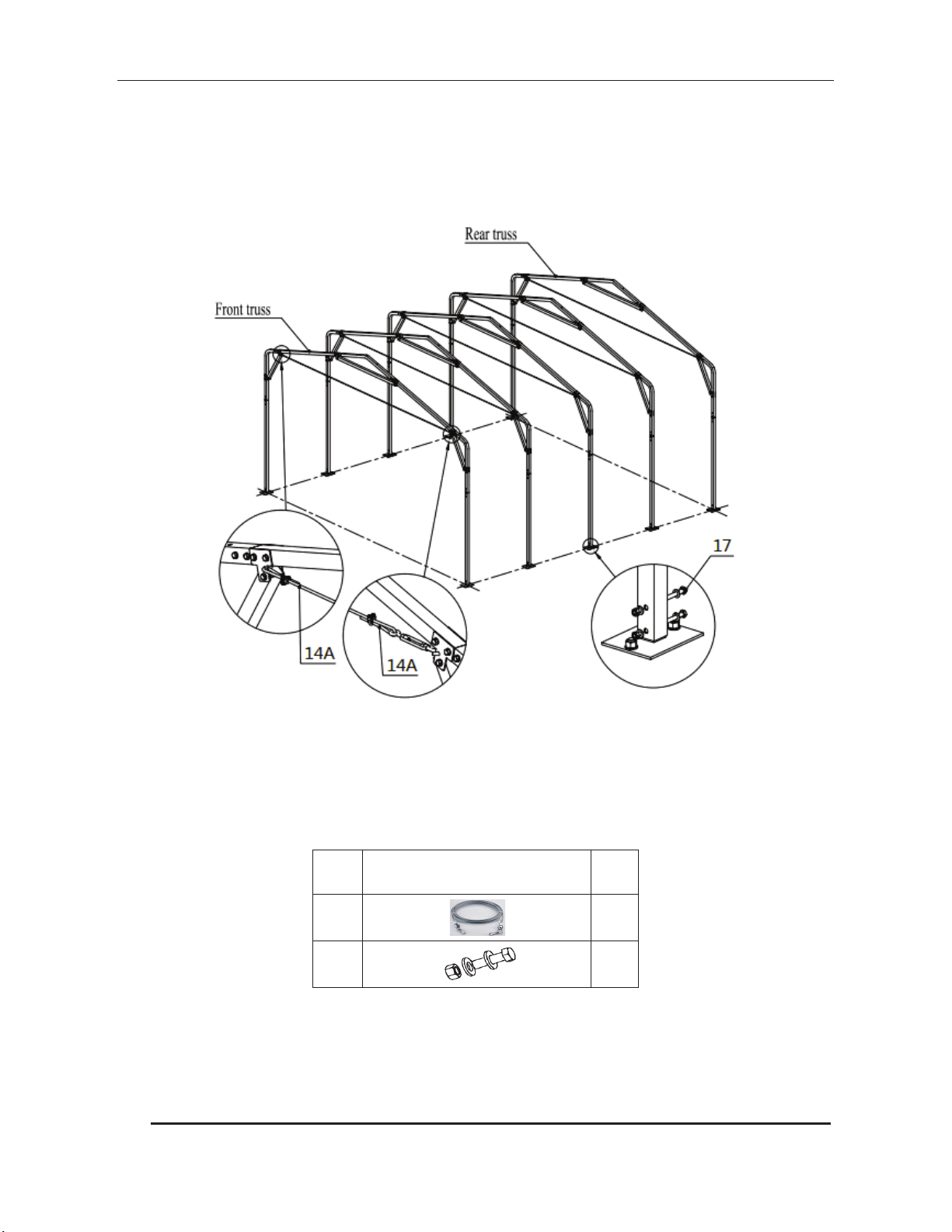

Step 3 : Put up the all trusses, install the wire rope.

No.

Part

Qty

14A

ڼWWW.TMGINDUSTRIAL.COM P9/14 Toll Free:1-877-761-2819

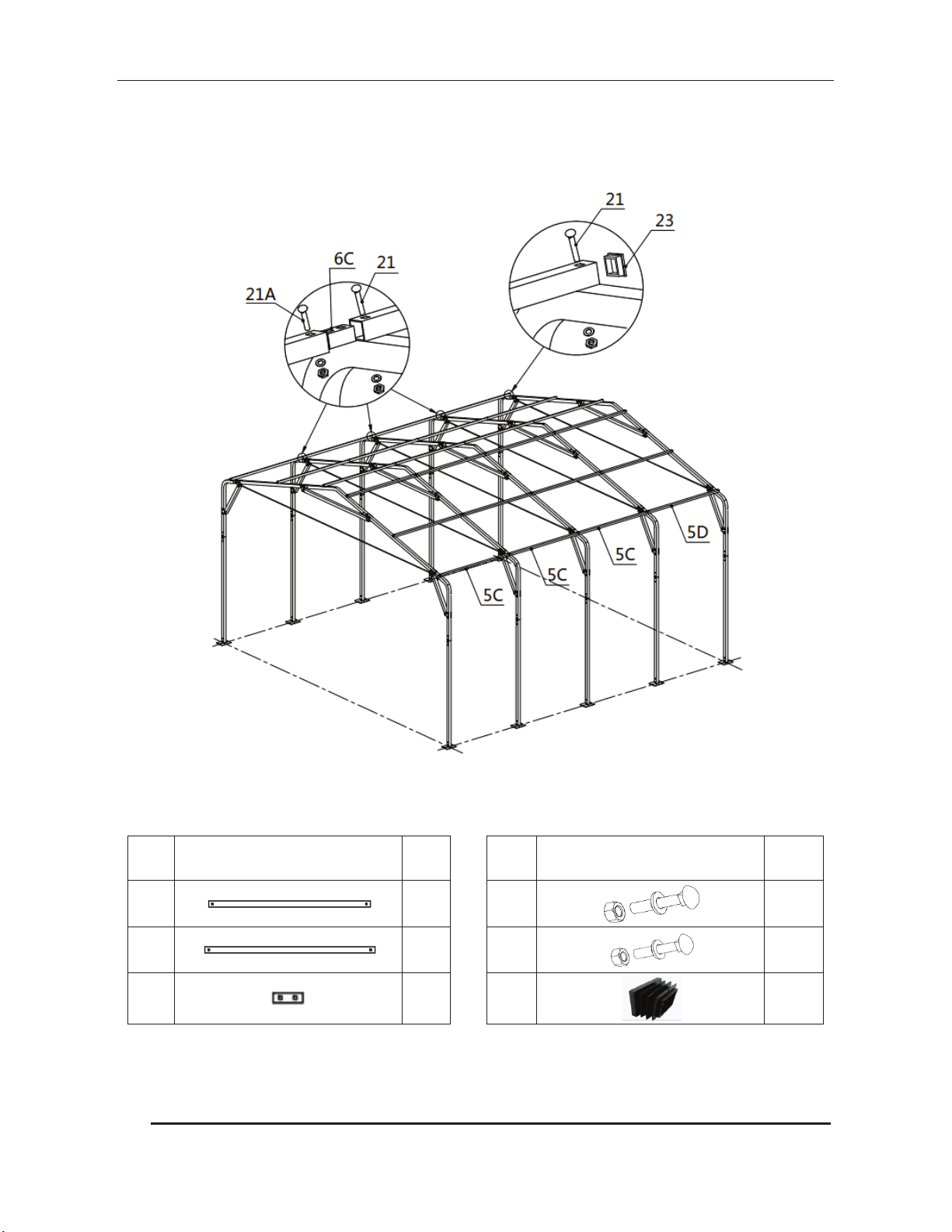

Step 4 : Install top cross bar.

No.

Part

Qty

No.

Part

Qty

21A
