TIL TST-4100 92-SC Manuel utilisateur

VHF/AM SINGLE CHANNEL

TRANSMITTERS Model TiL-92-SC

25 WATT TX, P/N 931037-1 TST-4100

15 WATT TX, P/N 931038-1 TST-4200

LOW POWER TX, P/N 931039-1 TST-4300

Installation and

Operating Instructions

TiL Document No. 93RE126

Rev. F

AUGUST 2012

Technisonic Industries Limited

240 Traders Boulevard, Mississauga, Ontario L4Z 1W7

Tel: (905) 890-2113 Fax: (905) 890-5338

www.til.ca

REVISION HISTORY

[ 93RE126 ]

REV SECTION

- PAGE - DESCRIPTION DATE

Edited

n/c Original Document

A-C

D Global New Document Template (new file format)

Title page changed, Headers/Footers added

Added Revision page, Added Warranty page

2-5 Added note to §2.5 Channel Freq. Selection referring

to units built after Jan 2012 with a USB port and

added Appendix A (TDP-90 for USB AM units) with

Installation and Operating Instructions.

2-12,13 updated Fig 2.3 & 2.4 FEB 2012 FM

E 2-10 Table 2.4 Note: SW2 must be in Land Line position

2-12 Fig 2.3 updated as per Doc #106516 Rev B APR 2012 FM

F Title Pg Simplify System description

iii Updated FCC information including antenna and

FCC labeling instructions.

Simplify description under “Warning”

Global “7 Watt” changed to “Low Power”

1-5 Revise Transmitter Characteristics for FCC and ICAN

information

2-5 Updated para 2.3

2-10, 2-12

Revised as per Test Procedure 106516 Rev C AUG 2012 FM

iiii

iii

WARNING

Do not make physical contact with antenna when transmitter is on.

CAUTION ! STATIC SENSITIVE !

This unit contains static sensitive devices. Wear a grounded wrist strap and/or conductive gloves

when handling printed circuit boards.

FCC COMPLIANCE INFORMATION

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference and (2) this device must accept any interference

received, including interference that may cause undesired operation.

WARNING: For compliance with FCC RF Exposure Requirements the transmitter antenna

installation shall comply with the following two conditions:

1.The transmitter antenna gain shall not exceed 3 dBi.

2. The transmitter antenna is required to be located outside of a vehicle and kept at a separation distance of 90 cm

or more between the transmitter antenna of this device and person(s) during operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference, in which case the user will be

required to correct the interference at his/her own expense.

FCC LABELING INFORMATION: When this device is permanently mounted in an enclosure where the

FCC ID label can not be seen, another label must be placed on the outside of the enclosure stating

‘contains FCC ID: IMA90-6R’.

WARRANTY INFORMATION

The Model 92-SC series, Rack Mounted Single Channel Transmitters, are under warranty for one year

from date of purchase. Failed units caused by defective parts, or workmanship should be returned to:

Technisonic Industries Limited

240 Traders Boulevard

Mississauga, Ontario L4Z 1W7

Tel: (905) 890-2113

Fax: (905) 890-5338

TECHNISONIC INDUSTRIES LIMITED

www.til.ca

TST-4x00 92-SC Installation & Operating Instructions TiL 93RE126 Rev F

TABLE OF CONTENTS

SECTION TITLE PAGE

SECTION 1 GENERAL DESCRIPTION

1.1 INTRODUCTION ............................................................................................................... 1-1

1.2 DESCRIPTION .................................................................................................................. 1-1

1.2.1 Transmitter Module ........................................................................................................... 1-2

1.2.2 Power Supply Modules - Models SPG-007, SPG-015, SPG-025 ..................................... 1-2

1.2.3 RF Amplifier Modules - Models PA-15, PA-25 .................................................................. 1-2

1.2.4 Mother Board ..................................................................................................................... 1-2

1.2.5 Remote Control Boards ..................................................................................................... 1-2

1.2.6 RF Isolator (Option 2) ........................................................................................................ 1-3

1.3 MODES OF OPERATION ................................................................................................. 1-3

1.3.1 Local/Remote Operation ................................................................................................... 1-3

1.3.1.1 Conference Audio ............................................................................................................. 1-3

1.3.2 AC and DC Operation ....................................................................................................... 1-4

1.4 TECHNICAL SUMMARY .................................................................................................. 1-4

SECTION 2 PREPARATION FOR USE AND STORAGE

2.1 INTRODUCTION ............................................................................................................... 2-1

2.2 DISASSEMBLY/ASSEMBLY ............................................................................................ 2-1

2.2.1 Remove/Replace Cover Assembly ................................................................................... 2-1

2.2.2 Remove/Replace Transmitter Module .............................................................................. 2-1

2.2.3 Remove/Replace Memory Set Board Module A5A1 ......................................................... 2-3

2.2.4 Remove/Replace Control Board ....................................................................................... 2-3

2.3 CHANNEL FREQUENCY SELECTION ............................................................................ 2-5

2.3.1 Introduction ........................................................................................................................ 2-5

2.3.2 Frequency Range .............................................................................................................. 2-5

2.3.3 Pre-Programming Channel Frequency ............................................................................. 2-5

2.3.4 Offset Frequency Set ........................................................................................................ 2-5

2.4 REMOTE OPERATION SET UP ....................................................................................... 2-9

2.4.1 Remote Control Board P/N 923051-1 ............................................................................... 2-10

2.4.2 Remote Control Board P/N 940180-1 ............................................................................... 2-11

2.5 TRANSMITTER ADJUSTMENTS AND SETTINGS ......................................................... 2-14

2.6 OPERATIONAL CHECK ................................................................................................... 2-14

2.7 STORAGE ......................................................................................................................... 2-14

SECTION 3 OPERATING INSTRUCTIONS

3.1 INTRODUCTION ............................................................................................................... 3-1

3.2 INSTALLATION ................................................................................................................. 3-1

3.3 OPERATOR'S SWITCHES, CONTROLS AND INDICATORS ......................................... 3-1

3.4 OPERATING INSTRUCTIONS ......................................................................................... 3-4

3.4.1 Transmitter Operation (Local Mode) ................................................................................. 3-4

3.4.2 Switching OFF ................................................................................................................... 3-5

3.4.3 External DC Operation ...................................................................................................... 3-5

WARRANTY ..........................................................................................................................................

Appendix A.. TDP-90 Programming Software User’s Guide (for USB) ................................................ A-1

TECHNISONIC INDUSTRIES LIMITED

www.til.ca

TST-4x00 92-SC Installation & Operating Instructions TiL 93RE126 Rev F

LIST OF FIGURES

FIGURE TITLE PAGE

1.1 VHF/AM Single Channel Transmitter ....................................................................................... 1-1

2.1 Single Channel Transmitter - Internal View .............................................................................. 2-2

2.2 Single Channel Memory Set Board - Module A5A1 ................................................................. 2-4

2.3 Remote Control Board P/N 923051-1 ...................................................................................... 2-12

2.4 Remote Control Board P/N 943180-1 ...................................................................................... 2-13

2.5 Transmitter Adjustments and Settings ..................................................................................... 2-15

3.1 Single Channel Transceiver Controls and Indicators ............................................................... 3-2

LIST OF TABLES

TABLE TITLE PAGE

1.1 92-SC Leading Particulars ....................................................................................................... 1-5

2.1 Frequency Selection MHz ........................................................................................................ 2-6

2.2 Frequency Selection kHz ........................................................................................................ 2-7

2.3 Remote Control Connector Functions ...................................................................................... 2-9

2.4 Remote Control Board P/N 923051-1 Settings ........................................................................ 2-10

2.5 Remote Control Board P/N 943180-1Settings ......................................................................... 2-11

3.1 Operator's Switches, Controls and Indicators .......................................................................... 3-3

TECHNISONIC INDUSTRIES LIMITED

www.til.ca

TST-4x00 92-SC Installation & Operating Instructions TiL 93RE126 Rev F

1-1

SECTION 1 - GENERAL DESCRIPTION

1.1 INTRODUCTION

This publication provides general information on the VHF/AM Single Channel Transmitters, Model

TiL-92-SC, Part Nos. 931037-1, 931038-1, and 931039-1 manufactured by Technisonic

Industries Limited. These units are also referred to by Item No.'s TST-4100, TST-4200 and TST-

4300 respectively.

The Model TiL-92-SC Transmitters are single channel, fixed frequency transmitters operating

over the frequency range of 117.975 MHz to 138.000 MHz. These units are intended for base

station operation in an air traffic environment. These systems can operate from AC power or

external DC power in local and remote operating modes.

1.2 DESCRIPTION

The three rack mounted transmitter configurations are based on the Model 90-6R pre-

programmable transceiver module, modified for transmit only operation. All systems can be

optionally configured for 2 Wire mode with Current, or Tone remote control operation. Each

configuration consists of a Power Supply Module, Mother Board, and Control Board. The 15 Watt

and 25 Watt configurations also consist of an RF Linear Amplifier Module.

The TST series transmitters now come standard with an RF Isolator which provides unidirectional

coupling to the antenna in multiple transmitter configurations.

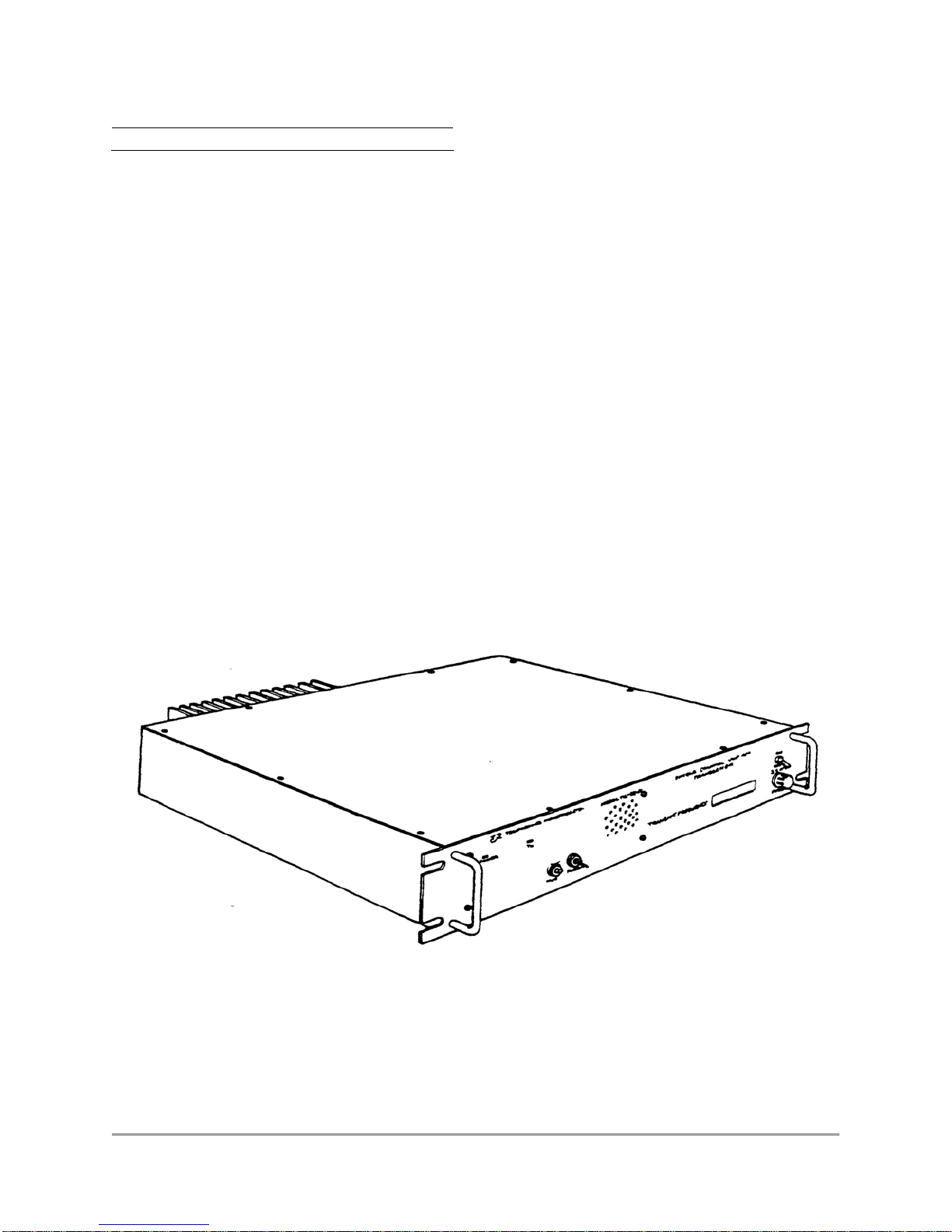

Figure 1.1 VHF/AM Single Channel Transmitter

TECHNISONIC INDUSTRIES LIMITED

www.til.ca

TST-4x00 92-SC Installation & Operating Instructions TiL 93RE126 Rev F

1-2

1.2.1 Transmitter Module

The Single Channel Transmitter is based on Transceiver Model 90-6R, modified for transmit only

operation. The transmitter module is a low power VHF/AM transmitter which can transmit on a

single pre-programmable synthesized frequency, with 25 kHz channel spacing in the frequency

range 117.975 MHz to 138.000 MHz. The single channel memory set board, module A5A1 is

mounted external to the transmitter module to facilitate ease of frequency programming.

1.2.2 Power Supply Modules - Models SPG-007, SPG-015, SPG-025

The Power Supply Modules provide the DC supply voltage to the transmitter and linear amplifier,

and houses a battery charger which can provide charging and trickle charging to external

rechargeable batteries. Model SPG-007 is for use in the Low Power configurations, Model SPG-

015 is for use in the 15 Watt configurations, Model SPG-025 is for use in the 25 Watt

configurations.

1.2.3 RF Amplifier Modules - Models PA-15, PA-25

The RF Amplifier modules provide 15 Watt (Model PA-15) or 25 Watt (Model PA-25) power

output. The RF Amplifiers are fed by the Low Power RF output from the transmitter module.

1.2.4 Mother Board

The Mother Board provides all interconnection between the two external remote control

connectors, RF Amplifier Module, Power Supply, Remote Control Board, and Transmitter. The

Remote Control Board, RF Isolator and all internal fuses are mounted on the Mother Board.

1.2.5 Remote Control Boards

1. Line Interface Board P/N 923051-1

Provides remote control transceiver operation on 2 wire or 4 wire 600 ohm lines. This

board can be configured to key the transmitter using a 2175 Hz* continuous tone (see

below), plus/minus DC Voltages, ground keying and internal or external DC (15 mA)

current loop keying. Transmit audio is user selectable for two wires or four wires.

*Crystals for tone frequencies other than 2175 Hz may be obtained by special order (i.e.

2380 Hz).

2. Line Interface Board P/N 943180-1

Provides remote control transmitter operation on 2 wire dedicated 600 ohm lines utilizing

the EIA multi-tone keying format found in the Land Mobile Industry. A high level 2175

tone followed by a 1950 Hz guard tone and then a low level 2175 Hz continuous tone is

utilized to key the transceiver. The 943180-1 board can also be jumper strapped for

standard aeronautical 2175 Hz continuous tone operation. DC (15mA) current loop and

ground keying is also supported. However this board does not support 4 wire operation.

NOTE: P/N 923051-1 is the default board supplied in all units. The EIA multi-tone board P/N

943180-1 must be special ordered. To determine which remote card your 92-SC has installed the

Configuration label on the side of the rack mount chassis should be consulted.

Ce manuel convient aux modèles suivants

Table des matières

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur
