TierTime UP mini Manuel utilisateur

version：4.6.23

UP mini

user manual

Table of Content

Precautions .......................................................................................................................... 01

Printer Body illustration .................................................................................................. 03

Accessories .......................................................................................................................... 05

Installing the Print Head ................................................................................................ 06

Install the Perf Board ....................................................................................................... 07

Install UP Software ........................................................................................................... 08

Initialization of Printer ..................................................................................................... 09

Platform Calibrate

1.Setting Nozzle Height ...................................................................................... 11

2.Setting Compensation Values......................................................................13

Prepare for Printing ..........................................................................................................14

Loading a Model ................................................................................................................. 15

Software Interface .............................................................................................................17

Moving Model ...................................................................................................................... 18

Rotate Model ....................................................................................................................... 19

Scale Model .......................................................................................................................... 19

Duplicate Model ..................................................................................................................

Printing Parameters .........................................................................................................

Annotation for Printing Parameters ..........................................................................

Repair Model ........................................................................................................................22

Calibration for the Correct Dimension .....................................................................23

Printing Techniques ................................................................................................. 24

Troubleshooting .................................................................................................................. 25

1. UP mini 3D printer requires power adapter provided by original manufacturer. Otherwise it

could casue damage to machine or even fire hardzard. Please also keep the power adapter

away from water and high temperature.

2. During printing, the nozzle of the printer will reach 260oC and the print platform could reach

60oC. Please do not touch these parts with bare hand while they are hot, not even with the heat

resistant gloves included with machine as the temperature could damage the glove and your

hand.

4. During Printing, the nozzle and print platform will move at high speed, do not touch these parts

while they are moving.

5. Please wear goggles when removing the supporting material from model and detaching model

from perf board.

6. When printing ABS and PLA, slight smell will be produced, please run the printer in a well

ventilated environment. We also suggest you to put the printer in an enviroment with stable

temperature, as unwanted cooling could has adverse eect on print quality.

7. When UP softwre is sending data to printer, where the status bar on the left bottom corner

is showing "sending layers", do not unplug USB cable, as this will interrup data transfer and

results in printing failure. USB cable can be unpluged after data printing started.

8. UP mini's working temperature is between15oC and 30oC relative humidity 20%-50%. It is

recommended to discharge static charge from user's body before touching the machine to

prevent interruption of printing and damaging the printer.

Warning label on printer:

High Temperature, do not touch!

Warning label on printer:

Moving parts, do not touch!

Precautions

UP mini Specication

Technology MEM (Melted Extrusion Manufacturing)

Build Volume 120x120x120mm

Print Head Single, Modular for easy replacement.

Z-resoution 0.2/0.25/0.3/0.35mm

Supporting Structure Automactically generated, easy to remove,

adjustable

Platform Leveling Manual

Print Surface Heated bed with perf board

Unterthered Printing Yes

Bundled Software UP Software

Compatible File Formats STL, UP3, UPP

Connectivity USB

Operating System WinXP/Vista/7/8, Mac OS

Poweradapter 110-240VAC, 50-60Hz, 220W

Printer Body Metal Chassis, enlosed.

Printer Weight 6KG / 13 LB

Printer Demiension 240(W) x 355 (H) x 240 (D)mm

Weight with Packaging 11.2KG / 25LB

Printing

Software

Power Supply

Mechanical

USB Port

Power Connector

Top Lid

Front Door

Initialization Button

Power Switch

Spool Holder

USB Port

Power Connector

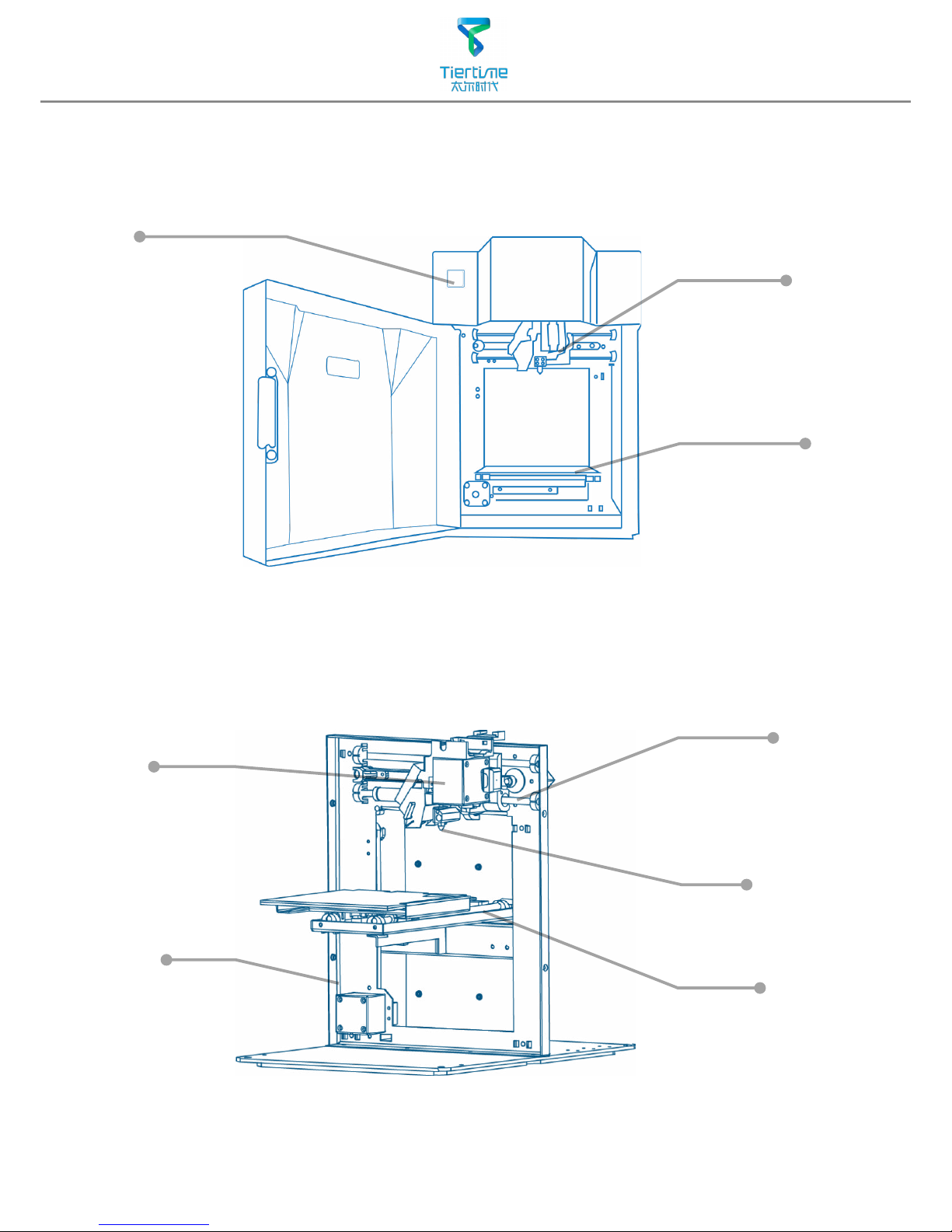

Printer Body illustration

Print Head

Print Platform

Initialization Button

Print Head

Nozzle

X-Axis

Y-Axis

Z-Aixs

Accessories

Print HeadSpool Holder ABS Filament

Plier

*If anything is missing please contact your local distributor or [email protected]

Perf BoardUSB Cable Power Adapter

Filament guiding tube

Hex Key

Gloves

Nozzle Wrench

Blots and Nuts

Shovel

Installing the Print Head

Correct installation.

Incorrect installation, note the magnet

under the print head is not in contact

with the motor.

There are 3

magnets for holding

the print head in

place.

During installation

make sure the

magnets are aligned

to the metal plates

on the print head's

stepper motor.

After tting the print

head, plug in the

cable to connector

residing on the print

head.

Slide the perf

board into the

slots on the

2 sides of the

platform.

Finsihed.

Install the Perf Board

Install the Spool Holder

Hook the spool holder on the back of the printer.

Install Filament Spool

As shown in the diagram, put the

lament spool on the spool holder

and put the lament through the

filament guide tube, then insert

the tube into the printer through

the hole under the lid.

1 2

Install UP software

1. Go to www.pp3dp.com to download

the latest version of UP Software.

2.Double click UP! Setup.exe

to install the software(default

installation directory C:\Program

files\UP a pop up window will

appear, select"install" and

following the instruction to

finish. The printer's driver is now

installed into the system.

After installation,in the UP folder:

Driver folder contains the printer drivers.

Example the example folder contains STL les for the printed

parts of UP printers and example les.

Testing of printer driver installation

First make sure computer and printer

is connected to computer via USB

cable and the printer is switched on.

The initialization button should be light

up in red color.
