THOMSON VS360 Manuel utilisateur
VS 360
VS 460
User manual
Manuel d’utilisation
Bedienungsanleitung
Manuale di utilizzazione
Manual de utilización
Gebruiksaanwijzing
Návod k použití
Instrukcja obsługi
Használati kézikönyv
cover VS360/460 - 9 langues 11/07/06 19:55 Page 1 (PANTONE 405 CV film)
VS 360/460
VIDEO IN
REMOTE
OUT
2,4Ghz
2
1
4
6
5
IR
B
3
4
1 2
A
Transmitter Receiver
Receiver
6
A
5
7
B
A
VS 360
VS 460
cover VS360/460 - 9 langues 11/07/06 19:55 Page 2 (Noir/Process Black film)
1
Wireless video transmitter
Precautions
Safety
• This equipment contains heat sensitive components. Maximum ambient temperature
must not exceed 35° Celsius.
•Humidity in rooms where this equipment is situated must not exceed a hygrometric level
of 85%. If you have to use your equipment outside, avoid exposing it to rain water or
to splashes.The transition from a cold environment to a hot one may cause condensation.
Allow it to dry by itself before re-starting the equipment.
• In the event of prolonged absence, switch off the equipment by means of the on/off
switch. Even when switched off, certain components remain live. In order to insulate it
completely you must remove the plug from the main electricity supply.
• In the event of an electrical storm, it is advisable to disconnect the equipment from the
electricity supply so as to avoid potentially damaging electrical or electromagnetic surges.To
this end, make sure that the mains plug is easily accessible for disconnection.
•Disconnect the equipment immediately if you detect a smell of burning or smoke. Under
no circumstances must you open the equipment yourself; you run the risk of electrocution.
Maintenance
• Clean the equipment with a soft cloth and a neutral detergent.The use of solvents, abrasive
products or alcohol-based products is likely to damage the equipment.
Regulations
• This equipment must only be installed inside. Its use is restricted to private radio
transmission. Connection to a public or independent network, or to an outside aerial
is prohibited.
Under no circumstances should this appliance be put to industrial use. It is designed solely for
domestic operation.
THOMSON disclaims all responsibility in the event of use that does not comply with the present
instructions.
en
VS 360/460 - 9 langues 11/07/06 19:57 Page 1
2
Principles of operation
LIVING ROOM BEDROOM
Transmitter Receiver
Remote control for
video recorder,
satellite receiver,…or
universal remote
control.
Magnétoscope,
Récepteur satellite, ...
VS 360/460 - 9 langues 11/07/06 19:57 Page 2
3
What is this equipment for?
The Video Sender VS 360/460 permits the relay of an Audio-Video signal from your main
set-up to a second television set located in another room and equipped with a scart connection
(or RCA/Cinch).The main set-up is the place in which you have chosen to install the majority
of your equipment (television set, video recorder, satellite receiver, DVD player,..) you can
operate the units from the room with the second television set by using their remote controls,
or with a universal remote control.
You can play and hear music if you connect the transmitter to a suitable outlet (AUDIO OUT),
and the receiver to an amplifier (AUDIO IN) placed in another room. For the link-up you will
need to obtain 1 cinch/cinch cable (not supplied with equipment).
If you already have a Thomson plasma screen monitor or video projector, the Video Sender will
ease your placing of these items where you most want them to be, thanks to eliminating all
problems related to long cable runs.
M
E
N
U
E
N
T
E
R
C
A
N
C
E
L
SELECT
POWER
STATUS
ON
/
STANDBY
SOURCE
AUTO
ADJUST
PCCARD
ACCESS
DVD player
Plasma screen monitor
Television set
Video recorder
Camcorder
Video disc player
Satellite/Cable receiver and
decoder Video projector
A/V Amplifier
en
VS 360/460 - 9 langues 11/07/06 19:57 Page 3
4
Installation of transmitter
1. Place the transmitter (1) near the source equipment (VCR player, DVD player, etc.) from
which you want to transmit video or audio output, and connect it with the two cords (2 A
and 2 B) making sure you respect the color coding of the 3 cinch plugs (red and white for
audio, yellow for video). Connect the TV set to a suitable outlet from the VCR player or
DVD player (AV1).
Obtain a (non-supplied) SCART-TV set connector and connect the TV set to the 2B adapter
already connected to theVCR player or DVD player as shown on Page 5 (see item marked *
on Page 5).
2. Fit the mains supply lead (3) to the transmitter and plug it into a 220/240V ~ 50 Hz
mains power supply.
3. Carefully extend the antenna of the transmitter (1) and orient it towards the room where
your second TV set (TV2) is located. Circular antennas must be oriented so that the surfaces
with inscriptions are face to face. Turn on (position ON) the transmitter and receiver, using
the ON/OFF switch located on its lower side. Place the channel selectors of the transmitter
and the receiver on the same channel (same letter).
4. Fit the lead (4) following these stages:
- connect the jack plug to the IR EXTEND socket,
- unwind the lead and place one cell near the infrared window of the unit to be operated
(video recorder or other),
- after installing the receiver (see Pages 6 and 7), ask someone to use the remote control of
that equipment item to be controlled from the room where the second (TV2) is located,
- by moving the cell around in front of the unit to be operated you will find the location that
permits its control from the other room.You must fix the cell in that position. Usually, this
will be a more or less large, transparent area located on the front of the unit.
5. Remove the protective self-adhesive film from the infrared cell of cord (4) and affix it to the
infrared-sensitive panel of the equipment to be remote controlled.The cordon has 3 cells in
order to let you play video and audio from 3 equipment items connected to the (TV1) set
(see Diagram 2on Page 10).
VS 360/460 - 9 langues 11/07/06 19:57 Page 4
5
AUDIOIN DC12VVIDEOINIROUT LEFT RIGHT
DC 6V IR EXTEND
AV EXTEND
AUDIO IN
DC 6V VIDEO IN IR EXTENDLR
AUDIOIN
DC6V VIDEOIN IR EXTENDLR
2
1 3
4
TV1
*A
B
VS 360
en
220/240V ~ 50 Hz
UNITED-
KINGDOM -
EIRE
CONTINENTAL
EUROPE
VS 360/460 - 9 langues 11/07/06 19:57 Page 5
6

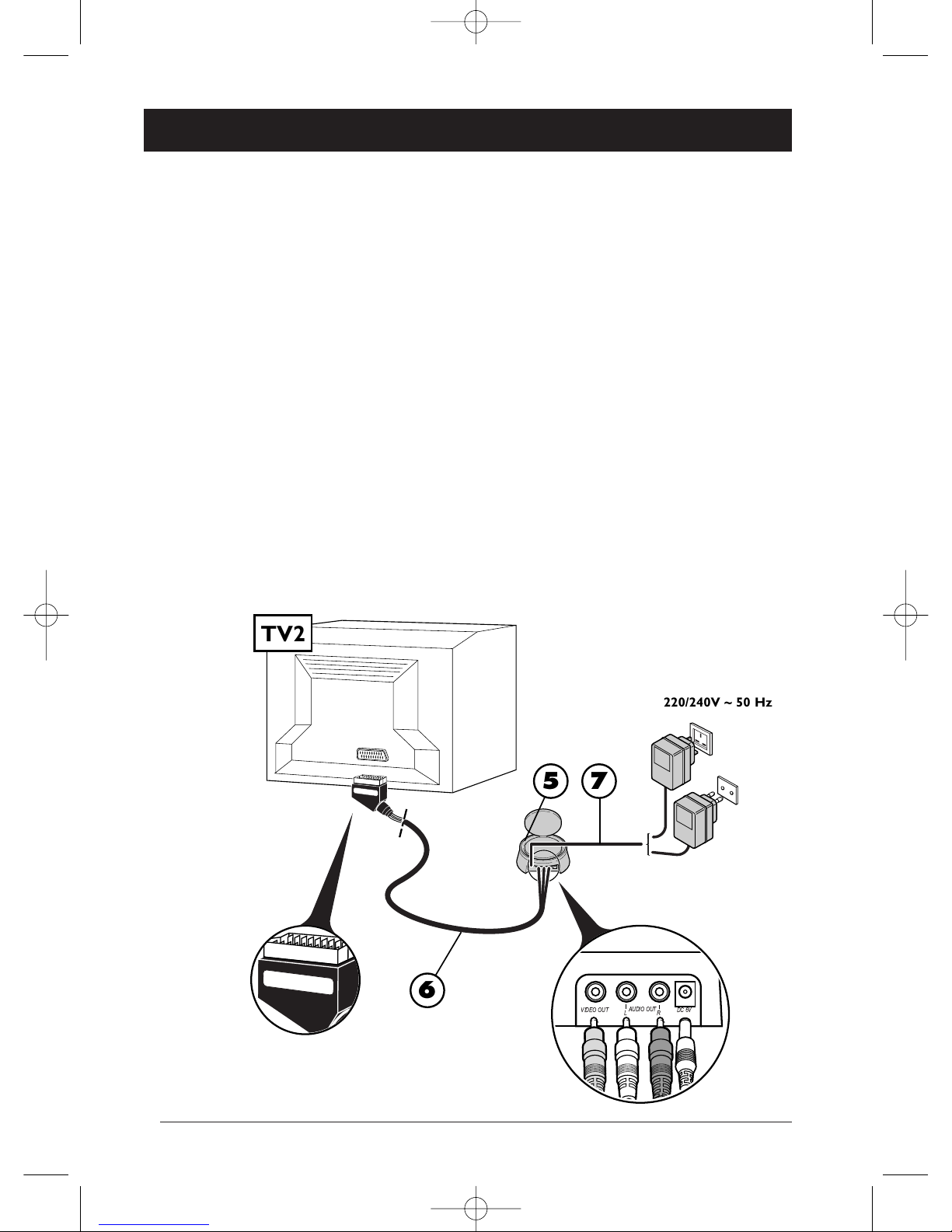

Installation of receiver
1. Place the receiver (5) on, or near, the second television set.
2. Connect the receiver (5) to the second television set using the lead (6) following the same
instructions as for the transmitter.
3. Extend the antenna on the receiver (5) and orient it toward the main TV set (TV1). Circular
antennas must be oriented so that the surfaces with inscriptions are face to face.
4. Fit the mains supply lead (7) to the receiver and plug it into a 220/240 V ~ 50 Hz mains
power supply.
! THE ANTENNA allows you to transmit and receive audio and video signals over a maximum range
of 30 meters in free air environments. Inside a typical lodgment the range will be less because of signal
attenuation by building material absorption.
! THE FLEXIBLE ANTENNA permits the control of the unit whose pictures you wish to see in the
room containing the second television set (TV2).
AUDIOIN DC 6VVIDEOINIROUT LEFT RIGHT
Receiver
Receiver
AUDIO OUT
L R DC 6VVIDEO OUT
6
TV2
57
220/240V ~ 50 Hz
UNITED-
KINGDOM -
EIRE
CONTINENTAL
EUROPE
VS 360/460 - 9 langues 11/07/06 19:57 Page 6
7
Instructions for use
1. Switch on the transmitter (1) and the receiver (5) by switching their ON/OFF buttons to
the ON position.
2. Make sure that the transmitter and the receiver are set to the same channel by
checking the position of the selectors located under the casing.They must be set
to the same channel (same letter).
3. Switch on your equipment (television sets, video recorders ...) in both rooms.
4. Using the remote control of the unit whose pictures you wish to see, and from the room
containing the second television set (TV2), select the channels or video functions (or others)
according to the unit you are controlling.
AL
Special operating details:
•No picture on TV2? If you fail to obtain the desired picture on the second television set TV2,
select the AV socket, to which the receiver (5) is connected, using the television’s remote control.
•Using a decoder (in France: Canal +,TPS, etc.) on your TV2? To have clear images on your
second TV set (TV2), output from the decoder must pass through aVCR player, placed in (AV2)
mode or set to the channel number assigned for the encrypted TV channel.
•Use of a monitor? If your second television set does not have a connection for an outside aerial
(terrestrial reception), or if it is a monitor, you will be able to see the channels in the room
containing the second television set by selecting those of the video recorder with its remote control.
•The picture is scrambled? The running of certain equipment (micro-wave ovens, digital
telephone DECT, un-shielded acoustic loudspeakers, etc ...) may interfere with signal transmission.
Ensure that they are kept away from the transmitter and the receiver or switch them off.
Make sure that you point the
remote control directly at the
receiver’s (5) infrared window
AUDIO IN DC 6VVIDEO INIR OUT LEFT RIGHT
Receiver
en
VS 360/460 - 9 langues 11/07/06 19:57 Page 7
8
Improvement of picture and sound
You will obtain optimal service operation of your Video Sender by correctly orienting
the antennae (A). However, reflected signals or other signal degrading factors can affect good
quality signal transmission. In this case, readjust antennae positions or slightly move the
transmitter or receiver until you get crystal clear reception.
If no picture is obtained,
check that the transmitter and the receiver have not been installed in the reverse order (each
unit corresponds either to the input or to the output of the Audio-Video signal). Check that
they have been properly connected and that they are switched on (ON position). Ensure that
the channel selector is set to the same letter on both units.
If transmission is blurred or scrambled,
choose another channel but make sure that it is identical on both units.
AUDIO IN
DC 6V VIDEO IN IR EXTENDLR
ON OFF
Transmitter / Receiver
(A)
a, b, c, d
Transmitter / Receiver
VS 360/460 - 9 langues 11/07/06 19:57 Page 8
