thomann STARTONE STAR Manuel utilisateur
Star
drum set
assembly instructions
Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: [email protected]
Internet: www.thomann.de
05.04.2016, ID: 266131
Table of contents
1 Safety instructions................................................................................................................. 4
2 Notice............................................................................................................................................ 5
3 Unpacking.................................................................................................................................. 6
4 Setting up the bass drum................................................................................................. 10
5 Mounting the toms.............................................................................................................. 12
6 Assembling the bass drum pedal................................................................................. 14
7 Assembling the hi-hat........................................................................................................ 15
8 Assembling the cymbal stands...................................................................................... 16
9 Assembling the snare drum stand............................................................................... 17
10 Tuning the shells.................................................................................................................. 18
11 Setting up the drum set.................................................................................................... 20
12 Attaching the cymbals ...................................................................................................... 23
13 Protecting the environment........................................................................................... 26
Table of contents
Star
3
1 Safety instructions
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and
are not within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the
like) from the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Safety instructions
drum set
4
2 Notice
This document is a general guide showing typical steps for setting up a drum set.
Depending on the model, there can be variations in the type and number of compo‐
nents.
Notice
Star
5
3 Unpacking
The following guide makes it easy for you to completely assemble your drum set, to
tune it and to set it up properly.
The complete drum set is supplied in one cardboard box. It is supplied dismantled in
its individual parts. We recommend that you first sort the individual parts that belong
together as described below.
The snare drum is supplied assembled and is generally already tuned.
Due to the size of the bass drum, it is always supplied dismantled.
The bass drum includes the following parts:
n1 drum shell
n2 hoops
n2 bass drum heads (1 × resonant and 1 × batter head)
n12 tension rods (wing screw) with one washer each
n4 clamping screws (square-head screws) with one washer each
n16 claw hooks
n2 bass drum spurs.
Assigning
Snare drum
Bass drum
2 hanging toms
Unpacking
drum set
6
The hanging toms include the following parts:
n2 drum shells
n2 heads per shell (total of 4)
n2 hoops per shell (total of 4)
n24 tension rods with one washer each.
The set contains a total of 37 screws – 24 for the hanging toms, 12 for the floor tom
and 1 spare. The screws are all the same length.
The floor tom includes the following parts:
n1 drum shell
n2 hoops
n2 heads
n12 tension rods with one washer each
n3 spurs.
Floor tom
Unpacking
Star
7
The hardware package includes the following parts:
1 bass drum pedal
1 hi-hat stand
1 snare stand
1 cymbal boom stands
1 straight cymbal stand
2 tom holders.
Hardware package
Unpacking
drum set
8

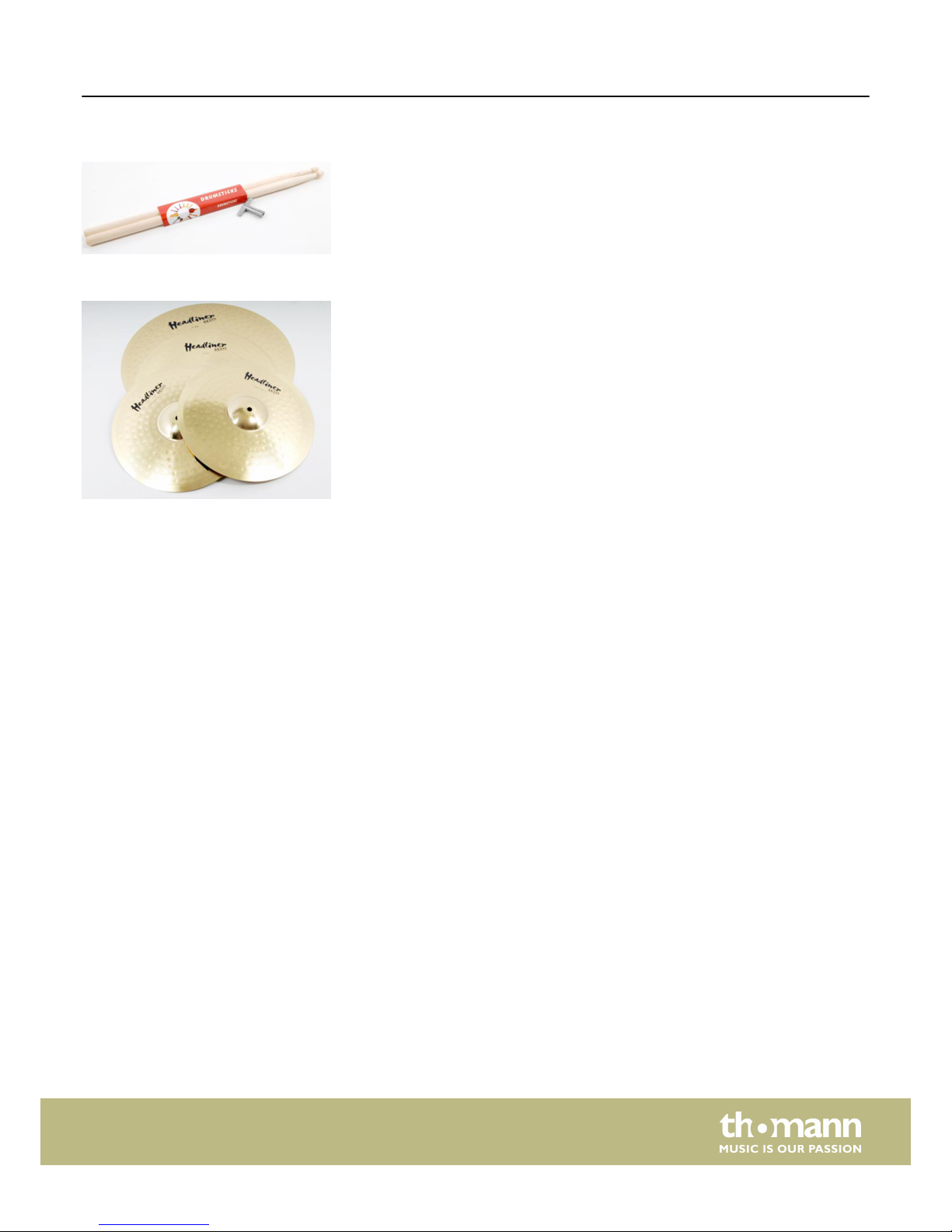

The accessories include the following parts:
n1 tuning key
n1 pair of drumsticks.
Depending on the scope of supply, a set of cymbals is included:
n1 ride cymbal
n1 crash cymbal
n2 hi-hat cymbals
Accessories
Cymbals
Unpacking
Star
9
4 Setting up the bass drum
Let's start with the bass drum.
Position the bass drum shell such that the screws of the tom holder point down‐
wards.
Now lay the black resonator head on the shell and put a hoop over it. Both the hoops
are identical so it doesn't matter which one you put on first. Align the black resonator
head such that the "Millenium" writing is parallel to the tom holder. The head must
be lying evenly on the edge of the shell on all sides.
Proceed as follows: Put the washer on the screw and then the claw hook. We need six
wing screws and two square-head ones. The two square-head screws are on the
bottom, i.e. opposite the tom holder so that there is enough free space on the
ground later on.
Hand-tighten all eight screws. When doing this, tighten the screws in the diagonally
opposite sequence. You only need to tighten the screws slightly, we will be tuning
the drums later on.
The next thing we need are the ten‐
sion rods.
Setting up the bass drum
drum set
10
