thomann Millenium MPS-600 Manuel utilisateur
MPS-600
e-drum set
assembly instructions
Musikhaus Thomann e.K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: [email protected]
Internet: www.thomann.de
04.02.2014, ID: 264937, 328002
Table of contents
1 Safety instructions.......................................................................................................................................................................................................... 4
2 Contents of package....................................................................................................................................................................................................... 5
3 Assembly.............................................................................................................................................................................................................................. 6
4 Protecting the environment.................................................................................................................................................................................... 13
Table of contents
MPS-600
3
1 Safety instructions
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children.
Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke!
Never let children unattended use electrical devices.
Safety instructions
e-drum set
4
2 Contents of package
Before you assemble your kit, make sure the contents of package is complete according to the following list.
Millenium MPS-600 professional mesh set
nMillenium e-drum module MPS-600 with mains adapter
n1 × snare drum pad mesh head PD-1012, stereo
n3 × rubber tom pads (9"), stereo
n1 × rubber bass drum pad, incl. pedal (9")
n1 × ride cymbal pad (14"), stereo
n1 × crash cymbal pad (12"), stereo
n1 × hi-hat pad (12")
nHi-hat controller Millenium MINE
nMillenium hi-hat tripod
nComplete pad wiring
nComplete drum rack
Contents of package
MPS-600
5
3 Assembly
Assembling the rack
Loosen the screws of each terminal with the drum key before inserting the pipes. The positions of the pads, cymbals, etc. are
shown in the table below.
CAUTION!
Danger of cuts on hands and fingers
When plugging the connections, take care for sharp edges on the metal pipes.
Assembly
e-drum set
6
1. Connect the centre pipe (1) to the upper terminal and the centre pipe (2) to the lower terminal of the pipe (L1).
2. Roughly align the height of the terminals on pipe (L2) according to the height of their counter-terminals on pipe (L1). Con‐
nect the centre pipe (1) to the upper terminal and connect the centre pipe (2) to the lower terminal on pipe (L2).
3. Tighten the screws of the four terminals with the drum key evenly hand-tight.
4. Connect the side arm (L1) to the terminal on pipe (L2) and tighten the screws of the terminal with the drum key evenly
hand-tight.
5. Connect the side arm (R) to the terminal on pipe (R2) and tighten the screws of the terminal with the drum key evenly
hand-tight.
Assembly
MPS-600
7
6. Connect the side arm (L1) with the terminal on pipe (L1) and tighten the screws of the terminal with the drum key evenly
hand-tight.
7. Connect the side arm (R) with the terminal on pipe (R1) and tighten the screws of the terminal with the drum key evenly
hand-tight.
8. Connect the short side arm (L2) to the terminal on pipe (L1) and tighten the screws of the terminal with the drum key
evenly hand-tight.
9. Position the rack horizontally and vertically to suit your needs and tighten all terminal screws with the drum key firmly and
evenly.
Assembly
e-drum set
8

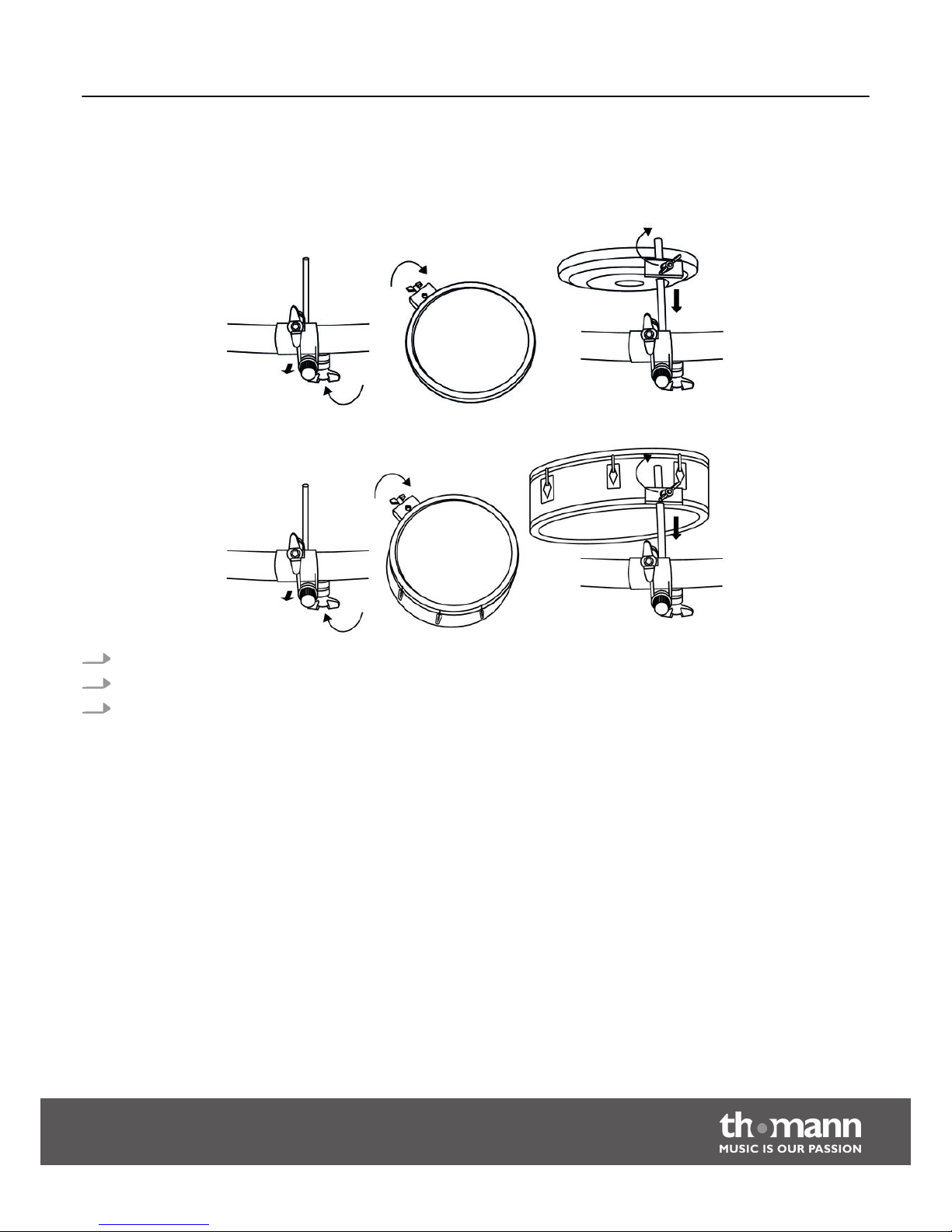

Mounting pads on the rack
Mounting the pads:
Mounting the snare:
1. Attach the supplied L-pieces to the pads / to the snare. First, tighten the wing nuts on the pads / snare hand-tight.
2. Then slide the plastic ends of the L-pieces up to the stop into the designated terminals on the rack.
3. Align the pads and the snare on the rack to meet your needs, then tighten the wing nuts of the pad brackets and the bolts
of the pad terminals on the rack evenly.
Assembly
MPS-600
9
Mounting cymbals on the rack
1. Put the cymbal holders into the designated pipes and terminals on the rack.
2. Unscrew the wing nuts from the cymbal holders and take the felt washers from the holders.
3. Place the felt washers on the cymbals and tighten the cymbals with the associated wing nuts on the holders.
Make sure that the connector block on the underside of the cymbals is not stuck to the cylinder bolt of the counter-holder.
Assembly
e-drum set
10
