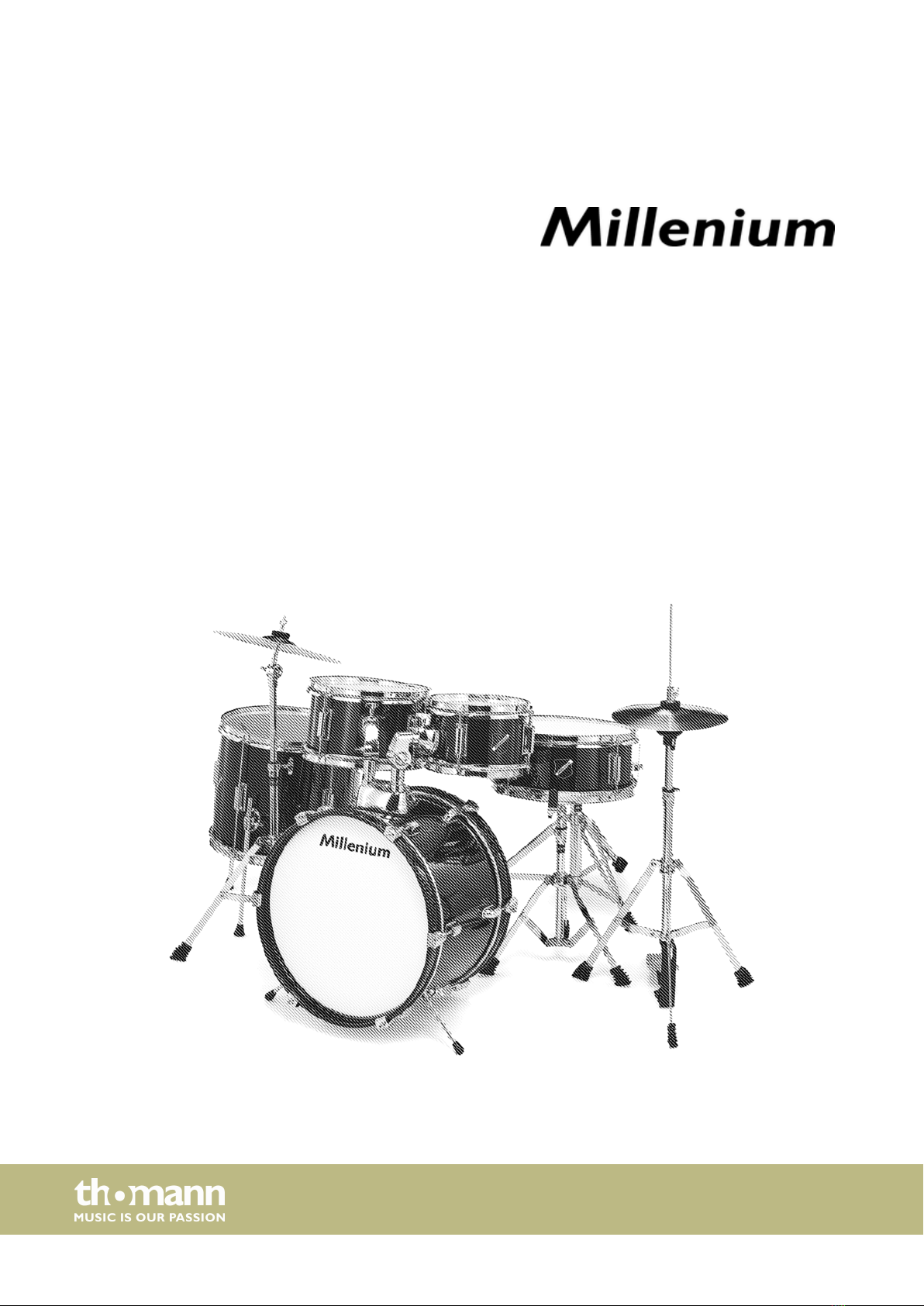

Focus Junior Drum-Set
drum set
assembly instructions
Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: [email protected]
Internet: www.thomann.de
24.02.2021, ID: 496064, ...
Table of contents
1 Safety instructions................................................................................................................. 4
2 Note............................................................................................................................................... 5
3 Unpacking.................................................................................................................................. 6
4 Setting up the bass drum.................................................................................................... 9
5 Assembling the oor tom................................................................................................. 11
6 Assembling the bass drum pedal................................................................................. 12
7 Assembling the hi-hat........................................................................................................ 13
8 Assembling the cymbal stands...................................................................................... 14
9 Assembling the snare drum stand............................................................................... 15
10 Tuning the shells.................................................................................................................. 16
11 Setting up the drum set.................................................................................................... 18
12 Attaching the cymbals ...................................................................................................... 22
13 Protecting the environment........................................................................................... 24
Table of contents
Focus Junior Drum-Set
3
1 Safety instructions
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and
are not within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the
like) from the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Safety instructions
drum set
4
2 Note
This document is a general guide showing typical steps for setting up a drum set.
Depending on the model, there can be variations in the type and number of
components.
Note
Focus Junior Drum-Set
5
3 Unpacking
The following guide makes it easy for you to completely assemble your drum set, to
tune it and to set it up properly.
The complete drum set is supplied in one cardboard box. It is supplied dismantled in
its individual parts. We recommend that you rst sort the individual parts that belong
together as described below.
The snare drum is delivered fully assembled. The drum heads are already tted.
Due to the size of the bass drum, it is always supplied dismantled.
The bass drum includes the following parts:
n1 drum shell
n2 hoops
n2 bass drum heads (1 × resonant and 1 × batter head)
n12 clamping screws (square-head) with one washer each
n12 claw hooks
n2 bass drum spurs
The hanging toms are delivered fully assembled. The drum heads are already tted.
Assigning
Snare drum
Bass drum
2 hanging toms
Unpacking
drum set
6
The oor tom includes the following parts:
n1 drum shell
n2 hoops
n2 heads
n10 tension rods with one washer each
n3 spurs
The hardware package includes the following parts:
1 bass drum pedal
1 hi-hat stand
1 snare stand
Floor tom
Hardware package
Unpacking
Focus Junior Drum-Set
7
1 straight cymbal stand
2 tom holders
The accessories include the following parts:
n1 tuning key
n1 pair of drumsticks
Depending on the scope of supply, a set of cymbals is included:
n1 crash / ride cymbal (12 inch)
n1 hi-hat cymbal (10 inch)
Accessories
Cymbals
Unpacking
drum set
8
4 Setting up the bass drum
Let's start with the bass drum.
Position the bass drum shell such that the screws of the tom holder point down‐
wards.
Now lay the white resonator head on the shell and put a hoop over it. Both the hoops
are identical so it doesn't matter which one you put on rst. Align the white reso‐
nator head such that the "Millenium" writing is parallel to the tom holder. The head
must be lying evenly on the edge of the shell on all sides.
Proceed as follows: Put the washer on the screw and then the claw hook. We need 6
square-head screws per side.
Hand-tighten all six screws. When doing this, tighten the screws in the diagonally
opposite sequence. You only need to tighten the screws slightly, we will be tuning
the drums later on.
Now turn the shell by 180° to mount the transparent batter head.
If you want to dampen the bass drum, now would be just the right time to
put the damper pillow in the shell to do this.
The next thing we need are the ten‐
sion rods.
Setting up the bass drum
Focus Junior Drum-Set
9
The transparent batter head is used on the beater side. When mounting it, we pro‐
ceed in just the same way as with the resonator head. Put the head on rst and lay
the hoop on it, put the washers and claw hooks on the tension rods and screw them
on. Do not tighten them too much; only enough for the hoops not to be shifted. We'll
do everything else when we tune the drums. So that's the bass drum nished; now
we'll do the toms.
Mounting the beater head
Setting up the bass drum
drum set
10
