Thermaltake Pacific PR12-D5 Plus Manuel utilisateur

This product is intended for installation only by expert users. Please consult with a qualified technician for installation.

Improper installation may result in damage to your equipment.

1. Please carefully read the manual before beginning the installation process !

2. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant.

3. DO NOT USE any kind of alcohol or alcohol derivatives with this reservoir or the acrylic tube may crack and fail ! Do not clean it using alcohol either !

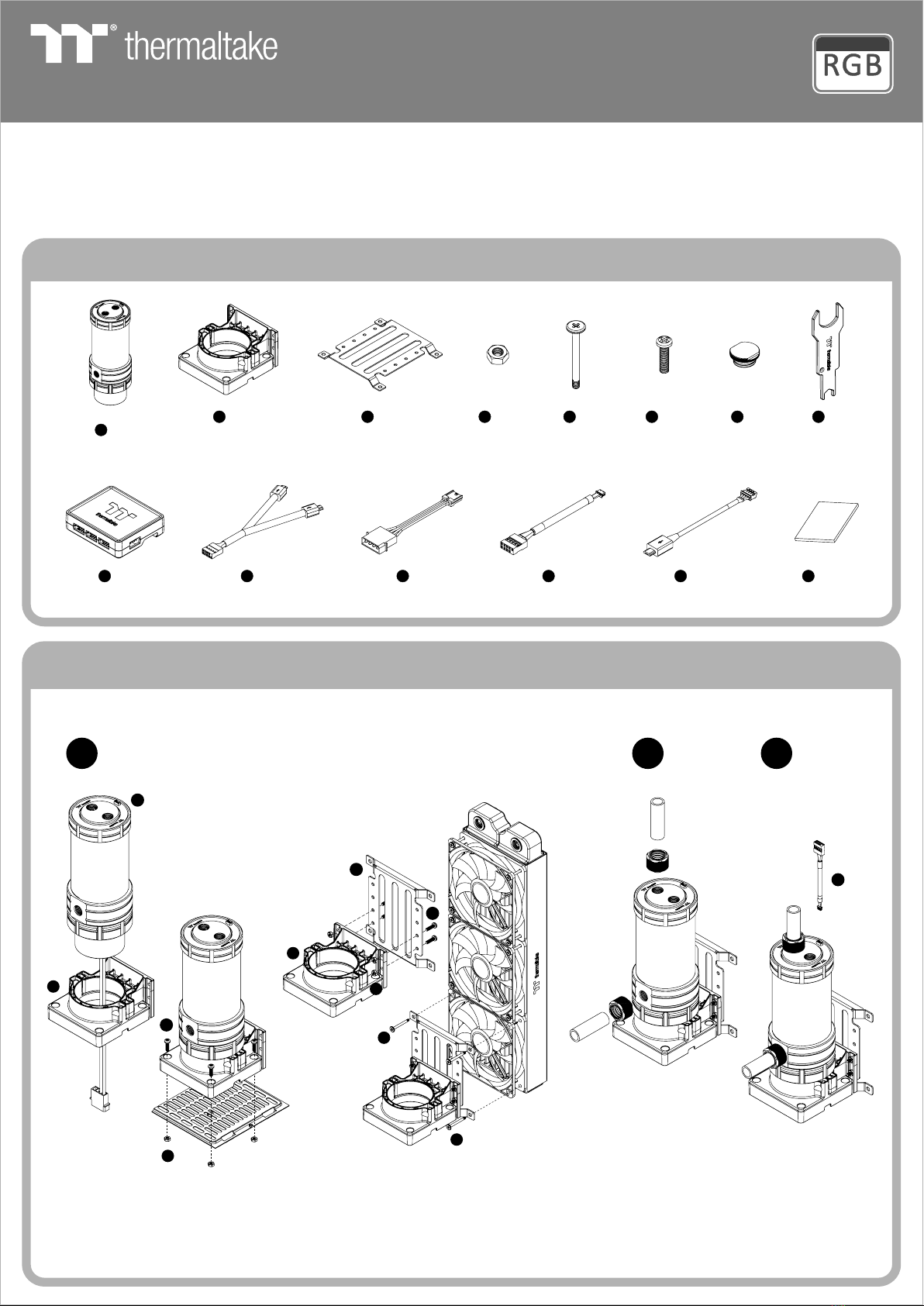

Installation Guide

Parts List

Pump & Reservoir

Bracket G1/4 Stop Plug Wrench

Clip Nuts Long Screws Short Screws

Ax 1

Bx 1 Cx 1 Gx 1 Hx 1

Lx 1 Mx 1 Nx 1I x 1 Jx 1 Kx 4

There are two types of mounting kits, please choose

the mounting kit you want to use.

Install your fittings and

tubes, remember to use

the bottom as an outlet

and top as an inlet. To control the lighting

effect by TT RGB PLUS

Software, please use

cable L to connect the

Pump & Reservoir

1 2 3

Support

16.8 Million Colors

Pump+Reservoir

Controller Power Cable Velcro

Controller Cable Conversion cable Bridge Cable

Pacific PR12-D5 Plus

Ex 4 Fx 4Dx 4

CL-W338-PL00SW-A

1 0 5 G是X X 雙銅

單色無無

其他特殊處理效果表面處理

厚度(g/m )

折數材質雙面印刷印刷色彩單面印刷

規格樣式

單張 CHECK DESIGN

藍色線條為尺寸標示，請勿印刷上去！

210 mm

297 mm

刀模線

產品料號

C L - W 3 3 8 - P L 0 0 S W - A P a c i f i c P R 1 2 - D 5 P l u s 說明書 21/06/0 7 A

產品名稱印刷項目發稿日期版本

Peipei

(21/06/07)

Leon

(21/06/07)

Installation Guide

Connect the reservoir cable onto the controller.

Set the DIP switch on the back side of the controller

to assign the number of the controller

123 45

NO.1

1 2 3 4

NO.3

1 2 3 4

NO.2

1 2 3 4

NO.4

1 2 3 4

NO.9

1 2 3 4

NO.11

1 2 3 4

NO.10

1 2 3 4

NO.12

1 2 3 4

NO.5

1 2 3 4

NO.7

1 2 3 4

NO.6

1 2 3 4

NO.8

1 2 3 4

NO.13

1 2 3 4

NO.15

1 2 3 4

NO.14

1 2 3 4

NO.16

1 2 3 4

Connect the controller cable onto the mainboard

(USB 2.0 9 pin) and controller.

If you want to connect two or more connectors,

you can use the bridge cable to connect the

controllers.

Connect the power cable to the 4pin Molex

connecter and controller.

K K

M M

After adding the recommended coolant, remember to

fill the reservoir to only 80% and leave the fill port cap

off. This will help stabilize your internal loop pressure

Keep the reservoir cap dry!

Do not allow coolant to

access the wire and

the LED module

Caution!

1 2 3 4

Connect the Pump power cable to

the 4pin Molex connecter.

CL-W338-PL00SW-A

www.thermaltake.com

1 0 5 G是X X 雙銅

單色無無

其他特殊處理效果表面處理

厚度(g/m )

折數材質雙面印刷印刷色彩單面印刷

規格樣式

單張 CHECK DESIGN

藍色線條為尺寸標示，請勿印刷上去！

210 mm

297 mm

刀模線

產品料號

C L - W 3 3 8 - P L 0 0 S W - A P a c i f i c P R 1 2 - D 5 P l u s 說明書 21/06/0 7 A

產品名稱印刷項目發稿日期版本

Peipei

(21/06/07)

Leon

(21/06/07)
