INSTALLATION

INSTRUCTIONS

Models:

SEC271

SEC272

SECD272

SEC301

SEC302

SECD302

SEM272

SEMW272

SEM302

SEMW302

C271

C272

C301

C302

CM301

CM302

TABLE OF CONTENTS

STEP 1: UNPACKING ........................................................ 3

STEP 2: CABINET PREPARATION ................................. 4 - 7

STEP 3: ELECTRICAL INSTALLATION................................. 8

208-VOLT ELECTRICAL HOOKUP.......................... 8

STEP 4: INSTALLING THE OVEN ....................................... 9

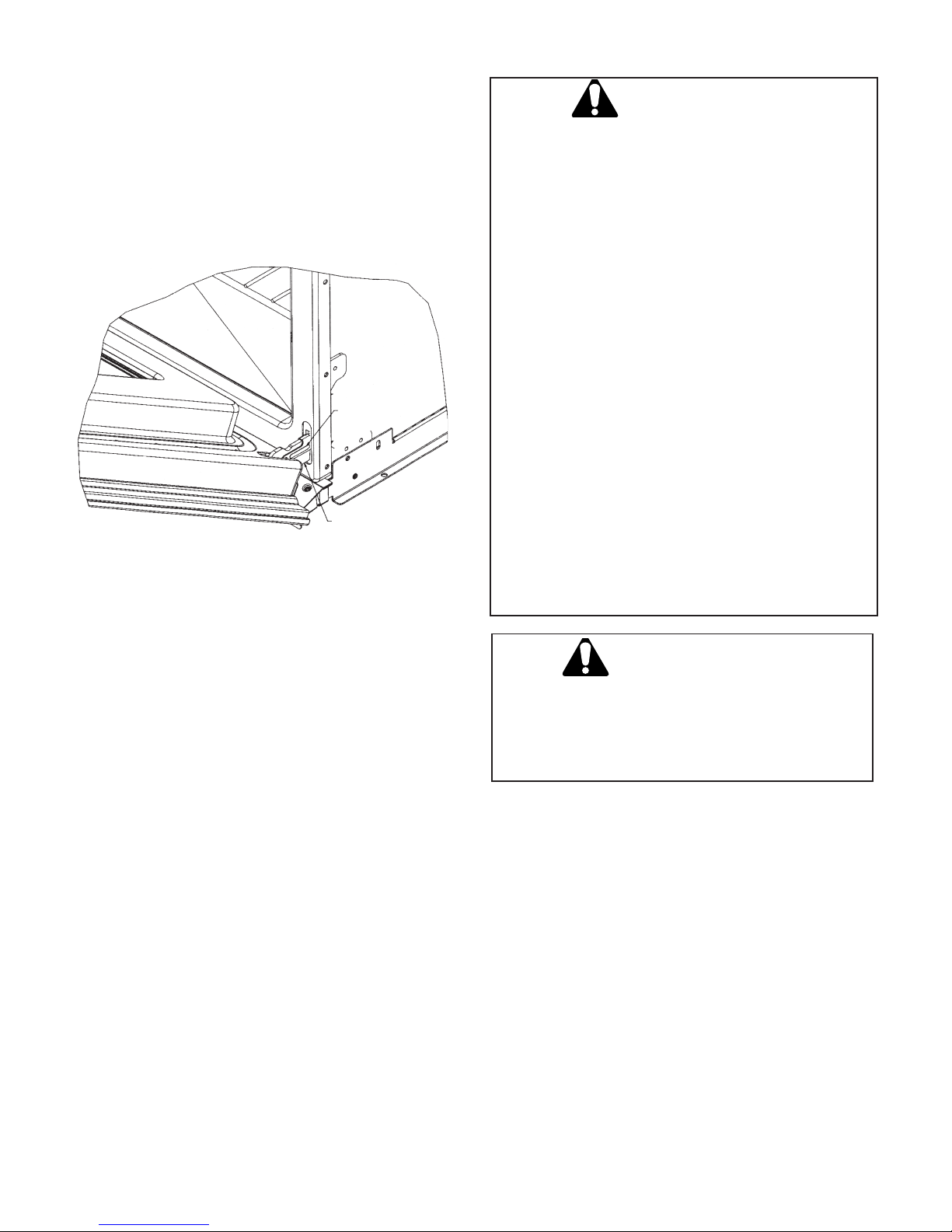

REMOVING THE OVEN DOOR.............................. 9

REPLACING THE OVEN DOOR ............................. 9

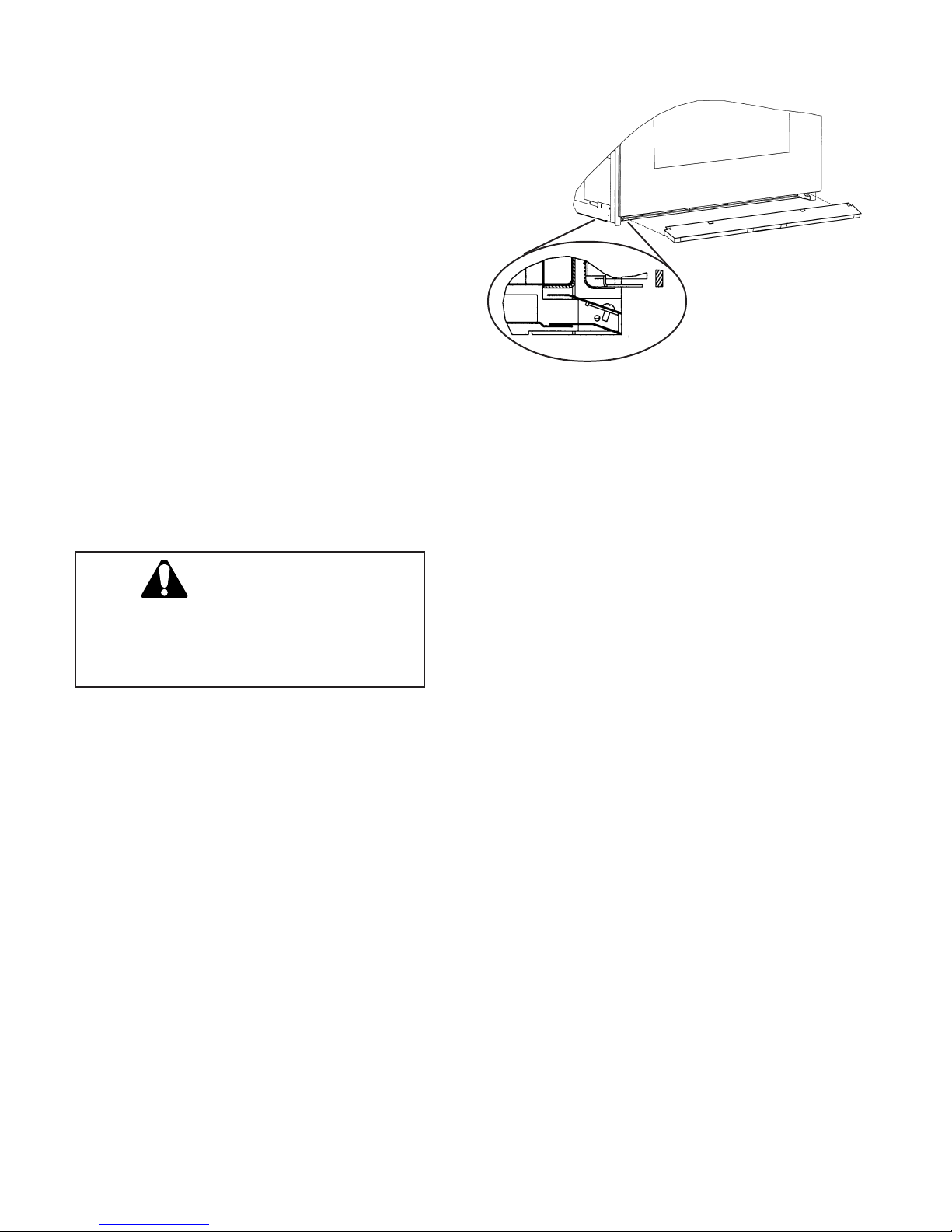

STEP 5: INSTALLING THE BOTTOM TRIM ......................... 10

Please read this entire instruction manual

before proceeding.

IMPORTANT:

Local codes vary. Installation, electrical connections, circuit breakers

and grounding must comply with all applicable codes. Save these

instructions for the Local Electrical Inspector's use.

INSTALLER: Please leave these Installation Instructions with this unit for the

owner.

OWNER: Please retain these instructions for future reference.

WARNING

Disconnect power at the breaker

before installing.

IMPORTANT:

Cut the bands from the carton. Carefully remove

the carton, fillers and all packing material.

Included with your new Thermador oven are the

following:

Number of Racks Per Oven Model

SEC271 - 3

SEC272 - 5

SECD272 - 6

SEC301 - 3

SEC302 - 5

SECD302 - 6

SEM272 - 3

SEMW272 - 3

SEM302 - 3

SEMW302 - 3

C271 - 3*

C272 - 6*

C301 - 3*

C302 - 6*

CM301 - 3

CM302 - 6

* One rack is Extendable Rack

One 2-Piece Broiler Pan

Care & Use Manual

Installation Instructions

Bottom Trim

Installation Screws (Packet)

Quick Guide

Cookbook

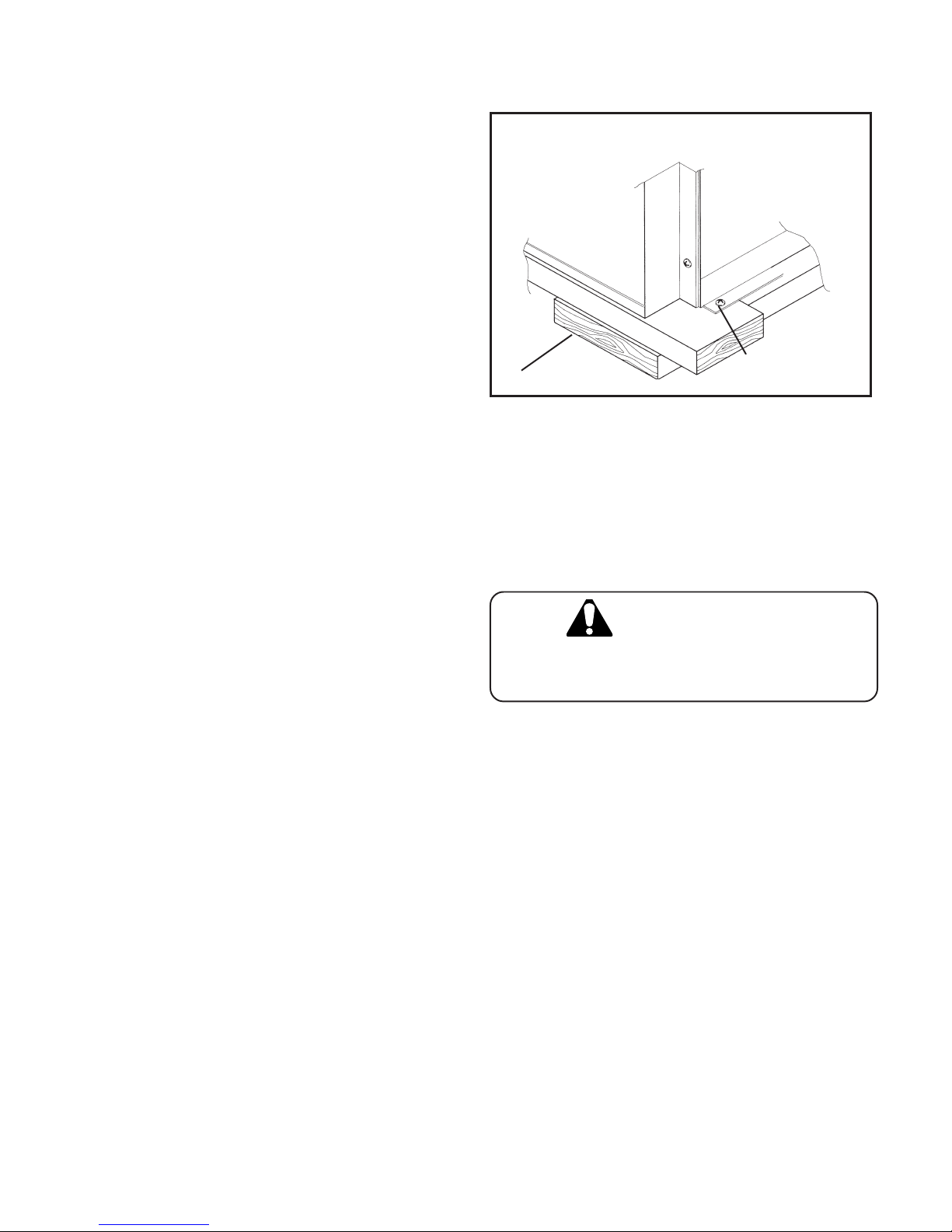

Remove Screws -

4 places

Figure 1 Oven Base Attachment

STEP 1: UNPACKING

Shipping base skid

The bottom trim is shipped, wrapped in waxed

paper and is located on top of the unit. It should

not be unpacked until the final step when the oven

has been placed in the cabinet. See Fig. 6, Page

10.

CAUTION

Unit is heavy and requires at least two

persons or proper equipment to move.

Preferred

Location

of Conduit

Box

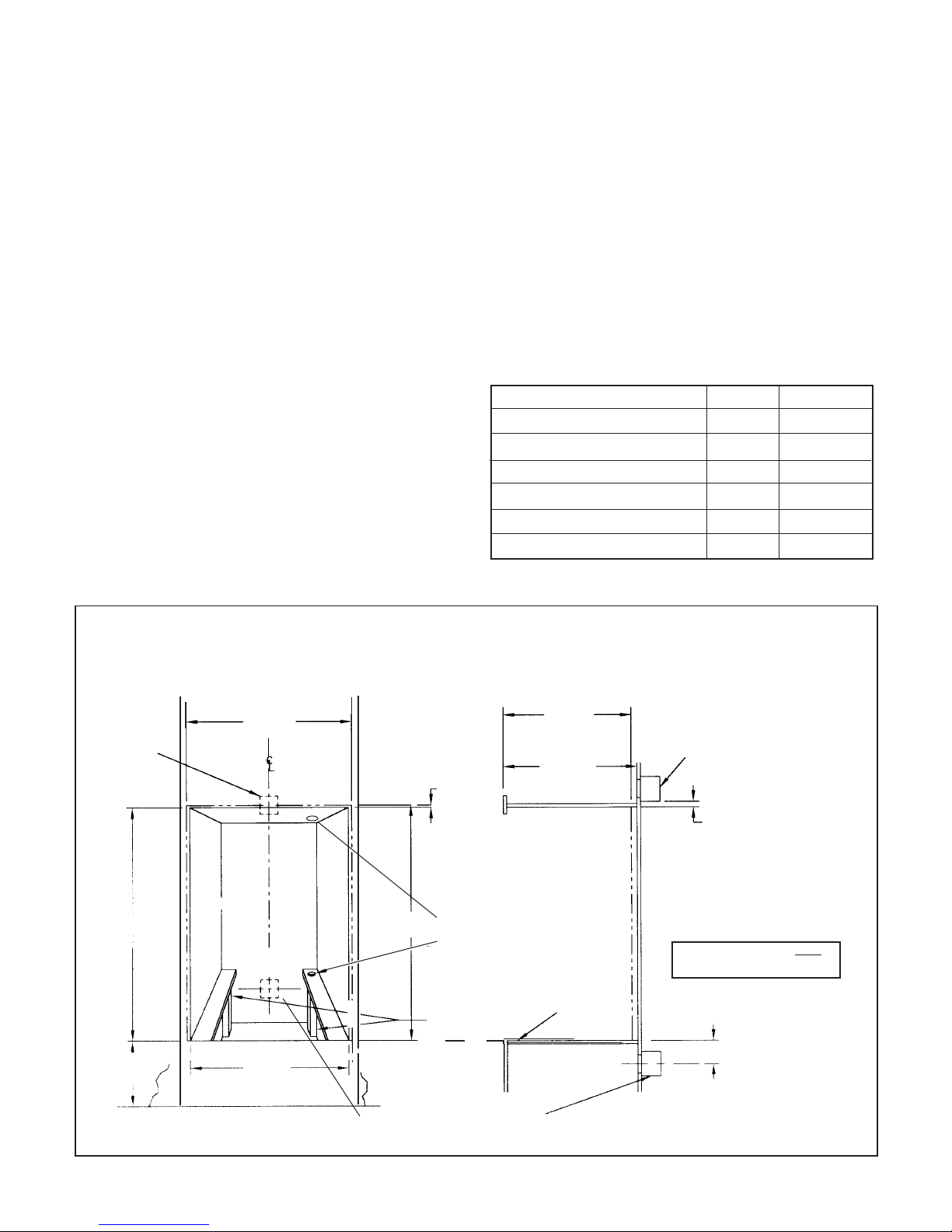

Figure 2- Cabinet Cutout - Wall Mounted Installation

Refer to dimensions for specific ovens on Page 5

FRONTVIEW SIDEVIEW

FLOOR

LINE

Double Oven

Location of

Conduit Box

Exposed Edge

Must be a Finish-

Cut

Recommended

2" Diameter Hole (4.5

cm)

Frame

Overlap

(Top) 3/8"

(1, 0 cm)

Cabinet

Approx. 5" (13 cm)

2-1/2" (6, 4

cm)

Above

Unit

Side Frame

Overlap

5/8" Cabinet

(1, 6 cm)

Post Supports

Required Near

Back H

❤

Conduit Box May be Placed

Here

❤

2x4 Supports CONDUIT BOX IS NOT

FURNISHEDWITHUNIT

(Wall Stud)

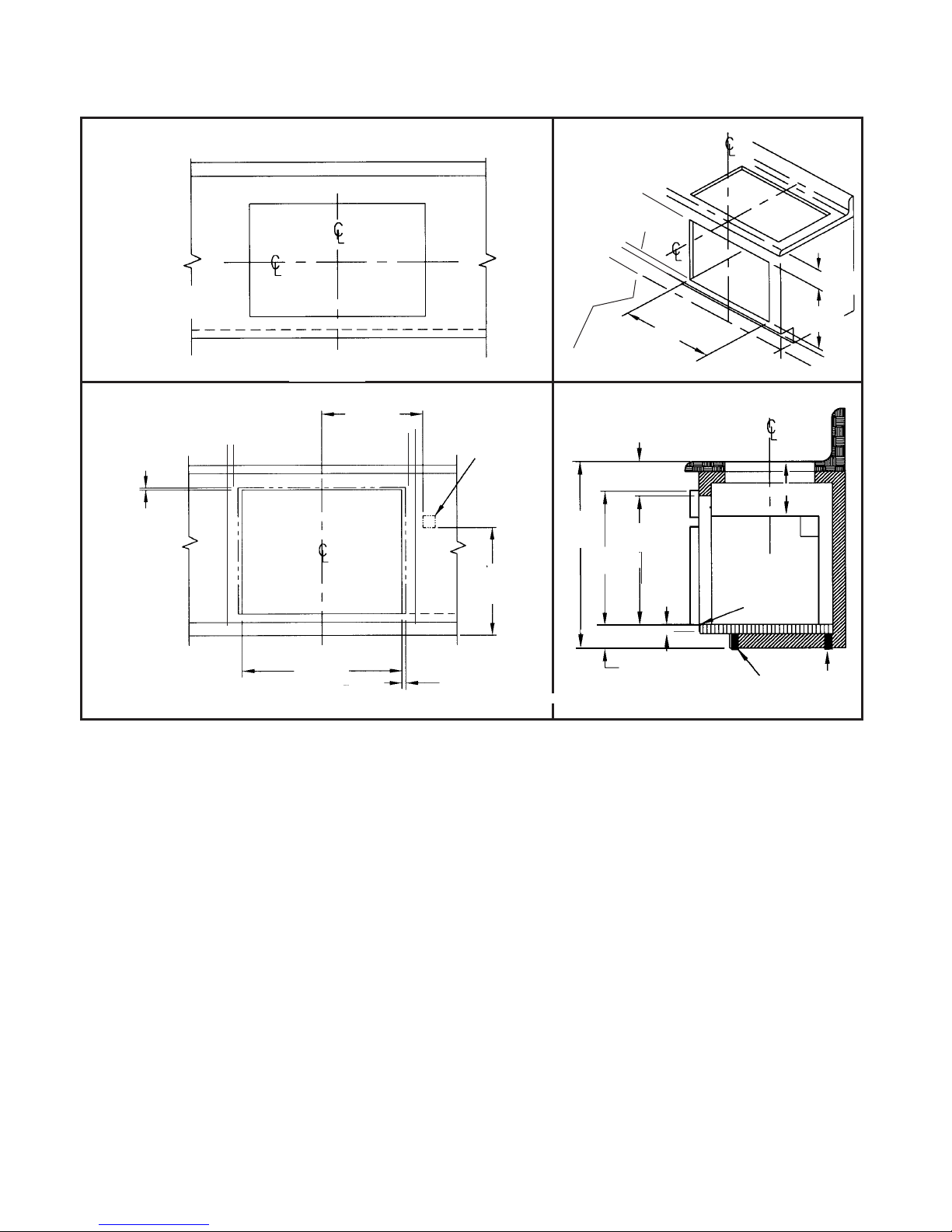

The cabinet cutout dimensions for wall mounted

and under the counter installations are shown in

Figs. 2 and 3, respectively.

It is good practice, when oven is installed at the

end of a cabinet run, adjacent to a perpendicular

wall or cabinet door, to allow at least 1/4" space

between the side of the oven door and the wall/

door.

Wall Mounted Units

For oven support, install 2 x 4’s extending front

to back flush with the bottom and the side of the

opening.

The supporting base must be well secured to the

floor/cabinet and level with the floor line.

STEP 2: CABINET PREPARATION

OVEN POUNDS KILOGRAMS

SE-series Single Oven 165 75

C-series Single Oven 210 95

CM Single Oven 240 109

S-series Double Oven 330 150

C-series Double Oven 355 161

CM Double Oven 370 168

NOTE: The conduit box for double ovens

(SEC272, SECD272, SEC302, SECD302, C272,

C302, CM302, SEMW272 and SEM272) should be

located above the unit to facilitate connecting and

servicing. For single ovens (SEC301, C271, C301,

and CM301) the conduit box may be installed

either above or below the unit. If the conduit box

is installed below the unit, a 2" diameter hole or

space is required between the back wall and the

right rear of the 2 x 4 supports. See Figure 2.

When an oven is installed, the cabinet base must

be capable of supporting the oven weight as listed

below:

Wall Mounted Installation

Table 1 - Cabinet Cutout Dimensions- Wall Mounted Installation

* Add 1/16" for stainless steel ovens (SE- Series Ovens Only) ** Add 1/8" for stainless steel ovens (S- Series

Ovens Only)

*** Measured from cabinet face, largest door.

27" Built-In Electric Double Wall Ovens: C272, SEC272, SECD272
