User’s Guide

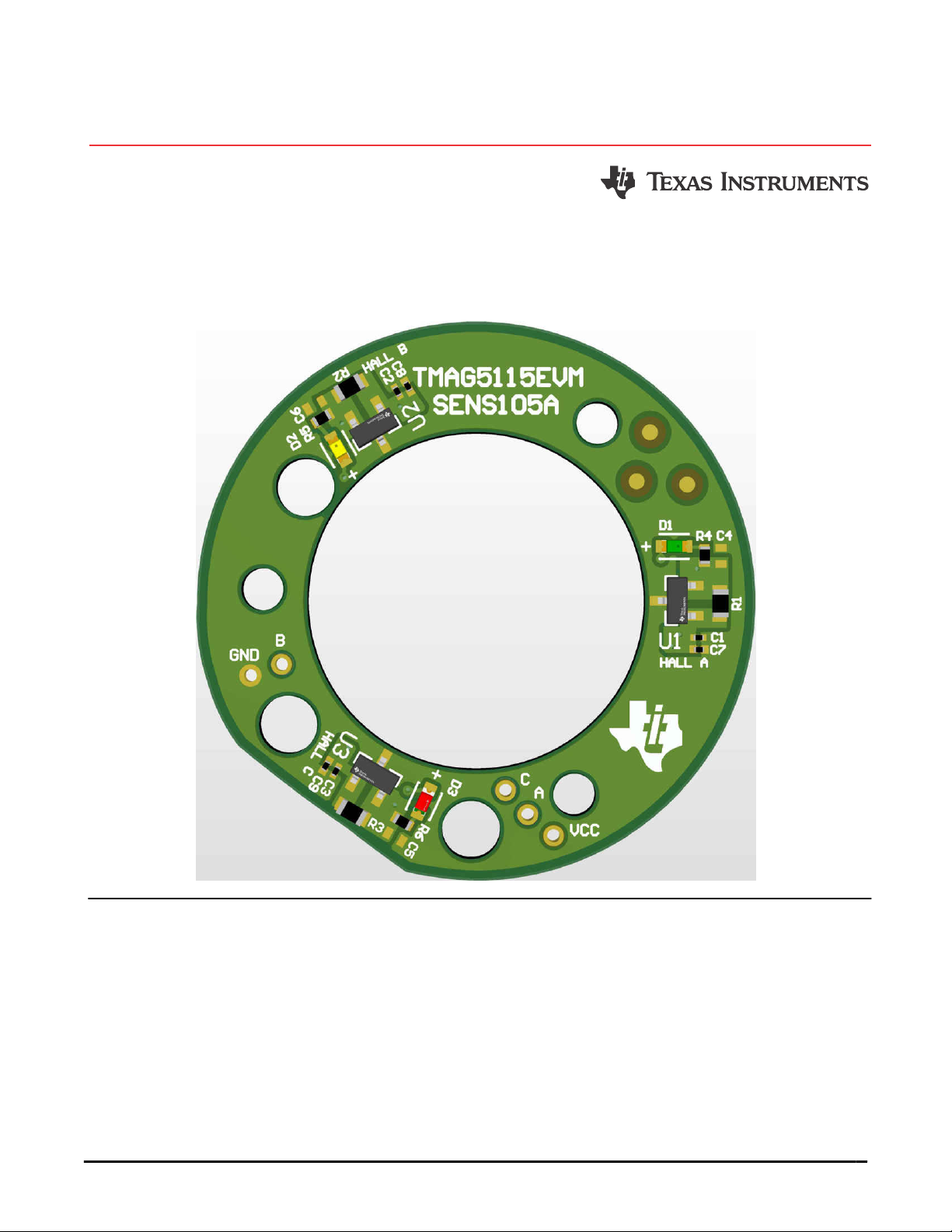

TMAG5115 Evaluation Module

ABSTRACT

This user’s guide describes the characteristics, operation, and use of the TMAG5115 high performance Hall-

effect latch evaluation module (EVM). This EVM is designed to evaluate the performance of the TMAG5115. This

document includes a schematic, printed circuit board (PCB) layouts, and a complete bill of materials (BOM).

Table of Contents

1 Overview..................................................................................................................................................................................2

1.1 TMAG5115EVM Kit Contents.............................................................................................................................................2

1.2 Related Documentation from Texas Instruments............................................................................................................... 2

2 TMAG5115EVM Hardware...................................................................................................................................................... 3

3 EVM Operation........................................................................................................................................................................ 3

3.1 Quick Start Setup............................................................................................................................................................... 3

3.2 BLDC Motor Operation.......................................................................................................................................................4

4 BLDC Motor Manufacturers................................................................................................................................................. 13

5 TMAG5115EVM Circuitry......................................................................................................................................................13

6 TMAG5115EVM Schematic and PCB Layout......................................................................................................................14

www.ti.com Table of Contents

SBAU410 – OCTOBER 2022

Submit Document Feedback

TMAG5115 Evaluation Module 1

6.1 Schematic........................................................................................................................................................................ 14

6.2 PCB Layout...................................................................................................................................................................... 15

6.3 Bill of Materials.................................................................................................................................................................16

Trademarks

All trademarks are the property of their respective owners.

1 Overview

The TMAG5115 is a family of high-performance, wide input voltage, low-output delay and low-jitter Hall-effect

latch sensors. Designed for system challenges where higher magnetic precision is needed, each device variant

exhibits a different magnetic sensitivity. If the field strength is greater than BOP, then the output is pulled low.

If the field strength is less than BRP, then the output is released. When the applied magnetic flux density

exceeds the magnetic release point (BRP) threshold, the device output returns to a high voltage state. The

TMAG5115EVM comes prepopulated with TMAG5115B1 variant for out of the box evaluation. Other variants can

be sampled from www.ti.com. Table 1-1 lists the different device variants in the TMAG5115 family. TMAG5115

devices can operate with a VCC range of 2.5 V to 26 V and is available in a standard SOT-23 package.

Table 1-1. TMAG5115 Device Summary

DEVICE BOP_MIN BOP_MAX

TMAG5115A1 0.5 mT 1.5 mT

TMAG5115B1 2 mT 4 mT

1.1 TMAG5115EVM Kit Contents

Table 1-2 lists the contents of the TMAG5115EVM kit. Contact the Texas Instruments Product Information Center

if any components are missing. TI highly recommends checking the TMAG5115 family product folder on the TI

website at www.ti.com for further information regarding this product.

Table 1-2. TMAG5115EVM Kit Contents

ITEM QUANTITY

TMAG5115EVM test board 1

Handheld Magnet (D3X8) 1

1.2 Related Documentation from Texas Instruments

The following document provides information regarding TI's integrated circuits used in the assembly of the

TMAG5115EVM. This user's guide is available from the TI website under literature number SBAU410. Any letter

appended to the literature number corresponds to the document revision that is current at the time of the writing

of this document. Newer revisions are available from www.ti.com or the Texas Instruments' Literature Response

Center at (800) 477-8924 or the Product Information Center at (972) 644-5580. When ordering, identify the

document by both title and literature number.

Table 1-3. Related Documentation

DOCUMENT LITERATURE NUMBER

TMAG5115 product data sheet SBASAJ1

Trademarks www.ti.com

2TMAG5115 Evaluation Module SBAU410 – OCTOBER 2022

Submit Document Feedback

2 TMAG5115EVM Hardware

The TMAG5115EVM is a simple to use platform for evaluating the main features and performance of the

TMAG5115. The EVM features a couple of methods of device evaluation, the first being quick visual feedback to

the user in the form of LED indication. When the device's BOP and BRP thresholds are crossed, their respective

LED lights turn on and off. An alternative way of evaluating the TMAG5115 is by using the EVM to commutate

a brushless direct current (BLDC) motor. The TMAG5115EVM follows a standard form factor for the Hall-effect

sensor boards found in various NEMA17 BLDC motors. This means the EVM can be used as a direct drop-in

replacement for these boards and can be used to evaluate device performance in this way.

Features:

• Standard sensor control board dimensions for drop-in replacement in most NEMA17 42-mm BLDC motors

• Includes a handheld D3X8 magnet for manual testing

• Provides LED feedback to quickly determine the output state from the TMAG5115

3 EVM Operation

The following instructions are to set up and use the TMAG5115EVM:

3.1 Quick Start Setup

1. Power up the EVM using a variable power supply:

a. Set the power supply voltage to the desired setting between 3 V and 12 V. Do not turn on the power yet.

b. Connect the power supply V- terminal to the black GND wire connected to the EVM.

c. Connect the power supply V+ terminal to the red VCC wire connected to the EVM.

d. Turn on the power supply

2. At power up, the device default state is high and the LEDs stay in the off state. Place the handheld D3X8

magnet over one of the three TMAG5115 devices found on the EVM. Depending on the polarity of the

magnet, you may see the LED turn on or remain in the off state.

3. Rotate the magnet to the opposite orientation. If the threshold is met, the device should have the opposing

reaction than it did in the previous step. A South field over the BOP will turn on the LED while a North field

less than the BRP threshold will turn off the LED. See Figure 3-1 for the magnetic response of a Hall-effect

latch.

southnorth

OUT

0 mT BOP

VCC

BRP

BHYS

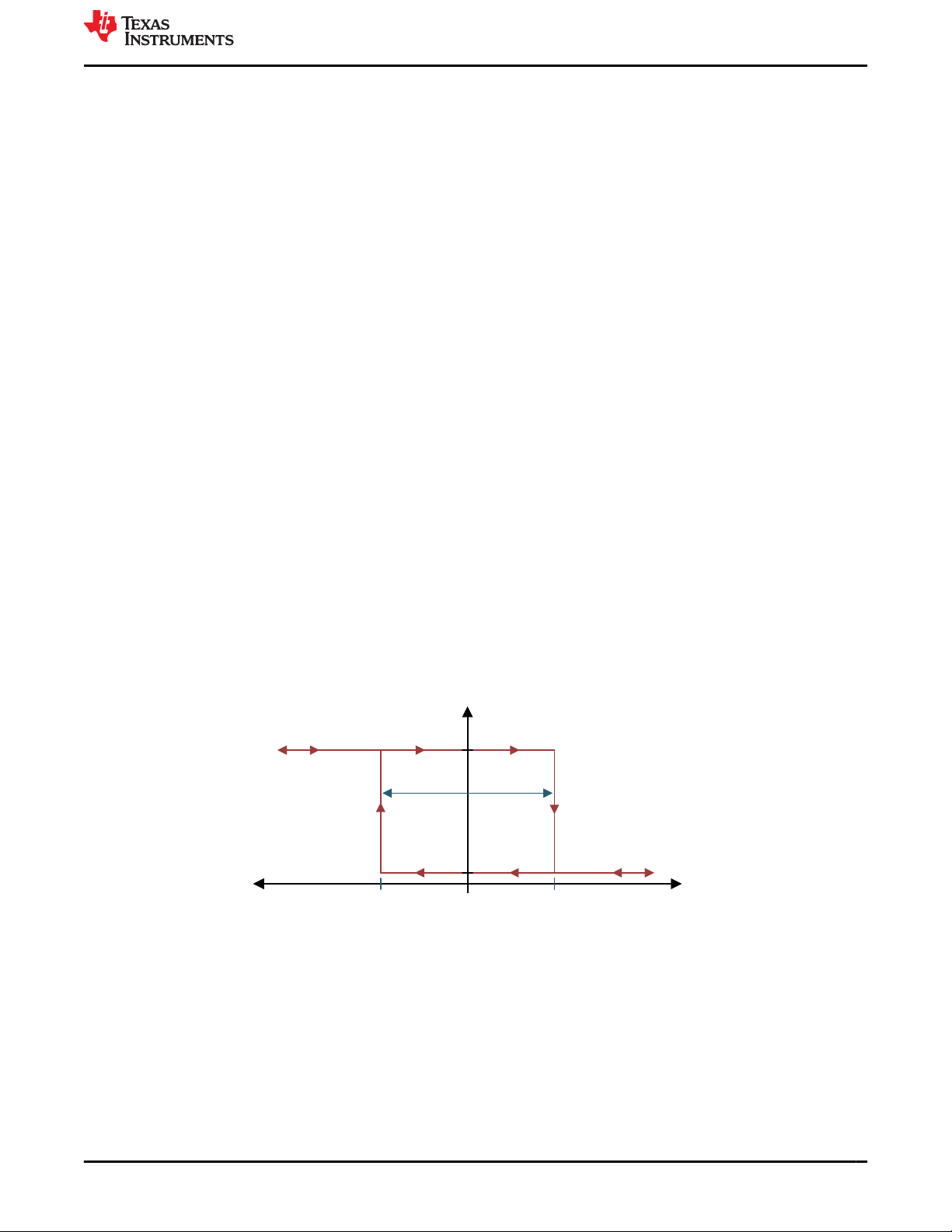

Figure 3-1. Hall Latch Output

www.ti.com TMAG5115EVM Hardware

SBAU410 – OCTOBER 2022

Submit Document Feedback

TMAG5115 Evaluation Module 3

3.2 BLDC Motor Operation

The TMAG5115EVM is intended to be a direct drop-in replacement for the Hall-effect sensor modules found in

NEMA17 BLDC motors (see Figure 3-2). The EVM features three functionally independent circuits, one for each

of the TMAG5115 devices on the PC board, with each sensor spaced 120° apart. The three sensors and the

specific 120° spacing yield what is commonly referred to as a six-step commutation sequence, a common motor

commutation algorithm for sensored motor control. The TMAG5115 reacts to the magnetic field generated by

the permanent magnets located on the rotor of the magnet. As the motor spins, the three Hall sensors create a

distinct state every 60° electrical degrees. Each unique state lets the motor controller know the motor’s position

and determine how the stator coils must be excited within the BLDC motor to keep the rotor spinning. Figure 3-3

shows a typical six-step control scheme example.

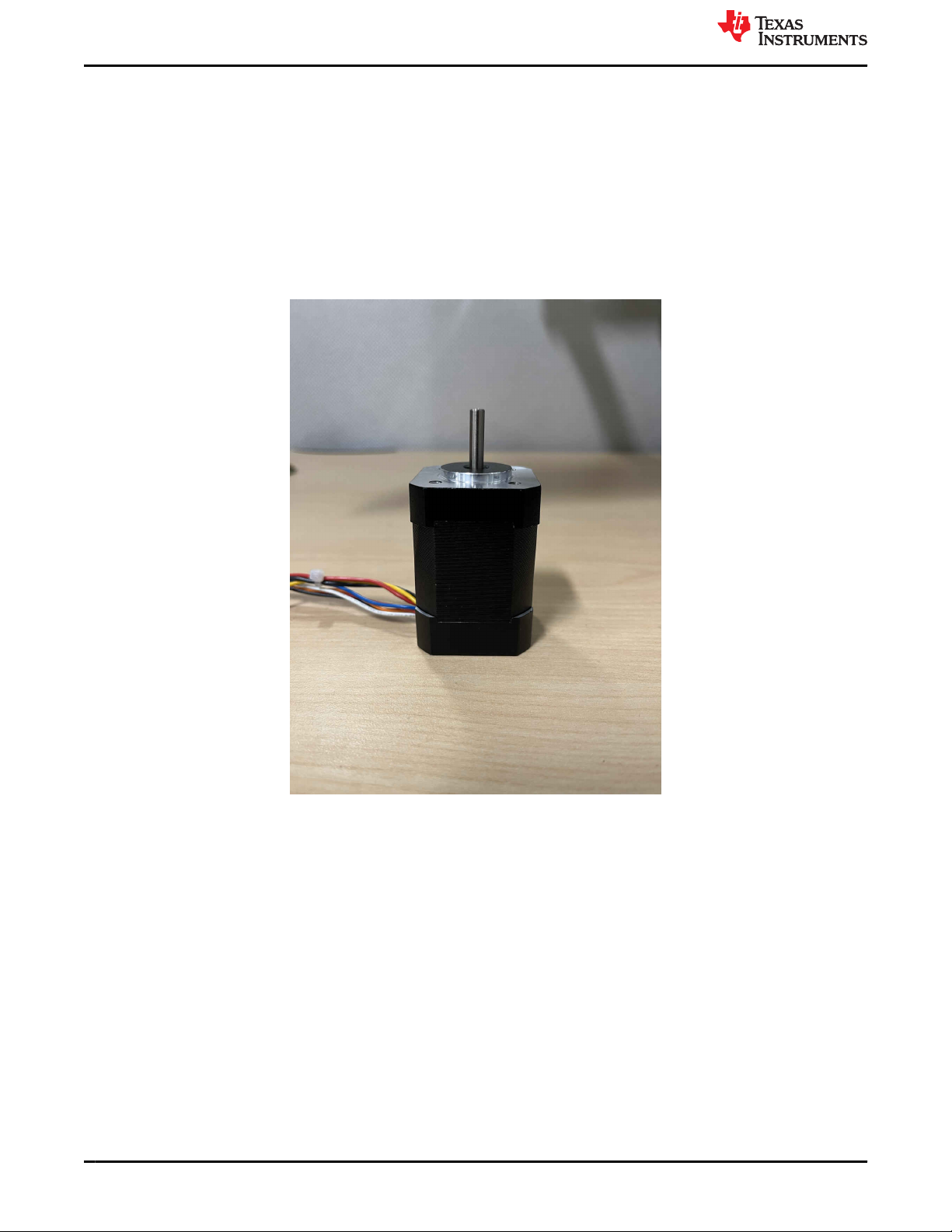

Figure 3-2. NEMA17 42-mm BLDC Motor

EVM Operation www.ti.com

4TMAG5115 Evaluation Module SBAU410 – OCTOBER 2022

Submit Document Feedback

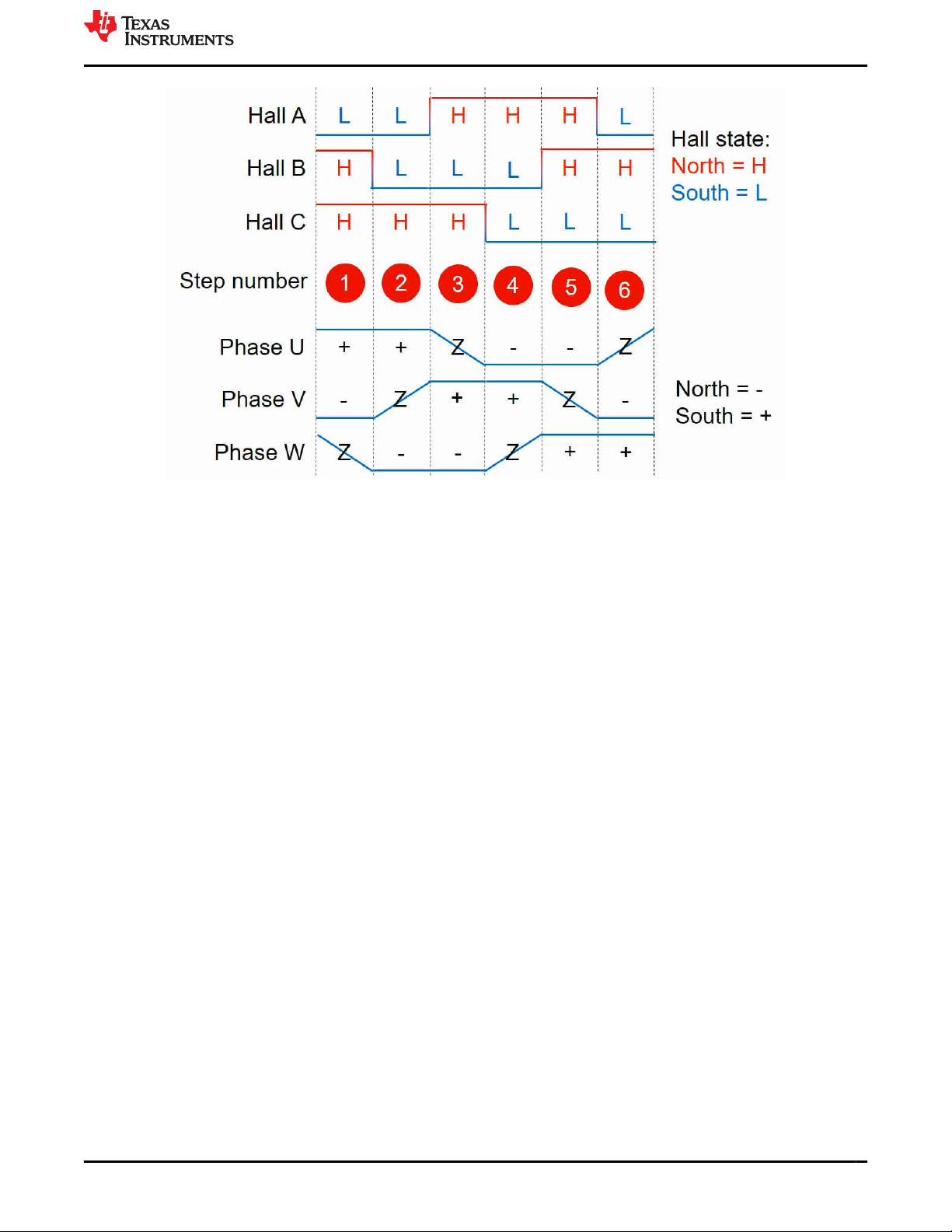

Figure 3-3. Six-Step Motor Commutation Control Scheme

www.ti.com EVM Operation

SBAU410 – OCTOBER 2022

Submit Document Feedback

TMAG5115 Evaluation Module 5

3.2.1 Replacing Sensor Control Board With TMAG5115EVM

This section lists steps for replacing the sensor control board found in the NEMA17 BLDC motors with the

TMAG5115EVM:

1. Remove the backplate from the motor. To remove the backplate, remove the four screws found on the

backside of the motor, opposite to the motor's shaft. See Figure 3-4. After the screws are removed, the

backplate of the motor should come loose.

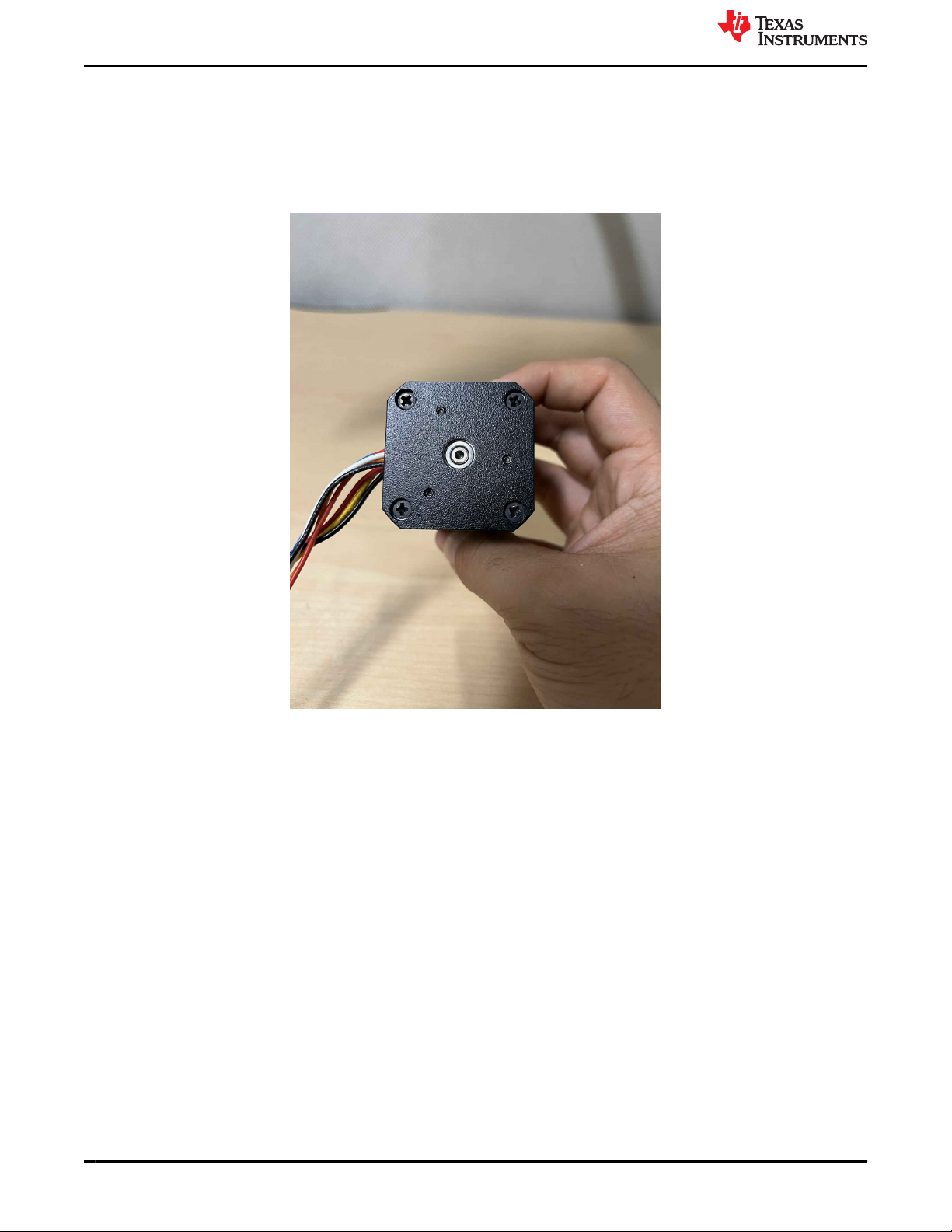

Figure 3-4. BLDC Motor (Bottom)

EVM Operation www.ti.com

6TMAG5115 Evaluation Module SBAU410 – OCTOBER 2022

Submit Document Feedback

2. Remove the three screws that currently hold the sensors to the bottom of the housing and remove the board.

See Figure 3-5.

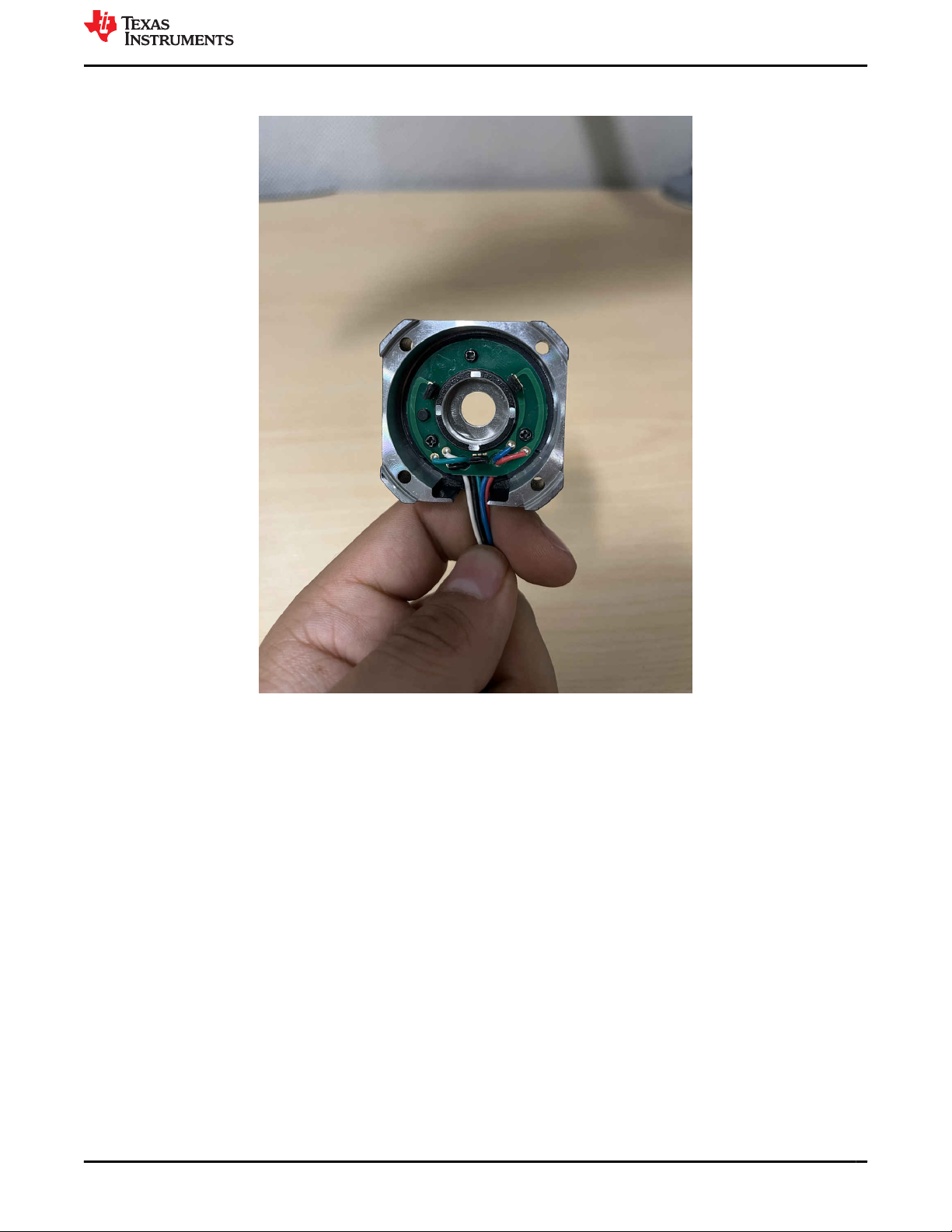

Figure 3-5. Hall Sensor Board Removal

www.ti.com EVM Operation

SBAU410 – OCTOBER 2022

Submit Document Feedback

TMAG5115 Evaluation Module 7

3. Place the TMAG5115EVM inside the housing. The round plastic base will ensure proper alignment to the

motor housing. Return the screws that were removed in the previous step and tighten. See Figure 3-6 for

TMAG5115EVM alignment inside the motor.

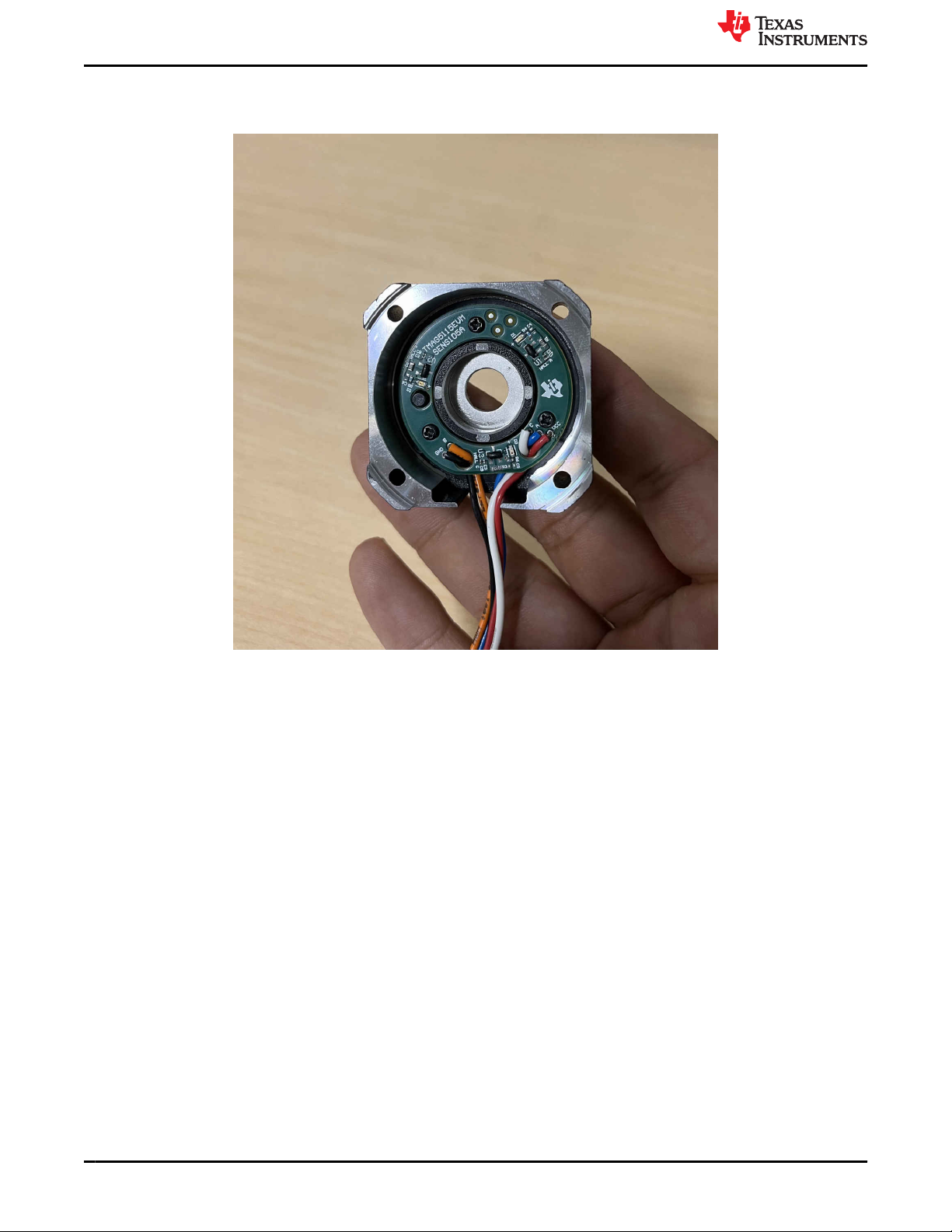

Figure 3-6. TMAG5115EVM on NEMA17 Motor Module

EVM Operation www.ti.com

8TMAG5115 Evaluation Module SBAU410 – OCTOBER 2022

Submit Document Feedback

4. Align the base so that the wires of the sensor board and the wires of the motor are all facing the direction of

the opening on the motor enclosure. Return the screws that were removed in Step 1 and tighten. See Figure

3-7.

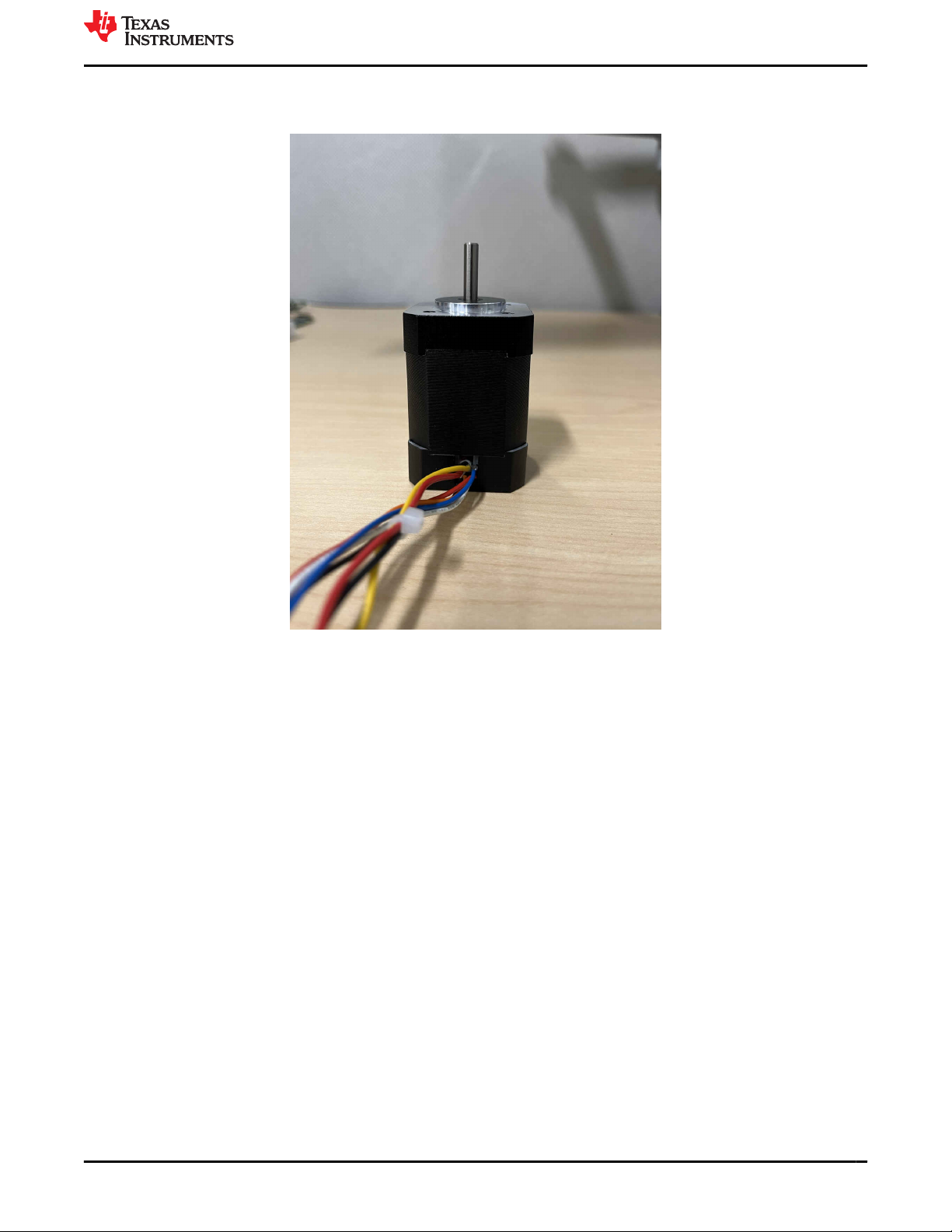

Figure 3-7. BLDC Motor Connections

3.2.2 Connecting TMAG5115EVM to a motor driver

The following connections must be made from TMAG5115EVM to a motor driver or motor controller in order to

commutate a motor:

1. Connect the black GND wire to GND or the V- connection to the power supply.

2. Connect the red VCC wire to VCC or the V+ connection to the power supply.

3. Connect the blue wire (Hall A) to the phase A connection.

4. Connect the green wire (Hall B) to the phase B connection.

5. Connect the white wire (Hall C) to the phase C connection.

6. No external pullup resistors are required with TMAG5115EVM because the necessary pullup resistors are

populated on the EVM board.

a. You can remove the pullup resistors on the TMAG5115EVM if your motor driver includes pullup resistors

for the Hall-effect sensor inputs.

3.2.3 Example Using MCT8316ZTEVM

Texas Instruments offers several motor drivers that can be used to spin BLDC motors. This section explains

what connections must be made to spin a motor using the MCT8316ZEVM:

3.2.3.1 MCT8316Z Overview

The MCT8316Z is an integrated three-phase gate driver IC with sensored trapezoidal control for motor drive

applications. The device provides three integrated half-bridges and a sensored trapezoidal algorithm capable of

directly driving a 3-phase brushless-DC motor. The algorithm is included in the IC, therefore there is no need to

create your own commutation algorithm to spin a BLDC motor. The MCT8316Z simply takes the inputs of the

Hall-effect sensors and uses them to drive the motor appropriately.

www.ti.com EVM Operation

SBAU410 – OCTOBER 2022

Submit Document Feedback

TMAG5115 Evaluation Module 9

3.2.3.2 MCT8316ZTEVM Quick Start Guide

The MCT8316ZTEVM requires a power supply source, which has a recommended operating range from a 4.5 V

to 35 V. To setup and power the EVM, use the following the sequence:

1. Connect motor phases to A, B, and C on connector J13.

2. Connect Hall sensors to J11 and use HALL_PWR_SEL jumper J11 to select the supply as 3.3 V from buck

or use an external supply on connected to J12. Ensure the MODE resistors are set correctly to use the

appropriate Hall sensor configuration as described in MCT8316Z datasheet.

a. If using the boards pullup resistors, populate J8–J10 with shunt jumpers to enable pullups. Connect the

single-ended inputs to only the HPx pins on connector J11. This is the default of the MCT8316ZTEVM.

3. Ensure resistors are populated in H/W variant resistors for desired hardware settings.

4. DO NOT TURN ON the power supply yet. Connect the motor supply to VBAT or VM and PGND on

connector J7.

a. To enable reverse polarity protection and Pi filter, connect to VBAT.

b. To disable reverse-polarity protection and the Pi filter, connect to VM.

5. Select J3 to 5V_USB and J5 to 3V3COM to power MSP430 from USB power supply.

6. Connect the micro-USB cable to the computer.

7. Turn the potentiometer fully clockwise to set the motor to zero speed upon power up.

8. Turn on the motor power supply.

9. Use the potentiometer to control the speed of the motor and the switches to disable the motor driver, change

the direction, or apply a brake to the motor. Optionally, use the GUI (as shown in the MCT8316ZTEVM

User's Guide) to monitor real-time speed of the motor, put the MCT8316ZT into a low-power sleep mode,

and read status of the LEDs.

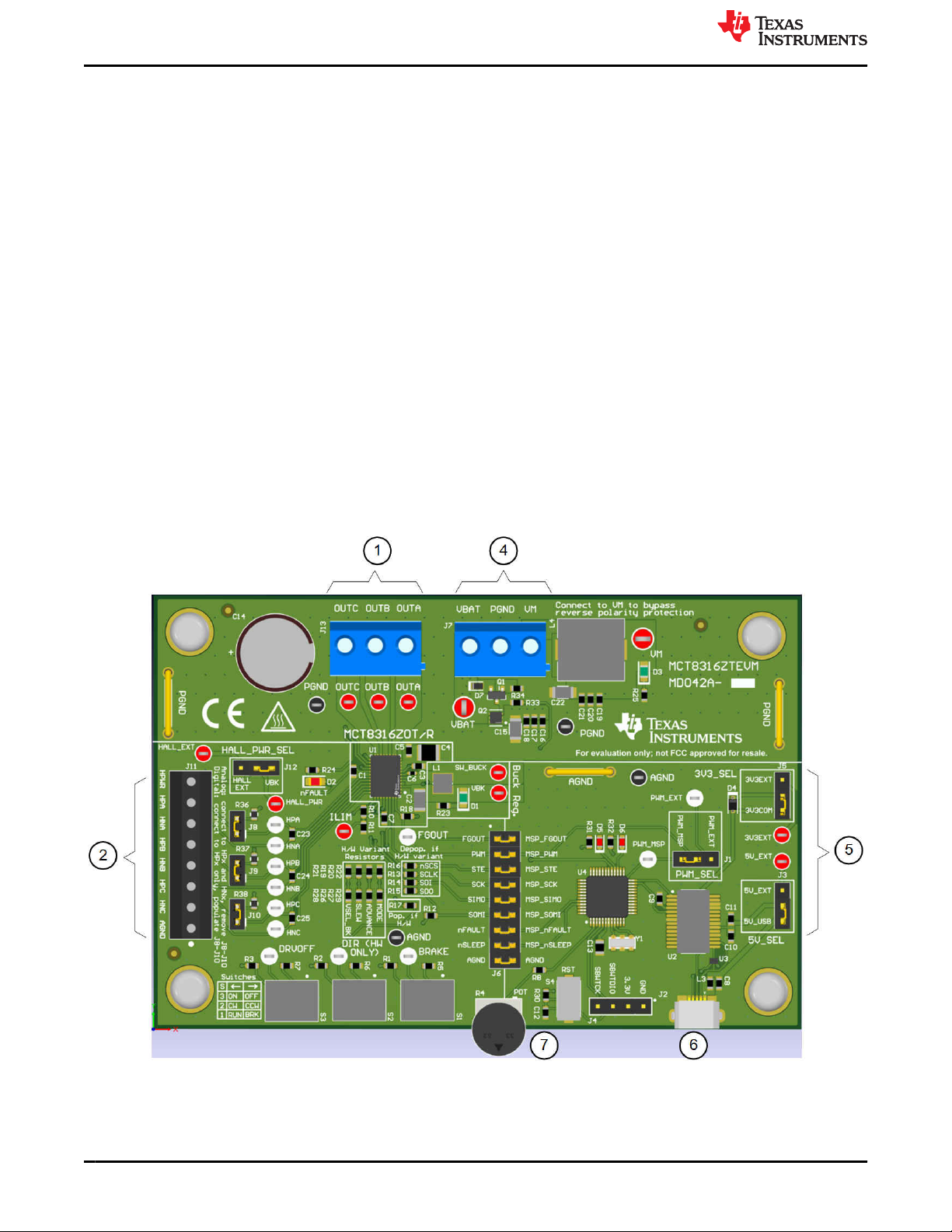

Figure 3-8. Reference for MCT8316ZTEVM Quick Start Guide

EVM Operation www.ti.com

10 TMAG5115 Evaluation Module SBAU410 – OCTOBER 2022

Submit Document Feedback

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Texas Instruments Carte mère

Texas Instruments

Texas Instruments TLK6002 Manuel utilisateur

Texas Instruments

Texas Instruments ISO5852SDWEVM-017 Manuel utilisateur

Texas Instruments

Texas Instruments TUSB1146 Manuel utilisateur

Texas Instruments

Texas Instruments TPS65994 EVM Manuel utilisateur

Texas Instruments

Texas Instruments TLV3607 Manuel utilisateur

Texas Instruments

Texas Instruments TUSB320 Manuel utilisateur

Texas Instruments

Texas Instruments Fly-Buck LM5017 Manuel utilisateur

Texas Instruments

Texas Instruments TPIC74100EVM Manuel utilisateur

Texas Instruments

Texas Instruments LMK00338EVM Manuel utilisateur

Texas Instruments

Texas Instruments LP876242-Q1 Manuel utilisateur

Texas Instruments

Texas Instruments TAS5424 Manuel utilisateur

Texas Instruments

Texas Instruments ADS1174EVM Manuel utilisateur

Texas Instruments

Texas Instruments LM5158EVM-BST Manuel utilisateur

Texas Instruments

Texas Instruments bq40z80EVM Manuel utilisateur

Texas Instruments

Texas Instruments LP8755EVM Manuel utilisateur

Texas Instruments

Texas Instruments ADS8402 Manuel utilisateur

Texas Instruments

Texas Instruments CC2564MODN Manuel utilisateur

Texas Instruments

Texas Instruments DAC53401EVM Manuel utilisateur

Texas Instruments

Texas Instruments UCD3138OL40EVM-032 Manuel utilisateur

Texas Instruments

Texas Instruments TPS65270 Manuel utilisateur

Texas Instruments

Texas Instruments DRV2700EVM-HV500 Manuel utilisateur

Texas Instruments

Texas Instruments ADS1178EVM Manuel utilisateur

Texas Instruments

Texas Instruments TLV62585PEVM-030 Manuel utilisateur

Texas Instruments

Texas Instruments DP159RSB Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
