User's Guide

SLLU224 –August 2015

DP159RSB Evaluation Module

This document describes how to use and configure the DP159RSBEVM along with recommendations for

system hardware implementation. These recommendations are only guidelines and it is the designer’s

responsibility to consider all system characteristics and requirements. Engineers should refer to the

datasheet for technical details such as device operation, terminal description, and so forth.

Contents

1 Overview...................................................................................................................... 2

1.1 What is the DP159? ................................................................................................ 2

1.2 What is the DP159RSBEVM?..................................................................................... 2

1.3 What is Included in the DP159RSBEVM?....................................................................... 2

1.4 DP159RSBEVM Board............................................................................................. 3

2 Hardware Description ....................................................................................................... 3

2.1 Video Connectors for DP159 Ports............................................................................... 4

2.2 Enable/Reset........................................................................................................ 4

2.3 Power................................................................................................................. 4

2.4 Jumper Configuration .............................................................................................. 5

2.5 Component Population Configuration............................................................................ 6

2.6 Local I2C Access Through J5 ..................................................................................... 6

2.7 Local I2C Access Through USB Interface via TUSB3410 .................................................... 7

2.8 Rsadj Potentiometer................................................................................................ 8

3 Quick Start Guide............................................................................................................ 8

4 References ................................................................................................................... 8

5 EVM Bill of Materials ........................................................................................................ 9

6 EVM Schematics .......................................................................................................... 11

7 EVM Layout................................................................................................................. 18

List of Figures

1 DP159RSBEVM Board...................................................................................................... 3

2 DP159RSBEVM Block Diagram ........................................................................................... 3

3 Register Status / Control Tab .............................................................................................. 7

4 Eye Scan Tab ................................................................................................................ 8

5 HDMI Input Connectors ................................................................................................... 11

6 DP159RSB.................................................................................................................. 12

7 HDMI TX Connector ....................................................................................................... 13

8 DP159RSBEVM Select Options.......................................................................................... 14

9 Reset ........................................................................................................................ 15

10 1.1- and 3.3-V Regulators ................................................................................................ 16

11 TUSB3410................................................................................................................... 17

12 Layer 1 (Top) ............................................................................................................... 18

13 Layer 2 (GND) .............................................................................................................. 18

14 Layer 3 (Power) ............................................................................................................ 19

15 Layer 4 (Power) ............................................................................................................ 19

16 Layer 5 (GND) .............................................................................................................. 20

I2C is a trademark of NXP.

All other trademarks are the property of their respective owners.

SLLU224 –August 2015 DP159RSB Evaluation Module

Overview

www.ti.com

17 Layer 6 (Bottom)............................................................................................................ 20

List of Tables

1 Jumper Settings.............................................................................................................. 5

2 Aardvark I2C (J5) Pin-Out................................................................................................... 6

3 DP159 Target I2C Address ................................................................................................. 7

4 DP159RSBEVM Bill of Materials .......................................................................................... 9

1 Overview

1.1 What is the DP159?

The DP159 is a Dual-Mode DisplayPort to Transition Minimized Differential Signal (TMDS) retimer

supporting Digital Video Interface (DVI) 1.0 and High Definition Multimedia Interface (HDMI) 1.4b and 2.0

output signals. The DP159 supports the Dual-Mode Standard version 1.1 type 1 and type 2 through the

DDC link. The DP159 supports data rates up to 6 Gbps per data lane to support UltraHD (4K x 2K / 60

Hz) 8 bits per color high resolution video and HDTV with 16-bit color depth at 1080p (1920 x 1080 / 60

Hz). The DP159 can automatically configure itself as a redriver at data rates < 1.0 Gbps or as a retimer

above this data rate.

1.2 What is the DP159RSBEVM?

The DP159RSBEVM is a PCB created to help customers evaluate the DP159 device for video

applications. This EVM can also be used as a hardware reference design for implementation of the DP159

in the RSB package. PCB design/layout files can be provided upon request to provide PCB design

illustrations of the routing/placement rules.

Please note that the EVM design supports both the standard DP159 application and a DP159-thru-HDMI

application, so it contains many components that would not be needed by a typical DP159 application. A

separate reference design specific to the DP159 is available for customers.

1.3 What is Included in the DP159RSBEVM?

The major components of the EVM are as follows:

• DP159RSB

• Standard DP sink connector (connects to source)

• Standard HDMI source connector (connects to sink)

• DC power regulators

• I2C™ programming interface for external I2C host connection

• USB interface (I2C utility available)

2DP159RSB Evaluation Module SLLU224 –August 2015

Submit Documentation Feedback

DP159

(40-Pin RSB)

DP Connector Top

HDMI Connector

IN0P/N

IN1P/N

IN2P/N

IN3P/N

TMDS_D2P/N

TMDS_D1P/N

TMDS_D0P/N

TMDS_CLKP/N

AUXP/N DDC_SCL/SDA

AARDVARK

Connector

SCL_CTL

SDA_CTL

5-V

DONGLE

5-V to 3.3-V

LDO

3.3-V to 1.1-V

LDO

USB2

Connector

TUSB3410

www.ti.com

Overview

1.4 DP159RSBEVM Board

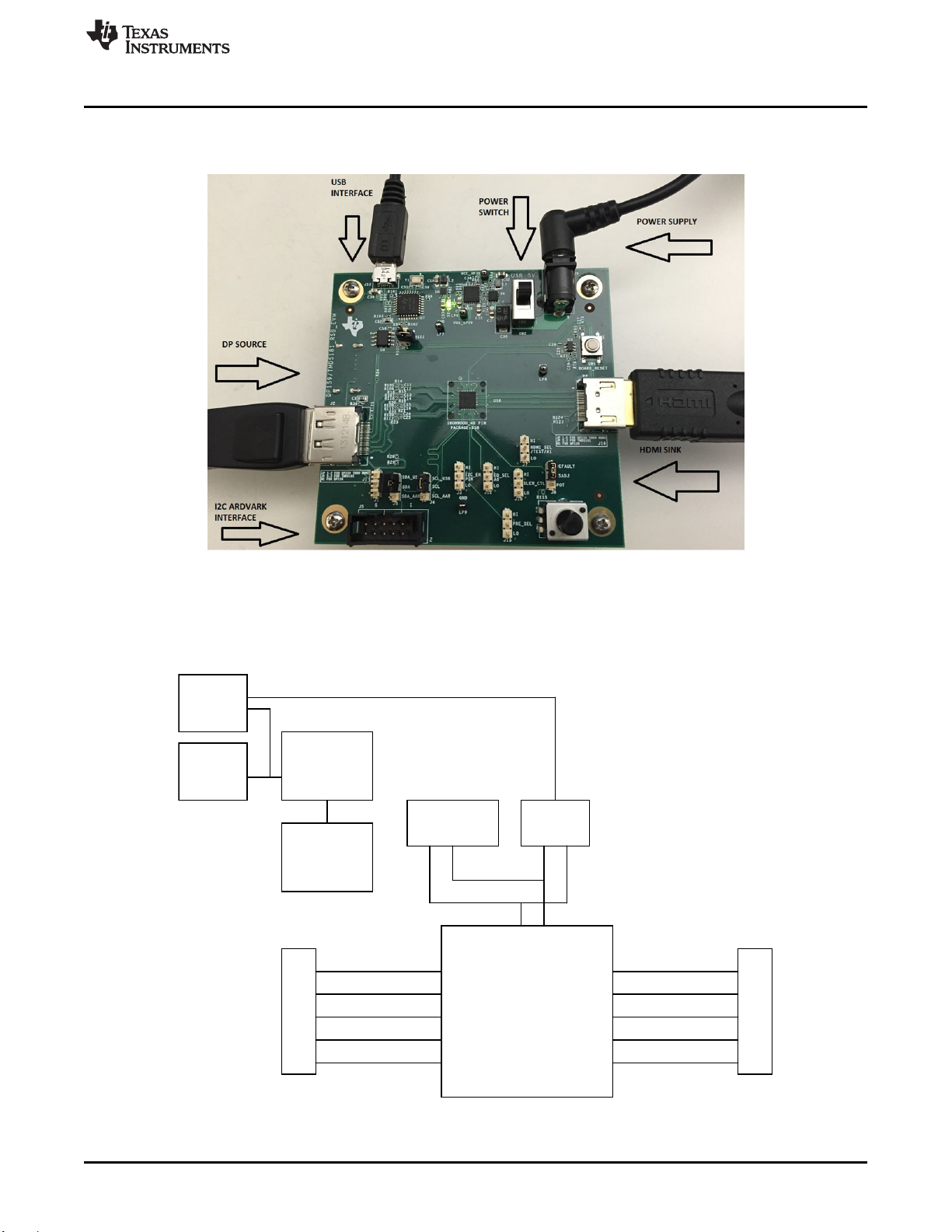

Figure 1 illustrates the DP159RSBEVM board.

Figure 1. DP159RSBEVM Board

2 Hardware Description

Figure 2 shows the DP159RSBEVM block diagram.

100-Ωdifferential impedance for HDMI and DP differential pairs.

Figure 2. DP159RSBEVM Block Diagram

SLLU224 –August 2015 DP159RSB Evaluation Module

Hardware Description

www.ti.com

2.1 Video Connectors for DP159 Ports

The EVM has a DP connection for the source and a HDMI connection for the sink. J2 is a standard DP

connector (Molex 47272-0001). P2 is a standard HDMI connector (Molex 4715-10001). There is a third

video connection on the board for a HDMI source (P1), this function is not installed on the

DP159RSBEVM.

2.2 Enable/Reset

There are three device enable/reset options to use with the EVM:

(A) Supervisor circuitry option

This is the default configuration on the DP159RSBEVM. The enable (EN) signal is held low until the

power good (PG) from the 3.3-V voltage regulator reaches a stable high-voltage level then released

high.

(B) RC timing option

C26 external capacitor and internal resistor are used to control the EN ramp time after the device is

powered on. C26 is a Do Not Install (DNI option) by default. C26 needs to be installed and R77 needs

to be uninstalled to enable this option.

A push button (SW1) is provided for manual control of the DP159’s EN/OE input.

2.3 Power

A DC power jack (J9) to accept a 5-V wall power adapter is provided on the EVM. The DC power jack

(CUI Inc. PJ-202AH) has an inner diameter of 2.1 mm and an outer diameter of 5.5 mm. The tip of the +5-

V power supply must be positive. A +5-V power supply of at least 1.5 A that meets the given requirements

can be used to power the DP159RSBEVM. Power is provided to the EVM from the 5-V wall power adapter

when SW2 is set to position 1.

CAUTION

Care should be taken to not plug in any power source higher than the

configured voltage (5 V).

Alternately, it is possible to power the EVM by connecting a USB Micro cable from J13 to a USB host and

setting SW2 to position 3.

4DP159RSB Evaluation Module SLLU224 –August 2015

Submit Documentation Feedback

www.ti.com

Hardware Description

2.4 Jumper Configuration

Jumpers are provided to operate the device/EVM in different configurations. Table 1 lists the jumper

settings.

Table 1. Jumper Settings

Jumper Signal Name Description Default Config

J1 HPD_SRC JP 1-2 for DP159 thru HDMI NC: Allows for 3.3-V to 5-V transition of

HPD_SRC signal

JP 2-3 for DP159

NC for DP159

J3 I2_EN_PIN JP 1-2 for I2C ENABLE NC: Enables device configuration from I2C

or pin straps.

JP 2-3 for PIN STRAP

NC – PIN STRAP (internal pulldown)

J4 SCL JP 1-2 for USB IF TO I2C JP 1-2: USB I2C Interface

JP 2-3 for EXT IF TO I2C

NC – N/A

J6 SDA JP 1-2 for USB IF TO I2C JP 1-2: USB I2C Interface

JP 2-3 for EXT IF TO I2C

NC – N/A

J7 HDMI_SEL_TEST_A1 JP 1-2 for: NC

• I2C Addr bit A1 = 1, when I2C_EN = H

• Test mode, when I2C_EN = L

JP 2-3 for:

• I2C Addr bit A1 = 0, when I2C_EN = H

• Normal mode, when I2C_EN = L

NC for weak internal pulldown (normal

mode)

J8 VSADJ JP 1-2 for 6.5 kΩJP 1-2: Default of 6.5 kΩ

JP 2-3 for adjustable resistance

NC – N/A

J10 SLEW_CTL JP 1-2 for fastest data rate NC

JP 2-3 for 20 ps slow

NC for 40 ps slow

J12 EQ_SEL_A0 JP 1-2 for: NC

• I2C Addr bit A0 = 1, when I2C_EN = H

• Fixed EQ at 14 dB, when I2C_EN = L

JP 2-3 for:

• I2C Addr bit A0 = 0, when I2C_EN = H

• Fixed EQ at 7.5 dB, when I2C_EN = L

NC for adaptive EQ

J15 PRE_SEL JP 1-2 for –5 dB JP 2-3

JP 2-3 for –2.5 dB

NC for 0 dB

SLLU224 –August 2015 DP159RSB Evaluation Module

Hardware Description

www.ti.com

2.5 Component Population Configuration

To allow the DP159RSBEVM to support both the default DP input as well as a HDMI test input, there are

many components that need to be removed, placed, or modified depending on the board configuration.

Here’s a summary of the default component configuration for the DP159RSBEVM. In addition, the unused

HDMI receptacle is depopulated.

Function Reference Designator DP159RSBEVM

Differential Pair - IN C11, C12, C13, C14, C15, C16, C24, populated with 0.1 µF

C25

Differential Pair - HDMI IN R14, R15, R18, R19, R20, R21, R22, not populated

R23

SDA / SCL - HDMI R16, R17, R24, R25, R134, R135 not populated

Differential Pair - DP IN R112, R109, R111, R108, R110, R107, populated with 0 Ω

R106, R105

SDA / SCL / HPD - DP R33, R31, R32 (R126, R136, R140, populated with 0 Ω

R141 - snoop)

Pullup Differential Pair HDMI IN R1, R2, R3, R4, R6, R7, R8, R9 populated, but not

connected

2.5.1 HPD Snoop Option

To accommodate systems that do not properly resend DDC commands after HPD goes low, we have

implemented a HPD snoop mode on the DP159RSBEVM. This mode allows the HPD line to be routed

around the DP159, but remain connected to the DP159 on the sink side to allow the DP159 to snoop its

state. This snoop mode is disabled by default on the DP159RSBEVMs.

• Pop R131, no pop R129, R130, R139 for HPD on

• No pop R131, pop R129, R130, R139 for HPD snoop only

2.5.2 DDC Snoop Option – not Available for DP159RSB REV B

To accommodate systems that do not properly support clock stretching on the DDC lines, we have

implemented a snoop mode on the DP159RSBEVM. This mode allows the DDC lines to be routed around

the DP159RSB, but remain connected to the DP159RSB on the sink side to allow the DP159RSB to

snoop the DDC traffic. This snoop mode is enabled by default on the DP159RSB REV B1 EVMs.

• Pop R126, R136, R140, R141. No pop R31, R32 – DP159RSB, DDC snoop only

• Pop R31, R32. No pop R126, R136, R140, R141- DP159RSB, DDC on

2.6 Local I2C Access Through J5

Access to DP159’s local I2C signals is provided via the J5 input connector. Note that I2C signal levels

should be at 3.3 V when I2C interface is accessed through the connector.

A standalone external I2C host can be connected via J5 for debug and control purposes. An example of an

external I2C Host controller is the Total Phase Aardvark I2C/SPI Host Adapter (Total Phase Part#:

TP240141). Sample scripts for this I2C Host controller are provided by request.

Table 2. Aardvark I2C (J5) Pin-Out

J5 pin # Description J5 pin Description

1 SCL_CTL 2 GND

3 SDA_CTL 4 NC

5 NC 6 NC

7 NC 8 NC

9 NC 10 GND

6DP159RSB Evaluation Module SLLU224 –August 2015

Submit Documentation Feedback

www.ti.com

Hardware Description

Table 3. DP159 Target I2C Address(1)

DP159 I2C Target Address

Bit 7 (MSB) Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 (W/R)

A6 A5 A4 A3 A2 A1 A0

1 0 1 1 1 1 0 0/1

(1) The target I2C address for DP159 can be modified by the EVM jumper settings.

2.7 Local I2C Access Through USB Interface via TUSB3410

Access to DP159’s local I2C signals is also provided through the TUSB3410 on the DP159RSBEVM using

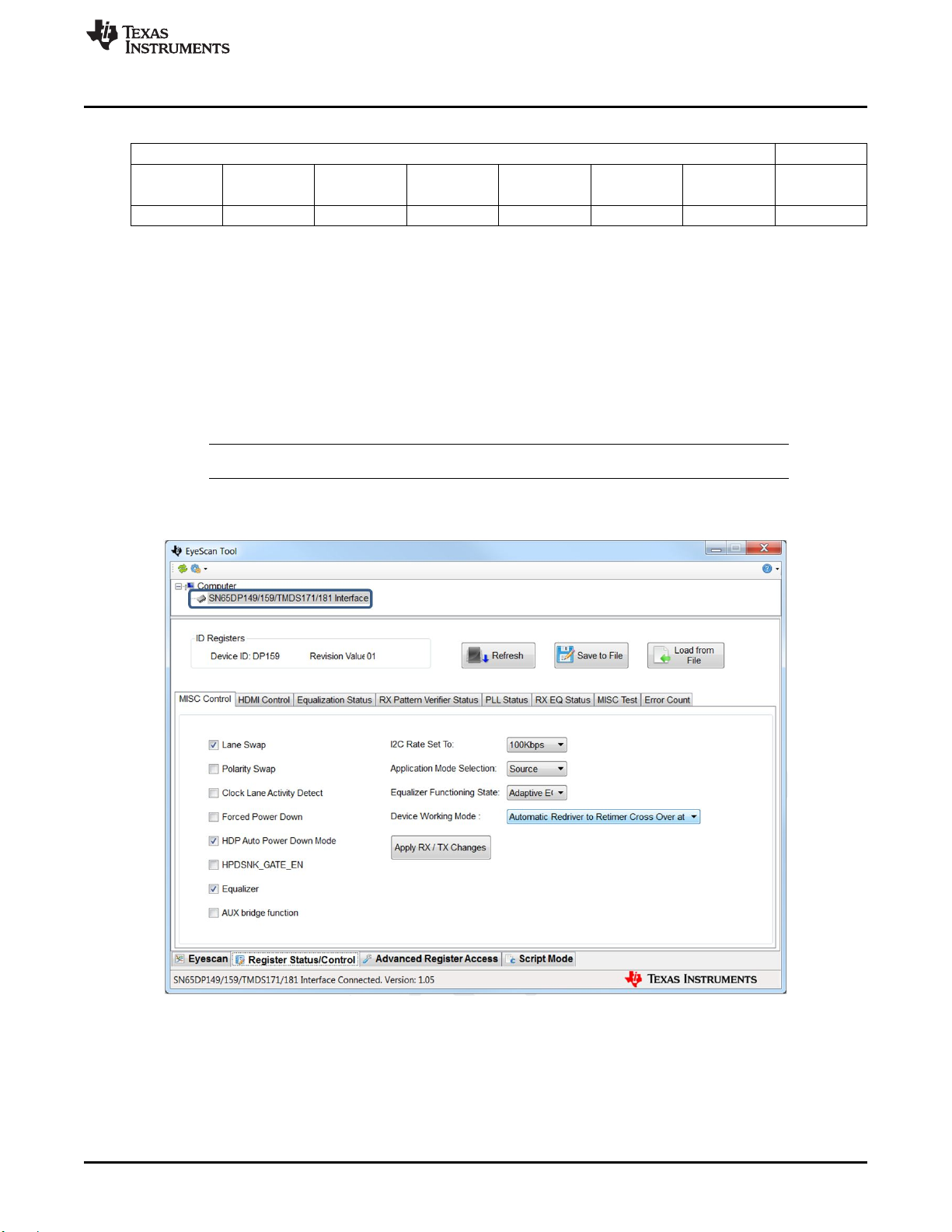

a USB TI Utility called Eye Scan. To use the utility:

• Install the Eye Scan software from Texas Instruments

• J6 must be set to SDA – SDA_USB

• J4 must be set to SCL – SCL_USB

• Attach USB micro cable to J13 and to the host computer

NOTE: The USB connection should be made prior to installing any DP or HDMI cables.

• Start the Eye Scan software

Figure 3 shows the Register Status / Control tab.

Figure 3. Register Status / Control Tab

Confirm that the SN65DP149/159/TMDS171/181 Interface is present and selected at the top. If it is not,

check the USB connection and confirm that the driver is loaded in Device Manager. It may take a moment

for the USB driver to load, if the DP159RSB does not appear, hit the Refresh button. This tab can be used

to read and write the status and control registers of the device.

Figure 4 shows the Eye Scan tab.

SLLU224 –August 2015 DP159RSB Evaluation Module

Hardware Description

www.ti.com

Figure 4. Eye Scan Tab

To run an Eye Scan, select the Eye Scan tab, select the relevant lanes, and press scan. Please note that

Eye Scan cannot be performed when the device is in retimer mode, it does not function in redriver mode.

2.8 Rsadj Potentiometer

The default Rsadj value on the DP159RSBEVM is 6.5 kΩ. The optimal value for an application may vary

from 4.7 kΩto 7 kΩ. To allow customers to test the effects of various Rsadj values, there is a

potentiometer on the EVM at R76. The Rsadj value can be varied by turning the knob and setting J8 to

[2,3].

3 Quick Start Guide

The following steps provide quick start instructions:

1. Connect USB cable from J13 to a USB host, set SW2 to 3. LED D2 should light up.

Option: Apply 5-V power to J9, set SW2 to 1. LED D2 should light up.

2. If using external I2C adapter instead of pin straps, please configure the DP159 at this step using J5 or

through the USB interface.

3. Plug in a DP source using a standard DP cable into J2 (Standard DP connector).

4. Plug in an HDMI video sink device into P2 (standard HDMI connector) using a standard HDMI cable.

5. Video output on HDMI sink should be observed.

4 References

1. DP159 Data Sheet

2. Aardvark Adapter User Manual

3. High-Definition Multimedia Interface Specification Version 1.4b.

4. High-Definition Multimedia Interface Specification Version 2.0.

8DP159RSB Evaluation Module SLLU224 –August 2015

Submit Documentation Feedback

www.ti.com

EVM Bill of Materials

5 EVM Bill of Materials

Table 4 lists the DP159RSBEVM BOM.

Table 4. DP159RSBEVM Bill of Materials

Item Qty Reference Part PCB Footprint Manufacturer Part Number

1 2 C1,C52 1 uF 603 Taiyo Yuden LMK107B7105KA-T

2 12 C9,C10,C17,C18,C19,C21,C 0.1uF 402 Yageo CC0402KRX5R6BB104

23,C29,C40,C46,C59,C60

3 5 C8,C20,C35,C36,C57 10uF 805 TDK C2012X5R1A106K125AB

63 1 C31 10uF 805 TDK C2012X5R1C106K085AC

4 8 C11,C12,C13,C14,C15,C16, 0.1uF 201 TDK C0603X5R0J104M

C24,C25

5 5 C22,C37,C41,C42,C47 0.01uF 402

6 1 C26 - DNI DNI_200nF 402

7 1 C27 18pF 402 AVX 04025A180JAT2A

8 1 C28 220pF 402

9 1 C30 220uF 7343 Kemet T491D227K016AT

10 1 C34 3.3 nF 402

11 1 C32 22uF 805

12 2 C39,C58 2.2uF 805

13 27 C38,R14,R15,R16,R17,R18, DNI 402 / 201

R19,R20,R21,R22,R23,R24,

R25,R31,R32,R34,R87,R92,

R93,R104,R120,R123,R134,

R135,R129,R130,R139,

14 2 C45,C49 22pF 402

15 2 C50,C51 33pF 402

16 1 D1 Zener 6V SOT23 Diodes Inc. MMBZ5233B-FDICT-ND

17 1 D2 LED Green 0805 805 Lite On LTST-C171GKT

18 1 JP1 JUMPER HDR_THVT_1x2_100

19 9 J1,J3,J4,J6,J7,J8,J10,J12,J1 HDR3X1 M .1 HDR_THVT_1x3_100 3M 961103-6404-AR

20 1 J2 Display_Port_Conne DISPLAYPORT Molex 47272-0001

ctor_Sink_0

21 1 J5 Header 5x2 0.1" con_thvt_shrd_2x5_100_m 3M N2510-6002-RB

thru-hole

22 1 J9 2.1 mm x 5.5 mm PJ-202AH CUI Inc. PJ-202AH (PJ-002AH)

23 1 J13 USB Micro B USB Micro B FCI 10103592-0001LF

24 12 LP5,LP6,LP7,LP8,LP9,LP10, LP TESTLOOP KOBIKONN 151-103-RC

LP11,LP12,LP13,LP15,LP16,

LP17

25 1 L1 2.2 uH 1008 TDK VLS252010ET-2R2M

26 1 L2 1 uH 1008 TDK NLCV25T-1R0M-EFR

27 4 L3, L4, L5, L6 CHOKE 805 Murata DLW21SN900HQ2L

28 1 P1 - DNI HDMI_IN CON_HDMI_RT_19_0p50mm Molex 471510001

29 1 P2 HDMI_OUT CON_HDMI_RT_19_0p50mm Molex 471510001

30 2 Q1,Q2 FDV301N_NFET_8 SOT23 Fairchild FD301N

V Semiconductor

31 8 R1,R2,R3,R4,R6,R7,R8,R9 50 201

32 1 R5 100 402

33 6 R10,R11,R99,R100,R101,R1 1K 402

34 3 R12,R27,R81 100K 402

35 1 R13 10 402

36 15 R33,R105,R106,R107,R108, 0 201

R109,R110,R111,R112,R124

,R125,R126,R136,R140,

R141

37 6 R28,R29,R45,R46,R58,R59 2K 402

SLLU224 –August 2015 DP159RSB Evaluation Module

EVM Bill of Materials

www.ti.com

Table 4. DP159RSBEVM Bill of Materials (continued)

Item Qty Reference Part PCB Footprint Manufacturer Part Number

38 7 R77,R80,R83,R84,R89, 0 402

R122,R131

39 1 R30 1M 402

40 10 R57,R60,R63,R64,R65,R66, 65K 402

R67,R68,R69,R70

41 1 R75 6.5K 402

42 1 R76 PTV09 10K POT THRUHOLE BOURNS PTV09A-4015F-B103

43 3 R78,R98,R102 10K 402

44 2 R79,R88 4.7K 402

45 1 R82 500 402

46 1 R85 750K 402

47 1 R86 240K 402

48 1 R90 1.87K 402

49 1 R91 4.99K 402

50 1 R94 1.5K 402

51 2 R95,R96 33 201

52 1 R103 15K 402

53 1 R115 47K 402

54 1 SW1 PB_SWITCH SW_MOM_2NO OMRON B3SN-3012P

55 1 SW2 3POS_SPDT THRUHOLE_3POS NKK Switches MS13ANW03

56 1 U10 DP159RSB 40_RSB TI

57 1 U3 TPS3808G30DBVT 6DBV TI TPS3808G30DBVT

58 1 U4 TPS62150A RGT16 TI TPS62150ARGTT

59 1 U6 TPS61240 6DRV TI TPS61240DRVT

60 1 U5 TPS74201RGWT RGW20 TI TPS74201RGWT

61 1 U7 TUSB3410 LQFP32 TI TUSB3410VF

62 1 U8 24LC256 8SOIC ON CAT24C256W

Semiconductor

64 1 U16 TPD2E001 drl_5pin TI TPD2E001

65 1 Y1 12 MHz Crystal ECX-32 ECS Inc. ECS-120-20-33-TR

10 DP159RSB Evaluation Module SLLU224 –August 2015

Submit Documentation Feedback

Autres manuels pour DP159RSB

Table des matières

Autres manuels Texas Instruments Carte mère

Texas Instruments

Texas Instruments AWR2944EVM Manuel utilisateur

Texas Instruments

Texas Instruments MMWAVE-DEVPACK Manuel utilisateur

Texas Instruments

Texas Instruments TMDSPREX28335 Manuel utilisateur

Texas Instruments

Texas Instruments AMC131M03EVM Manuel utilisateur

Texas Instruments

Texas Instruments SWIFT TPS54680EVM-228 Manuel utilisateur

Texas Instruments

Texas Instruments DRV2700EVM Manuel utilisateur

Texas Instruments

Texas Instruments Tiva TM4C1294 Manuel utilisateur

Texas Instruments

Texas Instruments TAS6424E-Q1 Manuel utilisateur

Texas Instruments

Texas Instruments TPS65270 Manuel utilisateur

Texas Instruments

Texas Instruments bq34z100EVM Manuel utilisateur

Texas Instruments

Texas Instruments TPS65910 EVM Manuel utilisateur

Texas Instruments

Texas Instruments DEM-OPA-SC-1A-EVM Manuel utilisateur

Texas Instruments

Texas Instruments ADS1158EVM Manuel utilisateur

Texas Instruments

Texas Instruments TPS563211 Manuel utilisateur

Texas Instruments

Texas Instruments TPS7A54EVM-031 Manuel utilisateur

Texas Instruments

Texas Instruments TPS543820EVM Manuel utilisateur

Texas Instruments

Texas Instruments bq26231EVM-001 Manuel utilisateur

Texas Instruments

Texas Instruments AFE4110 Manuel utilisateur

Texas Instruments

Texas Instruments DRV10963 Manuel utilisateur

Texas Instruments

Texas Instruments bqSWITCHER bq241 Series Manuel utilisateur

Texas Instruments

Texas Instruments AM574 Series Manuel utilisateur

Texas Instruments

Texas Instruments ADS54J40EVM Manuel utilisateur

Texas Instruments

Texas Instruments DRV2605 Manuel utilisateur

Texas Instruments

Texas Instruments bq24190 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
