Texas Instruments AWR1443 Manuel utilisateur

AWR1443, AWR1243 Evaluation Module

(AWR1443BOOST, AWR1243BOOST) mmWave

Sensing Solution

User's Guide

Literature Number: SWRU507A

May 2017–Revised May 2017

2SWRU507A–May 2017–Revised May 2017

Submit Documentation Feedback

Table of Contents

Contents

1 Trademarks......................................................................................................................... 4

2 Getting Started .................................................................................................................... 5

2.1 Introduction................................................................................................................ 5

2.2 Key Features.............................................................................................................. 5

2.3 What is Included.......................................................................................................... 5

3 Hardware ............................................................................................................................ 6

3.1 Block Diagram............................................................................................................ 8

3.2 Connecting BoosterPack™ to LaunchPad™ or MMWAVE-DEVPACK........................................... 8

3.3 Power Connections ...................................................................................................... 9

3.4 Connectors................................................................................................................ 9

3.5 PC Connection.......................................................................................................... 13

3.6 Antenna .................................................................................................................. 14

3.7 Jumpers, Switches, and LEDs ....................................................................................... 16

4 Design Files and Software Tools.......................................................................................... 18

4.1 Software, Development Tools, and Example Codes for AWR1443.............................................. 18

5 Mechanical Mounting of PCB............................................................................................... 18

6 PCB Storage and Handling Recommendations ...................................................................... 19

7 Regulatory Information ....................................................................................................... 19

Revision History.......................................................................................................................... 20

www.ti.com

SWRU507A–May 2017–Revised May 2017

List of Figures

1 EVM Front View.............................................................................................................. 6

2 EVM Rear View .............................................................................................................. 7

3 BoosterPack™ Block Diagram............................................................................................. 8

4 3V3 and 5-V Mark on the LaunchPad™ (White Triangle).............................................................. 8

5 Power Connector ............................................................................................................ 9

6 20-Pin BoosterPack™ Connectors (J5 and J6).......................................................................... 9

7 High Density Connector (60 Pin)......................................................................................... 11

8 CAN Connector............................................................................................................. 12

9 XDS110 Ports............................................................................................................... 13

10 PCB Antenna ............................................................................................................... 14

11 Antenna Pattern in H-Plane............................................................................................... 14

12 Antenna Pattern in E-Plane............................................................................................... 15

13 SOP Jumpers............................................................................................................... 16

14 Current Measurement Point............................................................................................... 16

15 Vertical Assembly of the EVM............................................................................................ 18

List of Tables

1 20-Pin Connector Definition (J5) ......................................................................................... 10

2 20-Pin Connector Definition (J6) ......................................................................................... 10

3 HD Connector Pin Definition.............................................................................................. 11

4 SOP Modes ................................................................................................................. 16

5 Push Buttons................................................................................................................ 17

6 LEDs ......................................................................................................................... 17

4SWRU507A–May 2017–Revised May 2017

Submit Documentation Feedback

AWR1443BOOST, AWR1243BOOST Evaluation Module mmWave Sensing

Solution

User's Guide

SWRU507A–May 2017–Revised May 2017

AWR1443BOOST, AWR1243BOOST Evaluation Module

mmWave Sensing Solution

1 Trademarks

BoosterPack, LaunchPad are trademarks of Texas Instruments.

ARM is a registered trademark of ARM Limited.

Windows is a registered trademark of Microsoft Corporation.

www.ti.com

Getting Started

SWRU507A–May 2017–Revised May 2017

AWR1443BOOST, AWR1243BOOST Evaluation Module mmWave Sensing

Solution

2 Getting Started

2.1 Introduction

The AWR1443 BoosterPack™ is an easy-to-use evaluation board for the single-chip AWR1443 mmWave

sensing device from TI, with direct connectivity to the TI MCU LaunchPad™ ecosystem. The evaluation

board contains everything needed to start developing on a low-power ARM®-R4F controller. The

evaluation board includes onboard emulation for programming and debugging, onboard buttons, and

LEDs, for quick integration of a simple user interface. The standard 20-pin BoosterPack headers make the

evaluation board compatible with a wide variety of TI MCU LaunchPads and enables easy prototyping.

The AWR1243 BoosterPack is an evaluation board for the AWR1243 mmWave high-performance front

end. The evaluation platform enables raw capture of ADC data from the front end and evaluation of RF

performance.

2.2 Key Features

• 40-pin LaunchPad standard that leverages the LaunchPad ecosystem

• XDS110-based JTAG emulation with serial port, for onboard QSPI flash programming (for AWR1443)

• Backchannel UART through USB to PC, for logging purposes

• Onboard antenna

• 60-pin high density (HD) connector, for raw ADC data over CSI, or the high-speed debug interface

• Onboard CAN transceiver (for AWR1443)

• One button and two LEDs, for user interaction

• 5-V power jack, to power the board

2.3 What is Included

2.3.1 Kit Contents

• AWR1443BOOST or AWR1243BOOST

• Mounting brackets, screws, and nuts, to allow placing the PCB vertical

• Micro USB cable to connect to the PC

NOTE: Not included: 5 V, >2.5-A supply brick with 2.1-mm barrel jack (center positive). TI

recommends using an external power supply that complies with applicable regional safety

standards such as UL, CSA, VDE, CCC, PSE, and so on. The cable length of the power cord

must be < 3 m.

2.3.2 mmWave Proximity Demo

TI provides sample demo codes to easily get started with the AWR1443 evaluation module and

experience the functionality of the AWR1443 mmWave sensor. For details on getting started with these

demos, see the mmWave SDK User Guide.

Onboard Antenna

AWR1443

Flash

60-Pin HD Connector

Hardware

www.ti.com

6SWRU507A–May 2017–Revised May 2017

Submit Documentation Feedback

AWR1443BOOST, AWR1243BOOST Evaluation Module mmWave Sensing

Solution

3 Hardware

Figure 1 and Figure 2 show the front and rear views of the evaluation board, respectively.

Figure 1. EVM Front View

Micro USB

Connector

PMIC

20-Pin LaunchPad

Connector (J6)

XDS110

20-Pin LaunchPad

Connector (J5)

Heat Sink Area

www.ti.com

Hardware

SWRU507A–May 2017–Revised May 2017

AWR1443BOOST, AWR1243BOOST Evaluation Module mmWave Sensing

Solution

Figure 2. EVM Rear View

AWR1443/

AWR1243

Power and 2 GPIO

LED Indicators

4 RX and 3 TX PCB Antennas

PMIC

LDO1

LDO2

QSPI

Flash

EN Control

from the MCU

Current

Measurement

5 V i/p

from jack/

MCU

Option for 3.3 V from

the MCU LaunchPad

2.3 V 1.8 V

1.3 V

1.8 V

1.2 V

3.3 V (IO)

60-Pin

CSI2I/ LVDS Lanes

JTAG + Trace

Mhz

BP CONN

UART and JTAG

SPI, UART, I2C,

Rst, Nerrs, SOP,

Loggers, CAN,

GPIOs

XDS110

PC Interface

Over USB

CAN

SOP

Jumpers

Hardware

www.ti.com

8SWRU507A–May 2017–Revised May 2017

Submit Documentation Feedback

AWR1443BOOST, AWR1243BOOST Evaluation Module mmWave Sensing

Solution

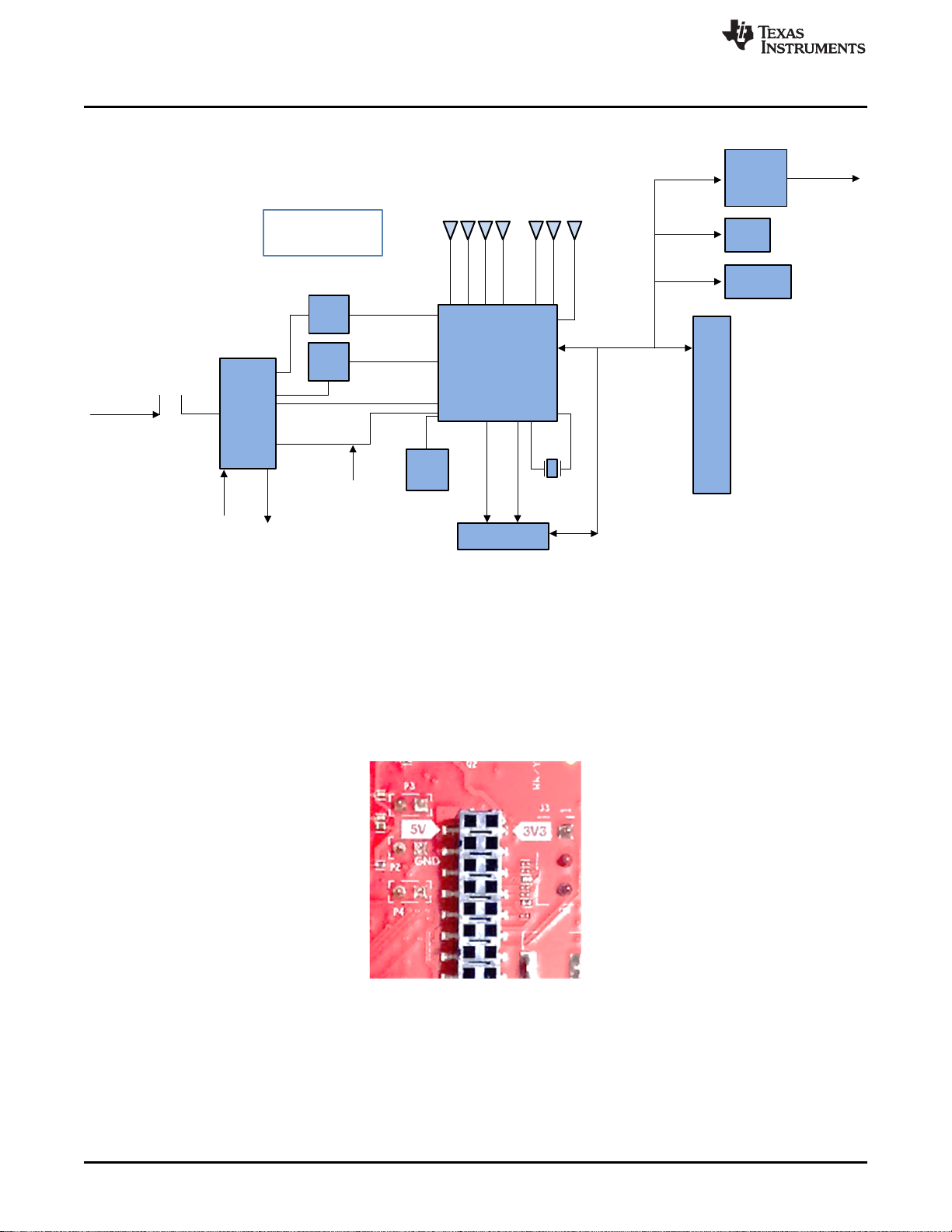

3.1 Block Diagram

Figure 3. BoosterPack™ Block Diagram

3.2 Connecting BoosterPack™ to LaunchPad™ or MMWAVE-DEVPACK

This BoosterPack can be stacked on top of the Launchpad, or the MMWAVE-DEVPACK, using the two

20-pin connectors. The connectors do not have a key to prevent the misalignment of the pins or reverse

connection. Therefore, ensure reverse mounting does not take place. On the AWR1443 BoosterPack, we

have provided 3V3 marking near pin 1 (see Figure 4). This same marking is provided on compatible

LaunchPads which must aligned before powering up the boards.

Figure 4. 3V3 and 5-V Mark on the LaunchPad™ (White Triangle)

www.ti.com

Hardware

SWRU507A–May 2017–Revised May 2017

AWR1443BOOST, AWR1243BOOST Evaluation Module mmWave Sensing

Solution

3.3 Power Connections

The BoosterPack is powered by the 5-V power jack (>2.5-A current limit). As soon as the power is

provided, the NRST and 5-V LEDs glow, indicating that the board is powered up (see Figure 5).

Figure 5. Power Connector

NOTE: After the 5-V power supply is provided to the EVM, TI recommends pressing the NRST

switch (SW2) once to ensure a reliable boot up state.

3.4 Connectors

3.4.1 20-Pin BoosterPack™ Connectors

The BoosterPack has the standard LaunchPad connectors (J5 and J6) which enable the BoosterPack to

be directly connected to all TI MCU LaunchPads (see Table 1). While connecting the BoosterPack to other

LaunchPads, ensure the pin 1 orientation is correct by matching the 3V3 and 5-V signal marking on the

boards (see Figure 6).

Figure 6. 20-Pin BoosterPack™ Connectors (J5 and J6)

Hardware

www.ti.com

10 SWRU507A–May 2017–Revised May 2017

Submit Documentation Feedback

AWR1443BOOST, AWR1243BOOST Evaluation Module mmWave Sensing

Solution

Table 1 and Table 2 provide the connector-pin information.

Table 1. 20-Pin Connector Definition (J5)

Pin Number Description Pin Number Description

1 NERROUT 2 GND

3 NERRIN 4 NC

5 MCUCLK OUT 6 SPI_CS

7 NC 8 GPIO1

9 MSS LOGGER 10 nRESET

11 WARMRST 12 SPI_MOSI

13 BSS LOGGER 14 SPI_MISO

15 SOP2 16 HOSTINT

17 SOP1 18 GPIO2

19 SOP0 20 NC

Table 2. 20-Pin Connector Definition (J6)

Pin Number Description Pin Number Description

1 5 V 2 3V3

3 GND 4 GND

5 ANA1 6 RS232TX (Tx from IWR

device)

7 ANA2 8 RS232RX (Rx into IWR device)

9 ANA3 10 SYNC_IN

11 ANA4 12 NC

13 PGOOD (onboard VIO) 14 SPI_CLK

15 PMIC Enable 16 GPIO0

17 SYNC_OUT 18 SCL

19 PMIC CLK OUT 20 SDA

• PGOOD – This signal indicates the state of the onboard VIO supply for the AWR device coming from

the onboard PMIC. A high on the PGOOD signal (3.3 V) indicates that the supply is stable. Because

the IOs are not failsafe, the MCU must ensure that it does not drive any IO signals to the AWR device

before this IO supply is stable. Otherwise, there could be leakage current into the IOs.

• PMIC Enable – This signal goes onboard PMIC enable. The MCU can use this signal to completely

shut down the PMIC and AWR device to save power. The power up of the PMIC takes approximately 5

ms once the Enable signal is released.

NOTE: To enable this feature, the R102 resister must be populated on the EVM.

• ANA1/2/3/4 – These are inputs to the GPADCs (general purpose ADC) available on the AWR1443

device.

Autres manuels pour AWR1443

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Texas Instruments Unité de contrôle

Texas Instruments

Texas Instruments LED171596AEVM Manuel utilisateur

Texas Instruments

Texas Instruments TPA3101D2 Manuel utilisateur

Texas Instruments

Texas Instruments DLPDLCR660TEVM Manuel utilisateur

Texas Instruments

Texas Instruments TPS55165Q1-EVM Manuel utilisateur

Texas Instruments

Texas Instruments TAS6424R-Q1 Manuel utilisateur

Texas Instruments

Texas Instruments BQ24180 Manuel utilisateur

Texas Instruments

Texas Instruments TSU6721EVM Manuel utilisateur

Texas Instruments

Texas Instruments BoosterPack BOOSTXL-ADS1119 Manuel utilisateur

Texas Instruments

Texas Instruments LP-MSPM0C1104 Manuel utilisateur

Texas Instruments

Texas Instruments DS160PR412-421EVM Manuel utilisateur

Texas Instruments

Texas Instruments ADS8555EVM-PDK Manuel utilisateur

Texas Instruments

Texas Instruments Piccolo F280049C Manuel utilisateur

Texas Instruments

Texas Instruments ADC12DJ3200 Manuel utilisateur

Texas Instruments

Texas Instruments BoosterPack BOOSTXL-ADS7142-Q1 Manuel utilisateur

Texas Instruments

Texas Instruments CDCM9102EVM Manuel utilisateur

Texas Instruments

Texas Instruments bq27 10EVM Series Manuel utilisateur

Texas Instruments

Texas Instruments bq24153A Manuel utilisateur

Texas Instruments

Texas Instruments TLC5540 Manuel utilisateur

Texas Instruments

Texas Instruments BQ76905 Manuel utilisateur

Texas Instruments

Texas Instruments bq25600 Manuel utilisateur

Texas Instruments

Texas Instruments LM48580 Manuel utilisateur

Texas Instruments

Texas Instruments TPS7A78 Manuel utilisateur

Texas Instruments

Texas Instruments TPS53119EVM-690 Manuel utilisateur

Texas Instruments

Texas Instruments XIO2001 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
