EVM User's Guide: BQ25185EVM

BQ25185 Evaluation Module

Description

The BQ25185 evaluation model (EVM) is designed

to evaluate and test various operating modes

of the BQ25185. The EVM is designed for a

complete test friendly evaluation with visual indicators.

The BQ25185 is an integrated battery charge

management IC that integrates most common

functions for solar based industrial devices with

rechargeable batteries: linear charging, regulated

output, Factory mode, and battery tracking VINDPM.

Features

• 1-A linear battery charger

• Resistor configurable battery regulation voltage

with 0.5% accuracy

• Thermal charging profile with configurable Hot,

and Cold thresholds

• Power Path management for powering the system

and charging the battery

• 4-uA Factory mode for maximizing battery shelf life

• Resistor programmable pins VSET/ILIM and ISET

• Status Pins, STAT1 and STAT2 to show device

status

• Test points for easy probing

• On-board resistances for minimal test setup

Figure 1-1. BQ25185EVM Hardware Board

Caution

Caution hot surface

Contact can cause burns

Do not touch!

Some components may reach high temperatures >55°C when the board

is powered on. The user must not touch the board at any point during

operation or immediately after operating, as high temperatures may be

present.

www.ti.com Description

SLUUCS1 – OCTOBER 2023

Submit Document Feedback

BQ25185 Evaluation Module 1

1 Evaluation Model Overview

1.1 Introduction

The BQ25185EVM is an evaluation kit for the BQ25185 battery charge management IC. The BQ25185 is

a resistor controlled, wide-input operating range 1-A linear battery charger with Power Path in a small QFN

package with a thermal pad. The BQ25185 integrates the most common functions for industrial and personal

electronics applications and provides ultra-low IQ, integrated protections, resistor configurability, TS monitoring,

and best thermal performance in a small solution size.

The BQ25185EVM can be evaluated using a micro-USB input and a battery with a 2-pin JST connector. The

EVM contains pin headers are provided to connect with power supplies to simulate charging operation. With

on-board potentiometers, jumpers, switches, and terminal blocks, different battery charger parameters can be

configured. For specific parameters, review the datasheet for how to configure the device.

1.2 Kit Contents

This EVM kit includes:

• 1 x BQ25185EVM

1.3 Specifications

The BQ25185 EVM has the following features:

• 1 cell battery charging with power path management

• Up to 1A charging

• Input voltage operating range from 3.6 V to 18 V

1.4 Device Information

This user's guide provides detailed testing instructions for the BQ25185 evaluation module (EVM). Also included

are descriptions of the necessary equipment, equipment setup, procedures, the printed-circuit board layouts,

schematics, and the bill of materials (BOM).

Throughout this user's guide, the abbreviation EVM, BQ25185EVM, and the term evaluation module are

synonymous with the BQ25185 evaluation module, unless otherwise noted.

2 Hardware

2.1 EVM Setup

Table 2-1 lists the jumper connections and the jumper description.

Table 2-1. Jumper Descriptions

Jumper

Name Description Factory Setting

J1 VIN and GND connector. Input voltage from external power

supply. Recommended voltage is 5 V and OVP is 18.5 V.

Max input voltage is 25 V while in OVP.

Not installed

J2 VBAT and GND connector. Battery connection using jumper

for easy access.

Not installed

J3 VSYS and GND connector. Not installed

J4 /CE connector. Connects /CE pin to higer if populated. Leave

floating for low.

Installed

J5 Battery pack connector. Battery connection using JST

header.

N/A

J6 Micro-USB connector (optional for VIN) N/A

J7 TS potentiometer connector. Connects TS potentiometer to

TS pin. Leaving this jumper will leave the TS pin open.

Installed

Evaluation Model Overview www.ti.com

2BQ25185 Evaluation Module SLUUCS1 – OCTOBER 2023

Submit Document Feedback

Table 2-1. Jumper Descriptions (continued)

Jumper

Name Description Factory Setting

J8 SYS to LDO connection. Populating this jumper will power

the LDO by the BQ25185 SYS pin

Not installed

J9 STAT1 and STAT2 pull-up connection. Populating this jumper

will pull STAT1 and STAT2 to an on-board 3V3 LDO.

Installed

J12 Connects the ISET pin. Connect to FXD setting for a 750 Ω

connection. Connect to ADJ to connect the ISET pin to the

ISET potentiometer R14

FXD

Figure 2-1 shows the various connections and features on the device.

VIN

VBAT

TS/MR Push Bu



on ILIM Resistance selector

ISET

poten



ometer

TS poten



ometer

Figure 2-1. EVM Connections

Table 2-2 lists the recommended operating conditions.

Table 2-2. Recommended Operating Conditions

MIN NOM MAX UNIT

VBAT Battery voltage range 2.2 4.6 V

VIN Input voltage range 3.3 18 V

IIN Input current range (IN to SYS) 1.1 A

IBAT Battery discharge current (BAT to SYS) 3.125 A

TAOperating ambient temperature range -40 85 °C

TJOperating junction temperature range -40 125 °C

2.2 EVM Connectors and Test Points

Table 2-3 describes the test points available on the board for easy access measurement.

Table 2-3. Test Point Descriptions

Test Point Description

TP1, TP2, TP3, TP14, TP16, TP18 IC GND test point

www.ti.com Hardware

SLUUCS1 – OCTOBER 2023

Submit Document Feedback

BQ25185 Evaluation Module 3

Table 2-3. Test Point Descriptions (continued)

Test Point Description

TP4, TP15 IC VIN test point

TP5, TP17 IC VSYS test point

TP6 IC STAT1 test point

TP7, TP13 IC VBAT test point

TP8 IC ISET test point

TP9 IC STAT2 test point

TP10 IC VSET/ILIM test point

TP11 IC TS/MR test point

TP12 IC /CE test point

3 Testing Procedures

3.1 Equipment

This section includes a list of supplies recommended to perform tests on this EVM.

1. Two Power Supplies: Keithley 2400 Power Supply or equivalent

a. Power Supply #1 (PS #1) will be used as input voltage

b. Power Supply #2 (PS #2) will be used as battery voltage

2. Four Channel Oscilloscope: To monitor voltages at VIN, VBAT, and VSYS at least

a. Channel 1 (SC #1) will be used to probe VIN

b. Channel 2 (SC #2) will be used to probe VBAT

c. Channel 3 (SC #3) will be used to probe VSYS

3.2 Charge Mode

Connect the equipment as follows:

• Power Supply PS #1: VIN of the BQ25185EVM at 5 V

• Power Supply PS #2: VBAT of the BQ25185EVM at 3.7 V

• Scope Channel SC#1: VIN at TP4

• Scope Channel SC#2: VBAT at TP7

• Scope Channel SC#3: VSYS at TP5

Procedure:

1. Connect 13 kOhm resistor using S1 switch box. Verify that the resistance from VSET/ILIM pin to GND is

13kOhm

a. This sets the battery regulation voltage to 4.2 V and the input current limit to 1100 mA

2. Measure the resistance from ISET to GND.

a. The resulting fast charge current will follow the equation:

3. Power on PS #1

a. Verify that the voltage at VSYS is about 4.5 V

4. Power on PS #2

a. Verify that current going into PS#2 is the configured charge current

b. Another method is to use the voltage at the ISET pin. The voltage at the ISET pin

To change the charge current:

1. Use the equation Ichg = 300/RIset (AΩ/Ω)

2. Measure the Resistance on the Iset pin

3. Adjust the R14 potentiometer to get the right RIset for your desired ICHG

Testing Procedures www.ti.com

4BQ25185 Evaluation Module SLUUCS1 – OCTOBER 2023

Submit Document Feedback

4. Move the jumper on JP1 to the ADJ position

Note

The ISET resistance should only be measured when the device is powered off but the ISET

potentiometer can be adjusted during operation.

To adjust the charge voltage (VSET) and input current limit (ILim):

1. Refer to the VSET and IILIM table in the datasheet to see how the resistance on the IILIM pin affects the

VBATREG and ILim

2. Adjust R15-R18 on S1 to set the correct resistance for your desired VSET and ILim

3. Turn off and on PS#1

Note

The device will change the VSET/ILIM setting each time a new charge cycle is started (when VIN is

plugged in and when /CE is pulled low).

3.3 Factory Mode Entry and Exit

To enter the Factory Mode state, connect the equipment as follows:

• Power Supply PS#1: VIN for the BQ25185EVM at 5V

• Power Supply PS #2: VBAT of the BQ25185EVM at 3.7 V

• Scope Channel SC #1: VIN at TP4

• Scope Channel SC #2: VBAT at TP7

• Scope Channel SC #3: VSYS at TP5

• Scope Channel SC #4: TS/MR at TP11

Procedure

1. Power on PS#2. VSYS should rise to about 3.7 V

2. Power on PS#1. VSYS should rise to 4.5V

3. Press SW1 (the pushbutton on the EVM) for at least 10 seconds

4. Release SW1

5. Disconnect or power off PS#1 from the BQ25185EVM.

6. Observe VSYS pulldown to 0 V

7. After confirming 0 V on VSYS, you may exit Factory mode by inserting VIN ( > VUVLO)

www.ti.com Testing Procedures

SLUUCS1 – OCTOBER 2023

Submit Document Feedback

BQ25185 Evaluation Module 5

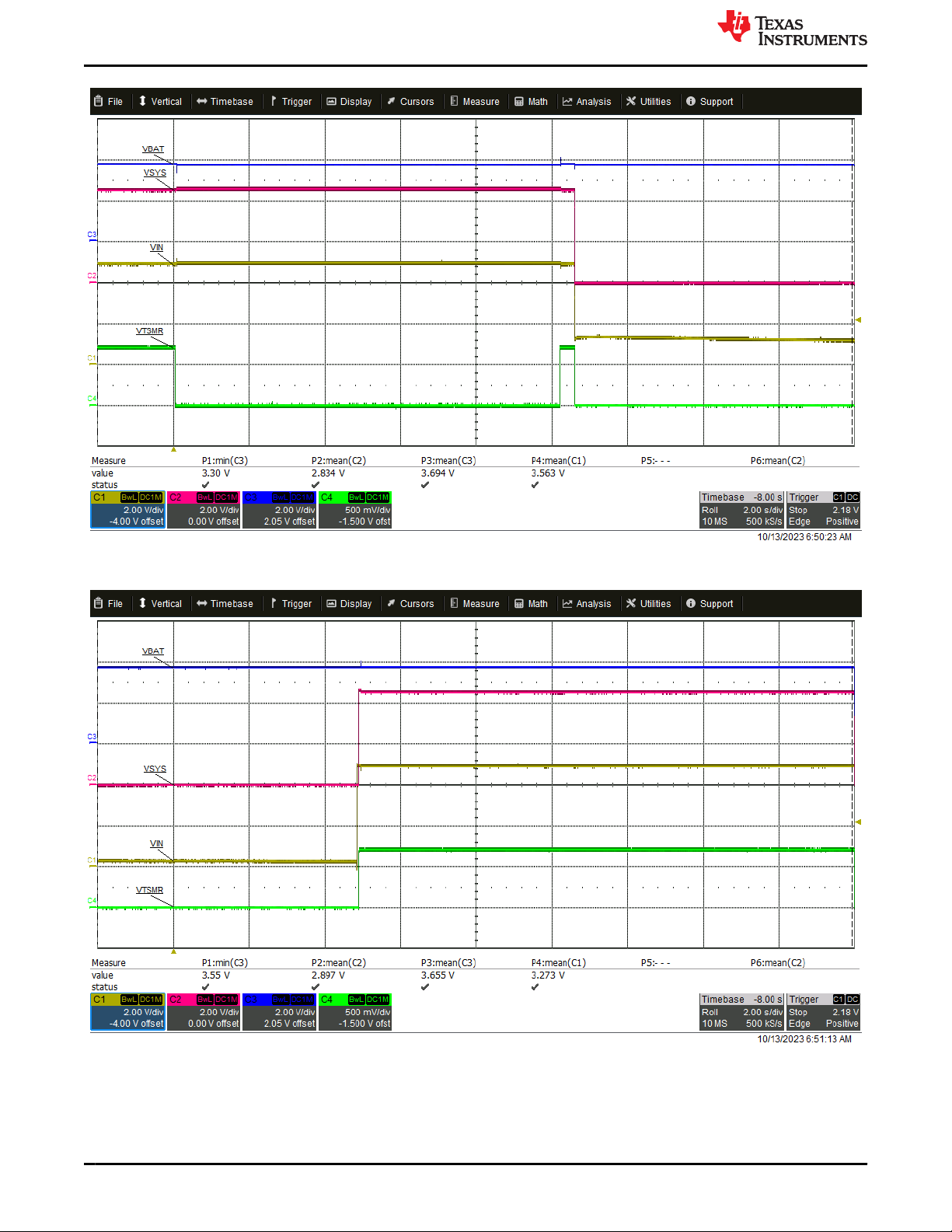

Figure 3-1. Enter Factory Mode on VIN removal

Figure 3-2. Exit Factory Mode with VIN insertion

4 Hardware Design Files

Hardware Design Files www.ti.com

6BQ25185 Evaluation Module SLUUCS1 – OCTOBER 2023

Submit Document Feedback

4.1 Schematics

Figure 4-1. BQ25185EVM Schematic

www.ti.com Hardware Design Files

SLUUCS1 – OCTOBER 2023

Submit Document Feedback

BQ25185 Evaluation Module 7

4.2 Layout

Figure 4-2 through Figure 4-7 show the EVM PCB layout images.

Figure 4-2. Top Overlay Figure 4-3. Top Solder

Figure 4-4. Top Layer Figure 4-5. Bottom Layer

Figure 4-6. Bottom Solder Figure 4-7. Bottom Overlay

Hardware Design Files www.ti.com

8BQ25185 Evaluation Module SLUUCS1 – OCTOBER 2023

Submit Document Feedback

Figure 4-8. Board Dimensions

www.ti.com Hardware Design Files

SLUUCS1 – OCTOBER 2023

Submit Document Feedback

BQ25185 Evaluation Module 9

4.3 Bill of Materials

The Bill of Materials is shown in the following table.

Table 4-1. Bill of Materials

Designator Quantity Value Description PackageReference PartNumber Manufacturer

C1, C5 2 2.2uF CAP, CERM, 2.2 uF, 25 V,

+/- 10%, X5R, 0402 402 C1005X5R1E225K050BC TDK

C2 1 0.1uF CAP, CERM, 0.1 uF, 25 V,

+/- 10%, X5R, 0402 402 GRM155R61E104KA87D MuRata

C3 1 10uF CAP, CERM, 10 µF, 10

V,+/- 20%, X5R, 0402 402 CL05A106MP8NUB8 Samsung Electro-

Mechanics

C4 1 1uF CAP, CERM, 1 uF, 35 V,

+/- 10%, JB, 0402 402 C1005JB1V105K050BC TDK

C6 1 1uF CAP, CERM, 1 µF, 10

V,+/- 20%, X5R, 0402 402 CC0402MRX5R6BB105 Yageo America

C7 1 4700pF CAP, CERM, 4700 pF, 50

V, +/- 5%, X7R, 0603 603 C0603C472J5RACTU Kemet

D1, D2 2 Green LED, Green, SMD 1.6x0.8x0.8mm LTST-C190GKT Lite-On

J4, J7, J8, J9 4 Header, 100mil, 2x1, Tin,

Header, 2 PIN, 100mil,

Tin PEC02SAAN Sullins Connector

Solutions

J5 1 Header (shrouded), 2mm,

2x1, R/A, SMT Header, 2x1, 2mm, R/A S2B-PH-SM4-TB(LF)(SN) JST Manufacturing

J6 1 Receptacle, USB 3.1

Type C, R/A, Gold, SMT

Receptacle, USB 3.1

Type C, R/A, SMT DX07S024JJ2R1300 JAE Electronics

J11, J12, J13, J14, J15 5 Terminal Block, 2x1,

2.54mm, TH

Terminal Block, 2x1,

2.54mm, TH 282834-2 TE Connectivity

J12 1 Header, 100mil, 3x1, Tin,

Header, 3 PIN, 100mil,

Tin PEC03SAAN Sullins Connector

Solutions

LBL1 1

Thermal Transfer

Printable Labels, 0.650"

W x 0.200" H - 10,000 per

roll

PCB Label 0.650 x 0.200

inch THT-14-423-10 Brady

R1 1 10.0k RES, 10.0 k, 1%, 0.063

W, 0402 402 RC0402FR-0710KL Yageo America

Hardware Design Files www.ti.com

10 BQ25185 Evaluation Module SLUUCS1 – OCTOBER 2023

Submit Document Feedback

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Texas Instruments Matériel informatique

Texas Instruments

Texas Instruments EDMA3 Manuel utilisateur

Texas Instruments

Texas Instruments TPS7H4003EVM Manuel utilisateur

Texas Instruments

Texas Instruments TMS320DM646x Manuel utilisateur

Texas Instruments

Texas Instruments BQ28Z610-R2 Manuel du produit

Texas Instruments

Texas Instruments TRF0206-SP Manuel utilisateur

Texas Instruments

Texas Instruments DS125RT410 Manuel utilisateur

Texas Instruments

Texas Instruments TMS320*2801 Series Manuel utilisateur

Texas Instruments

Texas Instruments TMS320C55 Series Manuel utilisateur

Texas Instruments

Texas Instruments LM95172EVM Manuel utilisateur

Texas Instruments

Texas Instruments PGA450Q1EVM Manuel utilisateur

Texas Instruments

Texas Instruments F280025 Manuel utilisateur

Texas Instruments

Texas Instruments Piccolo F280049 Manuel utilisateur

Texas Instruments

Texas Instruments DAC38RF8x Manuel utilisateur

Texas Instruments

Texas Instruments LM38020QEVM Manuel utilisateur

Texas Instruments

Texas Instruments TMS320 Series Manuel utilisateur

Texas Instruments

Texas Instruments PGA309EVM Manuel utilisateur

Texas Instruments

Texas Instruments TI TestGuard 4.0 Manuel

Texas Instruments

Texas Instruments AM57 Series Manuel utilisateur

Texas Instruments

Texas Instruments TLV320AIC3101EVM Manuel utilisateur

Texas Instruments

Texas Instruments EZShunt INA740 Manuel utilisateur

Texas Instruments

Texas Instruments THS3115 EVM Manuel utilisateur

Texas Instruments

Texas Instruments TMS320C2 Series Manuel utilisateur

Texas Instruments

Texas Instruments TMS320 DSP Manuel utilisateur

Texas Instruments

Texas Instruments Serial Programming Adapter MSP430 Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
