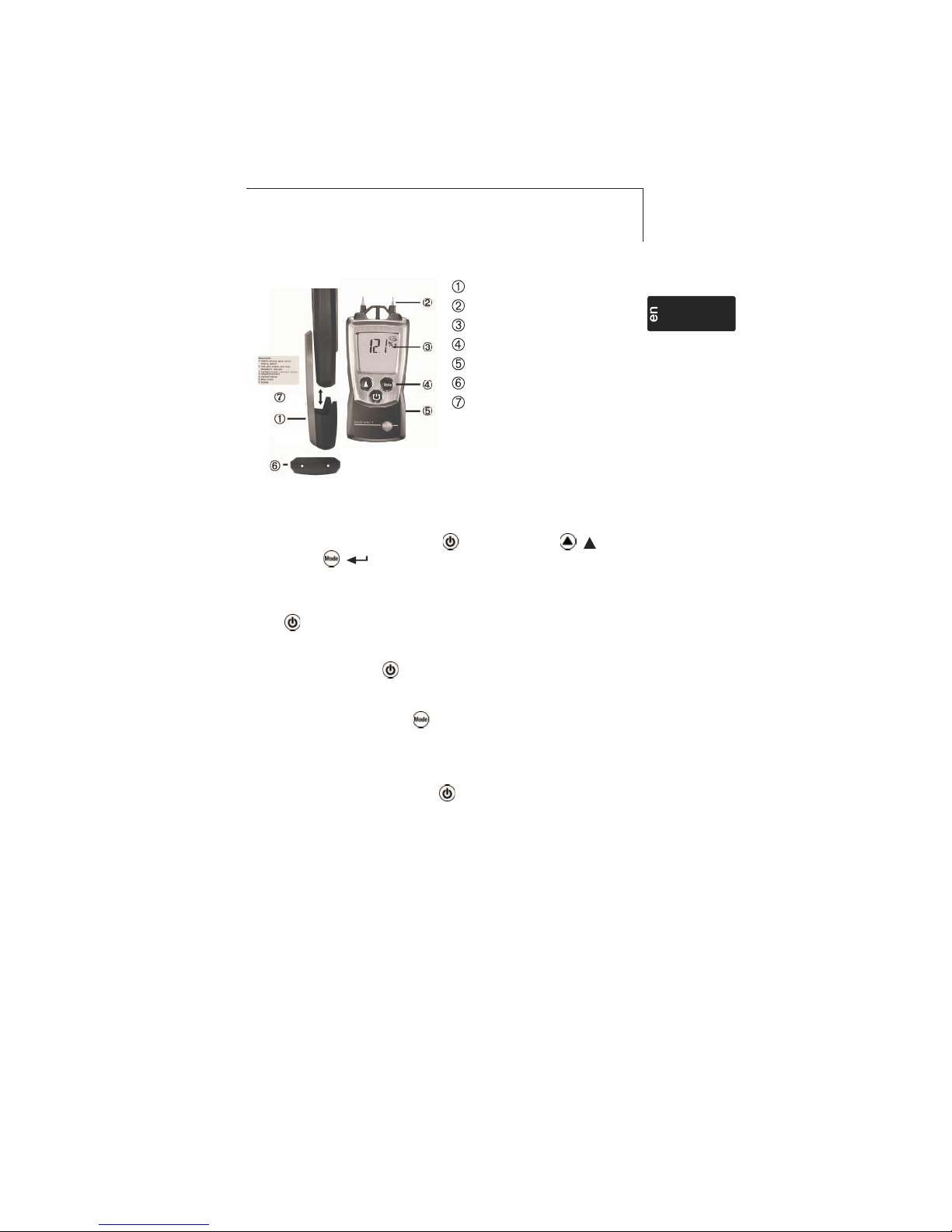

Short manual testo 606-1

Protection cap: Park position

Sensing electrodes

Display

Control keys

Battery compartment (on rear)

Test resistance contact

List of settable materials, for

sticking into the protective cap

Basic settings

Instrument off > press and hold 2s > select with ( ),

confirm with ( ):

Auto off-Funktion: OFF,ON

Switching the instrument on

Press .

Switching the display light on (for 10s)

Instrument on > press

Select display mode

Instrument on > select with :

Current reading > Hold: Readings are held

Switching the instrument off:

Instrument on >press and hold 2s.

Short manual testo 606-1

Safety and the enviroment

Safety and the environment

About this document

> Please read this documentation through carefully and

familiarise yourself with the product before putting it to use.

Keep this document to hand so that you can refer to it when

necessary. Hand this documentation on to any subsequent

users of the product.

> Pay particular attention to information emphasised by the

following symbols:

With the signal word Caution!:

Warns against hazards which could result in minor

physical injury or damage to equipment if the

precautionary measures indicated are not taken.

Important.

Avoid personal injury/damage to equipment

>Only operate the measuring instrument properly, for its

intended purpose and within the parameters specified in the

technical data. Do not use force.

>Never store the product together with solvents, acids or other

aggressive substances.

>Only carry out the maintenance and repair work that is

described in the documentation. Follow the prescribed steps

when doing so. Use only OEM spare parts from Testo.

Protecting the environment

>Take faulty rechargeable batteries as well as spent batteries to

the collection points provided for them.

>Send the product back to Testo at the end of its useful life. We

will ensure that it is disposed of in an environmentally friendly

manner.

12

Specification

Specifications

Functions and use

The testo 606-1 is a material moisture measuring instrument. It

is normally used to determine the material moisture content in

wood or building materials. The measurement procedure used

is suitable for overview measurement to determine whenther the

material is continuing to dry out. The material moisture is given in

% by weight.

Technical data

Measurement data

· Sensors:

Electrical resistance (conductivity

measurement), Testo humidity sensor,

NTC temperature sensor

· Parameters:

% by weight material moisture (wood,

building materials),

· Measuring ranges:

See chapter Using the Product

· Resolutions:

0.1 %

· Accuracies (Nominal temperature

25 °C, ±1 Digit):

Conductivity measurement ±1 %,

· Measuring rate:

0.5 s, humidity: 1s

Further instrument data

· Protection class: IP20

· Ambient conditions:

-10...50 °C, 14...122 °F

· Storage/transport conditions:

-40...70 °C, -40...158 °F

· Voltage supply:

2x 1.5 V type AAA

· Battery life:

130 h (without display light)

· Dimensions:

119x46x25mm / 4.69x1.81x0.98 (inc.

protection cap)

· Weight: 90 g / 3.2 oz (inc. batteries and

protection cap)

Examinations and licenses

· As declared in the Certificate of

Conformity, this product complies with

Directive 2004/108/EC.

Warranty

· Duration: 2 years, warranty conditions:

see www.testo.com/warranty

13

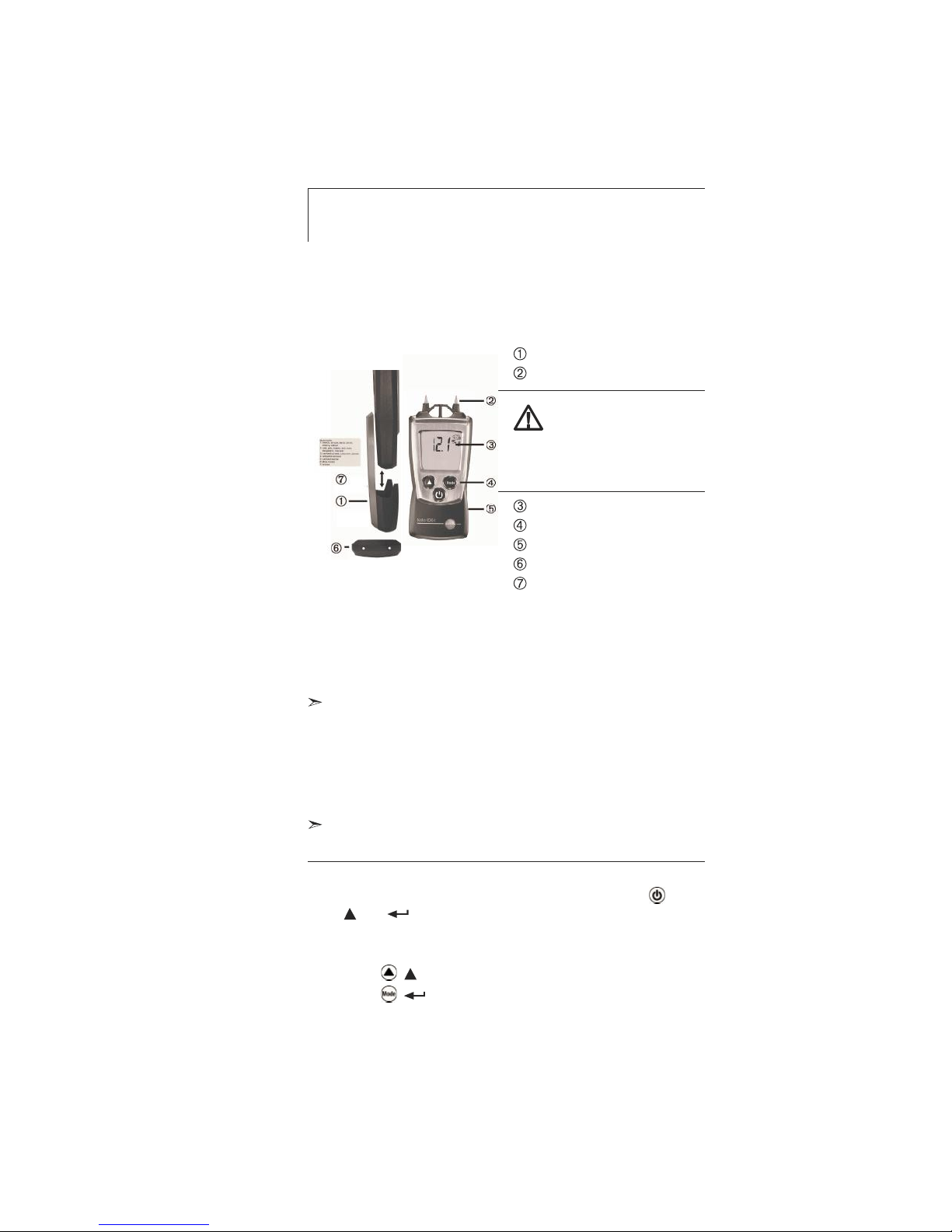

Product description

Product description

At a glance

Protection cap: Park position

Sensing electrodes

Caution! Risk of injury

from sensing electrodes!

>Attach protection cap when

not in use.

Display

Control keys

Battery compartment (on rear)

Test resistance contact

List of settable materials, for

sticking into the protective cap

First steps

Inserting batteries:

1 To open the battery compartment, push the battery cover

down.

2 Insert batteries (2x 1.5 V type AAA). Observe the polarity!

3 To close the battery compartment, push the battery cover

back on.

Basic settings (configuration mode):

Adjustable functions

· Auto off function: OFF,ON (instrument switches off automatically if no key is

pressed for 10 minutes)

1 When switching the instrument on, press and hold until

and appear on the display (configuration mode).

- The adjustable function is displayed. The current setting

flashes.

2 Press ( ) several times until the desired setting flashes.

3 Press ( ) to confirm the input.

- The instrument changes to measuring mode.

14

Using the product

Using the product

To guarantee correct readings:

· Repeat the measurement at several points. The differing

resistance of the wood, with or across the grain, may have

an impact on the measurement result. If the injection needles

are inserted with the grain, this may result in slightly higher

readings because the resistance in the material is lower.

· A measurement is only implemented as far as the depth that

the injection needles are inserted within the material. Insert

the measuring needles as far as possible (4 to 5 mm).

· When measuring fuel moisture content, it is advisable to split

the log prior to measurement and to measure at three points.

Measuring points: each 5 cm away from the left and right cut

edge and once in the centre of the log.

The values displayed are highly dependent on the building

material/manufacturer used, and on the ambient conditions .

As the materials are natural, the same materials can vary from

batch to batch.

Switching the instrument on:

> Press .

- Measuring mode is opened.

Switching the display light on:

The instrument is switched on.

> Press .

- The display light goes out automatically if no key is

pressed for 10 seconds.

Setting the material characteristic curve:

The material moisture is indicated in the top line of the

display. The material symbol (wood) or (building

material) is displayed with the relevant material number (see

enclosed sticker for the inside of the protective cap).

Settable materials Measuring range

1. beech, spruce, larch, birch, cherry, walnut 8.8...54.8 % by weight

2. oak, pine, maple, ash-tree, douglas fir, meranti 7.0...47.9 % by weight

3. cement screed, concrete 0.9...22.1 % by weight

4. anhydrite screed 0.0...11.0 % by weight

5. cement mortar 0.7...8.6 % by weight

6. lime mortar, plaster 0.6...9.9 % by weight

7. bricks 0.1...16.5 % by weight

15

Using the product

> Press several times until the desired material

characteristic curve appears.

Testing the instrument function:

1 Press several times until Test: lights up.

2Connect sensing electrodes with the contacts of the test

resistor on the top of the protection cap.

-Test flashes.

-Test: ok lights up: instrument is functioning.

Test: ok does not light up: test not possible, see chapter

Tips and assistance.

3 Press back to measurement menu.

Changing the display view:

Adjustable views

· Current reading

·Hold: Readings are held.

> Press until the desired view appears.

Switching the instrument off:

> Press and hold until the display goes out.

Maintaining the product

Changing batteries:

1 To open the battery compartment, push the battery cover

down.

2 Remove used batteries and insert new batteries

(2x 1.5 V type AAA). Observe the polarity!

3 To close the battery compartment, push the battery cover

back on.

Cleaning the housing:

> Clean the housing with a moist cloth (soap suds) if it is dirty.

Do not use aggressive cleaning agents or solvents!

16

Tips and assistance

Tips and assistance

Questions and answers

Question Possible causes/solutions

Hi or Lo · Readings outside the measuring range (too high, too ·

low): Readings outside the measuring range (too

high, too low): for materials that have not been

specially dried or moistened, the measurement

results should always be within the measuring range.

· Residual capacity <10 min: Change batteries.

Testing the instrument

function: Test: ok does

not light up · Clean sensing electrodes and contacts on the top

of the protection cap.

· If the error message appears again, send the

instrument to Testo Customer Service.

Meas. electrodes defective/

worn · Send instrument to Testo customer service.

The materials measured moisture content is relative to the dry

weight (0% moisture) of the relevant material. The stored material

characteristic curves were determined using the Darr (wet and dry

weighing) method. The specified measuring ranges are derived

from this.

Conversion to percent by weight

Percent by weight = (wet weight-dry weight) * 100 / dry weight

Example

Wet weight: 180 g

Dry weight: 150 g

Percent by weight: (180 - 150) * 100 / 150 = 20%

Conversion to water content

Water content % = (wet weight - dry weight) * 100 / wet weight

Example

Wet weight: 180 g

Dry weight: 150 g

Water content %: (180 - 150) * 100 / 180 = 16.6%

17

18

What constitutes dry, or at risk, or damp?

The values indicated serve as guideline figures for assessing the

materials. The values are typical inner area values

Characteristic curve Material Dry At risk Damp /

very damp

Characteristic curve 1

or 2 inside heated

Beech, fir, larch... < 12 12...15 > 15

Characteristic curve 1

or 2 inside unheated Oak, pine, maple

wood... < 15 15...20 > 20

Characteristic curve 3 Cement screed < 3 3...5 > 5

Characteristic curve 3 Concrete < 2.2 2.2...4.4 > 4.4

Characteristic curve 4 Anhydrite screed < 0.5 0.5...1 > 1

Characteristic curve 5 Cement mortar < 3 3...5 > 5

Characteristic curve 6 Lime mortar < 2 2...4 > 4

Characteristic curve 6 Gypsum < 2 2...4 > 4

Characteristic curve 7 Brick < 1 1...3 > 3

Guideline values for the installation moisture of wood, which sets

in as an average after a certain period in use-status (DIN 1052-1

(4/88) Para. 4.2.1.):

Char. curve Application area Wood humidity in % by weight

1 or 2 buildings closed on all sides with heating 9 ± 3

1 or 2 buildings closed on all sides without heating 12 ± 3

1 or 2 roofed open buildings 15 ± 3

1 or 2 constructions which are open to the weather on all sides 18 ± 6

If we could not answer your question, please contact your dealer

or Testo Customer Service. For contact details, please visit www.

testo.com/service-contact.

.

Tips and assistance

Autres manuels pour 606-1

5

Autres manuels TESTO Instrument de mesure

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
