TESTO 511 Manuel utilisateur

Bedienungsanleitung de

Instruction manual en

Mode d’emploi fr

Manual de instrucciones es

Manuale di istruzioni it

Manual de instruções pt

testo 511

2

Bedienungsanleitung de ..........................3 - 9

Instruction manual en ........................11 - 17

Mode d’emploi fr ........................19 - 25

Manual de instrucciones es ........................27 - 33

Manuale di istruzioni it ........................35 - 41

Manual de instruções pt ........................43 - 49

11

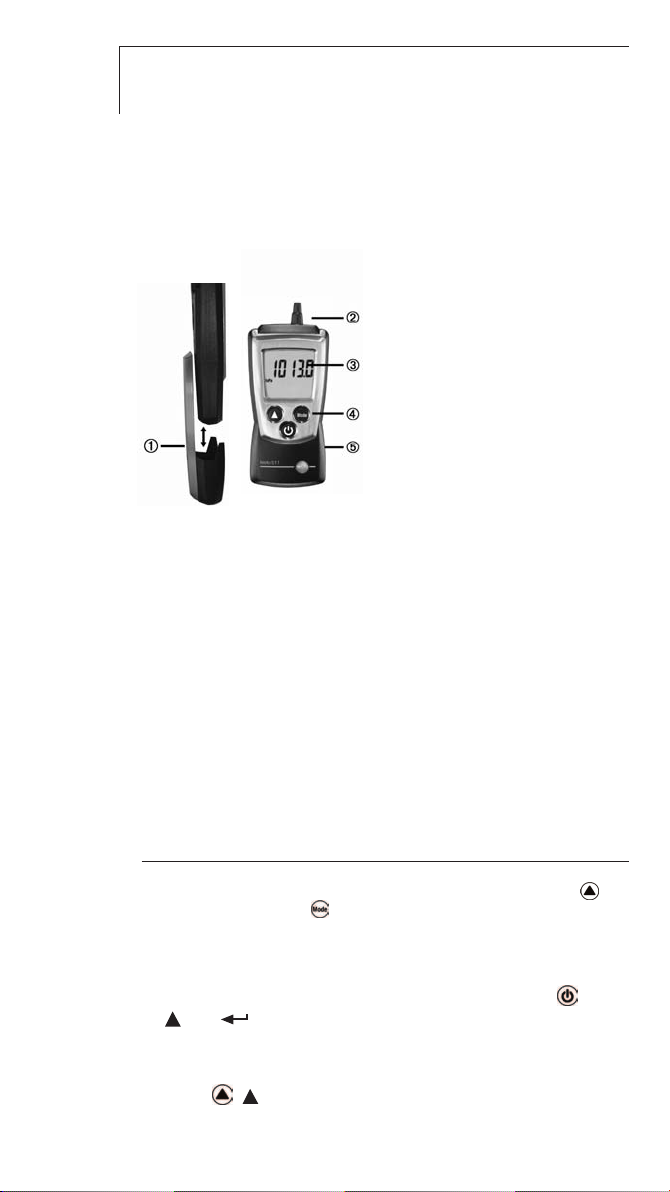

Short manual testo 511

Protection cap: Park position

Absolute pressure sensor nipple

connection

Display

Control keys

Battery compartment, holding

magnets (on rear)

Basic ssettings

Instrument off >press and hold 2s > select with ( ),

confirm with ( ):

Unit of height above mean sea level: m, ft > Value of height above mean sea level

(Altitude) > Unit of pressure: hPa, mbar, Pa, mmH2O, mmHg, psi, inH2O, inHG, >

Auto off function: OFF, ON

Switching tthe iinstrument oon

Press .

Switching tthe ddisplay llight oon((for 110s)

Instrument on > press

Select ddisplay ssize

Instrument on > select with :

Absolute pressure, barom (barometric pressure), Altitude (height above mean sea

level)

Select ddisplay mmode

Instrument on > select with :

Current reading > Max: Maximum values > Min: Minimum values

Switching tthe iinstrument ooff:

Instrument on >press and hold 2s.

de

en

fresitptsvnl????

Short manual testo 511

12

Safety and the environment

About this document

iPlease read this documentation through carefully and

familiarise yourself with the product before putting it to use.

Keep this document to hand so that you can refer to it when

necessary. Hand this documentation on to any subsequent

users of the product.

iPay particular attention to information emphasised by the

following symbols:

Important.

Avoid personal injury/damage to equipment

iOnly operate the measuring instrument properly, for its

intended purpose and within the parameters specified in the

technical data. Do not use force.

iNever store the product together with solvents, acids or other

aggressive substances.

iOnly carry out the maintenance and repair work that is

described in the documentation. Follow the prescribed steps

when doing so. Use only OEM spare parts from Testo.

Strong magnets. Damage to other instruments!

iKeep a safe distance from products which could be damaged

by magnetism (e.g. monitors, computers, pacemakers, credit

cards).

Protecting the environment

iTake faulty rechargeable batteries as well as spent batteries to

the collection points provided for them.

iSend the product back to Testo at the end of its useful life. We

will ensure that it is disposed of in an environmentally friendly

manner.

Safety and the enviroment

13

Specifications

Functions and use

The testo 511 is an absolute pressure measuring instrument. It is

normally used to measure absolute pressure, e.g. for pressure

compensation in velocity measurement in ducts, laboratories and

production processes. Barometric measurements and height

measurements between two points are also possible.

Technical data

Measurement data

· Sensor:

Absolute pressure sensor

· Parameters (absolute/barometric):

Pa, hPa, mbar, mmH2O, mmHg, inHG,

inH2O, psi

· Measuring ranges:

300...1,200 hPa, 120.4...481.8 inH2O

· Resolutions:

0.1 hPa, 0.1 inH2O

· Accuracies

(Nominal temperature 22 °C, ±1 Digit):

±3 hPa, ±1.2 inH2O

· Measuring rate:

0.5 s

Further instrument data

· Protection class: IP40

· Ambient conditions:

0...50 °C, 32...122 °F

· Storage/transport conditions:

-40...70 °C, -40...158 °F

· Voltage supply:

2x 1.5 V type AAA

· Battery life:

200 h (without display light)

· Dimensions:

119x46x25 mm (inc. protection cap)

· Weight: 90 g (inc. batteries and

protection cap)

Directives, standards and tests

· EC Directive: 89/336/EEC

Warranty

· Duration: 2 years

· Warranty conditions: see guarantee

card

de

en

fresitptsvnl????

Specifications

14

Product description

At a glance

Protection cap: Park position

Absolute pressure sensor nipple

connection

Display

Control keys

Battery compartment, holding

magnets (on rear)

First steps

²Inserting bbatteries:

1To open the battery compartment, push the battery cover

down.

2Insert batteries (2x 1.5 V type AAA). Observe the polarity!

3To close the battery compartment, push the battery cover

back on.

²Basic ssettings ((configuration mmode):

Adjustable functions

· Unit of height above mean sea level: m, ft

· Value of height above mean sea level (Altitude): Set flashing figure with ,

change to next figure with .

· Unit of pressure: hPa, mbar, Pa, mmH2O, mmHg, psi, inH2O, inHG,

· Auto off function: OFF, ON (instrument switches off automatically if no key is

pressed for 10 minutes)

1When switching the instrument on, press and hold until

and appear on the display (configuration mode).

- The adjustable function is displayed. The current setting

flashes.

2Press ( ) several times until the desired setting flashes.

Product description

15

3Press ( ) to confirm the input.

4Repeat steps 2and 3for all functions.

- The instrument changes to measuring mode.

Using the product

To measure the barometric pressure, the height above mean

sea level must be set correctly, see chapter ‘First steps’,

section ‘Basic settings (configuration mode)’.

To measure the height between two points, the height above

mean sea level at the starting point must be known and set

correctly, see chapter ‘First steps’, section ‘Basic settings

(configuration mode)’.

²Switching tthe iinstrument oon:

iPress .

- Measuring mode is opened.

²Switching tthe ddisplay llight oon:

The instrument is switched on.

iPress .

- The display light goes out automatically if no key is

pressed for 10 seconds.

²Changing tthe pparameter:

The parameter can be changed.

Adjustable parameters

· Absolute pressure

·barom (barometric pressure)

·Altitude (height above mean sea level)

iPress several times until the desired parameter appears.

²Changing tthe ddisplay vview:

Adjustable views

· Current reading

·Max: Maximum values since the instrument was last switched on or last reset.

·Min: Minimum values since the instrument was last switched on or last reset.

iPress several times until the desired view appears.

de

en

fresitptsvnl????

Use the product

16

²Resetting MMax/Min vvalues:

1Press several times until the desired view appears.

2Press and hold until ---- appears.

3Repeat steps 1and 2for all values that are to be reset.

²Switching tthe iinstrument ooff:

iPress and hold until the display goes out.

Maintaining the product

±Changing bbatteries:

1To open the battery compartment, push the battery cover

down.

2Remove used batteries and insert new batteries

(2x 1.5 V type AAA). Observe the polarity!

3To close the battery compartment, push the battery cover

back on.

±Cleaning tthe hhousing:

iClean the housing with a moist cloth (soap suds) if it is dirty.

Do not use aggressive cleaning agents or solvents!

Maintaining the product

Tips and assistance 17

Tips and assistance

Questions and answers

Question Possible causes/solutions

Hi or Lo · Readings outside the measuring range (too high, too

low): Keep to the permitted measuring range.

· Residual capacity <10 min: Change batteries.

If we could not answer your question, please contact your dealer

or Testo Customer Service. Contact details can be found on the

guarantee card or on the Internet at: www.testo.com

Accessories and spare parts

Accessories and spare parts can be found in the product

catalogues and brochures or in the internet at: www.testo.com

de

en

fresitptsvnl????

testo AG

Postfach 1140, 79849 Lenzkirch

Testo-Straße 1, 79853 Lenzkirch

Telefon: (07653) 681-0

Fax: (07653) 681-100

E-Mail: [email protected]

Internet: http://www.testo.com

0973.5111/01/T/dr/01.03.2007

www.testo.com
