Terasic NET-FMC Manuel utilisateur

NET-FMC

User Manual

- 1 -

www.terasic.com

January 16, 2018

Downloaded from Arrow.com.

NET-FMC

User Manual

- 1 -

www.terasic.com

January 16, 2018

CHAPTER 1 ............................................... NET-FMC DEVELOPMENT KIT - 1 -

1-1 PACKAGE CONTENTS .........................................................................................- 1-

1-2 NET-FMC SYSTEM CD .....................................................................................- 1-

1-3 GETTING HELP .................................................................................................- 1-

CHAPTER 2 .............................. INTRODUCTION OF THE NET-FMC CARD - 2 -

2-1 FEATURES .......................................................................................................- 3-

2-2 BLOCK DIAGRAM OF THE NET-FMC BOARD..........................................................- 3-

2-3 CONNECTIVITY .................................................................................................- 5-

2-4 MODE SWITCH X 4SETTING ...............................................................................- 5-

CHAPTER 3 ............................................... USING THE NET-FMC BOARD - 8 -

3-1 ETHERNET PHY 88E1111 .................................................................................- 8-

3-2 FMC CONNECTOR ............................................................................................- 9-

CHAPTER 4 ................................................................. EXAMPLE CODES - 15 -

4-1 REMOTE UPDATE PORTAL.................................................................................- 15 -

CHAPTER 5 ........................................................................... APPENDIX - 24 -

Downloaded from Arrow.com.

NET-FMC

User Manual

- 1 -

www.terasic.com

January 16, 2018

Chapter 1

NET-FMC Development Kit

1-1 Package Contents

The Terasic NET-FMC is a Gigabit Ethernet transceiver with an FMC interface. It offers

network transfers of up to 1 Gbps with the host board using an FMC connector. Also, it

provides a fully integrated Ethernet solution enabling fast implementation design,

shortening development times, and allows you to focus on the core functions of the system

design. Lastly, the NET-FMC can be connected any FMC(HPC) interfaces.

Figure 1-1 The NET-FMC package contents

1-2 NET-FMC System CD

The NET-FMC System CD contains all the documents and supporting materials associated

with NET-FMC, including the user manual, reference designs, and device datasheets.

Users can download this system CD from the link: http://net-fmc.terasic.com/cd

1-3 Getting Help

Here are the addresses where you can get help if you encounter any problems:

Terasic Technologies

9F., No.176, Sec.2, Gongdao 5th Rd, East Dist, Hsinchu City, 30070. Taiwan

Email: [email protected]

Tel.: +886-3-575-0880

Website: http://www.terasic.com

The NET-FMC package includes:

1. NET-FMC

2. Screw & Copper Pillar Pakage

3. CD Download Guide

Downloaded from Arrow.com.

NET-FMC

User Manual

- 2 -

www.terasic.com

January 16, 2018

Chapter 2

Introduction of the NET-FMC Card

This chapter describes the architecture and configuration of the NET-FMC Board including

block diagram and components related.

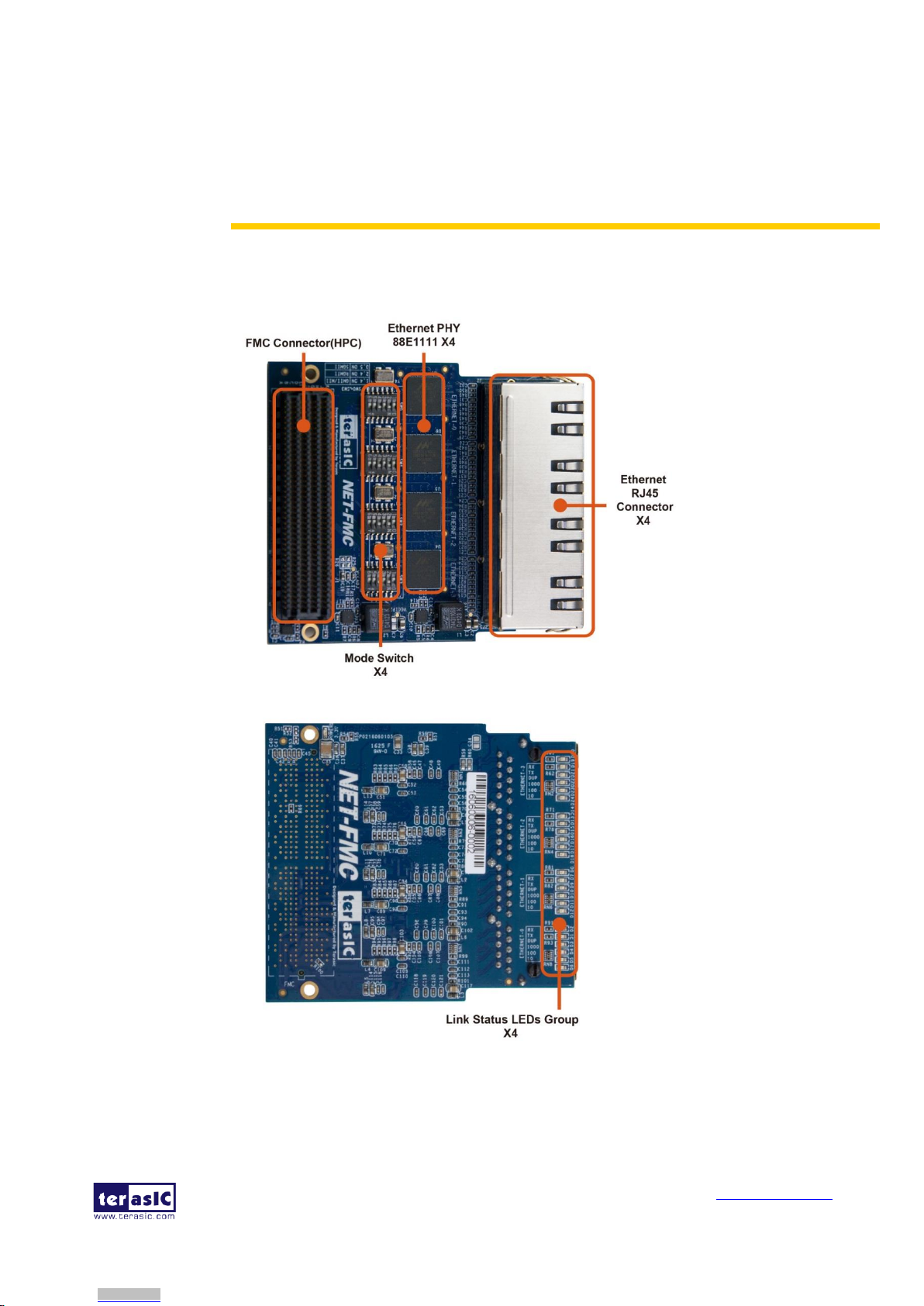

Figure 2-1 The NET-FMC Board PCB and Component Diagram of top side

Figure 2-2 The NET-FMC Board PCB and Component Diagram of bottom side

The photographs of the NET-FMC are shown in Figure 2-1 and Figure 2-2. They depict

the layout of the board and indicates the location of the connectors and the key

components on the top and bottom side.

The following components are provided on the NET-FMC Board:

Downloaded from Arrow.com.

NET-FMC

User Manual

- 3 -

www.terasic.com

January 16, 2018

Ethernet RJ45 Connector x4.

Ethernet PHY chip 88E1111 x4.

FMC Connector(HPC).

Mode Switch x4.

Link Status LEDs Group x4.

2-1 Features

The NET-FMC board has many features that allow users to implement a wide range of

design circuits, from simple circuits to various multimedia projects.

The following hardware is provided on the board:

Package Interface: VITA 57.1 FMC, 2.5V I/O-standard.

Ethernet PHY module:

Chip P/N: 88E1111.

10/100/1000BASE-T IEEE 802.3 compliant.

Support MAC Interface: GMII/MII, RGMII, SGMII.

Ethernet RJ45 Connector x4:

Use standard Cat 5 UTP cabling.

Mode Switch：

Support GMII/MII, RGMII, SGMII.

Four 25-MHz reference clock driven from dedicated oscillator.

2-2 Block Diagram of the NET-FMC Board

Figure 2-3 shows the NET-FMC Block Diagram. Four 25 MHz reference clock driven from

dedicated oscillator are required for Ethernet PHY 88E1111. FMC Connector transmit the

data between host board and Ethernet PHY 88E1111 through MAC interface. Also,

four-port integrated 10/100/1000 Gigabit Ethernet Transceiver supported

SGMII/GMII/MII/RGMII MAC interfaces is installed for direct connection to a MAC/Switch

port. There are four group LEDs indicting the link status.

Downloaded from Arrow.com.

NET-FMC

User Manual

- 4 -

www.terasic.com

January 16, 2018

Figure 2-3 Block Diagram of NET-FMC Board

Downloaded from Arrow.com.

NET-FMC

User Manual

- 5 -

www.terasic.com

January 16, 2018

2-3 Connectivity

Terasic NET-FMC is able to connect to any FPGA development kit equipped with

FMC(HPC) connector. The below picture Figure 2-4 shows the connections with TR5

board.

Figure 2-4 Connect the NET-FMC to TR5 board’s FMCD port

2-4 Mode Switch x 4 Setting

The NET_FMC card provides four Ethernet ports (ETH0 ~ETH3) via four Marvell 88E1111

Ethernet PHY chips. Each switch (SW0~SW3) is corresponding to one Ethernet port to

switch Ethernet port work modes from RGMII to GMII/MII or SGMII, SW0 is used for ETH0

port, SW1 is used for ETH1 port, SW2 is used for ETH2 port and SW3 is used for ETH3

port. Table 2-1 describes the working mode switch settings for ENET0 ~ ENET3 port work

modes. Table 2-1 Mode Switch x 4 Setting for the Ethernet Mode

Mode Switch Setting

Ethernet Port Mode

1-ON,4-ON

GMII/MII

2-ON,4-ON

RGMII (default)

3-ON,5-ON

SGMII

Downloaded from Arrow.com.

NET-FMC

User Manual

- 6 -

www.terasic.com

January 16, 2018

The default setting of the Ethernet Port is SGMII mode. Users can change Ethernet mode

by using the Mode Switch x4. Take ETH0 as an example.

Set ETH0 MODE on the NET_FMC card to RGMII mode (default). The SW0[6:1] on

NET-FMC should be set to 001010, as shown in Figure 2-5.

Figure 2-5 SW0 setting for ETH0 port RGMII mode

Set ETH0 MODE on the NET_FMC card to GMII/MII mode. The SW0[6:1] on NET-FMC

should be set to 001001, as shown in Figure 2-6.

Figure 2-6 SW0 setting for ETH0 port GMII/MII mode

Downloaded from Arrow.com.

NET-FMC

User Manual

- 7 -

www.terasic.com

January 16, 2018

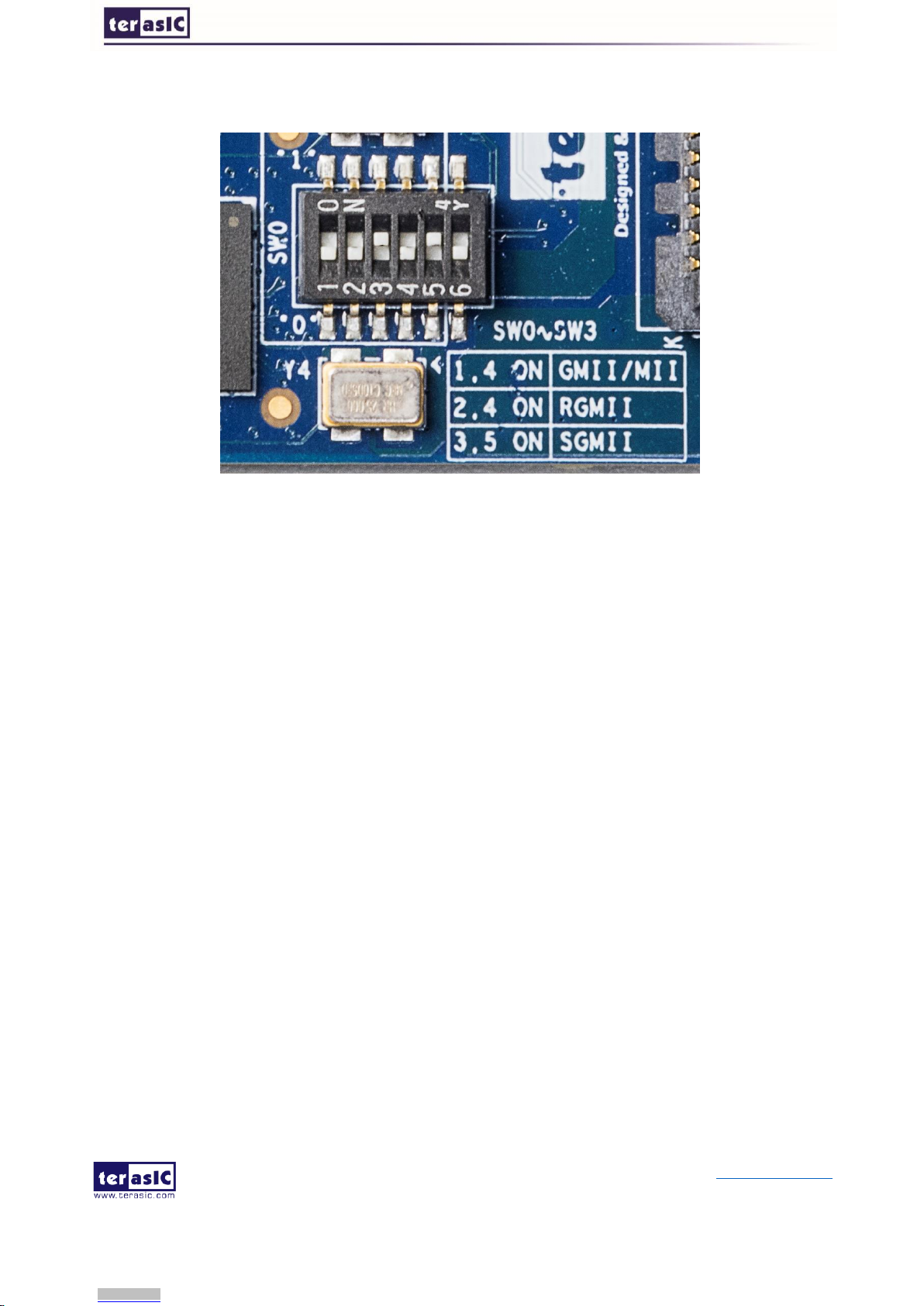

Set ETH0 MODE on the NET_FMC card to SGMII mode. The SW0[6:1] on NET-FMC

should be set to 010100, as shown in Figure 2-7.

Figure 2-7 SW0 setting for ETH0 port SGMII mode

Downloaded from Arrow.com.

NET-FMC

User Manual

- 8 -

www.terasic.com

January 16, 2018

Chapter 3

Using the NET-FMC Board

This chapter provides instructions on how to use Ethernet PHY 88E1111 and FMC

connector on the HDMI-FMC board.

3-1 Ethernet PHY 88E1111

Terasic NET-FMC Board equips with four Ethernet PHY named 88E1111, which is an

integrated 10/100/1000 ultra gigabit Ethernet transceiver device for Ethernet 10BASE-T,

100BASE-TX and 1000BASE-T applications. It contains all the active circuitry required to

implement the physical layer functions to transmit and receive data on standard CAT 5

unshielded twisted pair. The 88E1111 device supports the Gigabit Media Independent

Interface (GMII/MII), Reduced GMII (RGMII), and Serial Gigabit Media Independent

Interface (SGMII) for direct connection to a MAC/Switch port.

Figure 3-1 System Overview with 88E1111 device

Downloaded from Arrow.com.
