Terasic Apollo Agilex Manuel utilisateur

Apollo Agilex

User Manual

www.terasic.com

July 20, 2022

1.1. Q

Apollo Agilex

User Manual

www.terasic.com

July 20, 2022

Contents

Chapter 1 Overview..................................................................................4

1.1 General Description ..............................................................................4

1.2 Board Layout.........................................................................................5

1.3 Key Features.........................................................................................7

1.3. Block Diagram.......................................................................................9

1.4. Mechanical Specifications.....................................................................9

1.5. Power Requirement ............................................................................10

1.6. Connectivity.........................................................................................12

Chapter 2 Board Component ................................................................14

2.1 Configuration Interface........................................................................14

2.2 Setup and Status Components ...........................................................18

2.3 General User I/O.................................................................................22

2.4 Micro SD Card Socket.........................................................................24

2.5 FMC Connector...................................................................................25

2.6 FMC+ Connector.................................................................................37

2.7 Clock Circuit........................................................................................50

2.8 USB to UART......................................................................................53

Apollo Agilex

User Manual

www.terasic.com

July 20, 2022

2.9 DDR4 SODIMM Socket.......................................................................55

2.10 USB 2.0 OTG PHY..............................................................................67

2.11 Gigabit Ethernet..................................................................................68

2.12 2x6 GPIO Header................................................................................70

2.13 QSFP28 Port.......................................................................................72

Chapter 3 Dashboard GUI......................................................................75

3.1 Setup for the Dashboard GUI..............................................................75

3.2 Run Dashboard GUI............................................................................76

Chapter 4 Transceiver Verification .......................................................85

4.1 Function of the Transceiver Test Code................................................85

4.2 Hardware Required.............................................................................85

4.3 Execute the Test Code........................................................................86

Chapter 5 Install Driver for the Board ..................................................89

5.1 Install the USB Blaster II Driver...........................................................89

5.2 Install USB to UART Driver .................................................................89

Chapter 6 Additional Information .........................................................95

6.1 Getting Help........................................................................................95

Apollo Agilex

User Manual

www.terasic.com

July 20, 2022

Chapter 1

Overview

his chapter provides an overview of the Apollo Agilex SoM Board and

installation guide.

1.1 General Description

Designed for high-performance AI-enabled edge solutions and HPC solutions, Apollo

Agilex SOM packs unbeatable performance optimization and provides highest

real-time compute/watts for edge AI applications.

Apollo Agilex SOM takes advantage of the latest Intel® Agilex® SoC with 1400K logic

elements to obtain performance and power breakthrough (with up to 40% lower power

than Stratix 10 series). Combining high-end hardware interfaces such as two

high-capacity and high-bandwidth DDR4 SO-DIMM Sockets, on-board QSFP28

connector, PCIe Gen 4x16 up to 25.8 Gbps/ch with carrier, on-board USB-Blaster II,

and FMC/FMC+ connectors for I/O expansion, the board delivers more than 2X the

performance of previous generation development kits.

Apollo Agilex

User Manual

www.terasic.com

July 20, 2022

Figure 1-1 Apollo Agilex board with heat sink and fan

1.2 Board Layout

The figures below depict the layout of the board and indicate the location of the

connectors and key components.

Apollo Agilex

User Manual

www.terasic.com

July 20, 2022

Figure 1-2 Apollo Agilex board top

Apollo Agilex

User Manual

www.terasic.com

July 20, 2022

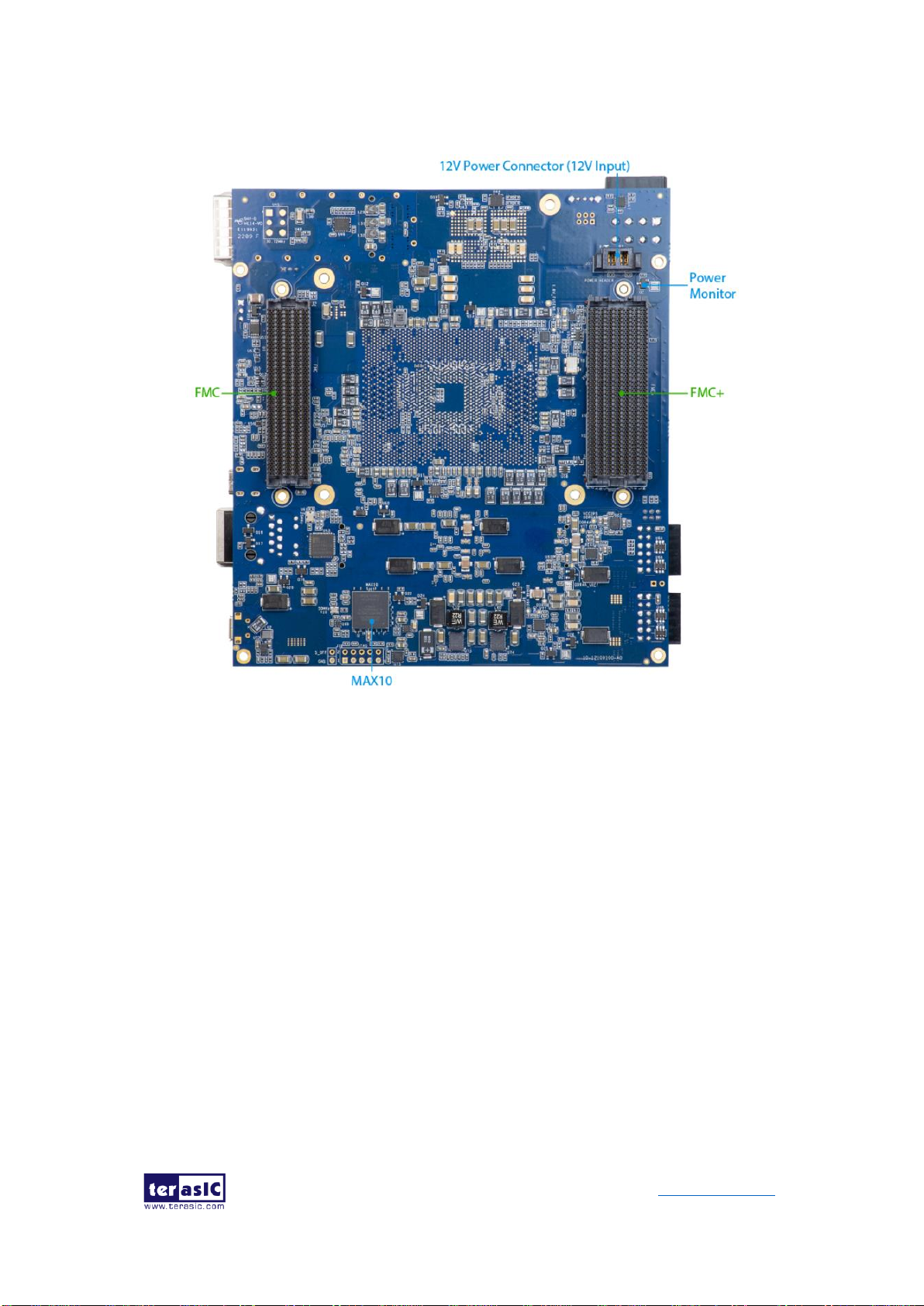

Figure 1-3 Apollo Agilex board bottom

1.3 Key Features

The following hardware is implemented on the Apollo Agilex board:

FPGA Device

Intel® Agilex® SoC FPGA : AGFB014R24B1E1V/AGFB014R24B2E2V

1,400K logic elements (LEs)

229 Mbits embedded memory(M20K)

96 transceivers (up to 28.3Gbps)

11,520 18-bit x 19-bit multipliers

5,760 Variable-precision DSP blocks

FPGA Configuration

Apollo Agilex

User Manual

www.terasic.com

July 20, 2022

On-Board USB Blaster II (UB2) for FPGA programming and Debug

AS Mode configuration from QSPI Flash

FPGA Fabric

1024Mbit QSPI Flash (EPCQL1024 Compliant)

Two DDR4 SO-DIMM Sockets (each with 72-bit ECC, speed up to 26

66MT/s, and size up to 16GB)

Onboard QSFP28

One FMC+ Connector

One FMC Connector

Two 50Mhz Single-ended

1.2V 2x6 GPIO header

LED x2, Button x2, DIP Switch x2, CPU Reset

HPS(Hard Processor System) Fabric

Quad-core 64 bit ARM Cortex-A53 MPCore* processor

MicroSD Socket

Gigabit Ethernet PHY with RJ45

USB OTG PHY with Micro USB Connector

UART to USB with Mini USB Connector

LED x1, Button x1, Cold Reset Button

3.3V 2x6 GPIO Expansion header for GPIO/SPI/I2C/UART

RTC

Dashboard System

Input Power Monitor

FPGA and Board Temperature Monitor

Fan Control and Monitor

Auto Fan Speed

Auto Shutdown

Power Source

12V from 2x4 PCIe connector

Apollo Agilex

User Manual

www.terasic.com

July 20, 2022

12V from Samtec connector (reserved for carrier board)

1.3. Block Diagram

Figure 1-4 shows the block diagram of the Apollo Agilex board. To provide maximum

flexibility for the users, all key components are connected to the Agilex® SoC FPGA

device. Thus, users can configure the FPGA to implement any system design.

Figure 1-4 Block diagram of the Apollo Agilex board

1.4. Mechanical Specifications

Figure 1-5 shows the Mechanical Layout of Apollo Agilex board. The unit of the

Mechanical Layout is millimeter (mm).

Apollo Agilex

User Manual

www.terasic.com

July 20, 2022

Figure 1-5 Mechanical layout

1.5. Power Requirement

Stand-alone mode

When the Apollo Agilex board is used in stand-alone mode, users can use the 12

V ATX power provided in the kit to connect to the 8-pin 12V ATX power connector

(See Figure 1-6) of the Apollo Agilex.
