Teldat M2 Manuel utilisateur

Teldat M2/M2L

Installation Manual

Teldat S.A. Manual

Teldat M2/M2L 1

Legal Notice

Warranty

This publication is subject to change.

Teldat S.A. offers no warranty whatsoever for information contained in this manual.

Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv-

ery, supply or use of this manual.

Manual Teldat S.A.

2Teldat M2/M2L

Table of Contents

I RelatedDocuments................................. 1

Chapter1 AboutthisGuide.................................. 2

1.1 Supporteddevices................................... 2

1.2 Who should read this manual? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.3 When should this manual be read? . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.4 Whatisinthismanual?................................. 2

1.5 Whatisnotinthismanual? ............................... 2

1.6 How is the information organized? . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.7 Technicalsupport.................................... 2

Chapter 2 Teldat M2 / Teldat M2L Devices . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.1 Models........................................ 3

2.2 Characteristics..................................... 3

2.2.1 Powersupply ..................................... 3

2.2.2 Hardwaremonitoring.................................. 3

Chapter 3 Components and Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3.1 Components...................................... 4

3.1.1 Frontpanel ...................................... 4

3.1.2 Undersidepanel.................................... 7

3.2 Mounting an anti-theft security cable . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.3 Installation ...................................... 8

3.3.1 Standalone ...................................... 8

3.3.2 Wallmounting..................................... 8

3.3.3 19''Rackinstallation .................................. 9

3.4 Powersource .................................... 10

3.5 RSTbutton ..................................... 11

3.5.1 Rebootingthedevice................................. 11

3.5.2 Defaultconfiguration................................. 11

3.6 Dataconnections................................... 12

3.6.1 4-port Ethernet switch connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.6.2 WANComboconnection................................ 12

3.6.3 WAN2.5Gconnection................................. 13

3.6.4 Wireless LAN internal antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.6.5 Connecting for configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Teldat S.A. Table of Contents

Teldat M2/M2L i

Chapter4 Compliance.................................... 15

4.1 Manufacturerinformation ............................... 15

4.2 Riskidentification................................... 15

4.3 Safetywarnings ................................... 15

4.4 WEEEinformation.................................. 17

4.5 REACH....................................... 17

4.6 Power usage and energy efficiency . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.7 PSUenergyefficiency ................................ 17

4.8 EC declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.9 CEmarking..................................... 18

4.10 Nationalrestrictions.................................. 19

4.11 Operatingfrequency ................................. 19

4.12 Intended use of the equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Appendix A Technical Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

A.1 Troubleshooting................................... 20

A.2 Updatingthesoftware................................. 20

A.3 Connectingtothedevice ............................... 20

A.3.1 Connecting using the local console (AUX connector) . . . . . . . . . . . . . . . . . . . 20

A.4 Connectors ..................................... 21

A.4.1 LANconnectors ................................... 21

A.4.2 WANBase-Tconnectors ............................... 22

A.4.3 WANSFPconnector................................. 22

A.4.4 Configurationconnector................................ 22

A.4.5 Powersupplyconnector................................ 23

A.5 Technicalspecifications................................ 23

A.5.1 Hardwarearchitecture................................. 23

A.5.2 LANinterface .................................... 23

A.5.3 WANBase-Tinterface................................. 23

A.5.4 WANSFPinterface.................................. 24

A.5.5 WirelessLANinterface................................ 26

A.5.6 Configurationinterface ................................ 26

A.5.7 Powersupply .................................... 26

A.5.8 Dimensionsandweight................................ 26

A.5.9 Environmental specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Appendix B CE Radio Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Table of Contents Teldat S.A.

ii Teldat M2/M2L

B.1 WI-FIspecifications.................................. 27

Teldat S.A. Table of Contents

Teldat M2/M2L iii

I Related Documents

Teldat Dm704-I Configuration and Monitoring

Teldat Dm709-I LAN interfaces

Teldat Dm748-I Software Updating

Teldat Dm771-I Wireless LAN Interface.

Teldat S.A. Related Documents

Teldat M2/M2L 1

Chapter 1 About this Guide

This is the installation manual for the Teldat M2/M2L routers and contains information on how to correctly install the

device in a working environment.

1.1 Supported devices

The information provided in this installation manual only applies to the Teldat M2 router family.

1.2 Who should read this manual?

This manual should be read by support personnel who need to configure, maintain and monitor the device.

1.3 When should this manual be read?

Read this guide as soon as you are ready to familiarize yourself with the device and its components.

This manual will help you understand your new device in greater depth.

1.4 What is in this manual?

This installation guide contains the following information:

• A description of the features available in the Teldat M2 router family.

• Technical specifications.

• Power supply requirements.

• Elements that can be connected when the router is operating.

• How to install and uninstall the modules and power sources.

• A description of the LEDs and connectors in the device.

• Troubleshooting.

1.5 What is not in this manual?

This manual does not contain information on software or device configuration. For details on how to configure the

device, please see the relevant protocol manuals found at Teldat's website: http://www.teldat.com

1.6 How is the information organized?

Each chapter focuses on a specific part of the hardware and its components. All descriptive and technical specifica-

tions, as well as the information on a given component, can be found in the relevant chapter.

1.7 Technical support

Teldat S.A. offers technical support. Device software can be upgraded on a regular basis for maintenance purposes

and in case new features are developed.

Contact information:

Web: http://www.teldat.com - Email: [email protected]

Tel.: +34 918 076 565 - Fax: +34 918 076 566

1 About this Guide Teldat S.A.

2Teldat M2/M2L

Chapter 2 Teldat M2 / Teldat M2L Devices

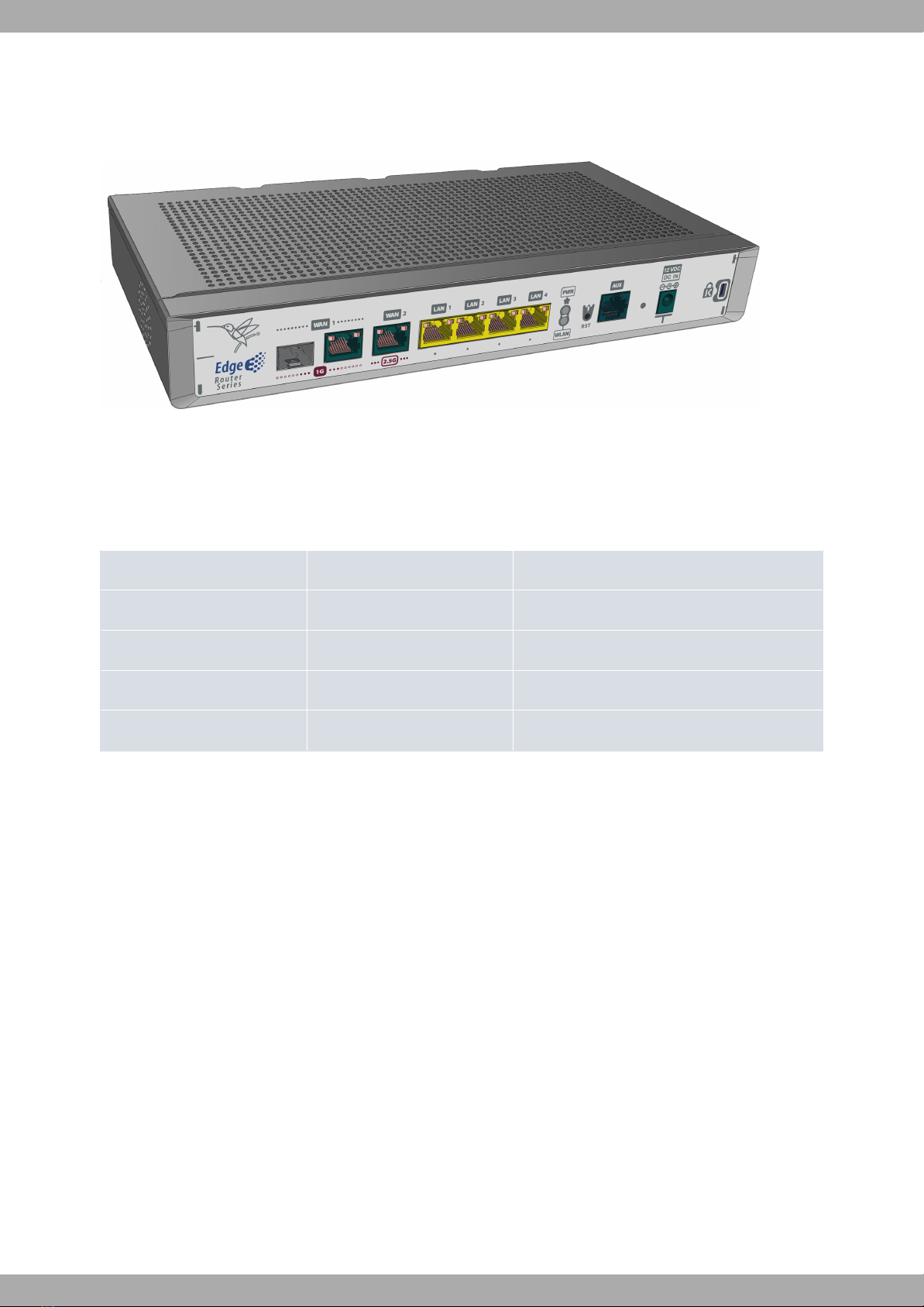

Fig. 1: Teldat M2/M2L

2.1 Models

The following table lists the Teldat M2/M2L models available:

Models Sales Code Wi-Fi

TLDPM00F1 RCTM2H001 No

TLDPM00F1 RCTM2H001UP No

TLDPM00F1 RCTM2H011 No

TLDPM01F1 RCTM2H002 AZW AW-XM458-TPU

2.2 Characteristics

2.2.1 Power supply

For further information on the different Teldat M2 power supplies, please see Components and Power Supply on

page 4, Power source on page 10.

2.2.2 Hardware monitoring

The LEDs on the front panel are used to monitor the hardware in the Teldat M2 router family. These LEDs provide

visual information on the state of the device and reference the condition of the hardware components, indicating

whether or not there is connectivity, data flow, etc.

For further information on the LED panel, please see Components on page 4.

Teldat S.A. 2 Teldat M2 / Teldat M2L Devices

Teldat M2/M2L 3

Chapter 3 Components and Power Supply

The following chapter provides detailed information on the chassis of the Teldat M2 router family and its compon-

ents. This information includes:

• Components.

• Information on assembly.

• Power supply.

• RST button.

• Data connection.

• SIM card installation.

3.1 Components

3.1.1 Front panel

The following figure shows the front panel. Here you will find the majority of Teldat M2 router family connectors.

Fig. 2: Front panel

The following table provides information on each connector, as well as a description:

Front panel components

Item Description

A Eth WAN-1 SFP.

For more information on the SFP interface, refer to:

-WAN Combo connection on page 12

-WAN SFP connector on page 22

-WAN SFP interface on page 24

B Eth WAN-1 Base-T. WAN Gigabit Ethernet.

For more information on the WAN interface, refer to:

-WAN Combo connection on page 12

-WAN Base-T connectors on page 22

-WAN Base-T interface on page 23

C Eth WAN-2 Base-T. WAN 2.5 Gigabit Ethernet.

For more information on the WAN interface, refer to:

-WAN 2.5G connection on page 13

-WAN Base-T connectors on page 22

-WAN Base-T interface on page 23

3 Components and Power Supply Teldat S.A.

4Teldat M2/M2L

D 4-port Gigabit Ethernet Switch (LAN1 to LAN4).

For more information on the LAN interface, refer to:

-4-port Ethernet switch connections on page 12

-LAN connectors on page 21

-LAN interface on page 23

E LED PWR (Power). Refer to on page for more information.

F LED WLAN (WLAN Status). Refer to LEDs on page 5 for more information.

G RST. Reset button. For further information on how the reset button works, please

see RST button on page 11.

H Aux. Provides access to the Teldat M2 local console for configuration and monit-

oring purposes.

For more information on the Aux connector, refer to:

-Connecting for configuration on page 13

-Configuration connector on page 22

-Configuration interface on page 26

I Power source connection (DC IN).

Refer to Power source on page 10 for more information on Power connection and

Power supply on page 26 for power specifications applicable to theTeldat M2

device.

J Kensington security slot

For further information, please see on page

In addition to the foregoing, the front panel also has LEDs linked to the LAN and WAN Ethernet interfaces.

3.1.1.1 LEDs

The following figure shows the router's WAN-1 LED indicators:

Fig. 3: WAN-1 LEDs

WAN-1 Ethernet LED indicators

LED Description

Green Copper status

- Steady: 10/100/1000M link established.

- Blinking: Transferring data.

Yellow Fiber status:

- Steady: 1000M link established.

Teldat S.A. 3 Components and Power Supply

Teldat M2/M2L 5

Autres manuels pour M2

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Teldat Routeur réseau

Teldat

Teldat iM8 Manuel utilisateur

Teldat

Teldat Connect 104KF TLDPM00A1 Manuel utilisateur

Teldat

Teldat M8-Smart Manuel utilisateur

Teldat

Teldat WWAN Enabler Manuel utilisateur

Teldat

Teldat Regesta Smart PLC Manuel utilisateur

Teldat

Teldat 4Ge Manuel utilisateur

Teldat

Teldat C+ Series Manuel utilisateur

Teldat

Teldat H2 RAIL Manuel utilisateur

Teldat

Teldat Connect-4GePlus Manuel utilisateur

Teldat

Teldat ATLAS 150 Manuel utilisateur

Teldat

Teldat Connect-104 Manuel utilisateur

Teldat

Teldat Teldat-3Ge Manuel utilisateur

Teldat

Teldat ATLAS X60 Manuel utilisateur

Teldat

Teldat C1+LS Manuel utilisateur

Teldat

Teldat RXL14000 Manuel utilisateur

Teldat

Teldat iM8 Manuel utilisateur

Teldat

Teldat TLDPV00A1 Manuel utilisateur

Teldat

Teldat Connect-FW Manuel utilisateur

Teldat

Teldat M1 Manuel utilisateur

Teldat

Teldat H1 RAIL Series Manuel utilisateur

Teldat

Teldat Atlas 250 Manuel utilisateur

Teldat

Teldat IMBER SMART Manuel utilisateur

Teldat

Teldat Atlas-i70 Manuel utilisateur

Teldat

Teldat H1 HSDPA Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
