Tektronix Phaser 360 Manuel

Repacking the Color Printer

and Its Accessories

Overview

It is very important that you follow the correct repacking procedure before shipping the color printer.

Complete repacking is required. Failure to properly repack the printer can damage the printer’s internal

components.

You are responsible for any shipping damage to the printer that results from improper or

inadequate packaging.

Repacking for shipment consists of ﬁve basic tasks. Each of these tasks is explained below. If you have

questions regarding any of the repacking procedures, call the Tektronix Customer Support Hotline at

1-800-835-6100

, or contact Tektronix online at

www.tek.com/Color_Printers/support/

Turn off the printer using the

On/Off

switch.

Wait 30 minutes before moving the printer to allow the ink to solidify.

Remove the maintenance tray, seal it in a plastic bag, and store the tray on a ﬂat

surface.

A used maintenance tray leaks drum ﬂuid if tipped.

Lock the printhead transit restraint on the right side of the printer.

Repack the printer and its accessories using Tektronix-approved packing materials.

Turning off the printer

Use the rear-panel

On/Off

switch to turn off the printer. Doing so places the printhead in the proper

position for locking (described below), which is necessary for safe shipment.

Do not turn off the printer by

pulling the power cord.

Caution

To avoid damaging the printer’s internal components, always turn the printer

power off using the

On/Off

switch. Failure to do so may result in damage to the

printer’s internal components during shipment.

Waiting for 30 minutes

After turning off the printer, let it cool down for at least 30 minutes before you move

it so that the melted ink inside the printer has time to solidify.

Disconnect the power cord and other cables from the printer.

Remove the media tray from the printer.

If present, disconnect the Lower Paper Tray Assembly cable from the printer.

Repacking the Color Printer and Its Accessories

Removing the maintenance tray

Caution

To avoid damaging the printer, always remove the maintenance tray before moving

or shipping the printer. Never ship a partially used maintenance tray.

Open the printer’s front cover.

Grasp the maintenance tray by the front edge and lift up while sliding it out of the

printer. Once you’ve removed the maintenance tray, keep it level.

Caution

A used maintenance tray leaks drum ﬂuid if tipped. Keep the maintenance tray

level to prevent spills. Contact with maintenance tray ﬂuid poses no health risk.

Place the used maintenance tray in a plastic bag and seal the bag. Store the used

maintenance tray for future use.

Do not ship a partially used maintenance tray

9101-22

32434-05

Repacking the Color Printer and Its Accessories

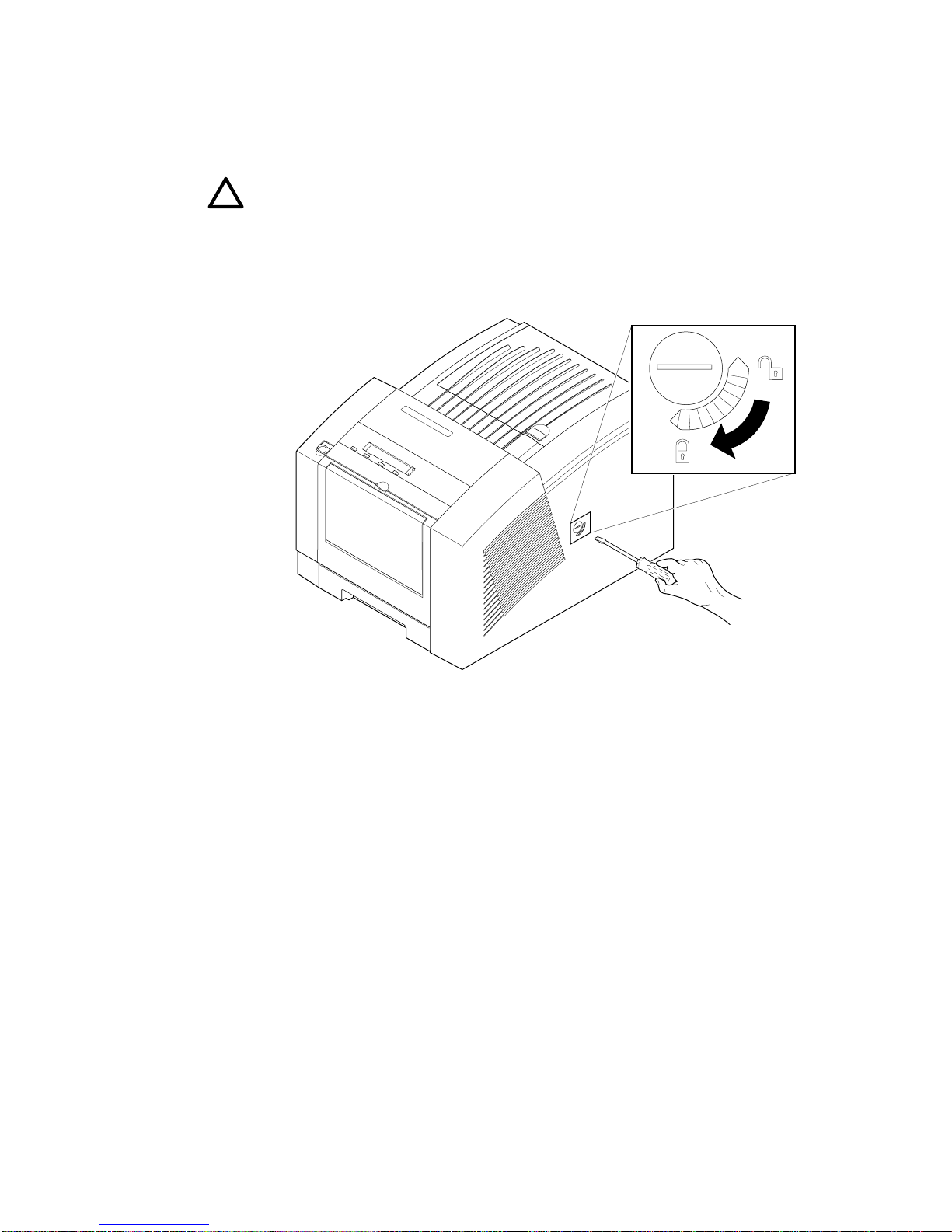

Locking the transit restraint

Caution

To avoid damaging the printer, always lock the transit restraint before moving or

shipping the printer.

Locate the transit restraint on the right side of the printer.

Insert a wide ﬂat-blade screwdriver into the transit restraint slot.

While pressing inward with strong pressure, turn the transit restraint slot

clockwise

lock the printhead in place. If you have trouble turning the lock, consider the

following suggestions:

■

Make sure that the printer was turned off using the

On/Off

switch.

This places the printhead in the proper position for locking. If you

are in doubt about how the printer was turned off, turn the printer on

again. After waiting for a minute, turn the power off using the

On/Off

switch.

■

You may need to press inward on the lock with more force before you

can turn the lock

clockwise

32434-03

Repacking the Color Printer and Its Accessories

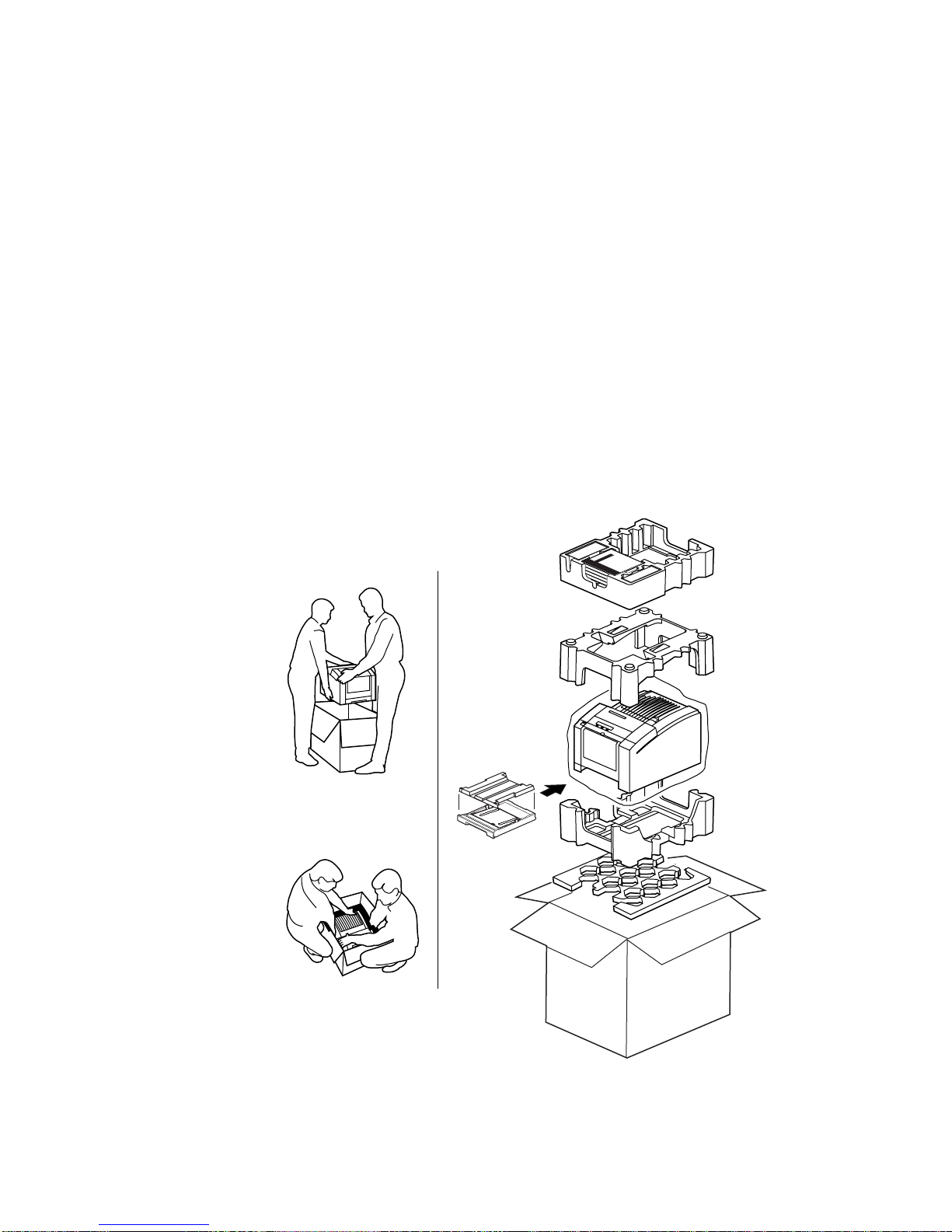

Repacking the printer and its accessories

Use the following illustration while repacking the color printer.

Warning

The printer weighs about 32 kg (70 lb.). Do not attempt to lift it without the

assistance of another person.

1. Repack the media tray.

Position the plastic tray insert into the media tray to prepare it

for shipping. Reinsert the media tray into the printer.

2. Repack the printer.

Position the lower cushion inserts in the shipping box as shown.

Using the illustration as a guide for handling recommendations, lower the printer

onto the cushion inserts inside the shipping box. Place the plastic bag provided over

the printer. Place the upper cushion insert on top of the printer. Place the

accessories tray on top of the upper cushion insert.

3. Repack the printer’s accessories.

Place the power cord, cleaning kit, and all printer

documentation in the area provided in the accessories tray as shown in the

illustration.

Do not ship a partially used maintenance tray

32434-06

Repacking the Color Printer and Its Accessories

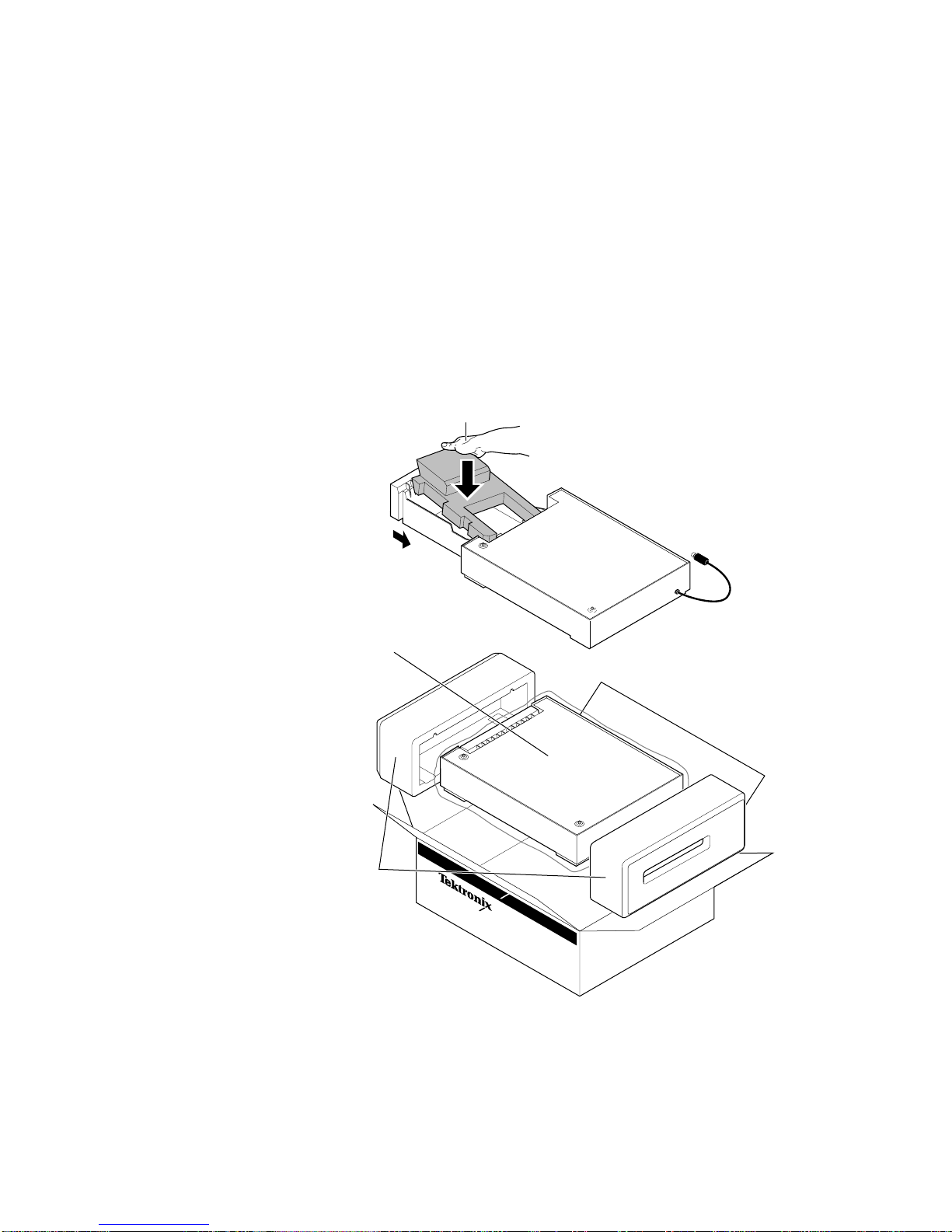

4. Optional: Repack the Lower PaperTray Assembly.

If you have a Lower Paper Tray

Assembly, repack it for shipment using the original packaging.

Warning

The printer is not permanently attached to the Lower Paper Tray Assembly. When

moving the printer or Lower Paper Tray Assembly, move each unit separately to

avoid damage or personal injury. The printer weighs about 32 kg (70 lb.). Do not

attempt to lift it without the assistance of another person.

Position the cushion insert (

) in the paper tray of the Lower Paper Tray Assembly. Slide

the paper tray (

) into the Lower Paper Tray Assembly and place the assembly inside

the plastic shipping bag (

). Place the front and rear cushions (

) on the Lower Paper

Tray Assembly. Place the entire assembly in the cardboard box.

32434-01
