fTEKTFIONIX®

PLOT 10

401 0A06

GRAPHICS TABLET

UTlLITY ROUTINES

INSTALLATION GUIDE

TEKTRDNI)@D

PLOT 10

401 0A06

GRAPHICS TABLET

UTILITY ROUTINES

INSTALLATION GUIDE

Tektronix, Inc.

P.O. Box 500

Beaverton, Oregon 97077

this publication may not be reproduced in any form without

permission of Tektronix, Inc.

This instrument, in whole or in part, may be protected by one or

more US. or foreign patents or patent applications. Information

provided on request by Tektronix, Inc., PO. Box 500, Beaverton,

Oregon 97077.

TEKTFIONIX is aregistered trademark of Tektronix, Inc.

—V

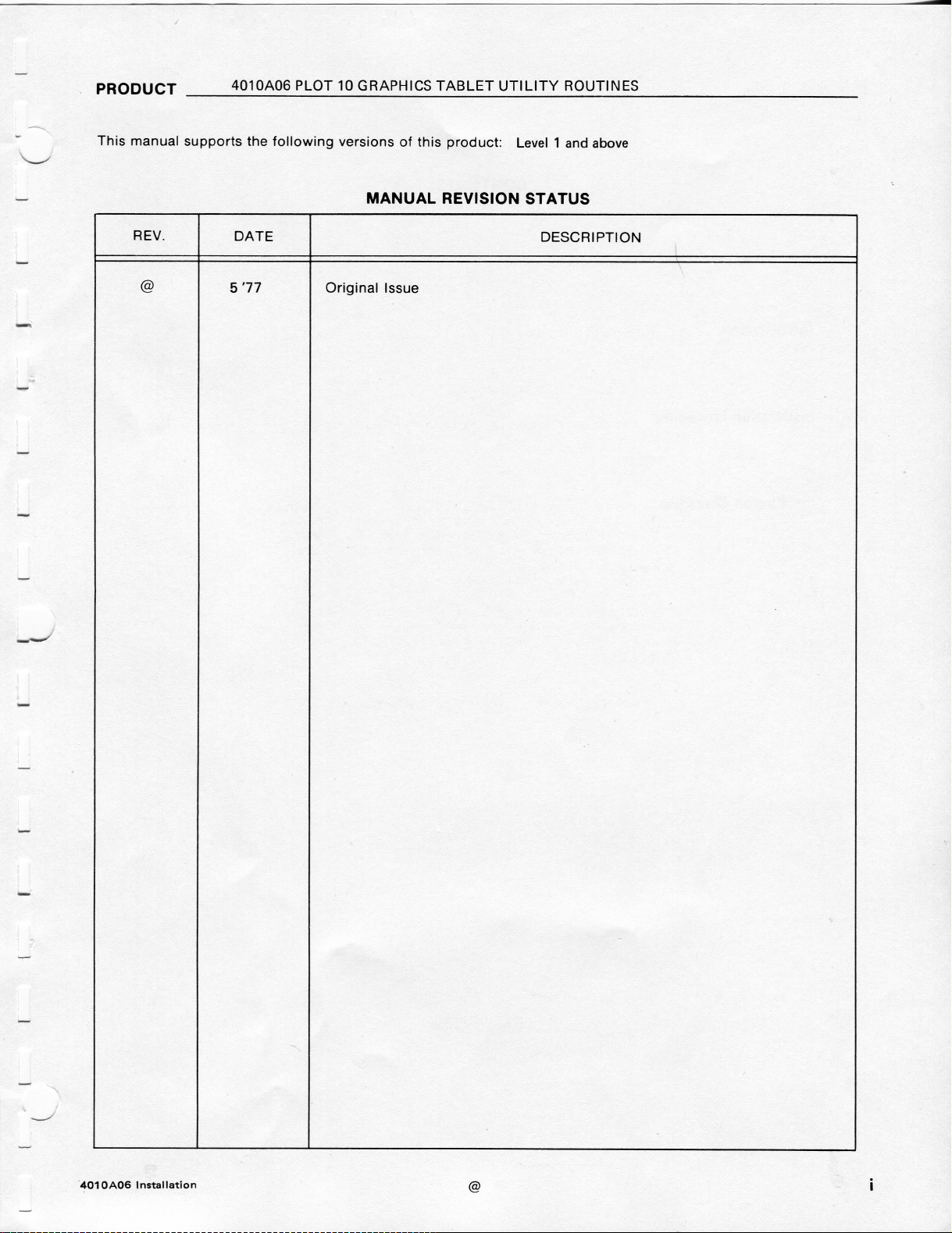

PRODUCT 4010A06 PLOT IO GRAPHICS TABLET UTILITY ROUTINES

This manual supports the following versions of this product: Level 1and above

MANUAL REVISION STATUS

REV. DATE DESCRIPTION

5’77 Original Issue

401 OAOG Installation

CONTENTS

Introduction ........................................................ 1

Installation Procedure ....‘ ............................................. 1

Installation Checklist ................................................. 3

@4010A06 Installation

—~—/

INTRODUCTION

The 4010A06 PLOT 10 Graphics Tablet Utility Routines provide an easy way of using the

4953 and 4954 Graphics Tablet in conjunction with a4010—Series Computer Display

Terminal and ahost computer. The software support consists of six FORTRAN IV sub-

routines which are designed to be used with the Terminal Control System (TCS).

INSTALLATION PROCEDURE

1. If you have Release 3.0 (or above) of TCS load and compile the Graphics Tablet

Utility Routines (GTUR). Routines necessary to run the GTUR are TlNSTR, TOUTST

and LE FTlO. If your TCS package does not include these routines (part of Release 3.0

and later) follow step 2.

2. If you do not have TCS (or have aversion lower than Release 3.0) write the three

routines as shown below.

TOUTST

TOUTST outputs ADE* characters, including control characters, in an array.

Calling sequence:

CALL TOUTST (NCHAR, IAR RAY)

Parameters entered:

NCHAR number of characters in array to be output

IAR RAY array containing ADE characters to be output

TlNSTR

TlNSTR accepts input characters and stores them in abuffer (IBUFF). The length of this

buffer is limited only by the maximum length of the computer system input buffer. The

input is'delimited by acarriage return (CR), and it is not necessary that control characters

be input. The subroutine must keep count of the number of characters (NUM) in IBUFF,

not including trailing blanks. New characters should be input only if NUM=0, and the

output buffer should be dumped before the next request for input.

’ADE (ASCII Decimal Equivalent) code is the integer representation of the ASCII character set. The

ADE characters are the numbers from 0 to 127. For example, 48 represents 0, 65 “A", 90 “2", etc.

4010A06 Installation @

Calling Sequence:

CALL TlNSTR (LEN, IARRAY)

Parameters entered:

LEN the number of characters requested

IARRAY ADE array into which the input characters are placed

NOTE

If LEN>NUM>0, /ARRA Ymust be padded with spaces. if LEN <NUM,

characters remaining in the buffer should be retained for the next access

of TINS TR, and NUM should be updated to NUM —— LEN.

LEFTIO

LEFTIO returns to number of characters left in the TINSTR buffer (NUM above).

Calling Sequence:

CALL LEFTIO

When the above routines are written you should be able to load, compile, and run the

GTU R.

3. Subroutine MULPNT contains acomment line which allows the user to insert asub-

routine BUFFUL for buffer overflow:

C*lF(NGOT.GT.NWNT) CALL BUFFUL

By replacing “C *” with spaces and writing BUFFU L, the user may create aroutine

which will handle buffer overflow. The standard GTU Rpackage discards any input points

in excess of the limits of the buffer. BUFFUL could be used to call aterminal bell

routine to alert the user when the buffer overflows.

@4010A06 Installation

INSTALLATION CHECKLIST

DECIDE]

4010A06 Installation

Determine if you have Release 3.0 or higher of TCS.

If necessary add routines to bring system up to level of Release 3.0.

Load and compile the GTUR routines.

Insert subroutine BUFFU Lif desired.

Enjoy your new Tektronix software.

I).

OI>ZQm
