Data Sheet: Dualeta™ iQA Series – Dual Quarter Brick

iQAFullDatasheet080505 2.doc 8/3/2006

℡

(877) 498

0099

1/19

Dualeta™ iQA Series DC/DC Power Modules

48V Input, 15A Output

Dual Output Quarter Brick

The Dualeta™ Family is a 75W family of highly versatile,

independently regulated, dual output quarter brick

power modules with output voltage tracking. Its output

current loading scheme is fully flexible: 0 to 15A can be

drawn from either output with no minimum load

requirements. An ultra wide range independent output

trim allows the realization of dual output voltage

combinations between 1.5 and 5.5V. The superior

versatility of the Dualeta™ family substantially reduces

the quantity of distinct part numbers in the end user part

portfolio, lowering cost of ownership.

Features

•Standard Dual Quarter Brick format

•A single module which can support

all your dual voltage requirements

between 1.5V and 5.5V

•Two output trim options:

oStandard Dual Trim – wide range

independent adjustment of either

output, using two trim pins

oOptional Single Tracking Trim –

adjust both outputs together by 10%

according to industry standard

resistor tables

•Independently regulated, tight

tolerance outputs

•Flexible loading: 0-15A from either

output, 15A total load

•High efficiency – up to 89%

•Industry-leading output power: 75W

•Basic insulation – 1500 Vdc

•Full, auto-recovery protection:

oInput under and over voltage

oOutput over voltage

oCurrent limit

oShort circuit

oThermal limit

•Monotonic, tracking start-up

•Starts with pre-biased outputs

•High reliability open frame, surface

mount construction

•Baseplate for improved thermal

management

•UL 60950 (US and Canada), VDE 0805,

CB scheme (IEC950)

•Patented Technology

Options

•Optional Single Tracking Trim – using

industry standard resistor tables

•Remote on/off (negative logic)

•Short Thru-hole pins 2.79 mm (0.110”)

Advance Data Sheet: Dualeta™ iQA Series – Dual Quarter Brick

iQAFullDatasheet080505 2.doc 8/3/2006 ℡

(

877

)

498-0099 2/19

Ordering information

Product

Identifier

Package

Size

Platform Input

Voltage

Output

Current/

Power

Output

Units

Main

Output

Voltage

# of

Outputs

Safety

Class

Feature Set

i Q A 48 015 A 050 M - 0 00

050 – 5.0V

TDK Innoveta Quarter

Brick Dualeta™ 36-75V 15 Amps 033 – 3.3V Multiple 00 – Standard

Product Offering

Code Input Voltage Output Voltage Output Current Maximum

Output Power

Efficiency

iQA48015A050M-000 36V to 75V 5.0/3.3V 15A 75W 87%

iQA48015A033M-000 36V to 75V 3.3/2.5V 15A 50W 85%

3320 Matrix Drive

Suite 100

Richardson, Texas 75082

Phone (877) 498-0099 Toll Free

(469) 916-4747

Fax (877) 498-0143 Toll Free

(214) 239-3101

support@tdkinnoveta.com

http://www.tdkinnoveta.com/

Feature Set On/Off Logic Pin Length Trim

00 Positive 0.145” Dual independent pins

01 Negative 0.145” Dual independent pins

02 Positive 0.145” Single tracking pin

03 Negative 0.145” Single tracking pin

04 Positive 0.110” Dual independent pins

05 Negative 0.110” Dual independent pins

06 Positive 0.110” Single tracking pin

07 Negative 0.110” Single tracking pin

Advance Data Sheet: Dualeta™ iQA Series – Dual Quarter Brick

iQAFullDatasheet080505 2.doc 8/3/2006 ℡

(

877

)

498-0099 3/19

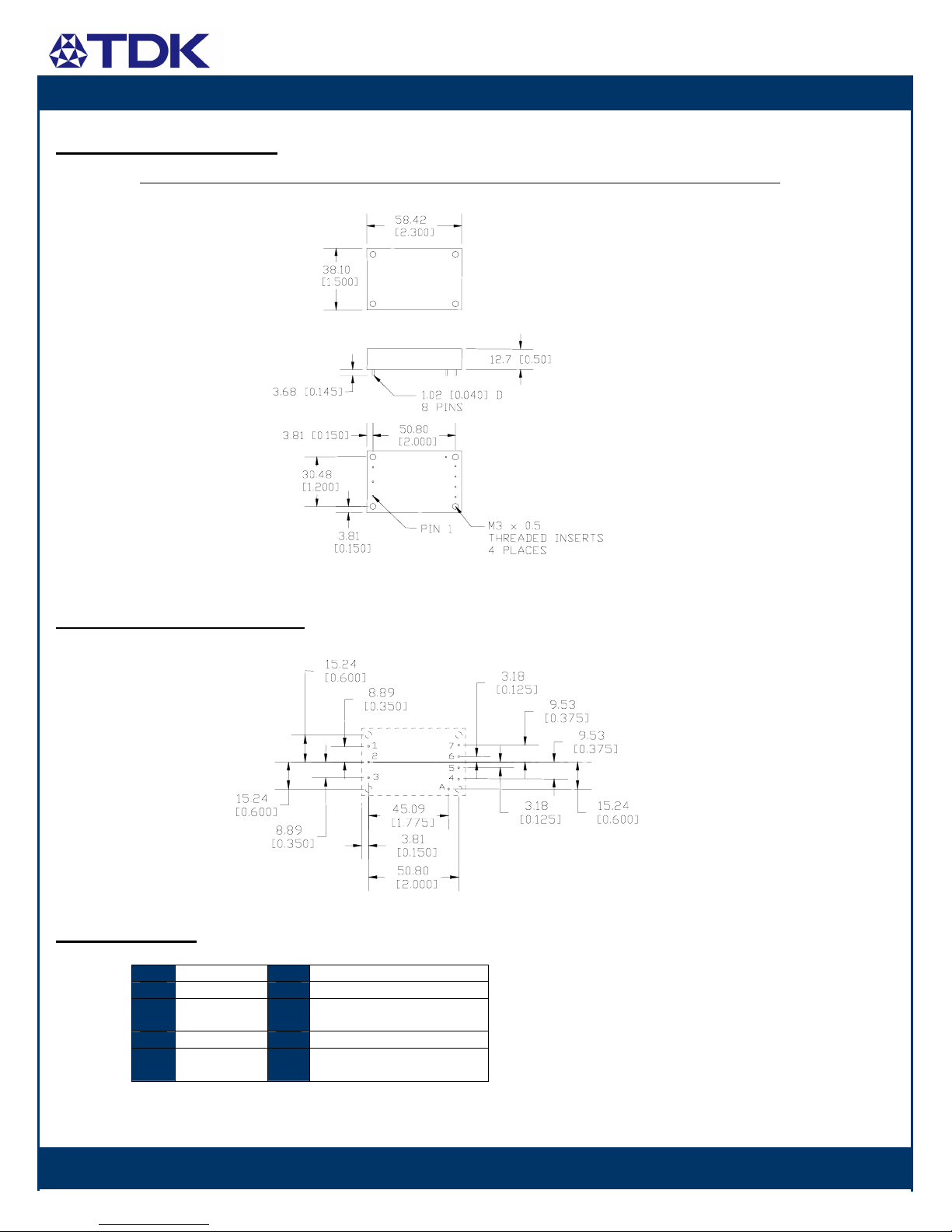

Mechanical Specification

Dimensions are in mm [in]. Unless otherwise specified tolerances are: x.x ±0.5 [0.02], x.xx and x.xxx ±0.25 [0.010].

Recommended Hole Pattern: (top view)

Pin Assignment:

PIN FUNCTION PIN FUNCTION

1 Vin (+) 5 Output RTN

2 On/Off (-) 6 Vo1 Trim (Optional:

Single tracking trim pin)

3 Vin (-) 7 Vo1 (+)

4 Vo2 (+) A Vo2 Trim (Optional: Omit

for single trim pin option)

Advance Data Sheet: Dualeta™ iQA Series – Dual Quarter Brick

iQAFullDatasheet080505 2.doc 8/3/2006 ℡

(

877

)

498-0099 4/19

Absolute Maximum Ratings:

Stress in excess of Absolute Maximum Ratings may cause permanent damage to the device.

* Engineering estimate.

Input Characteristics:

Unless otherwise specified, specifications apply over all Rated Input Voltage, Resistive Load, and Temperature conditions.

Characteristic Min Typ Max Unit Notes & Conditions

Operating Input Voltage 36 48 75 Vdc

Maximum Input Current --- --- 3.0* A Vin = 0 to Vin,max

Turn-on Voltage --- 34 --- Vdc

Turn-off Voltage 30* 32 --- Vdc

Hysteresis 0.5* 2 --- Vdc

Startup Delay Time from application of input voltage --- 12 --- mS Vo = 0 to 0.1*Vo,nom; On/Off =on,

Io=Io,max, Tc=25˚C

Startup Delay Time from on/off --- 10 --- mS Vo = 0 to 0.1*Vo,nom; Vin = Vi,nom,

Io=Io,max,Tc=25˚C

Output Voltage Rise Time --- 50 --- mS Io=Io,max,Tc=25˚C, Vo=0.1 to

0.9*Vo,nom

Inrush Transient --- --- 0.1 A2s

Input Reflected Ripple --- 15 --- mApp See input/output ripple measurement

figure; BW = 5 MHz

Input Ripple Rejection --- 50* --- dB @120Hz

*Engineering Estimate

Caution: The power modules are not internally fused. An external input line normal blow fuse with a maximum value of

10A is required; see the Safety Considerations section of the data sheet.

Characteristic Min Max Unit Notes & Conditions

Continuous Input Voltage -0.5 80 Vdc

Transient Input Voltage --- 100 Vdc 100mS max.

Isolation Voltage

Input to Output

Input to Baseplate

Output to Baseplate

---

1500

500

Vdc

Basic insulation

Operational insulation

Storage Temperature -55 125 ˚C

Operating Temperature Range (Tc) -40 105* ˚C Maximum baseplate temperature.

Advance Data Sheet: Dualeta™ iQA Series – Dual Quarter Brick

iQAFullDatasheet080505 2.doc 8/3/2006 ℡

(

877

)

498-0099 5/19

Electrical Data:

iQA48015A033M: 3.3V/2.5V, 15A Output

Characteristic Min Typ Max Unit Notes & Conditions

Output Voltage Initial Setpoint

Vout1

Vout2

3.25

2.46

3.3

2.5

3.35

2.54

Vdc

Vin=Vin,nom; Io=Io,max; Tc = 25˚C

Output Voltage Tolerance

Vout1

Vout2

3.20

2.42

3.3

2.5

3.40

2.58

Vdc

Over all rated input voltage, load, and

temperature conditions to end of life

Efficiency

83* 85 --- % Vin=Vin,nom; Io1=7.5A, Io2=7.5A;

Tc = 25˚C

Line Regulation --- 2 5* mV Vin=Vin,min to Vin,max

Load Regulation --- 5 15* mV Io=Io,min to Io,max

Temperature Regulation --- 10 75* mV Tc=Tc,min to Tc,max

Output Current

0 --- 15 A Sum of output currents, Io1+Io2

Output Current Limiting Threshold

--- 19 --- A Vo1 = 0.9*Vo,nom, Tc<Tc,max

Short Circuit Current

--- 3 --- A Vo = 0.25V, Tc = 25˚C; average output

current in current limit hiccup mode

---

mVpp

mvpp

Output Ripple and Noise Voltage

Vout1

Vout2

Vout1

Vout2

---

mVrms

Measured with 47uF Tantalum and 1uF

ceramic external capacitance – see

input/output ripple measurement figure; BW =

20MHz

Output Voltage Adjustment Range

Tracking trim option

---

110

%Vout,nom

Dynamic Response:

Recovery Time

Transient Voltage

---

0.1

---

di/dt = 0.1A/uS, Vin=Vin,nom; load step from

50% to 75% of Io,max, either output

Output Voltage Overshoot during startup

Vout1

Vout2

---

250

150

---

Io=Io,max,Tc=25˚C

Switching Frequency --- 280 --- kHz Fixed

Output Over Voltage Protection

Tracking trim option

Vo1

Vo2

3.7

2.9

---

5.0*

4.0*

External Load Capacitance 0 --- 5000*& uF

Isolation Capacitance --- 1000 --- pF

Isolation Resistance 10 --- --- MΩ

*Engineering Estimate

& Contact Innoveta for applications that require additional capacitance or very low ESR capacitor banks.

Advance Data Sheet: Dualeta™ iQA Series – Dual Quarter Brick

iQAFullDatasheet080505 2.doc 8/3/2006 ℡

(

877

)

498-0099 6/19

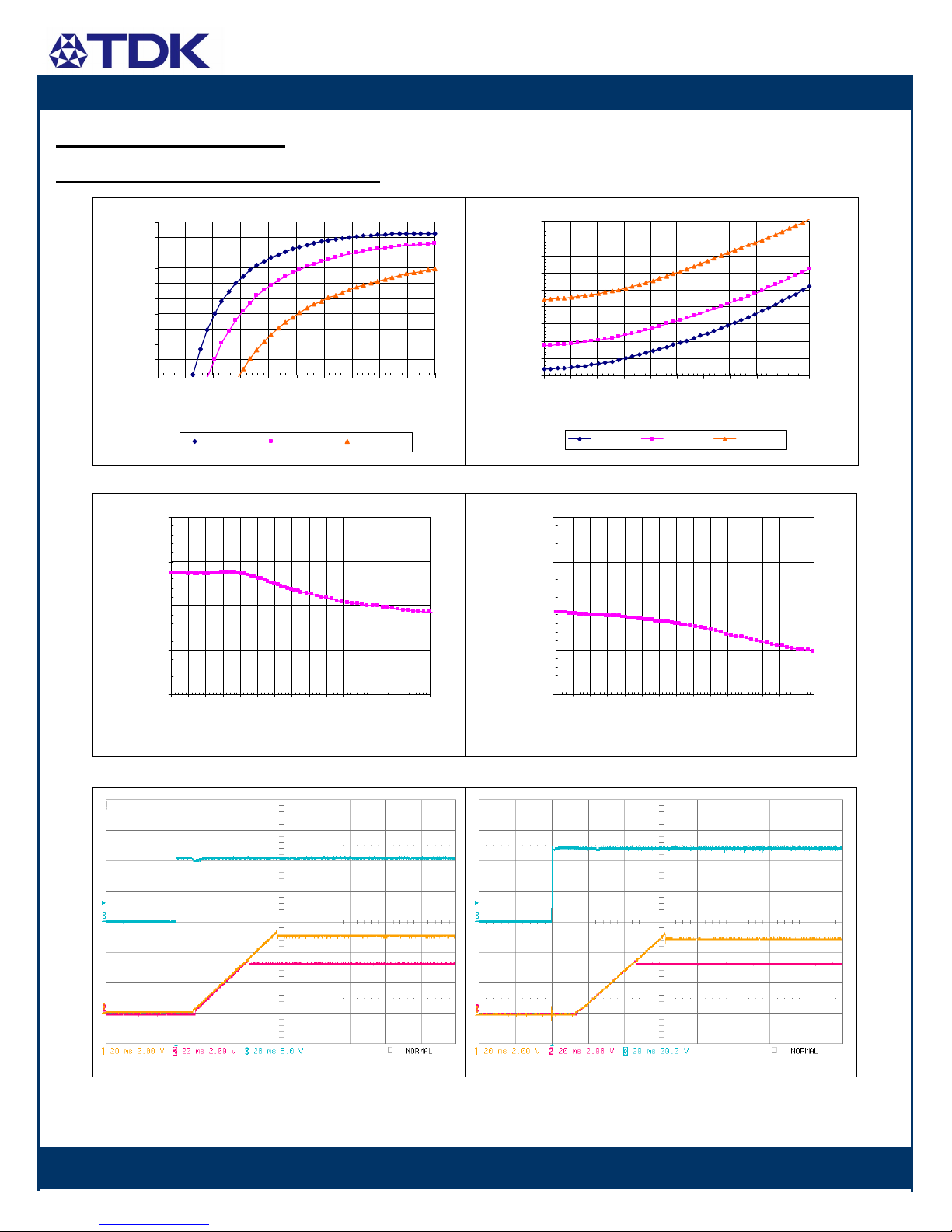

Electrical Characteristics:

iQA48015A033M: 3.3V/2.5V, 15A Output

0 20 40 60 80 100

Output Current (% full load) Io1=Io2

Efficiency, η

η(%)

Vin = 36V Vin = 48V Vin = 75V

0 20406080100

Output Current (% full load) Io1=Io2

Power Dissipation (W)

Vin = 36V Vin = 48V Vin = 75V

Typical Efficiency vs. Input Voltage at Ta=25°C. Typical Power Dissipation vs. Input Voltage at Ta=25°C.

3.285

3.29

3.295

3.3

3.305

0123456789101112131415

Output Curre nt Io1 (A), Io2 = 0A

Output Voltage Vo1 (V)

2.485

2.49

2.495

2.5

2.505

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Output Curre nt Io2 (A), Io1 = 0A

Output Voltage Vo2 (V)

Typical Output 1 Voltage vs. Load Current at Ta = 25°C. Typical Output 2 Voltage vs. Load Current at Ta = 25°C.

Typical startup characteristic from On/Off application at full load.

CH3-On/Off, CH1-Vo1, CH2-Vo2 Typical startup characteristic from input voltage application at full

load. CH3-Vin, CH1-Vo1, CH2-Vo2

Advance Data Sheet: Dualeta™ iQA Series – Dual Quarter Brick

iQAFullDatasheet080505 2.doc 8/3/2006 ℡

(

877

)

498-0099 7/19

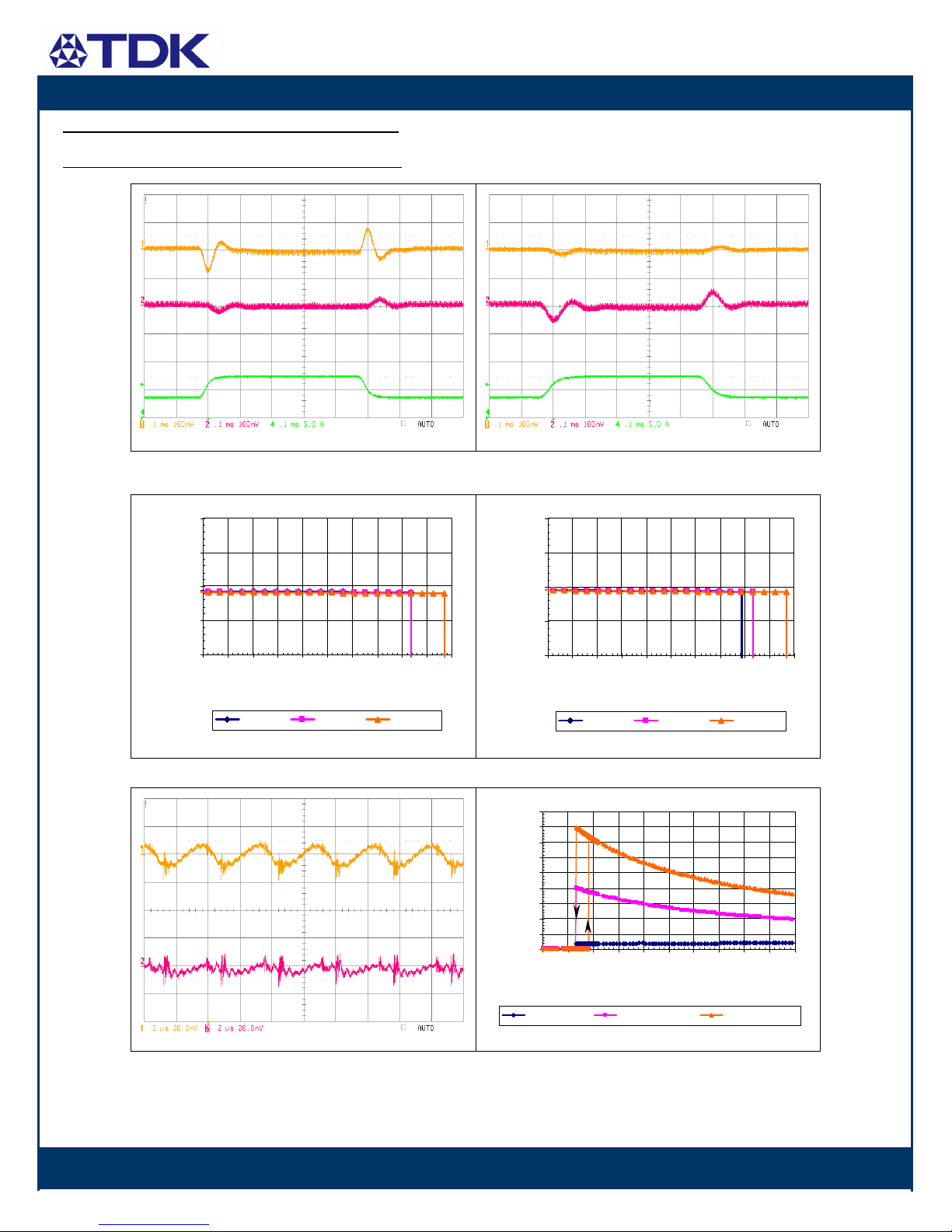

Electrical Characteristics (continued):

iQA48015A033M: 3.3V/2.5V, 15A Output

Typical Vo1 load transient response. Io1 step from 3.75A

to 7.5A with 0.1A/uS, Io2=7.5A. CH1 – Vo1, CH2 – Vo2,

CH4 – Io1.

Typical Vo2 load transient response. Io2 step from 3.75A

to 7.5A with 0.1A/uS, Io1=7.5A. CH1 – Vo1, CH2 – Vo2,

CH4 – Io2.

3.2

3.25

3.3

3.35

3.4

10 11 12 13 14 15 16 17 18 19 20

Output Current Io1 (A), Io2 = 0A

Output Voltage Vo1 (V)

Vin = 36V Vin = 48V Vin = 75V

2.4

2.45

2.5

2.55

2.6

10 11 12 13 14 15 16 17 18 19 20

Output Current Io2 (A), Io1 = 0A

Output Voltage Vo2 (V)

Vin = 36V Vin = 48V Vin = 75V

Typical Output 1 Current Limit Characteristics vs. Input

Voltage at Ta=25 degrees. Typical Output 2 Current Limit Characteristics vs. Input

Voltage at Ta=25 degrees.

0.2

0.4

0.6

0.8

1.2

1.4

1.6

1.8

25 30 35 40 45 50 55 60 65 70 75

Input Voltage (V)

Input Current (A)

Io1 = Io2 = 0A Io1 = Io2 = 3.75A Io1 = Io2 = 7.5A

Typical Output Ripple at nominal Input voltage and full

balanced load currents at Ta=25 degrees. Typical Input Current vs. Input Voltage Characteristics.

Advance Data Sheet: Dualeta™ iQA Series – Dual Quarter Brick

iQAFullDatasheet080505 2.doc 8/3/2006 ℡

(

877

)

498-0099 8/19

Electrical Characteristics (continued):

iQA48015A033M: 3.3V/2.5V, 15A Output

0.5

1.5

2.5

3.5

25 30 35 40 45 50 55 60 65 70 75

Input Voltage (V)

Output Vo1 (V)

Io1 = Io2 = 0A Io1 = Io2 = 3.75A Io1 = Io2 = 7.5A

0.5

1.5

2.5

25 30 35 40 45 50 55 60 65 70 75

Input Voltage (V)

Output Vo2 (V)

Io1 = Io2 = 0A Io1 = Io2 = 3.75A Io1 = Io2 = 7.5A

Typical Vo1 Output Voltage vs. Input Voltage

Characteristics Typical Vo2 Output Voltage vs. Input Voltage

Characteristics

Trim up – tracking trim option

Trim from

nominal (%)

+1 +2 +3 +4 +5 +6 +7 +8 +9 +10

Rup (kΩ) 46 20.4 12.1 7.9 5.2 3.5 2.2 1.3 .61 0

Rup is connected between Trim and RTN.

Trim down – tracking trim option

Trim from

nominal (%)

-1 -2 -3 -4 -5 -6 -7 -8 -9 -10

Rdown (kΩ) 56.9 25 13.8 8.8 5.8 3.8 2.3 1.3 .43 0

Rdown is connected between Trim and Vout2.

Trim resistor values for output voltage adjustment – tracking trim option.

Advance Data Sheet: Dualeta™ iQA Series – Dual Quarter Brick

iQAFullDatasheet080505 2.doc 8/3/2006 ℡

(

877

)

498-0099 9/19

Electrical Data:

iQA48015A050M: 5V/3.3V, 15A Output

Characteristic Min Typ Max Unit Notes & Conditions

Output Voltage Initial Setpoint

Vout1

Vout2

4.92

3.25

3.3

5.08

3.35

Vdc

Vin=Vin,nom; Io=Io,max; Tc = 25˚C

Output Voltage Tolerance

Vout1

Vout2

4.85

3.2

3.3

5.15

3.4

Vdc

Over all rated input voltage, load, and

temperature conditions to end of life

Efficiency

86* 87.5 --- % Vin=Vin,nom; Io1=7.5A, Io2=7.5A;

Tc = 25˚C

Line Regulation --- 2 5* mV Vin=Vin,min to Vin,max

Load Regulation --- 5 15* mV Io=Io,min to Io,max

Temperature Regulation --- 10 75* mV Tc=Tc,min to Tc,max

Output Current

0 --- 15 A Sum of output currents, Io1+Io2

Output Current Limiting Threshold

--- 17 --- A Vo1 = 0.9*Vo,nom, Tc<Tc,max

Short Circuit Current

--- 3 --- A Vo = 0.25V, Tc = 25˚C; average output

current in current limit hiccup mode

---

mVpp

mvpp

Output Ripple and Noise Voltage

Vout1

Vout2

Vout1

Vout2

---

mVrms

Measured with 47uF Tantalum and 1uF

ceramic external capacitance – see

input/output ripple measurement figure; BW =

20MHz

Output Voltage Adjustment Range

Dual independent trim – standard

Tracking trim option

1.5

---

5.5

110

Vdc

%Vout,nom

Vout2 < (Vo1-0.3V)

Either output

%Vout,nom

Dynamic Response:

Recovery Time

Transient Voltage

---

0.1

100

---

di/dt = 0.1A/uS, Vin=Vin,nom; load step from

50% to 75% of Io,max, either output

Output Voltage Overshoot during startup

Vout1

Vout2

---

250

150

---

Io=Io,max,Tc=25˚C

Switching Frequency --- 280 --- kHz Fixed

Output Over Voltage Protection

Dual independent trim – standard

Vo1

Vo2

Tracking trim option

Vo1

Vo2

5.6

---

5.6

3.7

---

Vo1

---

6.7*

---

7.5*

5.2*

External Load Capacitance 0 --- 5000*& uF

Isolation Capacitance --- 1000 --- pF

Isolation Resistance 10 --- --- MΩ

*Engineering Estimate

& Contact TDK Innoveta for applications that require additional capacitance or very low ESR capacitor banks.

Advance Data Sheet: Dualeta™ iQA Series – Dual Quarter Brick

iQAFullDatasheet080505 2.doc 8/3/2006 ℡

(

877

)

498-0099 10/19

Electrical Characteristics:

iQA48015A050M: 5V/3.3V, 15A Output

0 102030405060708090100

Output Current (% Full Load) Io1=Io2

Efficiency, η

η(%)

Vin = 36V Vin = 48V Vin = 75V

0 10203040506070 8090100

Output Current (% Full Load) Io1=Io2

Power Dissipation (W)

Vin = 36V Vin = 48V Vin = 75V

Typical Efficiency vs. Input Voltage at Ta=25°C. Typical Power Dissipation vs. Input Voltage at Ta=25°C.

5.005

5.01

5.015

5.02

01234567 89101112131415

Output Current Io1 (A), Io2 = 0A

Output Voltage Vo1 (V)

3.3

3.305

3.31

3.315

3.32

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Output Current Io2 (A), Io1 = 0A

Output Voltage Vo2 (V)

Typical Output 1 Voltage vs. Load Current at Ta = 25°C. Typical Output 2 Voltage vs. Load Current at Ta = 25°C.

Typical startup characteristic from On/Off application at full load.

CH3-On/Off, CH1-Vo1, CH2-Vo2 Typical startup characteristic from input voltage application at full

load. CH3-Vin, CH1-Vo1, CH2-Vo2

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TDK Matériel informatique

TDK

TDK Xeta Half Brick-iHG Manuel utilisateur

TDK

TDK FReta iEB Series Manuel utilisateur

TDK

TDK SLF Series SLF12565 Manuel utilisateur

TDK

TDK DEA Series DEA205375BT-2054A1 Manuel utilisateur

TDK

TDK DEA Series Manuel utilisateur

TDK

TDK Powereta iQP 5V/50A Manuel utilisateur

TDK

TDK VLCF Series VLCF4024-2 Manuel utilisateur

TDK

TDK Varistors(SMD) AVF16 Series Manuel utilisateur

TDK

TDK Supereta Series DC/DC Manuel utilisateur

TDK

TDK DEA Series DEA162500LT-1217A1 Manuel utilisateur

TDK

TDK HHM Series HHM1589D1 Manuel utilisateur

TDK

TDK HHM Series HHM1522B1 Manuel utilisateur

TDK

TDK Powereta iQP48070A033V Manuel utilisateur

TDK

TDK Belleta iEA Series Manuel utilisateur

TDK

TDK Ferrites EE320x250x20 Manuel utilisateur

TDK

TDK DEA Series DEA162450BT-1260B2 Manuel utilisateur

TDK

TDK Module blu2i Manuel utilisateur

TDK

TDK DEA Series DEA252450BT-7012D1 Manuel utilisateur

TDK

TDK Supereta iQN48006A350V Manuel utilisateur

TDK

TDK EL Series EL0405 Manuel utilisateur

TDK

TDK HHM Series HHM1791A1 Manuel utilisateur

TDK

TDK WiMAX HHM Series HHM1715E1 Manuel utilisateur

TDK

TDK FReta Series Manuel utilisateur

TDK

TDK HHM Series HHM1711E1 Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
