Symbol LS-2100U Manuel utilisateur

Installation

Installing the Keyboard Wedge Reader

To install a keyboard wedge reader, follow the steps below:

1. Turn off the power of the PC or Terminal.

2. Unplug keyboard from the PC or Terminal.

Make sure you have the Y cable with appropriate

connector type for your PC or Terminal.

4. Connect Scanner to your PC or Terminal.

Connect the keyboard connector to the female connector

of the Y cable

6. Turn on the power of PC or Terminal.

Installing the RS232 Reader

To install a RS232 reader, follow the steps below:

1. Turn off the power of the PC or Terminal.

Make sure the connector type from RS232 to the PC or

Terminal is correct.

3. Plug ACAdaptor connector into connector of the reader.

4. Turn on the power of PC or Terminal.

5. Setup the Interface of the reader to RS232 mo

de by

scanning the barcode in the Interface Selection.

Method of Programming

Loop of programming

The philosophy of programming parameters has been show on

the flow chart. Basically user should

1. Scan Start of Configuration.

2. Scan all necessary labels for parameters that meet

applications.

3. Scan End of Configuration to end the programming.

4. To go bark to the Default Settings, just scan label for Set

All Defaults.

Factory Default Settings

The factory default settings are shown with < >and bold in the

following sections. You can make your own settings by following

the procedures in this manual.

By scanning” Set All Default” label, the settings will go back to the

factory default settings.

Setup Commands

Set All efaults

Set all the parameters to the

factory default setting.

Start Configuration.

End Configuration.

Abort Configuration

Terminate current programming

status.

Version Information

Display the decoder version

information and date code

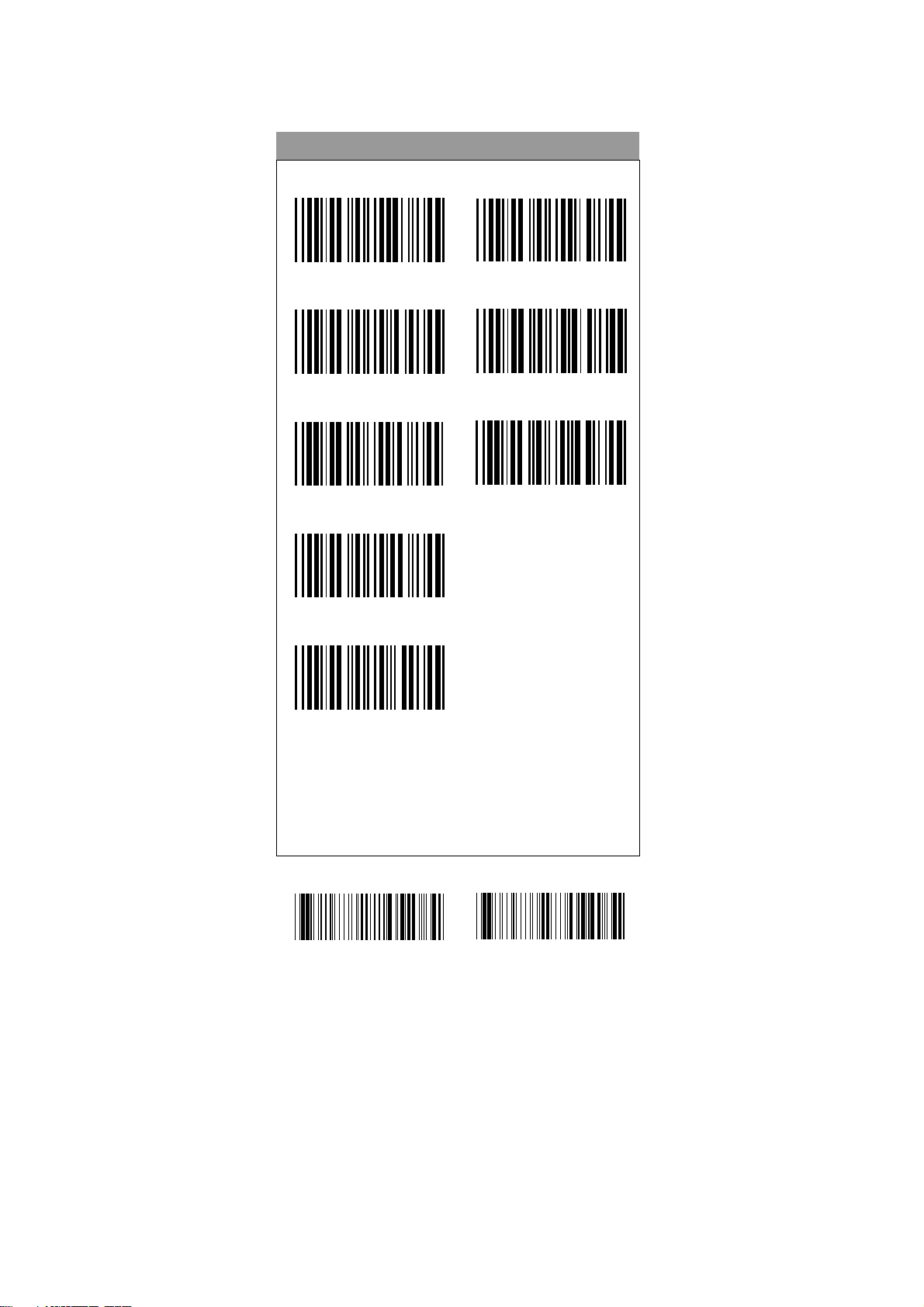

Interface Selection

RS232 Mode

USB Mode

Start Configuration Abort Configuration

Reading Mode

<Good Read Off> Flash-On

Trigger On/Off

Continuous/Trigger Off Testing

Continuous/No Trigger

Trigger ON/Good Read Off/Delay=??

*This mode is almost the same as

<Good Read OFF> but you can delay

time for turning off LED<Default is 3

seconds> you can use the provided

Decimal and Hex-Label Tables for you

own setup.

Trigger On/Good Read

Off/Delay=??

Continuous/Trigger Off/Delay=??

*This mode you can define the delay

time to control the LED off after

releasing the trigger.

Continuous/Trigger Off

End Configuration

RS-232 Communication Parameters

Set Up BAU Rate

300 <9600>

600 19200

1200 38400

2400

4800

Start Configuration Abort Configuration

RS-232 Communication Parameters

Set Up ata Bits:

7 Data Bits

<8 Data Bits>

Set up Parity:

<None>

Even

Odd

End Configuration

RS-232 Communication Parameters

Handshaking

<None>

RTS/CTS Enable

ACK/NAK Enable

XON/XOFF Enable

Start Configuration Abort Configuration

RS-232 Communication Parameters

(ACK/NAK Response Time CTS Observation Time:)

ACK/NAK Time Out=??

Scan Start Configuration Label

Scan ACK/NAK Time-out Label

Scan Two Digit Labels in Table–Hex

Scan Confirm Label in Table-Hex

Scan End Configuration Label

RTS/CTS Time Out=??

Scan Enter Start Configuration Label

Scan RTS/CTS Time-Out Label

Scan Two Digit Labels in Table–Hex

Scan Confirm Label in Table-Hex

Scan End Configuration Label

RTS Signal status:

Normal LOW <Normal High>

End Configuration
