Sylvac S Dial WORK Smart Manuel utilisateur

INSTRUCTIONS

MODE D’EMPLOI

BEDIENUNGSANLEITUNG

MANUALE D’USO

INSTRUCCIONES DE USO

DIAL GAUGE

COMPARATEUR

MESSUHR

COMPARATORE

COMPARADOR

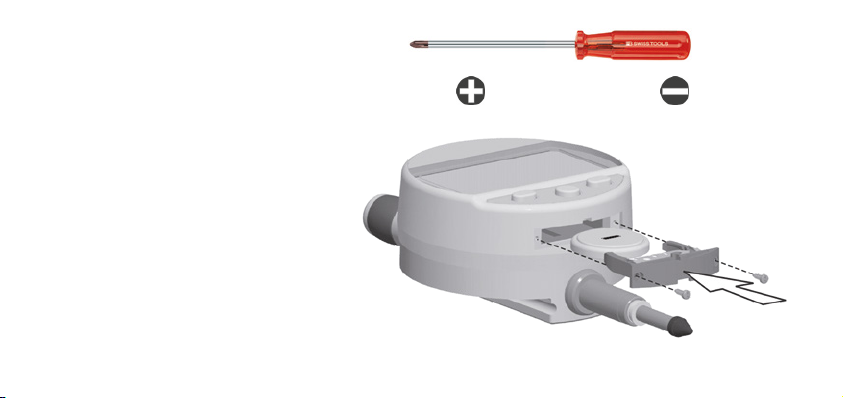

Installing and replacing the battery

(or Power cable)

Mise en place et remplacement de la

batterie (ou câble Power)

Einbau und Austausch von Batterie

(oder Netzkabel)

Installazione e sostituzione della batteria

(o del cavo di alimentazione)

Colocación y sustitución de la batería

(o cable Power)

No. 0 No. 0 (0,4x2,5mm)

Battery / batterie / Batterie / batteria / bateria: lithium 3V, type CR2032

7.5

(4x) M2

L 3.5mm

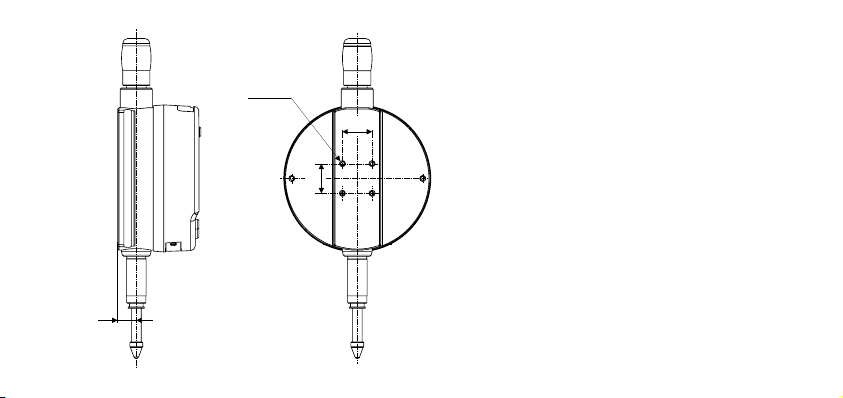

Diagram for rear fixings

Schéma de fixation arrière

Schema für die Befestigung hinten

Schema di fissaggio posteriore

Esquema de fijación posterior

23 20

Description

1. MODE button

2. SET button

3. “Favourite” button

4. Clamping shaft Ø8 or 3/8”

5. Lifting cap

6. Contact point Ø2/M2.5 or 4-48-UNF

7. Slot for Proximity cable

8. Slot for battery or Power cable

9. Measurement units (mm/INCH)

10. +/- Indicator

11. Low battery

12. Mode menu display

13. MIN/MAX/DELTA mode

14. Preset mode

15. Tolerance mode

16. 7- digit display

17. Hold measured value

18. Keypad lock

19. Send data

20.

Bluetooth

®active ( depending on model )

21. Multiplication factor

22. Tolerance indicators

23. Active reference

SET

MODE

E1. Operating features of the instrument

- The instrument has two operating modes: basic functions (direct access) and advanced functions. In addition

to the configuration functions, 2 working reference functions can be accessed, in MIN, MAX and DELTA (TIR)

mode, plus tolerance dispay or input of multiplication factor other than 1:1 (see chaps. 3 and 4).

- The «favourite» key gives direct access to the function used most often (see chap. 7).

- Sets a Preset value, resets the MIN/MAX mode, verifies a selection, and controls switching off the instrument.

By default, SIS mode enables automatic switch-off with no loss of origin (see chap. 8).

- Personalising the functions

It is possible to activate or de-activate certain functions of the instrument via RS232 (see chap. 10).

- Data transmission parameters

4800Bds, 7 bits, even parity, 2 stop bits.

2. Start Press a button.

For a

Bluetooth

®connection (see chap. 6).

MODE

SET

MODE

SET

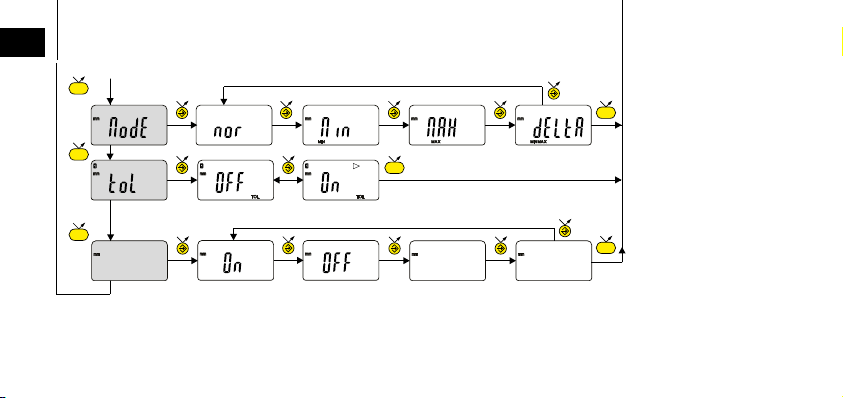

3. Basic functions

Each short press on gives direct access to the basic functions :

– Choice of reference

(REF1 or REF2)

– Inputting a Preset value

next digit 0...9

save PRESET

Note:

- It is possible to assign a different preset value to each of the 2 References. Similarly,

different tolerance limits can be assigned to References 1 and 2.

MODE

SET

MODE

bt rESEt MAC

SET

MODE

E........ continuation

– MIN, MAX measurement

DELTA (TIR)

– Tolerance display

(inputting tolerance limits,

see chap. 5)

– Bluetooth®(depending on

model). Enable / disable,

reset Bluetooth®module

or display its MAC address.

MODE MODE

MODE

SET

MODE

SET

MODE

SET

MODE

SET

OFF On

MODE

SET

MODE

SET

bt,CFG HId

PAIr

SIMPLE

SET

MODE

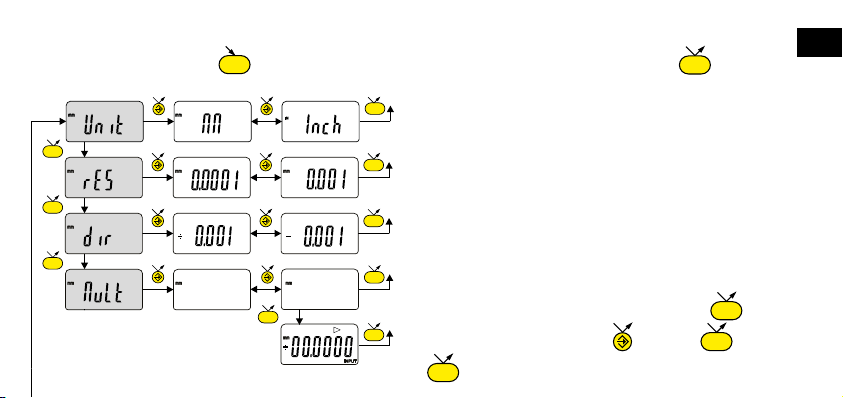

4. Advanced functions

Prolonged pressure (>2s) on gives access to the advanced functions.Then, each short press on accesses

the required function:

– Unit selection (mm or inch)

– Choice of resolution 0.01 / 0.001 or 0.001 / 0.0001

(depending on version)

– Choice of measurement direction

(positive or negative direction)

– Multiplication factor, enable or disable multiplication factor

(value can be modified if On is confirmed by button)

– Input of multiplication factor, next digit 0....9

save MULT

SET

MODE

SET

bt,CFG HId

PAIr

SIMPLE

SET

MODE

E........ continuation

Keypad lock

Only the favourite key remains

active.(to unlock the keypad, press

for 5 sec).

Automatic switch-off mode

MAn = disabled, Auto = active

(after 10 min. by default).

Bluetooth®profile selection (depending

on model).

(see chap. 6 for details)

The +sign indicates the currently active

profile.
