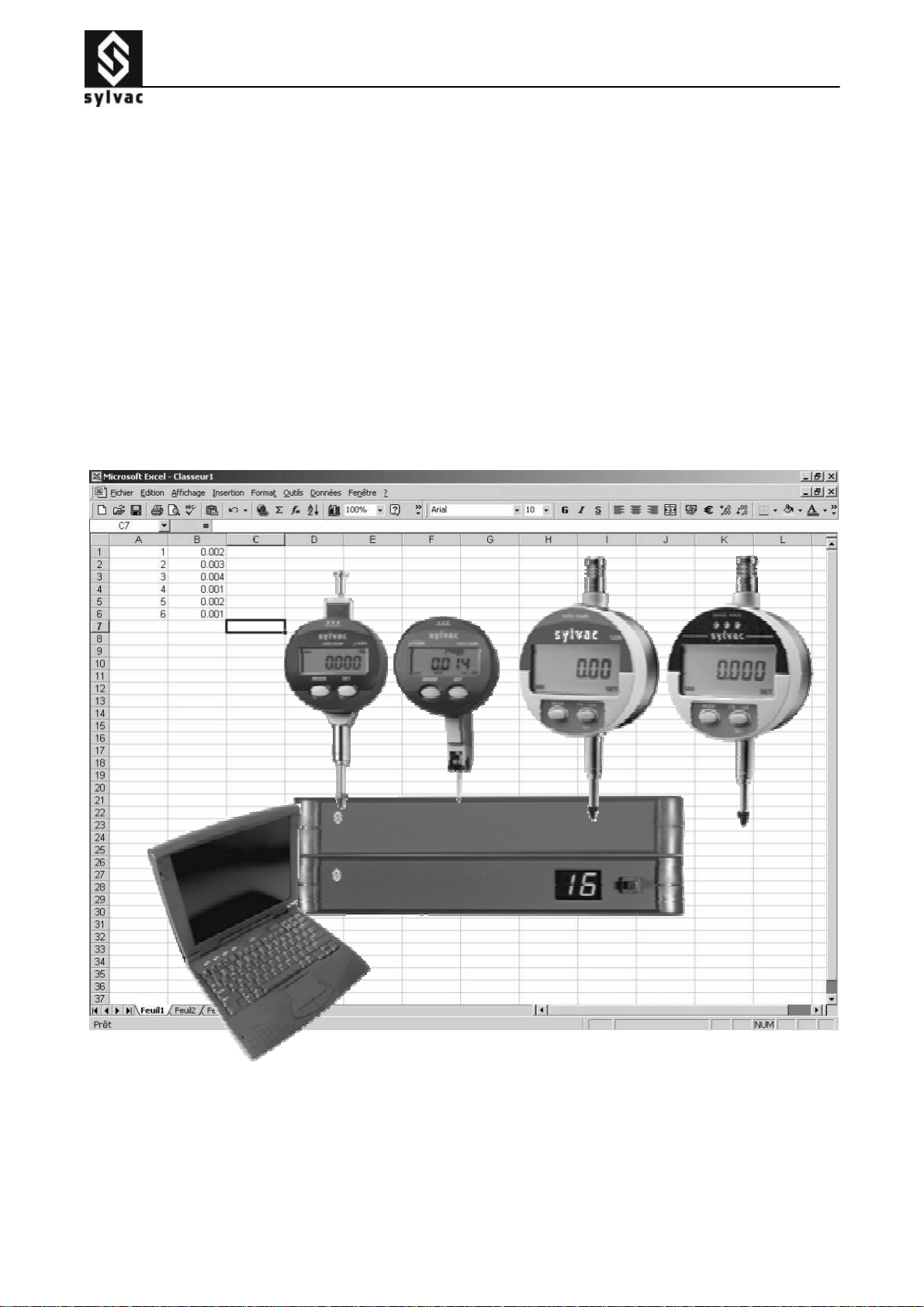

Sylvac D104-PC Manuel utilisateur

D104-PC MULTIPLEXER

Sylvac SA

1/12

D104

PC / D104

User’s Manual

Version 3.2

D104-PC MULTIPLEXER

Sylvac SA

2/12

D104-PC MULTIPLEXER

Sylvac SA

3/12

Contents

Page

1. General description 4

2. Front panel 5

3. Rear panel 5

4. Example of connecting two D104 units on a D104-PCmultiplexer. 5

5. Manual setting for the number of channels used. 6

6. Manual setting for the function of the button key. 6

7. Selecting the function of the button key. 6

8. Manual setting for the function of foot pedal or external contact. 7

9. Selecting the function of foot pedal or external contact key. 7

10.Remote commands from a PC 8

11.Additional powersupply « Booster » 9

12.Technical specifications 10

13.Delivery 10

D104-PC MULTIPLEXER

Sylvac SA

4/12

1. General description

The D104-PC multiplexer is designed for connecting up to 4 RS232 instruments to the

same port of a personal computer (PC).

The D104 unit allows connection of 4 additional instruments. The maximum is 48 inputs,

so one (1) D104-PCmultiplexer and eleven (11) D104.

Example of connection : (with cable « simplex »)

Example of connection : (with cable « duplex »)

The selection of functions can be done as follow :

-Byremote commands from a PC

-With the button keyon front panel.

-With the external contact (foot pedal)

The active channel is displayed on the front panel.

D104-PC MULTIPLEXER

Sylvac SA

5/12

2. Front panel (D104-PC)

3. Rear panel (D104-PC)

4. Example of connecting two D104 units on a D104-PCmultiplexer

Button key

Display of active channel

Extension

for D104

Mains

adapter

Power supply+

Extension of

commandes

To PC

(cable 1 :1)

Inputsfor 1 to 4

RS232 intruments

External

contact

foot pedal

D104

D104- PC

D104-PC MULTIPLEXER

Sylvac SA

6/12

5. Manual setting for the number of channels used

Selecting the number of channel used (example 1…4)

1. The multiplexer ON , press (>2sec.) on button key

The displaywill indicate a twinkling number

2. Select the maximum channel used 1,2,3,4 byshort pressure (<2sec.)

Limit = 48 channels or instruments.

3. Memorize the channel bypressing (>2 sec.) on button key.

6. Manual setting for the function of the button key

Button keyfunctions

0 = no function.

1 = channel change, from channel 1 to defined channel. (See chapter. 5)

2 = channel change and datasending forsimplexcable.

3 = channel change and datasending for duplexcable.

4 = data sending for current channel.

5 = data sending for simplexcable and channel change.

6 = data sending for duplexcable and channel change.

7 = PREsending to the instrument (onlyduplexcables with duplexinstruments)

8 = CLE sending to the instrument (onlyduplexcables with duplexinstruments

, also active with S233A/S234 in min, max, min – max. mode).

7. Selecting the function of the button key(example :6)

1. Remove the mains adapter of D104 PC , if the additional « booster » adapter is

connected, remove it as well..

2. Press the button keywhen plugging in the mains adapter of D104-PC.

3. Select byshort pressure (<2 sec.) on the button keyto choose the

selected function.

4. Memorize the selection bya pressure (>2 sec.) on the button key.

D104-PC MULTIPLEXER

Sylvac SA

7/12

8. Manual setting for the function of external contact (foot-pedal)

External contact (foot-pedal) functions

0 = no function.

1 = channel change, from channel 1 to defined channel. (See chapter. 5)

2 = channel change and datasending forsimplexcable.

3 = channel change and datasending for duplexcable.

4 = data sending for current channel.

5 = data sending for simplexcable and channel change.

6 = data sending for duplexcable and channel change.

7 = PREsending to the instrument (onlyduplexcables with duplexinstruments)

8 = CLE sending to the instrument (onlyduplexcables with duplexinstruments

, also active with S233A/S234 in min, max, min – max. mode).

9. Selecting the function of external contact (foot-pedal) (example :2)

1. Remove the mains adapter of D104 PC , if the additional « booster » adapter is

connected, remove it as well..

2. Press the foot-pedal when plugging in the mains adapter of D104-PC.

5. Select byshort pressure (<2 sec.) on the foot-pedal to choose the

selected function.

3. Memorize the selection bya pressure (>2 sec.) on the foot-pedal.

Note :

The functions of the button keyand the foot pedal can be different, however functions 7

and 8 are intended onlyfor duplexcables and duplexinstruments, as well as function 8

is intended for the S233 analog instruments, S234.

D104-PC MULTIPLEXER

Sylvac SA

8/12

10. Remote commands from a PC

Transmission parameters :

Description of remote commands

ADD+ channel number : select the channel number and data sending. (ADD1 ♪)

ADN+ channel number : select the channel numberwithout data sending. (ADN1 ♪)

PGM C+ channel number: Memorize the maximumnumber of channel to be used. (PGM C4♪)

PGM K+ function number :Memorize the button key function. (PGM K3♪)

PGM F+ function number : Memorize the foot-pedal function. (PGM F2♪)

SCA a-z : Allows ascanning in simplex mode and data sending

fromchannel « a » to channel « z ». (SCA 1-4♪)

SCAD a-z: Allows a scanning in duplex mode and data sending

fromchannel « a » to channel « z ». (SCAD1-4♪)

VER: Display the softwareversion of D104-PC(VER♪)

Note : The character ♪is the ASCIIcharacter (13) = (CR) carriage return

This character is necessary if he is not included into the communication software.

Other remote commands

The remote commands are generally used with the duplex cables and duplex instruments

except the remote command CLE (Clear). This remote command allows the initialization of

min, max, delta on the following simplex instruments : S233 analog, S234.

For the duplex cables with duplex instruments, all remote commands according to the instruments

used are available. (See User’s manual of the instrument)

Mixing simplex and duplex cables.

Mixing simplex and duplexcables are not allowed.If you use simplex and duplex instruments,

please use duplexcables only.

4800 bps, 7 bits, parity even, 2 stop bits

D104-PC MULTIPLEXER

Sylvac SA

9/12

11. Additional power supply « Booster »

In case of connecting more than 4 mini-dial gauges S233/S234, the using of a « Booster »

additional power cable is necessary for the unit D104-PC/ D104.

This ensures a good level of power supply on all gauges.

This additional “Booster” gives a considerable advantage, indeed it supplies all instruments

S233/S234 connected to a D104-PCand D104, which allows individual powersupply to these

instruments. (Not loosing the offsets).

Mains adapter

D104

D104-PC

Câble RS 232

Booster

Mains adapter « booster »

D104-PC MULTIPLEXER

Sylvac SA

10/12

12. Technicalspecifications

Housing in Terblend plastic (ASA + polycarbonate), polyurethane clip-on legs,

polycarbonate front panel and varnished aluminium rear panel.

IP degree protection : IP 50 (according IEC529)

Weight of unit : 1.1 lb (0.5 kg)

Operating temperature : between +40°and + 100°F (+5°à +40°C)

Storage temperature : between +0°and +140°F (-20 °à +60°C)

Power supply : Mains adapter +8.5V/1100 mA

RS232 switching: Only RxDand Txd lines are switched

13. Delivery

Order Nb.

D104 PC Multiplexer including : 904.1105

-1 mains adapter according to country : Euro 230V (904.4010)

US 120V (904.4012)

UK 240V (904.4011)

Japon 100V (904.4013)

-1 RS232 connecting cable

80 ‘’ (2m.) 9M-9F(1 :1) (925.5609)

Order Nb.

D104 unit including : 904.1104

- 1 RS232 crossed cable 9M-9M (926.5524)

- 1 command connecting cable 4F-4F (925.5601)

- 1 cable 1.2 ’’ (0.3m) 9M-9F (1 :1) (925.5607)

Accessories Order Nb.

-1 foot pedal 904.4101

-1 cable 120 ’’ (3m) 9M-9F(1 :1) 925.5609

« Booster » power supply including : 925.1150

- 1 mains adapter according to country : Euro 230V (904.4010)

US 120V (904.4012)

UK 240V (904.4011)

Japon 100V (904.4013)

-1 connector « Booster » only 925.1151

Note :

This User’s manual is intended for the Epromversion 3.2 of D104-PC multiplexer.

The previous versions of D104-PC multiplexer can be updated fromthe serial number : 635
