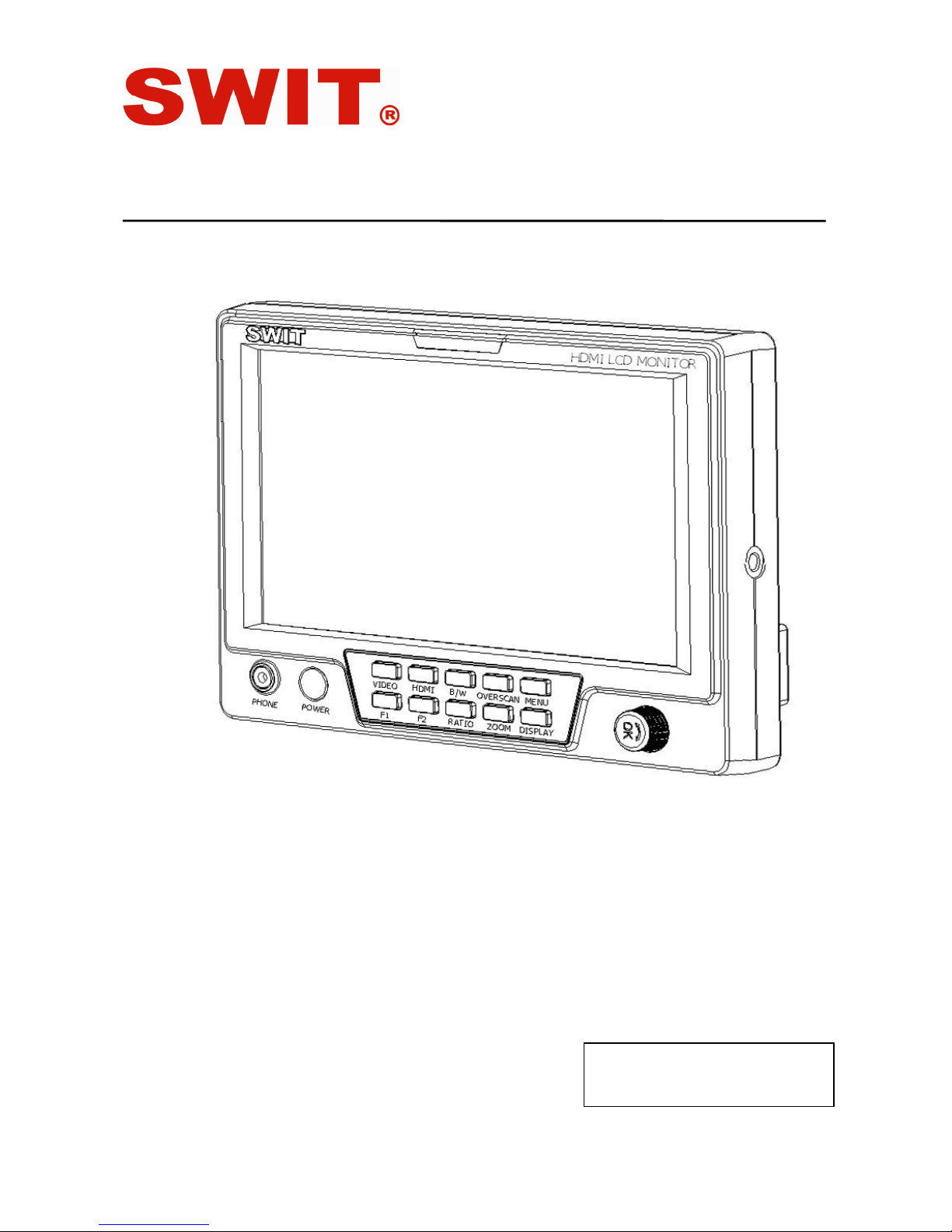

SWIT S-1071C Manuel utilisateur

Model:

S-1071C

7" Portable On-camera HDMI LCD Monitor

User Manual

Please read this User Manual

throughout before using

Preface

Congratulations on your purchase of this product Please read this user manual carefully

1 All internal technologies of this product are protected, including device, software and trademark

Reproduction in whole or in part without written permission is prohibited

2 All brands and trademarks of SWIT Electronics Co , Ltd are protected and other relative trademarks

in this user manual are the property of their respective owners

3 Due to constant effort of product development, SWIT reserves the right to make changes and

improvements to the product described in this manual without prior notice

4 This product is covered by 2 years conditional warranty, and misuse, abnormal handling, alterations

or modifications in design or construction will void this warranty It is considered normal that the LCD

bright dot defects are not to exceed three

5 For any suggestions and requirements on this product, please contact us through phone, fax, Email,

etc

Maintenance

 Monitor

1 Please keep the signal terminals and the cooling vent away from knife-edge, metal or liquid in order to

avoid short-circuit and damage

2 Please don't try to disassemble any parts of the monitor by yourself, which would probably damage

the monitor and do harm to human body, and it will cause the invalidation of product warranty

3 Please don't touch the screen with your fingers, which would probably deface the screen

4 Please don't press the screen; the LCD is extremely exquisite and flimsy

 The power

Please use the provided power adapter or the battery recommended by the manufacturer in order to

avoid damage

Please never use the light connector (2-pin, fe ale) in right front of ca era handle to power the

onitor; otherwise it will da age the circuit of the onitor.

Please disconnect the power cable or take off the battery under the following situations:

1 If you do not operate this monitor for a period of time;

2 If the power cable or power adaptor is damaged;

3 If you operate this monitor by the methods different from this User Manual, and cause unknown

problems;

4 If the monitor housing is broken

 Working Environ ent

1 Please don't lay this product on the unstable place

2 Please don't lay this product in hot, cold or wet location

 Cleaning

1 Please clean the screen with dry and downy cloth or special LCD cleanser

2 Please do not press hard when cleaning the screen

3 Please do not use water or other chemical cleanser to clean the screen The chemical may damage

the LCD

4 For first time use, please tear off the factory LCD film To protect the LCD screen, please post the LCD

protection film offered in the package

1. Features

 7” LCD, 1024×600 resolution, with wide viewing angle;

 HDMI and Composite Video input accept;

 User definable function keys;

 User editable video title;

 Video flip function;

 Front and Rear 3-color TALLY light;

 Quick release battery mount, for different DV batteries optional

2. Panel Instruction

2.1 Front view

⑴

PHONE: Earphone jack

⑵

POWER: Power on/off

Connect with power cable or mount battery, press the “POWER” and the power indicator is turned

on and after 10 seconds, the monitor will be switched on and get into normal working status Press

the “POWER” again, the indicator is turned off and monitor is switched off

Remark: Disconnect with power cable or take off the battery if the monitor will not be used for a

period of time

⑶

VIDEO: Press to switch the input signal to Composite video

⑷

HDMI: Press to switch the input signal to HDMI

⑸

B/W: Black and White mode

⑹

OVERSCAN: Overscan / Underscan switch

⑺

MENU: Press to enter Menu

⑻

F1: User definable function key 1

⑼

F2: User definable function key 2

⑽

RATIO: 16:9 and 4:3 switch

⑾

ZOOM:

Picture Zoom-in

Press “ZOOM” to switch ZOOM1: Canon DSLR scale zoom-in, and ZOOM2: pixel to pixel zoom-in

⑿

DISPLAY: Display current settings

Press “Display” to display safety mark, title and the current input signal information

⒀

OK: Select and Apply

Under menu system, revolve “OK” to adjust settings and press to apply; and out of menu system,

directly revolve “OK” to adjust volume

⒁

TALLY Light: Red, Green and Yellow 3-color TALLY indicator

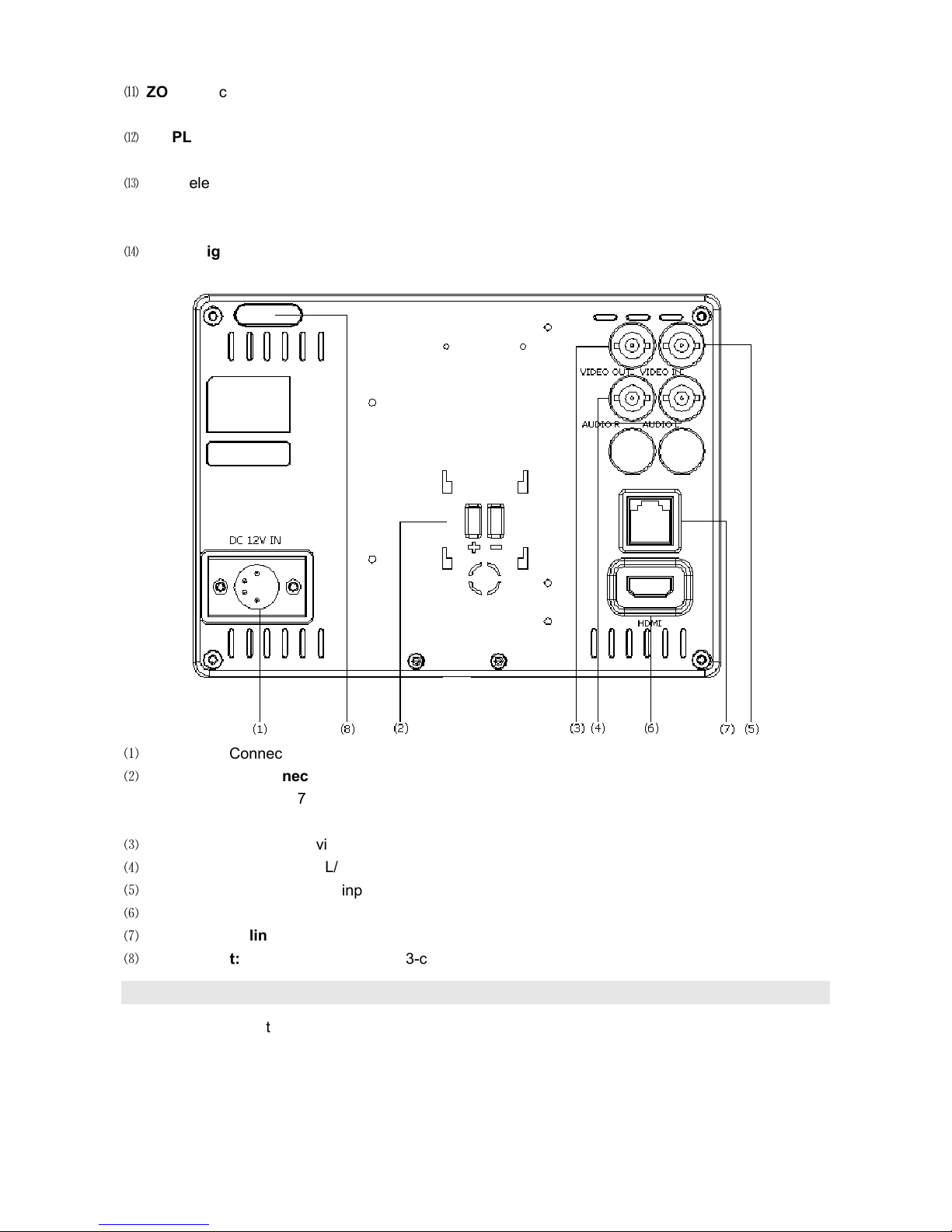

2.2 Rear view

⑴

DC 12V IN: Connect with DC12V 4-pin XLR power adapter

⑵

Battery ount connector:

Connect with SWIT S-7001 series quick release DV mounts, and then mount corresponding DV

batteries See details in “Optional Battery Mount”

⑶

VIDEO OUT: Composite video loop through output (BNC connector)

⑷

AUDIO L/R: Stereo audio L/R input (RCA connector)

⑸

VIDEO IN: Composite video input (BNC connector)

⑹

HDMI: HDMI input

⑺

TALLY controlling port

⑻

TALLY Light: Red, Green and Yellow 3-color TALLY indicator

3. Input For ats

The S-1071C supports following video formats

HDMI: 480I / 576I / 480P / 576P / 1080I50 / 1080I60 / 720P50 / 720P60 /

1080P24 / 1080P25 / 1080P30 / 1080P50 / 1080P60

Co posite: PAL/ NTSC

4. Menu Operation

Press “MENU” and it will display menu system

 Revolve “OK” to select an item The selected item will be highlighted display

 Press “OK” to enter the selected item

 Under menu system, press “MENU” to back to previous menu

 The menu will automatically save and quit if it remains idle

5. Picture Settings Sub enu

The Picture Settings Submenu includes:

(1) CONTRAST: 0-100 value adjustment

(2) BRIGHTNESS: 0-100 value adjustment

(3) HUE: 0-100 value adjustment

(Only available under Composite input)

(4) SATURATION: 0-100 value adjustment

(5) SHARPNESS: 0-100 value adjustment

(6) PIC.MODE: User defined and preset picture

modes: standard, soft and vivid selection

6. Syste Config Sub enu

The System Config Submenu includes:

(1) RATIO: Select “16:9” or “4:3” to adjust the aspect

ratio

(2) SCAN: “UNDERSCAN” and “OVERSCAN”

selection

(3) ZOOM: “OFF”, “ZOOM1” and “ZOOM2” selection

ZOOM1: Canon DSLR scale zoom-in

ZOOM2: Pixel to Pixel zoom-in

(4) MARKER: Select and set the safety mark scale

from 80%, 85%, 90% and 95%

(5) REVERSE: Select “YES” to rotate the image of 180

(6) MEM.RECALL: Revolve “OK” to MEM RECALL and press to reset all to factory setting

7. OSD Settings Sub enu

The OSD Settings Submenu include

(1) LANGUAGE: Menu language English / Chinese

selection

(2) H-POSITION: Menu horizontal position (0-100)

adjustment, real-time preview and default value: 50,

center

(3) V-POSITION: Menu vertical position (0-100)

adjustment, real-time preview and default value: 50,

center

(4) DURATION: Menu timeout setting

Set a time (in seconds) in which the menu will automatically quit if remains idle Default: 10 seconds;

Range: 5 seconds to 60 seconds

8. Title Settings Sub enu

Revolve "OK" button to select the letters, and press "OK" to input Select SPACE to input space and DEL

to delete the left letter Max 10 letters are supported

After setting, press "MENU", the system will save data

to current user and quit menu The menu will

automatically save and quit if it remains idle

9. Display Settings Sub enu

The DISPLAY settings submenu is to select the items

to be displayed on screen when ‘DISPLAY” button is

pressed Revolve "OK" to turn on/off the items:

(1) INFO: Including Input format, aspect ratio,

underscan/overscan, zoom status

(2) MARKER: Safety mark

(3) TITLE: User edited title

10. FUN.KEY Settings Sub enu

The FUN KEY Settings Submenu is to define Function

Key F1 and F2 The available function items are:

01-RATIO: Aspect ratio switch

02-SCAN: Underscan / Overscan switch

03-ZOOM: Picture Zoom-in

04-CLR.TEMP: Color-temperature switch

05-PIC MODE: Preset picture mode switch

06-B/W: Color / Black & white switch

07-REVERSE: Image flip

11. TALLY Light Operation

There are front and rear TALLY lights on the monitor, which can display RED, GREEN and AMBER

signals The TALLY light controlling port is the RJ45 socket at the rear panel, and terminal description is

as follows:

The RED light is on when connecting the terminal “R” with “GND”, and goes out when disconnecting

The GREEN light is on when connecting the terminal “G” with “GND”, and goes out when disconnecting

The AMBER light is on when connecting the terminal “Y” with “GND”, and goes out when disconnecting

12. Cold Shoe Bracket

The provided monitor bracket support both cold shoe and screw mount for camera connection

1 For cold shoe: anticlockwise screw the knob to draw the bolt back, slide the cold shoe mount into

camera, and then clockwise adjust the knob to fasten

2 For screw mount: clockwise screw the knob to draw the bolt directly into the screw thread of camera

till fastened

3 Screw the ball head knob into monitors, and lock the ball head

Ter inal 1 2 3 4 5 6 7 8

Description

Y G GND

①

Lock

②

Knob

③

Cold shoe mount

④

Screw bolt

13. Optional Battery Mount

13.1 S-7001 series DV battery ount

S-1071C monitor can use Gold mount, V-mount batteries, and DV batteries by connecting with SWIT

S-7001 series mount There’re following types of S-7001 for choice:

Model Co patible battery type Reco ended SWIT battery

S-7001F SONY L series NP-F770/970 S-8972, S-8970, S-8770

S-7001P Panasonic CGA series D54S/D28S S-8D62, S-8D54, S-8D28

S-7001J JVC BN-V428U S-8428

S-7001C Canon BP series BP-930/945 S-8945, S-8845

S-7001U SONY BP-U series U60/30 S-8U62

S-7001E Canon DSLR, LP-E6 S-8PE6

S-7001B

Panasonic VW-VBG6 S-8BG6

S-7001V JVC BN-VF823 S-8823

Re ark: The Gold mount and V-mount are fixed on monitor at factory, not quick released types

13.2 Installation of S-7001 ount

S-7001 Rear View Installation

S-7001 DV mount is quick releasable Please follow the instructions:

(1) Please make sure the power terminals are clean and in well condition before use

(2) Align the S-7001 slots to the bolts of the monitor rear panel, and press tightly in

(3) Slide the S-7001 mount down to the bottom

(4) If necessary, fix the S-7001 mount by screws on the top side

(5) Mount the battery to S-7001 to power the monitor

Slot

Terminal

Slot

Terminal

Screw hole

Battery release

14. SPECIFICATIONS

LCD Perfor ance

Size 7 0 inches

Resolution 1024

RGB

600

Aspect ratio 16:9/4:3

Color system NTSC/PAL

Brightness 400cd/m

Contrast 900:1

Viewing angle H/V:160/160

Video For at

HDMI 480I / 576I / 480P / 576P / 1080I50 / 1080I60 / 720P50 / 720P60 / 1080P24 /

1080P25/ 1080P30/ 1080P50 / 1080P60

General

Working voltage DC12V, or Battery 6 5V-17V

Power consumption

≤

Working temperature 0

℃～

+40

℃

Working humidity 10%

～

90%

Storage temperature -15

℃～

+60

℃

Storage humidity 10%

～

90%

Dimensions

192

139

47mm

Net weight 640g

Gross weight

1410g

15. Packing List

1 Monitor

2 User Manual

3 Power adaptor

4 Power cable

5 Cold shoe bracket

6 LCD protection film

7 Mini HDMI to standard HDMI cable

1 Optional purchase

8 S-7001 battery mount

1 Optional purchase

SWIT Electronics Co., Ltd.

Address: 10 Hengtong Road, Nanjing Economic and Technological Development Zone,

Nanjing 210038, P R China

Phone: +86-25-85805753

Fax: +86-25-85805296

Email: contact@swit cc

Website: http://www swit cc

Autres manuels pour S-1071C

Table des matières

Autres manuels SWIT Moniteur

SWIT

SWIT S-1242H Manuel utilisateur

SWIT

SWIT ProHD DT-X71H Manuel utilisateur

SWIT

SWIT S-1092H Manuel utilisateur

SWIT

SWIT S-1243F Manuel utilisateur

SWIT

SWIT M-1093F Manuel utilisateur

SWIT

SWIT S-1071H(EFP) Manuel utilisateur

SWIT

SWIT S-1073H Manuel utilisateur

SWIT

SWIT S-1071H Manuel utilisateur

SWIT

SWIT S-1071H+ Manuel utilisateur

SWIT

SWIT M-1051H Manuel utilisateur

SWIT

SWIT S-1161H Manuel utilisateur

SWIT

SWIT BM-H Series Manuel utilisateur

SWIT

SWIT M-1093H Manuel utilisateur

SWIT

SWIT ProHD DT-X91F Manuel utilisateur

SWIT

SWIT S-1051H Manuel utilisateur

SWIT

SWIT S-1073F Manuel utilisateur

SWIT

SWIT S-1173F Manuel utilisateur

SWIT

SWIT S-1221H Manuel utilisateur

SWIT

SWIT M-1071H Manuel utilisateur

SWIT

SWIT S-1223H Manuel utilisateur

SWIT

SWIT S-1223F Manuel utilisateur

SWIT

SWIT S-1090F Manuel utilisateur

SWIT

SWIT BM-U Series Manuel utilisateur

SWIT

SWIT S-1093F Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
