Model:

M-1051H

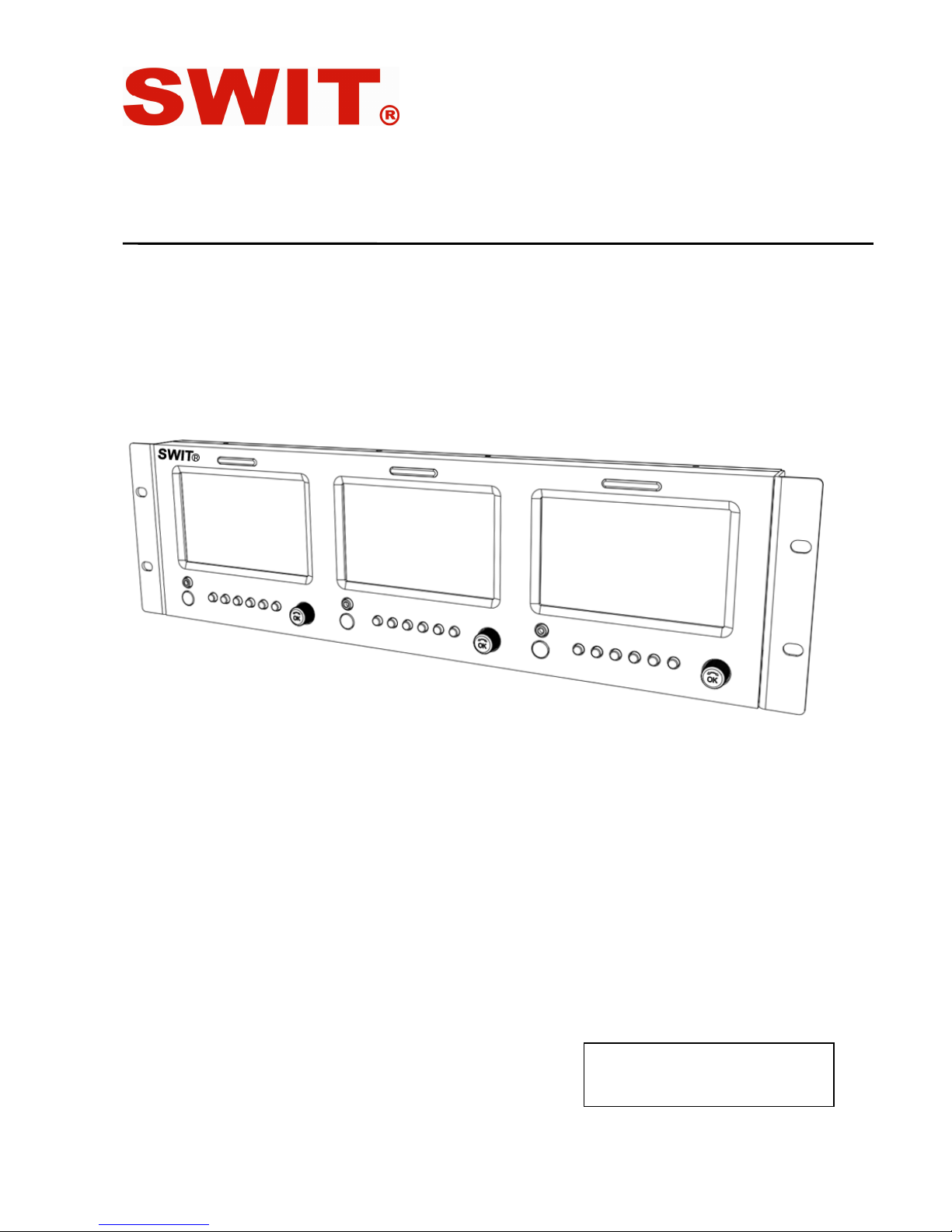

5"×3 Rack Mount HDSDI&HDMI LCD Monitor

User Manual

Please read this User Manual

throughout efore using.

Preface

Congratulations on your purchase of this product. Please read this user manual carefully.

．

All internal technologies of this product are protected, including device, software and trademark.

Reproduction in whole or in part without written permission is prohi ited.

．

All rands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks

in this user manual are the property of their respective owners.

．

Due to constant effort of product development, SWIT reserves the right to make changes and

improvements to the product descri ed in this manual without prior notice.

．

The warranty period of this product is 2 years, and does not cover the following:

(1) Physical damage to the surface of the products, including scratches, cracks or other damage to

the LCD screen or other externally exposed parts;

(2) Misuse, a use or negligent operation to the product;

(3) The product is disassem led y anyone other than an authorized service center.

It is considered normal that the LCD right dot defects are not to exceed three.

．

For any suggestions and requirements on this product, please contact us through phone, fax, Email,

etc.

SWIT Electronics Co., Ltd.

Address: 10 Hengtong Road, Nanjing Economic and Technological Development Zone,

Nanjing 210038, P.R.China

Phone: +86-25-85805753

Fax: +86-25-85805296

Email: cont[email protected]

We site: http://www.swit.cc

Maintenance

 T e Monitor

1. Please keep the signal terminals and the cooling vent away from knife-edge, metal or liquid in

order to avoid short-circuit and damage.

2. Please don't try to disassem le any parts of the monitor y yourself, which would pro a ly

damage the monitor and do harm to human ody, and it will cause the invalidation of product

warranty.

3. Please don't touch the screen with your fingers, which would pro a ly deface the screen.

4. Please don't press the screen; the LCD is extremely exquisite and flimsy.

 T e power

Please use the power adapter provided or recommended y the manufacturer in order to avoid

damage. For a third party power adapter, please make sure the voltage range, supplied power, and

polarity of power lead are fit.

Please disconnect the power ca le under the following situations:

1. If you do not operate this monitor for a period of time;

2. If the power ca le or power adaptor is damaged;

3. If the monitor housing is roken.

 Working Environment

1. Please don't lay this product on the unsta le place.

2. Please don't lay this product in hot, cold or wet location.

 Cleaning

1. Please clean the screen with dry and downy cloth or special LCD cleanser.

2. Please do not press hard when cleaning the screen.

3. Please do not use water or other chemical cleanser to clean the screen. The chemical may

damage the LCD.

4. For first time use, please tear off the factory LCD film. To protect the LCD screen, please post the

LCD protection film offered in the package.

1. Features

◆

◆◆

◆

Hig resolution LCD Panel

Consists of three 5-inch, 16:9, 800×480 LCD panels, with wide viewing angle and 19-inch 3U rack mount,

◆

◆◆

◆

3Gbps SDI support

Accept 3G/HD/SD-SDI input

◆

◆◆

◆

Multi Input/Output

Support SDI, HDMI, CVBS input and loop through output

◆

◆◆

◆

SDI embedded audio output

Convert SDI em edded audio to analog and output via 3.5mm earphone jack.

◆

◆◆

◆

HDMI embedded audio output

Convert HDMI em edded audio to analog and output via 3.5mm earphone jack.

◆

Underscan and Overscan

Switch etween underscan and overscan mode.

◆

◆◆

◆

Safe area

The safe area is offered to mark an area of picture that can e seen on the television screens.

◆

◆◆

◆

Pixel to pixel zoom-in

The real time zoom-in function is to enlarge to the input video as pixel to pixel from the center.

◆

◆◆

◆

Image flip

Rotate the image y 180°.

◆

◆◆

◆

User definable function keys

There are 2 function keys on the monitor front panel, and users could define the functions to the keys to

achieve shortcut.

◆

◆◆

◆

User editable video title

User can edit a video title for the current camera, and the title will display on the top of screen.

2. Panel Instruction

Front view

⑴

PHONE: Earphone jack, for SDI em edded audio, HDMI em edded audio monitoring

⑵

POWER: Power on/off

Connect with power ca le, press the “POWER” and the power indicator is turned on and after 10

seconds, the monitor will e switched on and get into normal working status. Press the “POWER” again,

the indicator is turned off and monitor is switched off.

Disconnect with power ca le if the monitor will not e used for a period of time.

⑶

SOURCE: Input signal selection

Press “SOURCE” and revolve the “OK” to select the input video signal.

⑷

F1: User defina le function key 1

⑸

F2: User defina le function key 2

⑹

RATIO: 16:9 and 4:3 switch

⑺

DISPLAY: Display current settings

Press “Display” to display safety mark, title and the current input signal information

⑻

MENU: Press to enter Menu

⑼

OK: Select and Apply

Under menu system, revolve “OK” to adjust settings and press to apply; and out of menu system,

directly revolve “OK” to adjust volume.

⑽

TALLY Lig t: Red, Green and Yellow 3-color TALLY indicator

Rear view

⑴

DC 12V IN: Connect with DC12V power adapter. Please mind the polarity as:

⑵

CVBS-IN: Composite video input (BNC connector)

⑶

CVBS-LOOP: Composite video loop through output (BNC connector)

⑷

SDI-LOOP: 3G/HD/SD-SDI loop through output (BNC connector)

⑸

SDI-IN: 3G/HD/SD-SDI input (BNC connector)

⑹

TALLY controlling port (RS232)

⑺

HDMI-IN: HDMI input

⑻

HDMI-LOOP: HDMI loop through output

Input formats

Input Supported formats

CVBS PAL / NTSC

480I / 576I / 480P / 576P

1080i (60 / 59.94 / 50)

720p (60 / 59.94 / 50)

HDMI

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

SMPTE-425M 1080p (60 / 59.94 / 50)

1080i (60 / 59.94 / 50)

SMPTE-274M 1080p (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-296M 720p (60 / 59.94 / 50)

SMPTE-125M 480i (59.94)

SDI

ITU-R BT.656 576i (50)

The 3 display units have the same input interfaces and input formats

3. Menu Operation

⑴

Press “MENU” and it will display menu system

⑵

Revolve “OK” to select an item. The selected item will e highlighted display.

⑶

Press “OK” to enter the selected item.

⑷

Under menu system, press “MENU” to ack to previous menu.

*The menu will automatically save and quit if it remains idle.

3.1 PICTURE submenu

The PICTURE su menu includes:

⑴

CONTRAST: 0-100 value adjustment

⑵

BRIGHTNESS: 0-100 value adjustment

⑶

HUE: 0-100 value adjustment

(Only availa le under CVBS NTSC input)

⑷

SATURATION: 0-100 value adjustment

⑸

SHARPNESS: 0-100 value adjustment

⑹

COLOR TEMP.: Color temperature, Normal (6500K),

Warm (4500K), Cool (9300K) selection

⑺

PIC.MODE: User defined and preset picture modes:

standard, soft and vivid selection

3.2 SYSTEM submenu

The SYSTEM su menu includes:

⑴

RATIO: Aspect ratio “16:9” / “4:3” selection

⑵

SCAN: “UNDERSCAN” / “OVERSCAN” selection

⑶

ZOOM: “OFF”, “ZOOM1” and “ZOOM2” selection

ZOOM1: Canon DSLR scale zoom-in

ZOOM2: Pixel to Pixel zoom-in

⑷

MARKER: Select and set the safe area scale from

80%, 85%, 90% and 95%.

⑸

FLIP: Select “ON” to flip the picture y 180°.

⑹

RESET: Select “YES” to recover all to factory setting.

3.3 OSD submenu

The OSD su menu includes:

⑴

LANGUAGE: Menu language selection

⑵

H-POSITION: Menu horizontal position (0-100)

adjustment, real-time preview and default value: 50.

⑶

V-POSITION: Menu vertical position (0-100)

adjustment, real-time preview and default value: 50.

⑷

DURATION: Menu timeout setting (5-60)

Set a time (in seconds) in which the menu will

automatically quit if remains idle. Default: 15.

3.4 TITLE submenu

Revolve "OK" utton to select the letters, and press "OK"

to input. Select SPACE to input space and DEL to delete

the left letter. Max 10 letters are supported.

After setting, press "MENU", the system will save data to

current user and quit menu. The menu will automatically

save and quit if it remains idle.

3.5 DISPLAY submenu

The DISPLAY su menu is to select the items to e

displayed on screen when ‘DISPLAY” utton is pressed.

Revolve "OK" to turn on/off the items:

⑴

INFO: Including Input format, aspect ratio,

underscan/overscan, zoom status

⑵

MARKER: Safe area

⑶

TITLE: User edited title

⑷

MARKER4:3: The 4:3 scale mark on 16:9 image.

(Only availa le under HD input)

3.6 F KEY submenu

The FUN.KEY Settings Su menu is to define Function

Key F1 and F2. The availa le function items are:

01- RATIO: Aspect ratio switch

02- SCAN: Underscan / Overscan switch

03- ZOOM: Picture Zoom-in

04- PIC MODE: Preset picture mode switch

05- B/W: Color / Black & white switch

06- FLIP: Image flip

07- CLR.TEMP: Color-temperature switch

4. TALLY Lig t Operation

There are front TALLY lights on each of the display units, which can display RED, GREEN and YELLOW

signals. The TALLY light controlling port is the RS232 socket at the rear panel, and terminal description is as

follows:

The RED light is on when connecting the terminal “R” with “GND”, and goes out when disconnecting.

The GREEN light is on when connecting the terminal “G” with “GND”, and goes out when disconnecting.

The YELLOW light is on when connecting the terminal “Y” with “GND”, and goes out when disconnecting.

Terminal 1 2 3 4 5 6 7 8 9

Description

Y G R GND

GND

5. Specifications

LCD Performance

Size 5.0 inches ×3

Display area 108.0×64.8mm

Resolution 800×RGB×480

Aspect ratio 16:9/4:3

Brightness 350cd

Contrast 500:1

Color 16.77 million colors

Viewing angle Horizontal: 140

Vertical: 120

Video Format

CVBS NTSC

∕

PAL

SMPTE-425M 1080p (60 / 59.94 / 50)

1080i (60 / 59.94 / 50)

SMPTE-274M 1080p (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-296M 720p (60 / 59.94 / 50)

SMPTE-125M 480i (59.94)

SDI

ITU-R BT.656 576i (50)

480I / 576I / 480P / 576P

1080i (60 / 59.94 / 50)

720p (60 / 59.94 / 50)

HDMI

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

General

Working voltage DC 12V

Power consumption ≤24W

Working temperature 0

℃～

+40

℃

Working humidity 10%

～

90%

Storage temperature -15

℃～

+60

℃

Storage humidity 10%

～

90%

Dimensions 480×130×42mm, Standard 19” rack, 3U height.

Net weight (main ody) 2.1kg

Packing List

1. Monitor

2. User Manual

3. Power adaptor

4. Power ca le

5. LCD protection film

Table des matières

Autres manuels SWIT Moniteur

SWIT

SWIT S-1223H Manuel utilisateur

SWIT

SWIT ProHD DT-X91F Manuel utilisateur

SWIT

SWIT S-1071H+ Manuel utilisateur

SWIT

SWIT S-1071H Manuel utilisateur

SWIT

SWIT S-1243F Manuel utilisateur

SWIT

SWIT S-1223F Manuel utilisateur

SWIT

SWIT S-1161H Manuel utilisateur

SWIT

SWIT S-1090H Manuel utilisateur

SWIT

SWIT BM-U Series Manuel utilisateur

SWIT

SWIT S-1092H Manuel utilisateur

SWIT

SWIT S-1071F Manuel utilisateur

SWIT

SWIT S-1221H Manuel utilisateur

SWIT

SWIT BM-H Series Manuel utilisateur

SWIT

SWIT S-1073F Manuel utilisateur

SWIT

SWIT M-1071H Manuel utilisateur

SWIT

SWIT S-1051H Manuel utilisateur

SWIT

SWIT S-1071C Manuel utilisateur

SWIT

SWIT S-1051C Manuel utilisateur

SWIT

SWIT s-1222F Manuel utilisateur

SWIT

SWIT S-1173H Manuel utilisateur

SWIT

SWIT ProHD DT-X91F Manuel utilisateur

SWIT

SWIT S-1093F Manuel utilisateur

SWIT

SWIT M-1093H Manuel utilisateur

SWIT

SWIT CM-S73H Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
