SWIT BM-H Series Manuel utilisateur
Model：BM-H215/215HDR/245
User Manual
Please read this user manual throughout before using
Ver：A
SWIT ELECTRONICS CO., LTD.
01
4K input FHD Broadcast Monitor
BM-H
Declaration
Any internal technology (including hardware equipment, software design and product trademark)
of the product shall be protected by law, and any infringement of intellectual property rights of the
product shall be investigated for legal liability。
All the brand and trademark in this product are protected by law,all other company’s brand and
trademark in this product are protected by their owner’s law.
In order to better service majority users,SWIT products will keep improving and developing,SWIT
keep the right to revise and improve this user manual without previous notice.
The warranty period of this product are two years,the following condition are not covered by the
warranty:
⑴ The appearance and the LCD panel are damaged by man-made out force；
⑵ The amount of defective pixels are under three；
⑶ Damage the product by using incompatible power adaptor；
⑷ Damage the product due to violation operation；
⑸ Disassemble the product when using；
⑹ Other faults or damages not caused by design ,technology,manufacture and quality.
＊Any sales person have no right to provide extra warranty beyond these terms.
If you have any advises or requirements about our products during using,please feel free to contact
with us via phone or E-mail.
This manual is applicable to all models of BM-H monitors. The schematic diagram of BM-H215 is
taken as an example.Any specification, appearance of the different, this manual will be attached
with text.
SWIT Electronics Co., Ltd.
Address: 10 Hengtong Road, Nanjing Economic and Technological Development Zone,
Nanjing 210038, P.R.China
Phone: +86-25-85805753
Fax: +86-25-85805296
Email: cont[email protected]
http://www.swit.cc
02
4K input FHD Broadcast Monitor
BM-H
Maintaince percautions
Warning
1. To reduce the dangerous of fire or electric shock,do not expose the monitor in raining or wet place.
2. The monitor will create noise when using near high-intensity magnetic field.
Precautions for power supply
1. Please use the special power adapter specified by the original factory to avoid damage to the product.
2. If other DC power supply is used, ensure that the voltage range, power supply and polarity of the
power supply meet the requirements.
3. In the following cases, please unplug the power cord and external battery of the product:
(A) If you have not used the product for A long period of time.
(B) If the power cord or power plug/socket is damaged.
(C) If the product is hit or dropped so that the shell is damaged.
Precautions for product use
1. Please do not touch the screen surface directly with your fingers to avoid damage to the screen,
and the oil on the skin will be difficult to remove if left on the screen.
2. Please do not put pressure on the LCD screen, LCD screen is very delicate and fragile.
3. Do not place the product in an unstable place, as the product may be seriously damaged due to falling.
Precautions for product cleaning
1. Clean LCD screen, please use dry soft fabric with fluff and special liquid crystal cleaning agent,
to remove dust and stains on the screen.
2. Do not pressure when wiping the LCD screen surface.
3. Please do not use water and other chemical cleaners to wipe the LCD screen surface,
chemical agents may damage the LCD screen surface.
03
Introduction
This series of monitors adopt LCD panel, the resolution is up to 1920×1080, H178° / V178°
ultra-wide viewing angle, supports 1 channels of 12G/6G/3G/HD/ SD-SDI and has 1 channels of
3G/HD/ SD-SDI, and 1 channel of HDMI 2.0, and has 1 channels of 3G/HD/ SD-SDI 、1 channels of
12G/6G/3G/HD/ SD-SDI ring out, with earphone and speaker output.
Features:
1920×1080 IPS LCD Panel
4K/UHD interface, （1x12G-SDI&3x3G-SD Input，2xSDI output，1xHDMI 2.0 Input）
16ch audio bar display, with any selected 2ch output
Support waveform selection display Y/Cb/Cr/R/G/B /RGB and single line selection mode
Vector scope, R/G/B/Y histogram, bi-color focus assist
3DLUT（17 x 17 x 17） accurate color correction
Dynamic UMD and TALLY(TSL3.1, 4.0) display
Composition ratio auxiliary line:4:3/13:9/14:9/15:9/16:9/1.85:1/2.35:1/2:1/2.39:1/Custom 1/Custom 2
Support USB firmware upgrade and import Log file.(USB file system supports FAT 32 format only)
Support ECO mode
Packing list
Standard accessories
Monitor
User manual
Warranty card
Battery plate（A & S）
Monitor stand
Power cable
Quantities
X
1
X
1
X
1
X
1
X
2
X
1
No.
1
2
3
4
5
6
04
Contents
Declaration
Precaution
Content
Packing list
Introduction
Description
Front panel
Back panel
Display information
Setting
Dimension
Specification
Trouble shooting
2
3
4
4
4
5
5
7
8
11
23
24
27
05
Operation Instructions
·Front panel
(1) Speaker: For SDI/HDMI embedded audio. (Will not work if earphone is plugged in)
(2) F1~F5 function keys: Customize shortcut function keys. Users can set the shortcut keys to
different functions according to their own requirements.
(3) User1~User4：User shortcut key, which can be used to quickly enter the set user mode.
Long press to save user settings. Please see details in “9. System”
(4) INFO：Display setting item. Press "INFO" button to display or turn off relevant status information
and audio and video analysis function graph. When opening the menu, press "INFO" to exit the
menu with one click
(1) (2) (3) (4) (5) (6) (7)(8) (9) (10)
(11)
06
(6) Menu/Enter：When no Menu is displayed, press the button directly to open the Main Menu;
Rotate the knob to select different settings or adjust parameter values, press the knob to set；
(7) LUT/Firmware: Update firmware or import LUT files;
(8) PHONE: 3.5mm headphone jack is used to monitor the embedded audio signals of SDI and HDMI;
(9) Power: Power switch;
(10) Tally lamp: You can select the color of the tally lamp from “Green”, “Red”, or “Yellow”.
(5)
Brightness Contrast Saturation
Backlight Volume Source
Brightness: Adjust the brightness. -100~100 adjustable,
default value is 0.
Contrast: Adjust contrast. -100~100 adjustable,
default value is 0.
Saturation: Adjust saturation. -100~100 adjustable,
default value is 0.
Backlight: Adjust the backlight. 0~100 adjustable, default
value is 16.
Volume：Adjust the volume.0~100 adjustable,
default value is 36.
Press Brightness, Contrast, Saturation, Backlight, Volume five shortcut keys confirm to select
this option, and rotate Menu to adjust the corresponding item value directly. Press the button
and automatically cancel the selection without operation within five seconds, and the button
light will be off, long press to restore default values；: Adjust the volume.0~100 adjustable, the
default value is 36.Long press the volume button to mute.
Source: Select the input source signal format.
Source
SDI 1
SDI 2
SDI 3
SDI 4
4xSDI SQD
4xSDI 2SI
HDMI
Multiview
07
·Rear panel
(1) SDI1 IN&OUT：12G/6G/3G/HD/SD-SDI
(2) SDI2 IN&OUT, SDI3 IN,SDI4 IN: 3G/HD/SD-SDI
(3) ETHERNET(Network interface)：1000M high-speed RJ45 Ethernet port，for web external control
(4) HDMI 2.0 IN：Will not display HDCP protected content
(5) RS485：TSL UMD control port
(6) GPI：GPI control port
(7) Fan
(8) VESA bracket mounting area
(9) DC IN：12V~17V
(10) AC IN：100V~240V
(11) Battery plate
(3)
(2)
(1)
(4)
(5)
(6)
(11)
(7) (8) (9) (10)

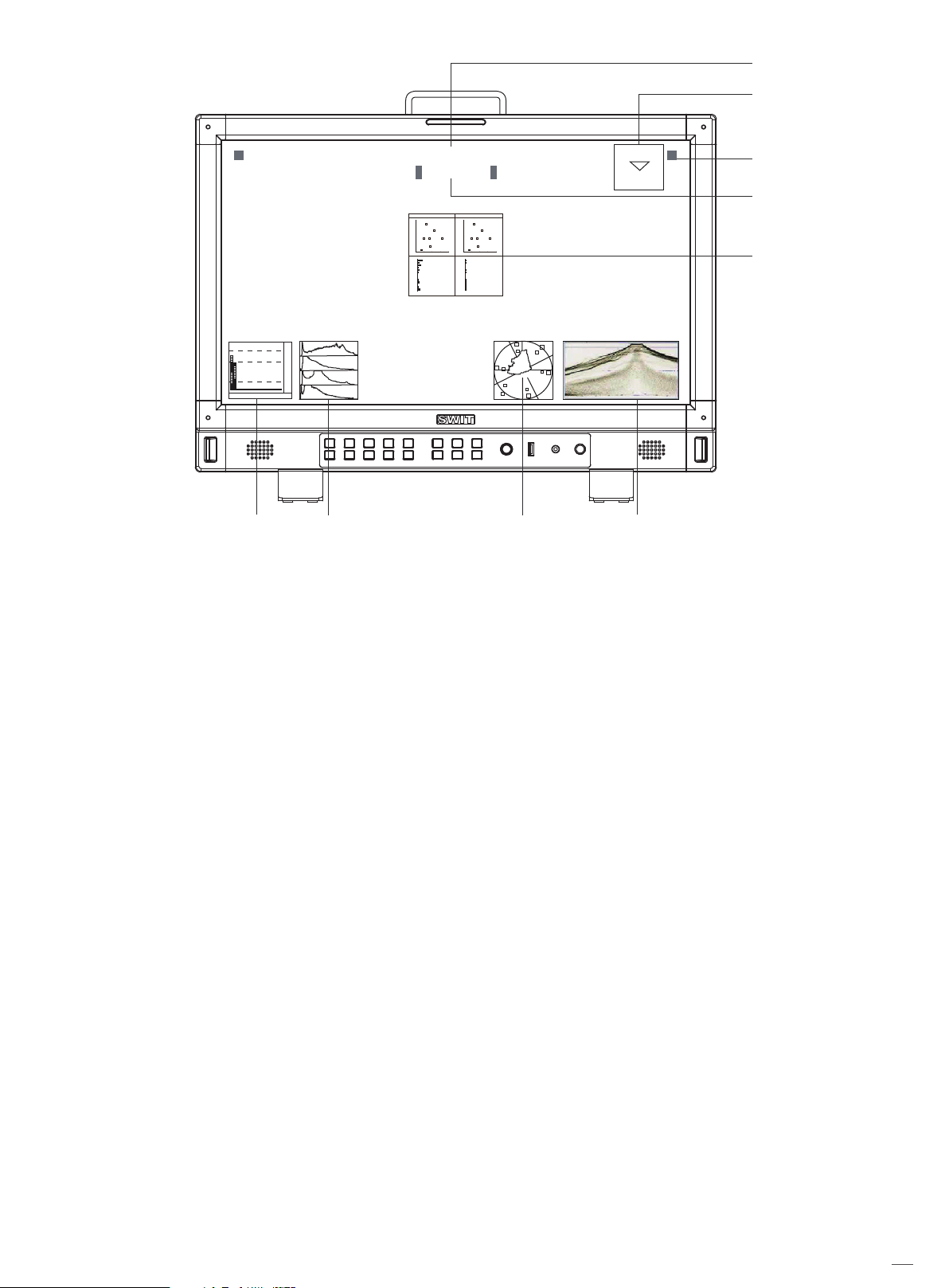

⑴ Time Code（SDI）
Under SDI input, the monitor can display Time code information (LTC, VITC1&2). If no Time code info
is detected, it will display “TC UNLOCKED”. User can set function keys F1～F5 or GPI pins as “Time
Code” to turn on or off this function.
(2)Surround
The default channel of surround is 5.1 channel 7 & 8
⑶ On screen TALLY
Display TALLY signal from GPI control port.
⑷ Source ID/UMD
Display /UMD（TSL3.1/4.0），user can set in the UMD menu
⑸ Color checker
After auto calibration, the color gamut and chromatic aberration (△E) before and after the color
correction pop up. "Auto Calibration" -"Measure" pops up the gamut value and color difference
value (△E) of the previous calibration and this measurement.
⑹ Audio VU/PPM meters
Display meters of SDI/HDMI embedded audio or analog audio. The audio meter display channels,
on screen positions and background blending are adjustable. can be set in the submenu of“Audio
setting ”.User can set function keys F1～F5 or GPI pins as “Audio Bar” to turn on or off this function.
⑺ Histogram
User can set function keys F1～F5 or GPI pins as “Histogram” to turn on or off this function.
⑻ Vector
User can set function keys F1~F5 or GPI pins as“vector”， The vector scope pattern display positions,
08
·OSD
(1) SDI1 IN&OUT：12G/6G/3G/HD/SD-SDI
(2) SDI2 IN&OUT, SDI3 IN,SDI4 IN: 3G/HD/SD-SDI
(3) ETHERNET(Network interface)：1000M high-speed RJ45 Ethernet port，for web external control
(4) HDMI 2.0 IN：Will not display HDCP protected content
(5) RS485：TSL UMD control port
(6) GPI：GPI control port
(7) Fan
(8) VESA bracket mounting area
(9) DC IN：12V~17V
(10) AC IN：100V~240V
(11) Battery plate
TC UNLOCKED
CAMERA
L -20DB 01CH R -22DB 01CH
-09
-20
-48
C
LR
Ls Rs
R
R75
Mg
Mg75
B
B75
Cy
Cy75
G
G75
YI
YI75
W
Delta = 1.0
R
R75
Mg
Mg75
B
B75
Cy
Cy75
G
G75
YI
YI75
W
Delta = 0.0
(1)
(2)
(3)
(4)
(5)
(6) (7) (8) (9)
09
Key configuration
Steps
1. Press “Menu/ Enter” button, the main menu will pop up from the left top of the screen. The selected
main menu highlights in yellow .
2. Revolve “Menu/ Enter” to select submenu, the selected submenu highlights in yellow, press “Menu/
Enter” to apply and enter into the selected submenu’s items.
3. Revolve “Menu/ Enter” to select the item which needed to adjust, press “Menu/ Enter”, the selected
item and its parameters will be highlighted in yellow
4. Revolve “Menu/ Enter” to change the selected item’s parameter, press “Menu/ Enter” to apply and
save the settings.
5. Revolve “Menu/ Enter” to select “Exit”, press “Menu/ Enter” to quit submenu. Select “Exit & Status”
under the Main Menu and press to quit Main Menu
※ Notice
＊ The items in gray cannot be set up
＊ If there is no operation under the set time, the menu will automatically save settings and quit.
＊ If the key inhabit function is turned on, except System menu, all other items are in gray. Please
turn off the key inhibit function to adjust the items.
colors, background are adjustable. Turning on the gamut map in the case of turning on the vector map
can display the gamut ratio of the signal image under DCI-P3/REC709/REC2020
⑼ Waveform
User can set function keys F1～F5 or GPI pins as “Waveform” to turn on or off this function.
Menu Configuration
Menu configuration introduces the main menu and each sub-menu. Menu items marked * will give
more detailed menu description or operation explanation after the list
10
1.Exit&Status—Exit the main menu and display the current status of the monitor
2.Input—Set the color of input video
3.Image setting—Setting for the picture preference
*1 Quantization range: Sets the quantization range of the video to suit the input video signal. The default
video quantization range is Limited 64-940 for the broadcast application.
Menu Item
Input Range*1
Red Gain
Green Gain
Blue Gain
Red Bias
Green Bias
Blue Bias
Reset
Menu description
Set the input range of input video
Adjust Red Gain
Adjust Green Gain
Adjust Blue Gain
Adjust Red Bias
Adjust Green Bias
Adjust Blue Bias
Reset the gain and bias values of the settings
Value
Full 0-1023、
SDI Full 4-1019、
Limited 64-940
-100 ~ +100
-100 ~ +100
-100 ~ +100
-100 ~ +100
-100 ~ +100
-100 ~ +100
/
Main Menu
Exit&Status
Input
Color Management
Scanning
Control
Assist
De-embed
Auto Calibration
System
Multiview Setting >
Format
Source
Color Temp
F1
F2
F3
F4
F5
Profile Type
Version
Status
(1)
(6)
(5)
(4)
(3)
(2)
>
>
>
>
>
>
>
>
>
XX
XX
XX
XXX
XXX
XXX
XXX
XXX
XX
XX
>
>
>
>
>
>
⑵ Input source
Displays the currently selected channel.
(3)Colour temperature
Displays the currently set colour temperature mode
(4) Function key 1 to function key 5
Displays the function value of the current function key setting
(5) Model
Shows the current monitor model
（6）Versions
Shows the current software version number
Press "Menu/Enter" to bring up the main
menu in the top left corner of the screen,
the main menu shows the current working
status of the monitor.
⑴ Format
The current input signal standard is
displayed; if there is no recognisable
signal input, "No signal" is displayed.
When multi-screen is selected for the
current channel, the standard of the
input signal for each of the four SDI
1/2/3/4 channels is displayed.
Ce manuel convient aux modèles suivants
3
Autres manuels SWIT Moniteur
SWIT
SWIT S-1173F Manuel utilisateur
SWIT
SWIT BM-215NDI Manuel utilisateur
SWIT
SWIT S-1223H Manuel utilisateur
SWIT
SWIT S-1071F Manuel utilisateur
SWIT
SWIT S-1173H Manuel utilisateur
SWIT
SWIT S-1090F Manuel utilisateur
SWIT
SWIT M-1093F Manuel utilisateur
SWIT
SWIT ProHD DT-X71H Manuel utilisateur
SWIT
SWIT S-1243F Manuel utilisateur
SWIT
SWIT M-1093H Manuel utilisateur
SWIT
SWIT S-1071H Manuel utilisateur
SWIT
SWIT S-1071C Manuel utilisateur
SWIT
SWIT S-1073H Manuel utilisateur
SWIT
SWIT S-1221H Manuel utilisateur
SWIT
SWIT ProHD DT-X91F Manuel utilisateur
SWIT
SWIT S-1092H Manuel utilisateur
SWIT
SWIT M-1051H Manuel utilisateur
SWIT
SWIT S-1093F Manuel utilisateur
SWIT
SWIT S-1090H Manuel utilisateur
SWIT
SWIT BM-U Series Manuel utilisateur
