Alarm Security Kit - NVR EN

The alarm configuration menu (see above right screenshot) allows you

to configure and change settings for the PIR movement sensors, win-

dow/door sensors, remote controls (key fobs) and wireless siren.

All movement sensors, window/door sensors, remote controls and wire-

less siren are paired with your USB antenna during manufacture how-

ever, pairing instructions are provided in case you have to restore your

NVR to default settings as per the instructions in this quick start guide.

Please download the full user manual for a comprehensive explanation

of the various functions available (www.swann.com).



To access the “Alarm Control” menu, right-click the mouse at the

Live View screen to access the Menu Bar, then click the “Alarm” icon.

The alarm control function al-

lows you to enable all alarms

(Arm), a perimeter alarm

(Home) or to disable the alarm

(Disarm). You can also use the

remote control to enable or

disable the same functions.

Connecting the USB Antenna

Connect the mini-USB connection on the

provided USB cable to the mini-USB port

on the USB antenna. Connect the other

end to a spare USB port at the rear of the

NVR.

When the USB antenna is connected to

the NVR you will see a blue LED at the top

and bottom.

If the NVR hasn’t detected the USB

antenna, you will see “Motion” at

the Main Menu instead of “Alarm”.

Make sure the antenna is connected

correctly then restart the NVR.

The top and bottom LED will flash blue

to indicate the USB antenna is initialising.

The LED will stop flashing when the

antenna is ready.

The bottom LED will flash red when the

wireless siren has been triggered.

The PIR Movement Sensor

1. LED - Will flash red to indicate

that movement has been

detected.

2. PIR Sensor - Is an electronic

sensor that can detect warm

moving objects in its field of view.

1234

OFF

1 2 MODE

ON OFF 1-pulse

OFF ON 2-pulse

OFF ON 3-pulse

3 4 MODE

ON OFF TEST

OFF ON NORMAL

OFF ON CODING

3. Tamper Button - If the back

cover has been removed, an alert

will be sent to the NVR.

4. DIP Switches - Do not adjust

these as they have been set

correctly during manufacture.

Using a flathead screwdriver, in-

sert this into the clip at the bottom

of the movement sensor to open

the back cover.

Install the provided 3V battery into

the battery compartment. Put the

cover back on when you have

finished and follow the pairing

instructions on page 6.

Insert the mounting bracket at

the top of the movement sensor.

Push down until it clicks into place

as illustrated above.

The Window/Door Sensor

1. Window/Door Sensor.

2. Using a flathead screwdriver, gen-

tly press down the button at the top

and use a downward motion to open

the cover.

3. The LED will flash green during

normal operation. You will mo-

mentarily see a solid green LED

when the sensor has been activat-

ed.

4. The width between the magnet

sensor and window/door sensor

should be no more than half an

inch (1.25 cm) apart.

5. Install the provided 3V battery into

the battery compartment. A green

LED will start to flash.

6. The pair/tamper button pairs

the window/door sensor to your

NVR. Follow the pairing instruc-

tions on page 7.

7. The wired sensor connects

here. Please note, the wired door

sensor is an optional installation.

3 4

6 7

Thread the wired sensor cable

into the window/door sensor

(see below illustration). Use

a Phillips head screwdriver

to tighten the cable into the

terminal.

The wired sensor can be used

if you have double windows

or doors within the house or

if you have a sliding door that

has a corresponding security

door. Put the cover back on

after pairing.

The Wireless Siren

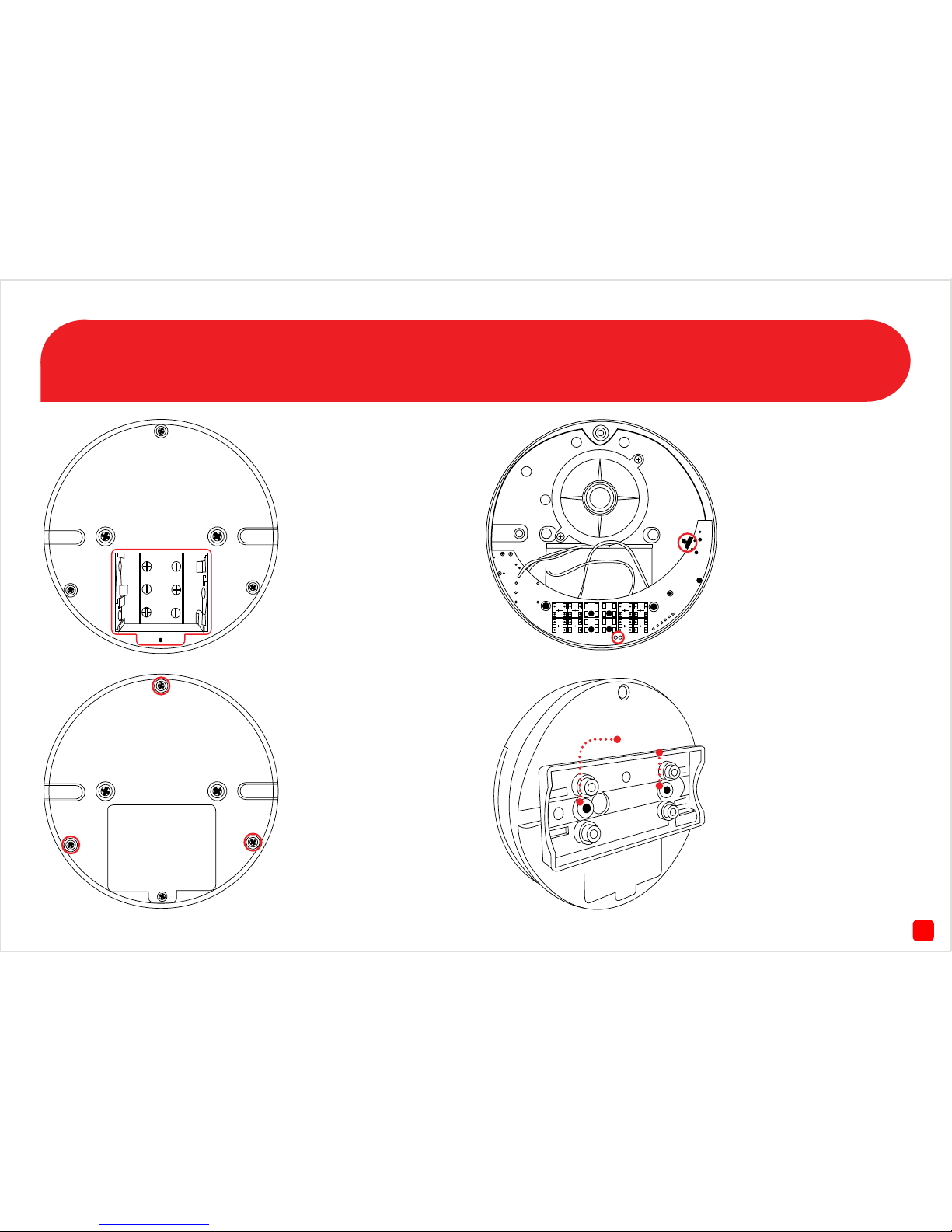

Fig. 1 - Use a Phillips head

screwdriver to remove the

battery cover. Install 3 x AA

batteries provided. Put the

cover back on when you

have finished and fasten the

screw.

Fig. 2 - To access the pair

button, use a Phillips head

screwdriver to remove three

screws as illustrated on the

left. Carefully remove the

cover and try to minimise

any contact with the internal

components.

Fig. 3 - The pair button is

located on the right and the

green and blue LEDs are lo-

cated at the bottom. Follow

the pairing instructions on

page 8. Put the cover back on

after pairing and fasten all

three screws.

Fig. 4 - Use the mounting

bracket to install the wire-

less siren to a wall or ceiling.

Please note, there is a tab on

the back of the siren which

locks in with the groove on

the mounting bracket. Slide

the siren to the right to lock

it in place.

Bracket Mount

Pairing the PIR Movement Sensors

1. To access the “Sensor” menu, right-click the mouse at the Live View

screen, click “Menu”, click “Alarm” then click the “Sensor” tab.

2. Click “Begin Pair”.

3. Activate the movement sensor by moving in front of it. The LED will

flash red and the NVR will detect the sensor and add it to the sensor list.

Repeat this step for any other movement sensors.

Please note, to conserve battery power, the PIR movement sensor when

activated will wait five seconds to activate again.

Group - There are three options available to group your sensors. For

the PIR movement sensor it is recommended that you set this to “Gen-

eral”. This means any movement within the vicinity of the sensor will

then activate the wireless siren to be activated when you select “Arm”

in the “Alarm Control” menu. You can change this group when you have

finished pairing.

Pairing the Window/Door Sensors

1. If the window/door sensor has the cover on, follow the instructions on

page 4 to gain access to the pair/tamper button.

2. Press and hold the pair/tamper button. You will momentarily see a

flashing red LED then a solid green LED.

3. The NVR will detect the sensor and add it to the sensor list. Repeat

this step for any other window/door sensors. Put the cover back on when

you have finished.

It’s a good idea to make sure the window/door sensor and the magnetic

sensor are held together to prevent it from triggering.

Group - Leave this as “Perimeter”. The perimeter group allows move-

ment inside the house (when you select “Home” in the “Alarm Control”

menu) but if a window or door is opened this will activate the siren.

Pairing the Wireless Siren/Remote Control

1. Press and hold the pair button on the wireless siren (see page 5 - Fig.

3). After a short moment you will see a solid blue LED. The NVR will

detect the siren and add it to the sensor list. Put the cover back on after

pairing and fasten all three screws.

2. The battery for the remote control is pre-installed so there is no need

to open the battery cover located at the rear.

3. Press one of the buttons on the remote control. The NVR will detect

the remote control and add it to the sensor list. Repeat this step if you

have more than one remote control.

4. Click “End Pair” then click “Apply”.

Group - The remote control is always set to “SOS” and cannot be

changed.

Don’t forget to click “Apply” otherwise any changes made will not be

saved.

1) Transmit LED - If you don’t see

a red LED when you press a button,

this indicates the battery is flat.

2) Panic - Click this to activate the

wireless siren instantly.

3) Alarm On - Click this to enable all

sensors listed in the sensor list.

4) Alarm Off - Click this to disable all

sensors listed in the sensor list.

5) Perimeter On - Click this to enable

all window/door sensors only. This

allows movement inside the house

but if a window or door is opened this

will activate the wireless siren.

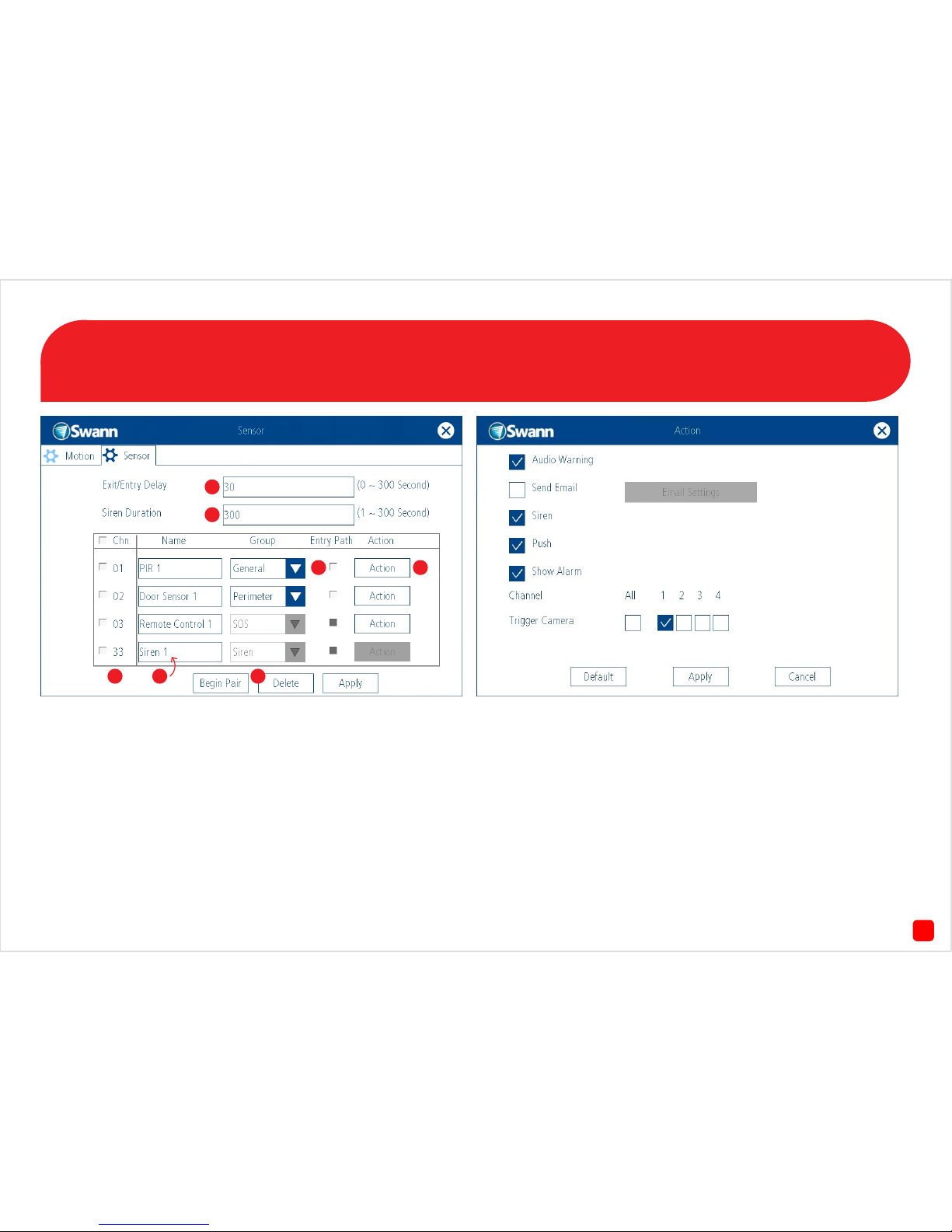

1. This option allows you to change the length of time that you have to

leave or enter the premises before the wireless siren will be activated.

This is linked to the “Entry Path” option.

2. Change this according to how long you want the wireless siren to

sound when activated.

3. Click to select a paired sensor, remote control or wireless siren.

Please note, when a sensor or remote is activated, the channel number

will momentarily flash red.

4. Click to change the name of the paired sensor, remote control or

wireless siren. Up to sixteen characters can be used.

5. Click to delete a paired sensor or remote when selected.

6. Select this if the sensor will be activated when entering or leaving

your home. This gives you extra time (that you’ve selected for exit and

entry) to disable the siren before the sensor is activated.

7. Click to enter the “Action” menu (see above screenshot). When a sen-

sor has been activated, you can instruct the NVR to emit an audio warn-

ing, send an email, activate the siren, send a notification to the Swann-

View Link app and to display a warning on-screen. You can also trigger

the NVR to record from one or more cameras. Click the “Apply” button to

save any changes. Right-click to go back to the previous screen.

Sensor Alarm Configuration

3 4

QHW_ALARMCD290914E | © Swann 2014

Alarm Security Kit - DVR EN

The alarm configuration menu (see above screenshot) allows you to

configure and change settings for the PIR movement sensors, window/

door sensors, remote controls (key fobs) and wireless siren.

All movement sensors, window/door sensors, remote controls and

wireless siren are paired with your USB antenna during manufacture.

Pairing instructions are provided in case you have to restore your DVR

to default settings. All sensor and siren devices will have to be re-paired

as per the instructions in this quick start guide.



To access the “Alarm Control” menu, right-click the mouse at the

Live View screen to access the Menu Bar, then click the “Alarm” icon.

The alarm control function al-

lows you to enable all alarms

(Arm), a perimeter alarm

(Home) or to disable the alarm

(Disarm). You can also use the

remote control to enable or

disable the same functions.

Autres manuels Swann Système de sécurité

Swann

Swann DVR9-4200 Manuel utilisateur

Swann

Swann RedAlert SW242-WDW Manuel utilisateur

Swann

Swann GuardianEye Manuel utilisateur

Swann

Swann SWIFI-WDOORPK4 Manuel utilisateur

Swann

Swann DVR8-1425 Manuel utilisateur

Swann

Swann Safety Camera Kit Wireless Camera & Receiver Manuel utilisateur

Swann

Swann RedAlert Single Channel Digital Security... Manuel utilisateur

Swann

Swann ADW-200 Manuel utilisateur

Swann

Swann One Manuel utilisateur

Swann

Swann Home Security System Manuel utilisateur

Swann

Swann PRO-640 Manuel utilisateur

Swann

Swann ADW-340 Manuel utilisateur

Swann

Swann Advanced SWDVK-825508TB Manuel utilisateur

Swann

Swann SWA44-D1C2M1 Manuel utilisateur

Swann

Swann SW347-WAK Manuel utilisateur

Swann

Swann Alpha D04C1 Manuel utilisateur

Swann

Swann SW344-DWD Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Swann

Swann NVW-600CMB Manuel utilisateur

Swann

Swann DEFEND & DETER SWA43-D12C16 Manuel utilisateur

Swann

Swann SW343-DP2 Manuel utilisateur

Swann

Swann SW212-HXD Manuel utilisateur

Swann

Swann SW276-ASL Manuel utilisateur

Swann

Swann SwannSecure Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur

DSC

DSC PC 4010 Manuel du propriétaire
