| Swann Alpha Range 09

Alpha D04C1

- All-in-One 10” LCD 4 Channel DVR & 2 Indoor/Outdoor Cameras

Features

Product Code

SWA43-D4C1-US045

add 2 more cameras

Channels

easily backup video

incidents to flash drive

2 months

continuous recording+

320

standard recording technology

fast playback

30ft 9m

excellent night vision

BNC cable x 2

50ft 15m

weather resistant cameras

anti-corrosive casing

high video quality

1/3” SuperCMOS 400 TV lines

400

back

Video Out

Power Input

Powe

Video In x 4

Audio In

Audio Out

Controls

front Power Channel Select

Operating

Controls

HDD Activity LED

Know what’s happening all day, every day

With high resolution video monitor, perfect for observing fine detail and

split screen viewing, and 2 cameras included to help you get started

Have peace of mind even when you’re away

Set & forget by recording continuously from 4 cameras for over 60 days+

State-of-the-art technology that’s easy to use & operate

With intuitive menus and click & point mouse controls

Easily backup & retain video evidence if there’s an incident

Keep footage in case you need it later or backup incident video via usb to your pc

Catch suspicious activity, save time & hard drive space with motion detection

No more wasted time scrolling through endless hours of empty footage

+ based on the lowest recording settings

•

Alpha D04C1

- All-in-One 10” LCD

4 Channel DVR &

2 Indoor/Outdoor Cameras

| Swann Alpha Range 09

• Alpha D04 DVR

• 320GB Hard Drive (installed)

• Alpha C1 Camera x 2

• Remote Control

• Mouse (wired PS/2)

• Mounting Screws & Plugs

• Power Adapters

• Operating Instructions

• Theft Deterrent Stickers x 4

Pack Contents

Speciﬁcations

DVR

Video

Video Format NTSC or PAL

Video Inputs 4 Composite BNC Inputs

Video Outputs 1 Composite BNC Output

Display Resolution NTSC: 720 x 480 / PAL: 720 x 576

Display Frame Rate NTSC: 120fps / PAL: 100fps

Audio

Audio Input 2 CH

Audio Output 1 CH

Recording

Compression Format MJPEG

Recording Resolution NTSC: 320×112, 640×224

PAL: 320×136, 640×272

Recording Frame Rate NTSC: 60fps / PAL: 50fps

Recording Modes Manual / Timer / Motion / Sensor

Multiplex Operation Duplex

HDD Interface / Memory Type SATA

Hard Drive Support Up to 1TB

General

Mouse Support Yes

Back-up Method USB 2.0 Flash Drive

Remote Control Yes

Battery Type X QTY AAA x 2

Operating Power DC 12V

Dimensions 11.8” x 11.4” x 2.8”/

300mm x 290mm x 70mm

Weight 5.5lbs / 2.5kg

Display

Display Size 10.2”

Aspect Ratio 4:3

Camera

Video

Image Sensor 1/3” CMOS

Video Quality 400 TV Lines

Number of Effective Pixels NTSC: 510 x 492 / PAL: 628 x 582

Minimum Illumination 0 Lux (IR on)

Day/Night Mode Color during day

/switches to B&W at night

White Balance Automatic

Signal / Noise Ratio > 50dB

Electronic Shutter 1/60 - 1/15,000 NTSC /

1/50 - 1/15,000 PAL

Gain Control Automatic

Backlight Compensation Yes

Wide Dynamic Range No

Lens 6mm

Viewing Angle 53 degrees

Night Vision

Night Vision Distance Up to 30ft / 9m

IR Cut Filter No

Number of Infra-Red LEDs 30

Infra-Red Wavelength 850nm

Infra-Red LED Life 10,000 hours

General

Indoor / Outdoor Indoor / Outdoor

Operating Power DC 12V

Operating Temperature 14°F ~ 122°F / -10°C ~ 50°C

Body Construction ABS Plastic

Dimensions - Camera 5.5” x 2.8” x 2.8” /

140mm x 70mm x 70mm

Dimensions - Stand 4.5” x 2.3” x 2.3” /

120mm x 60mm x 60mm

Weight – Camera 0.4lbs / 180g

Weight – Camera & Stand 0.5lbs / 235g

Cable Length 50ft / 15m

Packaging

Pack Weight 11lbs / 5kg

Pack Dimensions (HxWxD) 20.7” x 14.3” x 6.3” /

525mm x 364mm x 160mm

Master Pack Quantity 2

Master Pack Dimensions (HxWxD) 21.7” x 15.4” x 15.4” /

550mm x 390mm x 390mm

Ce manuel convient aux modèles suivants

Autres manuels Swann Système de sécurité

Swann

Swann Digital EagleEye ADW-400 Manuel utilisateur

Swann

Swann DEFEND & DETER SWA43-D12C16 Manuel utilisateur

Swann

Swann DVR8-1425 Manuel utilisateur

Swann

Swann USB 2.0 DVR Guardian Manuel utilisateur

Swann

Swann NVW-600CMB Manuel utilisateur

Swann

Swann DVRx-2500 Manuel utilisateur

Swann

Swann Advanced Quad Processor Manuel utilisateur

Swann

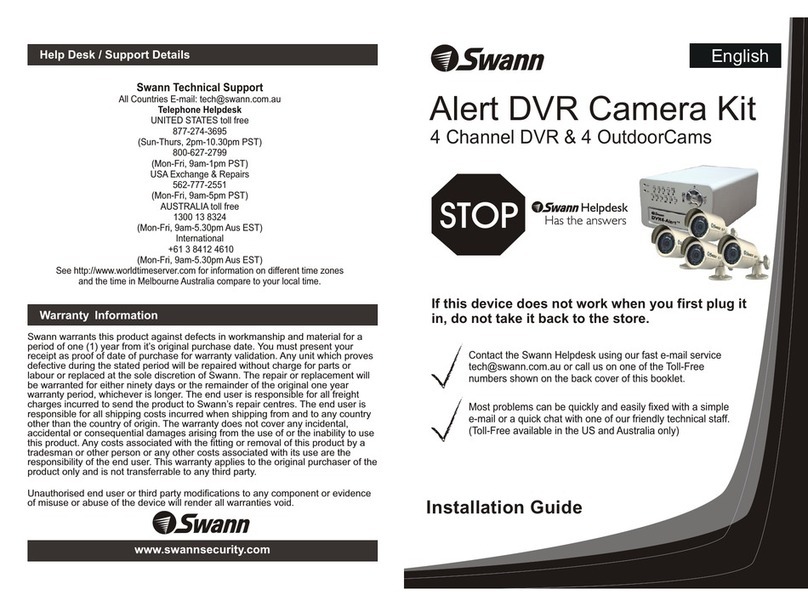

Swann Alert DVR Camera Kit Manuel utilisateur
