Subaru 2016 Legacy Manuel utilisateur

2016

Quick Reference Guide

Legacy

Love. It’s what makes a Subaru, a Subaru.

2088522_16b_Subaru_Legacy_QRG_072815.indd 2 7/28/15 1:37 PM

Complete U.S. specications and

illustrations may not have been

available at time of publication.

Specications are based on the

latest product information available

at time of publication. Some images

shown are for illustration purposes

only. Some equipment shown may

be optional at extra cost. Specic

options may be available only in

combination with other options.

Specic combinations of equipment

or features may vary from time

to time and by geographic

area. Certain accessories and

equipment may not be available

at the time of publication.

This Quick Reference Guide applies

to all Legacy models. Therefore,

some explanations may be for

equipment not installed on your

vehicle. Subaru of America, Inc.,

reserves the right to change or

discontinue at any time, without

notice, prices, colors, materials,

equipment, accessories,

specications, models and

packages without incurring any

obligation to make the same or

similar changes on vehicles

previously sold. Colors shown may

vary due to reproduction process.

For detailed operating and

safety information, please

consult the Owner’s Manual.

Subaru, Outback, Legacy, Forester,

Impreza, BRZ, WRX, WRX STI,

BOXER, Lineartronic, EyeSight,

HD Radio, Aha Radio and SiriusXM

are registered trademarks.

SUBARU STARLINK is a trademark

of Fuji Heavy Industries, Ltd.

not be reprinted or electronically

reproduced in whole or in part

without prior written approval

of Subaru of America, Inc.

2088522_16b_Subaru_Legacy_QRG_072815.indd 3 7/28/15 1:37 PM

Table of Contents

2-5 Getting Started

6-7 Instrument Panel

8-11 Gauges

12-13 Personalize

14-21 Controls

22-27 While Operating

28-29 Safety/In Case of Emergency

30-31 Additional Information

2088522_16b_Subaru_Legacy_QRG_072815.indd 5 7/28/15 1:37 PM

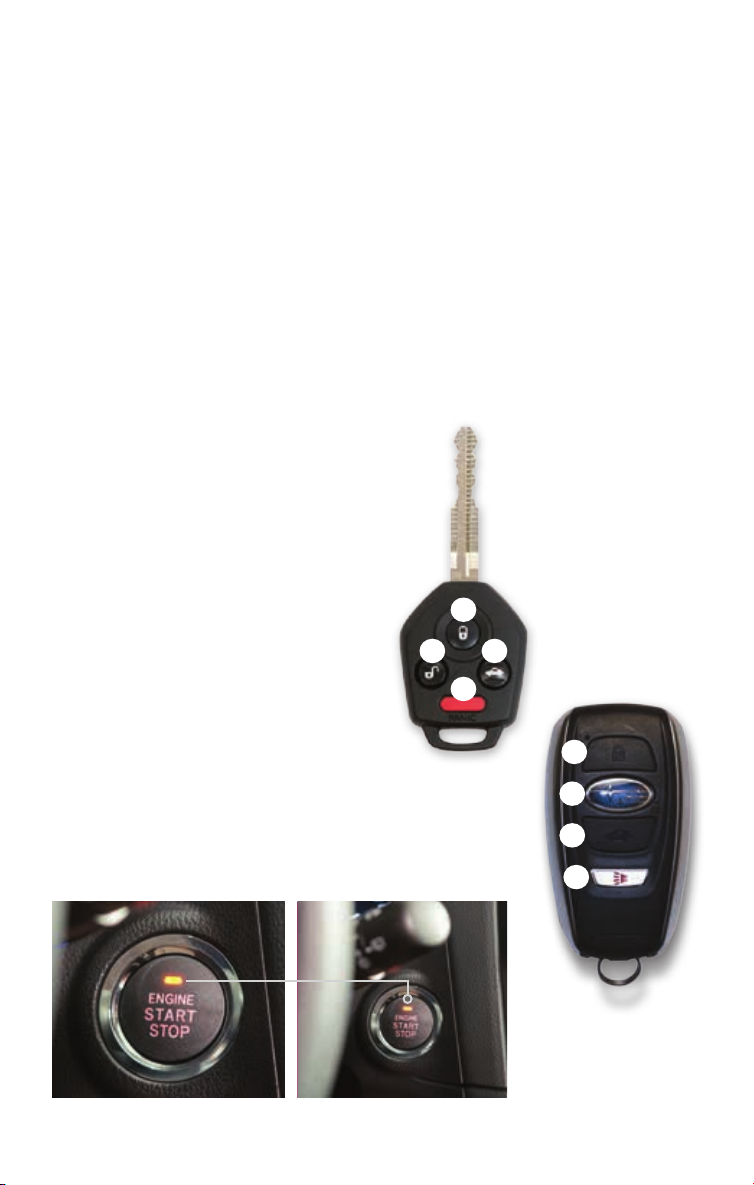

1. Lock/Arm

• Press to lock all doors and trunk and

activate the security alarm.

• If any of the doors or the trunk are

not fully closed, an electronic chirp

will sound and the hazard lights will

ash to alert you that the doors or

the trunk are not properly closed.

• To activate the vehicle nder function,

press three times (within ve seconds).

If you are within 30 feet of the vehicle,

the horn will sound one time and the

hazard lights will ash three times.

2. Unlock/Disarm

• Press once to unlock the driver’s door.

• Press twice (within ve seconds) to

unlock all doors.

• When the “Unlock/Disarm” button is

pressed, the dome and map lights will

illuminate if the dome light switch is in

the middle position.

3. Opening the Trunk Lid

• Press and hold to unlock the trunk lid.

An electronic chirp will sound twice

and the hazard lights will ash twice.

4. Panic Alarm

• Press once and the horn will sound

and the hazard lights will ash.

• Press any button on the remote

to deactivate.

Remote Keyless Entry

Keyless Access and

Push Button Start (if equipped)

By simply carrying the access key in your pocket, you can

lock and unlock doors, open the trunk and start your car

without having to take the key fob out of your pocket.

2 3

2088522_16b_Subaru_Legacy_QRG_072815.indd 2 7/28/15 1:37 PM

Getting

Started

Instrument

Panel Gauges Personalize Controls While

Operating

Safety/In Case

of Emergency

Additional

Information

Seating

Getting

Started

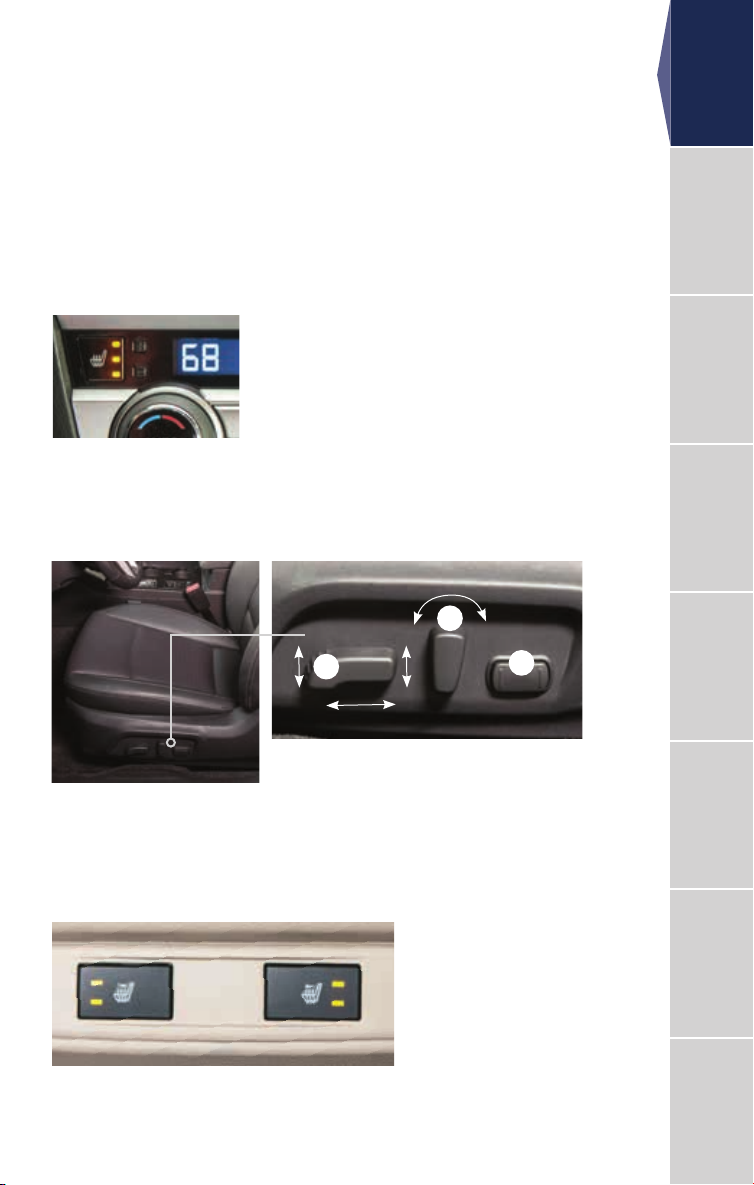

10-Way Power Driver’s Seat

(if equipped)

1. Forward/Backward, Angle and Height

Move the switch toward the front or rear to

move the seat forward or backward. Pull the

switch up or push down on the front of the

switch to adjust the angle of the seat cushion.

Pulling the switch straight up or pushing the

switch straight down will adjust the height of

the entire seat cushion.

2. Seatback

Move the switch in the corresponding

direction to adjust the angle of the seatback.

3. Lumbar Support

Press the front part of the switch to increase

lumbar support; press the rear part of the

switch to decrease lumbar support.

Heated Seats

(if equipped)

Press the front seat heater

switch. Each time you

press the switch, the mode

will change as follows:

High, Mid, Low, Off.

Rear Seat Heater (if equipped)

Press the rear seat heater switch. Each time you press the switch, the mode will

change as follows: High, Low, Off.

2088522_16b_Subaru_Legacy_QRG_072815.indd 3 7/28/15 1:37 PM

Seating

Seat Controls

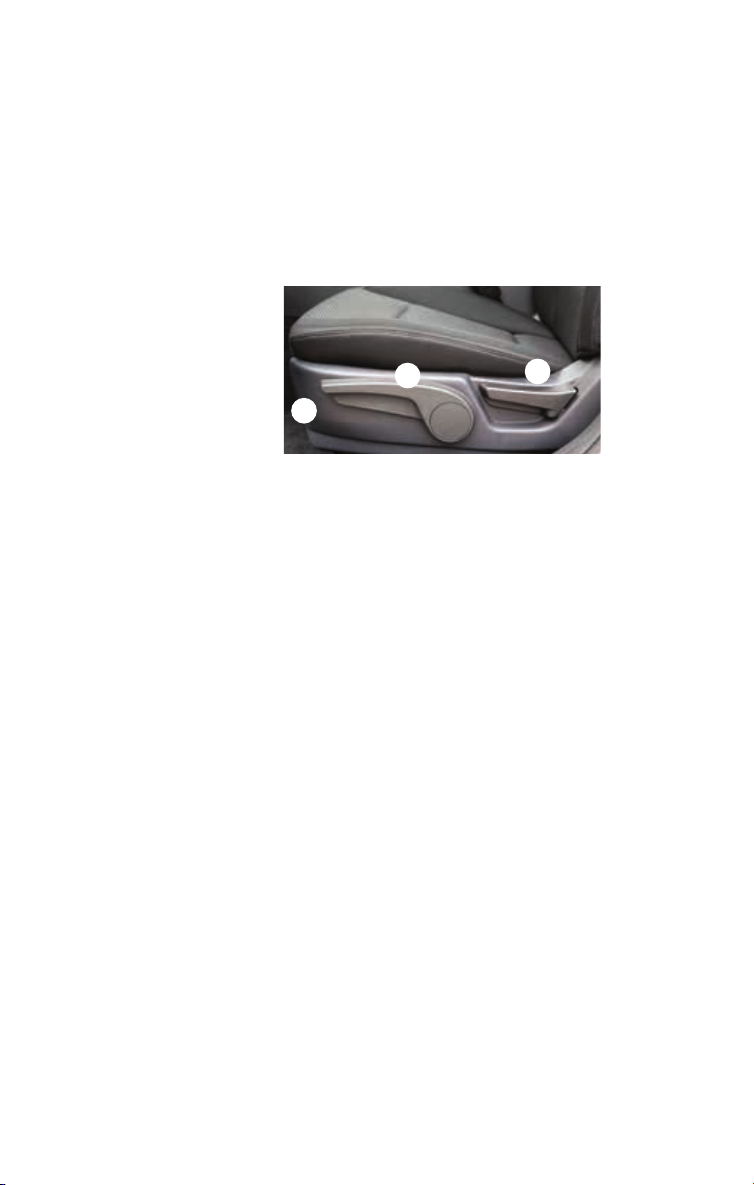

1. Forward/Backward

Pull up on the lever below

the front of the driver’s seat

to move the seat forward

or backward.

2.Raise/Lower

Seat Cushion

To adjust the height of

the driver’s seat, pull up

or push down the seat

height adjustment lever,

located on the lower left

front of the seat.

3. Recline Seatback

To adjust the seatback to the desired position, pull

up on the recline lever, located on the lower left

rear of the driver’s seat or lower right rear of the

passenger’s seat. Do not adjust seats while driving.

2088522_16b_Subaru_Legacy_QRG_072815.indd 4 7/28/15 1:38 PM

Getting

Started

Instrument

Panel Gauges Personalize Controls While

Operating

Safety/In Case

of Emergency

Additional

Information

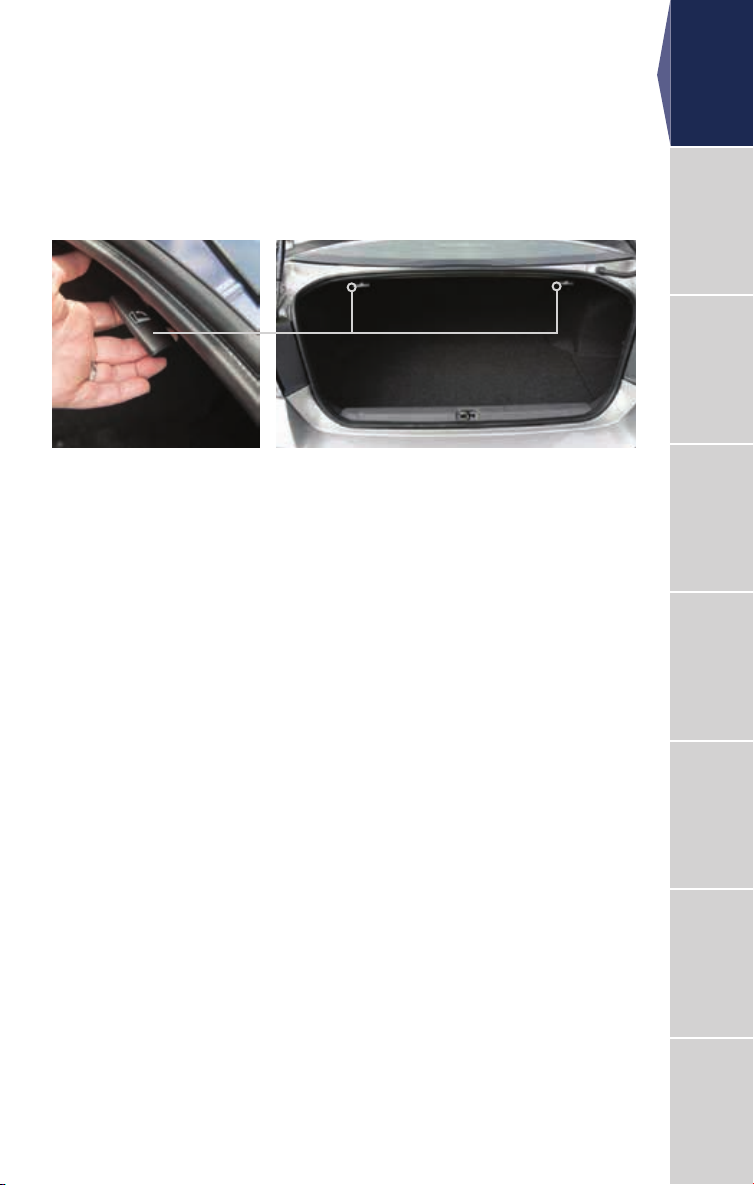

Rear Seat Release Lever

Open the trunk lid. Pull the release lever on the seat side that you want to fold down.

To return the seatback to its original position, raise the seatback until it locks into

place, making sure that it is securely locked.

Getting

Started

2088522_16b_Subaru_Legacy_QRG_072815.indd 5 7/28/15 1:38 PM

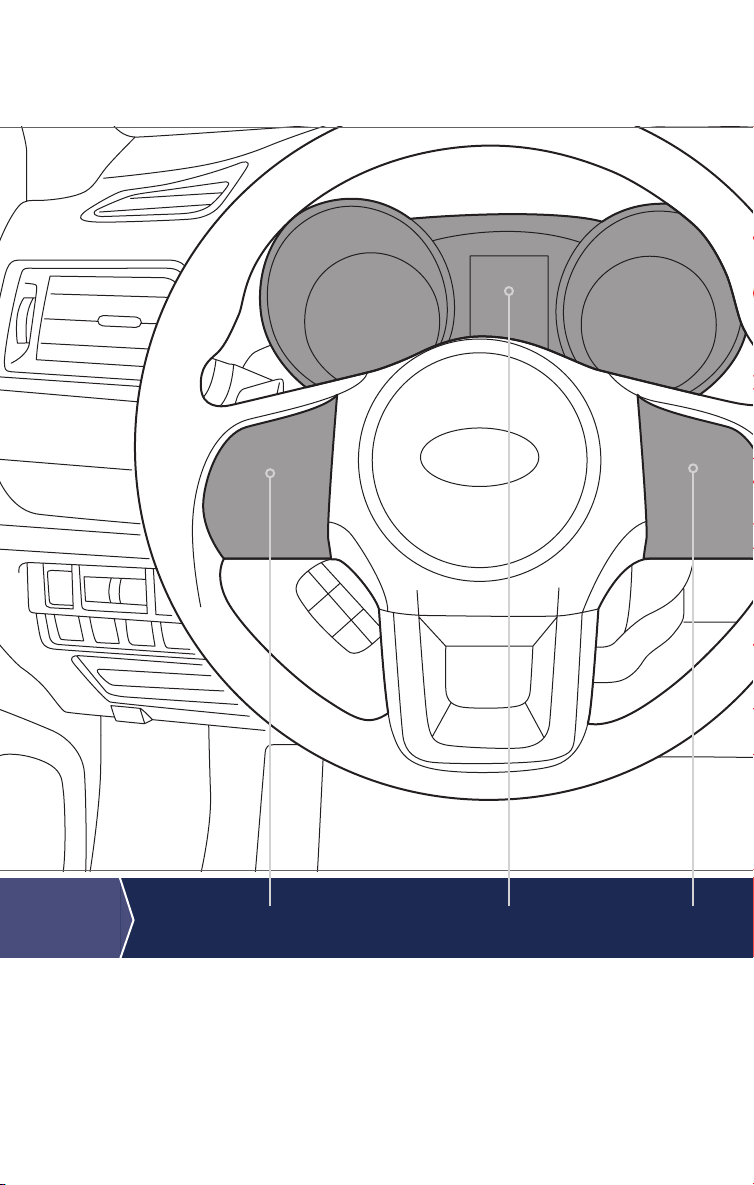

Instrument Panel

PAGE

NUMBER 8-11 2120

2088522_16b_Subaru_Legacy_QRG_072815.indd 6 7/28/15 1:38 PM

Getting

Started

Instrument

Panel Gauges Personalize Controls While

Operating

Safety/In Case

of Emergency

Additional

Information

Instrument Panel

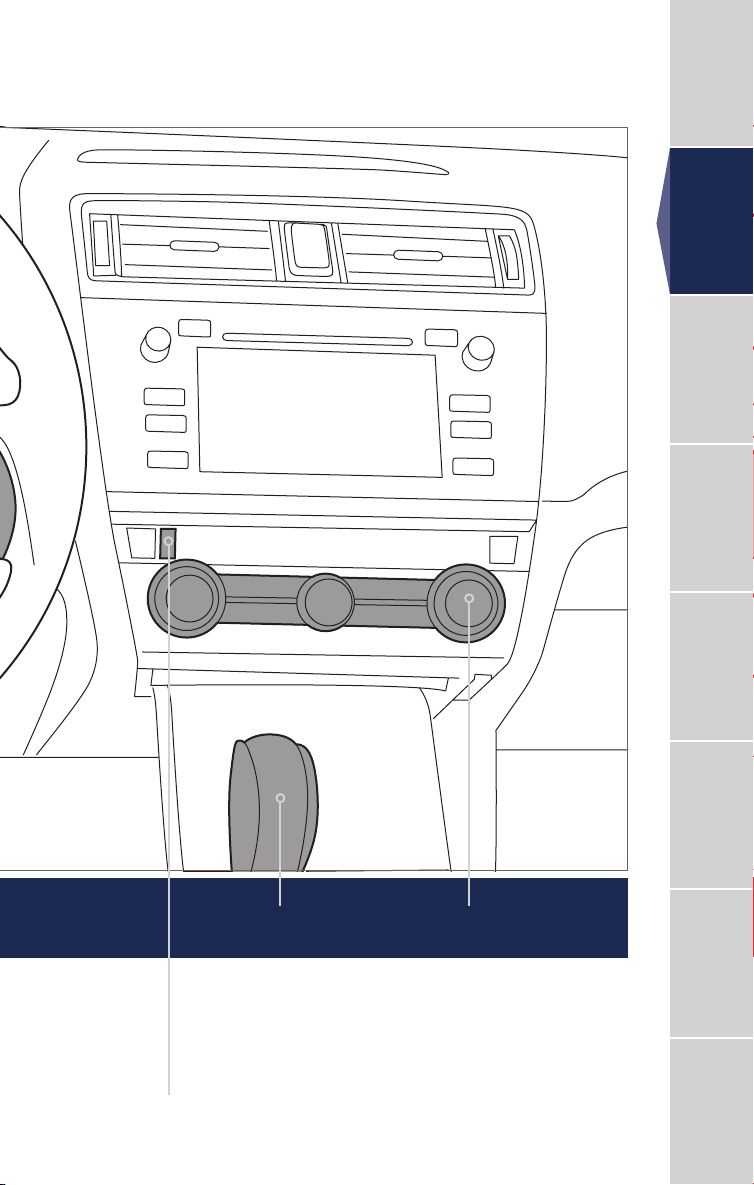

Clock

Press the “+” button to advance the time or the

“–” button to reverse the time. Vehicles with a

navigation system, please refer to the separate

“Operating Instructions for Navigation System.”

Instrument

Panel

16-1723

2088522_16b_Subaru_Legacy_QRG_072815.indd 7 7/28/15 1:38 PM

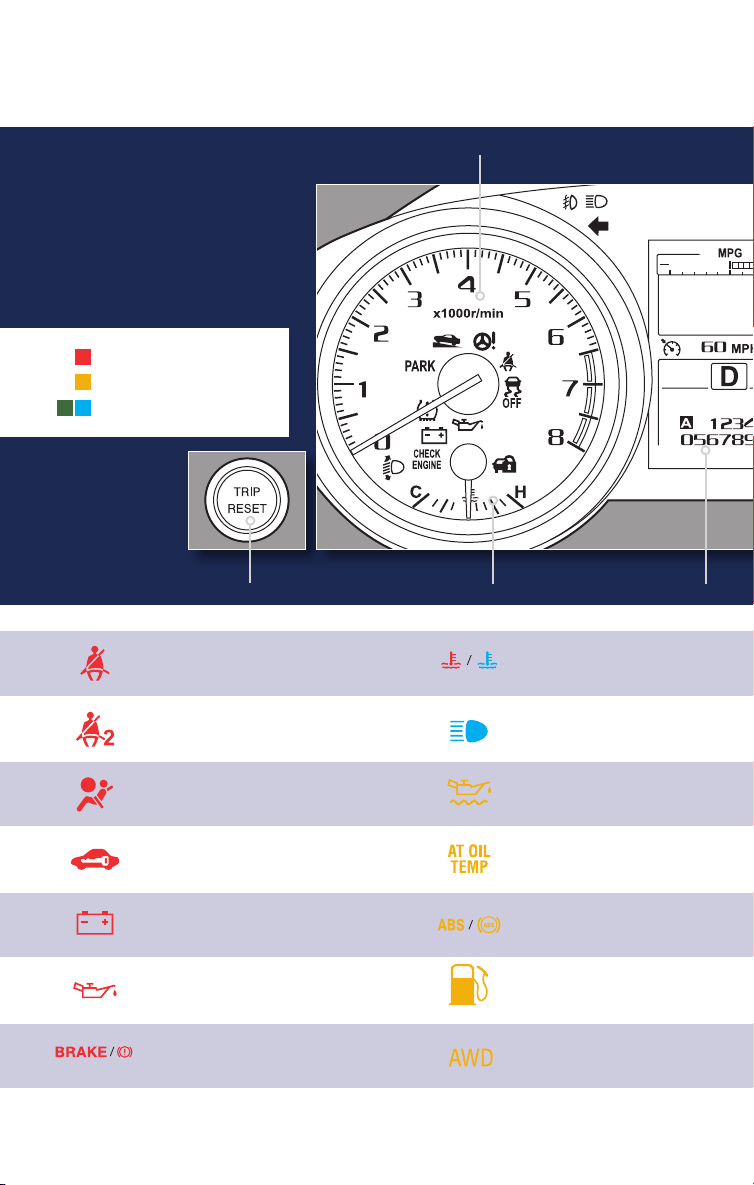

Seatbelt warning

Front passenger

seatbelt warning

SRS airbag system

Security indicator light

Charge warning

Oil pressure warning

Brake system

Hot coolant temperature /

Cold coolant temperature

High beam indicator light

Engine oil level warning

AT OIL TEMP

(Automatic Transmission)

ABS warning

Low fuel

All-Wheel Drive

(Automatic Transmission)

Immediate Attention

Caution

Informational

Legacy 2.5i

Gauges

Tachometer

Temperature gauge Trip meter and odometerTrip meter reset button

2088522_16b_Subaru_Legacy_QRG_072815.indd 8 7/28/15 1:38 PM
