BASIC FUNCTION

docstructure.indb 37 2016/03/30 11:15:16

BASIC INFORMATION BEFORE OPERATION

INITIAL SCREEN

WARNING

lWhen the vehicle is stopped with the engine running, always

apply the parking brake for safety.

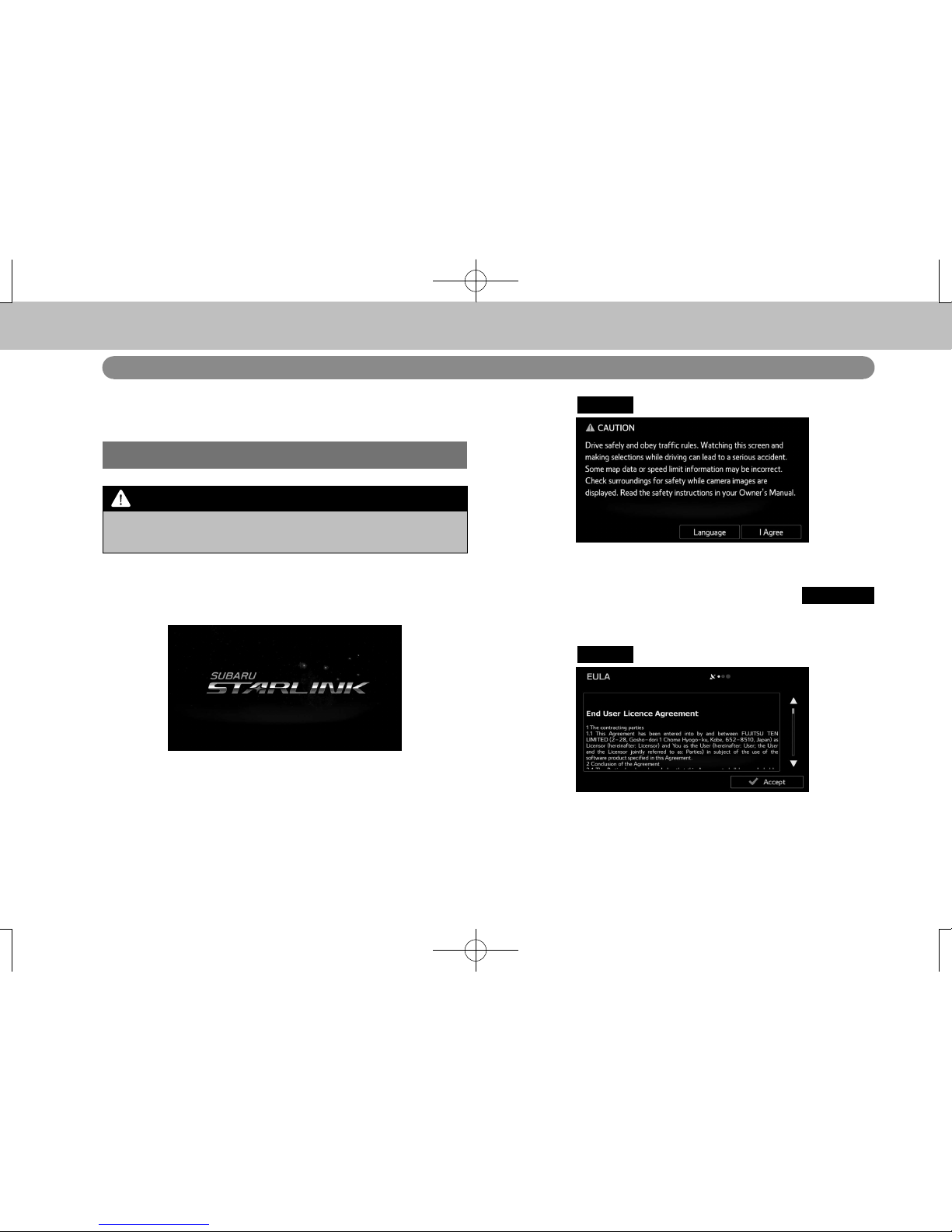

1. When the ignition switch is in the “ACC” or “ON”

position, the initial screen will be displayed and the

system will begin operating.

●After a few seconds, the “CAUTION (CAUTION)”

screen will be displayed.

2. Select

I Agree

(I Agree).

●After about 5 seconds, the “CAUTION (CAUTION)”

screen automatically switches to the next screen.

●With navigation function: Select

Language

(Language) to select a language.

XWith navigation function

3. Select

(Accept).

● Conrm the end-user license agreement.

docstructure.indb 38 2016/03/30 11:15:17

BASIC INFORMATION BEFORE OPERATION

BASIC FUNCTION

4. Select

(Next).

● The “Conguration Wizard (Conguration Wizard)”

starts.

5. Select the desired language and narrator. Select

(Next) to continue.

●When the “TTS Voice (TTS Voice)” mode is selected,

the voice control navigation and street guidance

can be used. These functions cannot be used when

the “Natural Voice (Natural Voice)” mode is selected.

●You can change this at any time from “Sound and

Warnings (Sound and Warnings)” settings. (→P.241)

6. Change the unit settings if necessary. Select

(Next) to continue.

●You can change this at any time from “Units and

Formats (Units and Formats)”. (→P.244)

7. Change the initial route plan settings if necessary.

Select

(Next) to continue.

●You can change this at any time from “Route Settings

(Route Settings)”. (→P.231)

docstructure.indb 39 2016/03/30 11:15:17

BASIC INFORMATION BEFORE OPERATION

8. Select

Finish

(Finish).

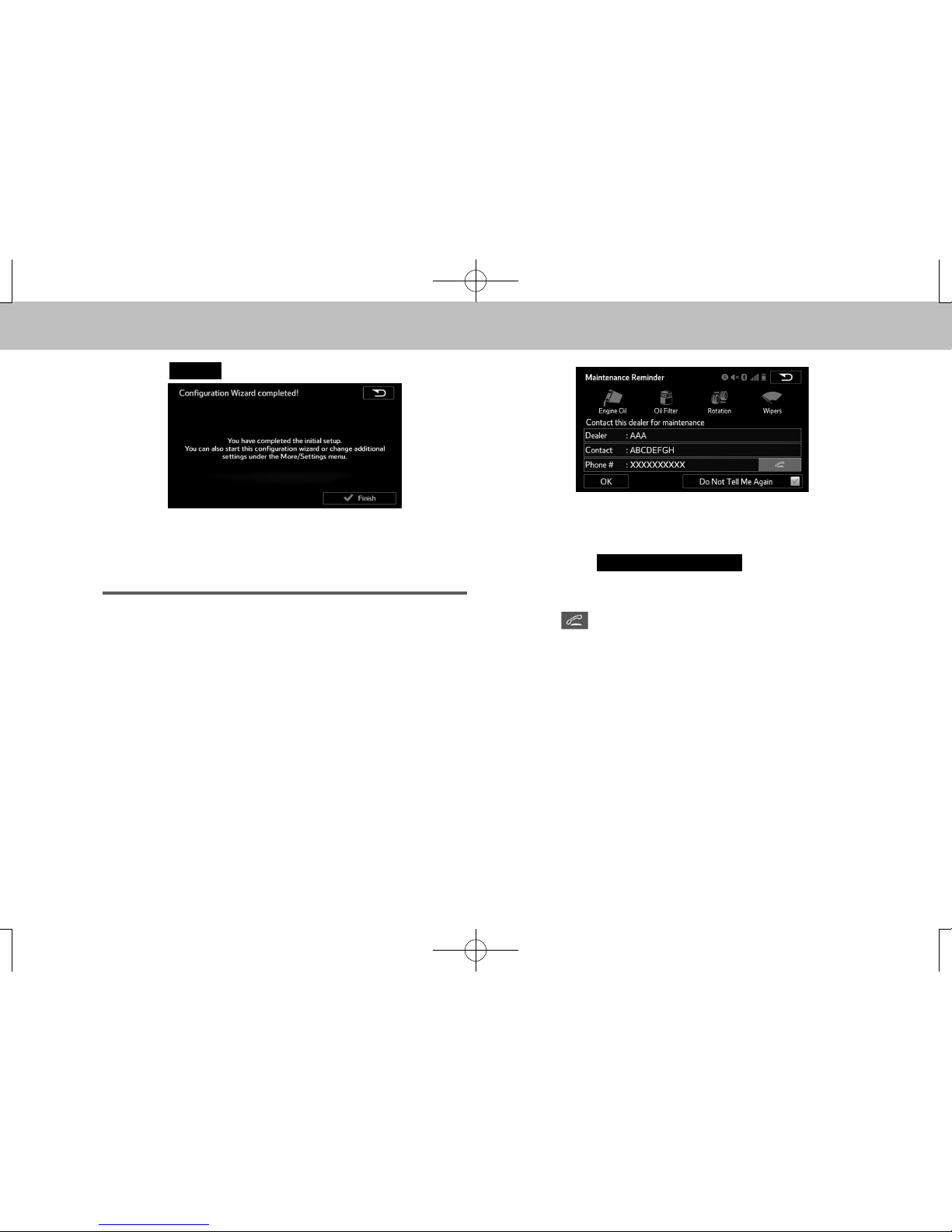

● After setting up, you can run the “Conguration

Wizard (Conguration Wizard)” at any time from

the “Settings (Settings)” menu. (→P.240)

MAINTENANCE INFORMATION

This system reminds users when to replace certain parts or

components and shows dealer information (if registered) on

the screen.

When the vehicle reaches a previously set driving distance

or date* specied for a scheduled maintenance check, the

“Maintenance Reminder (Maintenance Reminder)” screen

will be displayed when the system is turned on.

*: With navigation function

●The screen goes off if the screen is not operated for

several seconds.

●To prevent the screen from being displayed again,

select

Do Not Tell Me Again

(Do Not Tell Me

Again).

● To register maintenance information: →P.196

●If is selected, the registered phone number can

be called.

docstructure.indb 40 2016/03/30 11:15:18

BASIC INFORMATION BEFORE OPERATION

BASIC FUNCTION

LOADING AND UNLOADING A DISC

LOADING A DISC

CAUTION

lNever try to disassemble or oil any part of the CD player. Do

not insert anything other than a disc into the slot.

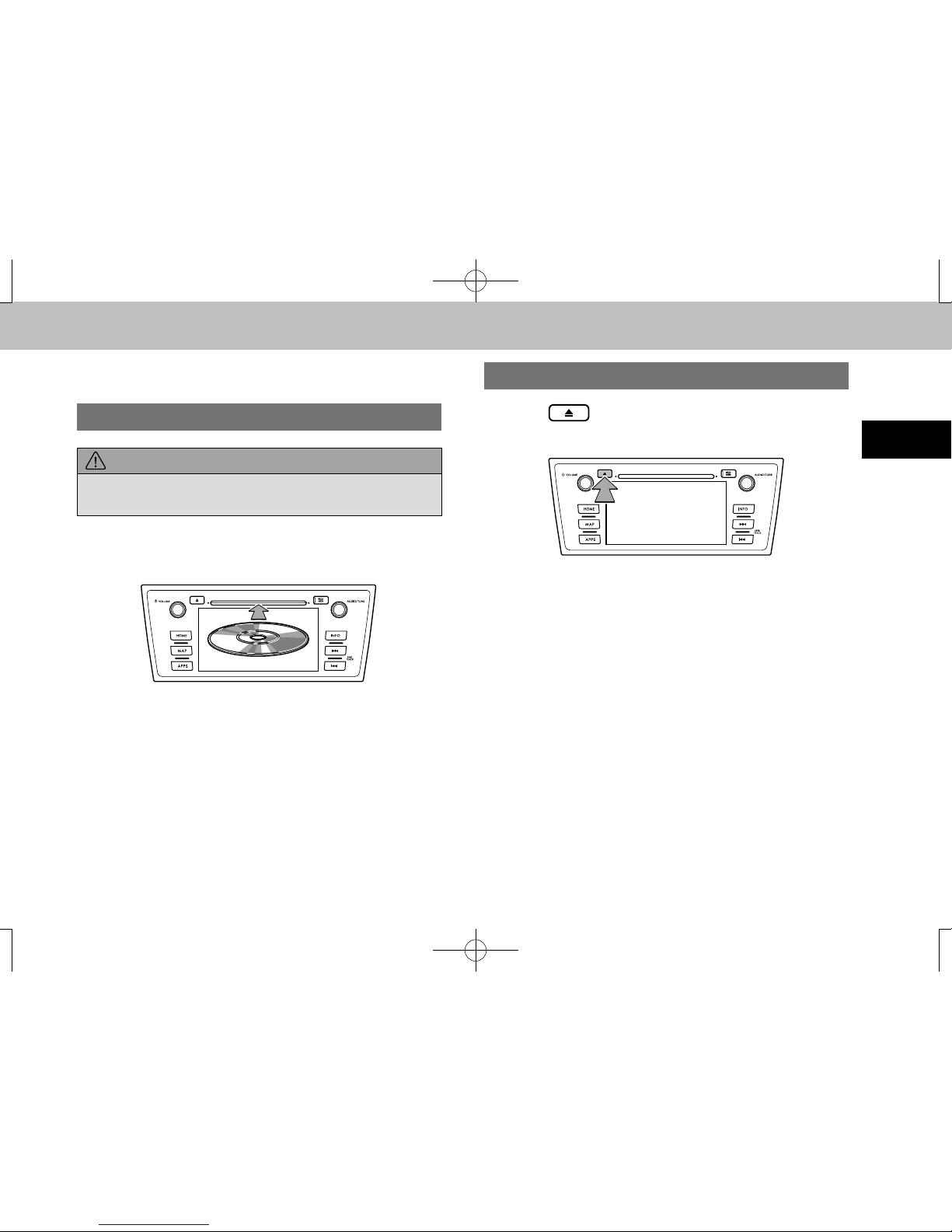

1. Insert a disc into the disc slot.

●After insertion, the disc is automatically loaded.

NOTE

lCompatible Disc: →P.103

lWhen inserting a disc, gently insert the disc with the label facing

up.

UNLOADING A DISC

1. Press and remove the disc.

NOTE

lDiscs can be unloaded even when the engine switch is turned

off.

docstructure.indb 41 2016/03/30 11:15:19

BASIC INFORMATION BEFORE OPERATION

CONNECTING AND

DISCONNECTING A USB MEMORY/

PORTABLE DEVICE

CONNECTING A DEVICE

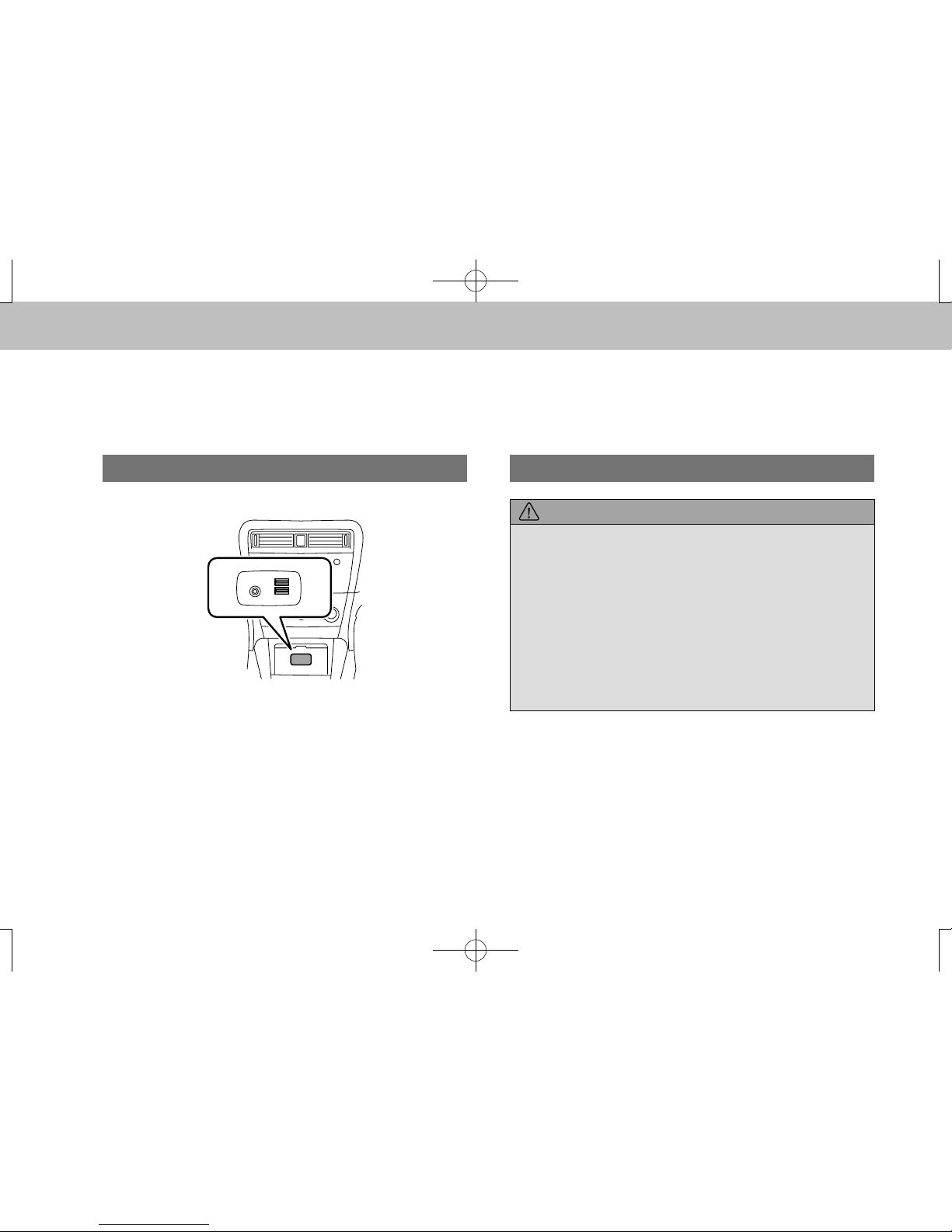

1. Connect a device.

USB

AUX

●Turn on the power of the device if it is not turned on.

NOTE

lCompatible USB memory: →P.106

lCompatible iPod: →P.106

lThis unit does not support commercially available USB hubs.

lBy connecting a device such as a cellular phone, charging starts

depending on the device.

LOADING AND REMOVING AN

SD CARD (WITH NAVIGATION

FUNCTION)

LOADING AN SD CARD

CAUTION

lPosition the SD card with the “▲” mark at the far end and

insert it until it clicks into place. When contact is made with the

stopper inside, the card cannot be inserted any further. Do not

try to forcibly push the card.

lDo not insert anything other than an SD card into the slot.

lDo not pull the SD card slot cover with force. By doing so, the

SD card slot cover may come off, or be damaged. If the SD

card slot cover comes off, it can be reattached by inserting the

cover clip into the hole.

lAvoid touching the SD card terminals to prevent

contamination. Doing so may cause card read failure.

docstructure.indb 42 2016/03/30 11:15:19

BASIC INFORMATION BEFORE OPERATION

BASIC FUNCTION

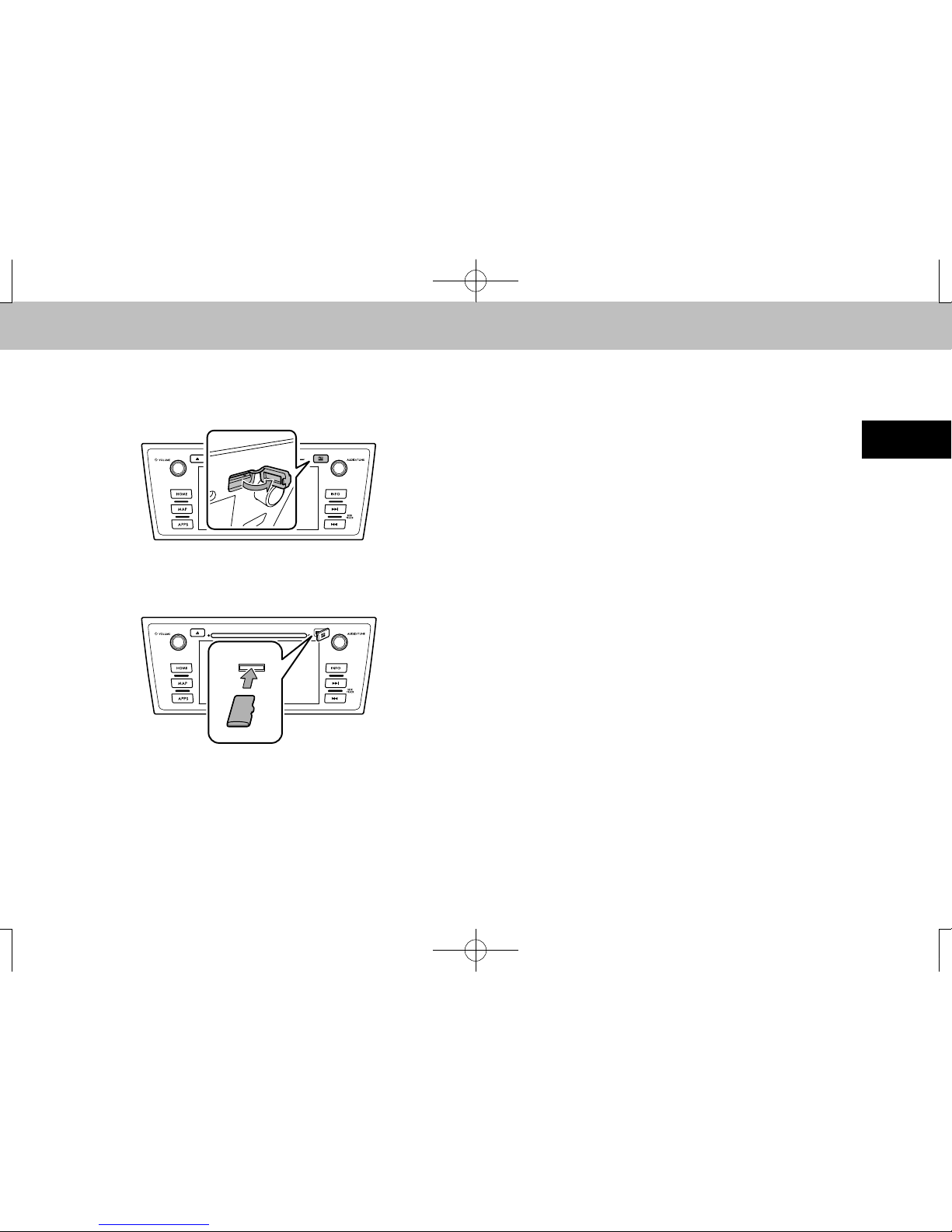

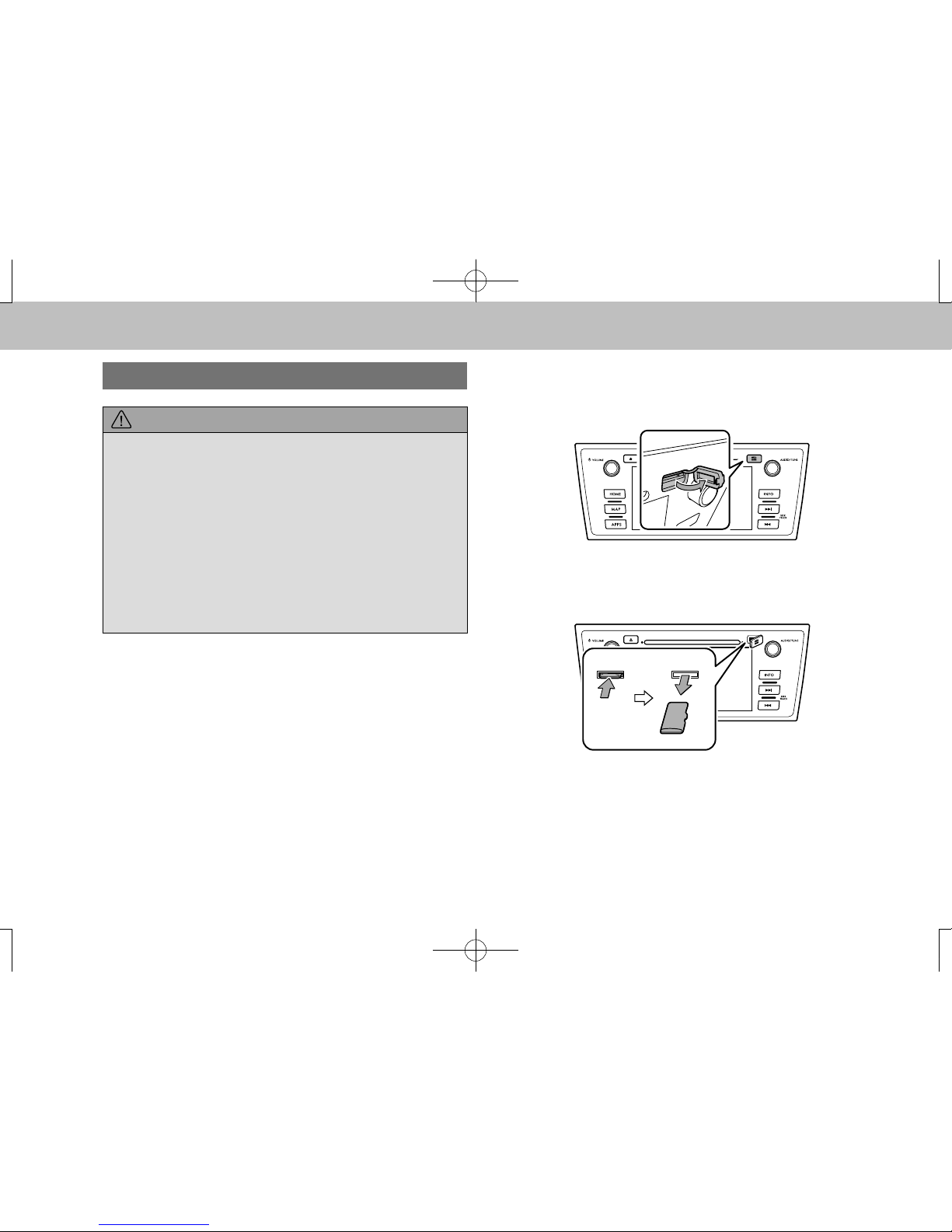

1. Turn the ignition switch to the “OFF” position.

2. Open the SD card slot cover.

3. Insert the SD card.

●Make sure that the SD card is fully inserted.

4. Close the SD card slot cover.

NOTE

lCompatible SD card: →P. 107

lYou can enjoy music/video by inserting an SD card containing

audio les and/or video les. (→P.87)

lYou can preview images, play a slideshow, (→P.87) or set an

image as the screen off images (→P.191) by inserting an SD

card containing image data.

docstructure.indb 43 2016/03/30 11:15:19

BASIC INFORMATION BEFORE OPERATION

REMOVING AN SD CARD

CAUTION

lWhen removing an SD card from the unit, pull it out

horizontally. Do not pull it out upward or downward with force.

Doing so may damage the SD card.

lDo not remove an SD card during playback. Doing so may

corrupt the data. Please understand that no compensation will

be given for corrupted data.

lDo not pull the SD card slot cover with force. By doing so, the

SD card slot cover may come off, or be damaged. If the SD

card slot cover comes off, it can be reattached by inserting the

cover clip into the hole.

lAvoid touching the SD card terminals to prevent

contamination. Doing so may cause card read failure.

NOTE

lThe system is reset and the initial screen appears if the map SD

card is removed during use, however, this is not a malfunction.

The map screen appears again approximately 7 seconds after

reinserting the map SD card.

lWhen removing an SD card from the unit and “Auto Adjust by

GPS (Auto Adjust by GPS)” is selected in the Clock Settings

(→P.190), the time on the Climate Control will change to

Greenwich Mean Time (GMT).

1. Turn the ignition switch to the “OFF” position.

2. Open the SD card slot cover.

3. Remove the SD card.

●Press in the SD card until you hear it “click”, let go of

the card, and then pull it straight out.

4. Close the SD card slot cover.

docstructure.indb 44 2016/03/30 11:15:19

BASIC INFORMATION BEFORE OPERATION

BASIC FUNCTION

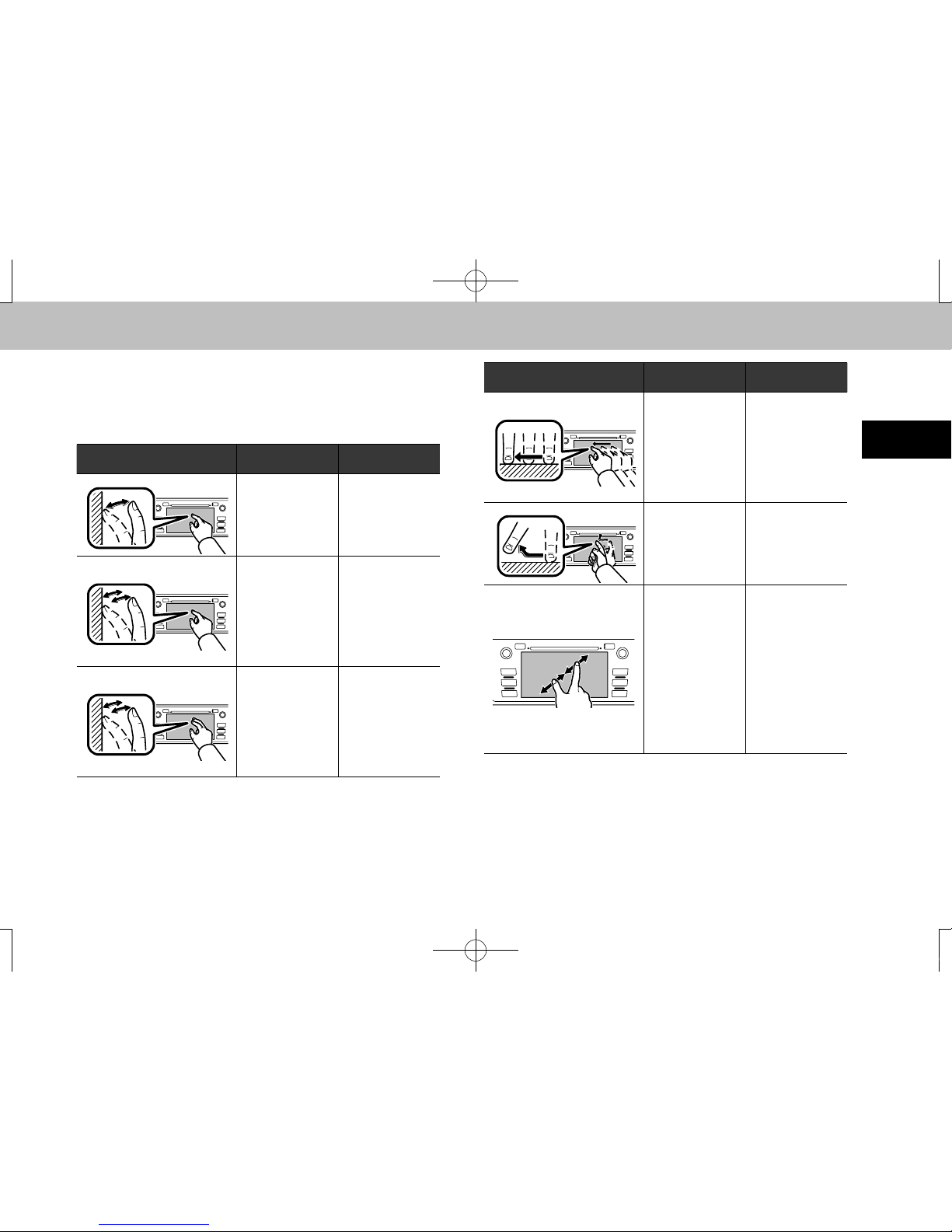

TOUCH SCREEN GESTURES

Operations are performed by touching the touch screen

directly with your nger.

Operation method Outline Main use

Touch

Quickly touch

and release

once.

Changing

and selecting

various settings

Double Touch

with one

nger*1

Quickly touch

and release

twice with one

nger.

Enlarging the

scale of the map

screen

Double Touch

with two

ngers*1

Quickly touch

and release

twice with two

ngers.

Reducing the

scale of the map

screen

Operation method Outline Main use

Drag*2

Touch the

screen with

your nger,

and move the

screen to the

desired position.

• Scrolling the

lists

• Scrolling the

map screen*1

Flick*2

Quickly move

the screen by

icking with your

nger.

• Scrolling the

main screen

page

• Scrolling the

map screen*1

Pinch*1

Move your two

ngers further

apart (pinch-

out) to zoom in

the map. Move

your two ngers

closer together

(pinch-in) to

zoom out the

map.

Changing the

scale of the map

screen

docstructure.indb 45 2016/03/30 11:15:20

BASIC INFORMATION BEFORE OPERATION

Operation method Outline Main use

Rotate*1

To change the

map direction,

rotate with two

ngers touching

the screen.

Changing the

horizontal

display angle of

the map.

*1: With navigation function

*2: The above operations may not be performed on all screens.

NOTE

lFlick operations may not be performed smoothly in high

altitudes.

TOUCH SCREEN OPERATION

This system is operated mainly by the buttons on the

screen. (Referred to as screen buttons in this manual.)

●When a screen button is touched, a beep sounds.

The beep sound can be turned on or off. (→P.188)

CAUTION

lTo prevent damaging the screen, lightly touch the screen

buttons with your nger.

lDo not use objects other than your nger to touch the screen.

lWipe off ngerprints using a glass cleaning cloth. Do not use

chemical cleaners to clean the screen, as they may damage

the touch screen.

NOTE

lIf the system does not respond to touching a screen button,

move your nger away from the screen and then touch it again.

lDimmed screen buttons cannot be operated.

lThe displayed image may become darker and moving images

may be slightly distorted when the screen is cold.

lIn extremely cold conditions, the map may not be displayed

and the data input by a user may be deleted. Also, the screen

buttons may be harder than usual to depress.

lWhen is displayed on the screen, select to return

to the previous screen.

docstructure.indb 46 2016/03/30 11:15:20
