Subaru SPN0000974 Manuel utilisateur

Media integration kit for iPod, USB and BT

CERTIFIED USBUSB

Table of contents

Introduction

Warning

Icon legends

Support material

Connecting to the Media hub

Easy access - iPod/USB devices

Easy access - Bluetooth device

Operating the iPod

General overview

Radio controls and available modes

More about Podcasts

More about Audiobooks

USB operation

Bluetooth operation (Optional feature)

Legacy Audio sets

General overview

Operating the USB flash drive

General overview

Bluetooth music streaming operation

Accessing the Media hub

Operation tips for iPod, USB and Bluetooth devices 38 Part number: SPN0000974 Issue: v1.0

Ó2009 Subaru of America, Inc. Printed in U.S.A. MSA6A0701

Subaru of America reserves the right to change or withdraw accessories at any time without prior notice

and without incurring the obligation to make changes to any accessories previously sold.

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.

"Made for iPod" means that an electronic accessory has been designed to connect specifically to iPod and

has been certified by the developer to meet Apple performance standards. Apple is not responsible for the

operation of this device or its compliance with safety and regulatory standards. iPod is a trademark of Apple

Inc., regsitered in the U.S. and other countries. Apple iPod is not included in the packages.

English

Introduction

Thank you for purchasing the Subaru Media interface. Please

review this user's guide for safety warnings and operating tips.

Press and hold button

Turn jog dial

Turn jog dial repeatedly

Press button

Scroll

Press button repeatedly

Support material

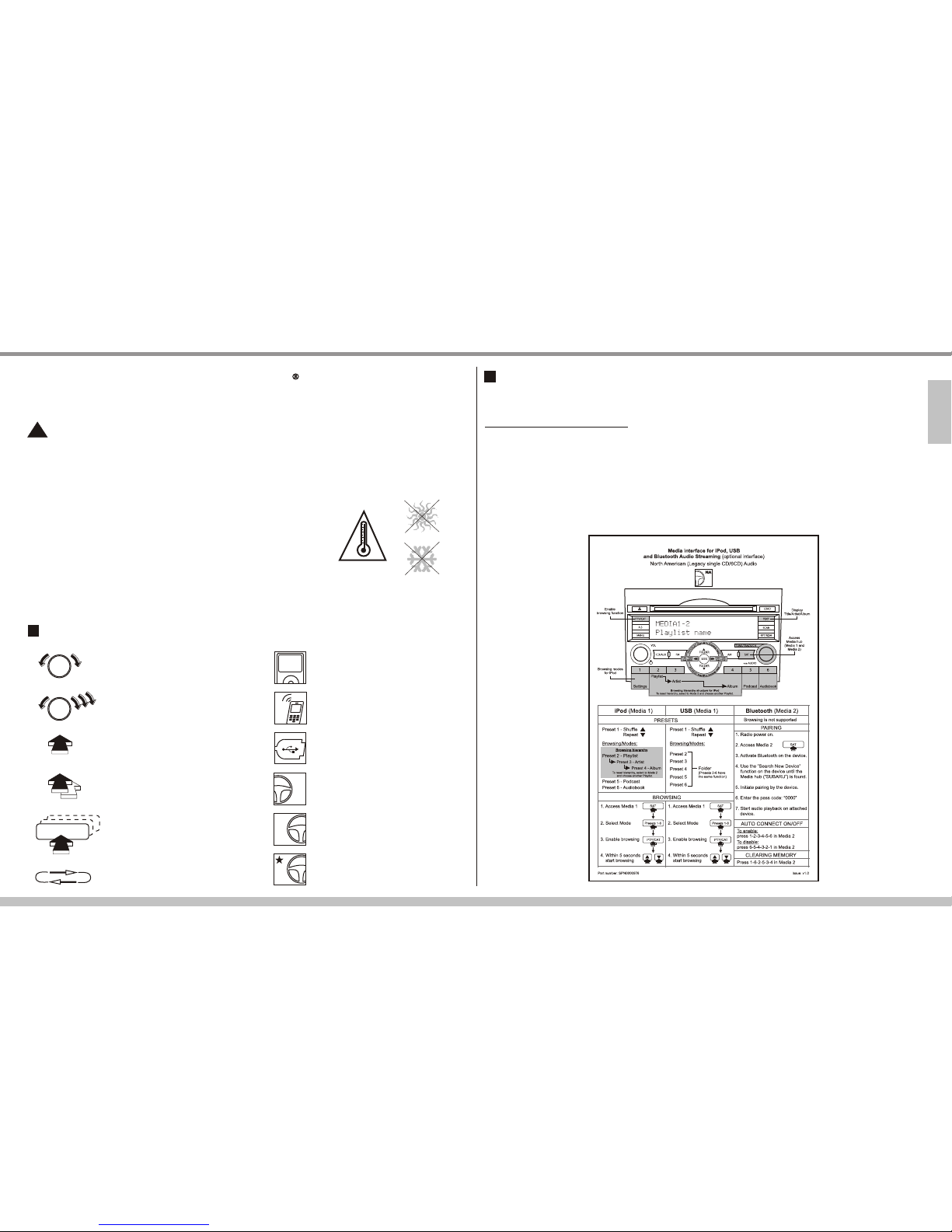

Quick refrence guide

This handy guide was created to offer you a convenient reference

for using the Media interface. Please keep it in your glove

compartment. Make sure to use the appropriate guide made for

your radio.

Operation applies to European

left-hand drive vehicles

Operating the iPod

Bluetooth audio streaming

USB operation

Operation applies to

Australian vehicles

Operation applies to European

right-hand drive vehicles

Warning!

!Do not allow the Media interface to distract you from driving! Only

operate the unit when stationary or ask passengers to operate it

for you. Subaru and its regional offices,

distributors or resellers does not accept any

responsibility for any damage or injury as a

result of using the Subaru Media interface.

Exercise good judgment and keep your

eyes on the road at all times! Do not expose

the device to extreme temperature!

Icon legends

English

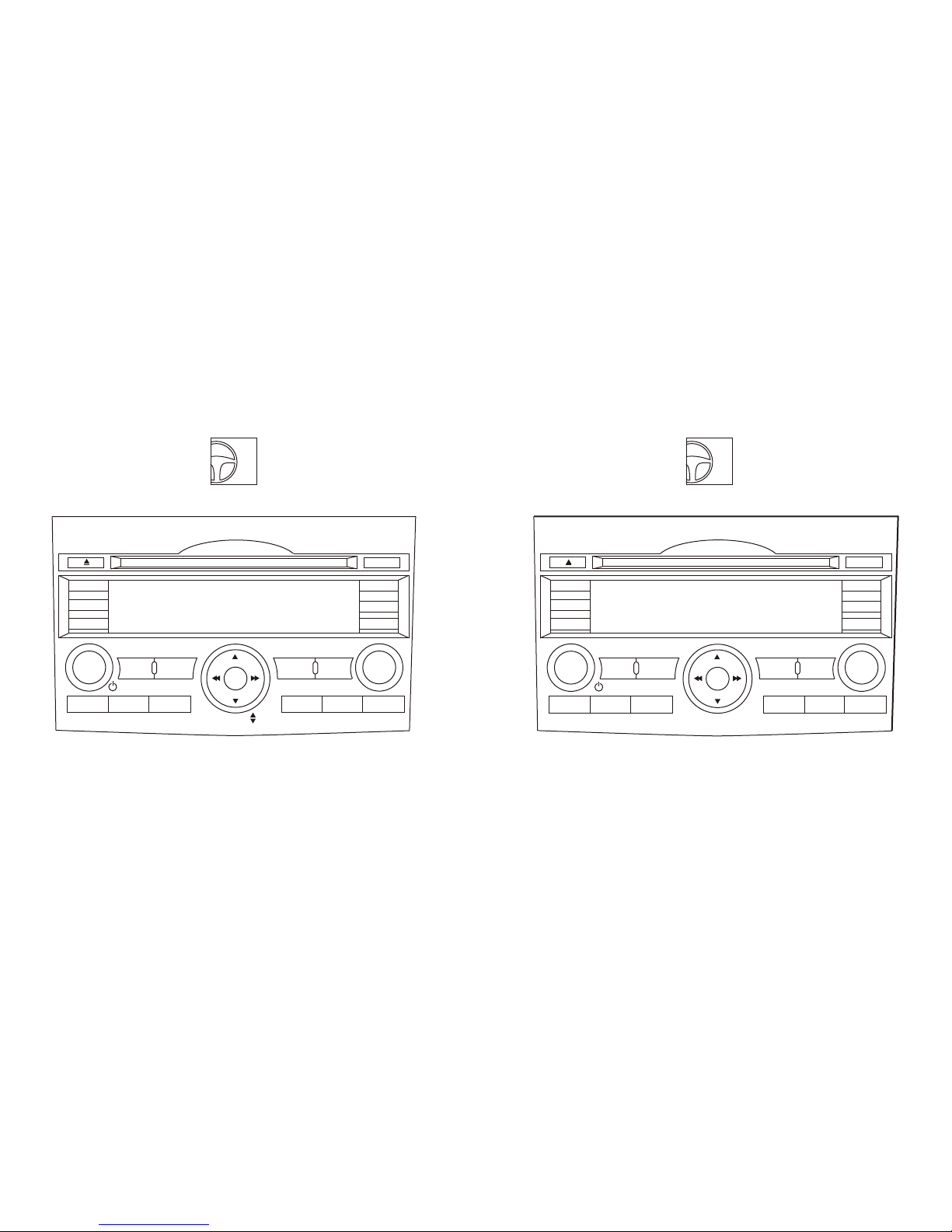

Type A audio set - Legacy single CD/6 CD

SEEK

FOLDER

TEXT

RDS/LOC

TI/NEWS

SCAN/A.S

RPT/RDM

TUNE/TRACK

PUSH AUDIO

1 2 3 4 5 6

VOL

LOAD

AUX

Note that a LOAD button is present on the 6 CD changer radios.

The radio only displays ASCII characters, accented characters are displayed without

the accent; other characters are substituted by "?"

SEEK

FOLDER

PTY/CAT

CD/AUX

VOL

PTY/CAT TEXT

SCAN

RPT/RDM

A.S

TUNE/TRACK/CH

PUSH AUDIO

FM AM SAT

1 2 3 4 5 6

EUNA

North American Audio European Union Left Hand Drive Audio

LOAD

SEEK

FOLDER

RDS/LOC

TI/NEWS

SCAN/A.S

RPT/RDM

TUNE/TRACK

PUSH AUDIO

AUX

1 2 3 4 5 6

VOL

LOAD

SEEK

FOLDER

RDS

TI/NEWS

SCAN/A.S

RPT/RDM

TUNE/TRACK

PUSH AUDIO

AM FM

AUX

1 2 3 4 5 6

VOL

LOAD

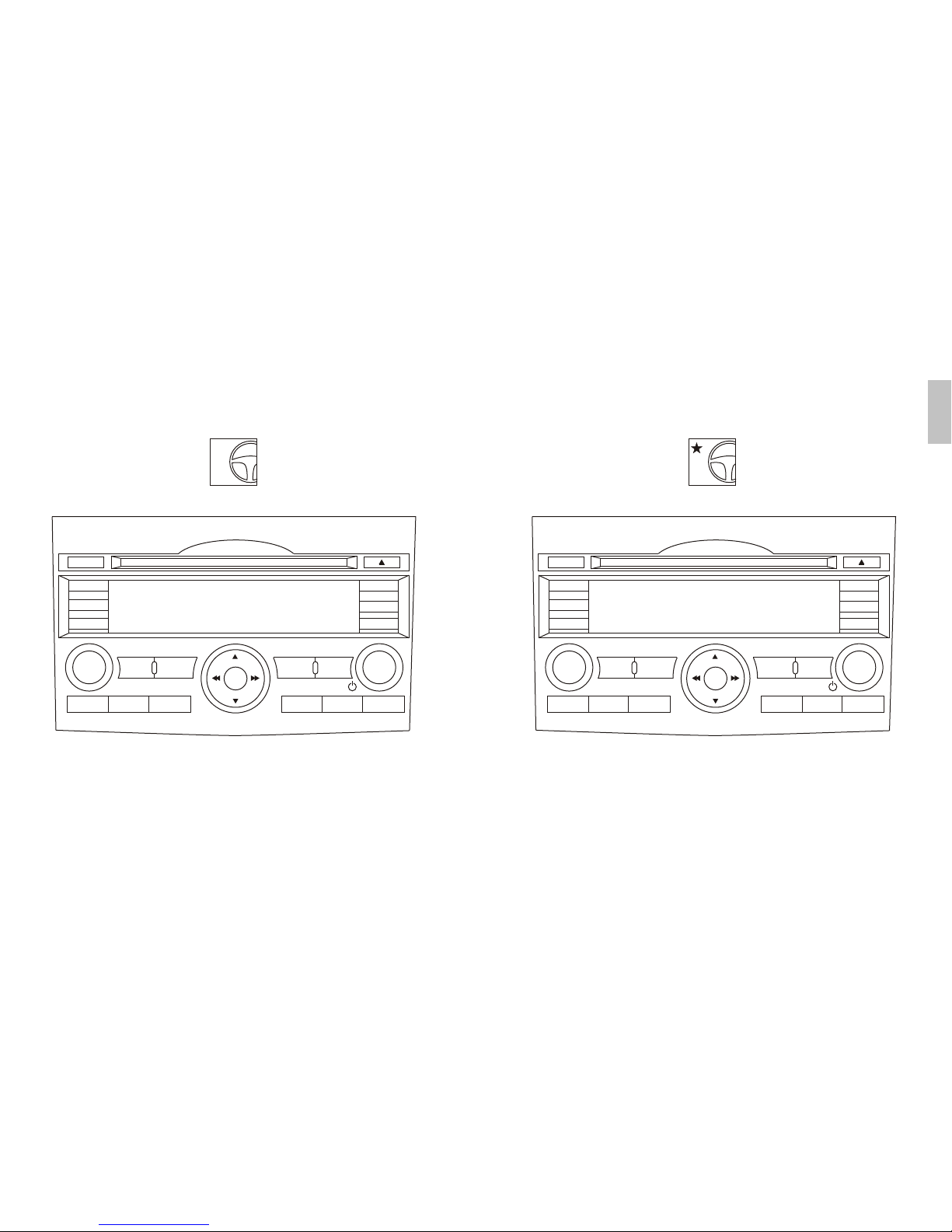

Type A audio set - Legacy single CD/6 CD

European Union Right Hand Drive Audio Australian Audio

TEXT

English

SAT1

Song name Song name

SAT3

Song name Song name

SAT1

Song name

SAT2

Song name

SAT

Accessing the Media hub

SAT

Note: SAT1/2/3 are used for Satellite radio

and are available only if SAT tuner is installed:

MEDIA1

Song name

MEDIA2

Song name

Accessing Media hub Bluetooth Audio (optional feature):

Connecting a USB flash drive:

Pairing a Bluetooth device (optional feature):

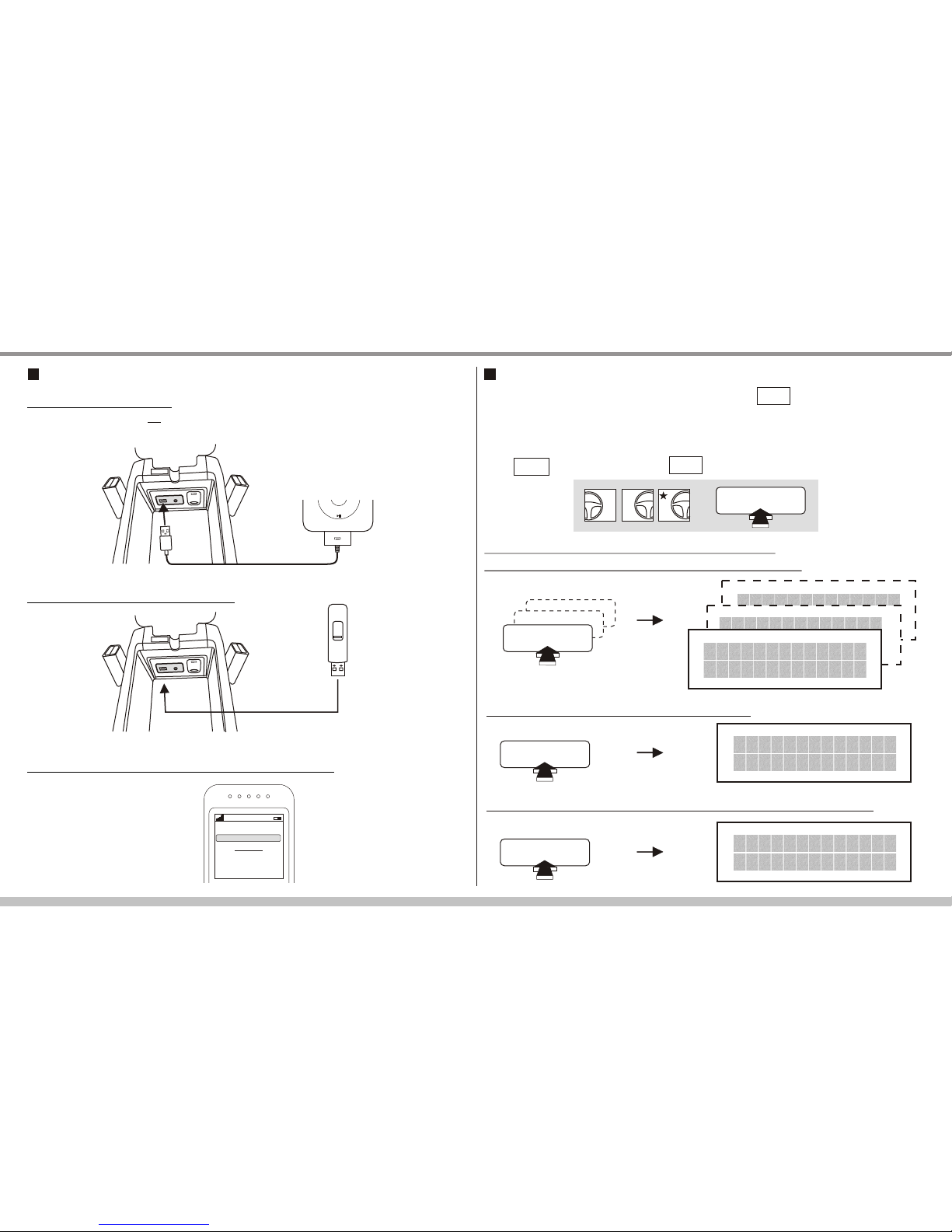

Connecting to the Media hub

Connecting the iPod:

11:35 pm

My devices

New device

AddInfo Back

Access Media interface by pressing the SAT button on the head

unit until the top line of the display shows “Media1" or “Media2"

(optional feature).

Use AUX button instead of SAT in vehicles below:

OK to disconnect

The Media interface kit does not include the iPod cable. Please use the original Apple iPod dock connector

that comes standard with the purchase of an Apple iPod.

SAT1

Song name

SAT1

Song name

Accessing Media hub (iPod and USB):

EU AUX

SAT

TEXT

Easy access - Bluetooth device

TEXT

SAT

MEDIA2

NO T L IN KE D

MEDIA1

AT TA CH ED

SAT

TEXT

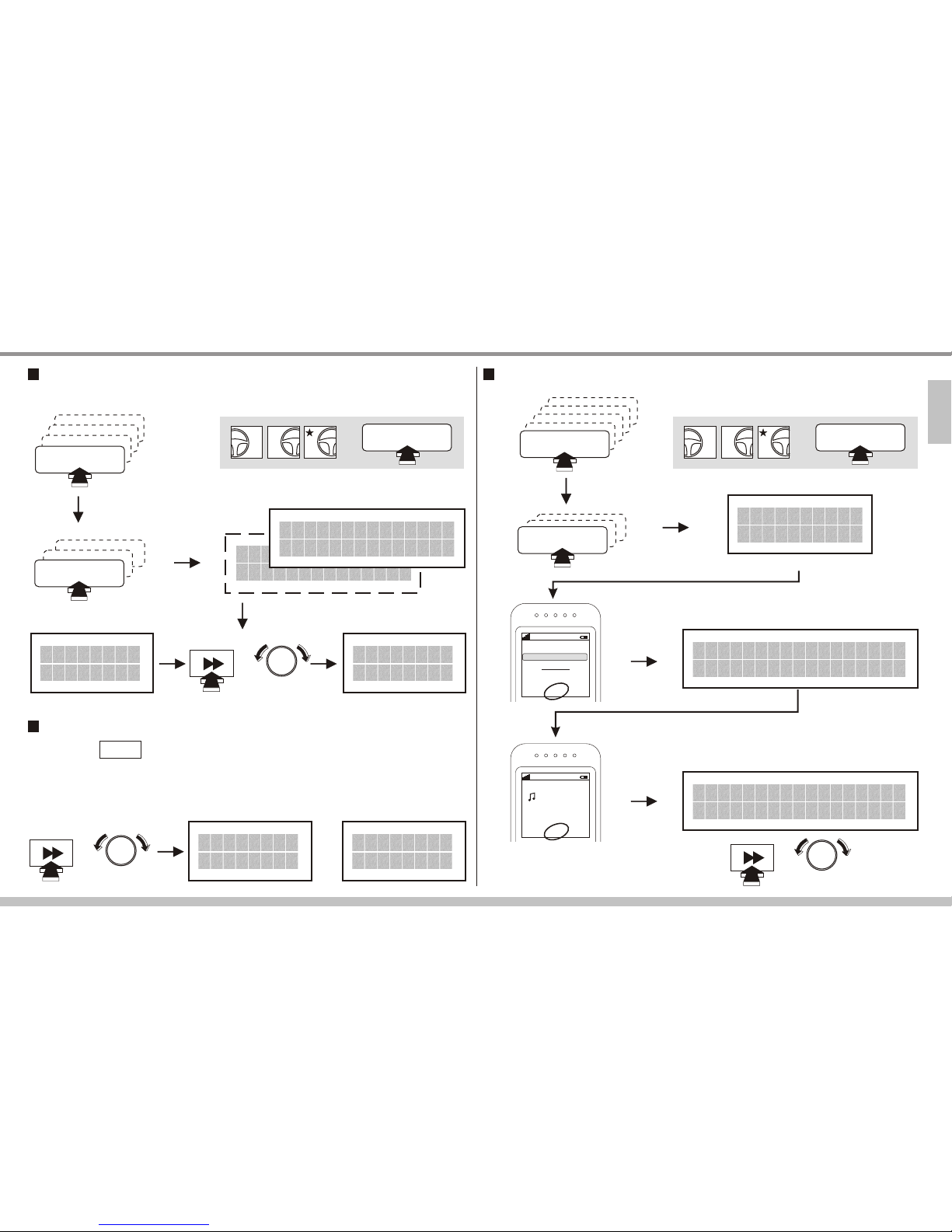

Easy access - iPod/USB devices

...

TEXT

Quick browse feature for iPod

Press the Seek button or turn the jog dial repeatedly until the

desired selection is reached. About 1 second after the button/dial

is released the iPod will begin playing the selection. The selection

for the USB flash drive is immediate.

SAT

MEDIA1

So ng na me

MEDIA1

So ng 1

MEDIA1

So ng 2

or MEDIA1

So ng 1

MEDIA1

So ng 20

Title text field

11:35 pm

My devices

New device

AddInfo Back

MEDIA2

Ph on eN am e-LIN KE D

MEDIA2

PhoneName-PLAYING

11:35 pm

Song name

PlayOptions Back

Enter

passcode:

“0000"

To change tracks

Step1: Step1A: Step1A:Step1:

EU AUX

English

Operating the iPod - General overview
