Strong SRT 4620 Manuel utilisateur

SRT 4620

FREE - TO - AIR

DIGITAL SATELLITE RECEIVER

USER’S MANUAL

4620

E109000176B

STRONG & Co. (FAR EAST), LTD.

P. O. Box : 85, YOKOHAMA, KANAGAWA-KEN

JAPAN 231-91 -FAX : +81 45 662-4957

Website : www.strong-technologies.com

E-mail : [email protected]

1. Introduction 2

1.1. Overview

1.2. Main Features

2. Safety/Precautions 3

2.1. Safety

2.2. Precautions

3. Check Point before Use 5

3.1. Accessories

3.2. The Satellite dish

4. Controls/Functions 6

4.1. Front Panel

4.2. Rear Panel

4.3. Remote Control

5. Using Remote Control 10

5.1. Batteries

5.2. Range Of Operation

6. How to Connect 11

7. Operation 13

7.1. Getting Started

7.2. Channel Editing

7.3. System Parameters

7.4. Transponder

7.5. Factory Set

7.6. Other Function on Remote Control

8. Trouble Shooting 45

9. Specifications 46

DiSEqC is a trademark of EUTELSAT.

This satellite receiver is designed for using digital free-to-air channel reception. Enjoy the rich choice of more

than 4,000 different channels, broadcasting a large range of culture, sports, cinema, news, events, etc. This

receiver is a technical masterpiece, assembled with the highest qualified electronic parts.

Introduction

Fully compliant with MPEG-2 and DVB standards

User friendly operating Menu and On-Screen Graphic Menu

Easy to use EPG(Electronic Program Guide) on screen

Age protection lock function

Tele-text encoding

Manual PID control

Software downloading via RS-232C connector

DiSEqC 1.2 compatible

Be sure to read the user's manual before

starting the operation of the unit.

Do not touch the power cord with wet

hands as it may cause electric shock.

Never open the cover. It is very dangerous

to touch the inside of the unit due to

possible electric shock.

Place the unit in a well ventilated and no-

heat environment.

When you do not use this unit for a long

time, make sure that power cord is pulled

out from the outlet. Also do not use a

damaged power cord as it may cause fire

or electric shock.

A professional installation is required.

If reception is interrupted, contact your

local service centre.

Safety/Precautions

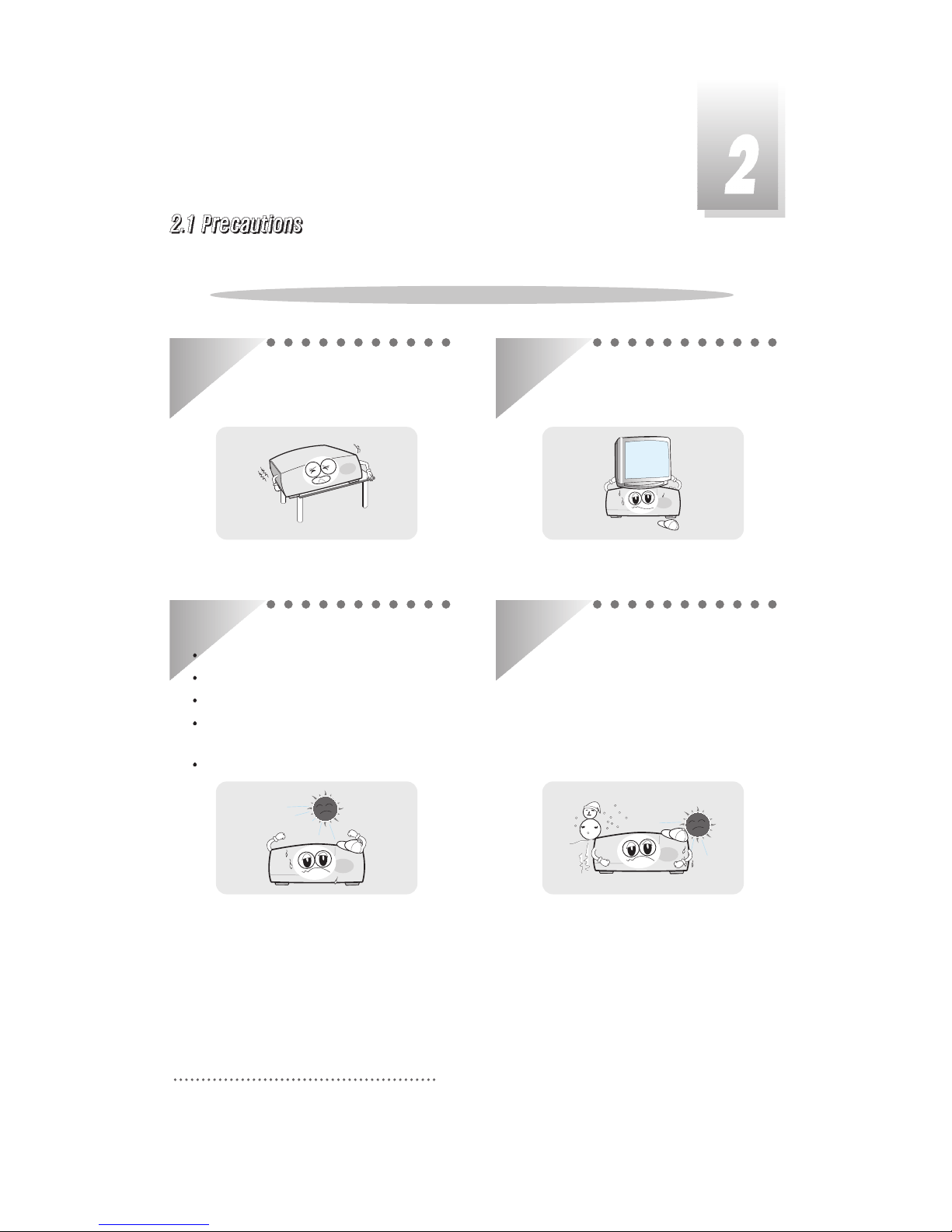

Install the unit horizontally. An uneven

installation may cause the unit to be

damaged.

Do not put heavy items such as a TV on the

unit. That may cause the unit to be

damaged.

Do not install the unit:

Where it is subject to vibrations

Where it is exposed to direct sunlight

Where there is humidity

Where the temperature is too high or

too low.

Where there is no ventilation

Moving the unit to a hot area from a cold

one will cause condensation.

Do not operate the unit for one or two hours

or until it has dried completely.

When installing the unit

User's manual : 1

User's manual

Remote control : 1

Batteries (AAA type) : 2

If any accessories listed above are

missing, contact the sales

representative where you purchased

this unit.

RCA video/audio cable : 1

QZ-

ABC DEF

GHI JKL MNO

PRS TUV WXY

INFO

AUDIO

GUIDE

CH.LIST

AUX IN

RECALL

TV/RADIO

TV/SAT

EXIT

VOLVOL

SLEEP

LIST

HELP

Accessories of the Unit

Your dish should be properly installed and azimuth and elevation must be precisely set up.

This unit is working with DiSEqC 1.2 on a compatible antenna positioner.

Ask your dealer for information.

Check points before Use

Power : To switch the receiver in “standby” mode or in power on mode.

Remote Sensor : Receives the infrared signal from remote control.

Channel Display(4 Digit)

- When you connect the power line of the receiver, the current time is displayed.

- After programming, the program number is displayed.

Menu : To launch or terminate the menu application.

Select : To activate a highlighted item or go to next level on hypertext menu or confirm the user’s

action.

- Vol. /: To adjust the volume level or change the value of an item with preprogrammed

values. The Key can be used as a backspace to cancel the numerical

input.

- CH. /: To change channel or cursor position on the application screen.

Remote Control indication light : Flashes orange when receiving data from remote control.

TV/Sat. mode Indication lamp light : Turn on green while receiving the signals from terrestrial

UHF/VHF antenna.

Standby/Power on Indication light : Turn on red while in the “standby” mode and turn off the red

light while in the power on mode.

4620

Controls/Functions

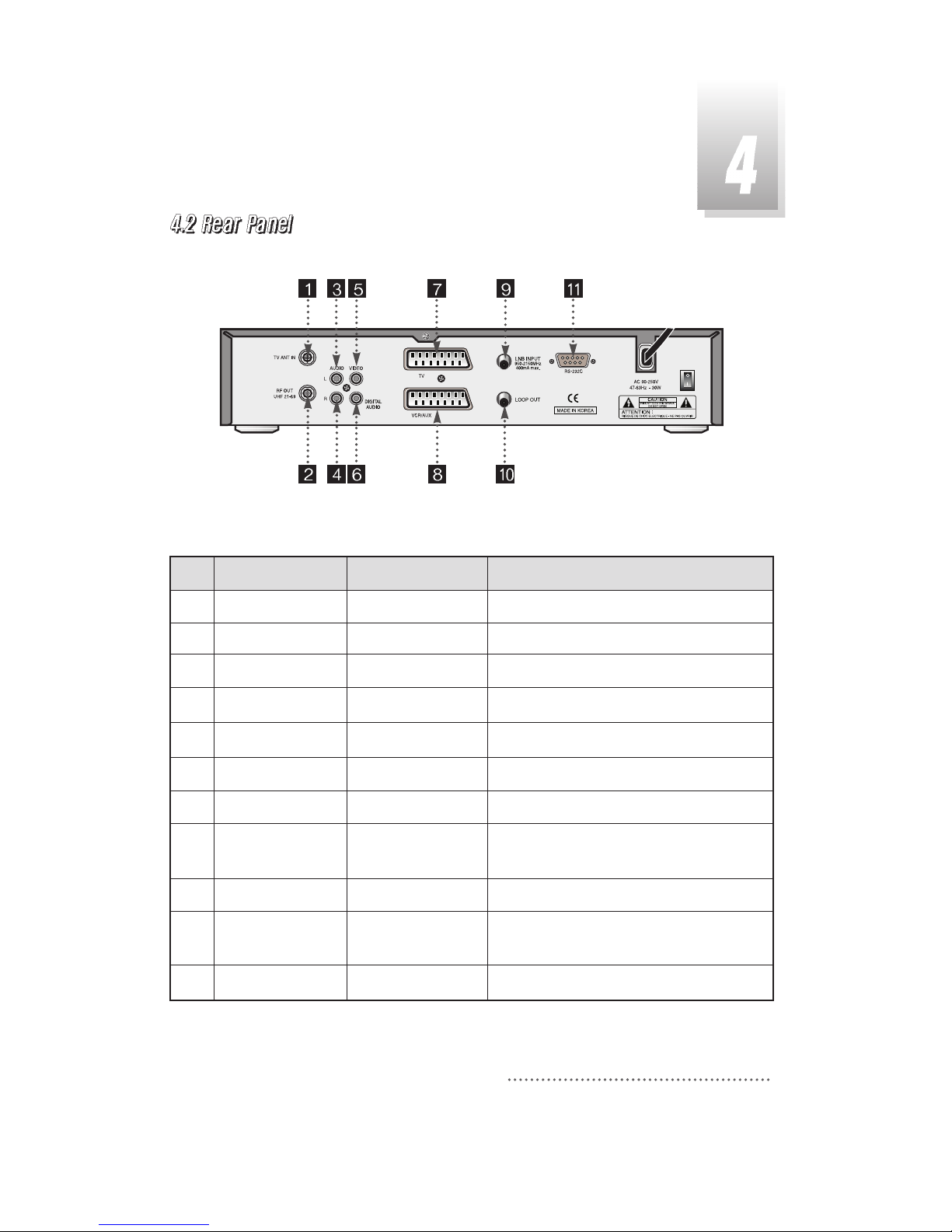

No.

Name

TV ANT IN

RF OUT UHF 21-69

AUDIO L

AUDIO R

VIDEO

Digital Audio

TV SCART

VCR/AUX SCART

LNB INPUT

LOOP OUT

RS-232C

Connector

IEC 169-2 female

IEC 169-2 male

RCA cinch

SCART

IEC 169-24 female

DB-9

Function

Input from terrestrial antenna.

Output to TV.

Left audio output.

Right audio output.

Composite video output

Digital Audio Output

SCART output to TV

SCART output to VCR, analog receiver

or Hi-Fi.

IF input from LNB to digital tuner.

IF loop-through output from digital

tuner.

Low speed serial port

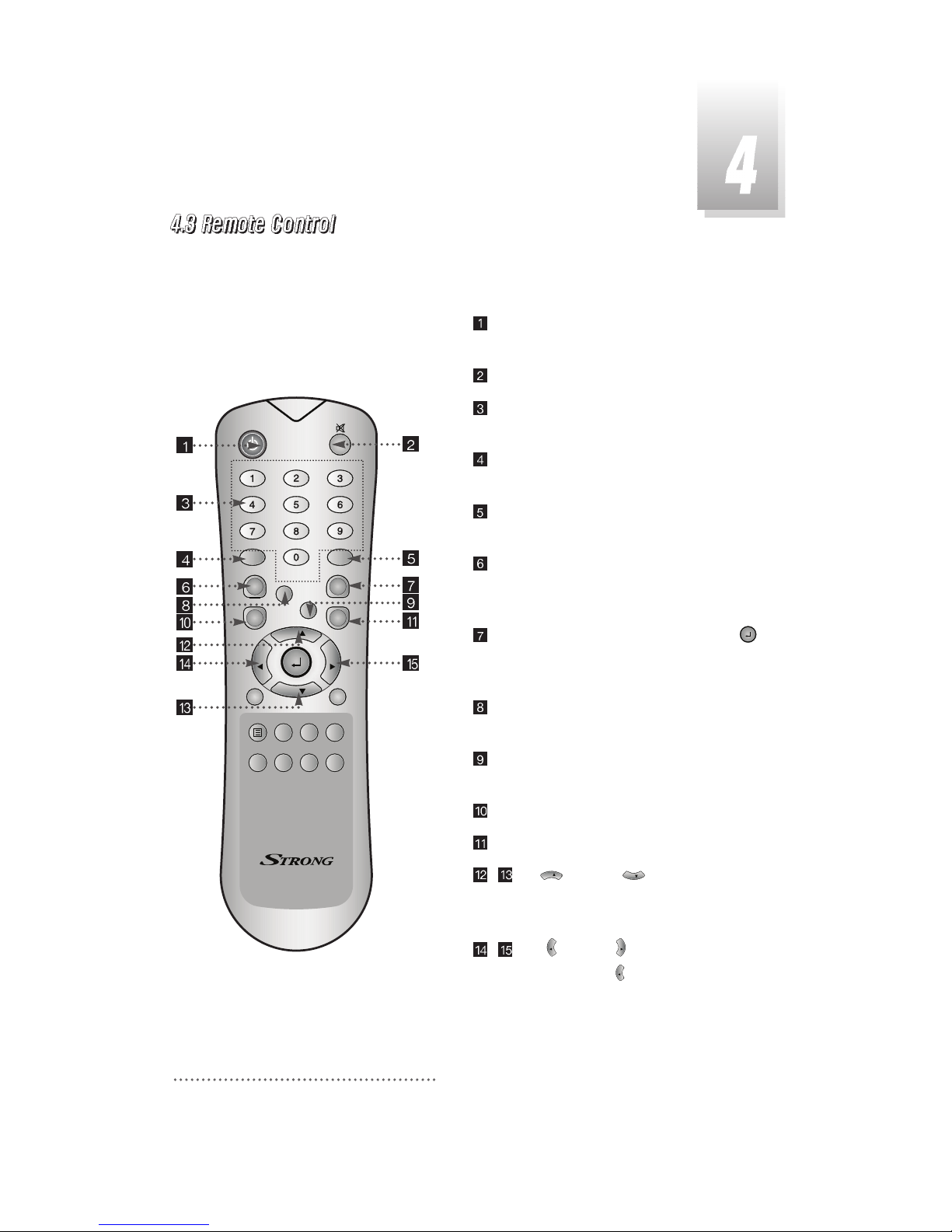

POWER :To switch into ‘standby’ or ‘power on’

mode.

MUTE : To turn the sound on/off.

Numeric Keys(0-9) : To select channels and

input of channel numbers or characters.

INFO. :To display the information of the current

channel.

AUDIO :To change the audio track, stereo-

mono mode.

GUIDE : (EPG : Electronic Program Guide)

To watch program information. Press once

more to return to normal mode.

CH LIST :To watch the channel list. Press

to confirm or press EXIT to return to previous

chosen channel.

AUX IN : To select the output mode of scart

connector.

RECALL :To return to the previous chosen

channel.

MENU : To enter/exit the main menu.

EXIT :To return to previous status or menu.

-Up & Down : To change the

value of a selected item with preprogrammed

values in menu.

-Left & Right : To move the cursor up

and down in menu. can be used as a

backspace to cancel the numerical input.

VOL

QZ-

ABC DEF

GHI JKL MNO

PRS TUV WXY

INFO

AUDIO

GUIDE

CH.LIST

AUX IN

RECALL

TV/RADIO

TV/SAT

EXIT

VOLVOL

SLEEP

LIST

HELP

QZ-

ABC DEF

GHI JKL MNO

PRS TUV WXY

INFO

AUDIO

GUIDE

CH.LIST

AUX IN

RECALL

TV/RADIO

TV/SAT

EXIT

VOLVOL

SLEEP

LIST

HELP

ENTER : To select an item or to confirm a

menu. Pause function.

TV/RADIO :To switch between the TV and radio

channels.

TV/SAT :To toggle the TV output source

between the satellite input and UHF/VHF

antenna input.

SLEEP : To switch off the receiver automatically

after between 30 and 150 minutes.

HELP :To display the information of the current

menu.

BLUE : To delete a channel from the Channel

List menu. To show extended program

information in the EPG menu. To see Teletext

Service Data.

WHITE : To add a new channel to the Channel

List menu.

ORANGE :To see variant channel lists for user's

convenience in the Channel List menu.

RED :To setup favorite channel lists in the

Channel List menu.

GREEN : To lock channel in the Channel List

menu. To show current/next program

information in the EPG menu.

YELLOW : To move a channel to other position

in the Channel List menu. To show program

schedule information in the EPG menu.
