Strong SRT 51 Manuel utilisateur

Table of Contents

1. Features and Accessories.........................................................................................2

2. Connection ................................................................................................................3

3. Remote Control .........................................................................................................3

4. First Time Installation ................................................................................................4

5. Main Functions..........................................................................................................5

5.1 Menu Structure ......................................................................................................5

5.2 Main Menu.............................................................................................................5

5.3 Program List ..........................................................................................................6

5.4 Program Search ....................................................................................................6

5.5 Parental Control.....................................................................................................7

5.6 System setting .......................................................................................................8

5.7 Game................................................................................................................... 11

5.8 Accessory ............................................................................................................ 11

5.9 Personal Style......................................................................................................12

5.10 Timer ...................................................................................................................12

6. Technical Specifications ..........................................................................................13

A.1 Trouble shooting .....................................................................................................14

A.2 Default PIN-Code ....................................................................................................14

A.3 Environmental Conditions .......................................................................................15

ENGLISH

Thank you for purchasing this STRONG Digital Terrestrial Receiver SRT 51. This SCART

built-in Receiver is one of our latest developments and it is designed to be capable of safely

install to your TV and to achieve its optimum performance. It is advised that first-time and

experienced users read this manual in order to safely install the unit.

1. Features and Accessories

• For all digital Free-To-Air TV and Radio programmes (with outdoor- or indoor*

antenna)

• Terrestrial Receiver for direct connection to TV SCART connector

• Remote Control operates receiver via Infrared Sensor Eye

• DVB-T compliant, UHF/ VHF Tuner.

• Set-up support for first time installation

• Quick and easy installation & user-friendly menu

• Excellent Audio- and Video quality

• Support of active antenna by 5 Voltage on antenna connector

• 1.000 channels memory capacity

• Favourite list for both TV and Radio programmes

• Parental lock function for menu and selectable per channel

• Support Teletext via receiver and TV remote control

• Electronic Programme Guide (EPG) for present / following event information and

up to 7 days for on screen programme information

• Multi-lingual subtitling and audio track support

• Multilingual OSD on screen display menu

• Low power consumption

• Automatic and manual channel scan options

• Advanced timer function

• Mosaic function: 9 TV Channels in overview

• High speed channel zapping

• Games (Mine, Tetris, Gomoku)

• Calendar

*subject to local signal conditions

Accessories:

User Manual

Remote Control

Infrared Eye

Antenna

Power Supply

2. Connection

Plug the IR connector into the SRT 51 and make sure it is properly connected. After

connecting the power adapter to the main power the IR eye LED must light, otherwise the

Remote Control will not react.

Connect the antenna to the SRT 51 and plug it into your TV set, DVD/Video recorder or a

further receiver, which is connected to your TV set.

3. Remote Control

Turns the receiver On/Standby.

MUTE Mutes audio output of the receiver.

JUMP Switch between last and current channels.

0 ~ 9 Channel selection

VOL+ / VOL- Increase/decrease volume level

CH+ / CH- Channel up and down

Ÿź Menu Off: Change the current program to the previous/next program.

Menu On: Moves the cursor up/down

ŻŹ Menu Off: Increases/decreases the volume level

Menu On: Moves the cursor left/right

OK Activates the highlighted menu item. Displays a channel list according

to TV /Radio Mode

INFO Shows information on current channel

MENU Opens the main menu

EXIT Exits from the menu or sub-menu and cancels the progressing function

FAV Shows Favourite List

FAV +/- Up/Down in Favourite List in TV modus

SUB Shows the list of subtitled languages currently supported by channel

TEXT Shows current service’s Teletext

AUDIO Shows the list of available audio languages for the channel you are watching.

In addition it sets the current channel audio to stereo, left-mono or right-mono.

ENGLISH

EPG Shows the EPG (Electronic Program Guide)

MODE Switch between TV or RADIO

MOSAIC shows pictures of 9 channels on the screen simultaneously

PAUSE Freeze/Resume picture

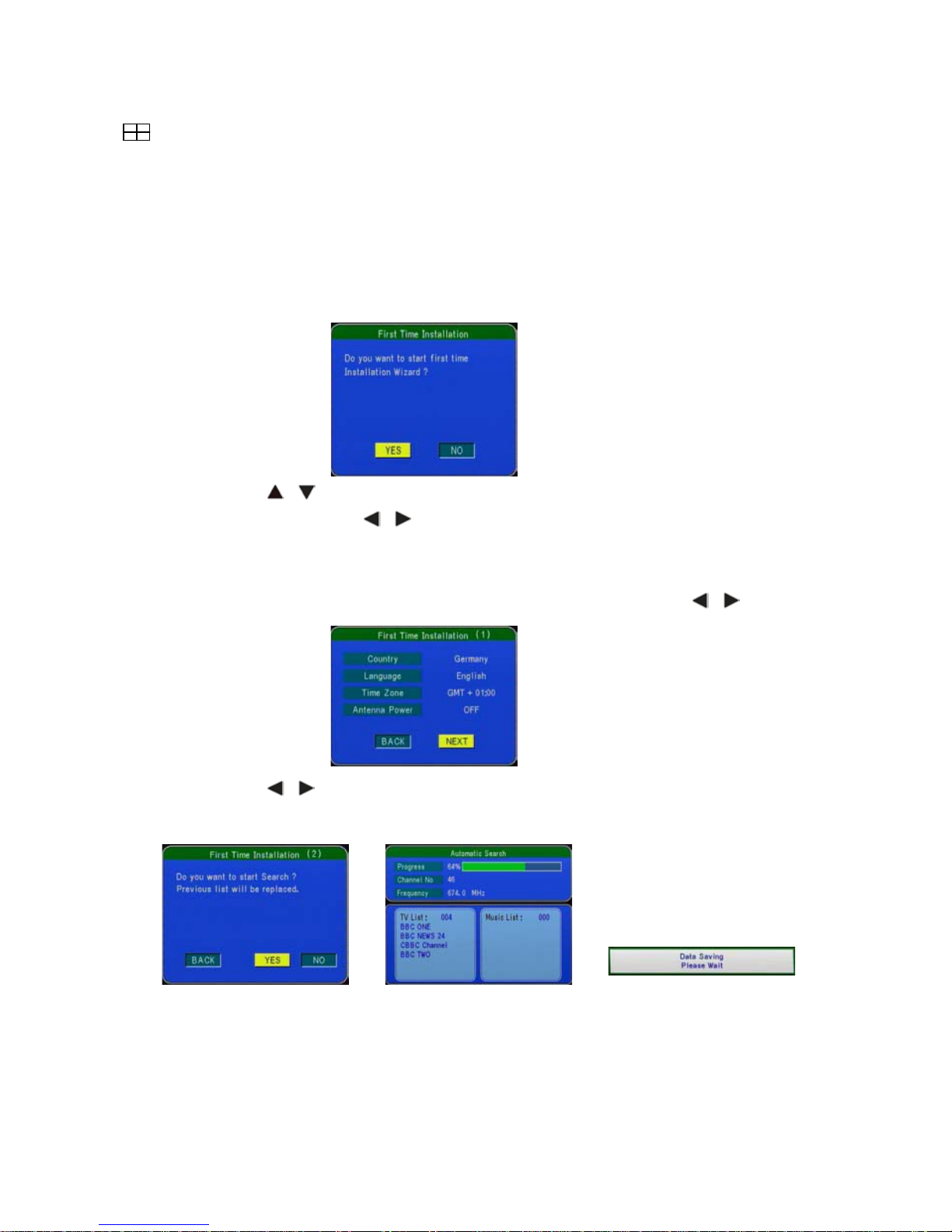

4. First Time Installation

You need to install the channels when you use the Digital SCART SRT 51 the first time.

1.You will see the “First Time Installation” window when you turn on the receiver.

Please press YES to continue.

2.Please use / arrow buttons to select the settings (Country, Language, Time Zone

and Antenna Power). Use / arrow buttons to adjust these settings and click “NEXT”

to continue.

Scroll down to “Antenna Power”by pressing Ÿź. If you are using an active antenna,

which needs to be powered by the receiver, select “ON”by pressing / .

3. Please use / arrow buttons and press “YES” to continue, the system will search

the channel and save the data automatically.

5. Main Functions

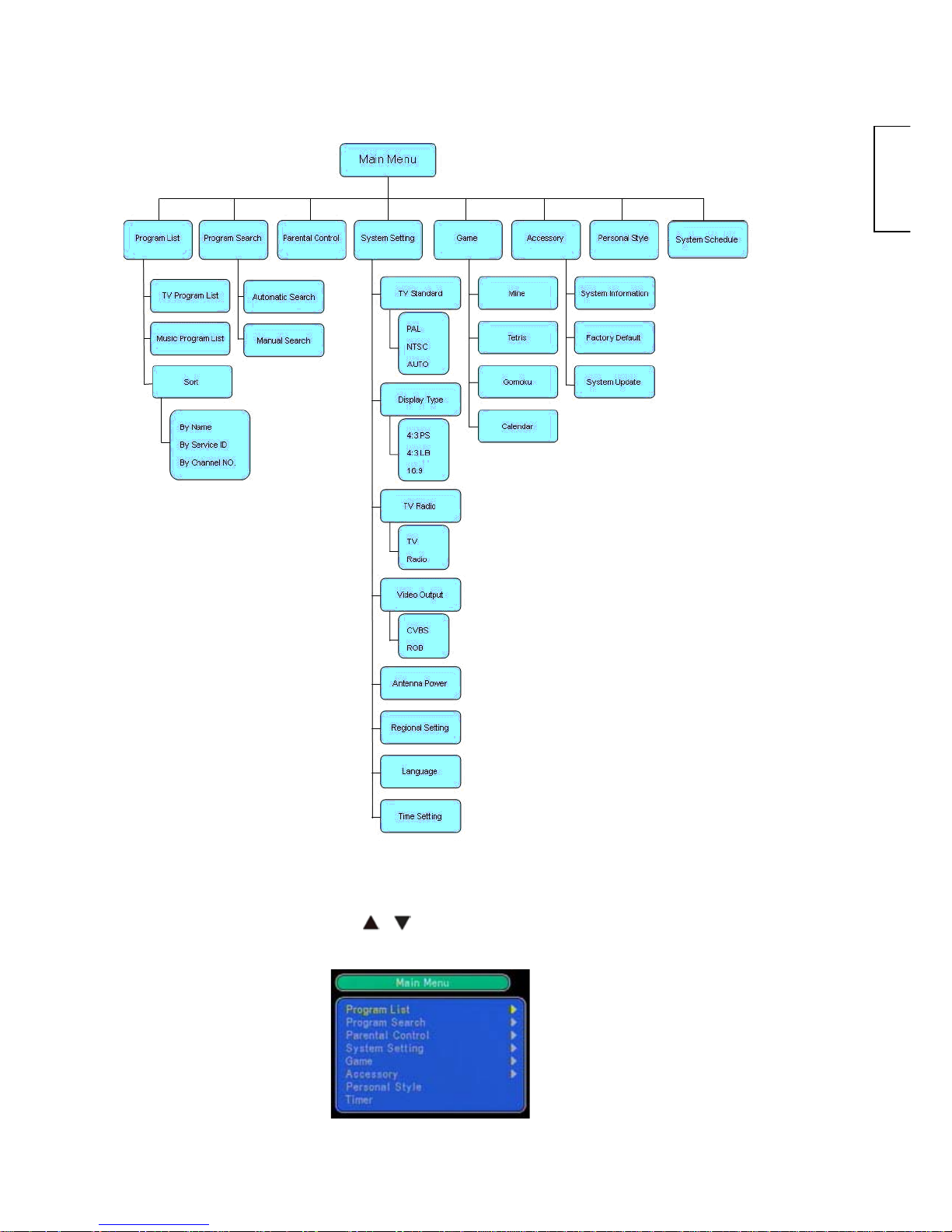

5.1 Menu Structure

Diagram 1

5.2 Main Menu

Press “MENU” button and use / arrow buttons to select the menu item. Press button

“OK” to enter or press button “EXIT” to quit menu.

Diagram 2

ENGLISH

5.3 Program List

The program list may appear too complex for you or contains channels you are not

interested in. This function provides an option for editing the program list.

Press “MENU” button and use / arrow buttons to choose the “Program List” (see

Diagram 2). Press “OK” button. You will see three submenus which are TV Program List,

Music Program List, and Sort.

Use / arrow buttons to select the submenu. Press “OK” button to enter or press button

“EXIT” to go back to previous menu.

Diagram 3

TV Program List / Music Program List:

You will see the “Program edit table” window when you enter TV Program List or

Music Program List submenu (see Diagram 4). You can edit your favourite program

list. Please use these functions: Fav., Mov. and Del. to edit the program table. Please

use / arrow buttons to choose the channel, and press “OK” button to confirm

(see Diagram 5).

Diagram 4 Diagram 5

Sort: There are three submenus: By Name, By Service ID, and By Channel No . Please

use / arrow buttons for selecting and use “OK” to confirm (see Diagram 6).

Diagram 6

5.4 Program Search

There are two submenus: Automatic Search and Manual Search.

Press “MENU” button and use / arrow buttons to choose “Program Search” (see

Diagram 2).

Note: If Channel Lock is set to “YES” in Parental Control, you will be asked for entering the

Parental PIN. The default PIN is “0000”.

Press ”OK” button, you will see the two submenus which are Automatic Search and Manual

Search (see Diagram 7).Please use / arrow buttons to select submenu then press “OK”

button to enter.

Diagram 7

Automatic Search: You will be asked “Do you want to start search?”. Choose “OK“.

Choose “YES” for “Do you want to erase your previous channel list?” and the system will

search the local program automatically (see Diagram 8-10). Please use / arrow buttons

to set this function and press “OK” to confirm. You can cancel the search process by

pressing the “EXIT” button. All found channels will be stored. The receiver will switch

automatically to the first found channel.

Diagram 8

Diagram 9

Diagram 10

Manual Search: You can use “Manual Search” function to search specific channels or

frequency. Use / arrow buttons to select channel No. and press “OK” button to confirm.

(see Diagram 11)

Diagram 11

5.5 Parental Control

The parental control gives the possibility to lock channels and access to some menu steps

by using a PIN code. The default PIN is “0000”. Please click “Yes” in “Channel Lock”

submenu before you perform parental setting. Then choose the channels which you want to

lock. (See Diagram 12-15).

ENGLISH

Diagram 12

Diagram 13

Diagram 14

Diagram 15

If you want to change the default PIN code (0000) enter Change PIN menu.

Enter first old PIN and 2 x times the new PIN code. (See Diagram 16-17).

Please, note here new PIN : …………………………………………

Diagram 16

Diagram 17

5.6 System setting

There are eight submenus: TV Standard, Display Type, TV Radio, Video Output, Antenna

Power, Regional Setting, Language and Time Setting.

Press “MENU” button and use / arrow buttons to choose “System Setting” (see

Diagram 2). You will see the following submenus: TV Standard, Display Type, TV Radio,

Video Output, Antenna Power, Regional Setting, Language and Time Setting (see Diagram

18). Please use / arrow buttons to select submenu then press “OK” to enter.

Diagram 18

TV Standard: Please use / arrow buttons to choose “PAL”, “NTSC” or “AUTO”, and

press “OK” to confirm.

Diagram 19

Display Type: Use / arrow buttons to select the desired screen format, and press “OK”

to confirm.

Diagram 20

TV Radio: Please use / arrow buttons to choose “TV” or “RADIO”, and press “OK” to

confirm.

Diagram 21

Video Output: Please use / arrow buttons to choose “CVBS” or “RGB”, and press “OK”

to confirm.

Diagram 22

Antenna Power: Please use / arrow buttons to choose “ON” or “OFF” (the factory

default = OFF), and press “OK” to confirm. If you use active antenna, please choose “ON”.

Diagram 23

Regional Setting: Please use / arrow buttons to choose the setting you want to change:

Country, OSD Language (on-screen display), and Time Zone. Please use / arrow

buttons to adjust, then press “OK” to confirm.

ENGLISH
